Description
S5735-S48T4X overview
S5735-S48T4X is the Huawei S5735-S switch with 48 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports. Huawei CloudEngine S5735-S is a series of standard gigabit access switches that provide 24–48 flexible all-GE downlink ports and four fixed 10 GE uplink ports. They are designed for enterprise campus network access and aggregation, as well as data center access. Built on next-generation, high-performance hardware and with the Huawei Versatile Routing Platform (VRP), CloudEngine S5735-S switches boast advanced features, such as enhanced Layer 3 functionality, simplified O&M, flexible Ethernet networking, and mature IPv6 capabilities.
Telecomate.com provides a full range of Huawei switch series, if you have any demands, please contact: csd@telecomate.com
S5735-S48T4X quick specs
48 10/100/1000BASE-T ports, 4 10 GE SFP+ ports,
Forwarding performance is 132 Mpps
Switching capacity is 176 Gbps/432 Gbps

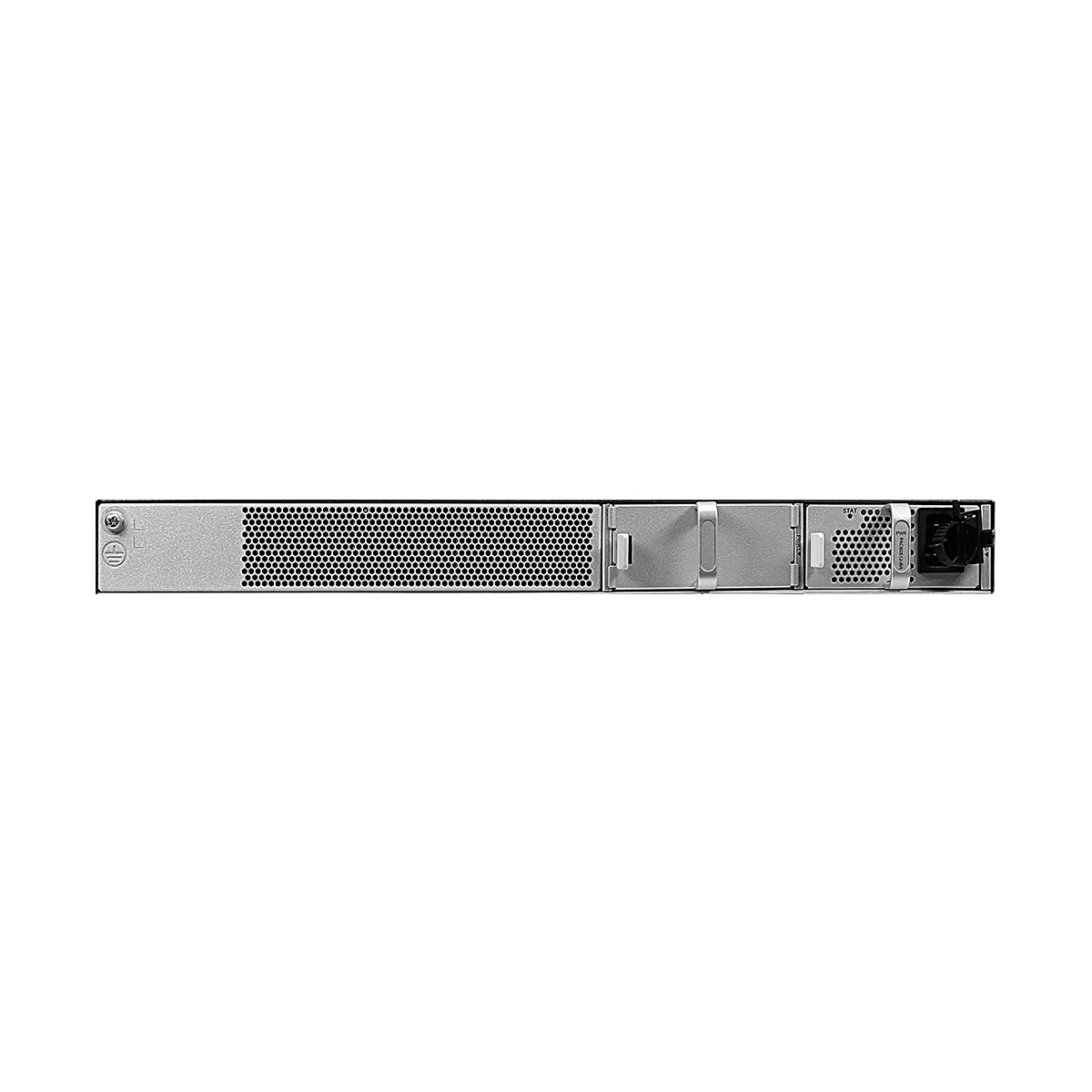

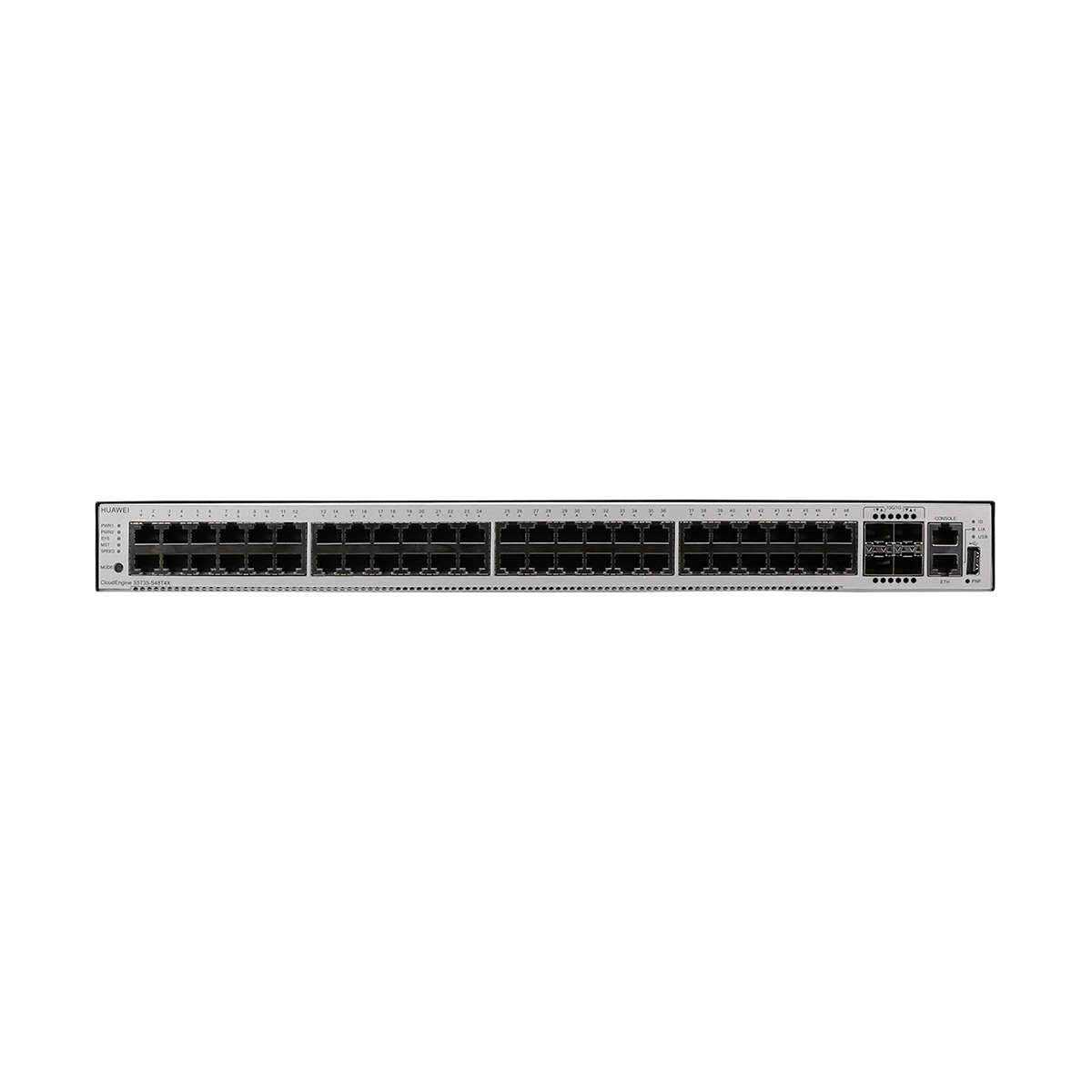

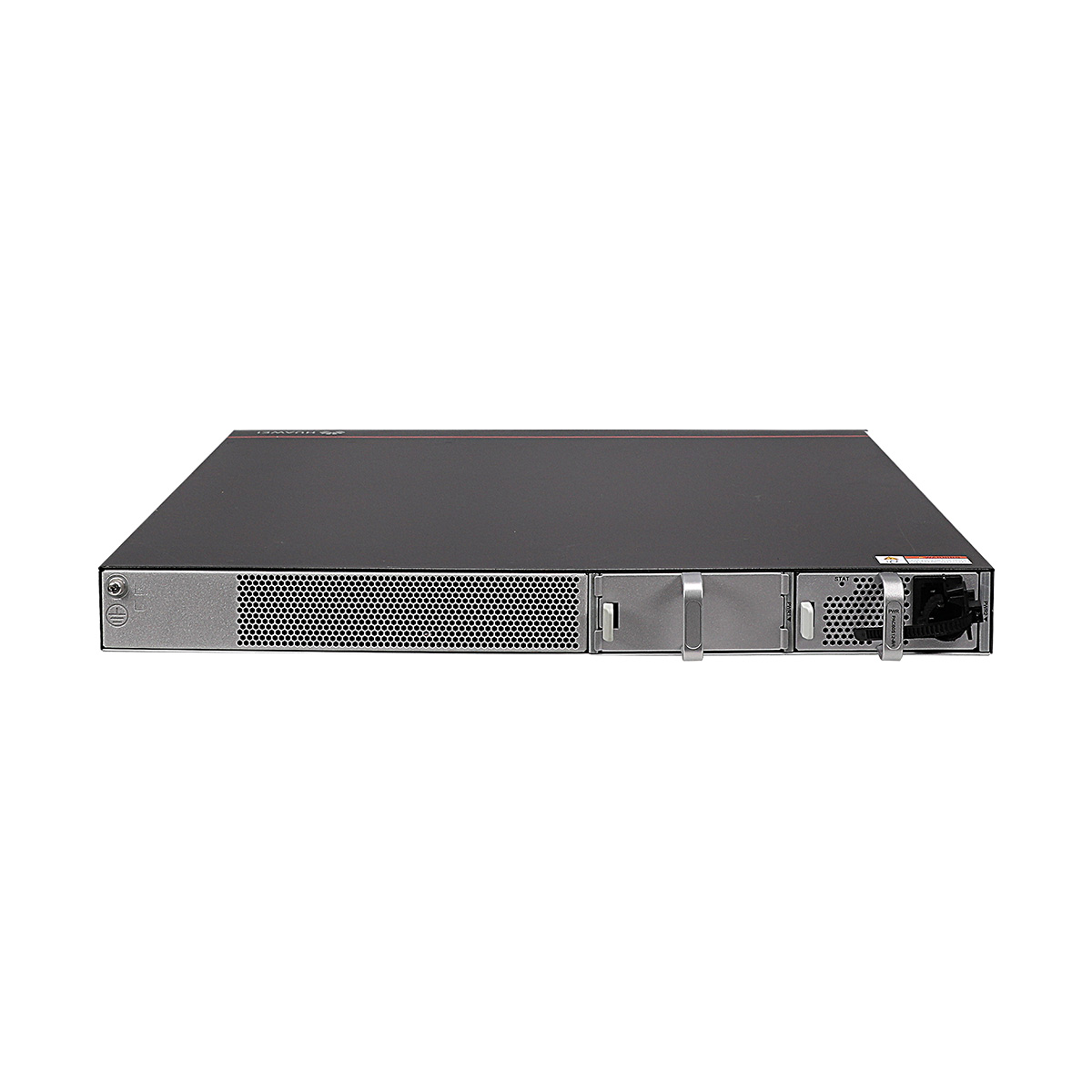

S5735-S48T4X appearance and structure
| 1 | Forty-eight 100/1000BASE-T ports | 6 | One PNP button |
| 2 | Four 10GE SFP+ ports | 7 | Ground screw |
| 3 | One console port | 8 | Power module slot 1 |
| 4 | One ETH management port | 9 | Power module slot 2 |
| 5 | One USB port |
