Huawei S5735-S48S4X switch supports 48 GE SFP ports, 4 10GE SFP+ ports, without power supply equipped

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

S5735-S48S4X overview

S5735-S48S4X is the Huawei S5735-S switch with 48 x GE SFP ports, 4 x 10 GE SFP+ ports. Huawei CloudEngine S5735-S is a series of standard gigabit access switches that provide 24–48 flexible all-GE downlink ports and four fixed 10 GE uplink ports. They are designed for enterprise campus network access and aggregation, as well as data center access. Built on next-generation, high-performance hardware and with the Huawei Versatile Routing Platform (VRP), CloudEngine S5735-S switches boast advanced features, such as enhanced Layer 3 functionality, simplified O&M, flexible Ethernet networking, and mature IPv6 capabilities.

Telecomate.com provides a full range of Huawei switch series, if you have any demands, please contact: csd@telecomate.com



S5735-S48S4X quick specs

48 GE SFP ports, 4 10 GE SFP+ ports

Forwarding performance is 132 Mpps

Switching capacity is 176 Gbps/432 Gbps

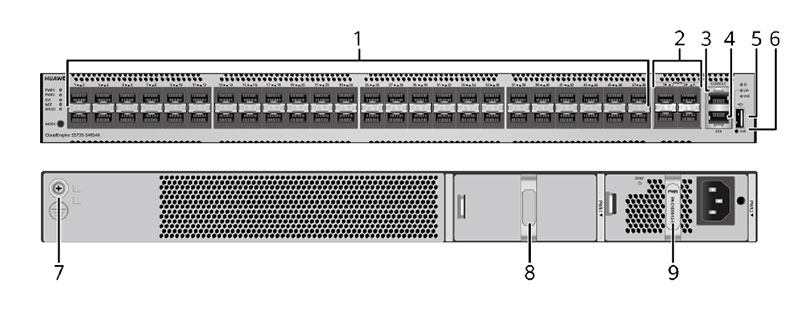

S5735-S48S4X appearance and structure

S5735-S48S4X

1 Forty-eight 100/1000BASE-X ports

eSFP-GE-SX-MM850 eSFP-GE-ZX100-SM1550 LE2MGSC40DE0

 6 One PNP button
2 Four 10GE SFP+ ports

OMXD30000 OSX010000 OSX040N01 SFP-10G-ZR SFP-10G-USR

 7 Ground screw
3 One console port 8 Power module slot 1
4 One ETH management port  9 Power module slot 2
5 One USB port
Item  S5735-S48S4X
Fixed port 48 GE SFP ports
4 10GE SFP+ ports
Forwarding performance 132 Mpps
Switching capacity 176 Gbps/432 Gbp
Management port ETH management port Supported
Console port (RJ45) Supported
USB port USB 2.0
CPU Frequency 1000 MHz
Core 4
Storage Memory (RAM) 1 GB
Flash memory Hardware: 512MB, of which 306MB is available for users
Power supply system Power supply type 150 W AC 1000 W DC
Power supply redundancy 1+1 NOTE: the backup power supply is optional.
Rated voltage range AC input (150 W AC ): 100 V AC to 240 V AC, 50/60 Hz
DC input (1000 W DC): - 48 VDC to -60 V DC
Maximum voltage range AC input (150 W AC ): 90 V AC to 264 V AC, 47 Hz to 63 Hz
DC input (1000 W DC): - 36 V DC to -72V DC
Maximum input current 150 W AC: 3 A 1000 W DC: 30 A
Maximum power consumption of the device 89 W
Power consumption in the case of 30% traffic load1 67 W
Power consumption in the case of 100% traffic load1 71 W
Reliability MTBF (year)2 66.33
MTTR (hour) 1.81
Availability > 0.99999
Physical specifications Dimensions (H x W x D) 43.6 mm x 442 mm x 420mm
Chassis height 1 U
Chassis weight (including packaging) 8.27 kg

Additional information

Weight 15.0000 kg
Dimensions 42.0000 × 44.2000 × 4.3600 cm
Brand

Huawei
Campus Switch

Lead Time

3-5 days
Ship From

Shenzhen Warehouse
Item  S5735-S48S4X
Fixed port 48 GE SFP ports
4 10GE SFP+ ports
Forwarding performance 132 Mpps
Switching capacity 176 Gbps/432 Gbp
Management port ETH management port Supported
Console port (RJ45) Supported
USB port USB 2.0
CPU Frequency 1000 MHz
Core 4
Storage Memory (RAM) 1 GB
Flash memory Hardware: 512MB, of which 306MB is available for users
Power supply system Power supply type 150 W AC 1000 W DC
Power supply redundancy 1+1 NOTE: the backup power supply is optional.
Rated voltage range AC input (150 W AC ): 100 V AC to 240 V AC, 50/60 Hz
DC input (1000 W DC): - 48 VDC to -60 V DC
Maximum voltage range AC input (150 W AC ): 90 V AC to 264 V AC, 47 Hz to 63 Hz
DC input (1000 W DC): - 36 V DC to -72V DC
Maximum input current 150 W AC: 3 A 1000 W DC: 30 A
Maximum power consumption of the device 89 W
Power consumption in the case of 30% traffic load1 67 W
Power consumption in the case of 100% traffic load1 71 W
Reliability MTBF (year)2 66.33
MTTR (hour) 1.81
Availability > 0.99999
Physical specifications Dimensions (H x W x D) 43.6 mm x 442 mm x 420mm
Chassis height 1 U
Chassis weight (including packaging) 8.27 kg
