Description
S5735-S32ST4X overview
S5735-S32ST4X is the Huawei S5735-S switch with 24 GE SFP ports, 8 10/100/1000BASE-T ports, and 4 10 GE SFP+ ports. Huawei CloudEngine S5735-S is a series of standard gigabit access switches that provide 24–48 flexible all-GE downlink ports and four fixed 10 GE uplink ports. They are designed for enterprise campus network access and aggregation, as well as data center access. Built on next-generation, high-performance hardware and with the Huawei Versatile Routing Platform (VRP), CloudEngine S5735-S switches boast advanced features, such as enhanced Layer 3 functionality, simplified O&M, flexible Ethernet networking, and mature IPv6 capabilities.
Telecomate.com provides a full range of Huawei switches, optical modules, and extension boards, if you have more demands, please get in touch with csd@telecomate.com.
S5735-S32ST4X quick specs
24 GE SFP ports, 8 10/100/1000BASE-T ports, 4 10 GE SFP+ ports
Forwarding performance is 108Mpps
Switching capacity is 144Gbps

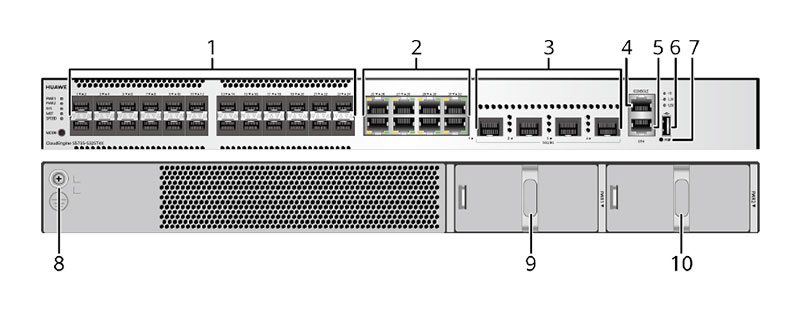

S5735-S32ST4X appearance and structure
| 1. Twenty-four 10/100/1000BASE-X ports | 6. One USB port |
| 2. Eight 10/100/1000BASE-T ports | 7. One PNP button |
| 3. Four 10GE SFP+ ports | 8. Ground screw |
| 4. One console port | 9. Power module slot 1 |
| 5. One ETH management port | 10. Power module slot 2 |
