Huawei S5735-S24T4X switch with 24 10/100/1000BASE-T ports, 4 10GE SFP+ ports, without power supply equipped

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

S5735-S24T4X overview

S5735-S24T4X is the Huawei S5735-S switch with 24 x 10/100/1000BASE-T ports and 4 x 10 GE SFP+ ports. Huawei CloudEngine S5735-S is a series of standard gigabit access switches that provide 24–48 flexible all-GE downlink ports and four fixed 10 GE uplink ports. They are designed for enterprise campus network access and aggregation, as well as data center access. Built on next-generation, high-performance hardware and with the Huawei Versatile Routing Platform (VRP), CloudEngine S5735-S switches boast advanced features, such as enhanced Layer 3 functionality, simplified O&M, flexible Ethernet networking, and mature IPv6 capabilities.

Telecomate.com provides a full range of Huawei switch series, if you have any demands, please contact: csd@telecomate.com



S5735-S24T4X quick specs

24 10/100/1000BASE-T ports, 4 10 GE SFP+ ports

Forwarding performance is 95.2  Mpps

Switching capacity is 128 Gbps/336 Gbps

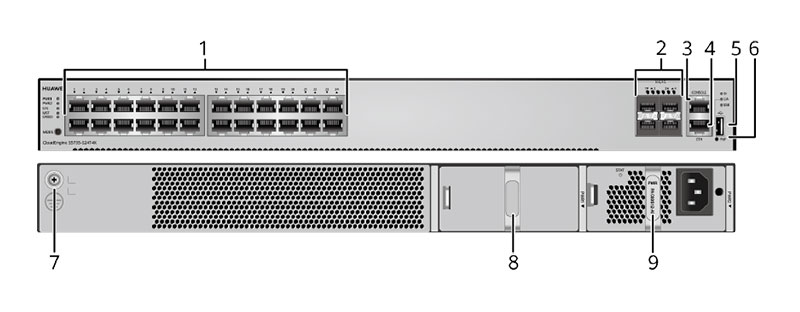

S5735-S24T4X appearance and structure

S5735-S24T4X

1 Twenty-four 10/100/1000BASE-T ports 6 One PNP button
2 Four 10GE SFP+ ports

OMXD30000 OSX010000 OSX040N01 SFP-10G-ZR SFP-10G-USR

 7 Ground screw
3 One console port 8 Power module slot 1
4 One ETH management port  9 Power module slot 2
5 One USB port
Item  S5735-S24T4X
Fixed port 24 10/100/1000BASE-T ports
4 10GE SFP+ ports
Forwarding performance  96 Mpps
Switching capacity 128 Gbps/336 Gbp
Management port ETH management port Supported
Console port (RJ45) Supported
USB port USB 2.0
CPU Frequency 1000 MHz
Core 4
Storage Memory (RAM) 1 GB
Flash memory Hardware: 512MB, of which 306MB is available for users
Power supply system Power supply type 60 W AC 1000 W DC
Power supply redundancy 1+1 NOTE: the backup power supply is optional.
Rated voltage range AC input (60 W AC ): 100 V AC to 240 V AC, 50/60 Hz
DC input (1000 W DC): -48 VDC to -60 V DC
Maximum voltage range AC input (60 W AC ): 90 V AC to 264 V AC, 47 Hz to 63 Hz
High-voltage DC input (60 W AC): 190 V DC to 290 V DC
(meeting 24 V high-voltage DC certification)
DC input (1000 W DC): -36 V DC to -72V DC
Maximum input current 60 W AC: 2 A 1000 W DC: 30 A
Maximum power consumption of the device 46 W
Power consumption in the case of 30% traffic load1 31 W
Power consumption in the case of 100% traffic load1 35 W
Reliability MTBF (year)2 69.42
MTTR (hour) 1.73
Availability > 0.99999
Physical specifications Dimensions (H x W x D) 43.6 mm x 442 mm x 420 mm
Chassis height 1 U
Chassis weight (including packaging) 7.21 kg

Additional information

Weight 9.0000 kg
Dimensions 45.0000 × 45.0000 × 5.0000 cm
Brand

Huawei
Campus Switch

Lead Time

3-5 days
Ship From

Shenzhen Warehouse
Item  S5735-S24T4X
Fixed port 24 10/100/1000BASE-T ports
4 10GE SFP+ ports
Forwarding performance  96 Mpps
Switching capacity 128 Gbps/336 Gbp
Management port ETH management port Supported
Console port (RJ45) Supported
USB port USB 2.0
CPU Frequency 1000 MHz
Core 4
Storage Memory (RAM) 1 GB
Flash memory Hardware: 512MB, of which 306MB is available for users
Power supply system Power supply type 60 W AC 1000 W DC
Power supply redundancy 1+1 NOTE: the backup power supply is optional.
Rated voltage range AC input (60 W AC ): 100 V AC to 240 V AC, 50/60 Hz
DC input (1000 W DC): -48 VDC to -60 V DC
Maximum voltage range AC input (60 W AC ): 90 V AC to 264 V AC, 47 Hz to 63 Hz
High-voltage DC input (60 W AC): 190 V DC to 290 V DC
(meeting 24 V high-voltage DC certification)
DC input (1000 W DC): -36 V DC to -72V DC
Maximum input current 60 W AC: 2 A 1000 W DC: 30 A
Maximum power consumption of the device 46 W
Power consumption in the case of 30% traffic load1 31 W
Power consumption in the case of 100% traffic load1 35 W
Reliability MTBF (year)2 69.42
MTTR (hour) 1.73
Availability > 0.99999
Physical specifications Dimensions (H x W x D) 43.6 mm x 442 mm x 420 mm
Chassis height 1 U
Chassis weight (including packaging) 7.21 kg
