S5735-S24P4X

2 Reviews Write a review
PN98010940
AvailabilityIn Stock
WarrantyUp to 36 months i
×
Warranty Policy
We provide a comprehensive warranty policy.
Refer to the table for more details.

Original price was: $0.00.Current price is: $0.00.

Huawei S5735-S24P4X switch with 24 10/100/1000BASE-T ports, 4 10GE SFP+ ports, PoE+, without power supply equipped

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

S5735-S24P4X overview

S5735-S24P4X is the Huawei S5735-S switch with 24 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports, and PoE+. Huawei CloudEngine S5735-S is a series of standard gigabit access switches that provide 24–48 flexible all-GE downlink ports and four fixed 10 GE uplink ports. They are designed for enterprise campus network access and aggregation, as well as data center access. Built on next-generation, high-performance hardware and with the Huawei Versatile Routing Platform (VRP), CloudEngine S5735-S switches boast advanced features, such as enhanced Layer 3 functionality, simplified O&M, flexible Ethernet networking, and mature IPv6 capabilities.

Telecomate.com provides a full range of Huawei switch series, if you have any demands, please contact: csd@telecomate.com

S5735-S24P4X quick specs

24 10/100/1000BASE-T ports, 4 10 GE SFP+ ports

Forwarding performance is 96 Mpps

Switching capacity is 128 Gbps/336 Gbp

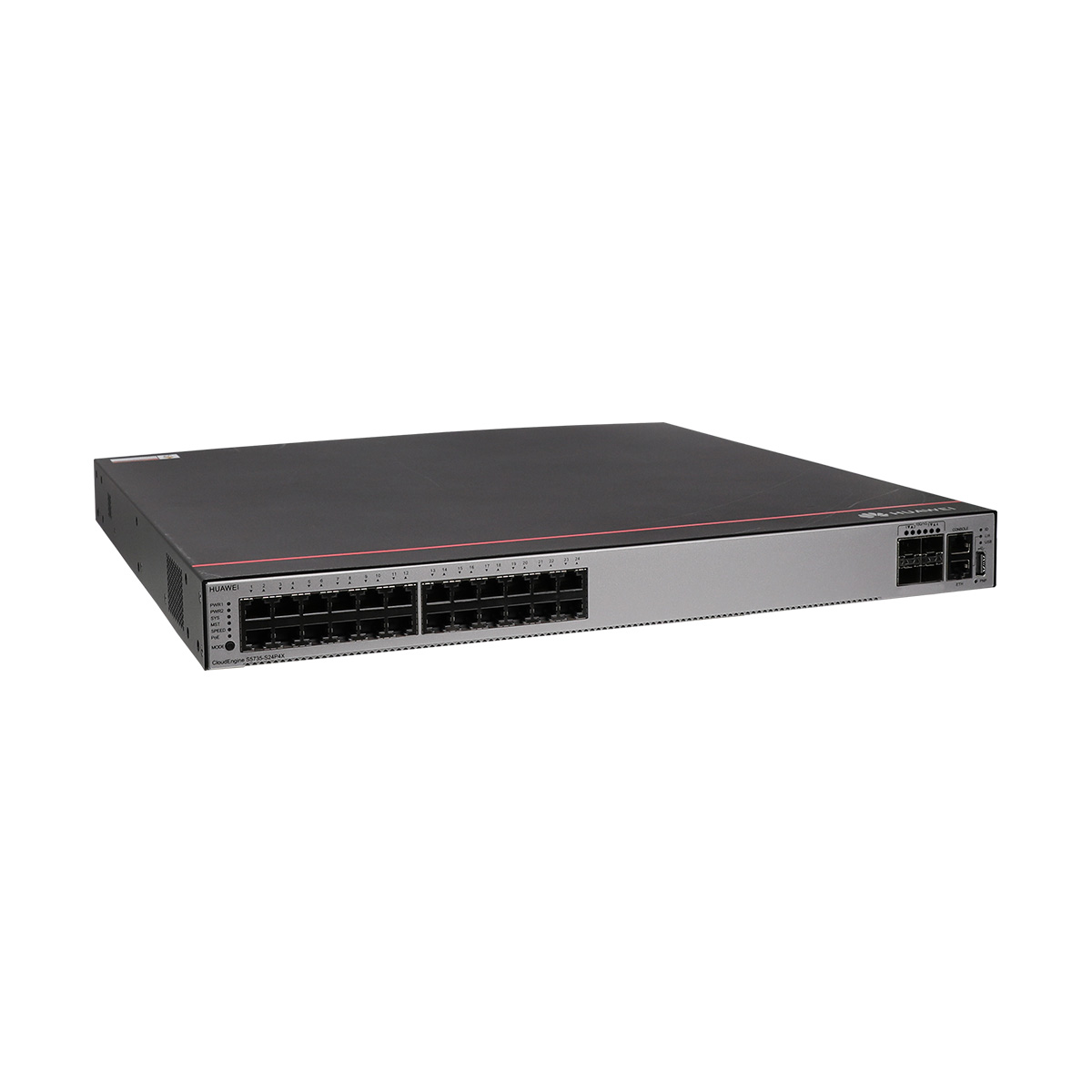

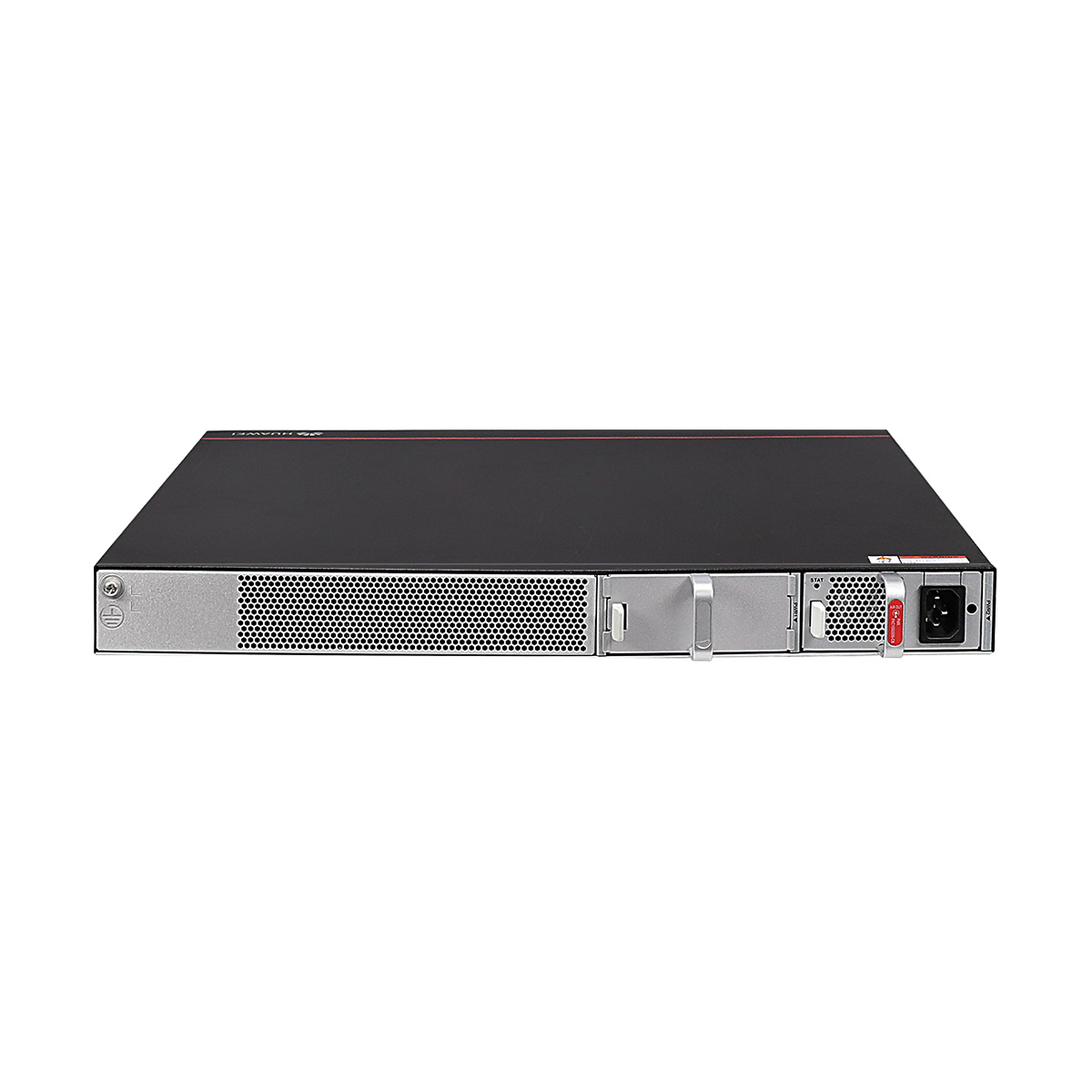

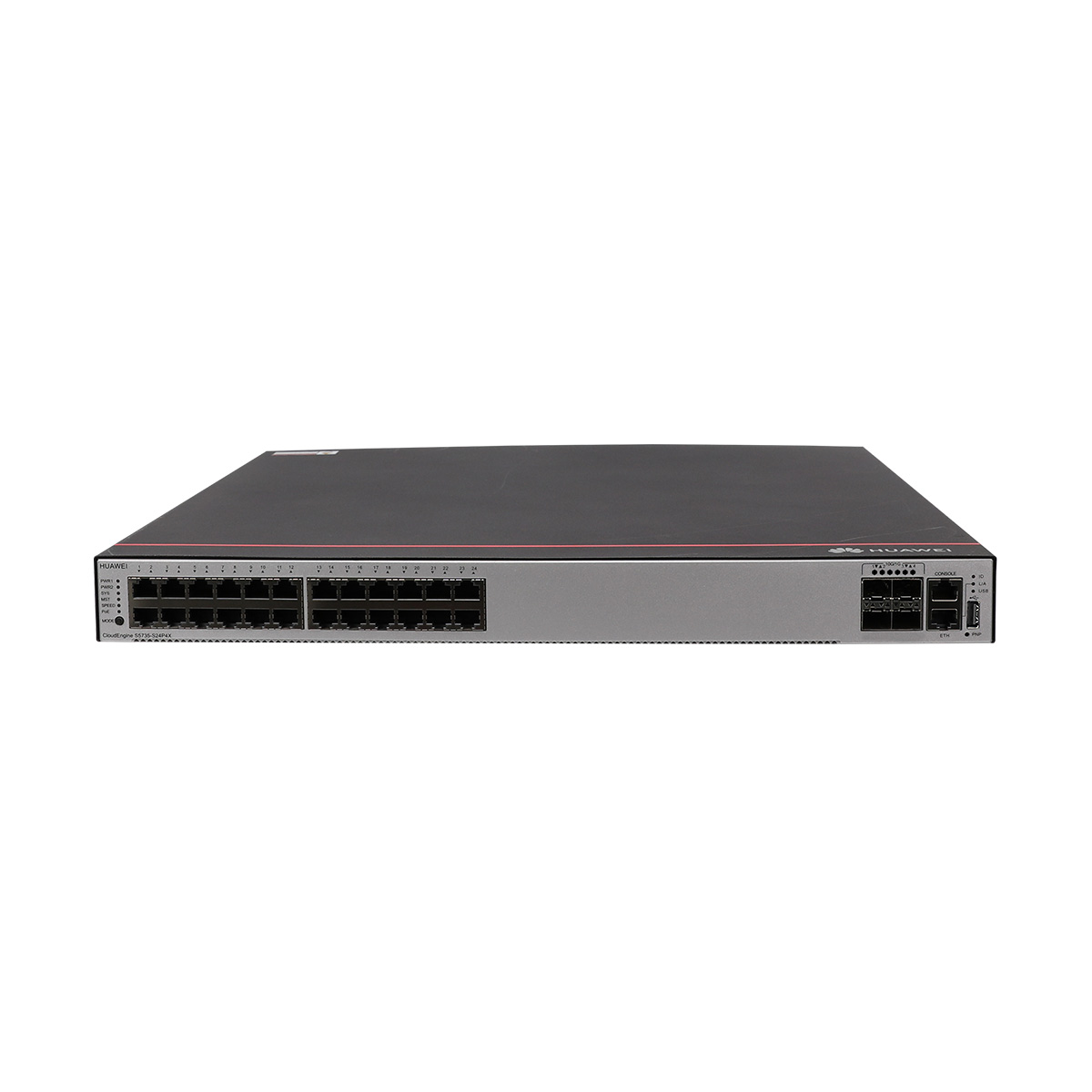

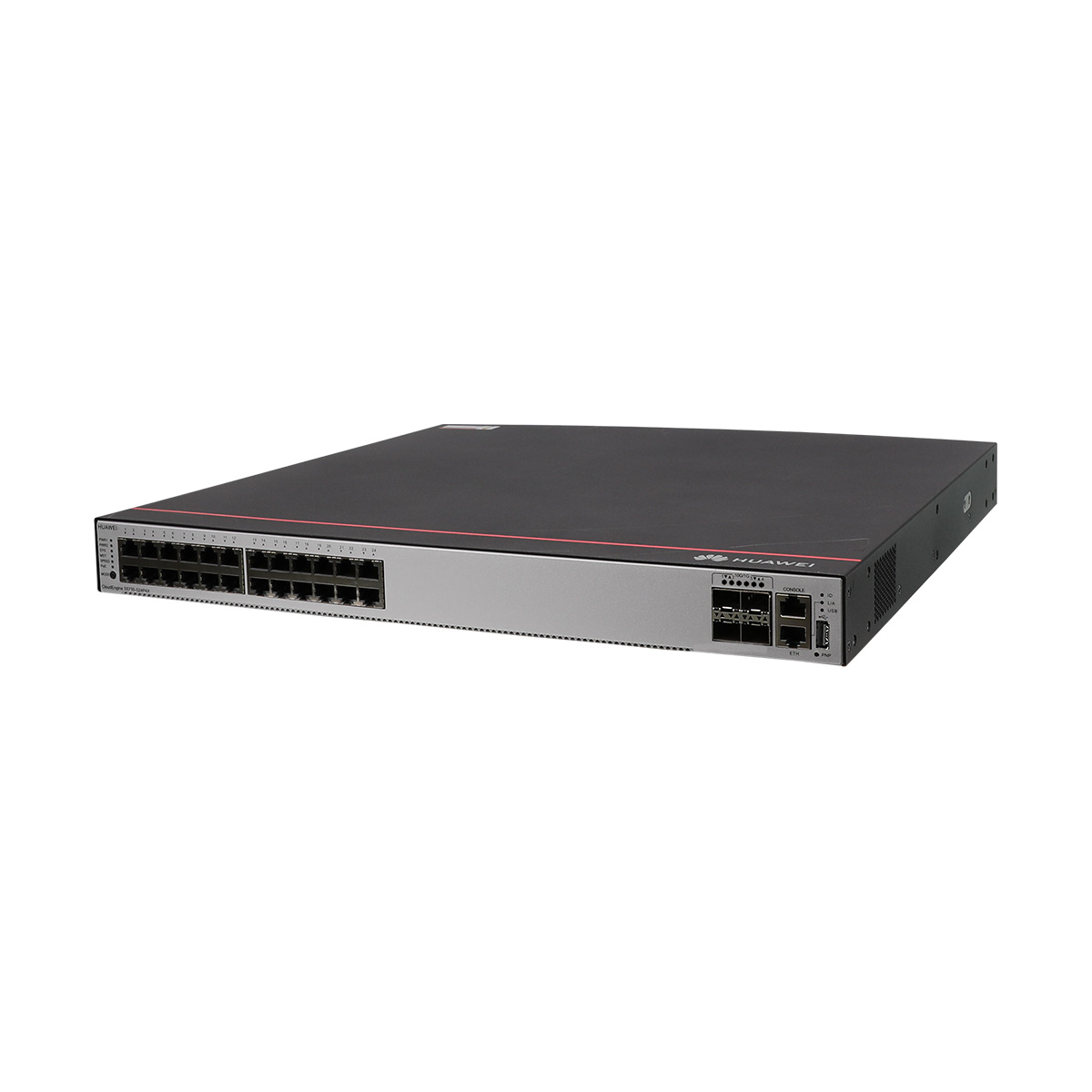

S5735-S24T4X appearance and structure

S5735-S24P4X

1 Twenty-four PoE+ 10/100/1000BASE-T ports 6 One PNP button
2 Four 10GE SFP+ ports

OMXD30000 OSX010000 OSX040N01 SFP-10G-ZR SFP-10G-USR

 7 Ground screw
3 One console port 8 Power module slot 1
4 One ETH management port  9 Power module slot 2
5 One USB port
Item  S5735-S24P4X
Fixed port 24 PoE+ 10/100/1000BASE-T ports
4 10GE SFP+ PoE+ ports
Forwarding performance  96 Mpps
Switching capacity 128 Gbps/336 Gbp
Management port ETH management port Supported
Console port (RJ45) Supported
USB port USB 2.0
CPU Frequency 1000 MHz
Core 4
Storage Memory (RAM) 1 GB
Flash memory Hardware: 512MB, of which 306MB is available for users
Power supply system Power supply type 1000 W AC PoE
Power supply redundancy 1+1 NOTE: the backup power supply is optional.
Rated voltage range AC input (1000 W AC PoE): 100 V AC to 240 V AC, 50/60 Hz
Maximum voltage range AC input (1000 W AC PoE): 90 V AC to 290 V AC, 45 Hz to 65 Hz
High-voltage DC input (1000 W AC PoE): 190 V DC to 290 V DC
(meeting 240 V high-voltage DC certification)
Maximum input current 8 A
Maximum power consumption of the device 65 W (without PD) 847 W (with PD, PD power consumption of 720W)
Power consumption in the case of 30% traffic load1 51 W
Power consumption in the case of 100% traffic load1 56 W
Reliability MTBF (year)2 59.88
MTTR (hour) 2
Availability > 0.99999
Physical specifications Dimensions (H x W x D) 43.6 mm x 442 mm x 420 mm
Chassis height 1 U
Chassis weight (including packaging) 7.39 kg

Additional information

Weight 10.0000 kg
Dimensions 45.0000 × 45.0000 × 5.0000 cm
Item  S5735-S24P4X
Fixed port 24 PoE+ 10/100/1000BASE-T ports
4 10GE SFP+ PoE+ ports
Forwarding performance  96 Mpps
Switching capacity 128 Gbps/336 Gbp
Management port ETH management port Supported
Console port (RJ45) Supported
USB port USB 2.0
CPU Frequency 1000 MHz
Core 4
Storage Memory (RAM) 1 GB
Flash memory Hardware: 512MB, of which 306MB is available for users
Power supply system Power supply type 1000 W AC PoE
Power supply redundancy 1+1 NOTE: the backup power supply is optional.
Rated voltage range AC input (1000 W AC PoE): 100 V AC to 240 V AC, 50/60 Hz
Maximum voltage range AC input (1000 W AC PoE): 90 V AC to 290 V AC, 45 Hz to 65 Hz
High-voltage DC input (1000 W AC PoE): 190 V DC to 290 V DC
(meeting 240 V high-voltage DC certification)
Maximum input current 8 A
Maximum power consumption of the device 65 W (without PD) 847 W (with PD, PD power consumption of 720W)
Power consumption in the case of 30% traffic load1 51 W
Power consumption in the case of 100% traffic load1 56 W
Reliability MTBF (year)2 59.88
MTTR (hour) 2
Availability > 0.99999
Physical specifications Dimensions (H x W x D) 43.6 mm x 442 mm x 420 mm
Chassis height 1 U
Chassis weight (including packaging) 7.39 kg
