S5735-L8P4S-QA1

1 Review Write a review

PN98011565

BrandsHuawei

AvailabilityIn Stock

Campus Switch S5735-L

WarrantyUp to 36 months

Original price was: $0.00.Current price is: $0.00.

Huawei S5735-L8P4S-QA1 switch supports 8 10/100/1000Base-T ports, 4 GE SFP ports , PoE+, AC power supply

8 Ports Switch Electrical Switch Fixed AC Switch Lan Access Switch PoE Switch

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

S5735-L8P4S-QA1 overview

This Huawei S5735-L8P4S-QA1 switch comes with 8 10/100/1000Base-T ports, 4 GE SFP ports, PoE+, AC power fixed, which is one model of the Huawei S5735-L series switch.

Huawei CloudEngine $5735-L series are simplified Gigabit Ethernet switches that provide allGE downlink ports and GE or 10GE uplink ports.

Telecomate.com provides a full range of Huawei switch series, if you have any demands, please contact: csd@telecomate.com

S5735-L8P4S-QA1 quick spec

8x 10/100/1000Base-T ports

4 x GE SFP ports

AC power supply

PoE+

Forwarding performance: 18 Mpps

Switching capacity: 24 Gbps/336 Gbps

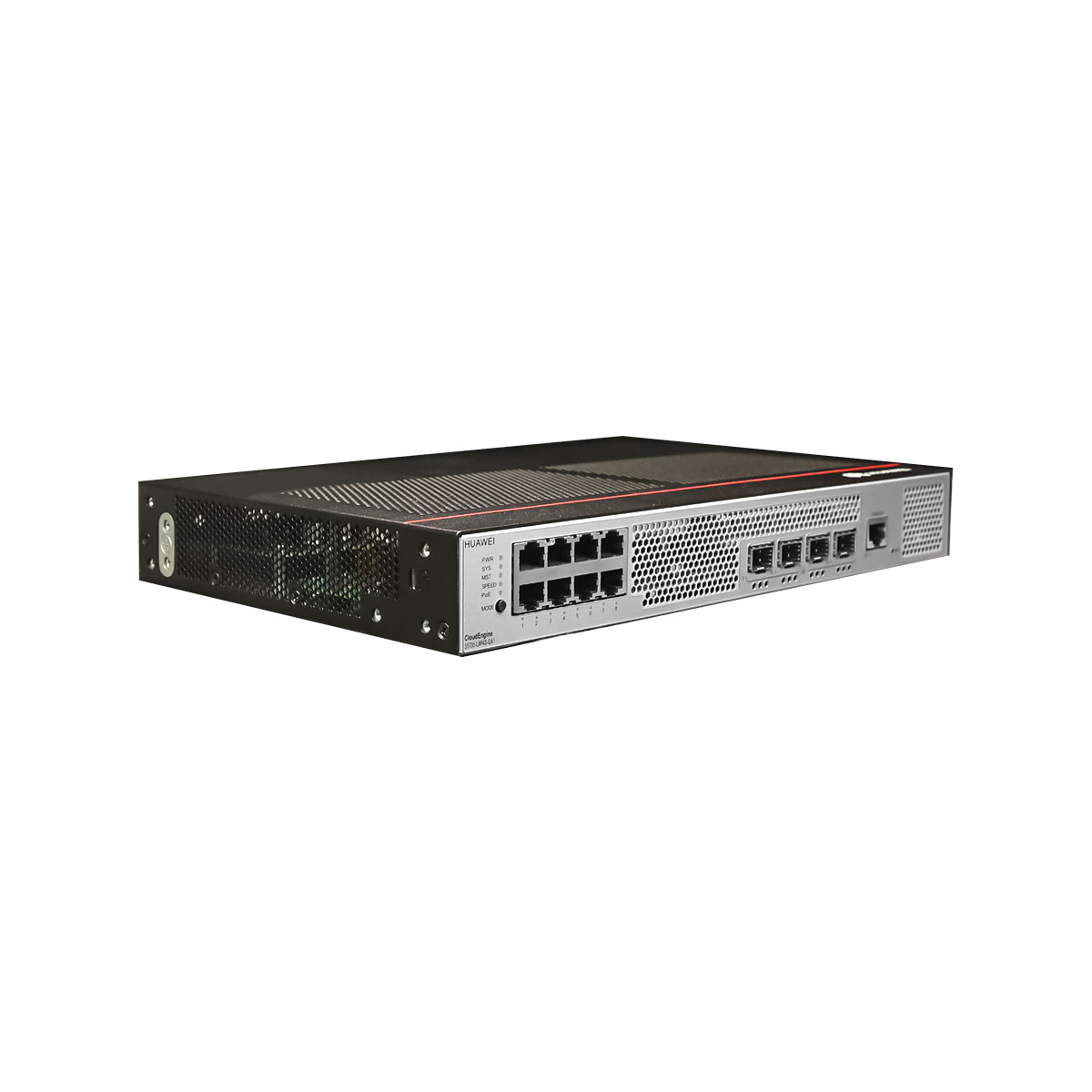

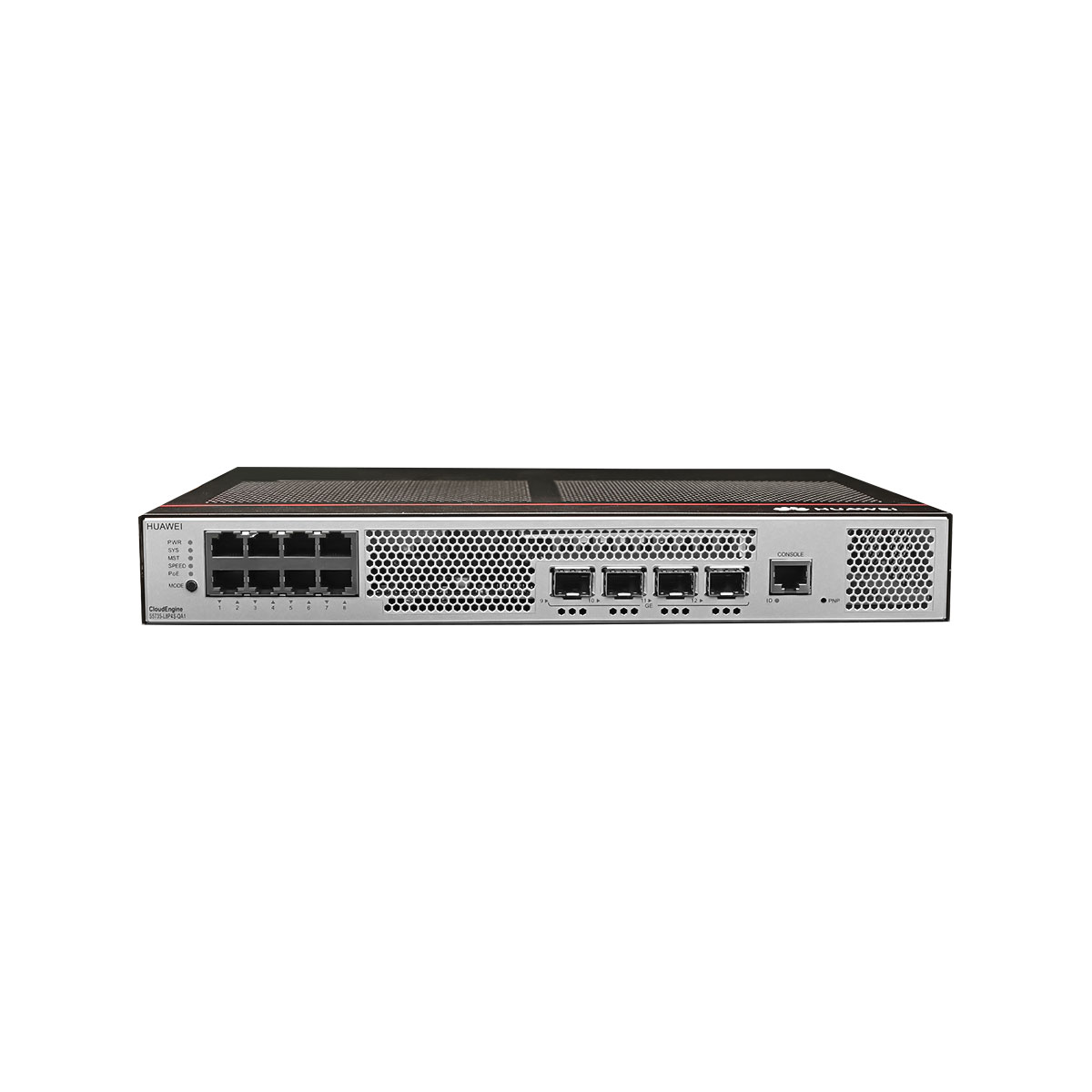

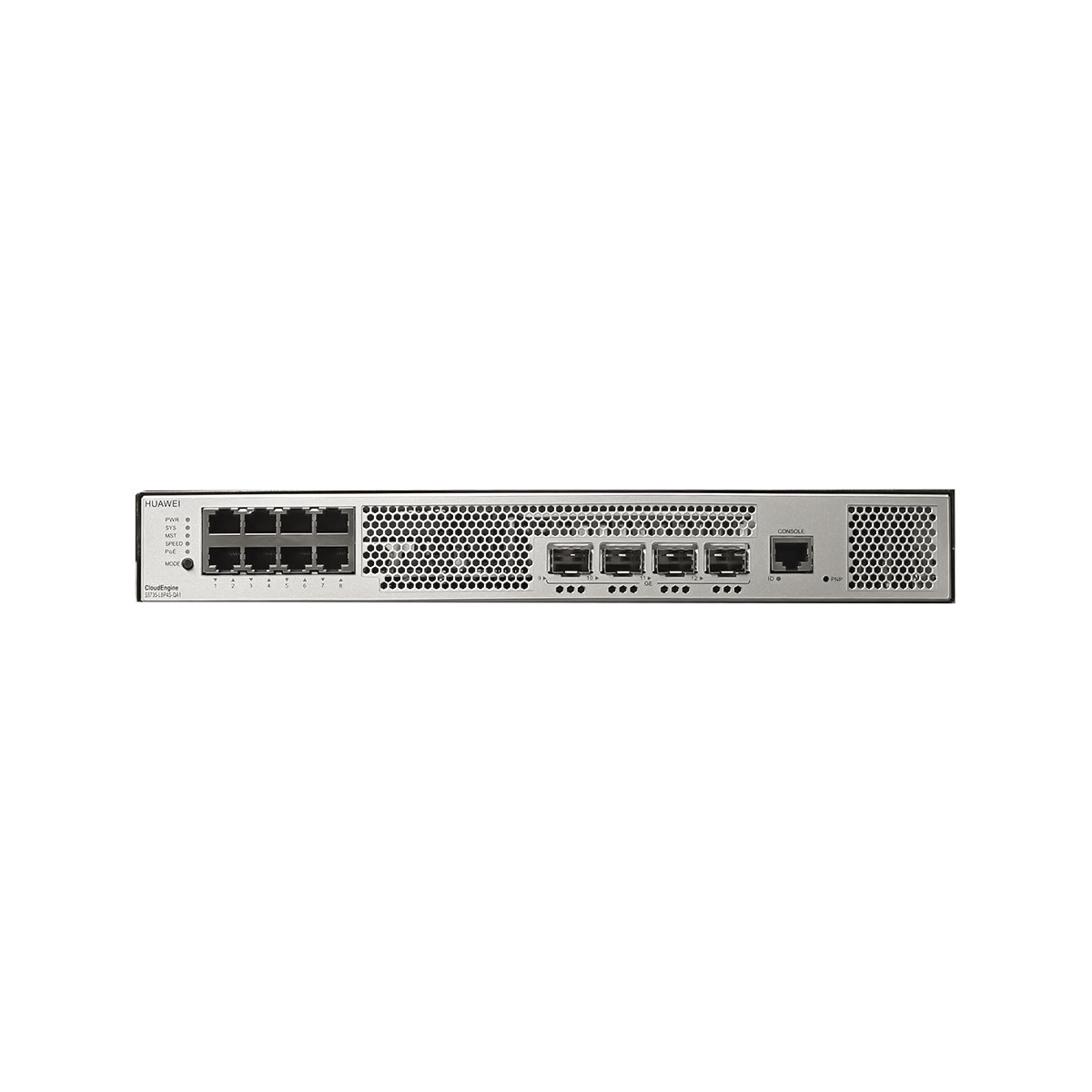

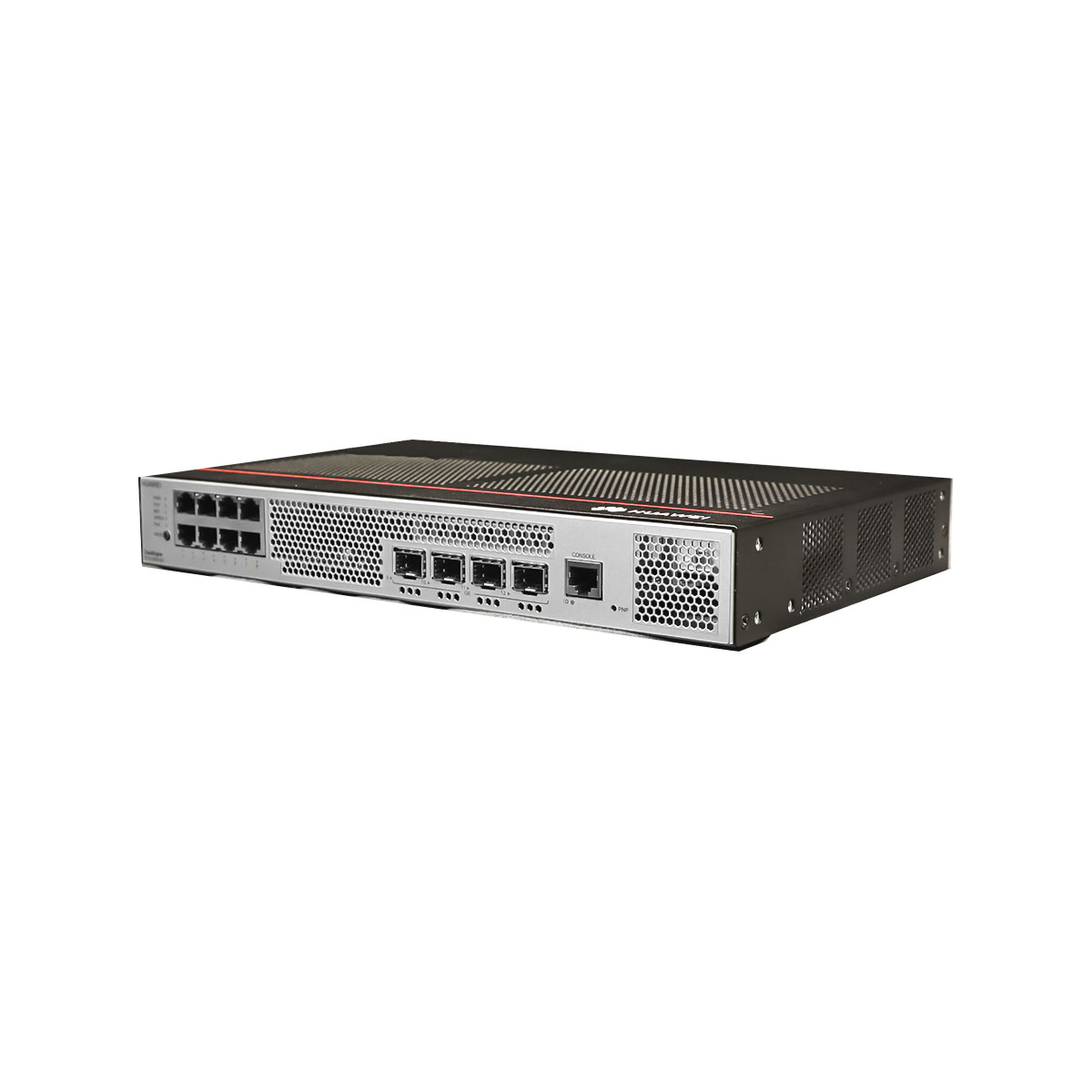

S5735-L8P4S-QA1 appearance and structure

1	8 10/100/1000BASE-T PoE+ ports
2	4 1000BASE-X ports
3	One console port
4	One PNP button
5	Power adapter socket
6	Jack for power adapter cable locking strap
7	Ground screw
8	–

Item	S5735-L8P4S-QA1
Memory	512 MB
Flash memory	512 MB
Console port	RJ45
Eth Management port	Not supported
USB	Not supported
RTC	Not supported
RPS input	Not supported
Service port surge protection [kV]	Common mode: ±7 kV
Power supply surge protection [kV]	±4 kV in differential mode and ±4 kV in common mode
Types of fans	None
Heat dissipation mode	Natural heat dissipation
Airflow direction	-
PoE	Supported
Certification	EMC certification
	Safety certification
	Manufacturing certification
Dimensions without packaging (H x W x D) [mm(in.)]	Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 320.0 mm x 210.0 mm (1.72 in. x 12.6 in. x 8.27 in.)
Dimensions without packaging (H x W x D) [mm(in.)]	Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 320.0 mm x 227.0 mm (1.72 in. x 12.6 in. x 8.94 in.)
Dimensions with packaging (H x W x D) [mm(in.)]	90.0 mm x 465.0 mm x 380.0 mm (3.54 in. x 18.31 in. x 14.96 in.)
Chassis height [U]	1 U
Weight without packaging [kg(lb)]	2.41 kg (5.31 lb)
Weight with packaging [kg(lb)]	4.06 kg (8.95 lb)
Typical power consumption [W]	26.3 W
Typical heat dissipation [BTU/hour]	89.74 BTU/hour
Maximum power consumption [W]	Without PoE: 28 W
Maximum power consumption [W]	Full PoE load: 159 W (PoE: 114 W)
Maximum heat dissipation [BTU/hour]	Without PoE: 95.54
Maximum heat dissipation [BTU/hour]	Full PoE load: 543.89
MTBF [year]	66.56 year
MTtr [hour]	2 hour
Availability	>0.99999
Noise at normal temperature (acoustic power) [dB(A)]	Noise-free (no fans), < 30
Noise at normal temperature (acoustic pressure) [dB(A)]	Noise-free (no fans), < 20
Number of card slots	0
Number of power slots	0
Number of fans modules	0
Redundant power supply	Not supported
Long-term operating temperature [°C(°F)]	–5°C to +45°C (23°F to 113°F) at an altitude of 0 to 1800 m (0 to 5905.51 ft.)
Short-term operating temperature [°C(°F)]	Not supported
Restriction on the operating temperature variation rate [°C(°F)]	When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
Storage temperature [°C(°F)]	–40°C to +70°C (–40°F to +158°F)
Long-term operating relative humidity [RH]	5% to 95%, noncondensing
Long-term operating altitude [m(ft.)]	0-5000 m (0-16404 ft.)
Storage altitude [m(ft.)]	0-5000 m (0-16404 ft.)
Power supply mode	Power adapter
Rated input voltage [V]	AC input: 100 V AC to 240 V AC, 50/60 Hz
Input voltage range [V]	AC input: 90 V AC to 290 V AC; 47 Hz to 63 Hz
Maximum input current [A]	2 A

Item	S5735-L8P4S-QA1
Memory	512 MB
Flash memory	512 MB
Console port	RJ45
Eth Management port	Not supported
USB	Not supported
RTC	Not supported
RPS input	Not supported
Service port surge protection [kV]	Common mode: ±7 kV
Power supply surge protection [kV]	±4 kV in differential mode and ±4 kV in common mode
Types of fans	None
Heat dissipation mode	Natural heat dissipation
Airflow direction	-
PoE	Supported
Certification	EMC certification
	Safety certification
	Manufacturing certification
Dimensions without packaging (H x W x D) [mm(in.)]	Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 320.0 mm x 210.0 mm (1.72 in. x 12.6 in. x 8.27 in.)
Dimensions without packaging (H x W x D) [mm(in.)]	Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 320.0 mm x 227.0 mm (1.72 in. x 12.6 in. x 8.94 in.)
Dimensions with packaging (H x W x D) [mm(in.)]	90.0 mm x 465.0 mm x 380.0 mm (3.54 in. x 18.31 in. x 14.96 in.)
Chassis height [U]	1 U
Weight without packaging [kg(lb)]	2.41 kg (5.31 lb)
Weight with packaging [kg(lb)]	4.06 kg (8.95 lb)
Typical power consumption [W]	26.3 W
Typical heat dissipation [BTU/hour]	89.74 BTU/hour
Maximum power consumption [W]	Without PoE: 28 W
Maximum power consumption [W]	Full PoE load: 159 W (PoE: 114 W)
Maximum heat dissipation [BTU/hour]	Without PoE: 95.54
Maximum heat dissipation [BTU/hour]	Full PoE load: 543.89
MTBF [year]	66.56 year
MTtr [hour]	2 hour
Availability	>0.99999
Noise at normal temperature (acoustic power) [dB(A)]	Noise-free (no fans), < 30
Noise at normal temperature (acoustic pressure) [dB(A)]	Noise-free (no fans), < 20
Number of card slots	0
Number of power slots	0
Number of fans modules	0
Redundant power supply	Not supported
Long-term operating temperature [°C(°F)]	–5°C to +45°C (23°F to 113°F) at an altitude of 0 to 1800 m (0 to 5905.51 ft.)
Short-term operating temperature [°C(°F)]	Not supported
Restriction on the operating temperature variation rate [°C(°F)]	When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
Storage temperature [°C(°F)]	–40°C to +70°C (–40°F to +158°F)
Long-term operating relative humidity [RH]	5% to 95%, noncondensing
Long-term operating altitude [m(ft.)]	0-5000 m (0-16404 ft.)
Storage altitude [m(ft.)]	0-5000 m (0-16404 ft.)
Power supply mode	Power adapter
Rated input voltage [V]	AC input: 100 V AC to 240 V AC, 50/60 Hz
Input voltage range [V]	AC input: 90 V AC to 290 V AC; 47 Hz to 63 Hz
Maximum input current [A]	2 A

Brand	Huawei
Campus Switch	S5735-L
Lead Time	3-5 days
Ship From	Shenzhen Warehouse
