S5735-L32ST4X-D

Rated 5.00 out of 5 based on 2 customer ratings

2 Reviews Write a review

PN98010965

BrandsHuawei

AvailabilityIn Stock

Campus Switch S5735-L

WarrantyUp to 36 months

Original price was: $0.00.Current price is: $0.00.

Huawei S5735-L32ST4X-D supports 24 GE SFP ports, 8 10/100/1000BASE-T ports, 4 10 GE SFP+ ports, 1 DC fixed power

32 Ports Switch Electrical Module Fixed DC Switch GE Switch Lan Access Switch

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

S5735-L32ST4X-D overview

This Huawei switch comes with 24 GE SFP ports, 8 10/100/1000BASE-T ports, 4 10 GE SFP+ ports, is one of the Huawei S5735-L switches.

Huawei CloudEngine S5735-L is a series of simplified gigabit access switches that provide 12–48 flexible all-GE downlink ports and four fixed GE or 10 GE uplink ports. They are designed for enterprise campus network access and gigabit to the desktop. Built on next-generation, high-performance hardware and powered by Huawei’s Versatile Routing Platform (VRP), CloudEngine S5735-L switches feature flexible Ethernet networking, diversified security control, and support for multiple Layer 3 routing protocols — providing higher performance and more powerful service processing capabilities for networks.

S5735-L32ST4X-D quick specs

24 GE SFP ports

8 10/100/1000BASE-T ports

4 10 GE SFP+ ports

Forwarding performance is 108 Mpps

Switching capacity is 144 Gbps/432 Gbps

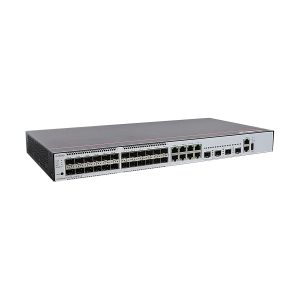

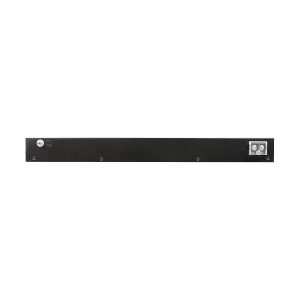

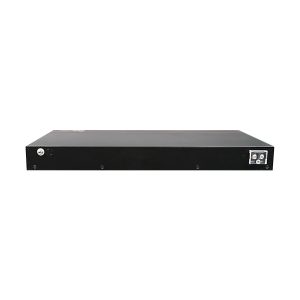

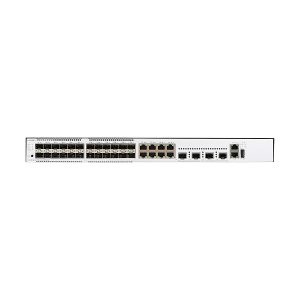

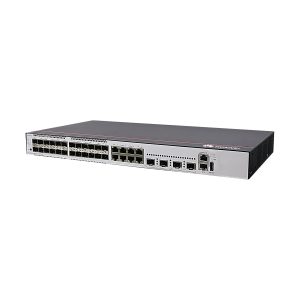

S5735-L32ST4X-D appearance and structure

1	Twenty-four 10/100/1000BASE-X ports	6	One USB port
2	Eight 10/100/1000BASE-T ports SFP-1000Base-T	7	One PNP button
3	Four 10GE SFP+ ports OMXD30000 OSX010000 OSX040N01 SFP-10G-ZR SFP-10G-USR	8	Ground screw
4	One console port	9	DC power terminal
5	One ETH management port	–	–

Item	S5735-L32ST4X-D
Memory (RAM)	1 GB
Flash	512 MB in total. To view the available flash memory size, run the display version command.
Mean time between failures (MTBF)	85.87 years
Mean time to repair (MTTR)	2 hours
Availability	> 0.99999
Service port surge protection	Common mode: ±7 kV
Power supply surge protection	±2 kV in differential mode, ±4 kV in common mode
Dimensions (H x W x D)	Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.7 in.)
	Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 227.0 mm (1.72 in. x 17.4 in. x 8.94 in.)
Weight (with packaging)	4.31 kg (9.5 lb)
Stack ports	Any 10/100/1000BASE-T ports, 100/1000BASE-X ports, or 10GE SFP+ ports
RTC	Not supported
RPS	Not supported
PoE	Not supported
Rated voltage range	-48 V DC to -60 V DC
Maximum voltage range	-38.4 V DC to -72 V DC
Maximum power consumption (100% throughput, full speed of fans)	65 W
Typical power consumption (30% of traffic load)	46 W
Tested according to ATIS standard
EEE enabled
No PoE power consumption
Operating temperature	-5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5906 ft.)
	NOTE:
	When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
	The switch cannot be started when the ambient temperature is lower than 0°C (32°F).
Short-term operating temperature	-5°C to +55°C (23°F to 131°F) at an altitude of 0-1800 m (0-5906 ft.)
	NOTE:
	When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
	The equipment can operate beyond the normal operating temperature range for a short-term period, but the following conditions must be met:
	The equipment operates at a temperature of over 50°C (122°F) consecutively for at most 96 hours in one year.
	The equipment operates at a temperature of over 50°C (122°F) for a total of no more than 360 hours in one year.
	The equipment operates at a temperature of over 50°C (122°F) for no more in 15 times in one year.
	The equipment may be damaged or experience unexpected exceptions if any of the preceding limits is exceeded.
	The equipment cannot start when the temperature is lower than 0°C (32°F). The maximum distance of optical modules used in these conditions cannot exceed 10 km.
Storage temperature	-40°C to +70°C (-40°F to +158°F)
Noise under normal temperature (27°C, sound power)	< 53.3 dB(A)
Relative humidity	5% to 95%, noncondensing
Operating altitude	0-5000 m (0-16404 ft.)
Certification	EMC certification
	Safety certification
	Manufacturing certification
Part number	98010965

Item	S5735-L32ST4X-D
Memory (RAM)	1 GB
Flash	512 MB in total. To view the available flash memory size, run the display version command.
Mean time between failures (MTBF)	85.87 years
Mean time to repair (MTTR)	2 hours
Availability	> 0.99999
Service port surge protection	Common mode: ±7 kV
Power supply surge protection	±2 kV in differential mode, ±4 kV in common mode
Dimensions (H x W x D)	Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.7 in.)
	Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 227.0 mm (1.72 in. x 17.4 in. x 8.94 in.)
Weight (with packaging)	4.31 kg (9.5 lb)
Stack ports	Any 10/100/1000BASE-T ports, 100/1000BASE-X ports, or 10GE SFP+ ports
RTC	Not supported
RPS	Not supported
PoE	Not supported
Rated voltage range	-48 V DC to -60 V DC
Maximum voltage range	-38.4 V DC to -72 V DC
Maximum power consumption (100% throughput, full speed of fans)	65 W
Typical power consumption (30% of traffic load)	46 W
Tested according to ATIS standard
EEE enabled
No PoE power consumption
Operating temperature	-5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5906 ft.)
	NOTE:
	When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
	The switch cannot be started when the ambient temperature is lower than 0°C (32°F).
Short-term operating temperature	-5°C to +55°C (23°F to 131°F) at an altitude of 0-1800 m (0-5906 ft.)
	NOTE:
	When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
	The equipment can operate beyond the normal operating temperature range for a short-term period, but the following conditions must be met:
	The equipment operates at a temperature of over 50°C (122°F) consecutively for at most 96 hours in one year.
	The equipment operates at a temperature of over 50°C (122°F) for a total of no more than 360 hours in one year.
	The equipment operates at a temperature of over 50°C (122°F) for no more in 15 times in one year.
	The equipment may be damaged or experience unexpected exceptions if any of the preceding limits is exceeded.
	The equipment cannot start when the temperature is lower than 0°C (32°F). The maximum distance of optical modules used in these conditions cannot exceed 10 km.
Storage temperature	-40°C to +70°C (-40°F to +158°F)
Noise under normal temperature (27°C, sound power)	< 53.3 dB(A)
Relative humidity	5% to 95%, noncondensing
Operating altitude	0-5000 m (0-16404 ft.)
Certification	EMC certification
	Safety certification
	Manufacturing certification
Part number	98010965

Weight	10 kg
Dimensions	45 × 45 × 5 cm
Campus Switch	S5735-L
Brand	Huawei
Lead Time	3-5 days
Ship From	Shenzhen Warehouse
