Description
S5735-L24T4S-A overview
This Huawei switch comes with 24 x 10/100/1000Base-T ports, 4 x GE SFP ports. Huawei CloudEngine S5735-L is a series of simplified gigabit access switches that provide 12–48 flexible all-GE downlink ports and four fixed GE or 10 GE uplink ports. They are designed for enterprise campus network access and gigabit to the desktop. Built on next-generation, high-performance hardware and powered by Huawei’s Versatile Routing Platform (VRP), CloudEngine S5735-L switches feature flexible Ethernet networking, diversified security control, and support for multiple Layer 3 routing protocols — providing higher performance and more powerful service processing capabilities for networks.
S5735-L24T4S-A quick spec
24 10/100/1000Base-T ports
4 GE SFP ports
Forwarding performance is 42 Mpps
Switching capacity is 56 Gbps/336 Gbps

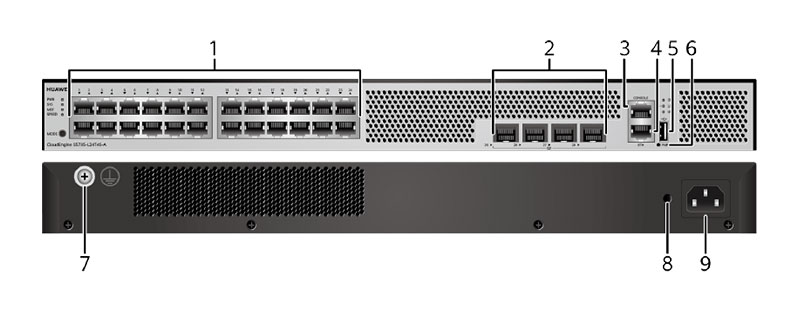

S5735-L24T4S-A appearance and structure
| 1 | Twenty-four PoE+ 10/100/1000BASE-T ports | 6 | One PNP button |
| 2 | Four 1000BASE-X ports | 7 | Ground screw |
| 3 | One console port | 8 | Jack for AC power cable locking strap |
| 4 | One ETH management port | 9 | AC socket |
| 5 | One USB port |
