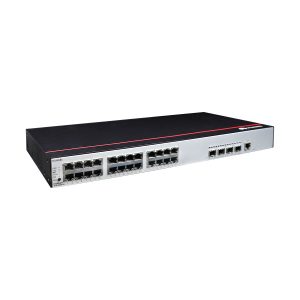

S5735 L24P4S A1 3 1
S5735 L24P4S A1 4 1
S5735 L24P4S A1 5 1
S5735 L24P4S A1 6 1
Categories:

S5735-L24P4S-A1

4 Reviews Write a review
PN98011321
Brands
AvailabilityIn Stock
Campus Switch S5735-L
WarrantyUp to 36 months i
×
Warranty Policy
We provide a comprehensive warranty policy.
Refer to the table for more details.

Original price was: $0.00.Current price is: $0.00.

Huawei S5735-L24P4S-A1 switch supports 24 10/100/1000BASE-T ports, 4 GE SFP ports, PoE+, AC power fixed

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

Huawei S5735-L24P4S-A1 Switch Overview



Huawei S5735-L24P4S-A1 switch with 24 10/100/1000BASE-T ports, 4 GE SFP ports, PoE+, AC power fixed, which is one model of Huawei S5735-L series switch.

CloudEngine S5735-L series switches are ideal for scenarios such as enterprise campus network access and gigabit to the desktop. Built on next-generation, high-performance hardware and the Huawei Versatile Routing Platform (VRP), CloudEngine S5735-L switches stand out with compelling features such as intelligent stack (iStack), flexible Ethernet networking, and diversified security control. They support multiple Layer 3 routing protocols and provide high-performance and service processing capabilities.

For Huawei’s full range of switches, power modules, expansion cards, original and compatible optical transceivers, contact csd@telecomate.com



Huawei S5735-L24P4S-A1 Switch Quick Specs



24 x 10/100/1000Base-T ports
4 x GE SFP ports

PoE+
AC power supply
Forwarding performance: 42 Mpps
Switching capacity: 56 Gbps/336 Gbps



Huawei S5735-L24P4S-A1 Switch Appearance and Structure

S5735 L24P4S A1



1 Twenty-four 10/100/1000BASE-T PoE+ ports 2 Four 1000BASE-X ports
3 One console port 4 One PNP button
5 Ground screw 6 Jack for AC power cable locking strap
7 AC socket – –
Huawei S5735-L24P4S-A1 Switch Datasheet

Item S5735-L24P4S-A1
Specification 24 x 10/100/1000Base-T ports 4 x GE SFP ports PoE+ AC power supply Forwarding performance: 42 Mpps Switching capacity: 56 Gbps/336 Gbps
Dimensions without packaging (H x W x D) [mm(in.)] Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.7 in.)
Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 227.0 mm (1.72 in. x 17.4 in. x 8.94 in.)
Dimensions with packaging (H x W x D) [mm(in.)] 90.0 mm x 550.0 mm x 360.0 mm (3.54 in. x 21.65 in. x 14.17 in.)
Chassis height [U] 1 U
Weight without packaging [kg(lb)] 2.94 kg (6.48 lb)
Weight with packaging [kg(lb)] 3.91 kg (8.62 lb)
Typical power consumption [W] 41.7 W
Typical heat dissipation [BTU/hour] 142.29 BTU/hour
Maximum power consumption [W] Not providing the PoE function: 53.2 W
100% PoE loads: 433.2 W (PoE: 380 W)
Maximum heat dissipation [BTU/hour] Not providing the PoE function: 181.52
100% PoE loads: 1478.12
MTBF [year] 55.72 year
MTtr [hour] 2 hour
Availability >0.99999
Noise at normal temperature (acoustic power) [dB(A)] 50 dB(A)
Number of card slots 0
Number of power slots 0
Number of fans modules 2
Redundant power supply Not supported
Long-term operating temperature [°C(°F)] -5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5906 ft.)
Short-term operating temperature [°C(°F)] -5°C to +55°C (23°F to 131°F) at an altitude of 0-1800 m (0-5906 ft.)
Restriction on the operating temperature variation rate [°C(°F)] When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
The equipment can operate beyond the normal operating temperature range for a short-term period, but the following conditions must be met:
The equipment operates at a temperature of over 50°C (122°F) consecutively for at most 96 hours in one year.
The equipment operates at a temperature of over 50°C (122°F) for a total of no more than 360 hours in one year.
The equipment operates at a temperature of over 50°C (122°F) for no more in 15 times in one year.
The equipment may be damaged or experience unexpected exceptions if any of the preceding limits is exceeded.
The equipment cannot start when the temperature is lower than 0°C (32°F). The maximum distance of optical modules used in these conditions cannot exceed 10 km.
Storage temperature [°C(°F)] -40°C to +70°C (-40°F to +158°F)
Long-term operating relative humidity [RH] 5% to 95%, noncondensing
Long-term operating altitude [m(ft.)] 0-5000 m (0-16404 ft.)
Storage altitude [m(ft.)] 0-5000 m (0-16404 ft.)
Power supply mode AC built-in
Rated input voltage [V] AC input: 100 V AC to 240 V AC, 50/60 Hz
High-Voltage DC input: 240 V DC
Input voltage range [V] AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz
High-Voltage DC input: 190 V DC to 290 V DC
Maximum input current [A] 6 A
Memory 512 MB
Flash memory 512 MB
Console port RJ45
Eth Management port Not supported
USB Not supported
RTC Not supported
RPS input Not supported
Service port surge protection [kV] Common mode: ±7 kV
Power supply surge protection [kV] ±6 kV in differential mode, ±6 kV in common mode
Types of fans Built-in
Heat dissipation Heat dissipation with fan, intelligent fan speed adjustment
Airflow direction Air intake from left and front, air exhaustion from right
PoE Supported
Certification EMC certification
Safety certification
Manufacturing certification

Additional information

Weight 5 kg
Dimensions 50 × 45 × 10 cm
Brand

Huawei
Ship From

Shenzhen Warehouse
Lead Time

3-5 days
Campus Switch

Huawei S5735-L24P4S-A1 Switch Datasheet

Item S5735-L24P4S-A1
Specification 24 x 10/100/1000Base-T ports 4 x GE SFP ports PoE+ AC power supply Forwarding performance: 42 Mpps Switching capacity: 56 Gbps/336 Gbps
Dimensions without packaging (H x W x D) [mm(in.)] Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.7 in.)
Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 227.0 mm (1.72 in. x 17.4 in. x 8.94 in.)
Dimensions with packaging (H x W x D) [mm(in.)] 90.0 mm x 550.0 mm x 360.0 mm (3.54 in. x 21.65 in. x 14.17 in.)
Chassis height [U] 1 U
Weight without packaging [kg(lb)] 2.94 kg (6.48 lb)
Weight with packaging [kg(lb)] 3.91 kg (8.62 lb)
Typical power consumption [W] 41.7 W
Typical heat dissipation [BTU/hour] 142.29 BTU/hour
Maximum power consumption [W] Not providing the PoE function: 53.2 W
100% PoE loads: 433.2 W (PoE: 380 W)
Maximum heat dissipation [BTU/hour] Not providing the PoE function: 181.52
100% PoE loads: 1478.12
MTBF [year] 55.72 year
MTtr [hour] 2 hour
Availability >0.99999
Noise at normal temperature (acoustic power) [dB(A)] 50 dB(A)
Number of card slots 0
Number of power slots 0
Number of fans modules 2
Redundant power supply Not supported
Long-term operating temperature [°C(°F)] -5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5906 ft.)
Short-term operating temperature [°C(°F)] -5°C to +55°C (23°F to 131°F) at an altitude of 0-1800 m (0-5906 ft.)
Restriction on the operating temperature variation rate [°C(°F)] When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
The equipment can operate beyond the normal operating temperature range for a short-term period, but the following conditions must be met:
The equipment operates at a temperature of over 50°C (122°F) consecutively for at most 96 hours in one year.
The equipment operates at a temperature of over 50°C (122°F) for a total of no more than 360 hours in one year.
The equipment operates at a temperature of over 50°C (122°F) for no more in 15 times in one year.
The equipment may be damaged or experience unexpected exceptions if any of the preceding limits is exceeded.
The equipment cannot start when the temperature is lower than 0°C (32°F). The maximum distance of optical modules used in these conditions cannot exceed 10 km.
Storage temperature [°C(°F)] -40°C to +70°C (-40°F to +158°F)
Long-term operating relative humidity [RH] 5% to 95%, noncondensing
Long-term operating altitude [m(ft.)] 0-5000 m (0-16404 ft.)
Storage altitude [m(ft.)] 0-5000 m (0-16404 ft.)
Power supply mode AC built-in
Rated input voltage [V] AC input: 100 V AC to 240 V AC, 50/60 Hz
High-Voltage DC input: 240 V DC
Input voltage range [V] AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz
High-Voltage DC input: 190 V DC to 290 V DC
Maximum input current [A] 6 A
Memory 512 MB
Flash memory 512 MB
Console port RJ45
Eth Management port Not supported
USB Not supported
RTC Not supported
RPS input Not supported
Service port surge protection [kV] Common mode: ±7 kV
Power supply surge protection [kV] ±6 kV in differential mode, ±6 kV in common mode
Types of fans Built-in
Heat dissipation Heat dissipation with fan, intelligent fan speed adjustment
Airflow direction Air intake from left and front, air exhaustion from right
PoE Supported
Certification EMC certification
Safety certification
Manufacturing certification
