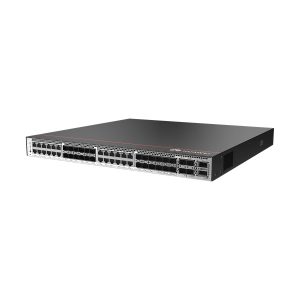

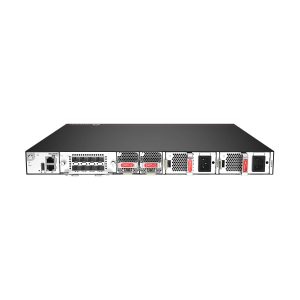

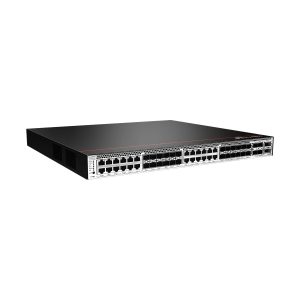

S5732-H48XUM2CC

Rated 5.00 out of 5 based on 1 customer rating

1 Review Write a review

PN02353MLH

BrandsHuawei

AvailabilityIn Stock

Campus Switch S5732-H

WarrantyUp to 36 months

Original price was: $0.00.Current price is: $0.00.

Huawei S5732-H48XUM2CC switch supports 24 100M/1000M/2.5GE/5GE/10GE BASE-T ports, 24 10GE SFP+ ports, 4 1GE/10GE/25GE SFP28 optical ports, 2 40GE/100GE QSFP+ optical ports, POE++

100GE Uplink Switch 40GE Uplink Switch 48 Ports Switch Electrical Switch Lan Access Switch PoE Switch RTU Switch

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

S5732-H48XUM2CC overview

This Huawei switch supports 24 100M/1000M/2.5GE/5GE/10GE BASE-T ports, 24 10GE SFP+ ports, 4 1GE/10GE/25GE SFP28 optical ports, 2 40GE/100GE QSFP+ optical ports, POE++

The Huawei CloudEngine S5732-H series switches are the next-generation enhanced all-optical Ethernet switches developed by Huawei. The CloudEngine S5732-H builds on Huawei’s unified Versatile Routing Platform (VRP) and boasts various IDN features.

Telecomate.com provides a full range of Huawei switch series, if you have any demands, please contact: csd@telecomate.com

S5732-H48XUM2CC quick spec

24 100M/1000M/2.5GE/5GE/10GE BASE-T ports, 24 10GE SFP+ ports, 4 1GE/10GE/25GE SFP28 optical ports, 2 40GE/100GE QSFP+ optical ports

Forwarding performance is 1320 MPPS

Switching capacity is 2.4 Tbps/24 Tbps

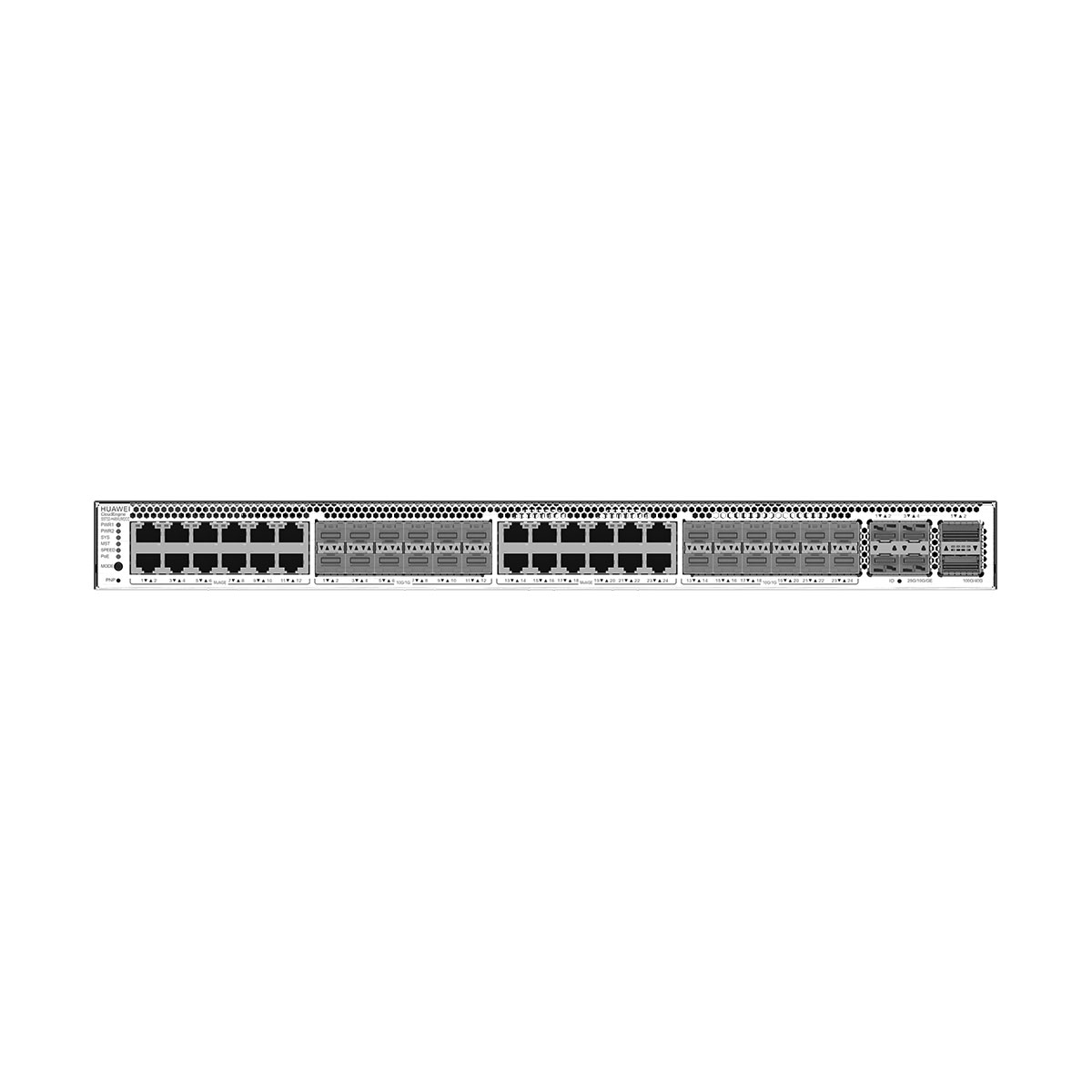

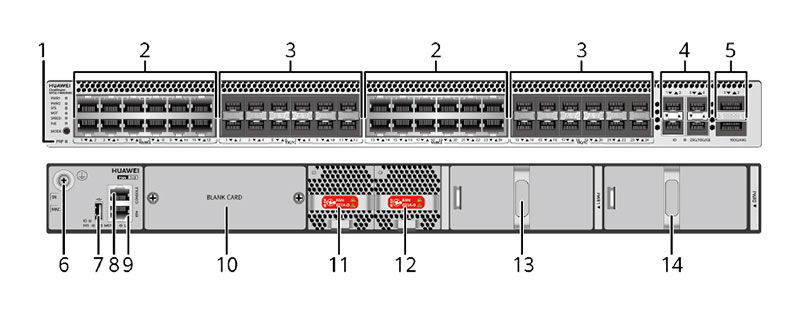

S5732-H48XUM2CC appearance and structure

1	Twenty-four PoE++ 100M/1000M/2.5GE/5GE/10GE BASE-T ports SFP-1000Base-T	9	One PNP button
2	Twenty-four 10GE SFP+ ports OMXD30000 OSX010000 OSX040N01 SFP-10G-ZR SFP-10G-USR	10	Fan module slot 1
3	Four 1GE/10GE/25GE SFP28 optical ports	11	Fan module slot 2
4	Ground screw	12	Fan module slot 3
5	Two 40GE/100GE QSFP28 optical port QSFP-100G-CWDM4 QSFP-100G-ER4-Lite QSFP28-100G-LR4 QSFP28-100G-PSM4	13	Fan module slot 4
6	One ETH management port	14	Power module slot 1
7	One USB port	15	Power module slot 1

Item	S5732-H48XUM2CC
Fixed ports	24 100M/1000M/2.5GE/5GE/10GE BASE-T ports, 24 10GE SFP+ ports, 4 1GE/10GE/25GE SFP28 optical ports, 2 40GE/100GE QSFP+ optical ports
Memory (RAM)	4 GB
Flash	2 GB in total. To view the available flash memory size, run the display version command.
Mean time between failures (MTBF)	32.38 years
Mean time to repair (MTTR)	2 hours
Availability	> 0.99999
Power supply surge protection	±6 kV in differential mode, ±6 kV in common mode
Rated voltage range	AC input: 100 V AC to 240 V AC, 50/60 Hz; High-Voltage DC input: 240 V DC
Maximum voltage range	AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz; High-Voltage DC input: 190 V DC to 290 V DC
Maximum power consumption (100% throughput, full speed of fans)	Not providing the PoE function: 338 W (without card) 100% PoE loads: 1980 W (PoE: 1440 W, without card)
Typical power consumption (30% of traffic load, tested according to ATIS standard)	231 W (without card)
Operating temperature	-5°C to +45°C (23°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.)
Storage temperature	-40°C to +70°C (-40°F to +158°F)
Relative humidity	5% to 95% (non-condensing)
Dimensions (W x D x H)	442 mm x 420 mm x 43.6 mm
Weight (with packaging)	8.2 kg (18.08 lb)

Weight	9.0000 kg
Dimensions	43.6000 × 44.2000 × 44.6000 cm
Brand	Huawei
Lead Time	3-5 days
Ship From	Shenzhen Warehouse
Campus Switch	S5732-H

Item	S5732-H48XUM2CC
Fixed ports	24 100M/1000M/2.5GE/5GE/10GE BASE-T ports, 24 10GE SFP+ ports, 4 1GE/10GE/25GE SFP28 optical ports, 2 40GE/100GE QSFP+ optical ports
Memory (RAM)	4 GB
Flash	2 GB in total. To view the available flash memory size, run the display version command.
Mean time between failures (MTBF)	32.38 years
Mean time to repair (MTTR)	2 hours
Availability	> 0.99999
Power supply surge protection	±6 kV in differential mode, ±6 kV in common mode
Rated voltage range	AC input: 100 V AC to 240 V AC, 50/60 Hz; High-Voltage DC input: 240 V DC
Maximum voltage range	AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz; High-Voltage DC input: 190 V DC to 290 V DC
Maximum power consumption (100% throughput, full speed of fans)	Not providing the PoE function: 338 W (without card) 100% PoE loads: 1980 W (PoE: 1440 W, without card)
Typical power consumption (30% of traffic load, tested according to ATIS standard)	231 W (without card)
Operating temperature	-5°C to +45°C (23°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.)
Storage temperature	-40°C to +70°C (-40°F to +158°F)
Relative humidity	5% to 95% (non-condensing)
Dimensions (W x D x H)	442 mm x 420 mm x 43.6 mm
Weight (with packaging)	8.2 kg (18.08 lb)
