S5732-H24S6Q-AC

2 Reviews Write a review
PN02353AJS
Brands
AvailabilityIn Stock
Campus Switch S5732-H
WarrantyUp to 36 months i
×
Warranty Policy
We provide a comprehensive warranty policy.
Refer to the table for more details.

Original price was: $0.00.Current price is: $0.00.

Huawei S5732-H24S6Q-AC switch supports 20 GE SFP ports, 4 10GE SFP+ ports, 6 40 GE QSFP+ ports, 2 hot swappable AC/DC power supplies, 1 AC power module equipped

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

S5732-H24S6Q-AC overview

This Huawei switch comes with 20 GE SFP ports, 4 10GE SFP+ ports, 6 40GE QSFP+ ports, which is one of the S5732-H series switches.

The Huawei Cloud Engine S5732-H series switches are the next-generation enhanced all-optical Ethernet switches developed by Huawei. The CloudEngine S5732-H builds on Huawei’s unified Versatile Routing Platform (VRP) and boasts various IDN features.

Telecomate.com provides a full range of Huawei switch series, if you have any demands, please contact: csd@telecomate.com



S5732-H24S6Q-AC quick spec

20 GE SFP ports

4 10GE SFP+ ports

6 40GE QSFP+ ports

Forwarding performance is 450/522 MPPS

Switching capacity is 2.4Tbps/24 Tbps

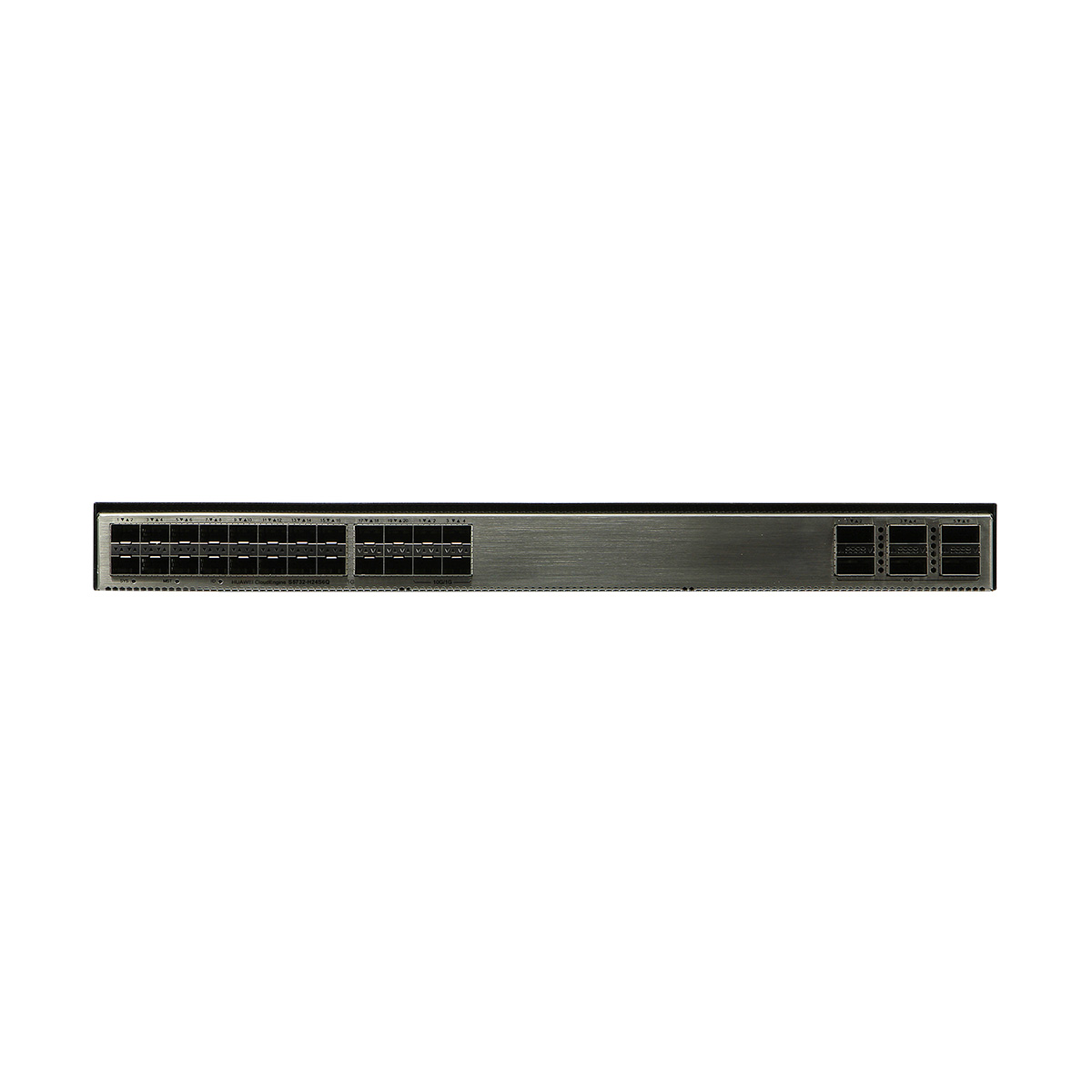

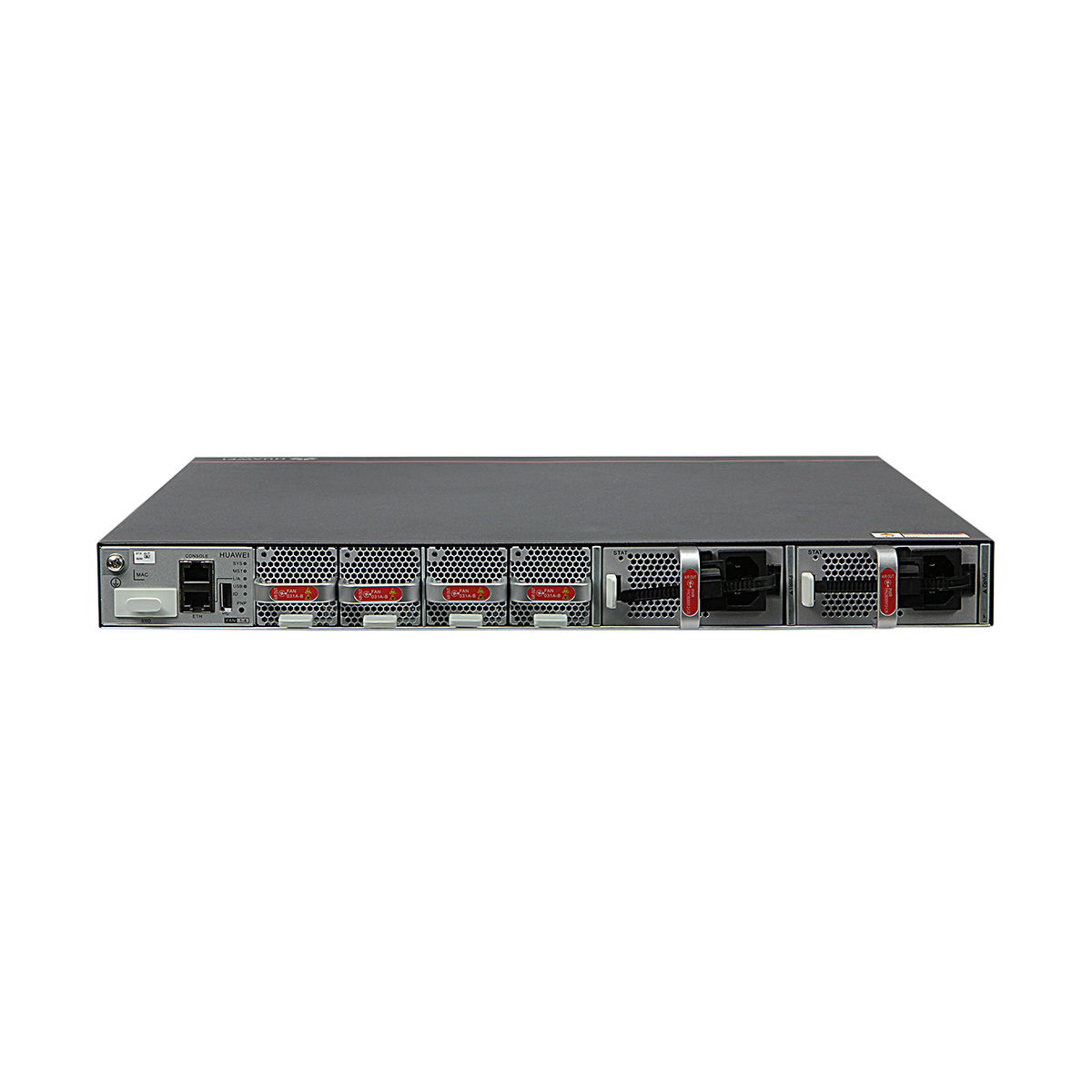

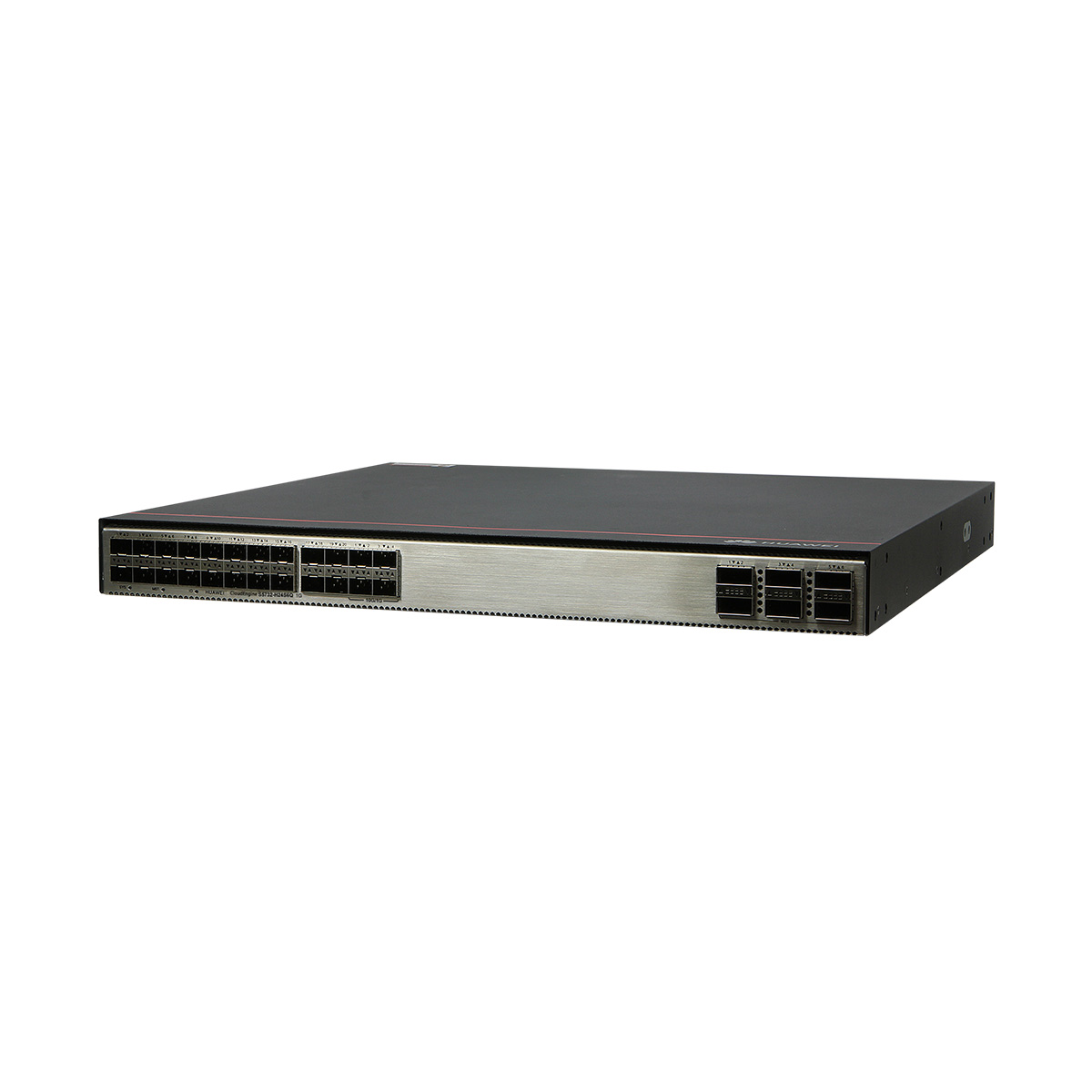

S5732-H24S6Q-AC appearance and structure

S5732-H24S6Q-AC appearance and structure

1 Twenty 1000BASE-X ports

eSFP-GE-SX-MM850 eSFP-GE-ZX100-SM1550

LE2MGSC40DE0    LE2MGSC40ED0

 9 One PNP button
2 Four 10GE SFP+ ports

OMXD30000    OSX010000
OSX040N01      SFP-10G-ZR
SFP-10G-USR

 10 Fan module slot 1
3 Six 40GE QSFP+ optical ports

QSFP-40G-eSR4 QSFP-40G-iSR4

QSFP-40G-eSDLC-PAM QSFP-40G-LR4

QSFP-40G-SDLC-PAM

 11 Fan module slot 2
4 Ground screw 12 Fan module slot 3
5 SSD card slot 13 Fan module slot 4
6 One ETH management port 14 Power module slot 1
7 One USB port 15 Power module slot 1
Item S5732-H24S6Q-AC
Forwarding Performance 450 MPPS
Switching Capacity 600 Gbit/s/2.4 Tbit/s
Fixed ports 20 x GE SFP ports, 4 x 10 GE SFP+ ports, 6 x 40 GE QSFP+ ports
Power supply type 600 W AC (pluggable) 1000 W DC (pluggable)
Rated voltage range AC input (600 W AC ): 100 V AC to 240 V AC, 50/60 Hz DC input (1000 W DC): -48 VDC to -60 V DC
Maximum voltage range AC input (600 W AC ): 90 V AC to 290 V AC, 45 Hz to 65 Hz High-voltage DC input (600 W AC): 190 V DC to 290 V DC (meeting 240 V high-voltage DC certification) DC input (1000 W DC): -36 V DC to -72V DC
Maximum power consumption 229 W
Noise Under normal temperature (sound power): 65dB (A) Under high temperature (sound power): 88dB (A) Under normal temperature (sound pressure): 52dB (A)
Operating temperature 0-1800 m altitude: -5°C to +45°C 1800-5000 m altitude: The operating temperature reduces by 1ºC every time the altitude increases by 220 m.
Operating temperature 0°C to 45°C (32°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.)
Storage temperature -40℃ to +70℃
Storage temperature -40°C to +70°C (-40°F to +158°F)
Relative humidity 5% to 95% (non-condensing)
Surge protection specification (power port) AC power port: ±6 kV in differential mode, ±6 kV in common mode DC power port: ±2 kV in differential mode, ±4 kV in common mode
Heat dissipation Air cooling heat dissipation, intelligent speed adjustment, and pluggable fans
MAC address table IEEE 802.1d standards compliance 128K MAC address entries MAC address learning and aging Static, dynamic, and blackhole MAC address entries Packet filtering based on source MAC addresses
VLAN 4094 VLANs Guest VLAN and voice VLAN GVRP MUX VLAN VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports VLAN mapping
Wireless service AP access control, AP domain management, and AP configuration template management Radio management, unified static configuration, and dynamic centralized management WLAN basic services, QoS, security, and user management CAPWAP, tag/terminal location, and spectrum analysis
Ethernet loop protection RRPP ring topology and RRPP multi-instance Smart Link tree topology and Smart Link multi-instance, providing millisecond-level protection switching SEP ERPS (G.8032) BFD for OSPF, BFD for IS-IS, BFD for VRRP, and BFD for PIM STP (IEEE 802.1d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s) BPDU protection, root protection, and loop protection
MPLS MPLS L3VPN MPLS L2VPN (VPWS/VPLS) MPLS-TE MPLS QoS
IP routing Static routes, RIP v1/2, RIPng, OSPF, OSPFv3, IS-IS, IS-ISv6, BGP, BGP4+, ECMP, routing policy Up to 192K FIBv4 entries Up to 80K FIBv6 entries
Interoperability VLAN-Based Spanning tree (VBST), working with PVST, PVST+, and RPVST Link-type Negotiation Protocol (LNP), similar to DTP VLAN Central Management Protocol (VCMP), similar to VTP
IPv6 features Up to 80K ND entries PMTU IPv6 Ping, IPv6 tracert, and IPv6 Telnet ACLs based on source IPv6 addresses, destination IPv6 addresses, Layer 4 ports, or protocol types Multicast Listener Discovery snooping (MLDv1/v2) IPv6 addresses configured for sub-interfaces, VRRP6, DHCPv6, and L3VPN
Multicast IGMP v1/v2/v3 snooping and IGMP fast leave Multicast forwarding in a VLAN and multicast replication between VLANs Multicast load balancing among member ports of a trunk Controllable multicast Port-based multicast traffic statistics IGMP v1/v2/v3, PIM-SM, PIM-DM, and PIM-SSM MSDP MVPN
QoS/ACL Rate limiting in the inbound and outbound directions of a port Packet redirection Port-based traffic policing and two-rate three-color CAR Eight queues per port DRR, SP and DRR+SP queue scheduling algorithms WRED Re-marking of the 802.1p and DSCP fields of packets Packet filtering at Layer 2 to Layer 4, filtering out invalid frames based on the source MAC address, destination MAC address, source IP address, destination IP address, TCP/UDP port number, protocol type, and VLAN ID Queue-based rate-limiting and shaping on ports
Security Hierarchical user management and password protection DoS attack defense, ARP attack defense, and ICMP attack defense Binding of the IP address, MAC address, port number, and VLAN ID Port isolation, port security, and sticky MAC MAC Forced Forwarding (MFF) Blackhole MAC address entries Limit on the number of learned MAC addresses IEEE 802.1x authentication and limit on the number of users on a port AAA authentication, RADIUS authentication, and HWTACACS authentication NACSSH V2.0 HTTPS CPU protection Blacklist and whitelist Attack source tracing and punishment for IPv6 packets such as ND, DHCPv6, and MLD packets Secure Boot IPSec ECA Deception
Reliability LACP E-trunk Ethernet OAM (IEEE 802.3ah and IEEE 802.1ag) ITU-Y.1731 DLDP LLDP BFD for BGP, BFD for IS-IS, BFD for OSPF, BFD for static route
VXLAN* VXLAN L2 and L3 gateways Centralized and distributed gateway BGP-EVPN Configured through the NETCONF protocol
Super Virtual Fabric (SVF) Working as an SVF Parent to vertically virtualize downlink switches and APs as one device for management. A two-layer client architecture is supported. IGMP snooping can be enabled on access switches (ASs) and the maximum number of access users on a port can be configured. ASs can be independently configured. Services that are not supported by templates can be configured on the parent. Third-party devices are allowed between SVF parent and clients.
iPCA Directly coloring service packets to collect real-time statistics on the number of lost packets and packet loss ratio Collection of statistics on the number of lost packets and packet loss ratio at network and device levels
TWAMP Two-way IP link performance measurement Measurement on two-way packet delay, one-way packet loss rate, and one-way packet jitter
Management and maintenance iStack, with up to 9 member switches in a stack SNMP v1/v2c/v3 RMONSmart Application Control (SAC) Web-based NMS System logs and alarms of different levels GVRP MUX VLAN NetStream Intelligent O&M
Dimensions (W x D x H) 442 mm x 420 mm x 43.6 mm

Additional information

Campus Switch

Brand

Huawei
Lead Time

3-5 days
Ship From

Shenzhen Warehouse
Item S5732-H24S6Q-AC
Forwarding Performance 450 MPPS
Switching Capacity 600 Gbit/s/2.4 Tbit/s
Fixed ports 20 x GE SFP ports, 4 x 10 GE SFP+ ports, 6 x 40 GE QSFP+ ports
Power supply type 600 W AC (pluggable) 1000 W DC (pluggable)
Rated voltage range AC input (600 W AC ): 100 V AC to 240 V AC, 50/60 Hz DC input (1000 W DC): -48 VDC to -60 V DC
Maximum voltage range AC input (600 W AC ): 90 V AC to 290 V AC, 45 Hz to 65 Hz High-voltage DC input (600 W AC): 190 V DC to 290 V DC (meeting 240 V high-voltage DC certification) DC input (1000 W DC): -36 V DC to -72V DC
Maximum power consumption 229 W
Noise Under normal temperature (sound power): 65dB (A) Under high temperature (sound power): 88dB (A) Under normal temperature (sound pressure): 52dB (A)
Operating temperature 0-1800 m altitude: -5°C to +45°C 1800-5000 m altitude: The operating temperature reduces by 1ºC every time the altitude increases by 220 m.
Operating temperature 0°C to 45°C (32°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.)
Storage temperature -40℃ to +70℃
Storage temperature -40°C to +70°C (-40°F to +158°F)
Relative humidity 5% to 95% (non-condensing)
Surge protection specification (power port) AC power port: ±6 kV in differential mode, ±6 kV in common mode DC power port: ±2 kV in differential mode, ±4 kV in common mode
Heat dissipation Air cooling heat dissipation, intelligent speed adjustment, and pluggable fans
MAC address table IEEE 802.1d standards compliance 128K MAC address entries MAC address learning and aging Static, dynamic, and blackhole MAC address entries Packet filtering based on source MAC addresses
VLAN 4094 VLANs Guest VLAN and voice VLAN GVRP MUX VLAN VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports VLAN mapping
Wireless service AP access control, AP domain management, and AP configuration template management Radio management, unified static configuration, and dynamic centralized management WLAN basic services, QoS, security, and user management CAPWAP, tag/terminal location, and spectrum analysis
Ethernet loop protection RRPP ring topology and RRPP multi-instance Smart Link tree topology and Smart Link multi-instance, providing millisecond-level protection switching SEP ERPS (G.8032) BFD for OSPF, BFD for IS-IS, BFD for VRRP, and BFD for PIM STP (IEEE 802.1d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s) BPDU protection, root protection, and loop protection
MPLS MPLS L3VPN MPLS L2VPN (VPWS/VPLS) MPLS-TE MPLS QoS
IP routing Static routes, RIP v1/2, RIPng, OSPF, OSPFv3, IS-IS, IS-ISv6, BGP, BGP4+, ECMP, routing policy Up to 192K FIBv4 entries Up to 80K FIBv6 entries
Interoperability VLAN-Based Spanning tree (VBST), working with PVST, PVST+, and RPVST Link-type Negotiation Protocol (LNP), similar to DTP VLAN Central Management Protocol (VCMP), similar to VTP
IPv6 features Up to 80K ND entries PMTU IPv6 Ping, IPv6 tracert, and IPv6 Telnet ACLs based on source IPv6 addresses, destination IPv6 addresses, Layer 4 ports, or protocol types Multicast Listener Discovery snooping (MLDv1/v2) IPv6 addresses configured for sub-interfaces, VRRP6, DHCPv6, and L3VPN
Multicast IGMP v1/v2/v3 snooping and IGMP fast leave Multicast forwarding in a VLAN and multicast replication between VLANs Multicast load balancing among member ports of a trunk Controllable multicast Port-based multicast traffic statistics IGMP v1/v2/v3, PIM-SM, PIM-DM, and PIM-SSM MSDP MVPN
QoS/ACL Rate limiting in the inbound and outbound directions of a port Packet redirection Port-based traffic policing and two-rate three-color CAR Eight queues per port DRR, SP and DRR+SP queue scheduling algorithms WRED Re-marking of the 802.1p and DSCP fields of packets Packet filtering at Layer 2 to Layer 4, filtering out invalid frames based on the source MAC address, destination MAC address, source IP address, destination IP address, TCP/UDP port number, protocol type, and VLAN ID Queue-based rate-limiting and shaping on ports
Security Hierarchical user management and password protection DoS attack defense, ARP attack defense, and ICMP attack defense Binding of the IP address, MAC address, port number, and VLAN ID Port isolation, port security, and sticky MAC MAC Forced Forwarding (MFF) Blackhole MAC address entries Limit on the number of learned MAC addresses IEEE 802.1x authentication and limit on the number of users on a port AAA authentication, RADIUS authentication, and HWTACACS authentication NACSSH V2.0 HTTPS CPU protection Blacklist and whitelist Attack source tracing and punishment for IPv6 packets such as ND, DHCPv6, and MLD packets Secure Boot IPSec ECA Deception
Reliability LACP E-trunk Ethernet OAM (IEEE 802.3ah and IEEE 802.1ag) ITU-Y.1731 DLDP LLDP BFD for BGP, BFD for IS-IS, BFD for OSPF, BFD for static route
VXLAN* VXLAN L2 and L3 gateways Centralized and distributed gateway BGP-EVPN Configured through the NETCONF protocol
Super Virtual Fabric (SVF) Working as an SVF Parent to vertically virtualize downlink switches and APs as one device for management. A two-layer client architecture is supported. IGMP snooping can be enabled on access switches (ASs) and the maximum number of access users on a port can be configured. ASs can be independently configured. Services that are not supported by templates can be configured on the parent. Third-party devices are allowed between SVF parent and clients.
iPCA Directly coloring service packets to collect real-time statistics on the number of lost packets and packet loss ratio Collection of statistics on the number of lost packets and packet loss ratio at network and device levels
TWAMP Two-way IP link performance measurement Measurement on two-way packet delay, one-way packet loss rate, and one-way packet jitter
Management and maintenance iStack, with up to 9 member switches in a stack SNMP v1/v2c/v3 RMONSmart Application Control (SAC) Web-based NMS System logs and alarms of different levels GVRP MUX VLAN NetStream Intelligent O&M
Dimensions (W x D x H) 442 mm x 420 mm x 43.6 mm

Reviews

  1. Diana –

    QSFP+ optical port is a 40GE port. In V200R020C00 and later versions, a license can be loaded to increase the port rate to 100 Gbit/s. So i bought a 100G license from Telecomate.com.

  2. Salvador Pizado –

    Compré 8 unidades de S5732-H24S6Q, pero la entrega no estaba sellada. Estaba muy enojado, pero luego el representante de ventas me dijo que debido a que necesitaba dos módulos de CA, tenía que abrir el paquete e instalar los módulos de CC. Venga a ayúdame a ahorrar gastos de envío. Me emocioné mucho. También me proporcionaron fotos antes de abrir el paquete. Me avergoncé y les hice daño.
