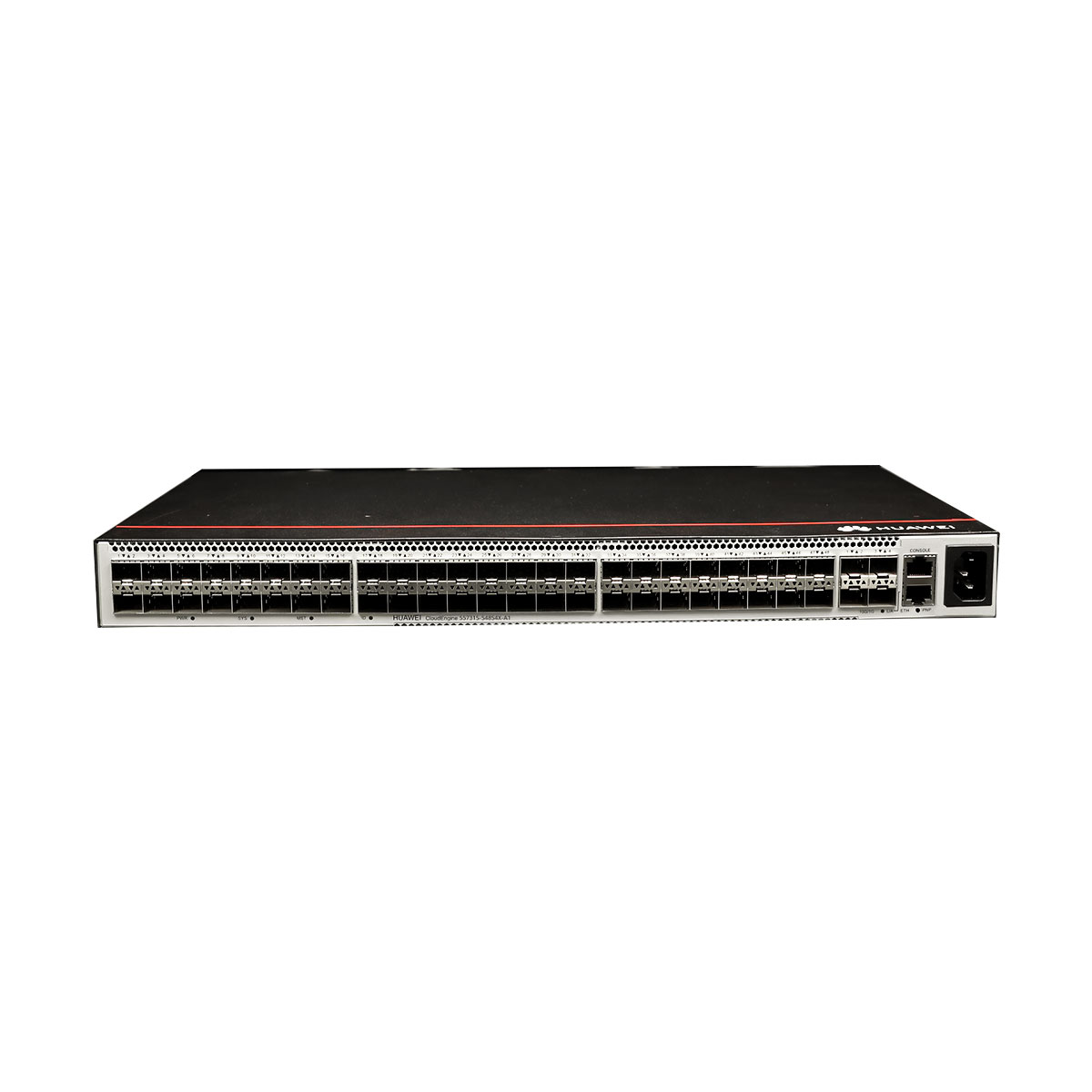

S5731S-S48S4X-A1-1

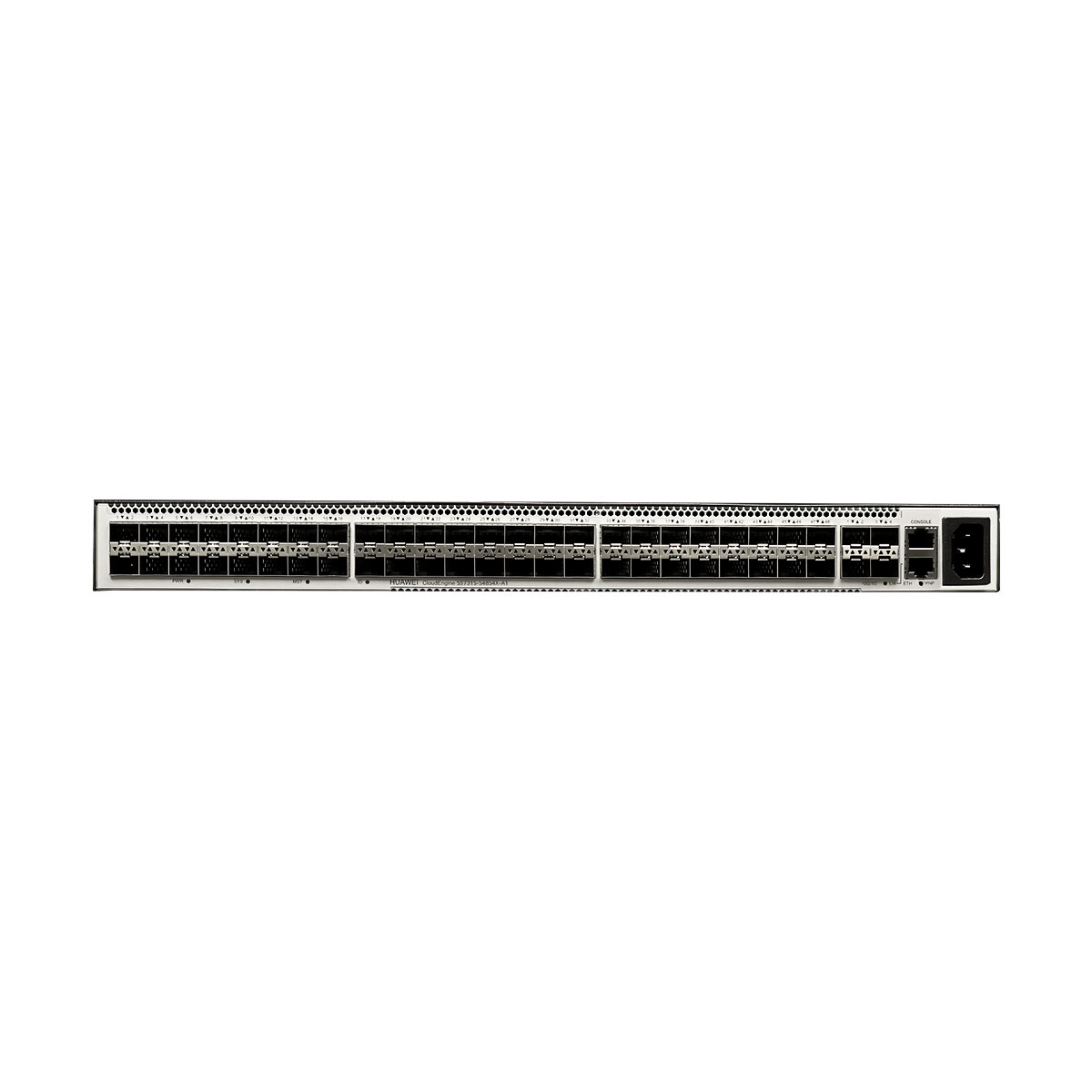

S5731S-S48S4X-A1-2

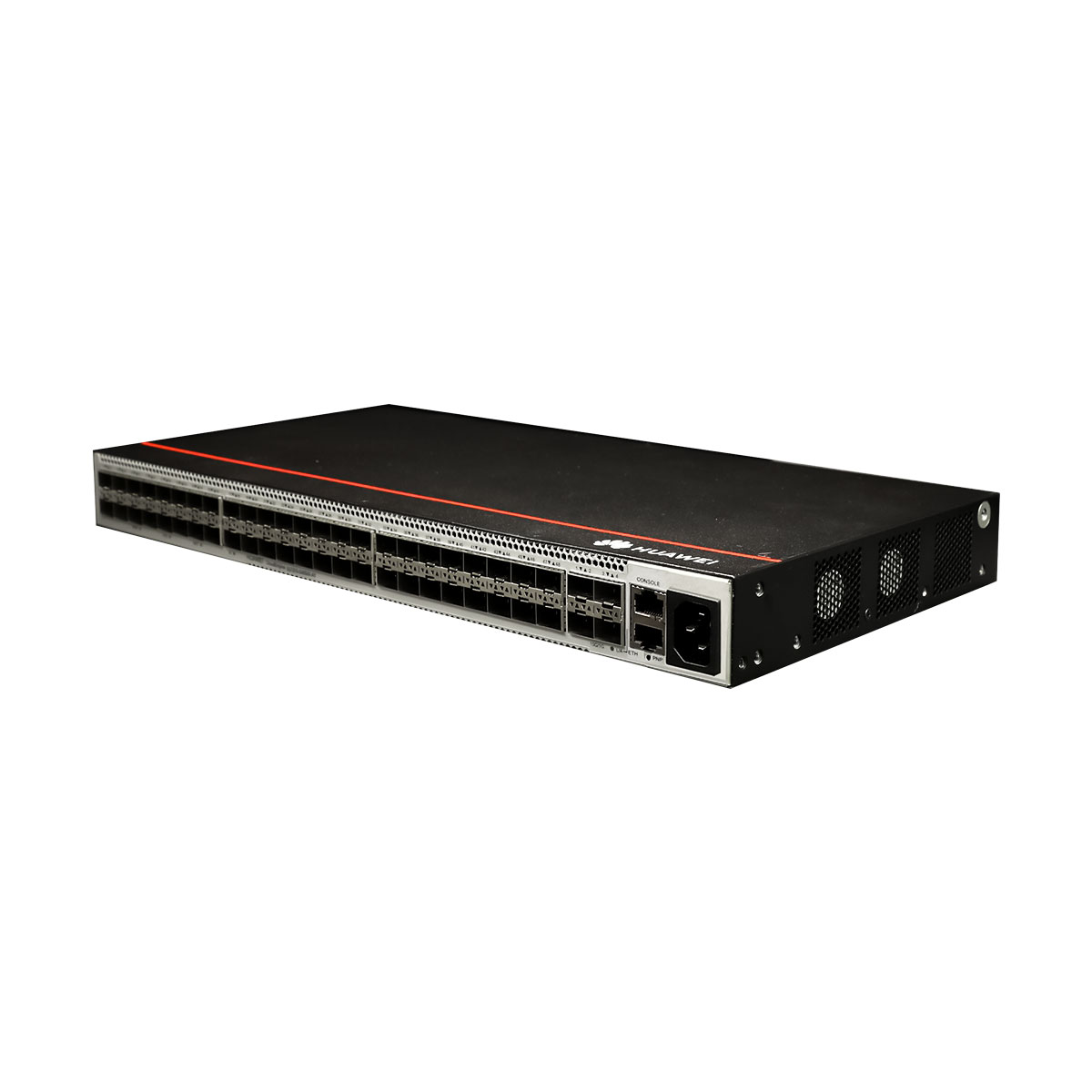

S5731S-S48S4X-A1-3

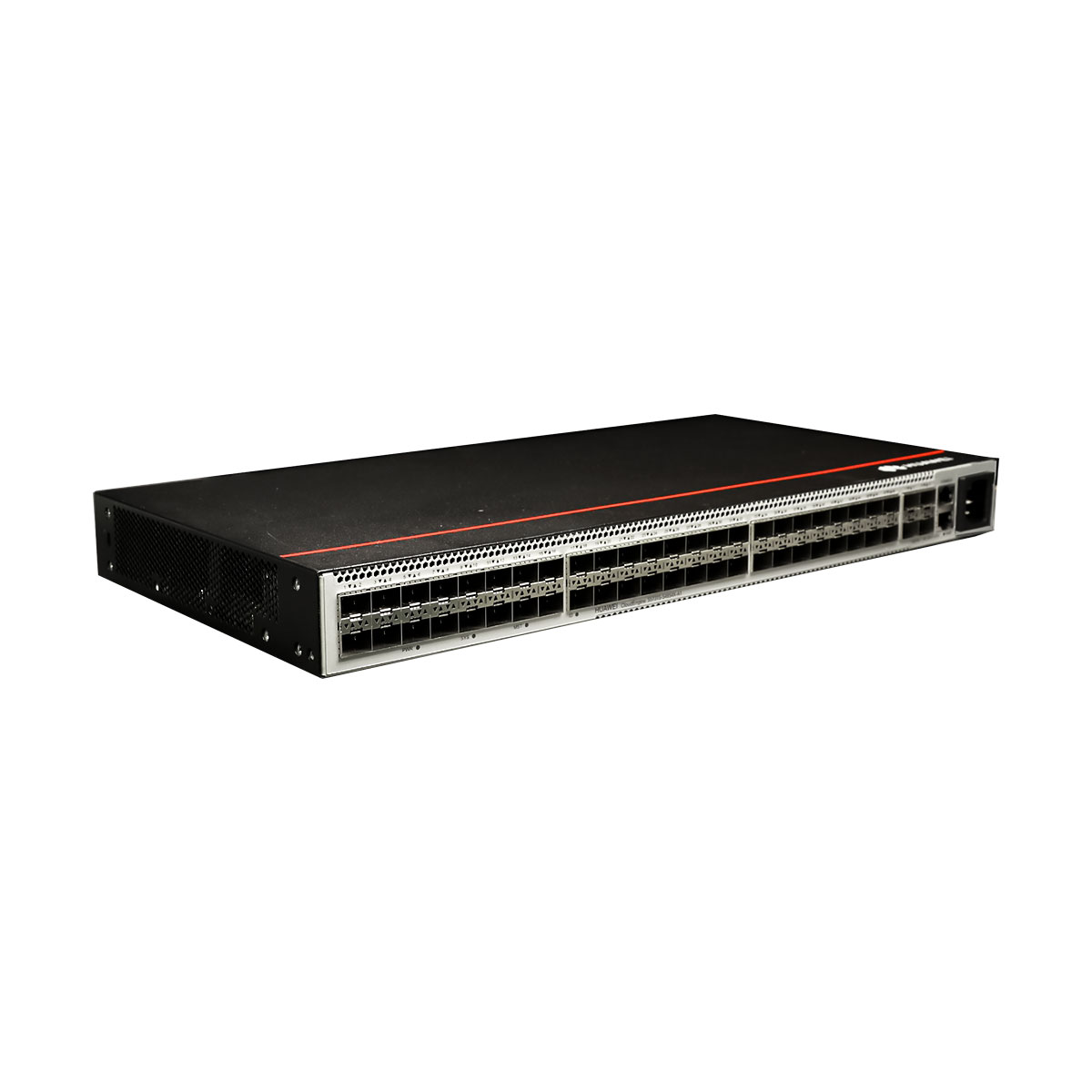

S5731S-S48S4X-A1-4

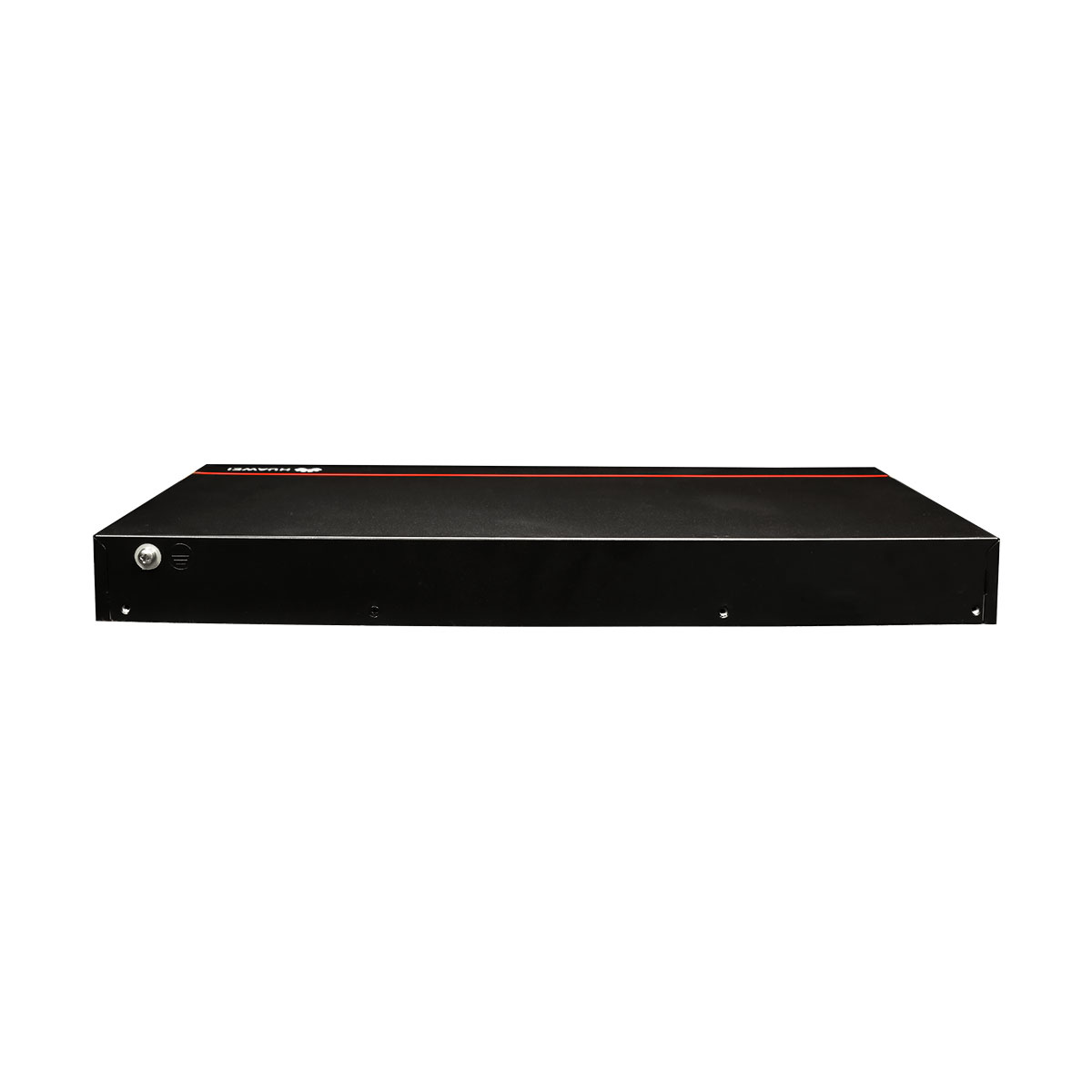

S5731S-S48S4X-A1-5

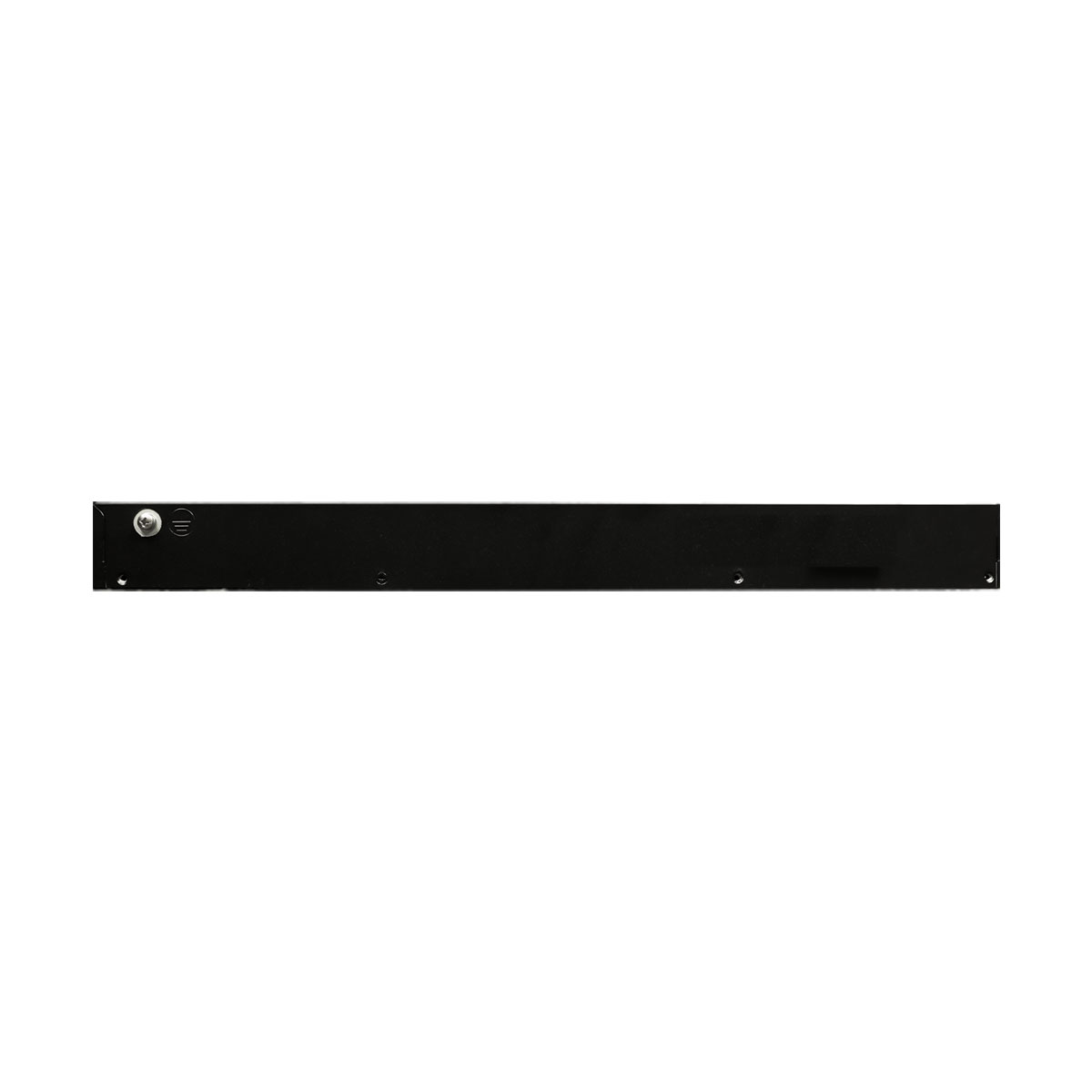

S5731S-S48S4X-A1-6
Categories:

S5731S-S48S4X-A1

0 Reviews Write a review
SKU2006703
Brands
AvailabilityIn Stock
Campus Switch S5731-S
WarrantyUp to 36 months i
×
Warranty Policy
We provide a comprehensive warranty policy.
Refer to the table for more details.

Huawei S5731S-S48S4X-A1 switch supports 48 GE SFP ports, 4 10GE SFP+ ports, AC power

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

S5731S-S48S4X-A1 overview

This Huawei switch supports 48 GE SFP ports, 4 10GE SFP+ ports, AC power

CloudEngine S5731S-S series switches are standard gigabit access switches tailored for the channel distribution market, with all-GE electrical downlink ports and fixed 10 GE uplink ports.

CloudEngine S5731S-S series switches are next-generation gigabit access switches. Built on Huawei’s unified Versatile Routing Platform (VRP), CloudEngine S5731S-S switches provide enhanced Layer 3 features, simple O&M, Intelligent Stack (iStack), flexible Ethernet networking, and mature IPv6 features. These feature-rich switches are widely used in scenarios such as enterprise campus access and aggregation, as well as data center access.



S5731S-S48S4X-A1 quick spec

48 GE SFP ports

4 10GE SFP+ ports

With 1 AC power module equipped

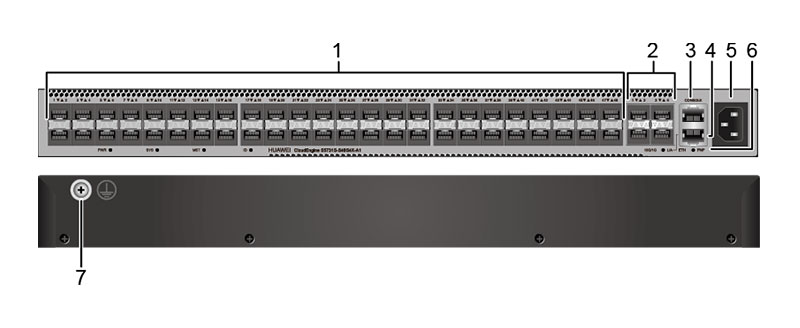

S5731S-S48S4X-A1 appearance and structure
 S5731S-S48S4X-A1 appearance and structure
1 Forty-eight 100/1000BASE-X ports

eSFP-GE-SX-MM850
2 Four 10GE SFP+ ports OMXD30000

OSX010000
3 One console port
4 One ETH management port
5 AC socket
6 One PNP button
7 Ground screw
8 –
Item S5731S-S48S4X-A1
Memory 2 GB
Flash memory The physical space is 1 GB. You can run the display version command to view the actual available space.
Console port RJ45
Eth Management port RJ45
USB Not supported
RTC Supported
RPS input Not supported
Service port surge protection [kV] -
Power supply surge protection [kV] ±6 kV in differential mode; ±6 kV in common mode
Types of fans Built-in
Heat dissipation mode Heat dissipation with fan, intelligent fan speed adjustment
Airflow direction Air intake from left and air exhaust from right
PoE Not supported
Certification EMC certification
Safety certification
Manufacturing certification
Dimensions without packaging (H x W x D) [mm(in.)] Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.40 in. x 8.66 in.)
Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 227.0 mm (1.72 in. x 17.40 in. x 8.94 in.)
Dimensions with packaging (H x W x D) [mm(in.)] 90 mm x 550 mm x 355 mm (3.54 in. x 21.65 in. x 13.98 in.)
Chassis height [U] 1 U
Weight without packaging [kg(lb)] 3.49 kg (7.69 lb)
Weight with packaging [kg(lb)] 4.85 kg (10.69 lb)
Typical power consumption [W] 87.89 W
Typical heat dissipation [BTU/hour] 299.89 BTU/hour
Maximum power consumption [W] 121.04 W
Maximum heat dissipation [BTU/hour] 413.00 BTU/hour
MTBF [year] 31.39 year
MTtr [hour] 2 hour
Availability >0.99999
Noise at normal temperature (acoustic power) [dB(A)] 41.42 dB(A)
Noise at normal temperature (acoustic pressure) [dB(A)] 27.74 dB(A)
Number of card slots 0
Number of power slots 0
Number of fans modules 2
Redundant power supply Not supported
Long-term operating temperature [°C(°F)] -5°C to +45°C (23°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.)
Short-term operating temperature [°C(°F)] -5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5906 ft.)
Restriction on the operating temperature variation rate [°C(°F)] When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
The device can work for a short period of time when the operating temperature is beyond the normal range, but the following conditions must be met:
The operating temperature can exceed 45°C (113°F) for a maximum of 96 consecutive hours in a year.
The total time when the operating temperature exceeds 45°C (113°F) in a year is less than or equal to 360 hours.
The number of times the operating temperature exceeds 45°C (113°F) is less than or equal to 15 in one year.
If any of the preceding conditions is not met, the device may be damaged or an unknown error may occur.
Devices cannot start when the temperature is lower than 0°C (32°F). The maximum transmission distance of an optical module used for short-term operation cannot exceed 10 km.
Storage temperature [°C(°F)] -40°C to +70°C (-40°F to +158°F)
Long-term operating relative humidity [RH] 5% to 95%, noncondensing
Long-term operating altitude [m(ft.)] 0-5000 m (0-16404 ft.)
Storage altitude [m(ft.)] 0-5000 m (0-16404 ft.)
Power supply mode AC built-in
Rated input voltage [V] AC input: 100 V AC to 240 V AC, 50/60 Hz
High-voltage DC input: 240 V DC
Input voltage range [V] AC input: 90 V AC to 264 V AC, 47 Hz to 63 Hz
High-voltage DC input: 190 V DC to 290 V DC
Maximum input current [A] 3 A

Additional information

Brand

Huawei
Campus Switch

Lead Time

3-5 days
Ship From

Shenzhen Warehouse
Item S5731S-S48S4X-A1
Memory 2 GB
Flash memory The physical space is 1 GB. You can run the display version command to view the actual available space.
Console port RJ45
Eth Management port RJ45
USB Not supported
RTC Supported
RPS input Not supported
Service port surge protection [kV] -
Power supply surge protection [kV] ±6 kV in differential mode; ±6 kV in common mode
Types of fans Built-in
Heat dissipation mode Heat dissipation with fan, intelligent fan speed adjustment
Airflow direction Air intake from left and air exhaust from right
PoE Not supported
Certification EMC certification
Safety certification
Manufacturing certification
Dimensions without packaging (H x W x D) [mm(in.)] Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.40 in. x 8.66 in.)
Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 227.0 mm (1.72 in. x 17.40 in. x 8.94 in.)
Dimensions with packaging (H x W x D) [mm(in.)] 90 mm x 550 mm x 355 mm (3.54 in. x 21.65 in. x 13.98 in.)
Chassis height [U] 1 U
Weight without packaging [kg(lb)] 3.49 kg (7.69 lb)
Weight with packaging [kg(lb)] 4.85 kg (10.69 lb)
Typical power consumption [W] 87.89 W
Typical heat dissipation [BTU/hour] 299.89 BTU/hour
Maximum power consumption [W] 121.04 W
Maximum heat dissipation [BTU/hour] 413.00 BTU/hour
MTBF [year] 31.39 year
MTtr [hour] 2 hour
Availability >0.99999
Noise at normal temperature (acoustic power) [dB(A)] 41.42 dB(A)
Noise at normal temperature (acoustic pressure) [dB(A)] 27.74 dB(A)
Number of card slots 0
Number of power slots 0
Number of fans modules 2
Redundant power supply Not supported
Long-term operating temperature [°C(°F)] -5°C to +45°C (23°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.)
Short-term operating temperature [°C(°F)] -5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5906 ft.)
Restriction on the operating temperature variation rate [°C(°F)] When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
The device can work for a short period of time when the operating temperature is beyond the normal range, but the following conditions must be met:
The operating temperature can exceed 45°C (113°F) for a maximum of 96 consecutive hours in a year.
The total time when the operating temperature exceeds 45°C (113°F) in a year is less than or equal to 360 hours.
The number of times the operating temperature exceeds 45°C (113°F) is less than or equal to 15 in one year.
If any of the preceding conditions is not met, the device may be damaged or an unknown error may occur.
Devices cannot start when the temperature is lower than 0°C (32°F). The maximum transmission distance of an optical module used for short-term operation cannot exceed 10 km.
Storage temperature [°C(°F)] -40°C to +70°C (-40°F to +158°F)
Long-term operating relative humidity [RH] 5% to 95%, noncondensing
Long-term operating altitude [m(ft.)] 0-5000 m (0-16404 ft.)
Storage altitude [m(ft.)] 0-5000 m (0-16404 ft.)
Power supply mode AC built-in
Rated input voltage [V] AC input: 100 V AC to 240 V AC, 50/60 Hz
High-voltage DC input: 240 V DC
Input voltage range [V] AC input: 90 V AC to 264 V AC, 47 Hz to 63 Hz
High-voltage DC input: 190 V DC to 290 V DC
Maximum input current [A] 3 A
