Huawei S5731S-S32ST4X-A1 switch supports 8 10/100/1000BASE-T ports, 24 100/1000BASE-X ports, 4 10GE SFP+ ports, AC power

32 Ports Switch Electrical Switch Fixed AC Switch GE Switch Lan Access Switch

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

S5731S-S32ST4X-A1 overview

This Huawei S5731S-S32ST4X-A1 switch supports 8 10/100/1000BASE-T ports, 24 100/1000BASE-X ports, 4 10GE SFP+ ports, AC power, which is one model of the Huawei S5735S-S series switch.

CloudEngine S5731S-S series switches are standard gigabit access switches tailored for the channel distribution market, with all-GE electrical downlink ports and fixed 10 GE uplink ports.

CloudEngine S5731S-S series switches are next-generation gigabit access switches. Built on Huawei’s unified Versatile Routing Platform (VRP), CloudEngine S5731S-S switches provide enhanced Layer 3 features, simple O&M, Intelligent Stack (iStack), flexible Ethernet networking, and mature IPv6 features. These feature-rich switches are widely used in scenarios such as enterprise campus access and aggregation, as well as data center access.

Telecomate.com provides a full range of Huawei switch series, if you have any demands, please contact: csd@telecomate.com

S5731S-S32ST4X-A1 quick spec

8 10/100/1000BASE-T ports

24 100/1000BASE-X ports

4 10GE SFP+ ports

1 AC power module equipped

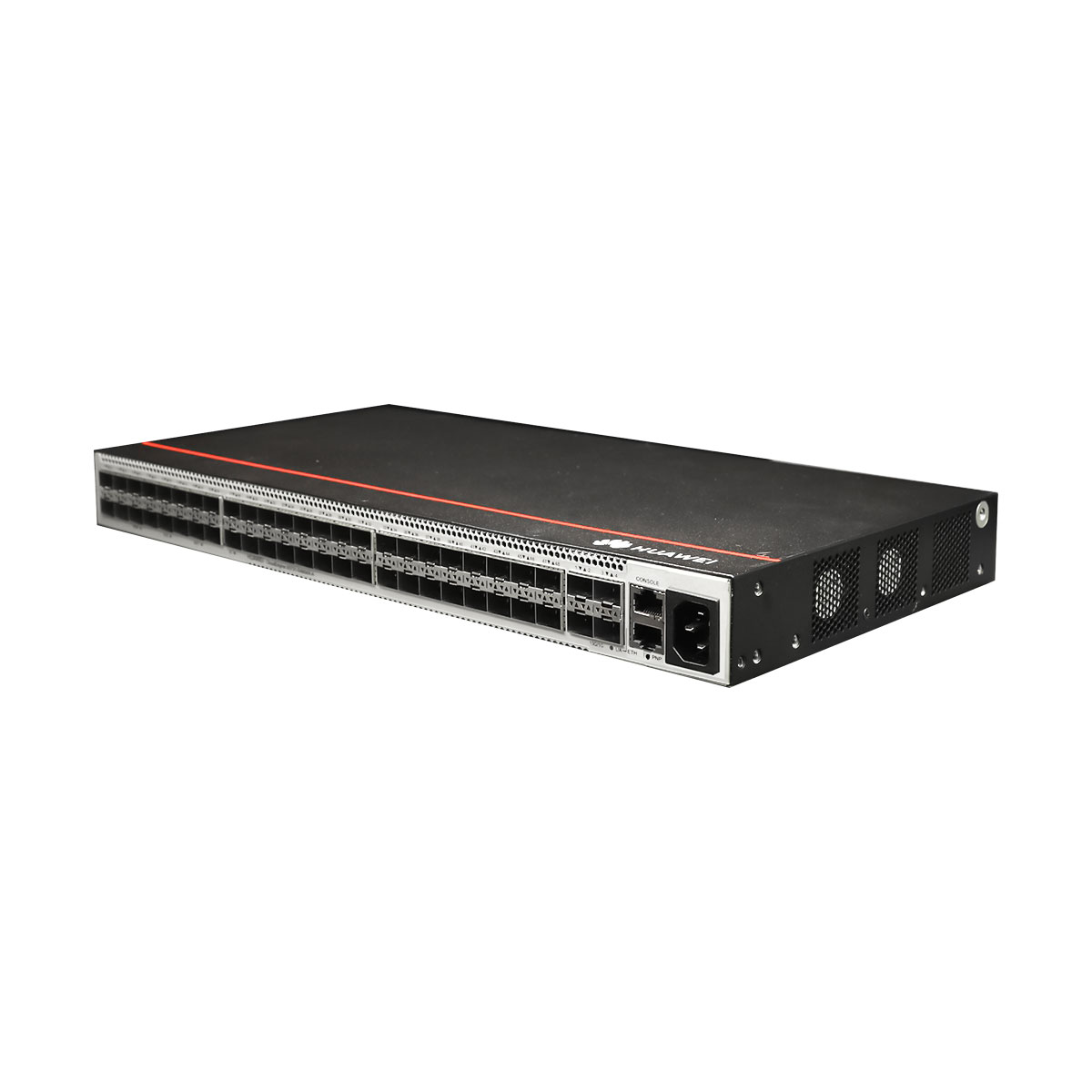

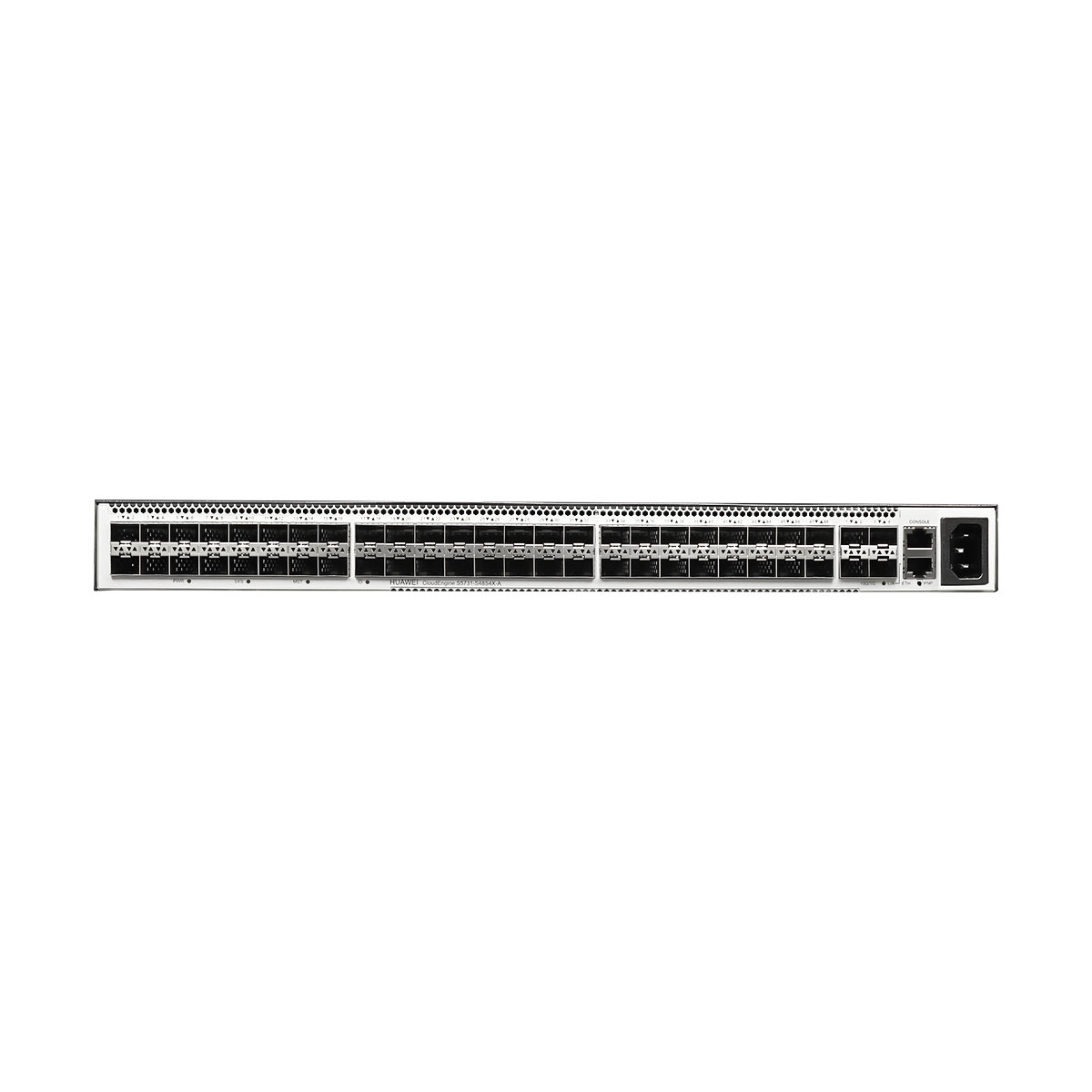

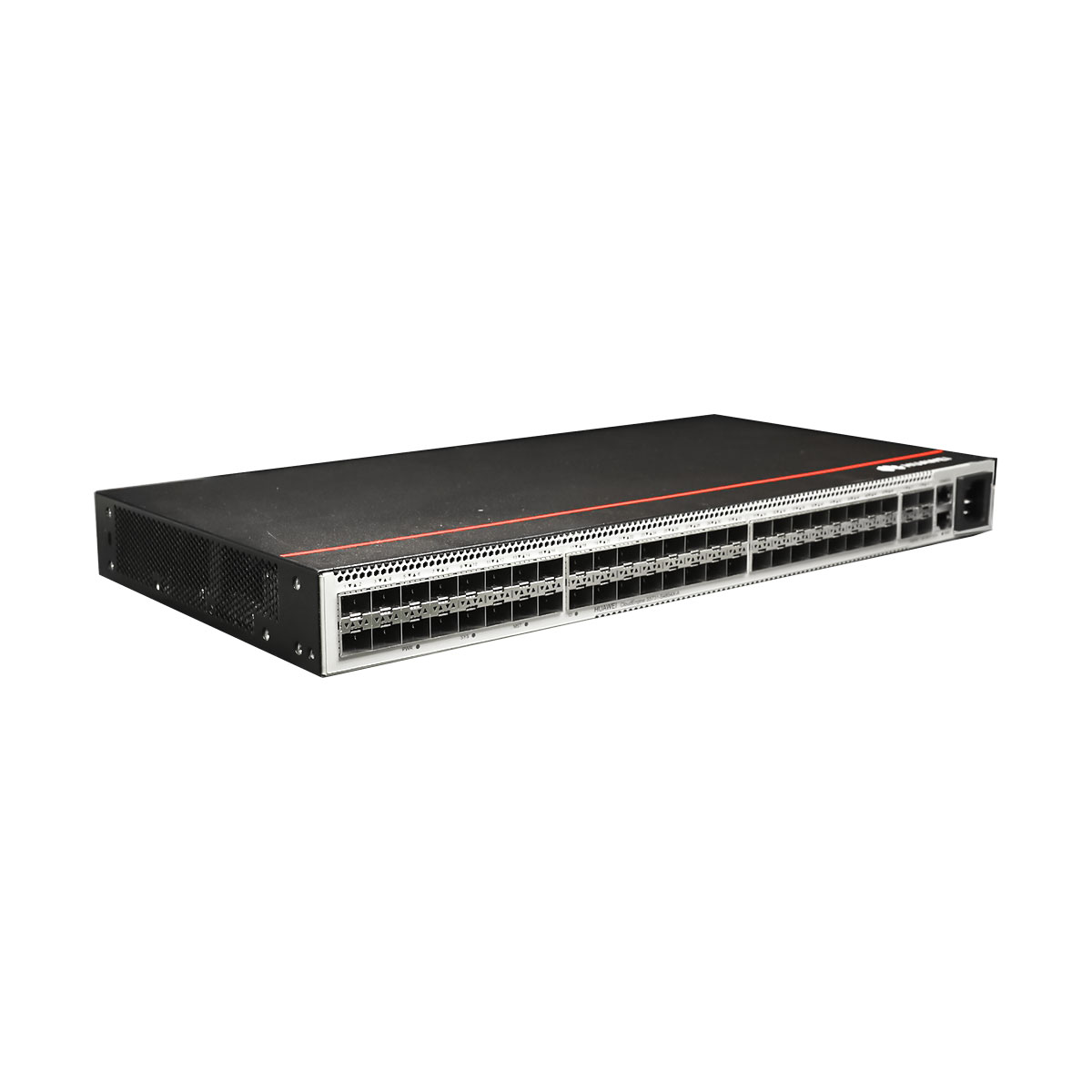

S5731S-S32ST4X-A1 appearance and structure

1	8 10/100/1000BASE-T ports SFP-1000Base-T
2	24 100/1000BASE-X ports
3	4 10GE SFP+ ports OMXD30000 OSX010000 OSX040N01 SFP-10G-ZR SFP-10G-USR
4	One console port
5	One ETH management port
6	One PNP button
7	AC socket
8	Ground screw

Item	S5731S-S32ST4X-A1
Memory	2 GB
Flash memory	The physical space is 1 GB. You can run the display version command to view the actual available space.
Console port	RJ45
Eth Management port	RJ45
USB	Not supported
RTC	Supported
RPS input	Not supported
Service port surge protection [kV]	Common mode: ±7 kV
Power supply surge protection [kV]	±6 kV in differential mode; ±6 kV in common mode
Types of fans	Built-in
Heat dissipation mode	Heat dissipation with fan, intelligent fan speed adjustment
Airflow direction	Air intake from the front and left and air exhaust from the right
PoE	Not supported
Certification	EMC certification
	Safety certification
	Manufacturing certification
Dimensions without packaging (H x W x D) [mm(in.)]	Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.40 in. x 8.66 in.)
Dimensions without packaging (H x W x D) [mm(in.)]	Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 227.0 mm (1.72 in. x 17.40 in. x 8.94 in.)
Dimensions with packaging (H x W x D) [mm(in.)]	90 mm x 550 mm x 355 mm (3.54 in. x 21.65 in. x 13.98 in.)
Chassis height [U]	1 U
Weight without packaging [kg(lb)]	3.13 kg (6.90 lb)
Weight with packaging [kg(lb)]	4.49 kg (9.90 lb)
Typical power consumption [W]	66.85 W
Typical heat dissipation [BTU/hour]	228.10 BTU/hour
Maximum power consumption [W]	93.92 W
Maximum heat dissipation [BTU/hour]	320.46 BTU/hour
MTBF [year]	32.56 year
MTtr [hour]	2 hour
Availability	>0.99999
Noise at normal temperature (acoustic power) [dB(A)]	41.42 dB(A)
Noise at normal temperature (acoustic pressure) [dB(A)]	27.74 dB(A)
Number of card slots	0
Number of power slots	0
Number of fans modules	2
Redundant power supply	Not supported
Long-term operating temperature [°C(°F)]	-5°C to +45°C (23°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.)
Short-term operating temperature [°C(°F)]	-5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5906 ft.)
Restriction on the operating temperature variation rate [°C(°F)]	When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
Storage temperature [°C(°F)]	-40°C to +70°C (-40°F to +158°F)
Long-term operating relative humidity [RH]	5% to 95%, noncondensing
Long-term operating altitude [m(ft.)]	0-5000 m (0-16404 ft.)
Storage altitude [m(ft.)]	0-5000 m (0-16404 ft.)
Power supply mode	AC built-in
Rated input voltage [V]	AC input: 100 V AC to 240 V AC, 50/60 Hz
Rated input voltage [V]	High-voltage DC input: 240 V DC
Input voltage range [V]	AC input: 90 V AC to 264 V AC, 47 Hz to 63 Hz
Input voltage range [V]	High-voltage DC input: 190 V DC to 290 V DC
Maximum input current [A]	3 A

Item	S5731S-S32ST4X-A1
Memory	2 GB
Flash memory	The physical space is 1 GB. You can run the display version command to view the actual available space.
Console port	RJ45
Eth Management port	RJ45
USB	Not supported
RTC	Supported
RPS input	Not supported
Service port surge protection [kV]	Common mode: ±7 kV
Power supply surge protection [kV]	±6 kV in differential mode; ±6 kV in common mode
Types of fans	Built-in
Heat dissipation mode	Heat dissipation with fan, intelligent fan speed adjustment
Airflow direction	Air intake from the front and left and air exhaust from the right
PoE	Not supported
Certification	EMC certification
	Safety certification
	Manufacturing certification
Dimensions without packaging (H x W x D) [mm(in.)]	Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.40 in. x 8.66 in.)
Dimensions without packaging (H x W x D) [mm(in.)]	Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 227.0 mm (1.72 in. x 17.40 in. x 8.94 in.)
Dimensions with packaging (H x W x D) [mm(in.)]	90 mm x 550 mm x 355 mm (3.54 in. x 21.65 in. x 13.98 in.)
Chassis height [U]	1 U
Weight without packaging [kg(lb)]	3.13 kg (6.90 lb)
Weight with packaging [kg(lb)]	4.49 kg (9.90 lb)
Typical power consumption [W]	66.85 W
Typical heat dissipation [BTU/hour]	228.10 BTU/hour
Maximum power consumption [W]	93.92 W
Maximum heat dissipation [BTU/hour]	320.46 BTU/hour
MTBF [year]	32.56 year
MTtr [hour]	2 hour
Availability	>0.99999
Noise at normal temperature (acoustic power) [dB(A)]	41.42 dB(A)
Noise at normal temperature (acoustic pressure) [dB(A)]	27.74 dB(A)
Number of card slots	0
Number of power slots	0
Number of fans modules	2
Redundant power supply	Not supported
Long-term operating temperature [°C(°F)]	-5°C to +45°C (23°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.)
Short-term operating temperature [°C(°F)]	-5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5906 ft.)
Restriction on the operating temperature variation rate [°C(°F)]	When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
Storage temperature [°C(°F)]	-40°C to +70°C (-40°F to +158°F)
Long-term operating relative humidity [RH]	5% to 95%, noncondensing
Long-term operating altitude [m(ft.)]	0-5000 m (0-16404 ft.)
Storage altitude [m(ft.)]	0-5000 m (0-16404 ft.)
Power supply mode	AC built-in
Rated input voltage [V]	AC input: 100 V AC to 240 V AC, 50/60 Hz
Rated input voltage [V]	High-voltage DC input: 240 V DC
Input voltage range [V]	AC input: 90 V AC to 264 V AC, 47 Hz to 63 Hz
Input voltage range [V]	High-voltage DC input: 190 V DC to 290 V DC
Maximum input current [A]	3 A
