Huawei S5731S-S32ST4X-A switch supports 24 100/1000BASE-X ports, 8 10/100/1000BASE-T ports, 4 10GE SFP+ ports

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

S5731S-S32ST4X-A overview

This Huawei switch comes with 24 100/1000BASE-X ports, 8 10/100/1000BASE-T ports, 4 10GE SFP+ ports, which is one of the S5731 series switches.

The Huawei CloudEngine  S5731-S series switches are next-generation standard gigabit switches that provide GE electrical/optical downlink ports and 10GE uplink ports.

Telecomate.com provides a full range of Huawei switch series, if you have any demands, please contact: csd@telecomate.com



S5731S-S32ST4X-A quick spec

8 10/100/1000BASE-T ports

24 GE SFP ports

4 10GE SFP+ ports

Forwarding performance: 96 Mpps

Switching capacity: 128 Gbps/672 Gbps

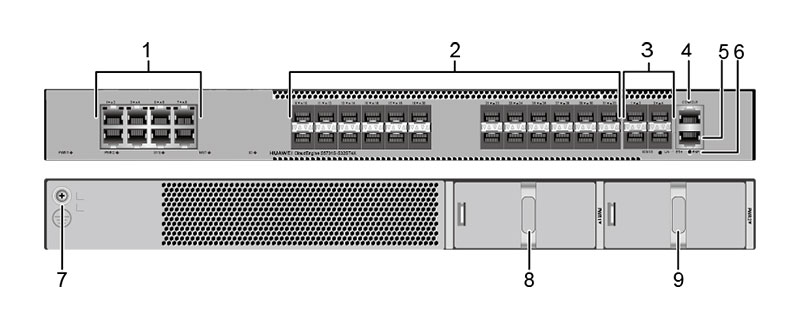

S5731S-S32ST4X-A appearance and structure

S5731S-S32ST4X-A appearance and structure

1 Eight 10/100/1000BASE-T ports

SFP-1000Base-T
2 Twenty-four 100/1000BASE-X ports
3 Four 10GE SFP+ ports

OMXD30000    OSX010000
OSX040N01      SFP-10G-ZR
SFP-10G-USR
4 One console port
5 One ETH management port
6 One PNP button
7 Ground screw
8 Power module slot 1
9 Power module slot 2



Item S5731S-S32ST4X-A
Memory (RAM) 1 GB
Flash 512 MB in total. To view the available flash memory size, run the display version command.
Mean time between failures (MTBF) 68.59 years
Mean time to repair (MTtr) 2 hours
Availability > 0.99999
Service port surge protection Common mode: ±7 kV
Power supply surge protection Using AC power modules: ±6 kV in differential mode, ±6 kV in common mode
Using DC power modules: ±2 kV in differential mode, ±4 kV in common mode
Dimensions (H x W x D) Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.4 in. x 16.5 in.)
Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 43.6 mm x 442.0 mm x 444.2 mm (1.72 in. x 17.4 in. x 17.49 in.)
Weight (with packaging) 7.47 kg (16.47 lb)
Stack ports Any 10/100/1000BASE-T ports, 100/1000BASE-X ports, or 10GE SFP+ ports (applicable in V200R019C10 and later versions)
RTC Supported
RPS Not supported
PoE Not supported
Rated voltage range AC input: 100 V AC to 240 V AC, 50/60 Hz
High-Voltage DC input: 240 V DC
DC input: -48 V DC to -60 V DC
Maximum voltage range AC input: 90 V AC to 264 V AC, 47 Hz to 63 Hz
High-Voltage DC input: 190 V DC to 290 V DC
DC input: -38.4 V DC to -72 V DC
Maximum power consumption (100% throughput, full speed of fans) 66 W
Typical power consumption (30% of traffic load) 47 W
Operating temperature -5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5906 ft.)
Short-term operating temperature -5°C to +55°C (23°F to 131°F) at an altitude of 0-1800 m (0-5906 ft.)
Storage temperature -40°C to +70°C (-40°F to +158°F)
Noise under normal temperature (27°C, sound power) < 59.3 dB(A)
Relative humidity 5% to 95%, noncondensing
Operating altitude 0-5000 m (0-16404 ft.)
Certification EMC certification
Safety certification
Manufacturing certification
Part number 98010931

Additional information

Brand

Huawei
Campus Switch

Lead Time

3-5 days
Ship From

Shenzhen Warehouse
Item S5731S-S32ST4X-A
Memory (RAM) 1 GB
Flash 512 MB in total. To view the available flash memory size, run the display version command.
Mean time between failures (MTBF) 68.59 years
Mean time to repair (MTtr) 2 hours
Availability > 0.99999
Service port surge protection Common mode: ±7 kV
Power supply surge protection Using AC power modules: ±6 kV in differential mode, ±6 kV in common mode
Using DC power modules: ±2 kV in differential mode, ±4 kV in common mode
Dimensions (H x W x D) Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.4 in. x 16.5 in.)
Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 43.6 mm x 442.0 mm x 444.2 mm (1.72 in. x 17.4 in. x 17.49 in.)
Weight (with packaging) 7.47 kg (16.47 lb)
Stack ports Any 10/100/1000BASE-T ports, 100/1000BASE-X ports, or 10GE SFP+ ports (applicable in V200R019C10 and later versions)
RTC Supported
RPS Not supported
PoE Not supported
Rated voltage range AC input: 100 V AC to 240 V AC, 50/60 Hz
High-Voltage DC input: 240 V DC
DC input: -48 V DC to -60 V DC
Maximum voltage range AC input: 90 V AC to 264 V AC, 47 Hz to 63 Hz
High-Voltage DC input: 190 V DC to 290 V DC
DC input: -38.4 V DC to -72 V DC
Maximum power consumption (100% throughput, full speed of fans) 66 W
Typical power consumption (30% of traffic load) 47 W
Operating temperature -5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5906 ft.)
Short-term operating temperature -5°C to +55°C (23°F to 131°F) at an altitude of 0-1800 m (0-5906 ft.)
Storage temperature -40°C to +70°C (-40°F to +158°F)
Noise under normal temperature (27°C, sound power) < 59.3 dB(A)
Relative humidity 5% to 95%, noncondensing
Operating altitude 0-5000 m (0-16404 ft.)
Certification EMC certification
Safety certification
Manufacturing certification
Part number 98010931
