Huawei S5731S-S24T4X-A1 switch supports 24*10/100/1000BASE-T ports, 4*10GE SFP+ ports, AC power fixed

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

Huawei S5731S-S24T4X-A1 overview



The Huawei S5731S-S24T4X-A1 switch comes with 24*10/100/1000BASE-T ports, 4*10GE SFP+ ports, and 1*AC power input fixed, and it is one of the Huawei S5735S series switches.



The Huawei S5735S series fixed Ethernet switches integrate access and transmission functions, providing reliable access/aggregation and high-quality service transmission for enterprise networks. The Ethernet switch is built on an integrated hardware platform, and the hardware system consists of a chassis, a power module, a fan module, an expansion card, and an SCU (Switch Control Unit).



There are various S series fixed Ethernet switches models for you to choose from according to your network requirements. If you don’t know which switch is suitable for your network, you can contact csd@telecomate.com to get your exclusive technical sales manager for professional pre-sales consultation and technical services.



Basic information about the S5731S-S24T4X-A1



Item Details
Description S5731S-S24T4X-A1 (24*10/100/1000BASE-T ports, 4*10GE SFP+ ports, AC power)
Part Number 98011859
Model S5731S-S24T4X-A1
First supported version V200R021C10SPC600
Supported Patch Version If V200R021C10SPC500 is used, install V200R021HP0121 or a later patch.

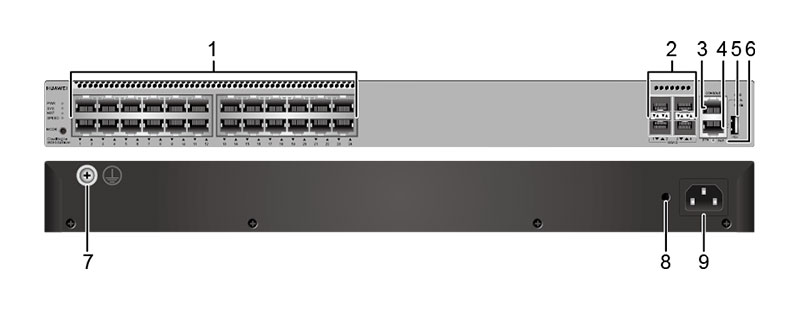

Huawei S5731S-S24T4X-A1 appearance

S5731S S24T4X A1 appearance



1 Twenty-four 10/100/1000BASE-T ports 2 Four 10GE SFP+ ports
3 One console port 4 One ETH management port
5 One USB port 6 One PNP button

NOTICE:
To restore the factory settings and reset the switch, hold down the button for at least 6 seconds.
To reset the switch, press the button.
Resetting the switch will cause service interruption. Exercise caution when you press the PNP button.
7 Ground screw

NOTE:
It is used with a ground cable.

 8 Jack for AC power cable locking strap

NOTE:
The AC power cable locking strap is not delivered with the switch.
9 AC socket
NOTE:
It is used with an AC power cable.		 – –



Port Connector Type Description Available Components
10/100/1000BASE-T port RJ45 A 10/100/1000BASE-T Ethernet electrical port sends and receives service data at 10/100/1000 Mbit/s. Ethernet cable
10GE SFP+ optical port SFP+ A 10GE SFP+ Ethernet optical port supports auto-sensing to 1000 Mbit/s. It sends and receives service data at 1000 Mbit/s or 10 Gbit/s. GE eSFP optical modules
GE-CWDM eSFP optical modules
GE-DWDM eSFP optical modules
GE SFP copper module
10GE SFP+ optical modules (OSXD22N00 not supported)
10GE-CWDM SFP+ optical modules
10GE-DWDM SFP+ optical modules
1 m, 3 m, 5 m, and 10 m SFP+ high-speed copper cables
3 m and 10 m SFP+ AOC cables
0.5 m and 1.5 m SFP+ dedicated stack cables (only for zero-configuration stacking)
Console port RJ45 The console port is connected to a console for on-site configuration. Console cable
USB port USB 2.0 Type A The USB port can have a USB flash drive connected to upgrade the switch or transfer configuration files or other files. The USB port can only connect to a USB flash drive that complies with USB 2.0. USB flash drive
USB flash drives from different vendors differ in model compatibility and drivers. If a USB flash drive cannot be used, try to replace it with another one from a mainstream vendor. Switches support a maximum of 128 GB USB flash drives.
ETH management port RJ45 You can connect a switch to a configuration terminal or network management workstation through the ETH management port to configure the switch locally or remotely. Ethernet cable
You can choose to download the software package through the ETH management port in the BootLoad menu. File transfer through the ETH management port is faster than transfer through the console port.







Item Specification
Memory 2 GB
Flash memory 1 GB in total. To view the available flash memory size, run the display version command.
Console port RJ45
Eth Management port RJ45
USB Supported
RTC Supported
RPS input Not supported
Service port surge protection [kV] Common mode: ±7 kV
Power supply surge protection [kV] ±6 kV in differential mode, ±6 kV in common mode
Types of fans Built-in
Heat dissipation mode Heat dissipation with fan, intelligent fan speed adjustment
Airflow direction Air intake from left and front, air exhaustion from right
PoE Not supported
Certification EMC certification
Safety certification
Manufacturing certification
Dimensions without packaging (H x W x D) [mm(in.)] Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.66 in.)
Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 227.0 mm (1.72 in. x 17.4 in. x 8.94 in.)
Dimensions with packaging (H x W x D) [mm(in.)] 90.0 mm x 550.0 mm x 355.0 mm (3.54 in. x 21.65 in. x 13.98 in.)
Chassis height [U] 1 U
Weight without packaging [kg(lb)] 3.04 kg (6.7 lb)
Weight with packaging [kg(lb)] 4.40 kg (9.7 lb)
Typical power consumption [W] 63 W
Typical heat dissipation [BTU/hour] 214.96 BTU/hour
Maximum power consumption [W] 80 W
Maximum heat dissipation [BTU/hour] 272.97 BTU/hour
Static power consumption [W] 48 W
MTBF [year] 47.34 year
MTTR [hour] 2 hour
Availability >0.99999
Noise at normal temperature (acoustic power) [dB(A)] 44.90 dB(A)
Noise at normal temperature (acoustic pressure) [dB(A)] 31.21 dB(A)
Number of card slots 0
Number of power slots
Number of fans modules 2
Redundant power supply Not supported
Long-term operating temperature [°C(°F)] -5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5905.44 ft.)
Restriction on the operating temperature variation rate [°C(°F)] When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
Devices cannot start when the temperature is lower than 0°C (32°F).
The operating temperature of the switch is -5°C to +45°C (23°F to 113°F) when 10GE SFP+ optical modules with 40 km or longer transmission distances are used.
Storage temperature [°C(°F)] -40°C to +70°C (-40°F to +158°F)
Long-term operating relative humidity [RH] 5% to 95%, noncondensing
Long-term operating altitude [m(ft.)] 0-5000 m (0-16404 ft.)
Storage altitude [m(ft.)] 0-5000 m (0-16404 ft.)
Power supply mode AC built-in
Rated input voltage [V] AC input: 100 V AC to 240 V AC, 50/60 Hz
Input voltage range [V] AC input: 90 V AC to 264 V AC, 47 Hz to 63 Hz
Maximum input current [A] 3 A
