S5731S-S24T4X-A

0 Reviews Write a review

PN02353AHV

BrandsHuawei

AvailabilityIn Stock

Campus Switch S5731S-S

WarrantyUp to 36 months

Original price was: $0.00.Current price is: $0.00.

Huawei S5731S-S24T4X-A switch supports 24 10/100/1000BASE-T ports, 4 10GE SFP+ ports, 2 power unit slots

24 Ports Switch Electrical Switch Lan Access Switch

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

S5731S-S24T4X-A overview

Huawei S5731S-S24T4X-A switch supports 24 10/100/1000BASE-T ports, 4 10GE SFP+ ports, which is one of the Huawei S5731S-S series switches.

CloudEngine S5731-S series switches are next-generation standard gigabit switches that provide GE electrical downlink ports and 10GE uplink ports. The CloudEngine S5731-S series switches were developed based on next-generation high-performing hardware and the Huawei Versatile Routing Platform (VRP). The CloudEngine S5731-S supports simplified operations and maintenance (O&M), intelligent stack (iStack), flexible Ethernet networking. It also provides enhanced Layer 3 features and mature IPv6 features. The CloudEngine S5731-S can be used in various scenarios. For example, it can be used as an access or aggregation switch on a campus network or as an access switch for Metropolitan Area Network.

S5731S-S24T4X-A quick spec

24 10/100/1000BASE-T ports

4 10GE SFP+ ports

Forwarding Performance is 96 Mpps

Switching capacity is 128 Gpbs/672 Gbps

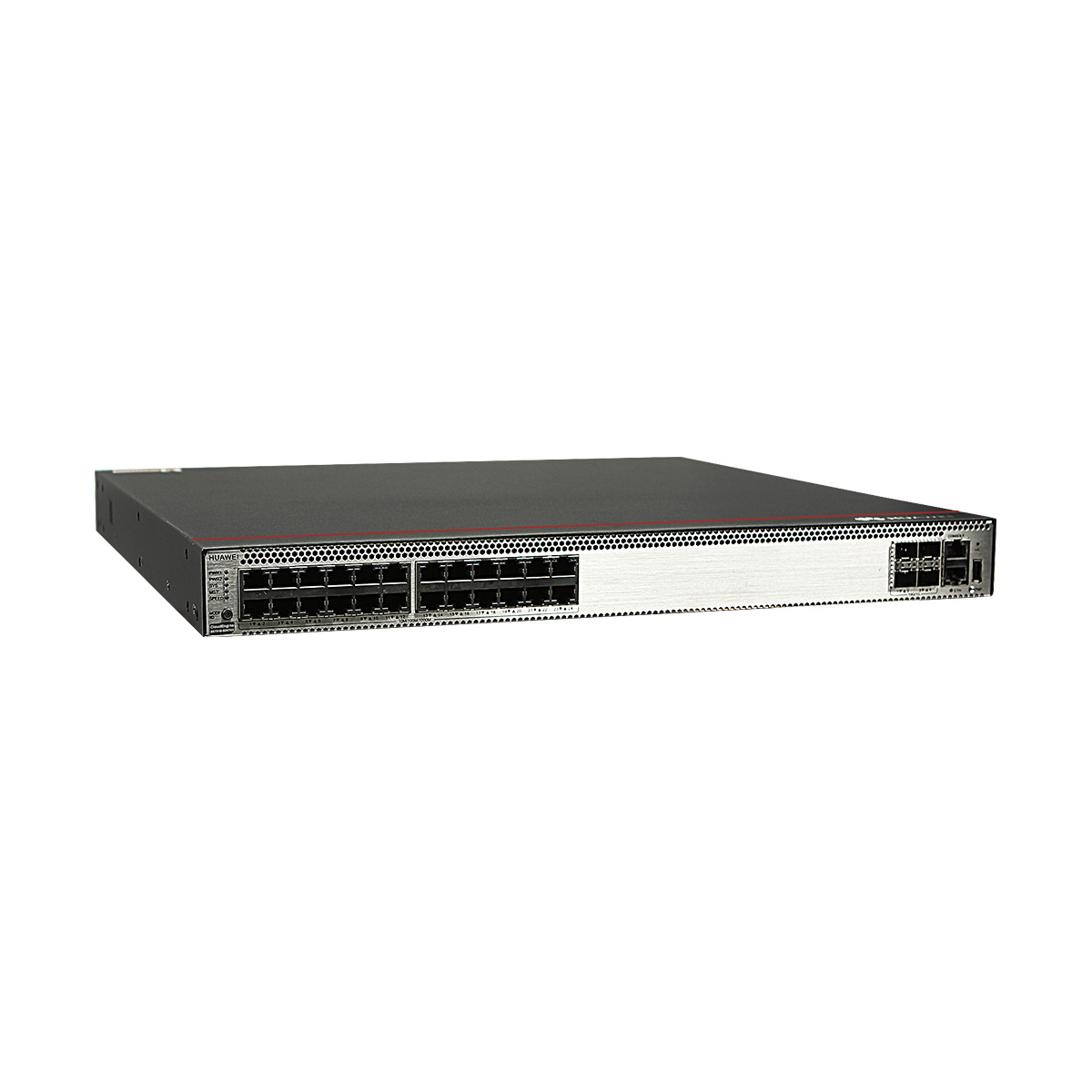

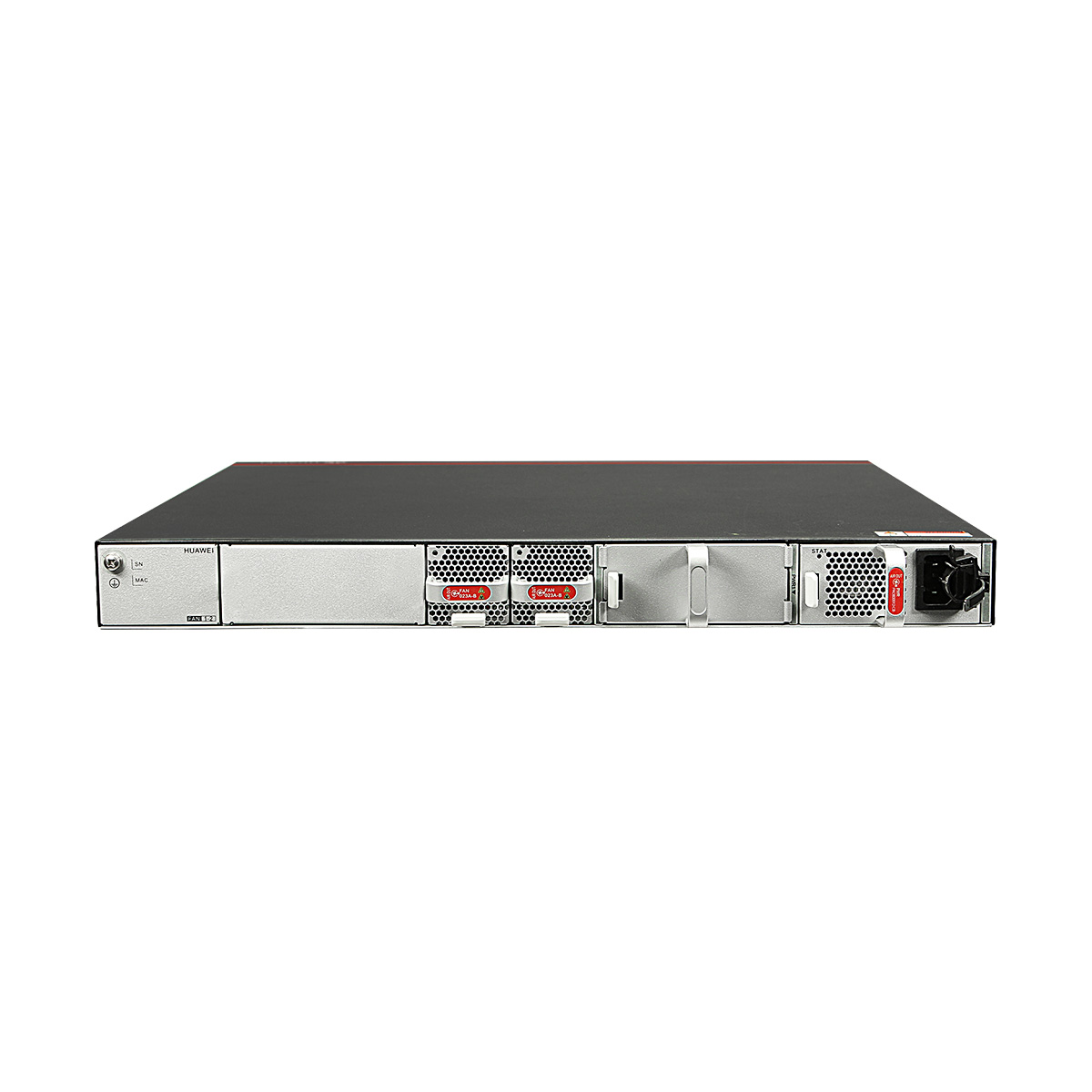

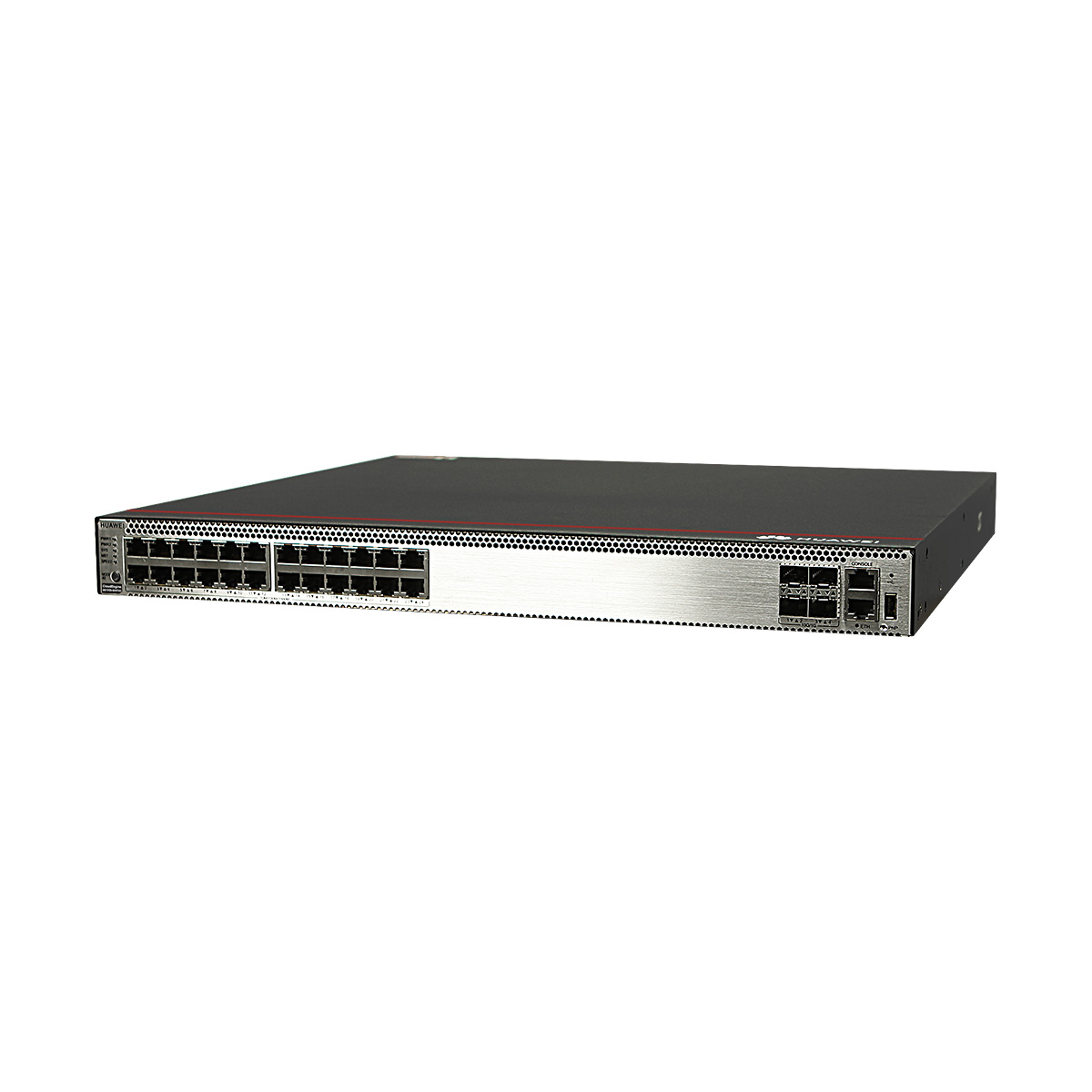

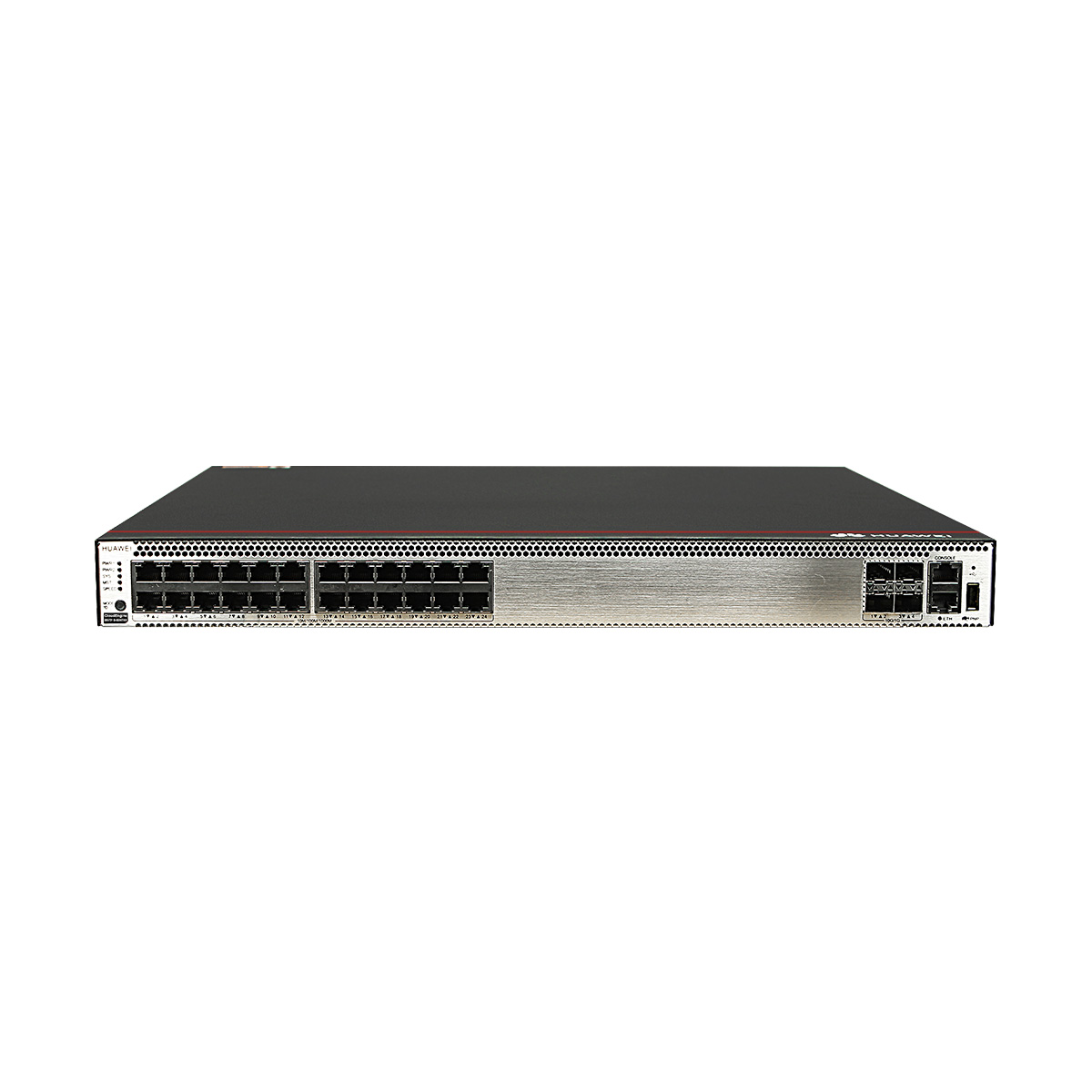

S5731S-S24T4X-A appearance and structure

1	Twenty-four 10/100/1000BASE-T ports SFP-1000Base-T	7	Ground screw
2	Four 10GE SFP+ ports OMXD30000 OSX010000 OSX040N01 SFP-10G-ZR SFP-10G-USR	8	Fan module slot 1
3	One console port	9	Fan module slot 2
4	One ETH management port	10	Power module slot 1
5	One USB port	11	Power module slot 2
6	One PNP button

Item	S5731S-S24T4X-A
Memory (RAM)	4 GB
Flash	1 GB in total. To view the available flash memory size, run the display version command.
Mean time between failures (MTBF)	57.73 years
Mean time to repair (MTTR)	2 hours
Availability	> 0.99999
Service port surge protection	Common mode: ±6 kV
Power supply surge protection	Using AC power modules: ±6 kV in differential mode, ±6 kV in common mode
Power supply surge protection	Using DC power modules: ±2 kV in differential mode, ±4 kV in common mode
Dimensions (H x W x D)	Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.4 in. x 16.5 in.)
Dimensions (H x W x D)	Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 43.6 mm x 442.0 mm x 448.0 mm (1.72 in. x 17.4 in. x 17.7 in.)
Weight (with packaging)	9.35 kg (20.61 lb)
Stack ports	10GE SFP+ ports on the front panel
RTC	Supported
RPS	Not supported
PoE	Not supported
Rated voltage range	AC input: 100 V AC to 240 V AC, 50/60 Hz
	High-Voltage DC input: 240 V DC
	DC input: -48 V DC to -60 V DC
Maximum voltage range	AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz
	High-Voltage DC input: 190 V DC to 290 V DC
	DC input: -38.4 V DC to -72 V DC
Maximum power consumption (100% throughput, full speed of fans)	114 W
Typical power consumption (30% of traffic load, tested according to ATIS standard)	88 W
Operating temperature	-5°C to +45°C (23°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.)
	NOTE:
	When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
	The switch cannot be started when the ambient temperature is lower than 0°C (32°F).
Storage temperature	-40°C to +70°C (-40°F to +158°F)
Noise under normal temperature (27°C, sound power)	< 57.5 dB(A)
Relative humidity	5% to 95%, noncondensing
Operating altitude	0-5000 m (0-16404 ft.)
Certification	EMC certification
	Safety certification
	Manufacturing certification
Part number	02353AHV
Part number	02353AHV-001

Item	S5731S-S24T4X-A
Memory (RAM)	4 GB
Flash	1 GB in total. To view the available flash memory size, run the display version command.
Mean time between failures (MTBF)	57.73 years
Mean time to repair (MTTR)	2 hours
Availability	> 0.99999
Service port surge protection	Common mode: ±6 kV
Power supply surge protection	Using AC power modules: ±6 kV in differential mode, ±6 kV in common mode
Power supply surge protection	Using DC power modules: ±2 kV in differential mode, ±4 kV in common mode
Dimensions (H x W x D)	Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.4 in. x 16.5 in.)
Dimensions (H x W x D)	Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 43.6 mm x 442.0 mm x 448.0 mm (1.72 in. x 17.4 in. x 17.7 in.)
Weight (with packaging)	9.35 kg (20.61 lb)
Stack ports	10GE SFP+ ports on the front panel
RTC	Supported
RPS	Not supported
PoE	Not supported
Rated voltage range	AC input: 100 V AC to 240 V AC, 50/60 Hz
	High-Voltage DC input: 240 V DC
	DC input: -48 V DC to -60 V DC
Maximum voltage range	AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz
	High-Voltage DC input: 190 V DC to 290 V DC
	DC input: -38.4 V DC to -72 V DC
Maximum power consumption (100% throughput, full speed of fans)	114 W
Typical power consumption (30% of traffic load, tested according to ATIS standard)	88 W
Operating temperature	-5°C to +45°C (23°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.)
	NOTE:
	When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
	The switch cannot be started when the ambient temperature is lower than 0°C (32°F).
Storage temperature	-40°C to +70°C (-40°F to +158°F)
Noise under normal temperature (27°C, sound power)	< 57.5 dB(A)
Relative humidity	5% to 95%, noncondensing
Operating altitude	0-5000 m (0-16404 ft.)
Certification	EMC certification
	Safety certification
	Manufacturing certification
Part number	02353AHV
Part number	02353AHV-001

Brand	Huawei
Campus Switch	S5731S-S
Lead Time	3-5 days
Ship From	Shenzhen Warehouse
