S5731S-L4T2S-RUA

PN98011769

AvailabilityIn Stock

WarrantyUp to 36 months

Huawei S5731S-L4T2S-RUA switch 4*10/100/1000BASE-T ports, 1*GE SFP port, 1*GE port with an SC connector, TX1310 nm/RX1490 nm, AC power, power adapter

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

S5731S-L4T2S-RUA overview

Huawei S5731S-L4T2S-RUA switch 4*10/100/1000BASE-T ports, 1*GE SFP port, 1*GE port with an SC connector, TX1310 nm/RX1490 nm, AC power, power adapter.

The S series fixed Ethernet switches integrate the access and transmission functions to provide reliable access/aggregation and high-quality transmission of services on enterprise networks. The switches are built on an integrated hardware platform, and the hardware system consists of the chassis, power module, fan module, extended cards, and Switch Control Unit (SCU).

Basic information about the S5731S-L4T2S-RUA

Item	Details
Description	S5731S-L4T2S-RUA (410/100/1000BASE-T ports, 1GE SFP port, 1*GE port with an SC connector, TX1310 nm/RX1490 nm, AC power, power adapter)
Part Number	98011769
Model	S5731S-L4T2S-RUA
First supported version	V200R021C10SPC500

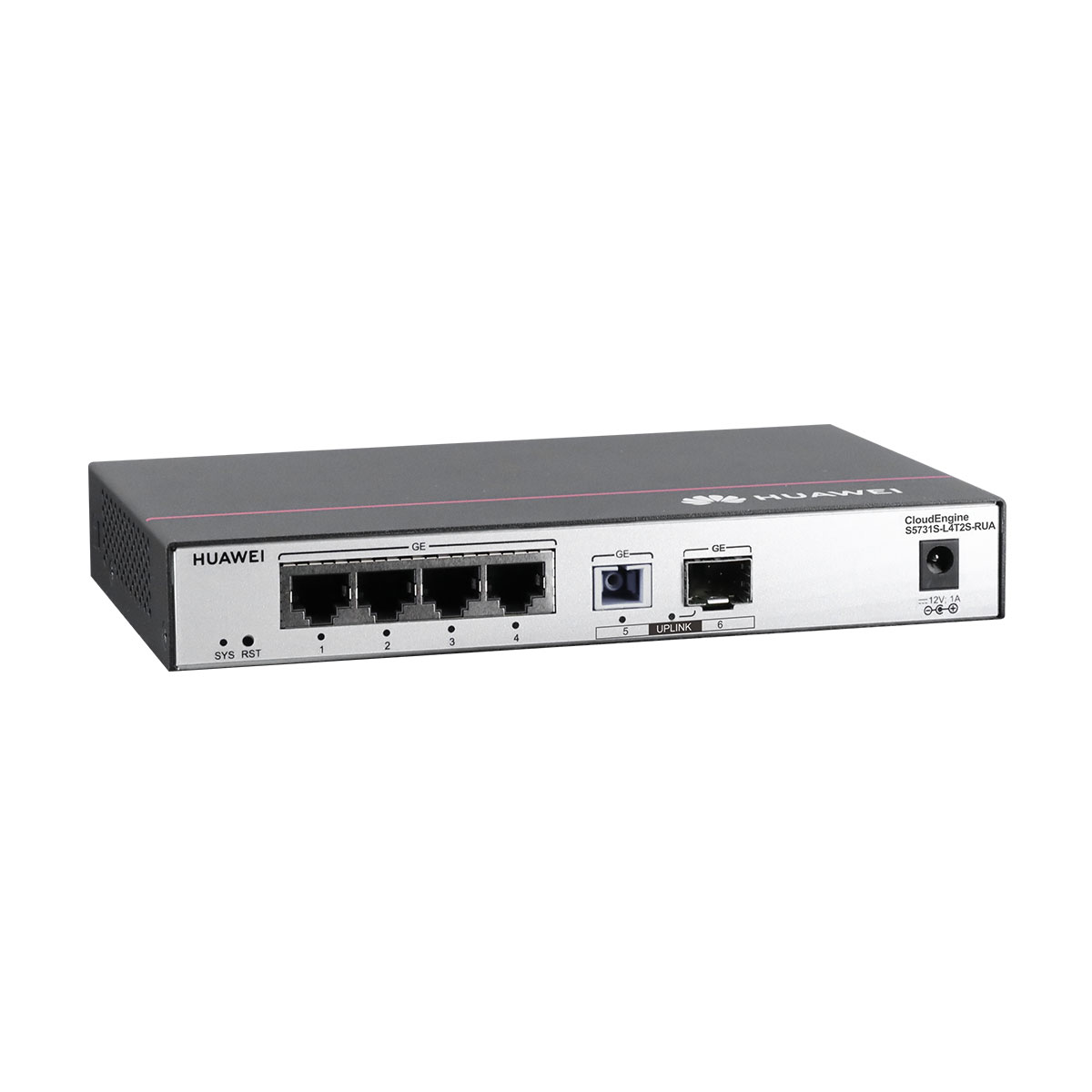

S5731S-L4T2S-RUA appearance

1	One RST button	2	Four 10/100/1000BASE-T ports
3	One 1000BASE-X optical port	4	One 1000BASE-X optical port
5	Power adapter socket	6	Ground screw

Ports on the S5731S-L4T2S-RUA

Port	Connector Type	Description	Available Components
10/100/1000BASE-T port	RJ45	A 10/100/1000BASE-T Ethernet electrical port sends and receives service data at 10/100/1000 Mbit/s.	Ethernet cable
1000BASE-X port	SFP	A 1000BASE-X port can send and receive data at 1000 Mbit/s.	GE eSFP optical modules (only optical modules with transmission distances less than or equal to 10 km are supported)
1000BASE-X port	SC	A 1000BASE-X port can send and receive data at 1000 Mbit/s. The port has a built-in single-fiber bidirectional optical module by default and cannot be removed. Specifications of the built-in optical module: The rate is GE, the center wavelength is TX1310 nm or RX1490 nm, the connector type is SC, and the maximum transmission distance is 10 km. Only the SFP-GE-LX-SM1490-BIDI (RX1310nm/TX1490nm) optical module can be used on the peer port.	–

Port

Connector Type

Description

Available Components

10/100/1000BASE-T port

RJ45

A 10/100/1000BASE-T Ethernet electrical port sends and receives service data at 10/100/1000 Mbit/s.

Ethernet cable

1000BASE-X port

SFP

A 1000BASE-X port can send and receive data at 1000 Mbit/s.

GE eSFP optical modules (only optical modules with transmission distances less than or equal to 10 km are supported)

1000BASE-X port

A 1000BASE-X port can send and receive data at 1000 Mbit/s.

The port has a built-in single-fiber bidirectional optical module by default and cannot be removed.

Specifications of the built-in optical module: The rate is GE, the center wavelength is TX1310 nm or RX1490 nm, the connector type is SC, and the maximum transmission distance is 10 km.

Only the SFP-GE-LX-SM1490-BIDI (RX1310nm/TX1490nm) optical module can be used on the peer port.

–

Item	S5731S-L4T2S-RUA
Typical power consumption [W]	4.88 W (device) 5.08 W (device + power adapter)
Typical heat dissipation [BTU/hour]	16.65 (device) 17.33 (device + power adapter)
Maximum power consumption [W]	5.06 W (device) 5.26 W (device + power adapter)
Maximum heat dissipation [BTU/hour]	17.27 (device) 19.75 (device + power adapter)
Static power consumption [W]	2.62 W
MTBF [year]	83.23 year
MTTR [hour]	2 hour
Availability	>0.99999
Noise at normal temperature (acoustic power) [dB(A)]	Noise-free (no fans): < 30
Noise at normal temperature (acoustic pressure) [dB(A)]	Noise-free (no fans): < 20
Number of card slots	0
Number of power slots	0
Number of fans modules	0
Redundant power supply	Not supported
Long-term operating temperature [°C(°F)]	-5°C to +45°C (23°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.)
Restriction on the operating temperature variation rate [°C(°F)]	When the altitude is 1800-5000 m (5905.44-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (721.78 ft.). The device cannot start when the temperature is lower than 0°C (32°F). The operating temperature of a device ranges from -5°C to +45°C (23°F to 113°F) when the device uses the following optical modules: - GE optical modules with a transmission distance of less than or equal to 10 km
Storage temperature [°C(°F)]	–40°C to +70°C (–40°F to +158°F)
Long-term operating relative humidity [RH]	5% RH to 95% RH (non-condensing)
Long-term operating altitude [m(ft.)]	0–5000 m (0–16404 ft.)
Storage altitude [m(ft.)]	0-5000 m (0-16404 ft.)
Power supply mode	Power adapter
Rated input voltage [V]	Power adapter input: 100–240 V AC; 50/60 Hz Power adapter output: 12 V DC
Input voltage range [V]	Power adapter input: 90–290 V AC; 47–63 Hz
Maximum input current [A]	1 A
Memory	--
Flash memory	--
Console port	Not supported
Eth Management port	Not supported
USB	Not supported
RTC	Not supported
RPS input	Not supported
Service port surge protection [kV]	Common mode: ±6 kV
Power supply surge protection [kV]	Power adapter: ±6 kV in differential mode and ±6 kV in common mode
Types of fans	None
Heat dissipation mode	Natural heat dissipation
Airflow direction	-
PoE	Not supported
Certification	EMC certification Safety certification Manufacturing certification
Dimensions without packaging (H x W x D) [mm(in.)]	Basic dimensions (excluding the parts protruding from the body): 27.0 mm x 185.0 mm x 115.0 mm (1.06 in. x 7.28 in. x 4.53 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 27.0 mm x 185.0 mm x 115.0 mm (1.06 in. x 7.28 in. x 4.53 in.)
Dimensions with packaging (H x W x D) [mm(in.)]	82.0 mm x 342.0 mm x 228.0 mm (3.23 in. x 13.46 in. x 8.98 in.)
Chassis height [U]	0.61 U
Weight without packaging [kg(lb)]	0.72 kg (1.59 lb)
Weight with packaging [kg(lb)]	1.02 kg (2.25 lb)

Brand	Huawei
Lead Time	3-5 days
Ship From	Shenzhen Warehouse

Item	S5731S-L4T2S-RUA
Typical power consumption [W]	4.88 W (device) 5.08 W (device + power adapter)
Typical heat dissipation [BTU/hour]	16.65 (device) 17.33 (device + power adapter)
Maximum power consumption [W]	5.06 W (device) 5.26 W (device + power adapter)
Maximum heat dissipation [BTU/hour]	17.27 (device) 19.75 (device + power adapter)
Static power consumption [W]	2.62 W
MTBF [year]	83.23 year
MTTR [hour]	2 hour
Availability	>0.99999
Noise at normal temperature (acoustic power) [dB(A)]	Noise-free (no fans): < 30
Noise at normal temperature (acoustic pressure) [dB(A)]	Noise-free (no fans): < 20
Number of card slots	0
Number of power slots	0
Number of fans modules	0
Redundant power supply	Not supported
Long-term operating temperature [°C(°F)]	-5°C to +45°C (23°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.)
Restriction on the operating temperature variation rate [°C(°F)]	When the altitude is 1800-5000 m (5905.44-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (721.78 ft.). The device cannot start when the temperature is lower than 0°C (32°F). The operating temperature of a device ranges from -5°C to +45°C (23°F to 113°F) when the device uses the following optical modules: - GE optical modules with a transmission distance of less than or equal to 10 km
Storage temperature [°C(°F)]	–40°C to +70°C (–40°F to +158°F)
Long-term operating relative humidity [RH]	5% RH to 95% RH (non-condensing)
Long-term operating altitude [m(ft.)]	0–5000 m (0–16404 ft.)
Storage altitude [m(ft.)]	0-5000 m (0-16404 ft.)
Power supply mode	Power adapter
Rated input voltage [V]	Power adapter input: 100–240 V AC; 50/60 Hz Power adapter output: 12 V DC
Input voltage range [V]	Power adapter input: 90–290 V AC; 47–63 Hz
Maximum input current [A]	1 A
Memory	--
Flash memory	--
Console port	Not supported
Eth Management port	Not supported
USB	Not supported
RTC	Not supported
RPS input	Not supported
Service port surge protection [kV]	Common mode: ±6 kV
Power supply surge protection [kV]	Power adapter: ±6 kV in differential mode and ±6 kV in common mode
Types of fans	None
Heat dissipation mode	Natural heat dissipation
Airflow direction	-
PoE	Not supported
Certification	EMC certification Safety certification Manufacturing certification
Dimensions without packaging (H x W x D) [mm(in.)]	Basic dimensions (excluding the parts protruding from the body): 27.0 mm x 185.0 mm x 115.0 mm (1.06 in. x 7.28 in. x 4.53 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 27.0 mm x 185.0 mm x 115.0 mm (1.06 in. x 7.28 in. x 4.53 in.)
Dimensions with packaging (H x W x D) [mm(in.)]	82.0 mm x 342.0 mm x 228.0 mm (3.23 in. x 13.46 in. x 8.98 in.)
Chassis height [U]	0.61 U
Weight without packaging [kg(lb)]	0.72 kg (1.59 lb)
Weight with packaging [kg(lb)]	1.02 kg (2.25 lb)
