Description
S5731S-H48T4XC-A Overview
Huawei S5731S-H48T4XC-A switch supports 48 10/100/1000BASE-T ports, 4 10GE SFP+ ports
The S5731-H series switches are the next-generation intelligent gigabit fixed switches developed by Huawei. The CloudEngine S5731-H builds on Huawei’s unified Versatile Routing Platform (VRP) and boasts various IDN features. For example, the integrated wireless AC capabilities can manage up to 1,024 wireless APs; the free mobility feature ensures consistent user experience; the VXLAN functionality implements network virtualization, and built-in security probes support abnormal traffic detection, and threat analysis even in encrypted traffic, and network-wide threat deception.
S5731S-H48T4XC-A Quick Spec
48 10/100/1000BASE-T ports
4 10GE SFP+ ports
Forwarding Performance: 252/462 Mpps
Switching capacity: 758 Gbps/67.58 Gbps

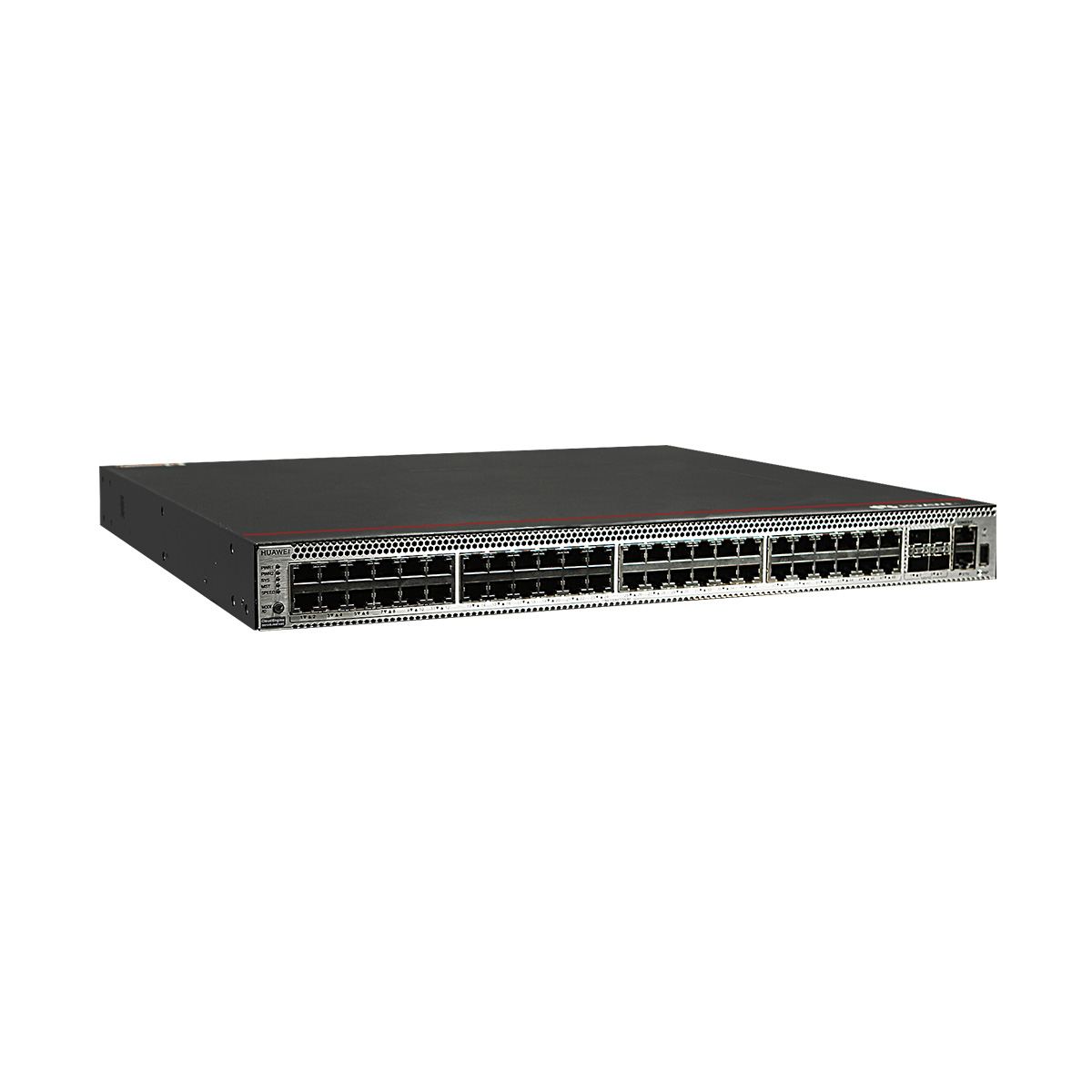

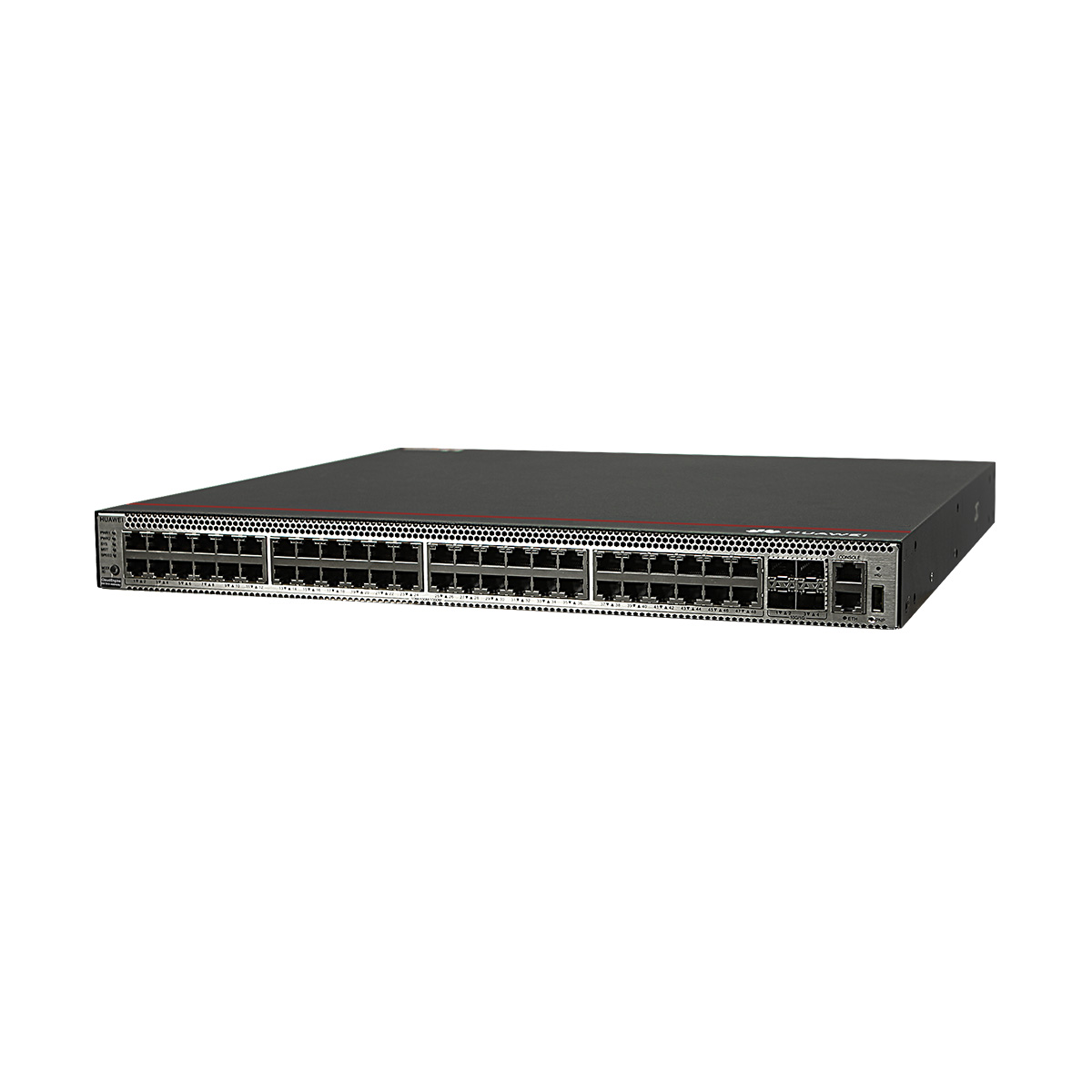

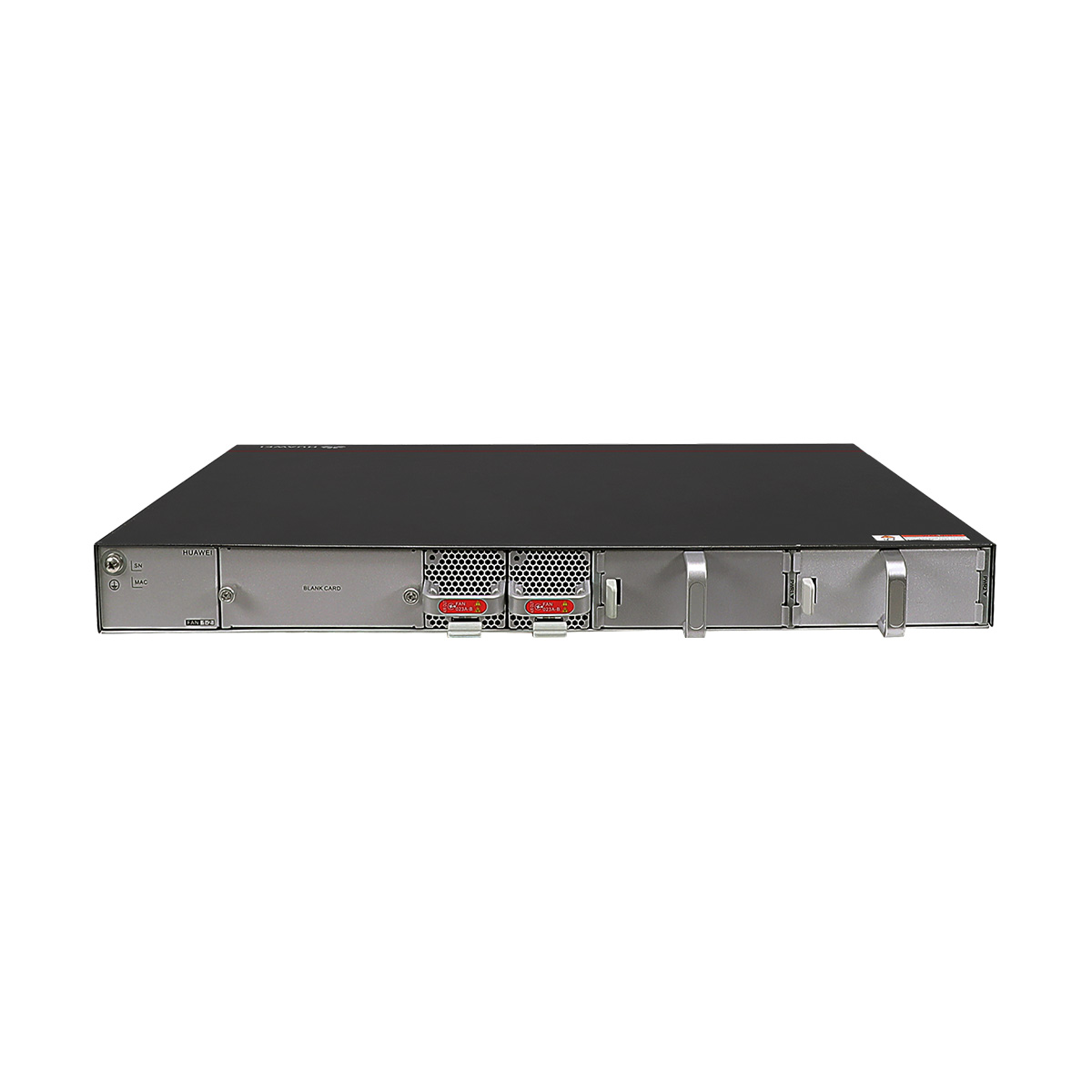

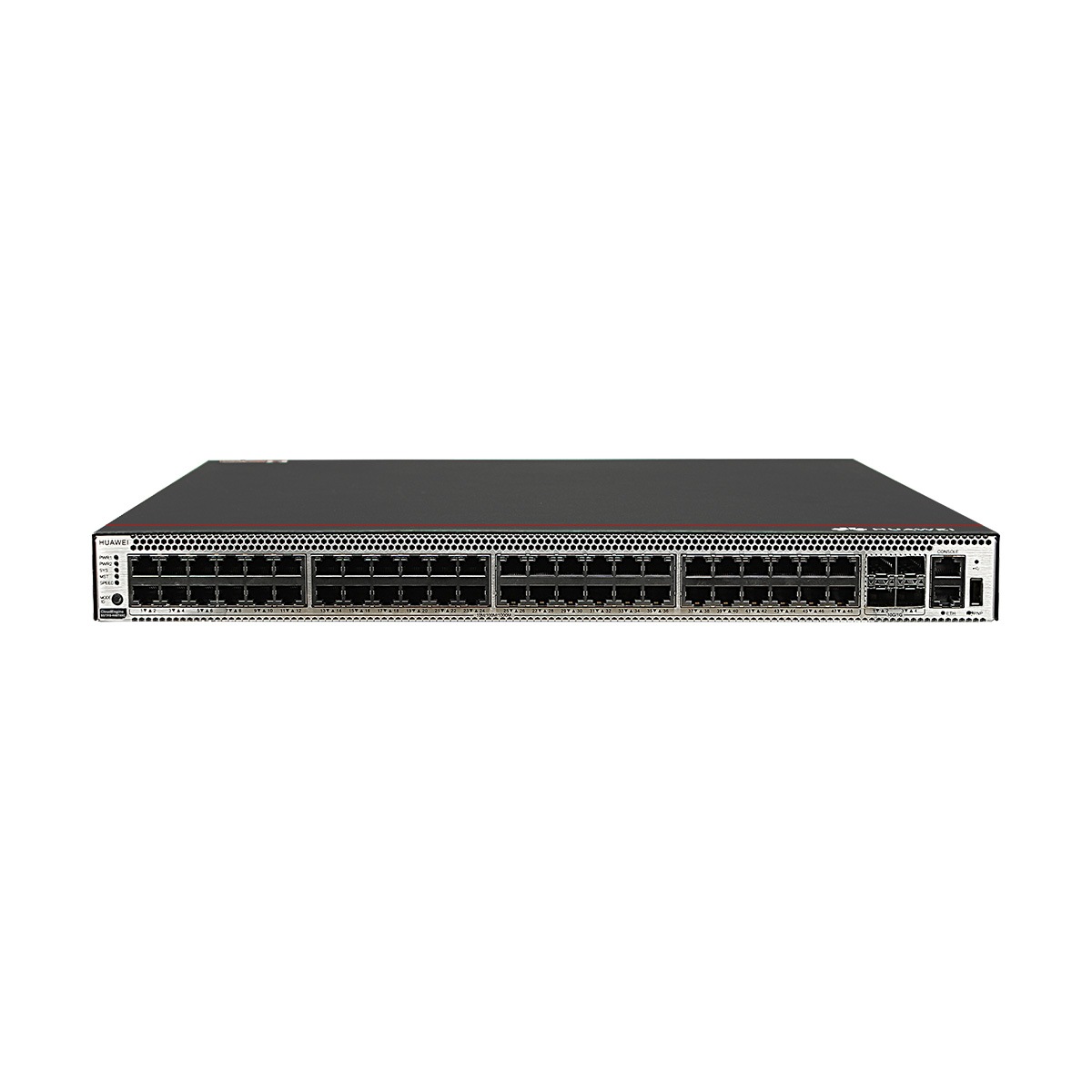

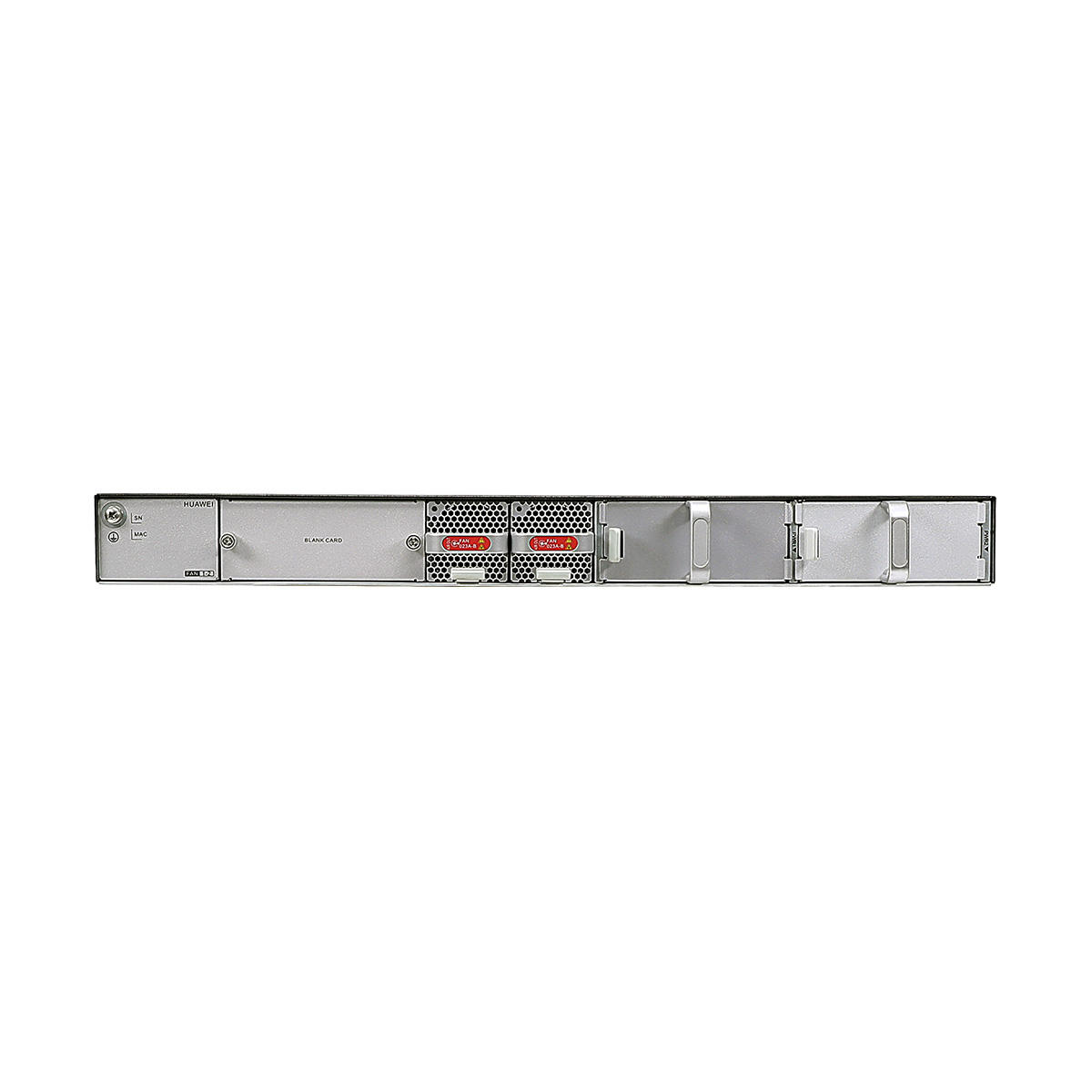

S5731S-H48T4XC-A appearance and structure
| 1 | Forty-eight 10/100/1000BASE-T ports | 7 | Ground screw |
| 2 | Four 10GE SFP+ ports | 8 | Fan module slot 1 |
| 3 | One console port | 9 | Fan module slot 2 |
| 4 | One ETH management port | 10 | Power module slot 1 |
| 5 | One USB port | 11 | Power module slot 2 |
| 6 | One PNP button | 12 | Rear card slot |
Szymon Szewczyk –
Use this to replace a broken switch. Good replacement so far, and more ports are provided for future expansion. More importantly, I get one year warranty, which greatly meets my needs.
