Description

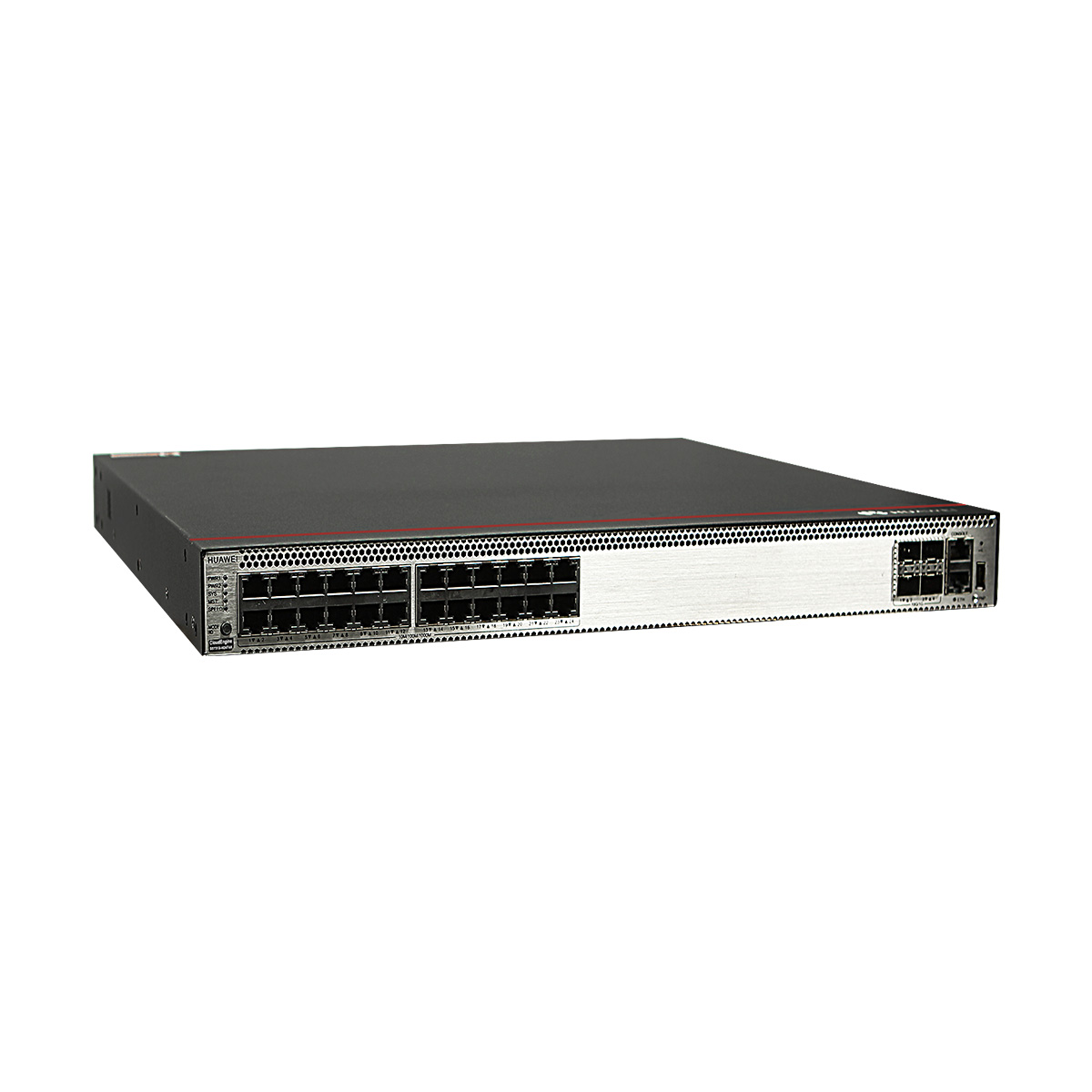

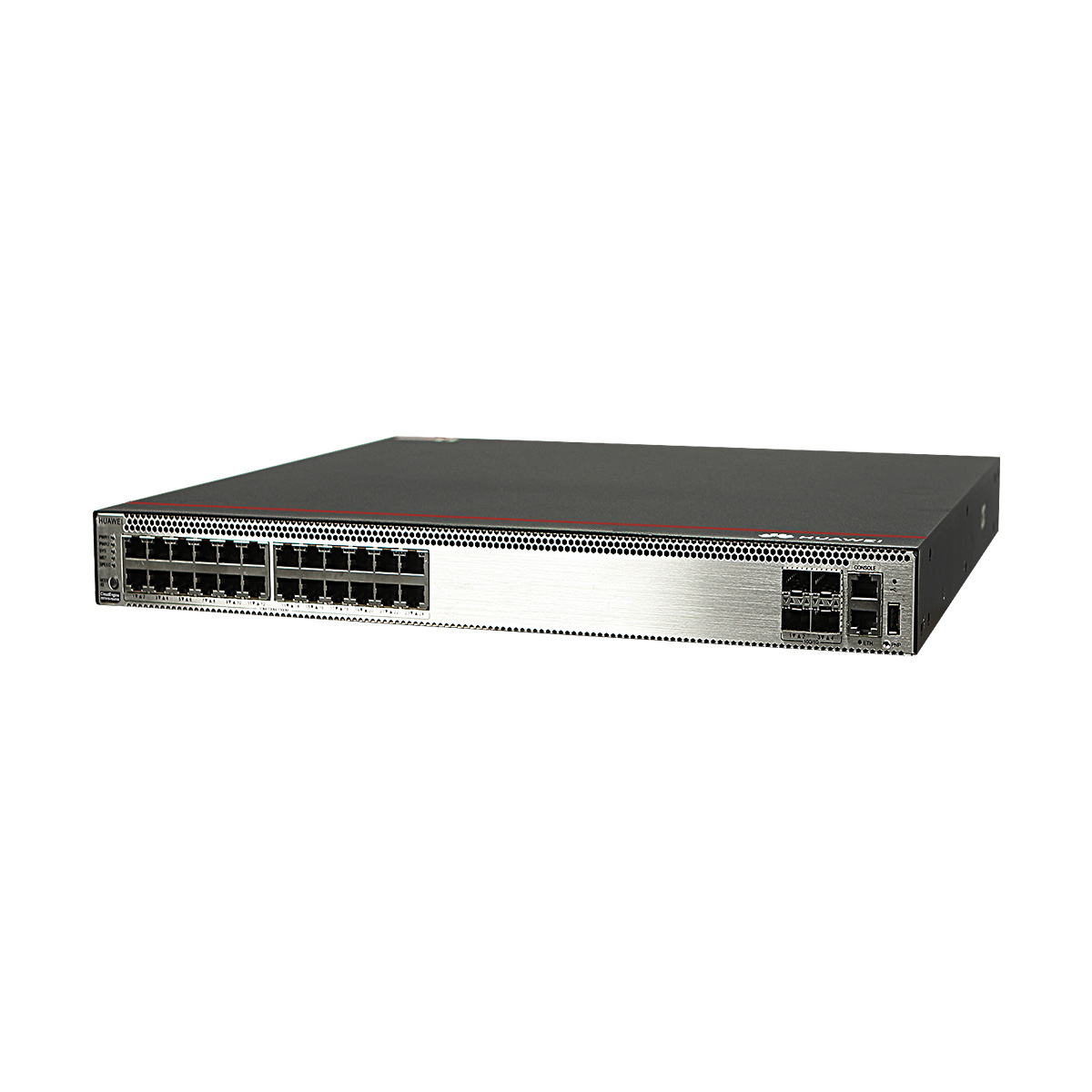

S5731S-H24T4X-A Overview
Huawei S5731S-H24T4X-A switch supports 24 10/100/1000BASE-T ports, 4 10GE SFP+ ports
The S5731-H series switches are the next-generation intelligent gigabit fixed switches developed by Huawei. The CloudEngine S5731-H builds on Huawei’s unified Versatile Routing Platform (VRP) and boasts various IDN features. For example, the integrated wireless AC capabilities can manage up to 1,024 wireless APs; the free mobility feature ensures consistent user experience; the VXLAN functionality implements network virtualization; and built-in security probes support abnormal traffic detection, threat analysis even in encrypted traffic, and network-wide threat deception.
S5731S-H24T4X-A Quick Spec
24 10/100/1000BASE-T ports
4 10GE SFP+ ports
Forwarding Performance is 96/126 Mpps
Switching capacity is 758 Tbps/7.58Tbpss

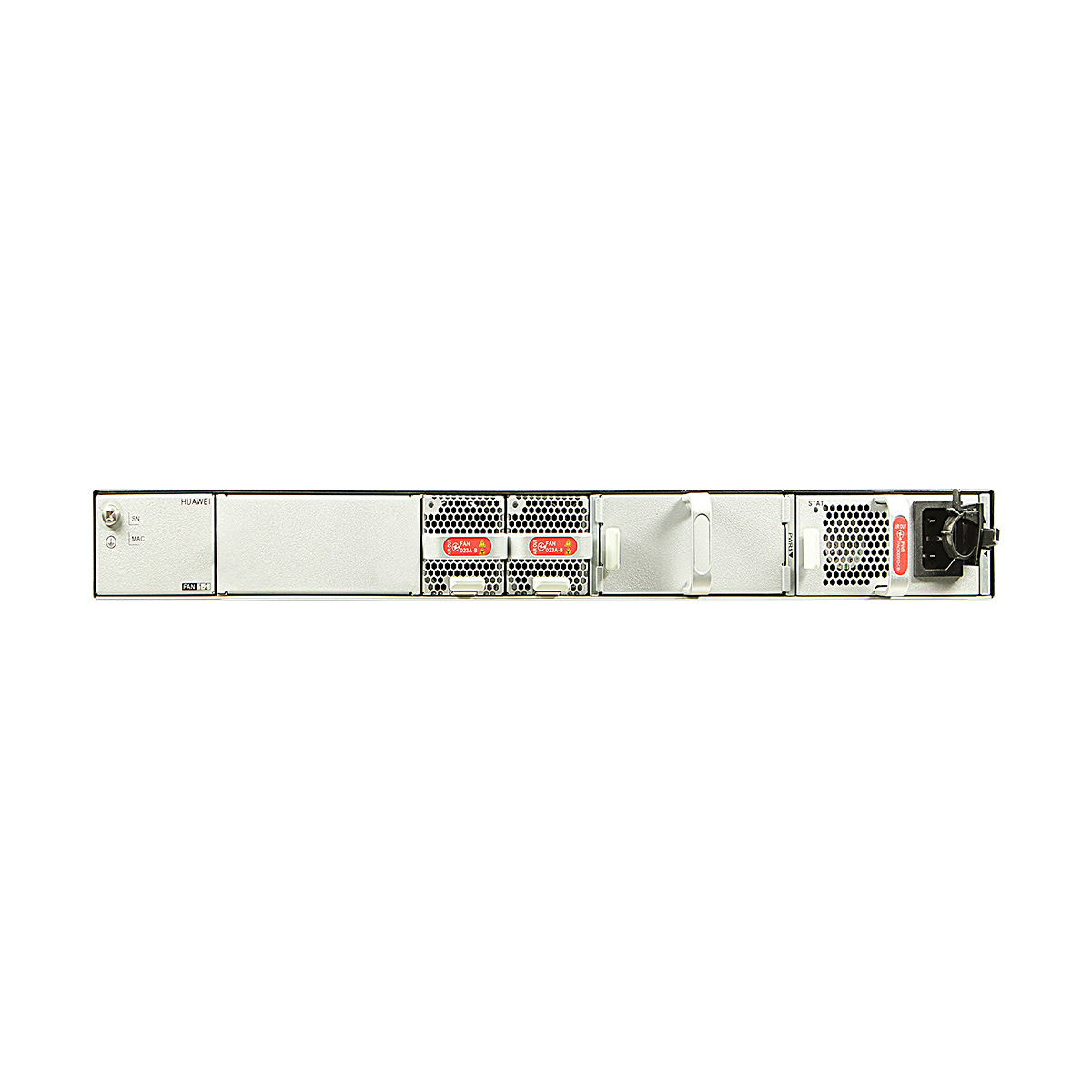

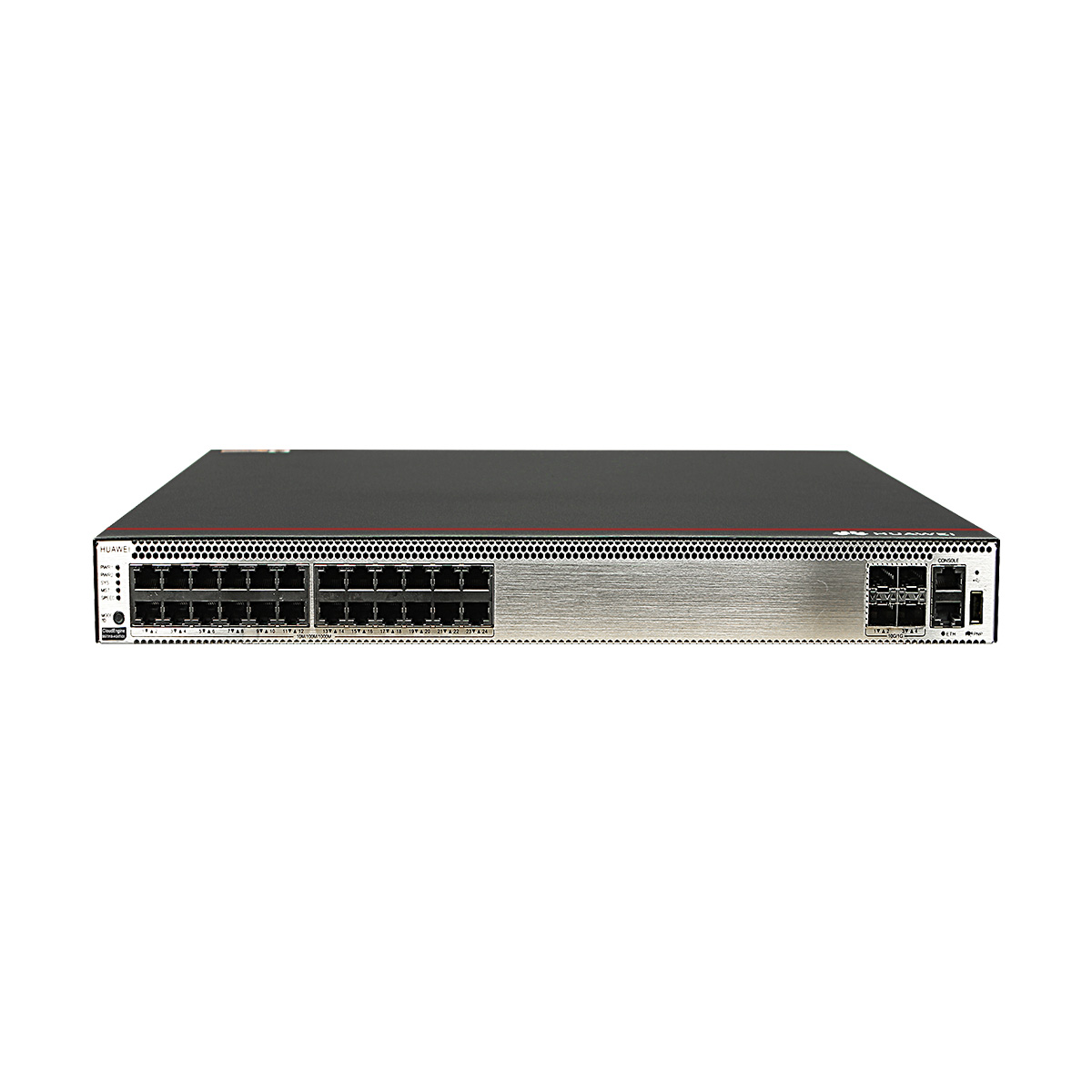

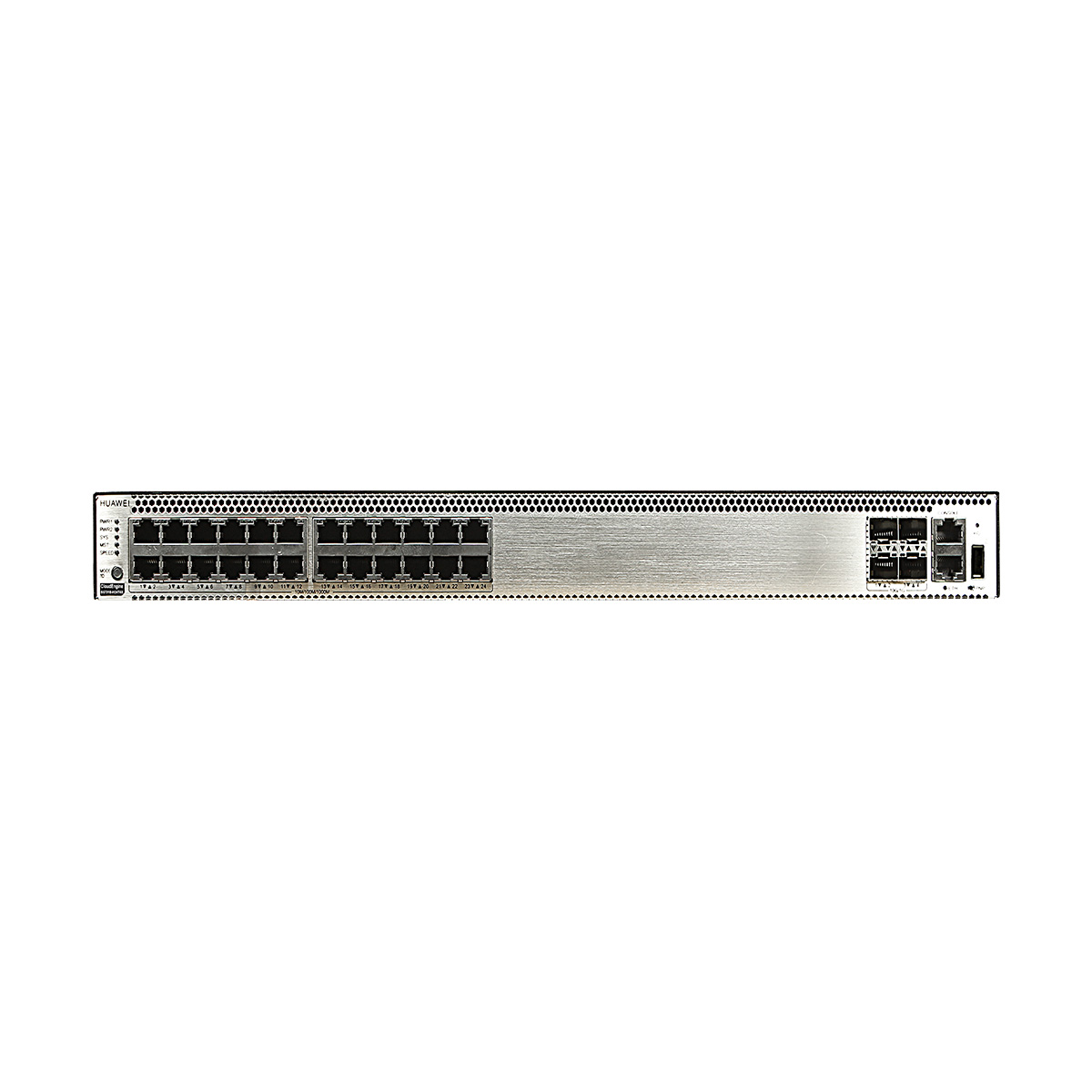

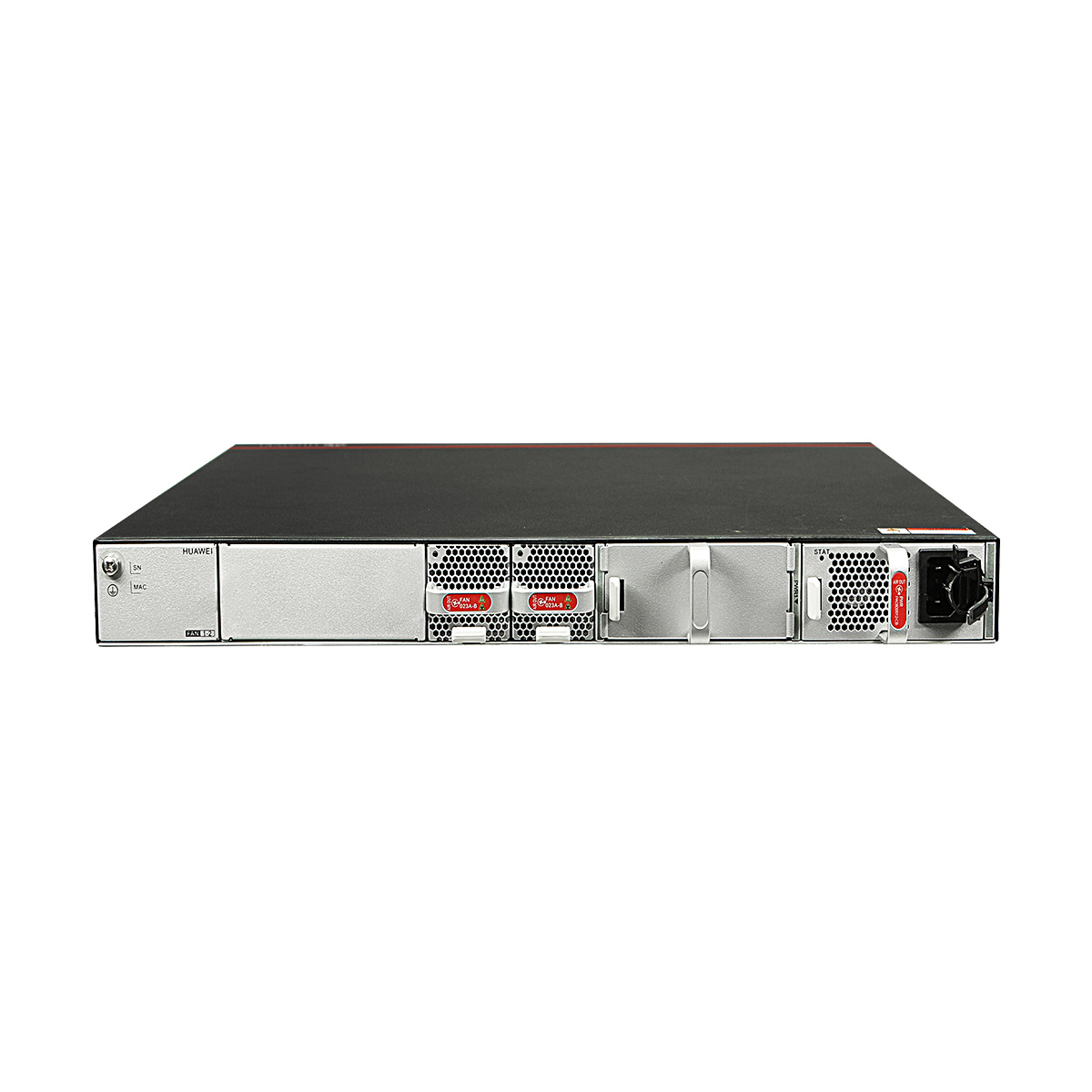

S5731S-H24T4X-A appearance and structure
| 1 | Twenty-four 10/100/1000BASE-T ports | 7 | Ground screw |
| 2 | Four 10GE SFP+ ports | 8 | Fan module slot 1 |
| 3 | One console port | 9 | Fan module slot 2 |
| 4 | One ETH management port | 10 | Power module slot 1 |
| 5 | One USB port | 11 | Power module slot 2 |
| 6 | One PNP button |
