S5731-S8UM16UN2Q

PN02354VCD

AvailabilityIn Stock

WarrantyUp to 36 months

Huawei S5731-S8UM16UN2Q switch supports 8*100M/1/2.5/5/10G,16*100M/1/2.5G ports, 2*40GE QSFP ports or 12*100M/1/2.5/5/10G,12*100M/1/2.5G ports, 4*10GE SFP+ ports, PoE++

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

S5731-S8UM16UN2Q overview

The Huawei S5731-S8UM16UN2Q switch comes with 8*100M/1/2.5/5/10G,16*100M/1/2.5G ports, 2*40GE QSFP ports or 12*100M/1/2.5/5/10G,12*100M/1/2.5G ports, 4*10GE SFP+ ports, PoE++.

The S series fixed Ethernet switches integrate the access and transmission functions to provide reliable access/aggregation and high-quality transmission of services on enterprise networks. The switches are built on an integrated hardware platform, and the hardware system consists of the chassis, power module, fan module, extended cards, and Switch Control Unit (SCU).

Basic information about the S5731-S8UM16UN2Q

Item	Details
Description	S5731-S8UM16UN2Q (8100M/1/2.5/5/10G,16100M/1/2.5G ports, 240GE QSFP ports or 12100M/1/2.5/5/10G,12100M/1/2.5G ports, 410GE SFP+ ports, PoE++, without power module)
Part Number	02354VCD
Model	S5731-S8UM16UN2Q
First supported version	V200R022C00

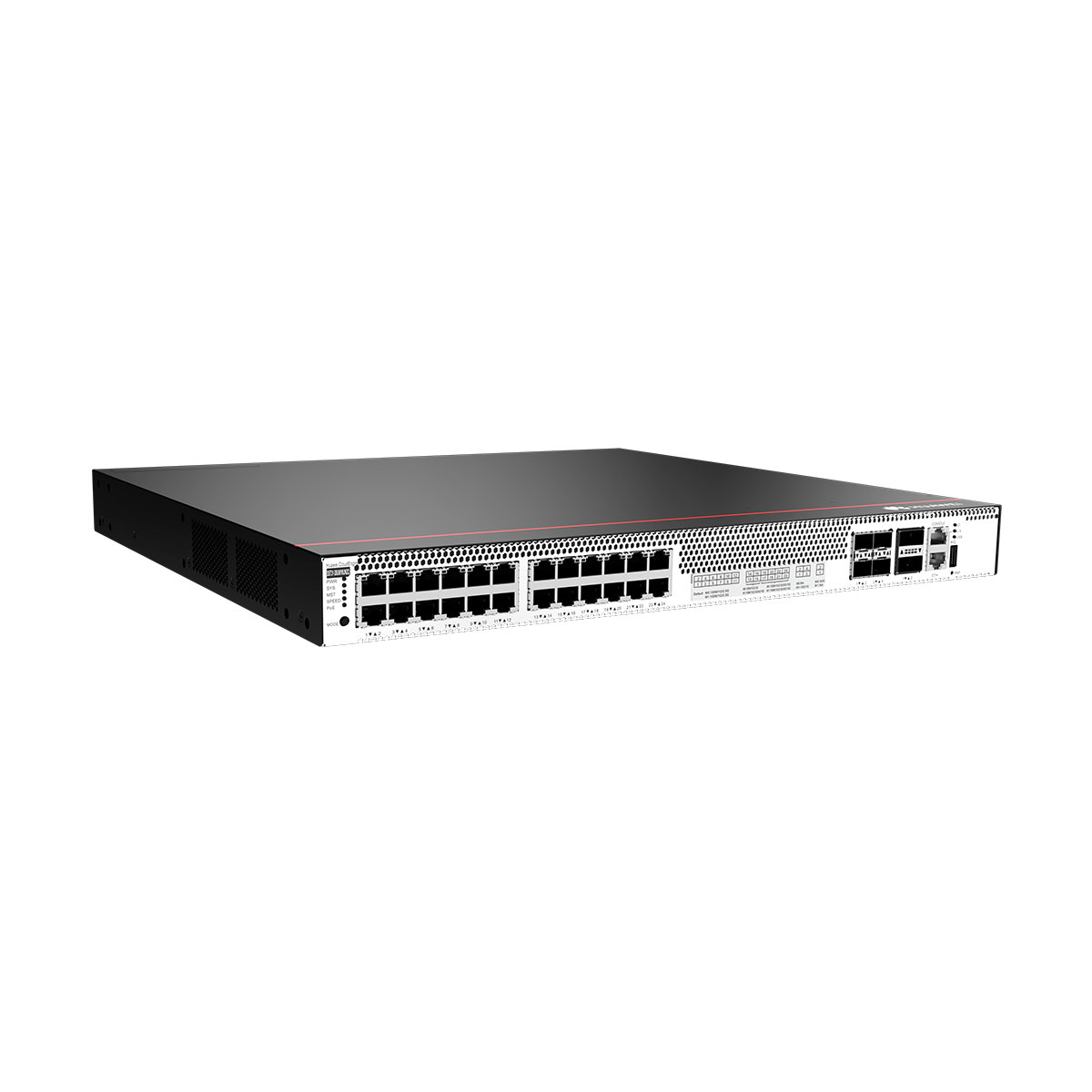

S5731-S8UM16UN2Q appearance

1	Twelve 100M/1000M/2.5GE BASE-T PoE++ ports (multi-GE ports)	2	Four 100M/1000M/2.5GE BASE-T PoE++ ports or four 100M/1000M/2.5GE/5GE/10GE BASE-T PoE++ ports (multi-GE ports)
3	Eight 100M/1000M/2.5GE/5GE/10GE BASE-T PoE++ ports (multi-GE ports)	4	Four 10GE SFP+ ports
5	Two 40GE QSFP+ ports	6	One ETH management port
7	One console port	8	One USB port
9	One PNP button	10	Ground screw
11	Power module slot 1	12	Power module slot 2
13	Power module slot 3	–	–

Ports on the S5731-S8UM16UN2Q

Port	Connector Type	Description	Available Components
100M/1000M/2.5GE BASE-T PoE++ port (multi-GE port)	RJ45	A 100M/1000M/2.5GE BASE-T port (multi-GE port) sends and receives service data at 100 Mbit/s, 1 Gbit/s, 2.5 Gbit/s. The port supports the PoE function.	If the 2.5 Gbit/s speed is required, the port must use an Ethernet cable of Cat5e or higher category.
100M/1000M/2.5GE/5GE/10GE BASE-T PoE++ port (multi-GE port)	RJ45	A 100M/1000M/2.5GE/5GE/10GE BASE-T port (multi-GE port) sends and receives service data at 100 Mbit/s, 1 Gbit/s, 2.5 Gbit/s, 5 Gbit/s, or 10 Gbit/s. The port supports the PoE function.	If the 2.5 Gbit/s or 5 Gbit/s speed is required, the port must use an Ethernet cable of Cat5e or higher category. If the 10 Gbit/s speed is required, the port must use an Ethernet cable of Cat6A F/UTP or higher category.
10GE SFP+ optical port	SFP+	A 10GE SFP+ Ethernet optical port supports auto-sensing to 1000 Mbit/s. It sends and receives service data at 1000 Mbit/s or 10 Gbit/s.	GE eSFP optical modules GE-CWDM eSFP optical modules GE-DWDM eSFP optical modules GE SFP copper module 10GE SFP+ optical modules (OSXD22N00 not supported) 10GE-CWDM SFP+ optical modules 10GE-DWDM SFP+ optical modules 1 m, 3 m, 5 m, and 10 m SFP+ high-speed copper cables 3 m and 10 m SFP+ AOC cables 0.5 m and 1.5 m SFP+ dedicated stack cables (only for zero-configuration stacking)
40GE SFP+ optical port	QSFP+	A 40GE QSFP+ optical port sends and receives service traffic at 40 Gbit/s. A 40GE QSFP+ optical port can be split into four 10GE ports.	40GE QSFP+ optical modules 1 m, 3 m, and 5 m QSFP+ high-speed copper cables 10 m QSFP+ AOC cable 2 m QSFP28 dedicated stack cable
Console port	RJ45	The console port is connected to a console for on-site configuration.	Console cable
ETH management port	RJ45	You can connect a switch to a configuration terminal or network management workstation through the ETH management port to configure the switch locally or remotely. You can choose to download the software package through the ETH management port in the BootLoad menu. File transfer through the ETH management port is faster than transfer through the console port.	Ethernet cable
USB port	USB 2.0 Type A	The USB port can have a USB flash drive connected to upgrade the switch, or transfer configuration files or other files. The USB port can only connect to a USB flash drive that complies with USB 2.0. USB flash drives from different vendors differ in model compatibility and drivers. If a USB flash drive cannot be used, try to replace it with another one from a mainstream vendor. Switches support a maximum of 128 GB USB flash drives.	USB flash drive

Item	Specification
Typical power consumption [W]	126 W
Typical heat dissipation [BTU/hour]	429.93 BTU/hour
Maximum power consumption [W]	Without PoE: 171 W Full PoE load: 2571 W (PoE: 2268 W)
Maximum heat dissipation [BTU/hour]	Without PoE: 583.48 Full PoE load: 8772.60
Static power consumption [W]	81 W
MTBF [year]	54.08 year
MTTR [hour]	2.22 hour
Availability	>0.99999
Noise at normal temperature (acoustic power) [dB(A)]	Three 600 W AC PoE power modules with 30% load: 50.50 dBA Three 1000 W AC PoE power modules with 30% load: 52.50 dBA Three 1000 W DC PoE power modules with 30% load: 52.50 dBA
Noise at normal temperature (acoustic pressure) [dB(A)]	Three 600 W AC PoE power modules with 30% load: 36.82 dBA Three 1000 W AC PoE power modules with 30% load: 38.82 dBA Three 1000 W DC PoE power modules with 30% load: 38.82 dBA
Number of card slots	0
Number of power slots	3
Number of fans modules	2
Redundant power supply	1+1+1 Pluggable AC and DC power modules can be used together in the same switch.
Long-term operating temperature [°C(°F)]	–5°C to +45°C (23°F to 113°F) at an altitude of 0 to 1800 m (0 to 5905.44 ft.)
Short-term operating temperature [°C(°F)]	-5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5905.44 ft.)
Restriction on the operating temperature variation rate [°C(°F)]	When the altitude is 1800–5000 m (5906–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). The device can work for a short period of time when the operating temperature is beyond the normal range, but the following conditions must be met: The operating temperature can exceed 45°C (113°F) for a maximum of 96 consecutive hours in a year. The total time when the operating temperature exceeds 45°C (113°F) in a year is less than or equal to 360 hours. The number of times the operating temperature exceeds 45°C (113°F) is less than or equal to 15 in one year. If any of the preceding conditions is not met, the device may be damaged or an unknown error may occur. Devices cannot start when the temperature is lower than 0°C (32°F). The maximum transmission distance of an optical module used for short-term operation cannot exceed 10 km.
Storage temperature [°C(°F)]	–40°C to +70°C (–40°F to +158°F)
Long-term operating relative humidity [RH]	5% RH to 95% RH (non-condensing)
Long-term operating altitude [m(ft.)]	0–5000 m (0–16404 ft.)
Storage altitude [m(ft.)]	0-5000 m (0-16404 ft.)
Power supply mode	Pluggable power supply
Rated input voltage [V]	AC input: 100 V AC to 130 V AC, 200 V AC to 240 V AC; 50/60 Hz High-voltage DC input: 240 V DC DC input: –48 V DC to –60 V DC
Input voltage range [V]	AC input: 90 V AC to 290 V AC; 45 Hz to 66 Hz High-voltage DC input: 190 V DC to 290 V DC DC input: -38.4 V DC to -72 V DC
Maximum input current [A]	The current specifications are related to the pluggable power module. For details, see Pluggable Power Modules.
Memory	2 GB
Flash memory	1 GB in total. To view the available flash memory size, run the display version command.
Console port	RJ45
Eth Management port	RJ45
USB	Supported
RTC	Supported
RPS input	Not supported
Service port surge protection [kV]	Common mode: ±7 kV
Power supply surge protection [kV]	Configured with AC power modules: ±6 kV in differential mode and ±6 kV in common mode Configured with DC power modules: ±2 kV in differential mode and ±4 kV in common mode
Types of fans	Built-in
Heat dissipation mode	Air cooling for heat dissipation, intelligent fan speed adjustment
Airflow direction	Air intake from the front and left and air exhaust from the rear
PoE	Supported
Certification	EMC certification Safety certification Manufacturing certification
Dimensions without packaging (H x W x D) [mm(in.)]	Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.40 in. x 16.54 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 454.0 mm (1.72 in. x 17.4 in. x 17.87 in.)
Dimensions with packaging (H x W x D) [mm(in.)]	185 mm x 650 mm x 550 mm (7.28 in. x 25.59 in. x 21.65 in.)
Chassis height [U]	1 U
Weight without packaging [kg(lb)]	6.83 kg (15.06 lb)
Weight with packaging [kg(lb)]	9.81 kg (21.63 lb)

Brand	Huawei
Lead Time	3-5 days
Ship From	Shenzhen Warehouse

Item	Specification
Typical power consumption [W]	126 W
Typical heat dissipation [BTU/hour]	429.93 BTU/hour
Maximum power consumption [W]	Without PoE: 171 W Full PoE load: 2571 W (PoE: 2268 W)
Maximum heat dissipation [BTU/hour]	Without PoE: 583.48 Full PoE load: 8772.60
Static power consumption [W]	81 W
MTBF [year]	54.08 year
MTTR [hour]	2.22 hour
Availability	>0.99999
Noise at normal temperature (acoustic power) [dB(A)]	Three 600 W AC PoE power modules with 30% load: 50.50 dBA Three 1000 W AC PoE power modules with 30% load: 52.50 dBA Three 1000 W DC PoE power modules with 30% load: 52.50 dBA
Noise at normal temperature (acoustic pressure) [dB(A)]	Three 600 W AC PoE power modules with 30% load: 36.82 dBA Three 1000 W AC PoE power modules with 30% load: 38.82 dBA Three 1000 W DC PoE power modules with 30% load: 38.82 dBA
Number of card slots	0
Number of power slots	3
Number of fans modules	2
Redundant power supply	1+1+1 Pluggable AC and DC power modules can be used together in the same switch.
Long-term operating temperature [°C(°F)]	–5°C to +45°C (23°F to 113°F) at an altitude of 0 to 1800 m (0 to 5905.44 ft.)
Short-term operating temperature [°C(°F)]	-5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5905.44 ft.)
Restriction on the operating temperature variation rate [°C(°F)]	When the altitude is 1800–5000 m (5906–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). The device can work for a short period of time when the operating temperature is beyond the normal range, but the following conditions must be met: The operating temperature can exceed 45°C (113°F) for a maximum of 96 consecutive hours in a year. The total time when the operating temperature exceeds 45°C (113°F) in a year is less than or equal to 360 hours. The number of times the operating temperature exceeds 45°C (113°F) is less than or equal to 15 in one year. If any of the preceding conditions is not met, the device may be damaged or an unknown error may occur. Devices cannot start when the temperature is lower than 0°C (32°F). The maximum transmission distance of an optical module used for short-term operation cannot exceed 10 km.
Storage temperature [°C(°F)]	–40°C to +70°C (–40°F to +158°F)
Long-term operating relative humidity [RH]	5% RH to 95% RH (non-condensing)
Long-term operating altitude [m(ft.)]	0–5000 m (0–16404 ft.)
Storage altitude [m(ft.)]	0-5000 m (0-16404 ft.)
Power supply mode	Pluggable power supply
Rated input voltage [V]	AC input: 100 V AC to 130 V AC, 200 V AC to 240 V AC; 50/60 Hz High-voltage DC input: 240 V DC DC input: –48 V DC to –60 V DC
Input voltage range [V]	AC input: 90 V AC to 290 V AC; 45 Hz to 66 Hz High-voltage DC input: 190 V DC to 290 V DC DC input: -38.4 V DC to -72 V DC
Maximum input current [A]	The current specifications are related to the pluggable power module. For details, see Pluggable Power Modules.
Memory	2 GB
Flash memory	1 GB in total. To view the available flash memory size, run the display version command.
Console port	RJ45
Eth Management port	RJ45
USB	Supported
RTC	Supported
RPS input	Not supported
Service port surge protection [kV]	Common mode: ±7 kV
Power supply surge protection [kV]	Configured with AC power modules: ±6 kV in differential mode and ±6 kV in common mode Configured with DC power modules: ±2 kV in differential mode and ±4 kV in common mode
Types of fans	Built-in
Heat dissipation mode	Air cooling for heat dissipation, intelligent fan speed adjustment
Airflow direction	Air intake from the front and left and air exhaust from the rear
PoE	Supported
Certification	EMC certification Safety certification Manufacturing certification
Dimensions without packaging (H x W x D) [mm(in.)]	Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.40 in. x 16.54 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 454.0 mm (1.72 in. x 17.4 in. x 17.87 in.)
Dimensions with packaging (H x W x D) [mm(in.)]	185 mm x 650 mm x 550 mm (7.28 in. x 25.59 in. x 21.65 in.)
Chassis height [U]	1 U
Weight without packaging [kg(lb)]	6.83 kg (15.06 lb)
Weight with packaging [kg(lb)]	9.81 kg (21.63 lb)
