S5731-S48T4X-A

0 Reviews Write a review

PN98011854

BrandsHuawei

AvailabilityIn Stock

Condition New

WarrantyUp to 36 months

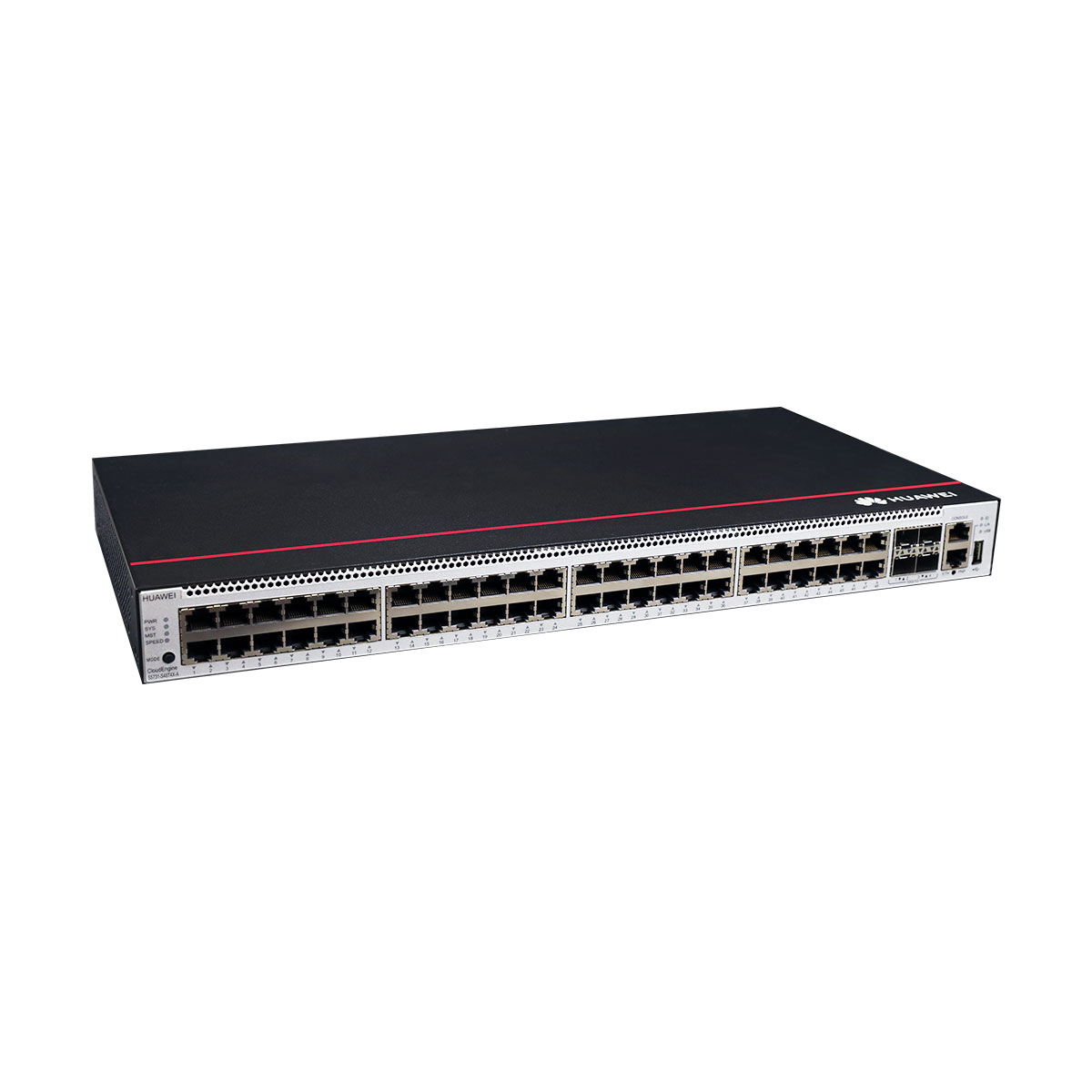

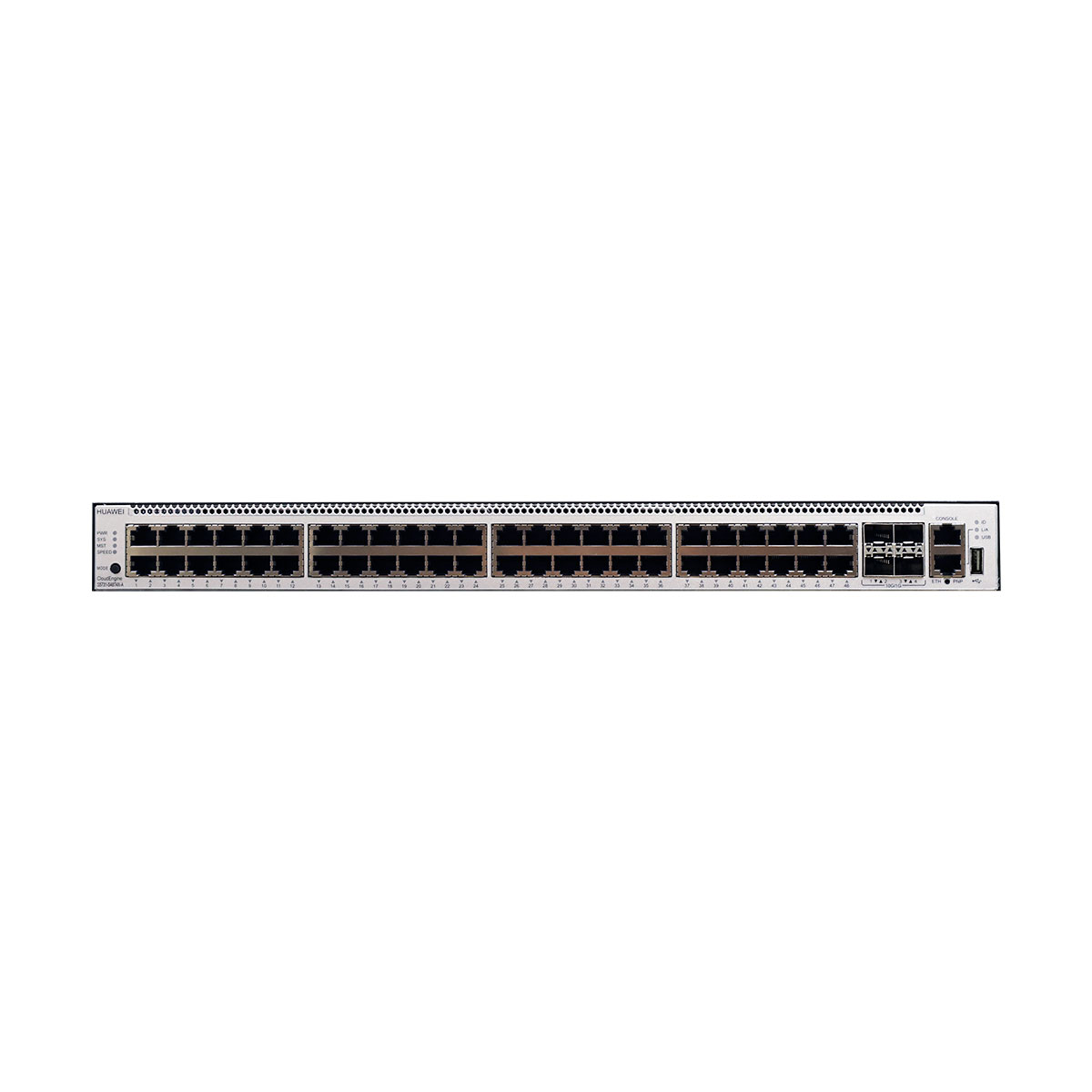

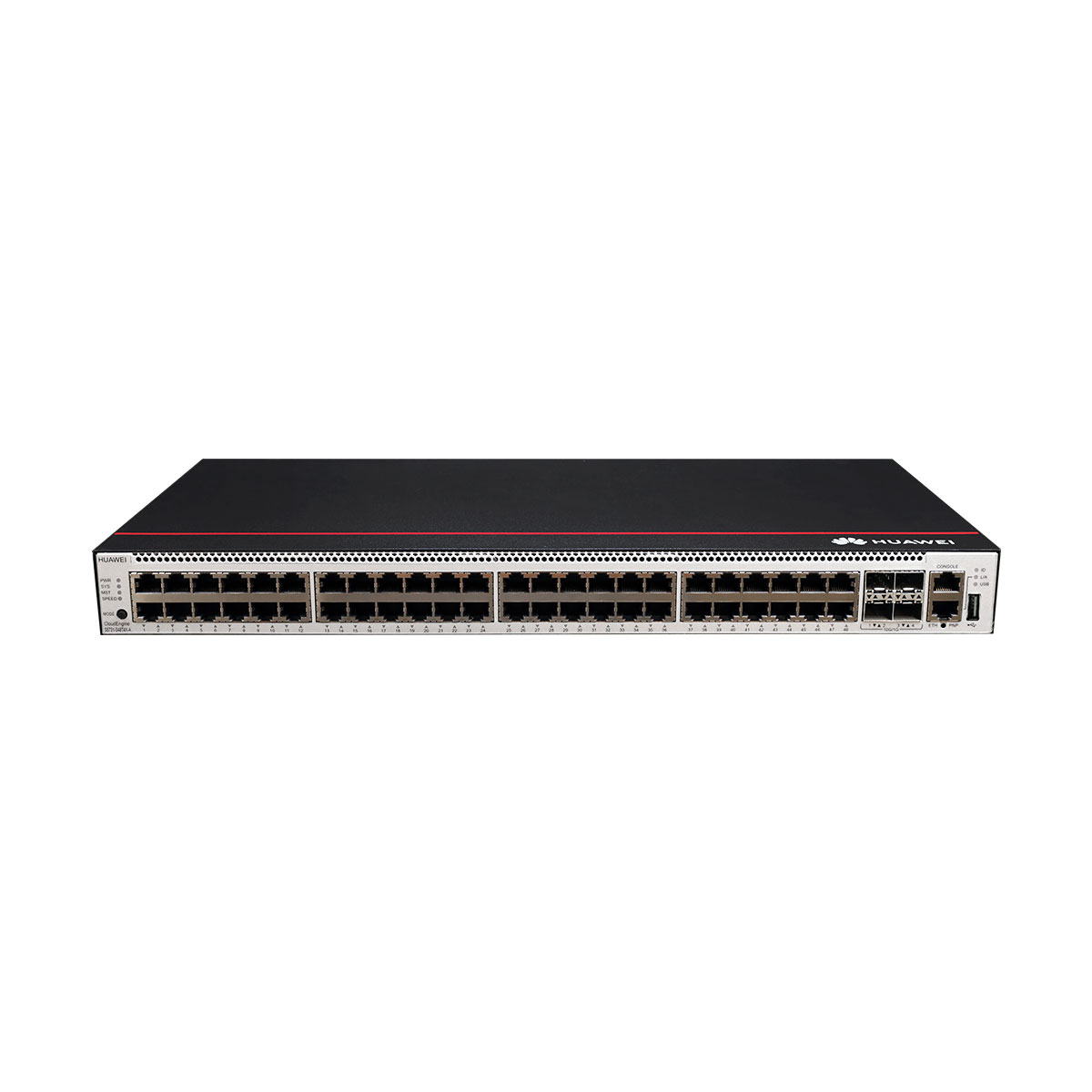

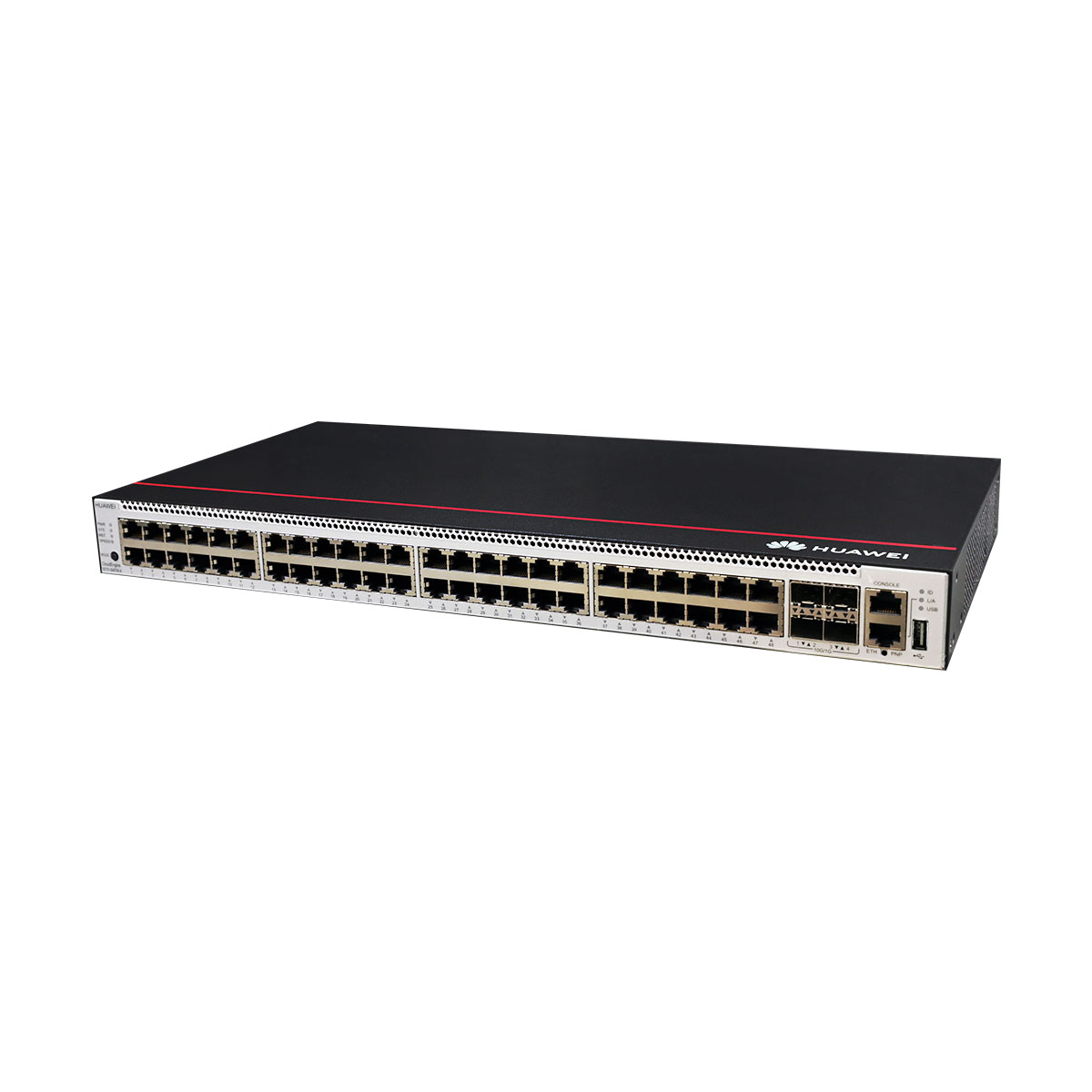

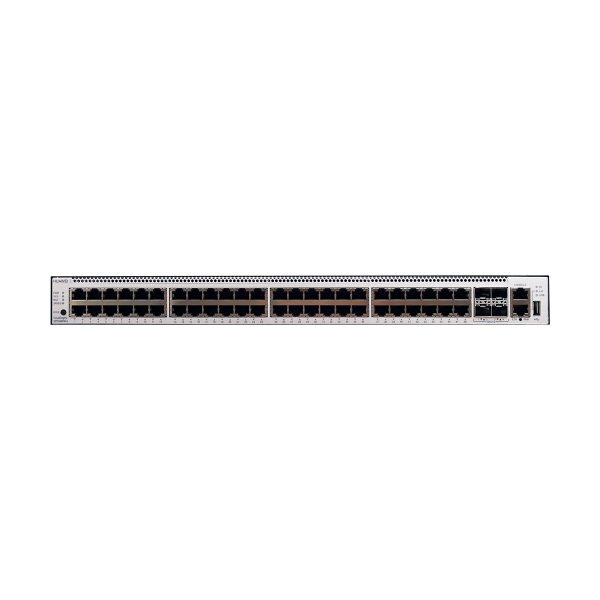

Huawei S5731-S48T4X-A with 48*10/100/1000BASE-T ports, 4*10GE SFP+ ports, AC power

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

Basic information about the S5731-S48T4X-A

Item	Details
Description	S5731-S48T4X-A (4810/100/1000BASE-T ports, 410GE SFP+ ports, AC power)
Part Number	98011854
Model	S5731-S48T4X-A
First supported version	V200R021C10SPC500

1	Forty-eight 10/100/1000BASE-T ports	2	Four 10GE SFP+ ports
3	One console port	4	One ETH management port
5	One USB port	6	One PNP button NOTICE: To restore the factory settings and reset the switch, hold down the button for at least 6 seconds. To reset the switch, press the button. Resetting the switch will cause service interruption. Exercise caution when you press the PNP button.

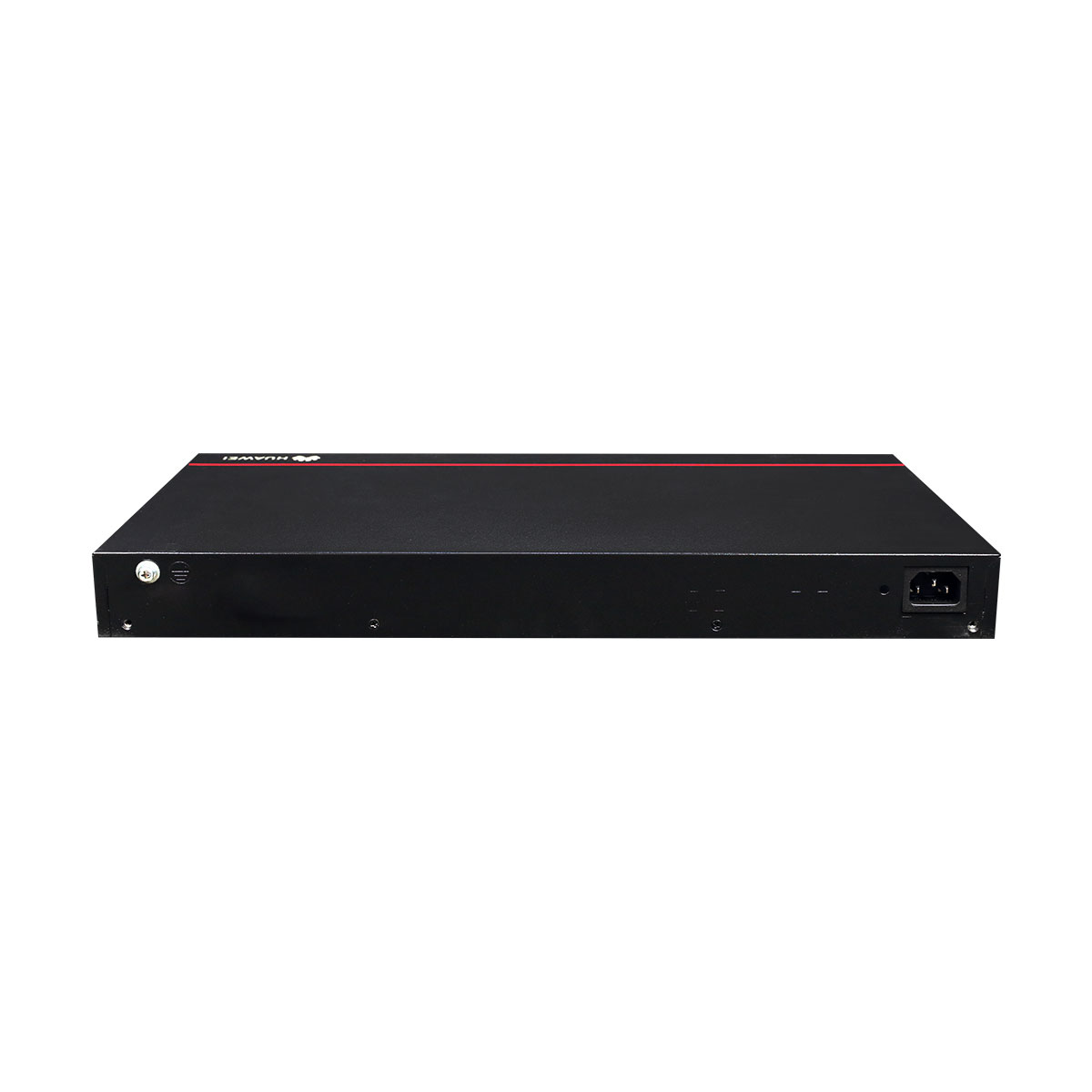

7	Ground screw	8	Jack for AC power cable locking strap NOTE: The AC power cable locking strap is not delivered with the switch.
9	AC socket	–	–

Item	S5731-S48T4X-A
Dimensions without packaging (H x W x D) [mm(in.)]	Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.66 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 227.0 mm (1.72 in. x 17.4 in. x 8.94 in.)
Dimensions with packaging (H x W x D) [mm(in.)]	90.0 mm x 550.0 mm x 355.0 mm (3.54 in. x 21.65 in. x 13.98 in.)
Chassis height [U]	1 U
Weight without packaging [kg(lb)]	3.21 kg (7.08 lb)
Weight with packaging [kg(lb)]	4.57 kg (10.08 lb)
Typical power consumption [W]	76 W
Typical heat dissipation [BTU/hour]	259.32 BTU/hour
Maximum power consumption [W]	102 W
Maximum heat dissipation [BTU/hour]	348.03 BTU/hour
Static power consumption [W]	48 W
MTBF [year]	43.17 year
MTTR [hour]	2 hour
Availability	>0.99999
Noise at normal temperature (acoustic power) [dB(A)]	44.90 dB(A)
Noise at normal temperature (acoustic pressure) [dB(A)]	31.21 dB(A)
Number of card slots	0
Number of power slots	0
Number of fans modules	2
Redundant power supply	Not supported
Long-term operating temperature [°C(°F)]	-5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5905.44 ft.)
Restriction on the operating temperature variation rate [°C(°F)]	When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). Devices cannot start when the temperature is lower than 0°C (32°F). The operating temperature of the switch is -5°C to +45°C (23°F to 113°F) when 10GE SFP+ optical modules with 40 km or longer transmission distances are used.
Storage temperature [°C(°F)]	-40°C to +70°C (-40°F to +158°F)
Long-term operating relative humidity [RH]	5% to 95%, noncondensing
Long-term operating altitude [m(ft.)]	0-5000 m (0-16404 ft.)
Storage altitude [m(ft.)]	0-5000 m (0-16404 ft.)
Power supply mode	AC built-in
Rated input voltage [V]	AC input: 100 V AC to 240 V AC, 50/60 Hz
Input voltage range [V]	AC input: 90 V AC to 264 V AC, 47 Hz to 63 Hz
Maximum input current [A]	3 A
Memory	2 GB
Flash memory	1 GB in total. To view the available flash memory size, run the display version command.
Console port	RJ45
Eth Management port	RJ45
USB	Supported
RTC	Supported
RPS input	Not supported
Service port surge protection [kV]	Common mode: ±7 kV
Power supply surge protection [kV]	±6 kV in differential mode, ±6 kV in common mode
Types of fans	Built-in
Heat dissipation mode	Heat dissipation with fan, intelligent fan speed adjustment
Airflow direction	Air intake from left and front, air exhaustion from right
PoE	Not supported
Certification	EMC certification Safety certification Manufacturing certification

Brand	Huawei
Condition	New
Warranty	12 Months

Item	S5731-S48T4X-A
Dimensions without packaging (H x W x D) [mm(in.)]	Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.66 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 227.0 mm (1.72 in. x 17.4 in. x 8.94 in.)
Dimensions with packaging (H x W x D) [mm(in.)]	90.0 mm x 550.0 mm x 355.0 mm (3.54 in. x 21.65 in. x 13.98 in.)
Chassis height [U]	1 U
Weight without packaging [kg(lb)]	3.21 kg (7.08 lb)
Weight with packaging [kg(lb)]	4.57 kg (10.08 lb)
Typical power consumption [W]	76 W
Typical heat dissipation [BTU/hour]	259.32 BTU/hour
Maximum power consumption [W]	102 W
Maximum heat dissipation [BTU/hour]	348.03 BTU/hour
Static power consumption [W]	48 W
MTBF [year]	43.17 year
MTTR [hour]	2 hour
Availability	>0.99999
Noise at normal temperature (acoustic power) [dB(A)]	44.90 dB(A)
Noise at normal temperature (acoustic pressure) [dB(A)]	31.21 dB(A)
Number of card slots	0
Number of power slots	0
Number of fans modules	2
Redundant power supply	Not supported
Long-term operating temperature [°C(°F)]	-5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5905.44 ft.)
Restriction on the operating temperature variation rate [°C(°F)]	When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). Devices cannot start when the temperature is lower than 0°C (32°F). The operating temperature of the switch is -5°C to +45°C (23°F to 113°F) when 10GE SFP+ optical modules with 40 km or longer transmission distances are used.
Storage temperature [°C(°F)]	-40°C to +70°C (-40°F to +158°F)
Long-term operating relative humidity [RH]	5% to 95%, noncondensing
Long-term operating altitude [m(ft.)]	0-5000 m (0-16404 ft.)
Storage altitude [m(ft.)]	0-5000 m (0-16404 ft.)
Power supply mode	AC built-in
Rated input voltage [V]	AC input: 100 V AC to 240 V AC, 50/60 Hz
Input voltage range [V]	AC input: 90 V AC to 264 V AC, 47 Hz to 63 Hz
Maximum input current [A]	3 A
Memory	2 GB
Flash memory	1 GB in total. To view the available flash memory size, run the display version command.
Console port	RJ45
Eth Management port	RJ45
USB	Supported
RTC	Supported
RPS input	Not supported
Service port surge protection [kV]	Common mode: ±7 kV
Power supply surge protection [kV]	±6 kV in differential mode, ±6 kV in common mode
Types of fans	Built-in
Heat dissipation mode	Heat dissipation with fan, intelligent fan speed adjustment
Airflow direction	Air intake from left and front, air exhaustion from right
PoE	Not supported
Certification	EMC certification Safety certification Manufacturing certification
