S5731-S48S4X

1 Review Write a review

PN98011805

BrandsHuawei

AvailabilityIn Stock

WarrantyUp to 36 months

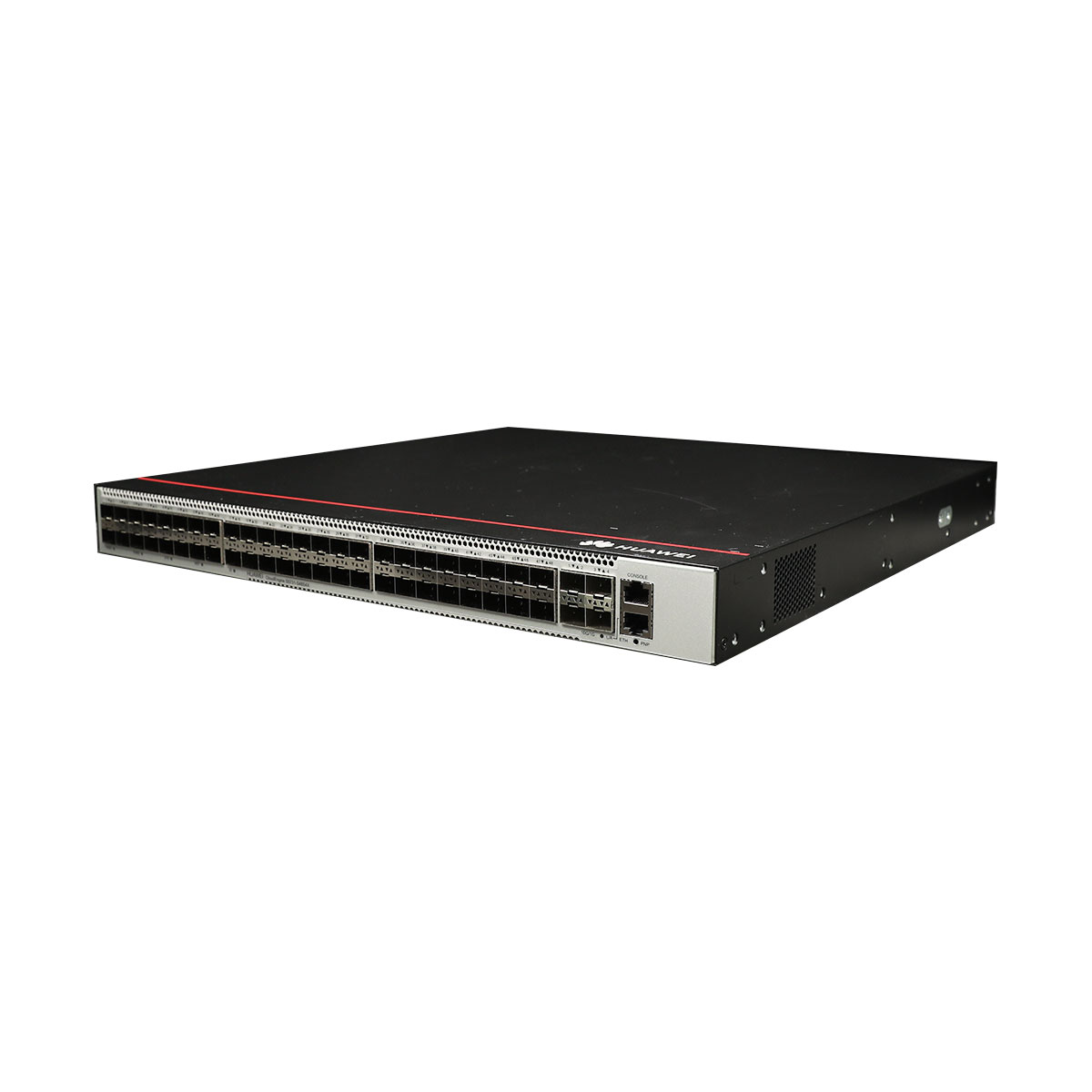

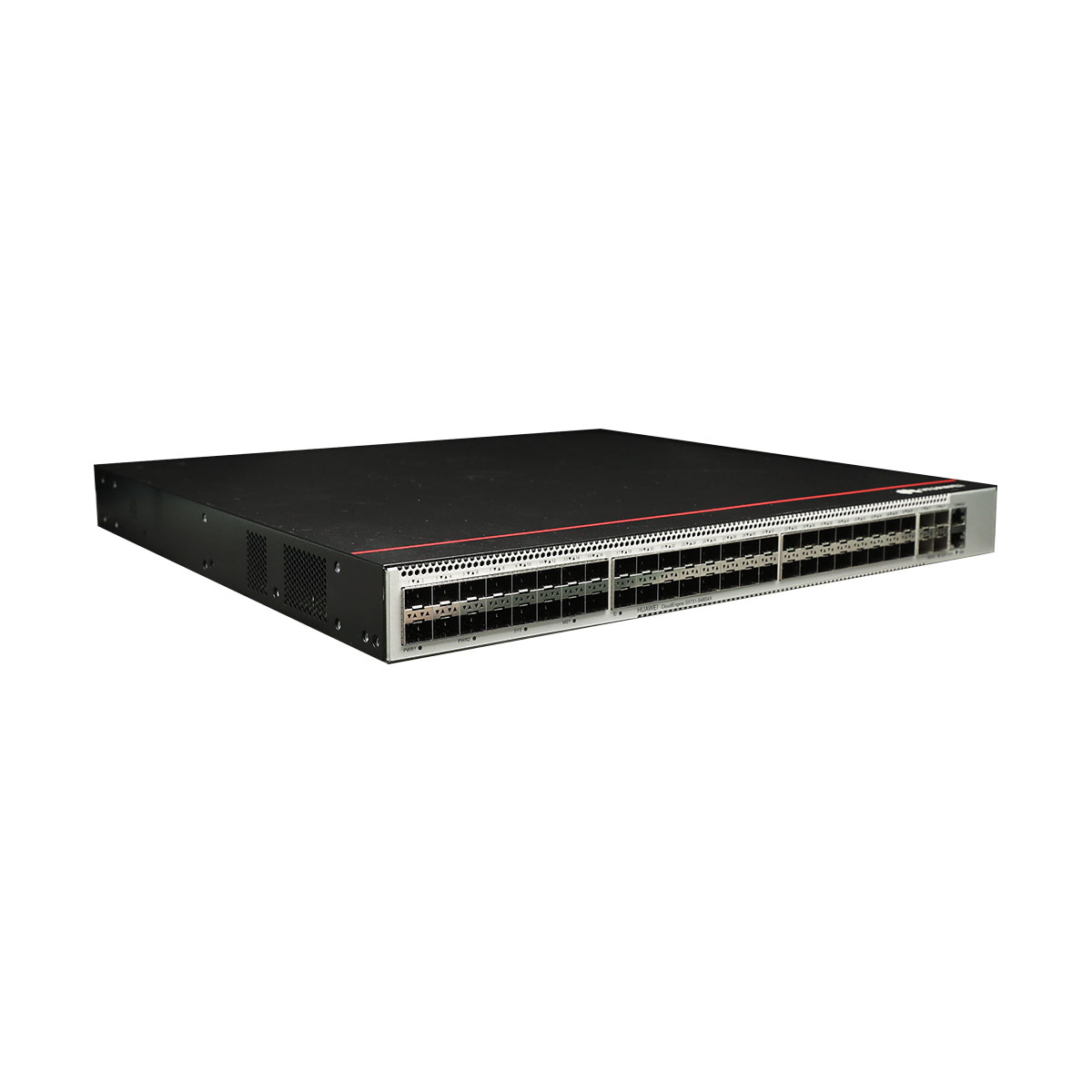

Huawei S5731-S48S4X switch supports 48 GE SFP ports, 4 10GE SFP+ ports, without power module

48 Ports Switch GE Switch Lan Access Switch

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

S5731-S48S4X overview

This Huawei switch supports 48*GE SFP ports, 4*10GE SFP+ ports, without power module

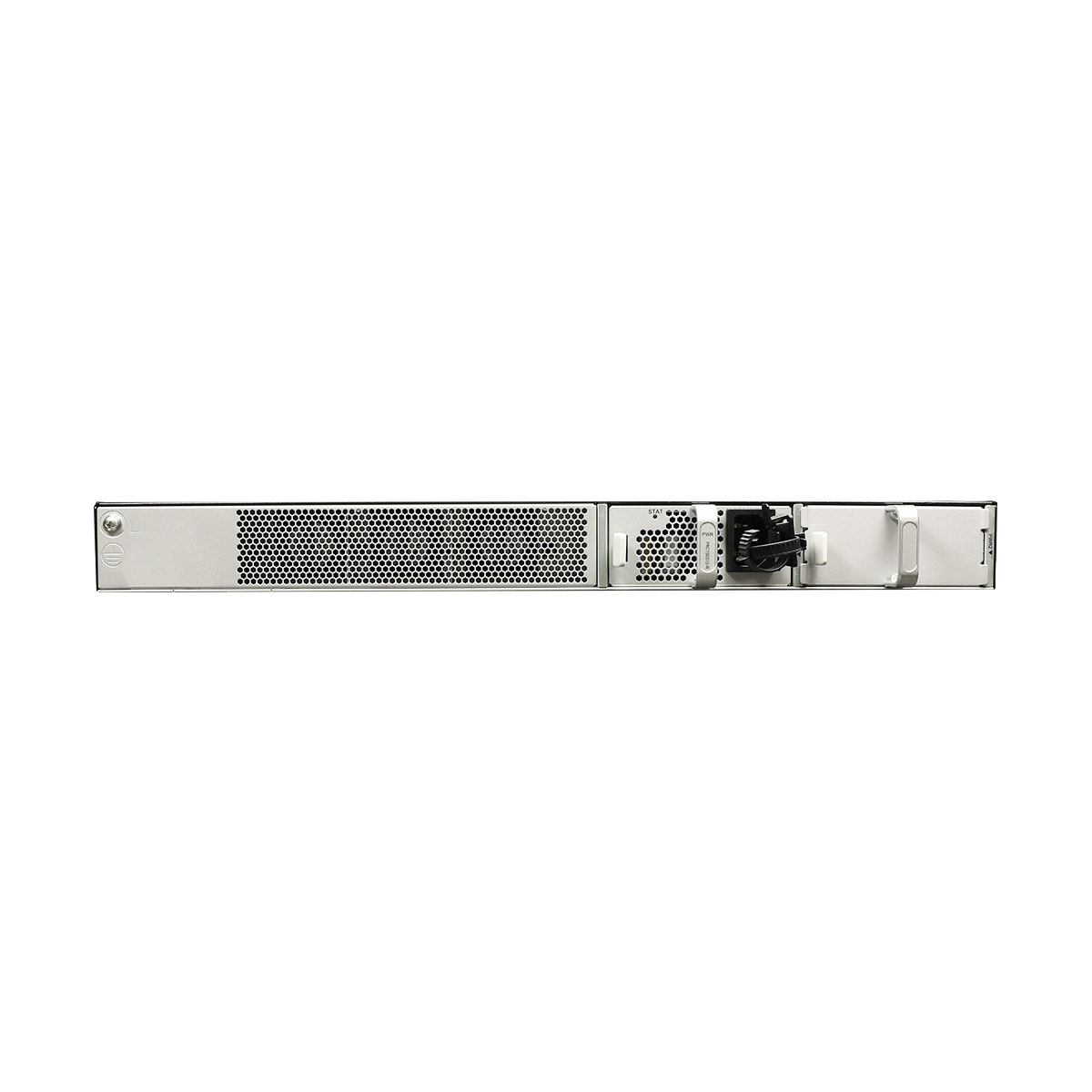

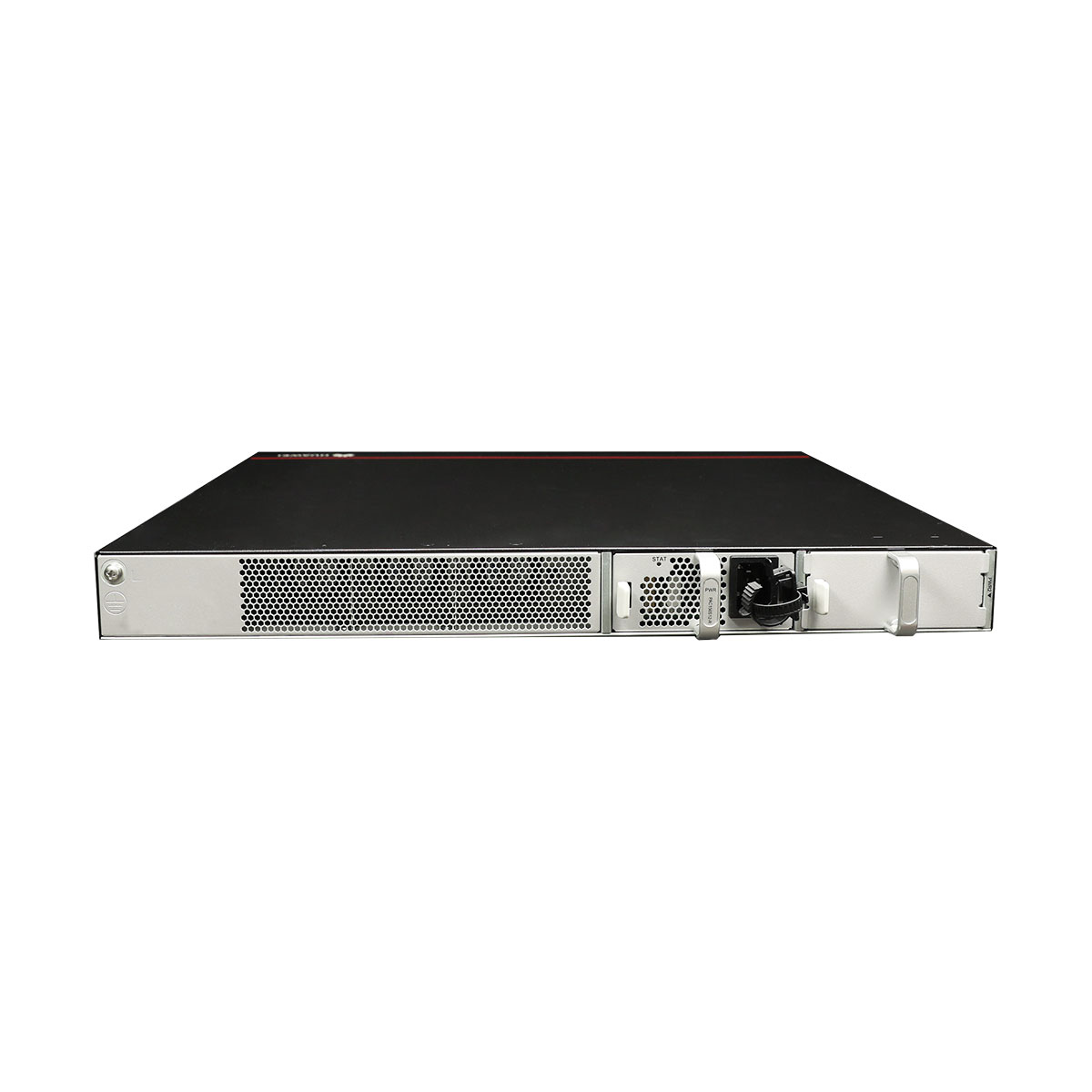

The switch can use a single power module or double power modules for 1+1 power redundancy. Pluggable AC and DC power modules can be used together in the same switch. However, the power modules with natural heat dissipation and the power modules with fan cannot be used at the same time.

The has three built-in fans for forced air cooling. Air flows in from the left, right, and front sides, and exhausts from the rear panel.

S5731-S48S4X quick spec

48*GE SFP ports

4*10GE SFP+ ports

without power module

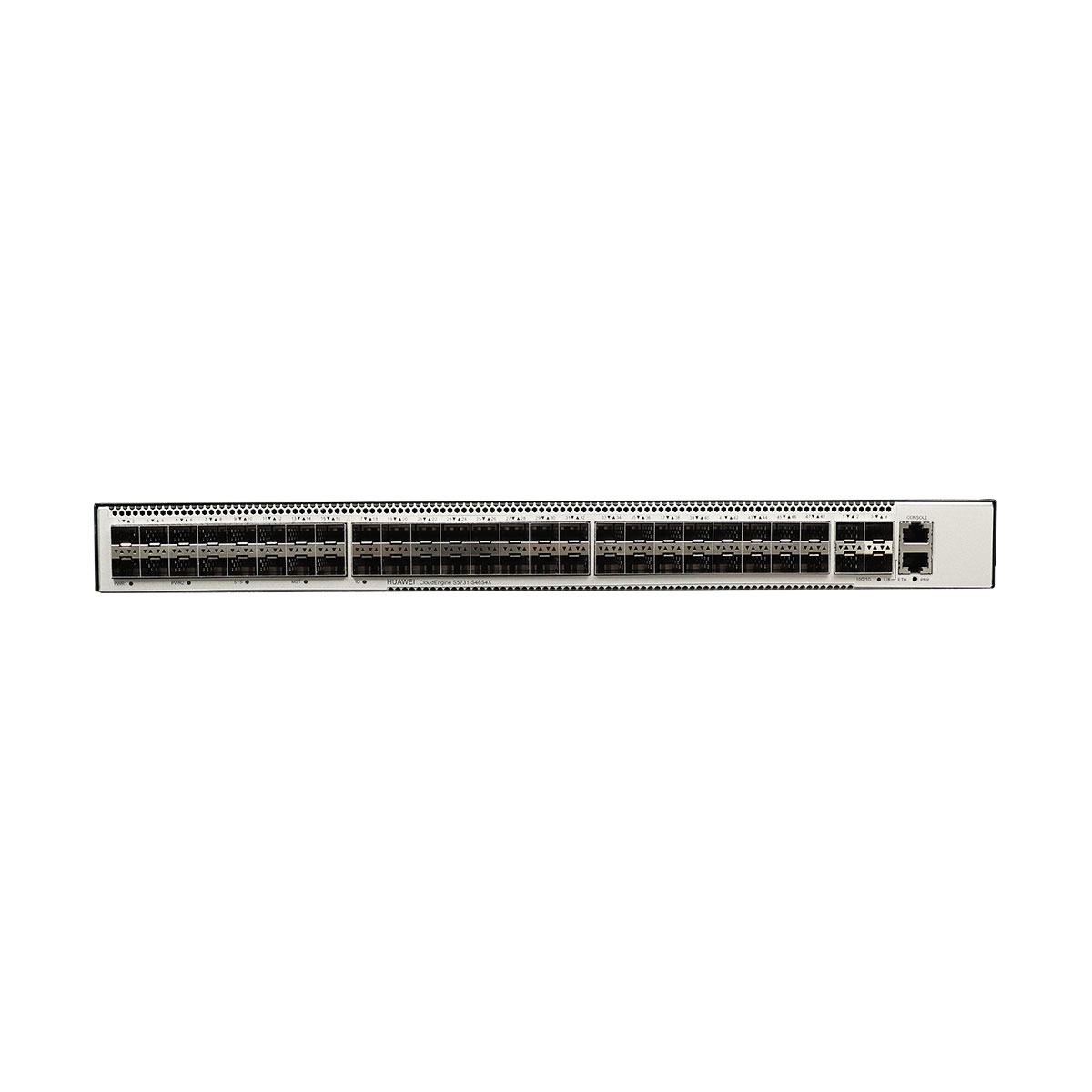

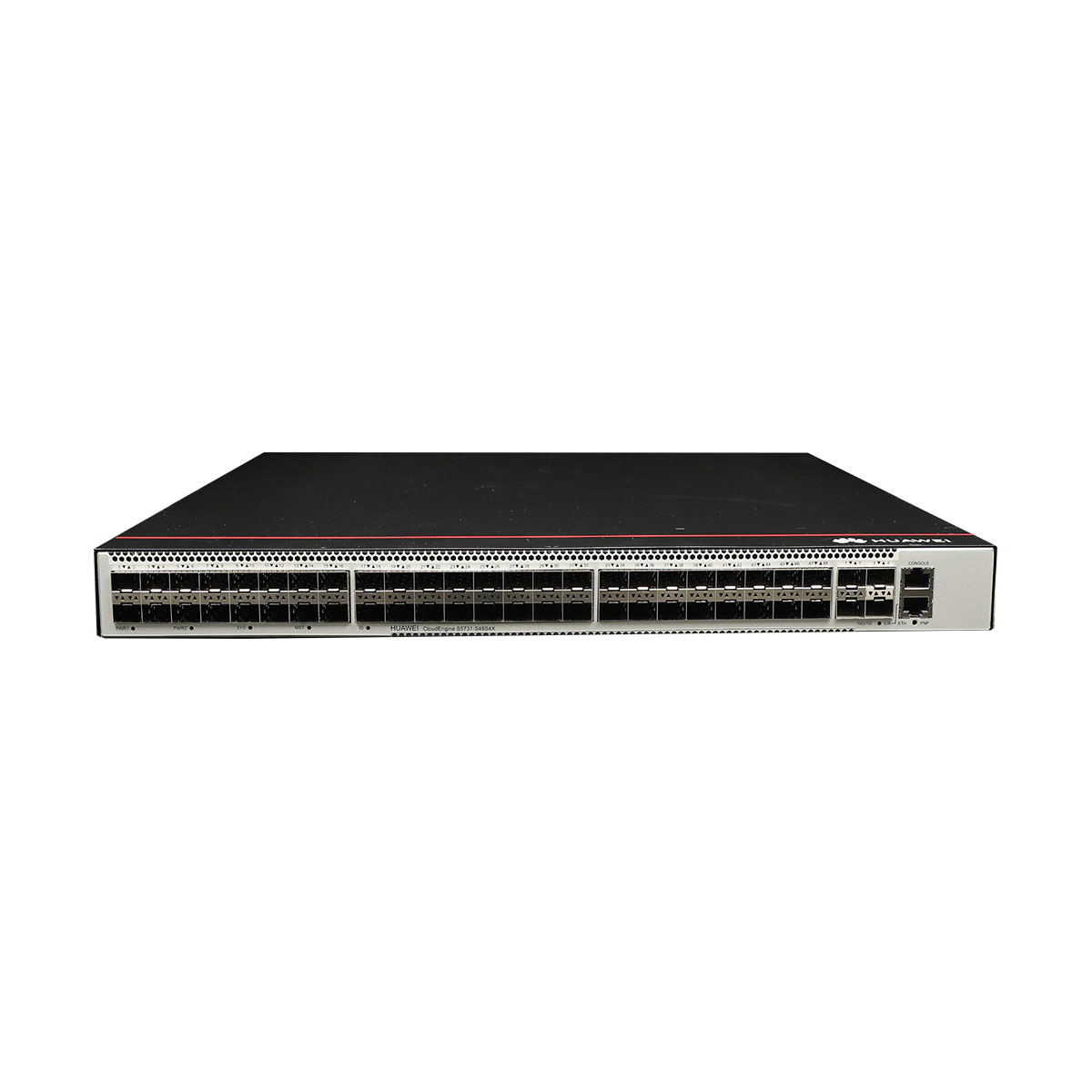

S5731-S48S4X appearance and structure

1	Forty-eight 100/1000BASE-X ports
2	Four 10GE SFP+ ports OMXD30000 OSX010000 OSX040N01 SFP-10G-ZR SFP-10G-USR
3	One console port
4	One ETH management port
5	One PNP button
6	Ground screw

Item	S5731-S48S4X
Rated input voltage [V]	AC input: 100 V AC to 240 V AC, 50/60 Hz
Rated input voltage [V]	High-voltage DC input: 240 V DC
Input voltage range [V]	AC input: 90 V AC to 290 V AC; 45 Hz to 65 Hz
	High-voltage DC input: 190 V DC to 290 V DC
	DC input: –38.4 V DC to –72 V DC
Maximum input current [A]	The current specifications depend on the pluggable power modules in use. For details, see the related power module specifications.
Memory	2 GB
Flash memory	The physical space is 1 GB. You can run the display version command to view the actual available space.
Console port	RJ45
Eth Management port	RJ45
USB	Not supported
RTC	Supported
RPS input	Not supported
Service port surge protection [kV]	–
Power supply surge protection [kV]	Configured with AC power modules: ±6 kV in differential mode and ±6 kV in common mode
Power supply surge protection [kV]	Configured with DC power modules: ±2 kV in differential mode and ±4 kV in common mode
Types of fans	Built-in
Heat dissipation mode	Heat dissipation with fan, intelligent fan speed adjustment
Airflow direction	Air intake from left,front and right, air exhaustion from behind
PoE	Not supported
Certification	EMC certification
	Safety certification
	Manufacturing certification
Dimensions without packaging (H x W x D) [mm(in.)]	Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.40 in. x 16.54 in.)
Dimensions without packaging (H x W x D) [mm(in.)]	Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 448.0 mm (1.72 in. x 17.40 in. x 17.64 in.)
Dimensions with packaging (H x W x D) [mm(in.)]	185 mm x 650 mm x 550 mm (7.28 in. x 25.59 in. x 21.65 in.)
Chassis height [U]	1 U
Weight without packaging [kg(lb)]	5.12 kg (11.29 lb)
Weight with packaging [kg(lb)]	7.65 kg (16.87 lb)
Typical power consumption [W]	93.69 W
Typical heat dissipation [BTU/hour]	319.68 BTU/hour
Maximum power consumption [W]	128.89 (150 W AC or 180 W DC)
Maximum power consumption [W]	141.96 (600 W AC)
Maximum heat dissipation [BTU/hour]	439.79 (150 W AC or 180 W DC)
Maximum heat dissipation [BTU/hour]	484.38 (600 W AC)
MTBF [year]	64.97 year
MTtr [hour]	2 hour
Availability	>0.99999
Noise at normal temperature (acoustic power) [dB(A)]	45.47 dB(A)
Noise at normal temperature (acoustic pressure) [dB(A)]	31.79 dB(A)
Number of card slots	0
Number of power slots	2
Number of fans modules	3
Redundant power supply	1+1
Redundant power supply	Pluggable AC and DC power modules can be used together in the same switch, but power modules that use natural heat dissipation and power modules that use air cooling cannot be used together.
Long-term operating temperature [°C(°F)]	-5°C to +45°C (23°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.)
Short-term operating temperature [°C(°F)]	-5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5906 ft.)
Restriction on the operating temperature variation rate [°C(°F)]	When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
	The device can work for a short period of time when the operating temperature is beyond the normal range, but the following conditions must be met:
	The operating temperature can exceed 45°C (113°F) for a maximum of 96 consecutive hours in a year.
	The total time when the operating temperature exceeds 45°C (113°F) in a year is less than or equal to 360 hours.
	The number of times the operating temperature exceeds 45°C (113°F) is less than or equal to 15 in one year.
	If any of the preceding conditions is not met, the device may be damaged or an unknown error may occur.
	Devices cannot start when the temperature is lower than 0°C (32°F). The maximum transmission distance of an optical module used for short-term operation cannot exceed 10 km.
Storage temperature [°C(°F)]	-40°C to +70°C (-40°F to +158°F)
Long-term operating relative humidity [RH]	5% to 95%, noncondensing
Long-term operating altitude [m(ft.)]	0-5000 m (0-16404 ft.)
Storage altitude [m(ft.)]	0-5000 m (0-16404 ft.)
Power supply mode	Pluggable power supply

Ship From	Shenzhen Warehouse
Lead Time	3-5 days
Brand	Huawei

Item	S5731-S48S4X
Rated input voltage [V]	AC input: 100 V AC to 240 V AC, 50/60 Hz
Rated input voltage [V]	High-voltage DC input: 240 V DC
Input voltage range [V]	AC input: 90 V AC to 290 V AC; 45 Hz to 65 Hz
	High-voltage DC input: 190 V DC to 290 V DC
	DC input: –38.4 V DC to –72 V DC
Maximum input current [A]	The current specifications depend on the pluggable power modules in use. For details, see the related power module specifications.
Memory	2 GB
Flash memory	The physical space is 1 GB. You can run the display version command to view the actual available space.
Console port	RJ45
Eth Management port	RJ45
USB	Not supported
RTC	Supported
RPS input	Not supported
Service port surge protection [kV]	–
Power supply surge protection [kV]	Configured with AC power modules: ±6 kV in differential mode and ±6 kV in common mode
Power supply surge protection [kV]	Configured with DC power modules: ±2 kV in differential mode and ±4 kV in common mode
Types of fans	Built-in
Heat dissipation mode	Heat dissipation with fan, intelligent fan speed adjustment
Airflow direction	Air intake from left,front and right, air exhaustion from behind
PoE	Not supported
Certification	EMC certification
	Safety certification
	Manufacturing certification
Dimensions without packaging (H x W x D) [mm(in.)]	Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.40 in. x 16.54 in.)
Dimensions without packaging (H x W x D) [mm(in.)]	Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 448.0 mm (1.72 in. x 17.40 in. x 17.64 in.)
Dimensions with packaging (H x W x D) [mm(in.)]	185 mm x 650 mm x 550 mm (7.28 in. x 25.59 in. x 21.65 in.)
Chassis height [U]	1 U
Weight without packaging [kg(lb)]	5.12 kg (11.29 lb)
Weight with packaging [kg(lb)]	7.65 kg (16.87 lb)
Typical power consumption [W]	93.69 W
Typical heat dissipation [BTU/hour]	319.68 BTU/hour
Maximum power consumption [W]	128.89 (150 W AC or 180 W DC)
Maximum power consumption [W]	141.96 (600 W AC)
Maximum heat dissipation [BTU/hour]	439.79 (150 W AC or 180 W DC)
Maximum heat dissipation [BTU/hour]	484.38 (600 W AC)
MTBF [year]	64.97 year
MTtr [hour]	2 hour
Availability	>0.99999
Noise at normal temperature (acoustic power) [dB(A)]	45.47 dB(A)
Noise at normal temperature (acoustic pressure) [dB(A)]	31.79 dB(A)
Number of card slots	0
Number of power slots	2
Number of fans modules	3
Redundant power supply	1+1
Redundant power supply	Pluggable AC and DC power modules can be used together in the same switch, but power modules that use natural heat dissipation and power modules that use air cooling cannot be used together.
Long-term operating temperature [°C(°F)]	-5°C to +45°C (23°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.)
Short-term operating temperature [°C(°F)]	-5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5906 ft.)
Restriction on the operating temperature variation rate [°C(°F)]	When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
	The device can work for a short period of time when the operating temperature is beyond the normal range, but the following conditions must be met:
	The operating temperature can exceed 45°C (113°F) for a maximum of 96 consecutive hours in a year.
	The total time when the operating temperature exceeds 45°C (113°F) in a year is less than or equal to 360 hours.
	The number of times the operating temperature exceeds 45°C (113°F) is less than or equal to 15 in one year.
	If any of the preceding conditions is not met, the device may be damaged or an unknown error may occur.
	Devices cannot start when the temperature is lower than 0°C (32°F). The maximum transmission distance of an optical module used for short-term operation cannot exceed 10 km.
Storage temperature [°C(°F)]	-40°C to +70°C (-40°F to +158°F)
Long-term operating relative humidity [RH]	5% to 95%, noncondensing
Long-term operating altitude [m(ft.)]	0-5000 m (0-16404 ft.)
Storage altitude [m(ft.)]	0-5000 m (0-16404 ft.)
Power supply mode	Pluggable power supply
