S5731-S48P4X-AC

1 Review Write a review
PN02353AJH
Brands
AvailabilityIn Stock
Campus Switch S5731-S
WarrantyUp to 36 months i
×
Warranty Policy
We provide a comprehensive warranty policy.
Refer to the table for more details.

Original price was: $0.00.Current price is: $0.00.

Huawei S5731-S48P4X-AC switch supports 48 10/100/1000BASE-T ports, 4 10GE SFP+ ports, PoE+, 2 hot-swappable power slots, 1 AC equipped

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

S5731-S48P4X-AC overview

This Huawei switch comes with 48 10/100/1000BASE-T ports, 4 10GE SFP+ ports, PoE+, is one of the Huawei S5731-S series switches. The S5731-S series switches were developed based on next-generation high-performing hardware and the Huawei Versatile Routing Platform (VRP).

The CloudEngine S5731-S supports simplified operations and maintenance (O&M), intelligent stack (iStack), flexible Ethernet networking. It also provides enhanced Layer 3 features and mature IPv6 features. The CloudEngine S5731-S can be used in various scenarios. For example, it can be used as an access or aggregation switch on a campus network or as an access switch for Metropolitan Area Network.



S5731-S48P4X-AC quick spec

48 10/100/1000BASE-T ports

4 10GE SFP+ ports, PoE+

1 AC equipped

Forwarding performance: 125 Mpps

Switching capacity: 176 Gbps/672 Gbps

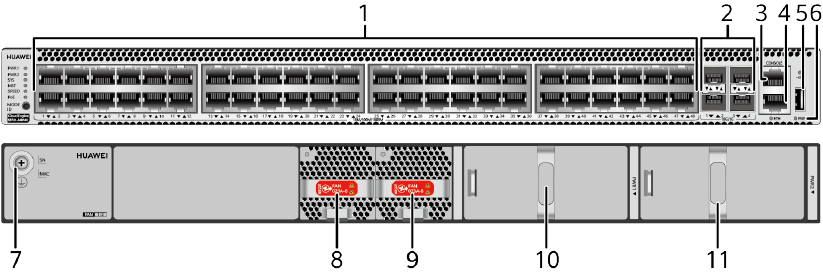

S5731-S48P4X-AC appearance and structure

S5731-S48P4X-AC

1. Forty-eight PoE+ 10/100/1000BASE-T ports

SFP-1000Base-T

 7. Ground screw
2. Four 10GE SFP+ ports

OMXD30000   OSX010000 OSX040N01



 8. Fan module slot 1
3. One console port 9. Fan module slot 2
4. One ETH management port 10. Power module slot 1
5. One USB port 11. Power module slot 2
6. One PNP button
Item S5731-S48P4X-AC
Forwarding performance 125 Mpps
Switching capacity 176 Gbps/672 Gbps
Fixed port 48 10/100/1000BASE-T (PoE+) ports, 4 10GE SFP+ ports
Power supply type 1000 W PoE AC (pluggable)
Rated voltage range AC input (1000 W AC PoE): 100 V AC to 240 V AC, 50/60 Hz
Maximum voltage range AC input (1000 W AC PoE): 90 V AC to 290 V AC, 45 Hz to 65 Hz High-voltage DC input (1000 W AC PoE): 190 V DC to 290 V DC (meeting 240 V high-voltage DC certification)
Maximum power consumption 132 W (without PD) 1750 W (with PD, PD power consumption of 1440 W)
Noise Under normal temperature (sound power): 62.3dB (A) Under high temperature (sound power): 71.8dB (A) Under normal temperature (sound pressure): 52.8dB (A)
Operating temperature 0-1800 m altitude: -5°C to +45°C 1800-5000 m altitude: The operating temperature reduces by 1ºC every time the altitude increases by 220 m.
Storage temperature -40℃ to +70℃
Relative humidity 5% to 95% (non- condensing)
Surge protection specification (service port) Common mode: ±6 kV
Surge protection specification (power port) Differential mode: ±6 kV Common mode: ±6 kV
Heat dissipation Air cooling heat dissipation, intelligent speed adjustment, and pluggable fans
Dimensions (W x D x H) 442 mm x 420 mm x 43.6 mm

Additional information

Campus Switch

Brand

Huawei
Lead Time

3-5 days
Ship From

Shenzhen Warehouse
Item S5731-S48P4X-AC
Forwarding performance 125 Mpps
Switching capacity 176 Gbps/672 Gbps
Fixed port 48 10/100/1000BASE-T (PoE+) ports, 4 10GE SFP+ ports
Power supply type 1000 W PoE AC (pluggable)
Rated voltage range AC input (1000 W AC PoE): 100 V AC to 240 V AC, 50/60 Hz
Maximum voltage range AC input (1000 W AC PoE): 90 V AC to 290 V AC, 45 Hz to 65 Hz High-voltage DC input (1000 W AC PoE): 190 V DC to 290 V DC (meeting 240 V high-voltage DC certification)
Maximum power consumption 132 W (without PD) 1750 W (with PD, PD power consumption of 1440 W)
Noise Under normal temperature (sound power): 62.3dB (A) Under high temperature (sound power): 71.8dB (A) Under normal temperature (sound pressure): 52.8dB (A)
Operating temperature 0-1800 m altitude: -5°C to +45°C 1800-5000 m altitude: The operating temperature reduces by 1ºC every time the altitude increases by 220 m.
Storage temperature -40℃ to +70℃
Relative humidity 5% to 95% (non- condensing)
Surge protection specification (service port) Common mode: ±6 kV
Surge protection specification (power port) Differential mode: ±6 kV Common mode: ±6 kV
Heat dissipation Air cooling heat dissipation, intelligent speed adjustment, and pluggable fans
Dimensions (W x D x H) 442 mm x 420 mm x 43.6 mm
