S5731-S24T4X-AC

Rated 5.00 out of 5 based on 1 customer rating

1 Review Write a review

PN02353AHU

BrandsHuawei

AvailabilityIn Stock

Campus Switch S5731-S

WarrantyUp to 36 months

Original price was: $0.00.Current price is: $0.00.

Huawei S5731-S24T4X-AC switch supports 24 10/100/1000BASE-T ports, 4 10GE SFP+ ports, 2 hot swappable AC/DC power supplies, 1 AC equipped

24 Ports Switch Electrical Switch Lan Access Switch

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

S5731-S24T4X-AC overview

Huawei S5731-S24T4X-AC with 24 10/100/1000BASE-T ports, 4 10GE SFP+ ports, is one of the Huawei S5731-S series switches. The S5731-S series switches were developed based on next-generation high-performing hardware and the Huawei Versatile Routing Platform (VRP).

The CloudEngine S5731-S supports simplified operations and maintenance (O&M), intelligent stack (iStack), flexible Ethernet networking. It also provides enhanced Layer 3 features and mature IPv6 features. The CloudEngine S5731-S can be used in various scenarios. For example, it can be used as an access or aggregation switch on a campus network or as an access switch for Metropolitan Area Network.

S5731-S24T4X-AC quick spec

24 10/100/1000BASE-T ports

4 10GE SFP+ ports

1 AC equipped

Forwarding performance: 96 Mpps

Switching capacity: 128 Gbps/672 Gbps

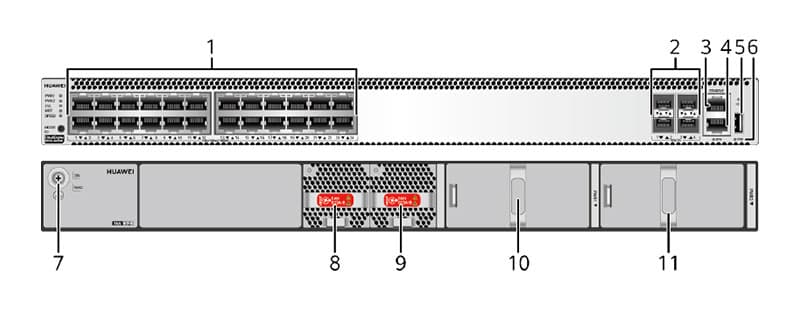

S5731-S24T4X-AC appearance and structure

1. Twenty-four 10/100/1000BASE-T ports SFP-1000Base-T	7. Ground screw
2. Four 10GE SFP+ ports OMXD30000 OSX010000 OSX040N01 SFP-10G-ZR	8. Fan module slot 1
3. One console port	9. Fan module slot 2
4. One ETH management port	10. Power module slot 1
5. One USB port	11. Power module slot 2
6. One PNP button

Item	S5731-S24T4X-AC
Forwarding performance	96 Mpps
Switching capacity	128 Gbps/672 Gbps
Fixed port	24 10/100/1000BASE-T ports, 4 10GE SFP+ ports
Power supply type	150 W AC (pluggable) 600 W AC (pluggable) 1000 W DC (pluggable)
Rated voltage range	AC input (150 W AC ): 100 V AC to 240 V AC, 50/60 Hz AC input (600 W AC ): 100 V AC to 240 V AC, 50/60 Hz DC input (1000 W DC): -48 VDC to - 60 V DC
Maximum voltage range	AC input (150 W AC ): 90 V AC to 264 V AC, 47 Hz to 63 Hz AC input (600 W AC ): 90 V AC to 290 V AC, 45 Hz to 65 Hz High-voltage DC input (600 W AC): 190 V DC to 290 V DC (meeting 240 V high-voltage DC certification) DC input (1000 W DC): -38.4 V DC to -72V DC
Maximum power consumption	114 W
Noise	Under normal temperature (sound power): 57.5dB (A) Under high temperature (sound power): 70.9dB (A) Under normal temperature (sound pressure): 47.5dB (A)
Operating temperature	0-1800 m altitude: -5°C to +45°C 1800-5000 m altitude: The operating temperature reduces by 1ºC every time the altitude increases by 220 m.
Storage temperature	-40℃ to +70℃
Relative humidity	5% to 95% (non- condensing)
Surge protection specification (service port)	Common mode: ±6 kV
Surge protection specification (power port)	AC power port: ±6 kV in differential mode, ±6 kV in common mode DC power port: ±2 kV in differential mode, ±4 kV in common mode
Heat dissipation	Air cooling heat dissipation, intelligent speed adjustment, and pluggable fans
Dimensions (W x D x H)	442 mm x 420 mm x 43.6 mm

Item	S5731-S24T4X-AC
Forwarding performance	96 Mpps
Switching capacity	128 Gbps/672 Gbps
Fixed port	24 10/100/1000BASE-T ports, 4 10GE SFP+ ports
Power supply type	150 W AC (pluggable) 600 W AC (pluggable) 1000 W DC (pluggable)
Rated voltage range	AC input (150 W AC ): 100 V AC to 240 V AC, 50/60 Hz AC input (600 W AC ): 100 V AC to 240 V AC, 50/60 Hz DC input (1000 W DC): -48 VDC to - 60 V DC
Maximum voltage range	AC input (150 W AC ): 90 V AC to 264 V AC, 47 Hz to 63 Hz AC input (600 W AC ): 90 V AC to 290 V AC, 45 Hz to 65 Hz High-voltage DC input (600 W AC): 190 V DC to 290 V DC (meeting 240 V high-voltage DC certification) DC input (1000 W DC): -38.4 V DC to -72V DC
Maximum power consumption	114 W
Noise	Under normal temperature (sound power): 57.5dB (A) Under high temperature (sound power): 70.9dB (A) Under normal temperature (sound pressure): 47.5dB (A)
Operating temperature	0-1800 m altitude: -5°C to +45°C 1800-5000 m altitude: The operating temperature reduces by 1ºC every time the altitude increases by 220 m.
Storage temperature	-40℃ to +70℃
Relative humidity	5% to 95% (non- condensing)
Surge protection specification (service port)	Common mode: ±6 kV
Surge protection specification (power port)	AC power port: ±6 kV in differential mode, ±6 kV in common mode DC power port: ±2 kV in differential mode, ±4 kV in common mode
Heat dissipation	Air cooling heat dissipation, intelligent speed adjustment, and pluggable fans
Dimensions (W x D x H)	442 mm x 420 mm x 43.6 mm

Campus Switch	S5731-S
Brand	Huawei
Lead Time	3-5 days
Ship From	Hongkong Warehouse
