Categories:S5731 Series

S5731-L8T2ST-RUA

0 Reviews Write a review

PN98011778

BrandsHuawei

AvailabilityIn Stock

Condition New

WarrantyUp to 36 months

Huawei S5731-L8T2ST-RUA supports 8*10/100/1000BASE-T ports, 1*GE SFP port, 1*10/100/1000BASE-T port, AC power, power adapter

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

S5731-L8T2ST-RUA overview

Huawei S5731-L8T2ST-RUA supports 8*10/100/1000BASE-T ports, 1*GE SFP port, 1*10/100/1000BASE-T port, AC power, power adapter

Basic information about the S5731-L8T2ST-RUA

Item	Details
Description	S5731-L8T2ST-RUA (810/100/1000BASE-T ports, 1GE SFP port, 1*10/100/1000BASE-T port, AC power, power adapter)
Part Number	98011778
Model	S5731-L8T2ST-RUA
First supported version	V200R021C10SPC500

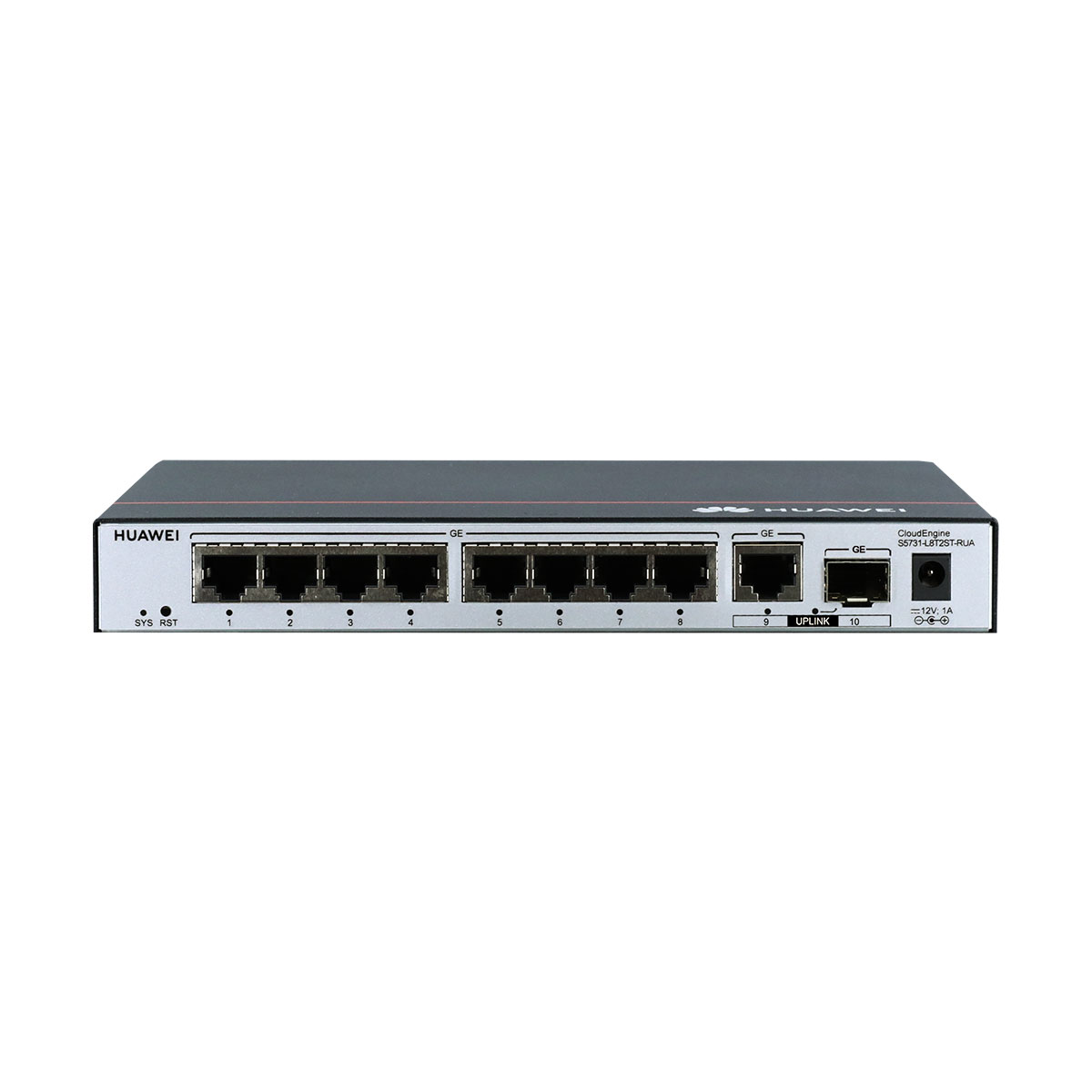

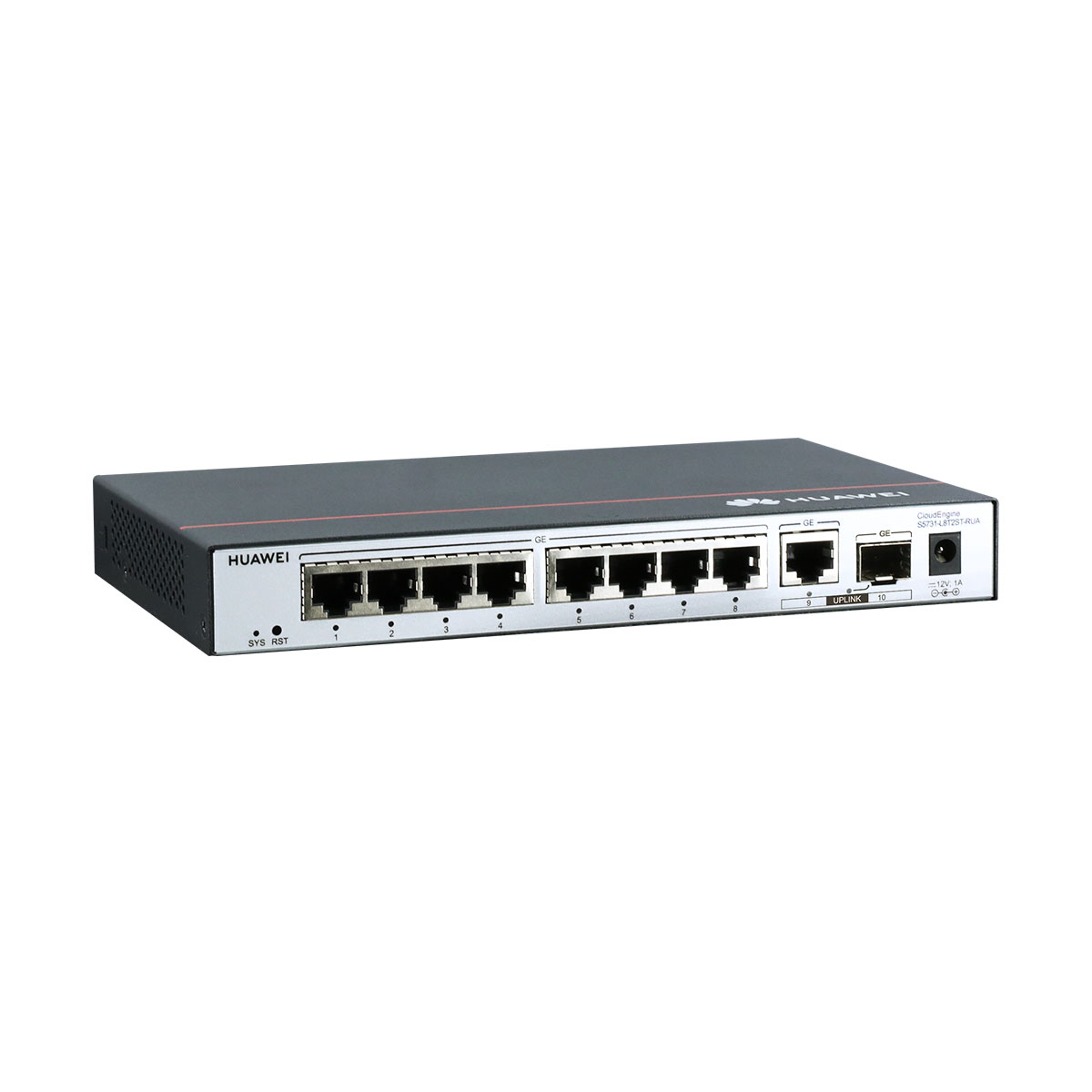

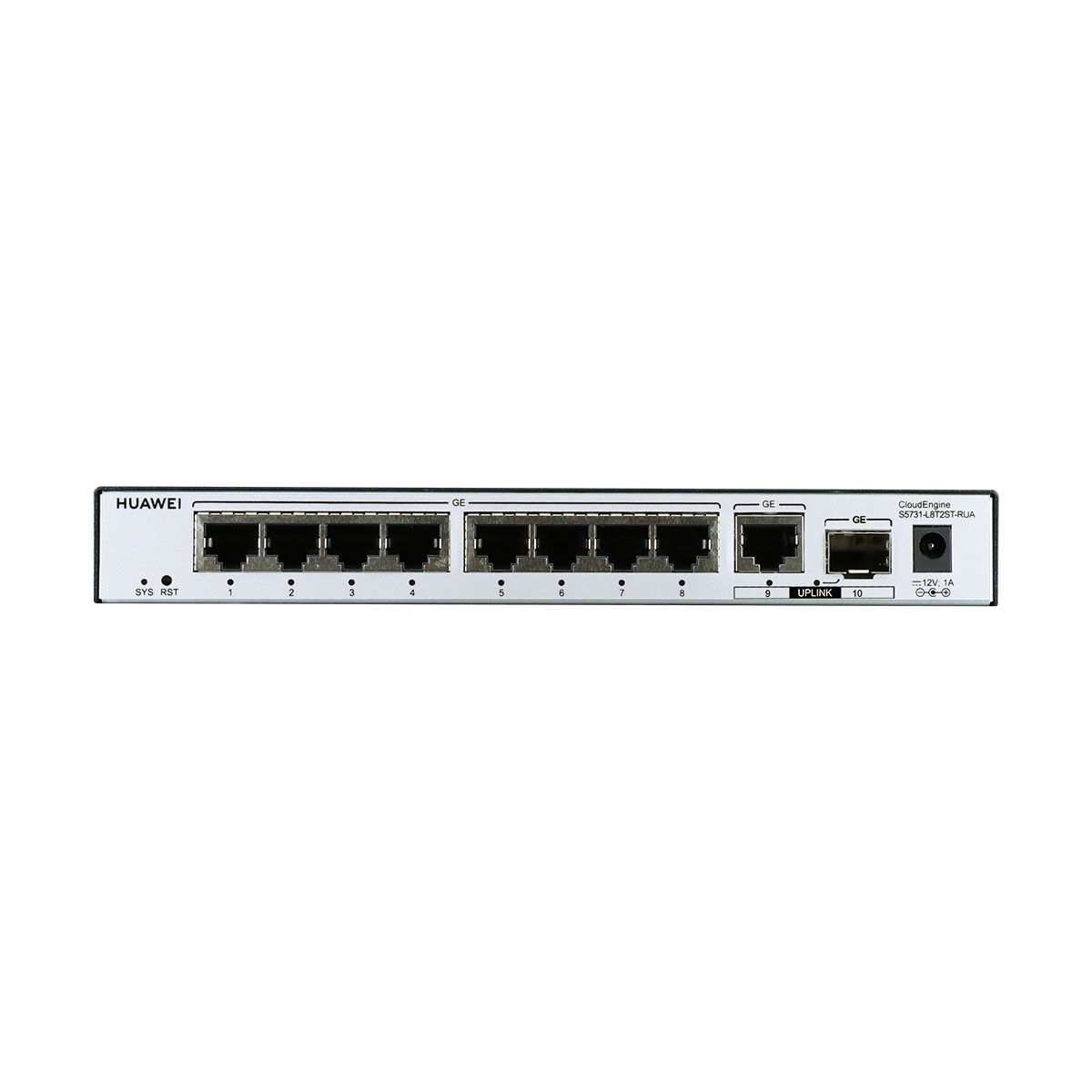

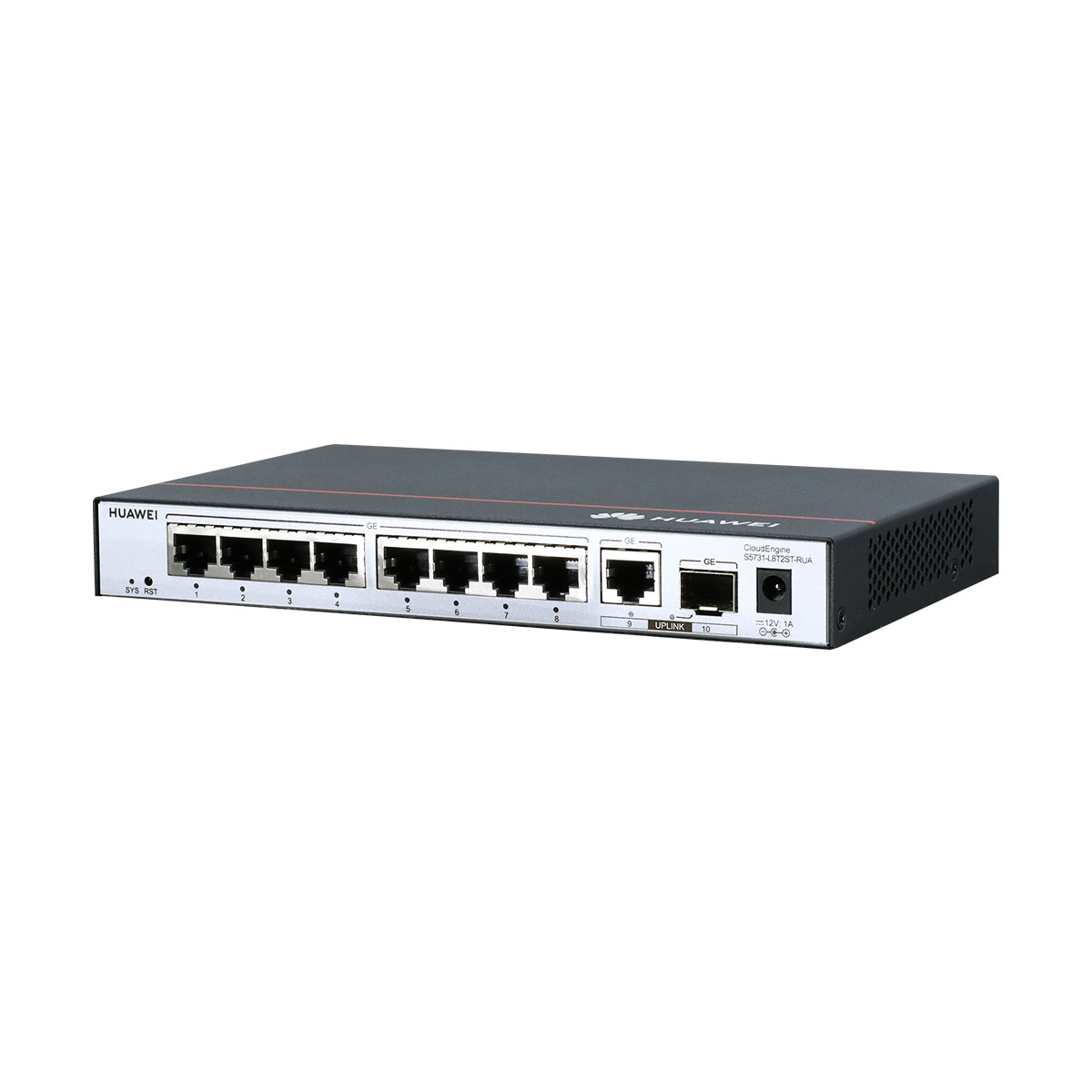

S5731-L8T2ST-RUA appearance

One RST button

NOTICE:

To reset the device, press and hold down the button for less than 6s.

Eight 10/100/1000BASE-T ports

One 10/100/1000BASE-T port

NOTE:

The port is an uplink port.

One 1000BASE-X optical port

NOTE:

The port is an uplink port.

Power adapter socket

NOTE:

Use the power adapter (12 V, 1 A) delivered with the device.

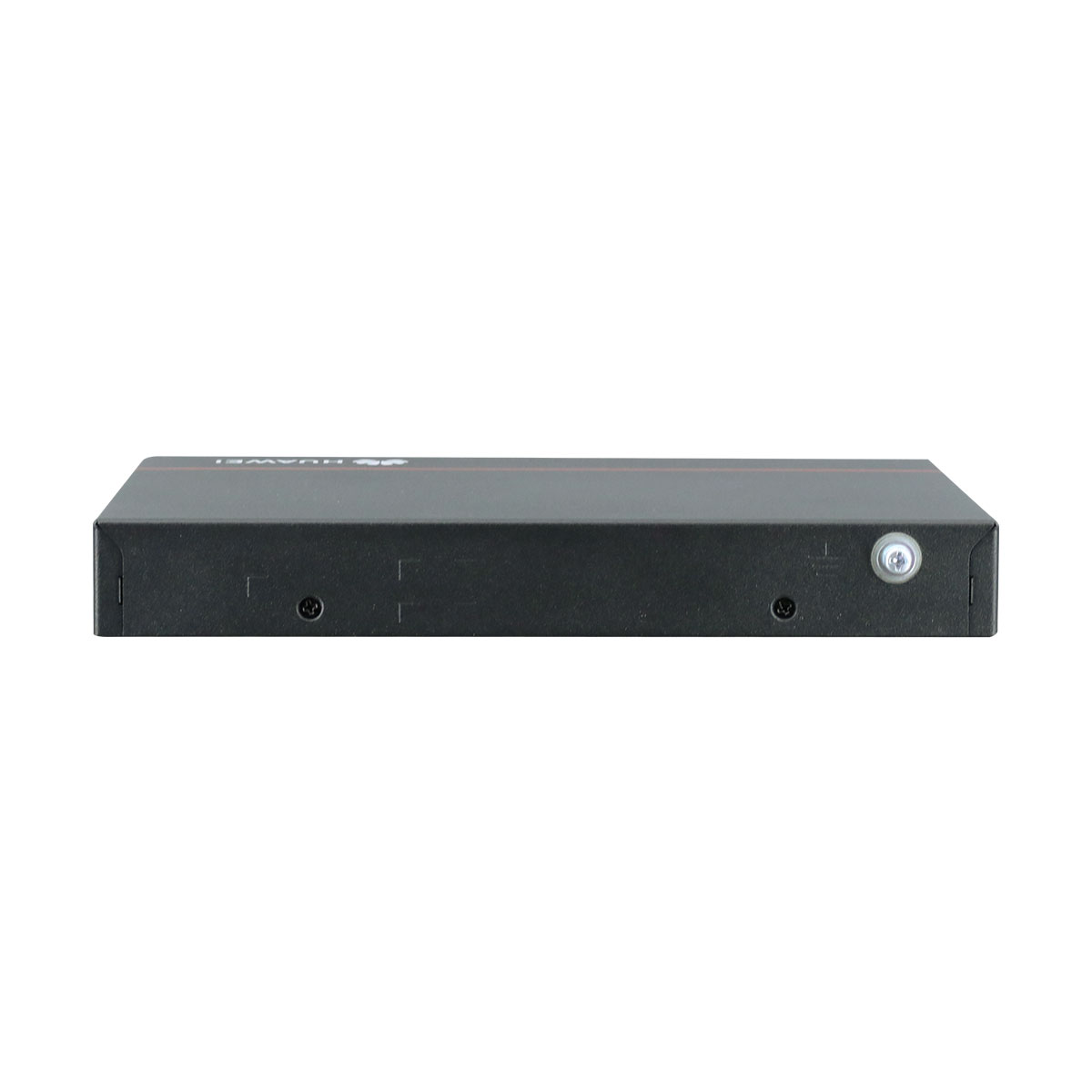

Ground screw

S5731-L8T2ST-RUA	Specification
Dimensions without packaging (H x W x D) [mm(in.)]	Basic dimensions (excluding the parts protruding from the body): 27.0 mm x 210.0 mm x 130.0 mm (1.06 in. x 8.27 in. x 5.12 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 27.0 mm x 210.0 mm x 130.0 mm (1.06 in. x 8.27 in. x 5.12 in.)
Dimensions with packaging (H x W x D) [mm(in.)]	82.0 mm x 347.0 mm x 242.0 mm (3.23 in. x 13.66 in. x 9.53 in.)
Chassis height [U]	0.61 U
Weight without packaging [kg(lb)]	0.84 kg (1.85 lb)
Weight with packaging [kg(lb)]	1.14 kg (2.51 lb)
Typical power consumption [W]	7.73 W (device) 7.98 W (device + power adapter)
Typical heat dissipation [BTU/hour]	26.38 (device) 27.23 (device + power adapter)
Maximum power consumption [W]	7.86 W (device) 8.11 W (device + power adapter)
Maximum heat dissipation [BTU/hour]	26.82 (device) 27.67 (device +power adapter)
Static power consumption [W]	3.23 W
MTBF [year]	84.79 year
MTTR [hour]	2 hour
Availability	>0.99999
Noise at normal temperature (acoustic power) [dB(A)]	Noise-free (no fans): < 30
Noise at normal temperature (acoustic pressure) [dB(A)]	Noise-free (no fans): < 20
Number of card slots	0
Number of power slots	0
Number of fans modules	0
Redundant power supply	Not supported
Long-term operating temperature [°C(°F)]	-5°C to +45°C (23°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.)
Restriction on the operating temperature variation rate [°C(°F)]	When the altitude is 1800-5000 m (5905.44-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (721.78 ft.). The device cannot start when the temperature is lower than 0°C (32°F). The operating temperature of a device ranges from -5°C to +45°C (23°F to 113°F) when the device uses the following optical modules: - GE optical modules with a transmission distance of less than or equal to 10 km
Storage temperature [°C(°F)]	–40°C to +70°C (–40°F to +158°F)
Long-term operating relative humidity [RH]	5% RH to 95% RH (non-condensing)
Long-term operating altitude [m(ft.)]	0–5000 m (0–16404 ft.)
Storage altitude [m(ft.)]	0-5000 m (0-16404 ft.)
Power supply mode	Power adapter
Rated input voltage [V]	Power adapter input: 100–240 V AC; 50/60 Hz Power adapter output: 12 V DC
Input voltage range [V]	Power adapter input: 90–290 V AC; 47–63 Hz
Maximum input current [A]	1 A
Memory	--
Flash memory	--
Console port	Not supported
Eth Management port	Not supported
USB	Not supported
RTC	Not supported
RPS input	Not supported
Service port surge protection [kV]	Common mode: ±6 kV
Power supply surge protection [kV]	Power adapter: ±6 kV in differential mode and ±6 kV in common mode
Types of fans	None
Heat dissipation mode	Natural heat dissipation
Airflow direction	-
PoE	Not supported
Certification	EMC certification Safety certification Manufacturing certification

Brand	Huawei
Condition	New
Warranty	12 Months

S5731-L8T2ST-RUA	Specification
Dimensions without packaging (H x W x D) [mm(in.)]	Basic dimensions (excluding the parts protruding from the body): 27.0 mm x 210.0 mm x 130.0 mm (1.06 in. x 8.27 in. x 5.12 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 27.0 mm x 210.0 mm x 130.0 mm (1.06 in. x 8.27 in. x 5.12 in.)
Dimensions with packaging (H x W x D) [mm(in.)]	82.0 mm x 347.0 mm x 242.0 mm (3.23 in. x 13.66 in. x 9.53 in.)
Chassis height [U]	0.61 U
Weight without packaging [kg(lb)]	0.84 kg (1.85 lb)
Weight with packaging [kg(lb)]	1.14 kg (2.51 lb)
Typical power consumption [W]	7.73 W (device) 7.98 W (device + power adapter)
Typical heat dissipation [BTU/hour]	26.38 (device) 27.23 (device + power adapter)
Maximum power consumption [W]	7.86 W (device) 8.11 W (device + power adapter)
Maximum heat dissipation [BTU/hour]	26.82 (device) 27.67 (device +power adapter)
Static power consumption [W]	3.23 W
MTBF [year]	84.79 year
MTTR [hour]	2 hour
Availability	>0.99999
Noise at normal temperature (acoustic power) [dB(A)]	Noise-free (no fans): < 30
Noise at normal temperature (acoustic pressure) [dB(A)]	Noise-free (no fans): < 20
Number of card slots	0
Number of power slots	0
Number of fans modules	0
Redundant power supply	Not supported
Long-term operating temperature [°C(°F)]	-5°C to +45°C (23°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.)
Restriction on the operating temperature variation rate [°C(°F)]	When the altitude is 1800-5000 m (5905.44-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (721.78 ft.). The device cannot start when the temperature is lower than 0°C (32°F). The operating temperature of a device ranges from -5°C to +45°C (23°F to 113°F) when the device uses the following optical modules: - GE optical modules with a transmission distance of less than or equal to 10 km
Storage temperature [°C(°F)]	–40°C to +70°C (–40°F to +158°F)
Long-term operating relative humidity [RH]	5% RH to 95% RH (non-condensing)
Long-term operating altitude [m(ft.)]	0–5000 m (0–16404 ft.)
Storage altitude [m(ft.)]	0-5000 m (0-16404 ft.)
Power supply mode	Power adapter
Rated input voltage [V]	Power adapter input: 100–240 V AC; 50/60 Hz Power adapter output: 12 V DC
Input voltage range [V]	Power adapter input: 90–290 V AC; 47–63 Hz
Maximum input current [A]	1 A
Memory	--
Flash memory	--
Console port	Not supported
Eth Management port	Not supported
USB	Not supported
RTC	Not supported
RPS input	Not supported
Service port surge protection [kV]	Common mode: ±6 kV
Power supply surge protection [kV]	Power adapter: ±6 kV in differential mode and ±6 kV in common mode
Types of fans	None
Heat dissipation mode	Natural heat dissipation
Airflow direction	-
PoE	Not supported
Certification	EMC certification Safety certification Manufacturing certification
