Categories:S5731 Series

S5731-L4T2S-RUA

0 Reviews Write a review

PN98011768

BrandsHuawei

AvailabilityIn Stock

Condition New

WarrantyUp to 36 months

Huawei S5731-L4T2S-RUA supports 4*10/100/1000BASE-T ports, 1*GE SFP port, 1*GE port with an SC connector, TX1310 nm/RX1490 nm, AC power, power adapter

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

S5731-L4T2S-RUA overview

Huawei S5731-L4T2S-RUA supports 4*10/100/1000BASE-T ports, 1*GE SFP port, 1*GE port with an SC connector, TX1310 nm/RX1490 nm, AC power, power adapter

Basic information about the S5731-L4T2S-RUA

Item	Details
Description	S5731-L4T2S-RUA (410/100/1000BASE-T ports, 1GE SFP port, 1*GE port with an SC connector, TX1310 nm/RX1490 nm, AC power, power adapter)
Part Number	98011768
Model	S5731-L4T2S-RUA
First supported version	V200R021C10SPC500

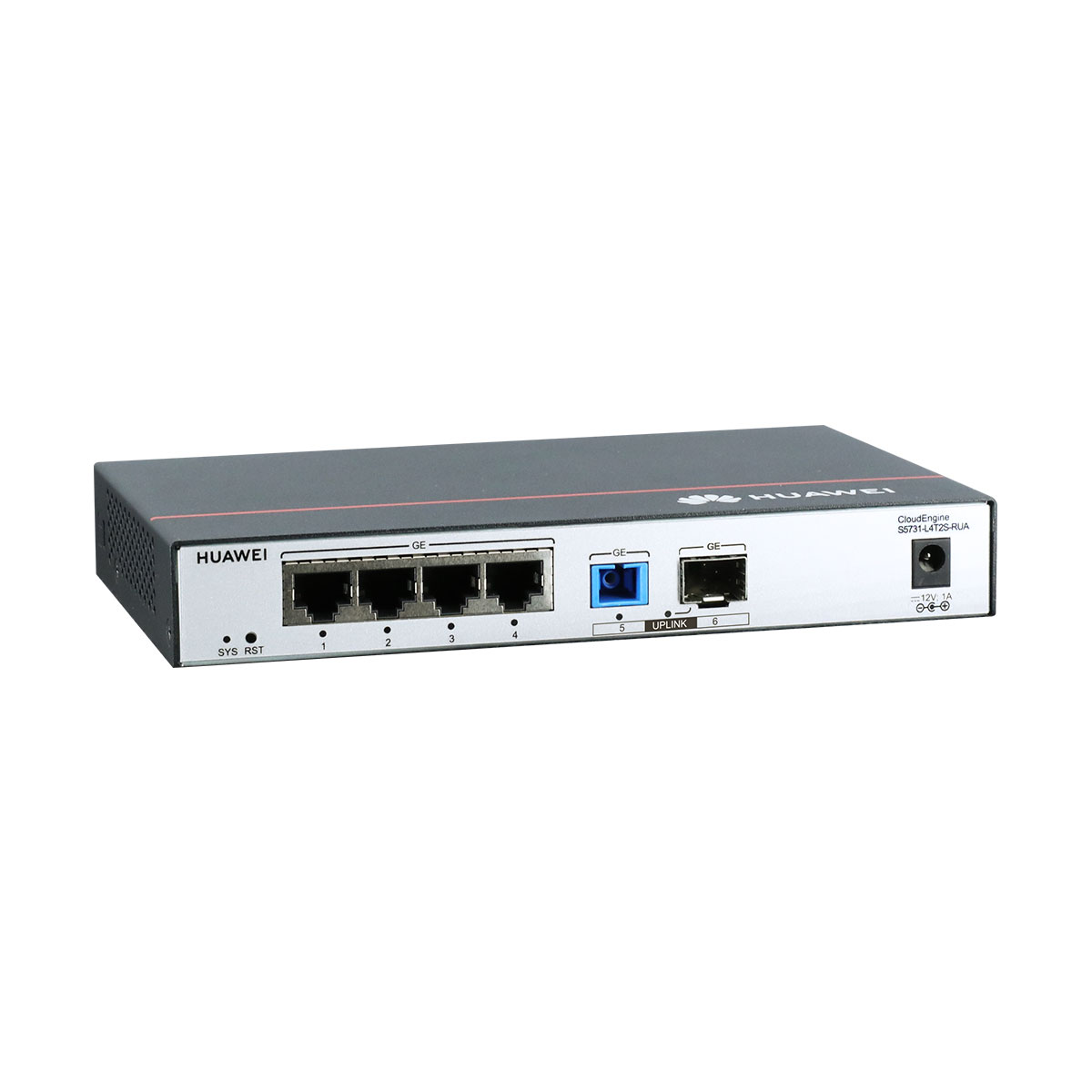

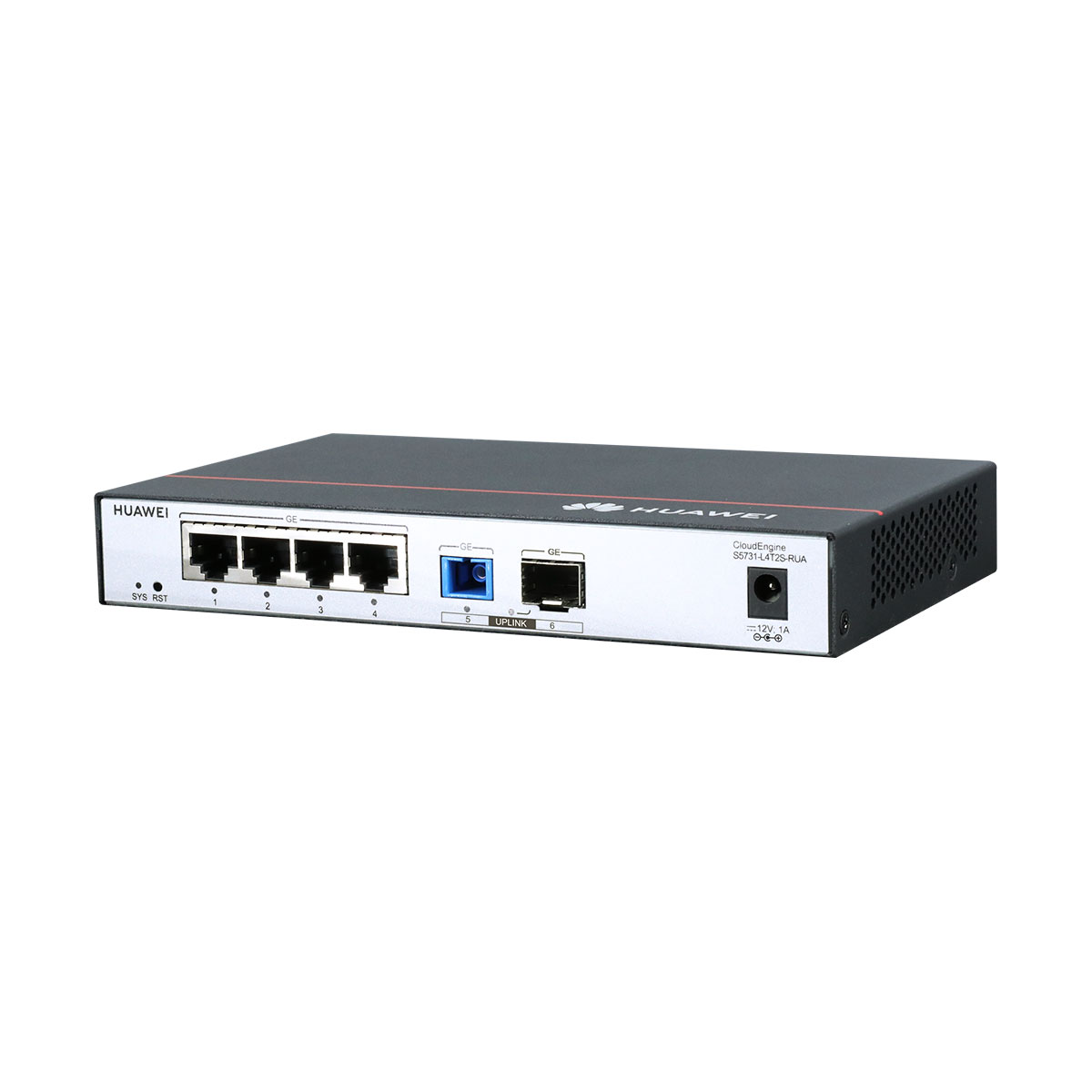

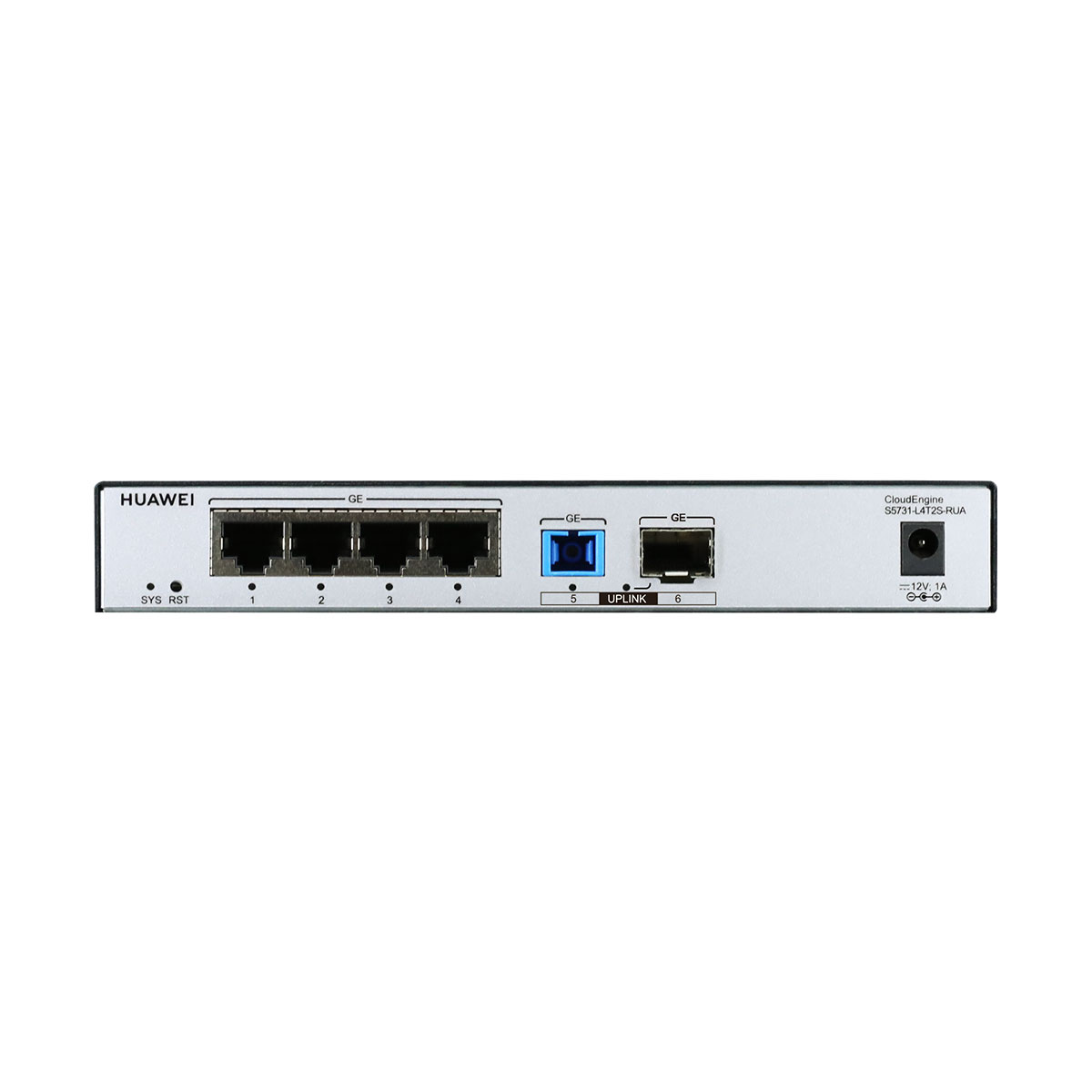

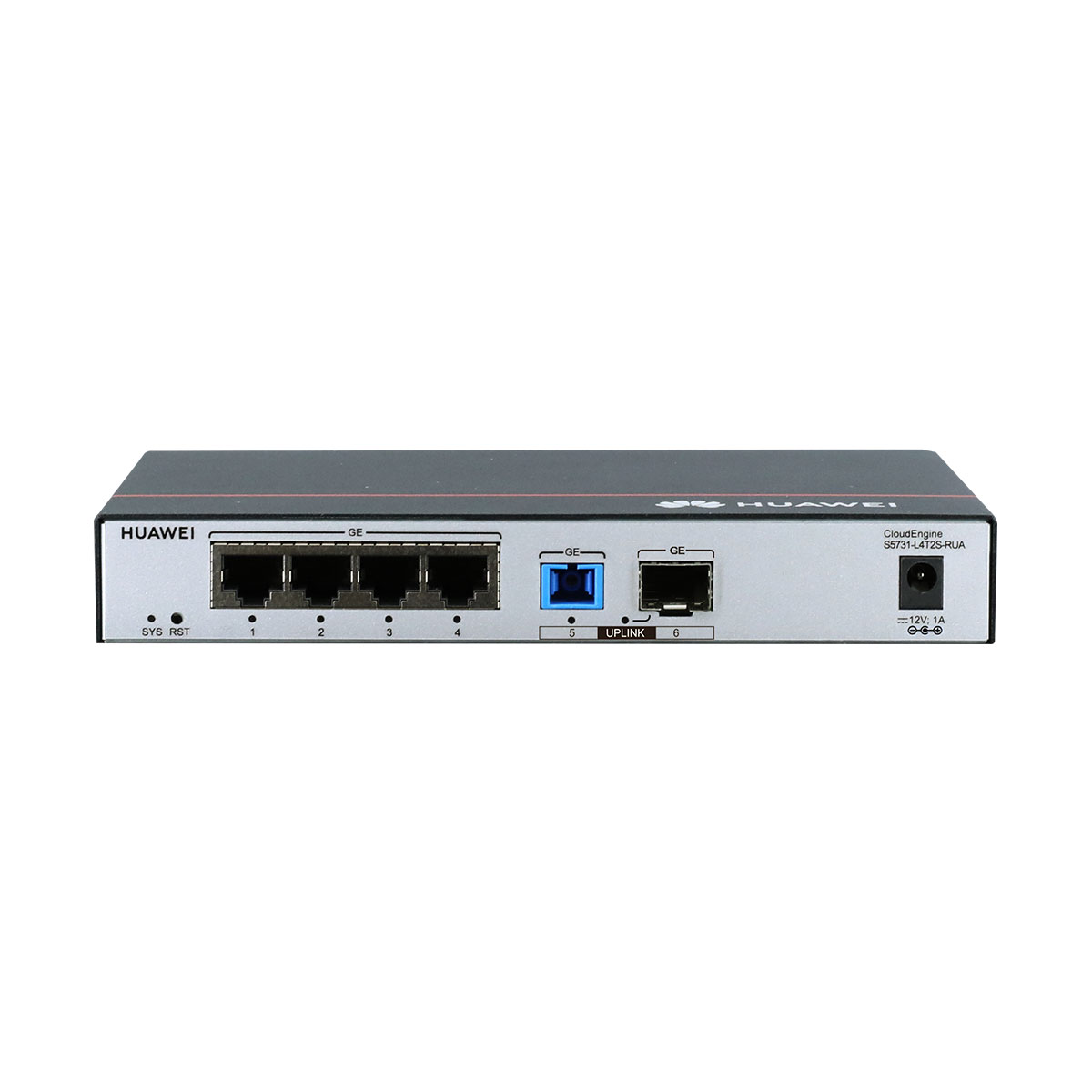

S5731-L4T2S-RUA appearance

One RST button

NOTICE:

To reset the device, press and hold down the button for less than 6s.

Four 10/100/1000BASE-T ports

One 1000BASE-X optical port

NOTE:

The port is an uplink port.

The port has a built-in single-fiber bidirectional optical module by default and cannot be removed.

One 1000BASE-X optical port

NOTE:

The port is an uplink port.

Power adapter socket

NOTE:

Use the power adapter (12 V, 1 A) delivered with the device.

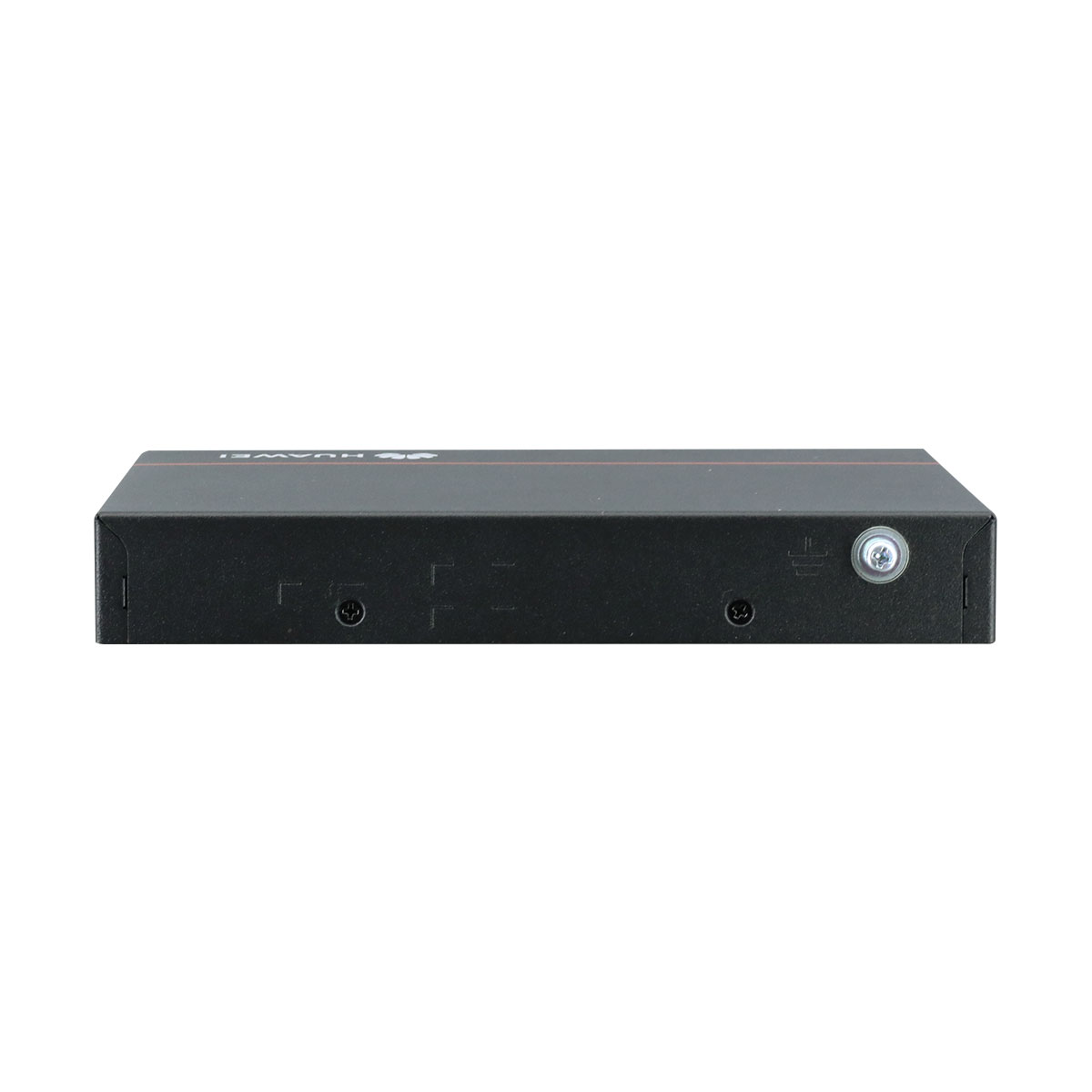

Ground screw

S5731-L4T2S-RUA	Specification
Chassis height [U]	0.61 U
Weight without packaging [kg(lb)]	0.72 kg (1.59 lb)
Weight with packaging [kg(lb)]	1.02 kg (2.25 lb)
Typical power consumption [W]	4.88 W (device) 5.08 W (device + power adapter)
Typical heat dissipation [BTU/hour]	16.65 (device) 17.33 (device + power adapter)
Maximum power consumption [W]	5.06 W (device) 5.26 W (device + power adapter)
Maximum heat dissipation [BTU/hour]	17.27 (device) 19.75 (device + power adapter)
Static power consumption [W]	2.62 W
MTBF [year]	83.23 year
MTTR [hour]	2 hour
Availability	>0.99999
Noise at normal temperature (acoustic power) [dB(A)]	Noise-free (no fans): < 30
Noise at normal temperature (acoustic pressure) [dB(A)]	Noise-free (no fans): < 20
Number of card slots	0
Number of power slots	0
Number of fans modules	0
Redundant power supply	Not supported
Long-term operating temperature [°C(°F)]	-5°C to +45°C (23°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.)
Restriction on the operating temperature variation rate [°C(°F)]	When the altitude is 1800-5000 m (5905.44-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (721.78 ft.). The device cannot start when the temperature is lower than 0°C (32°F). The operating temperature of a device ranges from -5°C to +45°C (23°F to 113°F) when the device uses the following optical modules: - GE optical modules with a transmission distance of less than or equal to 10 km
Storage temperature [°C(°F)]	–40°C to +70°C (–40°F to +158°F)
Long-term operating relative humidity [RH]	5% RH to 95% RH (non-condensing)
Long-term operating altitude [m(ft.)]	0–5000 m (0–16404 ft.)
Storage altitude [m(ft.)]	0-5000 m (0-16404 ft.)
Power supply mode	Power adapter
Rated input voltage [V]	Power adapter input: 100–240 V AC; 50/60 Hz Power adapter output: 12 V DC
Input voltage range [V]	Power adapter input: 90–290 V AC; 47–63 Hz
Maximum input current [A]	1 A
Memory	--
Flash memory	--
Console port	Not supported
Eth Management port	Not supported
USB	Not supported
RTC	Not supported
RPS input	Not supported
Service port surge protection [kV]	Common mode: ±6 kV
Power supply surge protection [kV]	Power adapter: ±6 kV in differential mode and ±6 kV in common mode
Types of fans	None
Heat dissipation mode	Natural heat dissipation
Airflow direction	-
PoE	Not supported
Certification	EMC certification Safety certification Manufacturing certification
Dimensions without packaging (H x W x D) [mm(in.)]	Basic dimensions (excluding the parts protruding from the body): 27.0 mm x 185.0 mm x 115.0 mm (1.06 in. x 7.28 in. x 4.53 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 27.0 mm x 185.0 mm x 115.0 mm (1.06 in. x 7.28 in. x 4.53 in.)
Dimensions with packaging (H x W x D) [mm(in.)]	82.0 mm x 342.0 mm x 228.0 mm (3.23 in. x 13.46 in. x 8.98 in.)

Brand	Huawei
Condition	New
Warranty	12 Months

S5731-L4T2S-RUA	Specification
Chassis height [U]	0.61 U
Weight without packaging [kg(lb)]	0.72 kg (1.59 lb)
Weight with packaging [kg(lb)]	1.02 kg (2.25 lb)
Typical power consumption [W]	4.88 W (device) 5.08 W (device + power adapter)
Typical heat dissipation [BTU/hour]	16.65 (device) 17.33 (device + power adapter)
Maximum power consumption [W]	5.06 W (device) 5.26 W (device + power adapter)
Maximum heat dissipation [BTU/hour]	17.27 (device) 19.75 (device + power adapter)
Static power consumption [W]	2.62 W
MTBF [year]	83.23 year
MTTR [hour]	2 hour
Availability	>0.99999
Noise at normal temperature (acoustic power) [dB(A)]	Noise-free (no fans): < 30
Noise at normal temperature (acoustic pressure) [dB(A)]	Noise-free (no fans): < 20
Number of card slots	0
Number of power slots	0
Number of fans modules	0
Redundant power supply	Not supported
Long-term operating temperature [°C(°F)]	-5°C to +45°C (23°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.)
Restriction on the operating temperature variation rate [°C(°F)]	When the altitude is 1800-5000 m (5905.44-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (721.78 ft.). The device cannot start when the temperature is lower than 0°C (32°F). The operating temperature of a device ranges from -5°C to +45°C (23°F to 113°F) when the device uses the following optical modules: - GE optical modules with a transmission distance of less than or equal to 10 km
Storage temperature [°C(°F)]	–40°C to +70°C (–40°F to +158°F)
Long-term operating relative humidity [RH]	5% RH to 95% RH (non-condensing)
Long-term operating altitude [m(ft.)]	0–5000 m (0–16404 ft.)
Storage altitude [m(ft.)]	0-5000 m (0-16404 ft.)
Power supply mode	Power adapter
Rated input voltage [V]	Power adapter input: 100–240 V AC; 50/60 Hz Power adapter output: 12 V DC
Input voltage range [V]	Power adapter input: 90–290 V AC; 47–63 Hz
Maximum input current [A]	1 A
Memory	--
Flash memory	--
Console port	Not supported
Eth Management port	Not supported
USB	Not supported
RTC	Not supported
RPS input	Not supported
Service port surge protection [kV]	Common mode: ±6 kV
Power supply surge protection [kV]	Power adapter: ±6 kV in differential mode and ±6 kV in common mode
Types of fans	None
Heat dissipation mode	Natural heat dissipation
Airflow direction	-
PoE	Not supported
Certification	EMC certification Safety certification Manufacturing certification
Dimensions without packaging (H x W x D) [mm(in.)]	Basic dimensions (excluding the parts protruding from the body): 27.0 mm x 185.0 mm x 115.0 mm (1.06 in. x 7.28 in. x 4.53 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 27.0 mm x 185.0 mm x 115.0 mm (1.06 in. x 7.28 in. x 4.53 in.)
Dimensions with packaging (H x W x D) [mm(in.)]	82.0 mm x 342.0 mm x 228.0 mm (3.23 in. x 13.46 in. x 8.98 in.)
