Description
S5731-H48T4XC-B overview
This Huawei switch comes with 48 10/100/1000BASE-T ports, 4 10GE SFP+ ports, which is one of the Huawei S5731-H series switches.
The S5731-H series switches are the next-generation intelligent gigabit fixed switches developed by Huawei. The CloudEngine S5731-H builds on Huawei’s unified Versatile Routing Platform (VRP) and boasts various IDN features. For example, the integrated wireless AC capabilities can manage up to 1,024 wireless APs; the free mobility feature ensures consistent user experience; the VXLAN functionality implements network virtualization, and built-in security probes support abnormal traffic detection, and threat analysis even in encrypted traffic, and network-wide threat deception.
S5731-H48T4XC-B quick spec
48 10/100/1000BASE-T ports
4 10GE SFP+ ports
Switching capacity: 176 Gbps/672 Gbps
GE/10GE auto-sensing

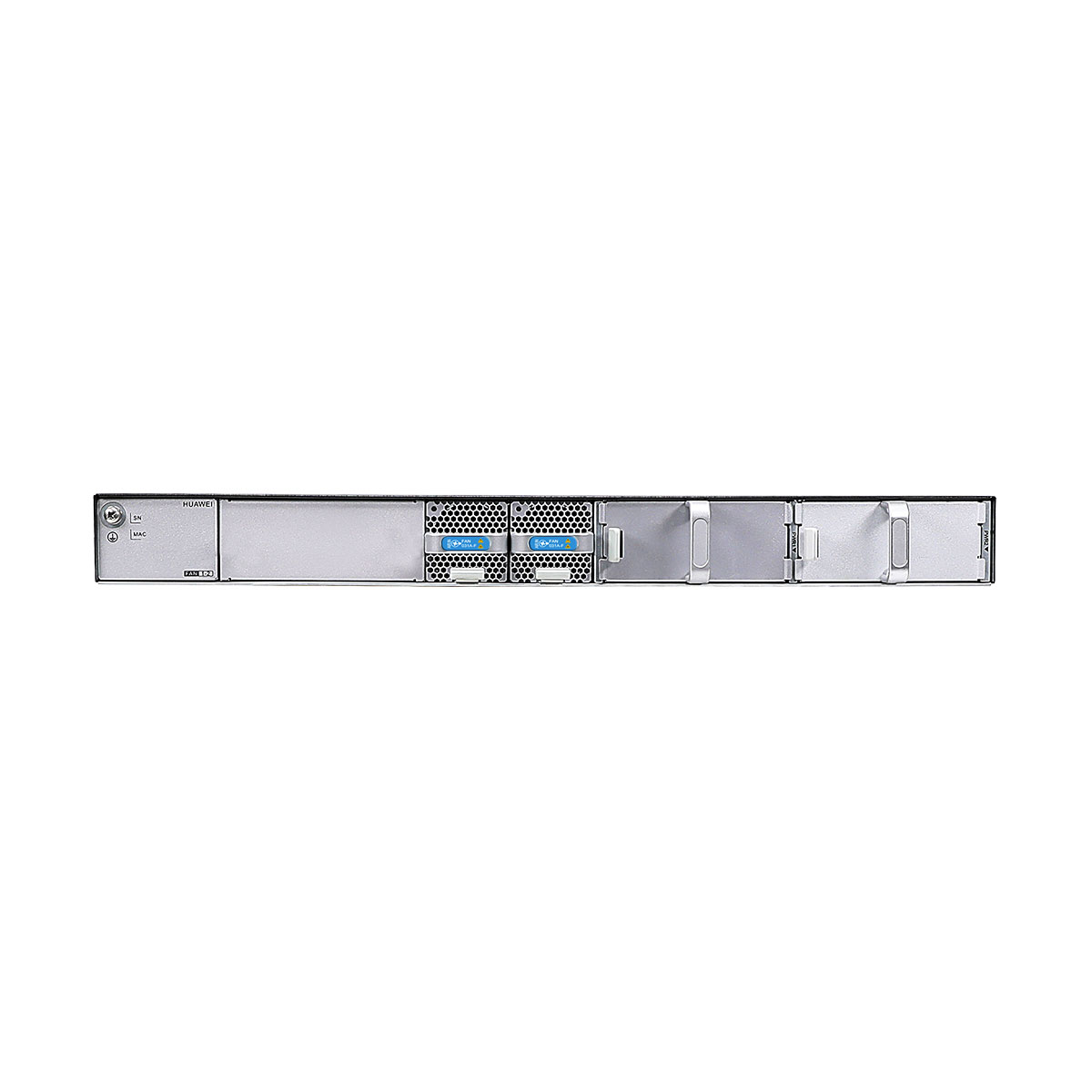

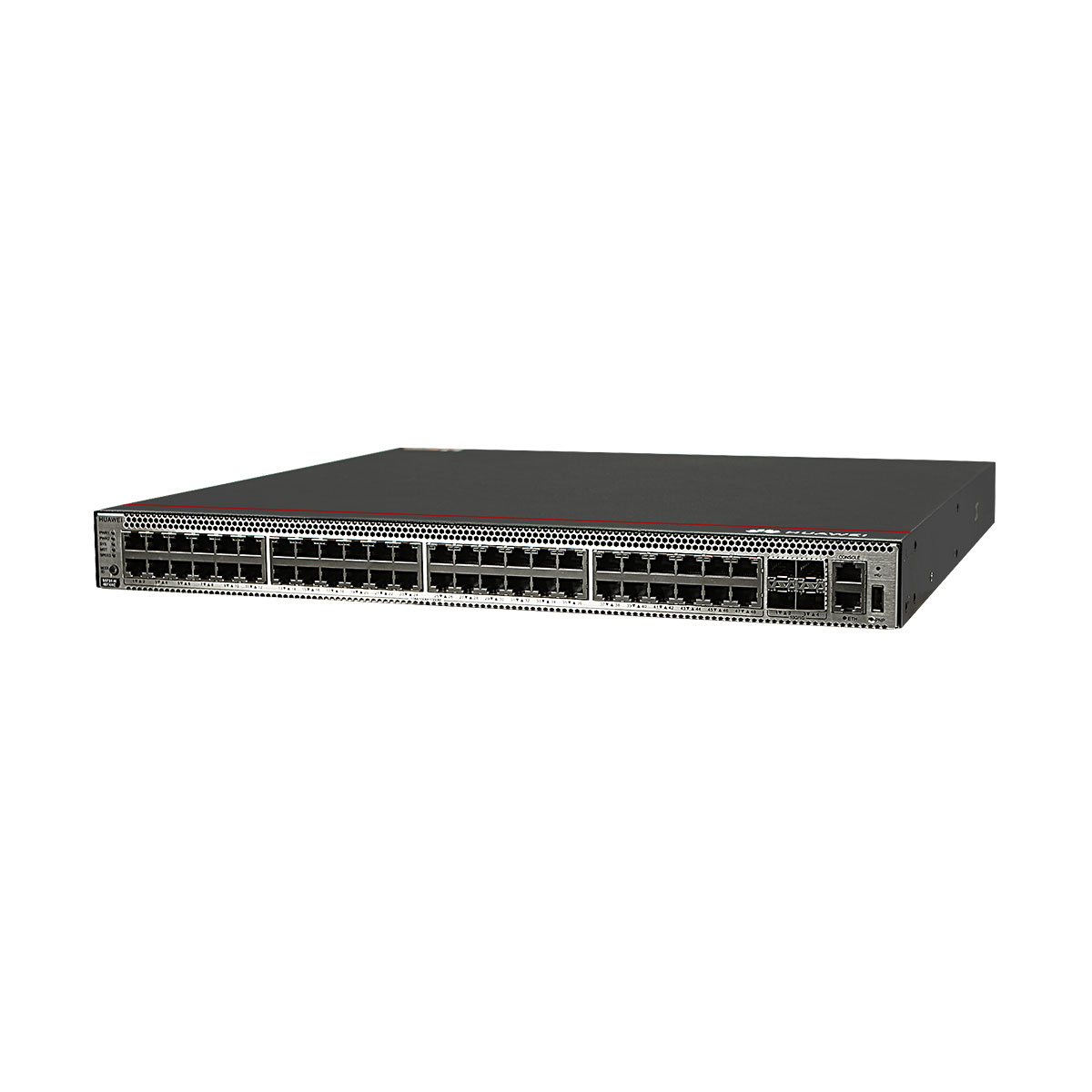

S5731-H48T4XC-B appearance and structure
| 1 | Forty-eight 10/100/1000BASE-T ports |
| 2 | Four 10GE SFP+ ports |
| 3 | One console port |
| 4 | One ETH management port |
| 5 | One USB port |
| 6 | One PNP button |
| 7 | Ground screw |
| 8 | Fan module slot 1 |
| 9 | Fan module slot 2 |
| 10 | Power module slot 1 |
| 11 | Power module slot 2 |
