S5731-H48T4XC-AC

2 Reviews Write a review
PN02352QPT
Brands
AvailabilityIn Stock
Campus Switch S5731-H
WarrantyUp to 36 months i
×
Warranty Policy
We provide a comprehensive warranty policy.
Refer to the table for more details.

Original price was: $0.00.Current price is: $0.00.

Huawei S5731-H48T4XC-AC switch supports 48 10/100/1000BASE-T ports, 4 10GE SFP+ ports, 2 hot swappable AC/DC power supplies, 1 AC equipped

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

S5731-H48T4XC-AC overview

This Huawei switch comes with 48 10/100/1000BASE-T ports, 4 10GE SFP+ ports, is one of the Huawei S5731-H series switches.

The S5731-H series switches are the next-generation intelligent gigabit fixed switches developed by Huawei. The CloudEngine S5731-H builds on Huawei’s unified Versatile Routing Platform (VRP) and boasts various IDN features. For example, the integrated wireless AC capabilities can manage up to 1,024 wireless APs; the free mobility feature ensures consistent user experience; the VXLAN functionality implements network virtualization, and built-in security probes support abnormal traffic detection, threat analysis even in encrypted traffic, and network-wide threat deception.



S5731-H48T4XC-AC quick Spec

48 10/100/1000BASE-T ports, 4 10GE SFP+ ports

Forwarding Performance is 125 Mpps

Switching capacity is 336 Gbps/672 Gbps

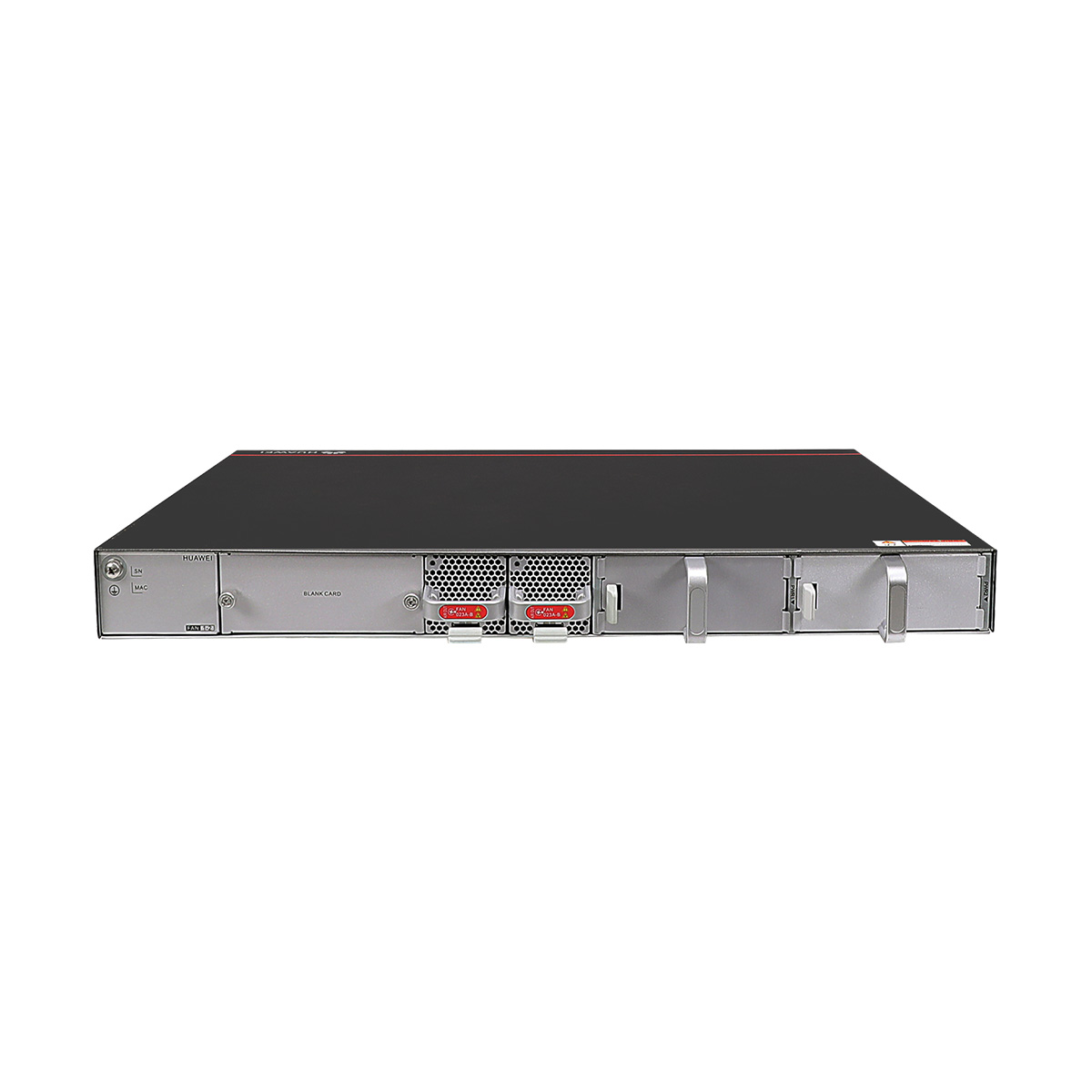

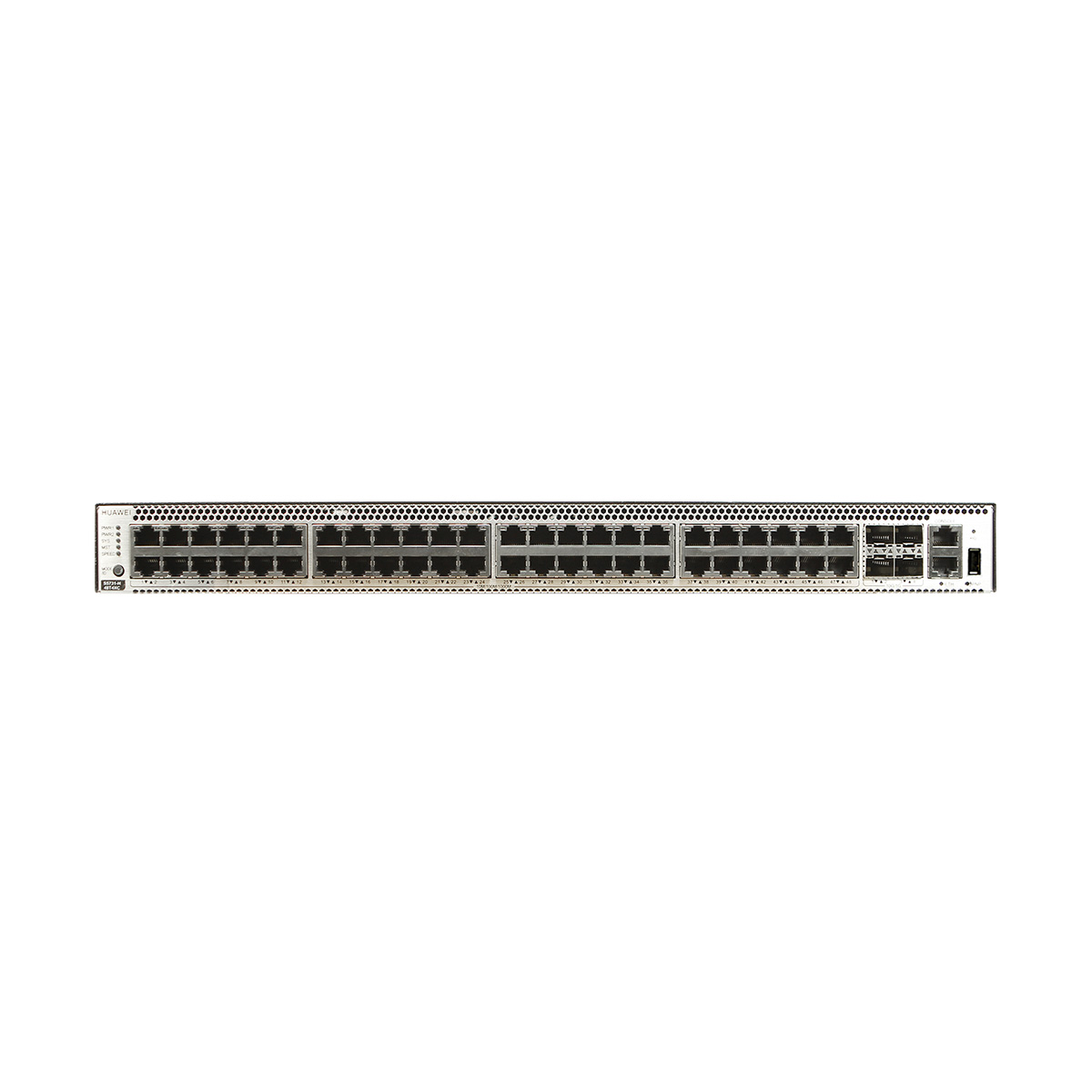

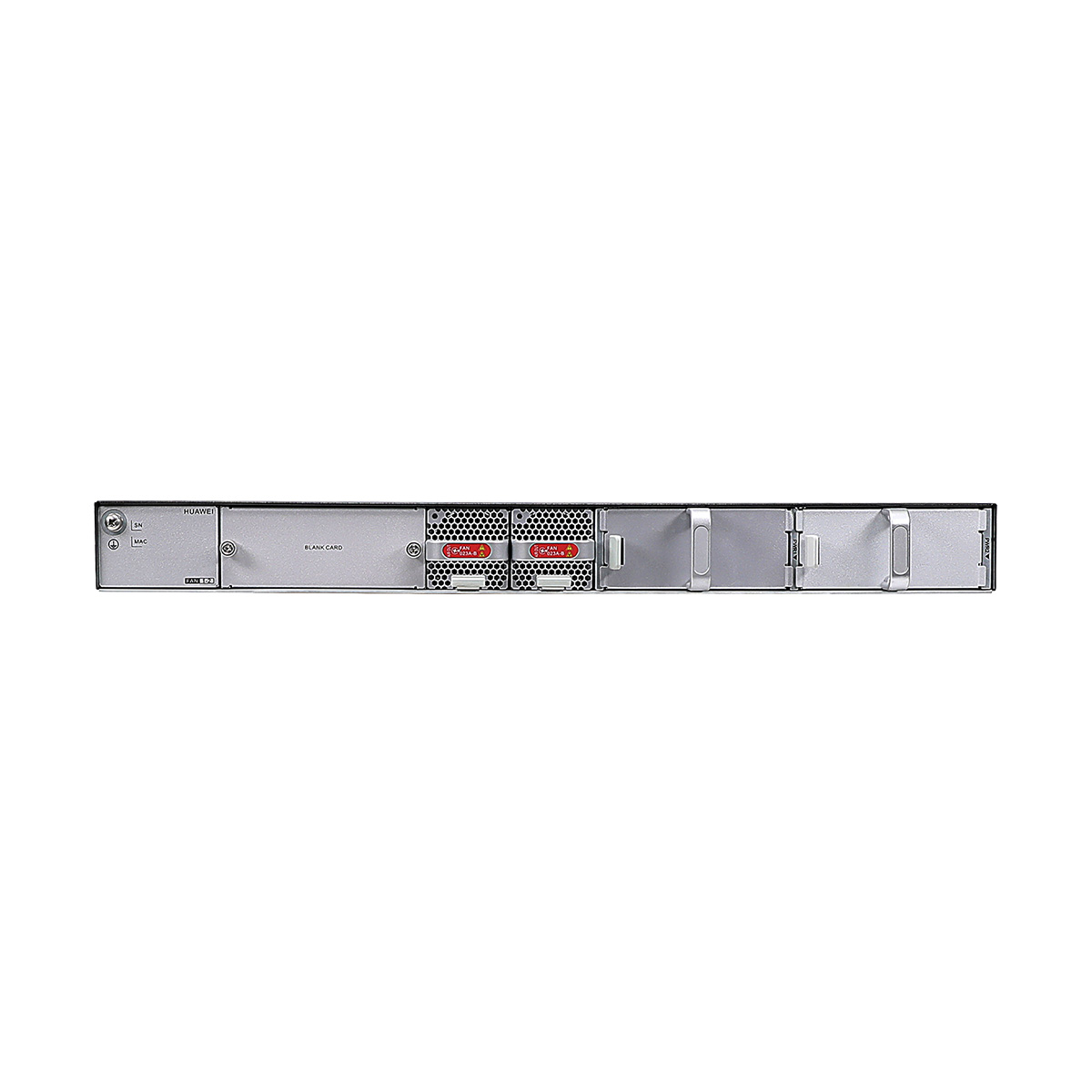

S5731-H48T4XC-AC appearance and structure

S5731-H48T4XC-AC

1 Forty-eight PoE+ 10/100/1000BASE-T ports

SFP-1000Base-T

 7 Ground screw
2 Four 10GE SFP+ ports

OMXD30000    OSX010000
OSX040N01      SFP-10G-ZR
SFP-10G-USR

 8 Rear card slot
3 One console port 9 Fan module slot 1
4 One ETH management port 10 Fan module slot 2
5 One USB port 11  Power module slot 1
6 One PNP button 12 Power module slot 2
Item S5731-H48T4XC-AC
Forwarding Performance 125 Mpps
Switching capacity 336 Gbps/672 Gbps
Fixed port 48 10/100/1000BASE-T ports, 4 10GE SFP+ ports
Extended slot One extended slot, support 2 40GE, 8 10GE BASE-T, 2 25GE SFP28 or 8 10GE SFP+ cards
Power supply type 600 W AC (pluggable) 150 W AC (pluggable) 1000 W DC (pluggable)
Rated voltage range AC input (600 W AC ): 100 V AC to 240 V AC, 50/60 Hz AC input (150 W AC ): 100 V AC to 240 V AC, 50/60 Hz DC input (1000 W DC): -48 VDC to - 60 V DC
Maximum voltage range AC input (150 W AC ): 90 V AC to 264 V AC, 47 Hz to 63 Hz AC input (600 W AC ): 90 V AC to 290 V AC, 45 Hz to 65 Hz High-voltage DC input (600 W AC): 190 V DC to 290 V DC (meeting 240 V high-voltage DC certification) DC input (1000 W DC): -38.4 V DC to -72V DC
Maximum power consumption 124 W
Noise Under normal temperature (sound power): 57.5dB (A) Under high temperature (sound power): 70.9dB (A) Under normal temperature (sound pressure): 47.5dB (A)
Operating temperature 0-1800 m altitude: -5°C to 45°C 1800-5000 m altitude: The operating temperature reduces by 1ºC every time the altitude increases by 220 m.
Storage temperature -40°C to +70°C
Relative humidity 5% to 95% (non- condensing)
Surge protection specification (service port) Common mode: ±6 kV
Surge protection specification (power port) AC power port: ±6 kV in differential mode, ±6 kV in common mode DC power port: ±2 kV in differential mode, ±4 kV in common mode
Heat dissipation Air cooling heat dissipation, intelligent speed adjustment, and pluggable fans
Dimensions (H x W x D) 43.6 mm x 442 mm x 420 mm

Additional information

Campus Switch

Brand

Huawei
Lead Time

3-5 days
Ship From

Shenzhen Warehouse
Item S5731-H48T4XC-AC
Forwarding Performance 125 Mpps
Switching capacity 336 Gbps/672 Gbps
Fixed port 48 10/100/1000BASE-T ports, 4 10GE SFP+ ports
Extended slot One extended slot, support 2 40GE, 8 10GE BASE-T, 2 25GE SFP28 or 8 10GE SFP+ cards
Power supply type 600 W AC (pluggable) 150 W AC (pluggable) 1000 W DC (pluggable)
Rated voltage range AC input (600 W AC ): 100 V AC to 240 V AC, 50/60 Hz AC input (150 W AC ): 100 V AC to 240 V AC, 50/60 Hz DC input (1000 W DC): -48 VDC to - 60 V DC
Maximum voltage range AC input (150 W AC ): 90 V AC to 264 V AC, 47 Hz to 63 Hz AC input (600 W AC ): 90 V AC to 290 V AC, 45 Hz to 65 Hz High-voltage DC input (600 W AC): 190 V DC to 290 V DC (meeting 240 V high-voltage DC certification) DC input (1000 W DC): -38.4 V DC to -72V DC
Maximum power consumption 124 W
Noise Under normal temperature (sound power): 57.5dB (A) Under high temperature (sound power): 70.9dB (A) Under normal temperature (sound pressure): 47.5dB (A)
Operating temperature 0-1800 m altitude: -5°C to 45°C 1800-5000 m altitude: The operating temperature reduces by 1ºC every time the altitude increases by 220 m.
Storage temperature -40°C to +70°C
Relative humidity 5% to 95% (non- condensing)
Surge protection specification (service port) Common mode: ±6 kV
Surge protection specification (power port) AC power port: ±6 kV in differential mode, ±6 kV in common mode DC power port: ±2 kV in differential mode, ±4 kV in common mode
Heat dissipation Air cooling heat dissipation, intelligent speed adjustment, and pluggable fans
Dimensions (H x W x D) 43.6 mm x 442 mm x 420 mm
