Description
S5731-H24P4XC-AC overview
This Huawei switch comes with 24 10/100/1000BASE-T ports, 4 10GE SFP+ ports, PoE+, which is one of the Huawei S5731-H series switches. The S5731-H series switches are the next-generation intelligent gigabit fixed switches developed by Huawei.
The CloudEngine S5731-H builds on Huawei’s unified Versatile Routing Platform (VRP) and boasts various IDN features. For example, the integrated wireless AC capabilities can manage up to 1,024 wireless APs; the free mobility feature ensures consistent user experience; the VXLAN functionality implements network virtualization, and built-in security probes support abnormal traffic detection, threat analysis even in encrypted traffic, and network-wide threat deception.
S5731-H24P4XC-AC quick spec
24 10/100/1000BASE-T ports, 4 10GE SFP+ ports
PoE+
Forwarding Performance is 125 Mpps
Switching capacity is 228 Gbps/672 Gbps

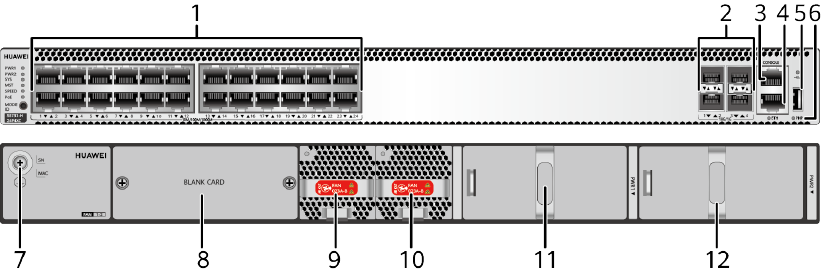

S5731-H24P4XC-AC appearance and structure
| 1 | Twenty-four PoE+ 10/100/1000BASE-T ports | 7 | Ground screw |
| 2 | Four 10GE SFP+ ports | 8 | Rear card slot |
| 3 | One console port | 9 | Fan module slot 1 |
| 4 | One ETH management port | 10 | Fan module slot 2 |
| 5 | One USB port | 11 | Power module slot 1 |
| 6 | One PNP button | 12 | Power module slot 2 |
Joaquín –
I bought the 3 units of this model, which work very well for now, but I saw that you have S5731S-H24P4XC-AC available. What is the difference between these two models?
TMAdmin –
If “S” is added to the end of the series, it means that it is dedicated for distribution or for projects. Generally, the performance will be slightly lower than that of the original model.
Ilya –
The S5731-H24P4XC-AC as good as expected and described. Easy setup!
