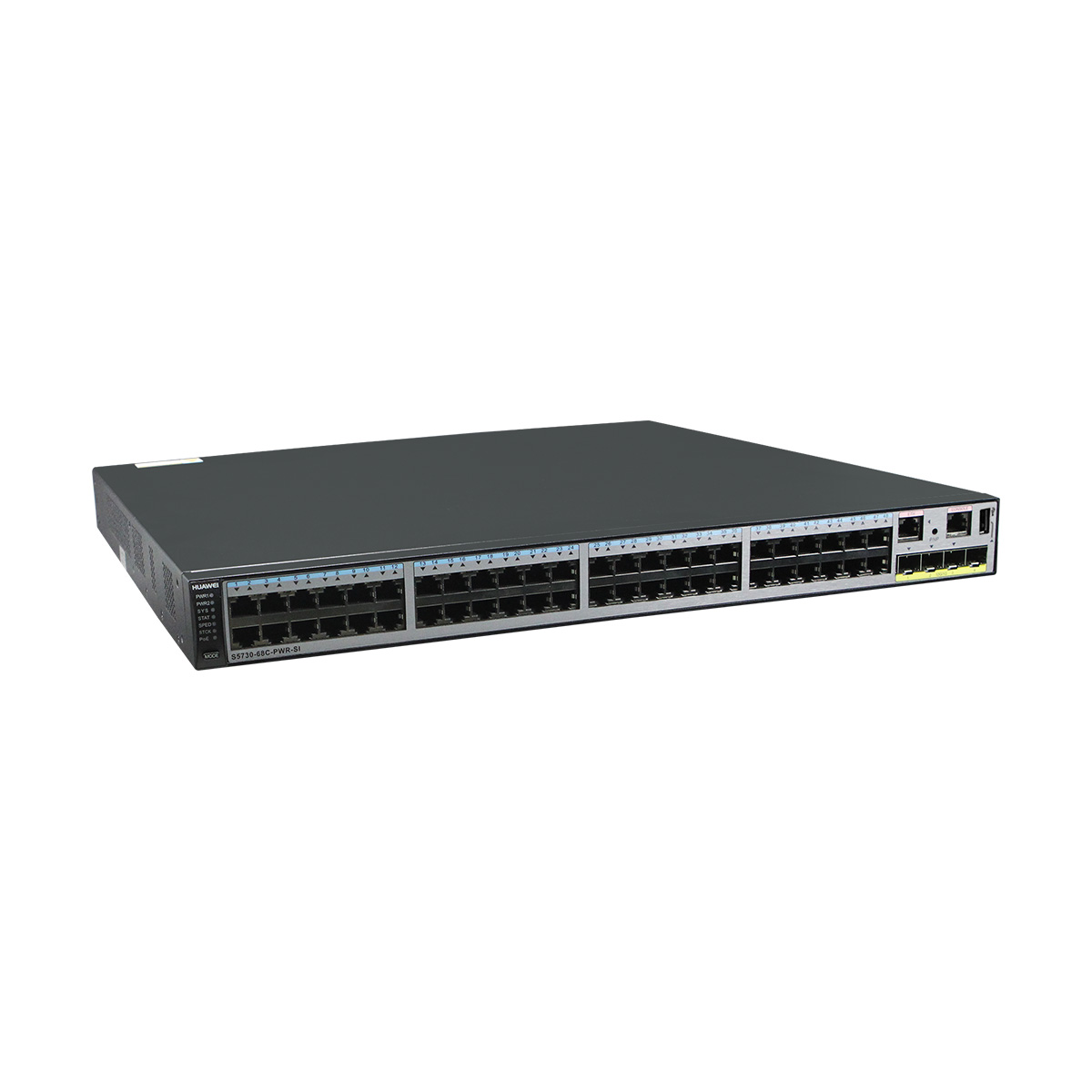

S5730-68C-PWR-SI-AC

Rated 5.00 out of 5 based on 1 customer rating

1 Review Write a review

PN98010714

AvailabilityIn Stock

Campus Switch S5730-SI

WarrantyUp to 36 months

Original price was: $0.00.Current price is: $0.00.

Huawei S5730-68C-PWR-SI-AC switch supports 48 10/100/1000BASE-T ports, 4 10GE SFP+ ports, 2 hot swappable AC/DC power supplies, 1 AC equipped, PoE+

48 Ports Switch Electrical Switch PoE Switch

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

S5730-68C-PWR-SI-AC Overview

S5730-68C-PWR-SI is a Huawei S5730-68C-PWR-SI Bundle, providing 48 Ethernet 10/100/1,000 ports, 4 10 Gig SFP+, PoE+, with 1 interface
slot. Huawei S5730-SI series switches are next-generation standard gigabit Layer 3 Ethernet switches that provide flexible full gigabit access and
cost-effective fixed GE ports and 10 GE uplink ports, meanwhile can provide 40 GE uplink ports with an interface card. The S5730-SI was
developed based on next-generation high-performing hardware and the Huawei Versatile Routing Platform (VRP). The S5730-SI supports
simplified Operations and Maintenance (O&M), intelligent Stack (iStack), flexible Ethernet networking. It also provides enhanced Layer 3 features
and mature IPv6 features. The S5730-SI can be used as an access or aggregation switch on a campus network or as an access switch in a data
center

Telecomate.com provides a full range of Huawei switch series, if you have any demands, please contact: csd@telecomate.com

S5730-68C-PWR-SI-AC Quick Spec

48 Ethernet 10/100/1,000 ports, 4 10 Gig SFP+

Forwarding performance is 240 Mpps

Switching capacity is 680 Gbps

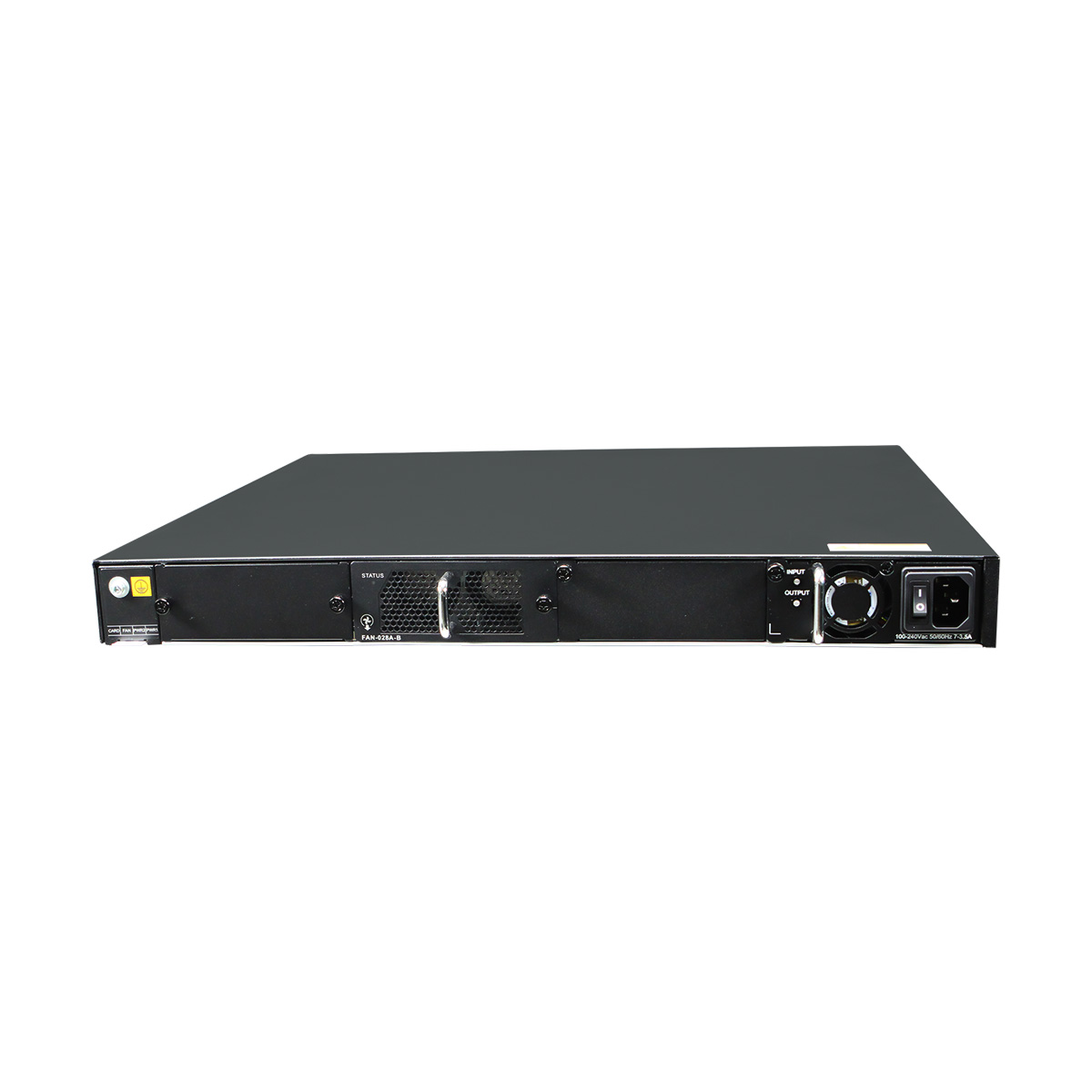

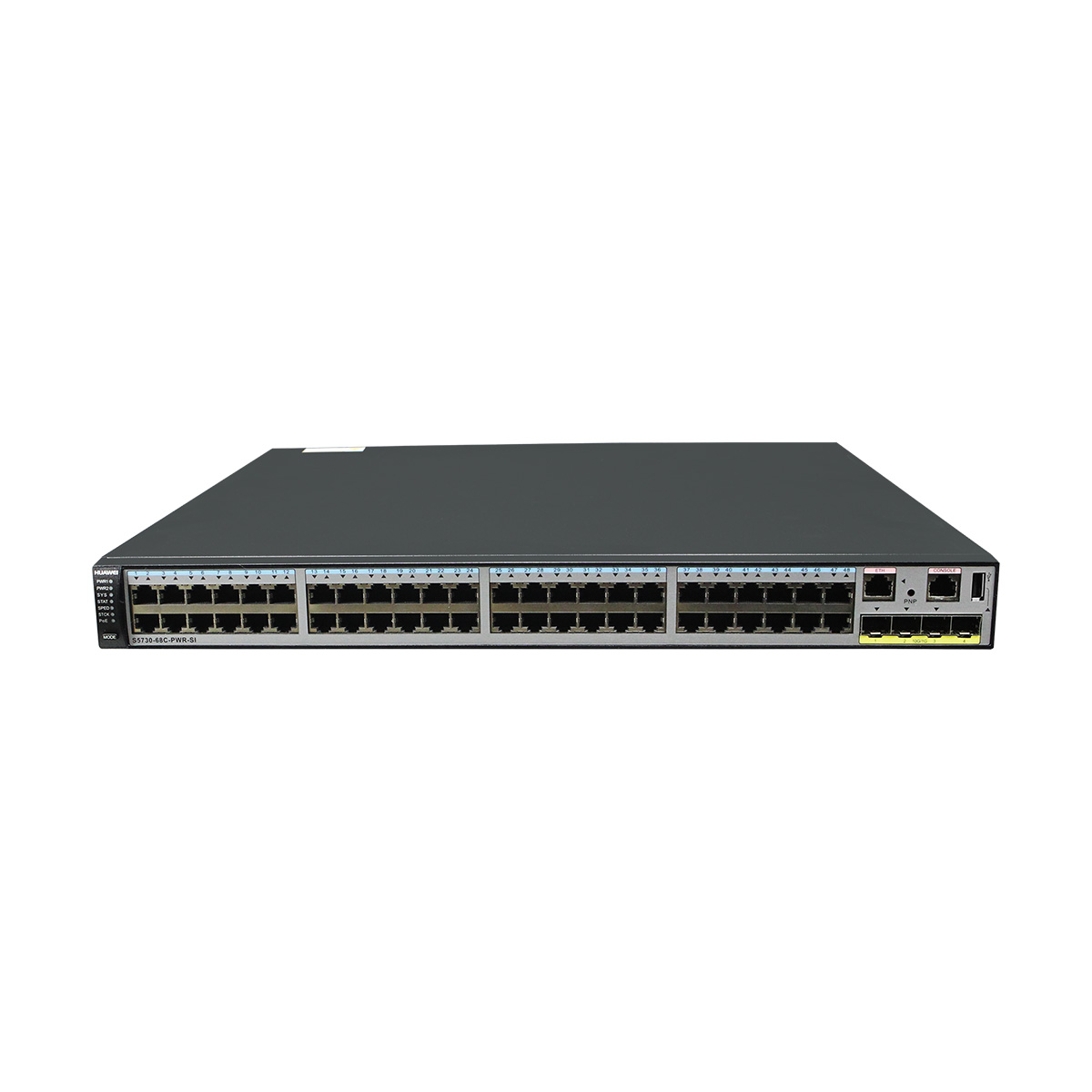

S5730-68C-PWR-SI-AC appearance and structure

1	Forty-eight PoE+ 10/100/1000BASE-T ports	7	Ground screw
2	Four 10GE SFP+ ports	8	ESN label
3	One ETH management port	9	Rear card slot
4	One PNP button	10	Fan slot
5	One console port	11	Power module slot 2
6	One USB port	12	Power module slot 1

S5730-68C-PWR-SI-AC Datasheet

Item		S5730-68C-PWR-SI-AC
Fixed port	PoE+ 10/100/1000BASE-T port	48
Fixed port	10GE port	4
Extended slot		One extended slot that supports an interface card:4*40 GE QSFP+ interface card
Forwarding performance		240 Mpps
Switching capacity		680 Gbit/s
Flexible card	Card slot	1
Flexible card	Card type	4-port 40GE QSFP+ interface card
Management port	ETH port	Supported
	Console port (RJ45)	Supported
	USB port	USB 2.0
CPU	Frequency	1 GHz
CPU	Cores	2
Storage	Memory (RAM)	1 GB
Storage	Flash memory	Hardware: 512 MB, of which 240 MB is available for users
Power supply system	Power supply type	500 W AC 650 W DC (pluggable)
	Rated voltage range	AC: 100 V AC to 240 V AC; 50/60 Hz DC: -48 V DC to -60 V DC
	Maximum voltage range	AC: 90 V AC to 264 V AC; 47-63 Hz DC: -38.4 V DC to -72 V DC
	Maximum input current	500 W AC: 7 A 650 W DC: 20 A
	Maximum power consumption of the device	Without PDs and cards: 68.3 W 500 W AC/650 W DC (with PDs but not cards): 925 W (PoE: 739.2 W)
	Power consumption in the case of 30% traffic load¹	50.1 W (without cards)
	Power consumption in the case of 100% traffic load¹	56.6 W (without cards)
Heat dissipation system	Heat dissipation mode	Air-cooled heat dissipation and intelligent fan speed adjustment
	Number of fan modules	Pluggable dual fans
	Airflow	Air flows in from the left and right sides as well as the front panel, and exhausts from the rear panel
	Maximum heat dissipation of the device (BTU/hour)	Without PDs and cards: 223 With PDs but not cards:3156
Environment parameters	Long-term operating temperature	0-1800 m: 0°C to 45°C 1800-5000 m: The operating temperature decreases 1°C every time the altitude increases 220 m.
	Short-term operating temperature	0-1800 m: -5°C to +50°C 1800-5000 m: The operating temperature decreases 1°C every time the altitude increases 220 m. NOTE Short term indicates that the successive operating time is no more than 96 hours, the total operating time is no more than 360 hours, or the number of times the operating temperature is over 45°C is no more than 15 in a year.
	Storage temperature	-40°C to +70°C
	Relative humidity	5%–95% (non-condensing)
	Operating altitude	AC: 5000 m DC: 5000 m
	Noise under normal temperature (sound power)	57.5 dB(A)
	Noise under high temperature (sound power)	70.4 dB(A)
	Noise under normal temperature (sound pressure)	45.4 dB(A)
	Surge protection specification (RJ45 service port)	±7 kV
	Surge protection specification (power port)	AC power interface: ±6 kV in differential or common mode DC power interface: ±2 kV in differential mode; ±4 kV in common mode
Reliability	MTBF (year)²	43.28
	MTTR (hour)	2
	Availability	> 0.99999
Physical specifications	Chassis dimensions (W x D x H, mm)	442 x 420 x 44.4
	Chassis height	1 U
	Chassis weight (full configuration weight, including weight of packaging materials)	8.8 kg

S5730-68C-PWR-SI-AC Datasheet

Item		S5730-68C-PWR-SI-AC
Fixed port	PoE+ 10/100/1000BASE-T port	48
Fixed port	10GE port	4
Extended slot		One extended slot that supports an interface card:4*40 GE QSFP+ interface card
Forwarding performance		240 Mpps
Switching capacity		680 Gbit/s
Flexible card	Card slot	1
Flexible card	Card type	4-port 40GE QSFP+ interface card
Management port	ETH port	Supported
	Console port (RJ45)	Supported
	USB port	USB 2.0
CPU	Frequency	1 GHz
CPU	Cores	2
Storage	Memory (RAM)	1 GB
Storage	Flash memory	Hardware: 512 MB, of which 240 MB is available for users
Power supply system	Power supply type	500 W AC 650 W DC (pluggable)
	Rated voltage range	AC: 100 V AC to 240 V AC; 50/60 Hz DC: -48 V DC to -60 V DC
	Maximum voltage range	AC: 90 V AC to 264 V AC; 47-63 Hz DC: -38.4 V DC to -72 V DC
	Maximum input current	500 W AC: 7 A 650 W DC: 20 A
	Maximum power consumption of the device	Without PDs and cards: 68.3 W 500 W AC/650 W DC (with PDs but not cards): 925 W (PoE: 739.2 W)
	Power consumption in the case of 30% traffic load¹	50.1 W (without cards)
	Power consumption in the case of 100% traffic load¹	56.6 W (without cards)
Heat dissipation system	Heat dissipation mode	Air-cooled heat dissipation and intelligent fan speed adjustment
	Number of fan modules	Pluggable dual fans
	Airflow	Air flows in from the left and right sides as well as the front panel, and exhausts from the rear panel
	Maximum heat dissipation of the device (BTU/hour)	Without PDs and cards: 223 With PDs but not cards:3156
Environment parameters	Long-term operating temperature	0-1800 m: 0°C to 45°C 1800-5000 m: The operating temperature decreases 1°C every time the altitude increases 220 m.
	Short-term operating temperature	0-1800 m: -5°C to +50°C 1800-5000 m: The operating temperature decreases 1°C every time the altitude increases 220 m. NOTE Short term indicates that the successive operating time is no more than 96 hours, the total operating time is no more than 360 hours, or the number of times the operating temperature is over 45°C is no more than 15 in a year.
	Storage temperature	-40°C to +70°C
	Relative humidity	5%–95% (non-condensing)
	Operating altitude	AC: 5000 m DC: 5000 m
	Noise under normal temperature (sound power)	57.5 dB(A)
	Noise under high temperature (sound power)	70.4 dB(A)
	Noise under normal temperature (sound pressure)	45.4 dB(A)
	Surge protection specification (RJ45 service port)	±7 kV
	Surge protection specification (power port)	AC power interface: ±6 kV in differential or common mode DC power interface: ±2 kV in differential mode; ±4 kV in common mode
Reliability	MTBF (year)²	43.28
	MTTR (hour)	2
	Availability	> 0.99999
Physical specifications	Chassis dimensions (W x D x H, mm)	442 x 420 x 44.4
	Chassis height	1 U
	Chassis weight (full configuration weight, including weight of packaging materials)	8.8 kg

Weight	20.0000 kg
Dimensions	71.5000 × 57.0000 × 23.0000 cm
