S5730-68C-PWH-HI

1 Review Write a review
PN02351LKE
AvailabilityIn Stock
Campus Switch S5730-HI
WarrantyUp to 36 months i
×
Warranty Policy
We provide a comprehensive warranty policy.
Refer to the table for more details.

Original price was: $0.00.Current price is: $0.00.

Huawei S5730-68C-PWH-HI switch supports 48 10/100/1000BASE-T ports, 4 10GE SFP+ ports, 2 hot swappable AC/DC power supplies, without power supply equipped, PoE++

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

S5730-68C-PWH-HI Overview

S5730-68C-PWH-HI is a Huawei S5730-HI switch, providing 48 x 10/100/1,000 BASE-T ports, 4 x 10 GE SFP+ ports, 2 expansion slots, PoE++, without power module. Huawei S5730-HI gigabit Ethernet switches are Huawei-developed next-generation agile switches that provide fixed full gigabit access and 10 GE uplink interfaces as well as one or two slots for uplink interface extension. The switches are developed based on Huawei Versatile Routing Platform (VRP) to implement software definition and service change on demand. With services and network convergence as the core, the switches provide the free mobility function to ensure consistent user experience. The Super Virtual Fabric (SVF) function virtualizes the entire network into one device. In addition, the switches support flexible Ethernet networking, comprehensive VPN tunnel solutions, various security control methods, intelligent deployment, and simple Operations and Maintenance (O&M). The S5730-HI series switches are the best choices for the access or aggregation layers of medium and large-sized campus networks, and the core layer of branch or small campus networks.

Telecomate.com provides a full range of Huawei switch series, if you have any demands, please contact: csd@telecomate.com

S5730-68C-PWH-HI Quick Spec

48 10/100/1,000 BASE-T ports, 4 10 GE SFP+ ports

Switching Capacity is 758 Gbps

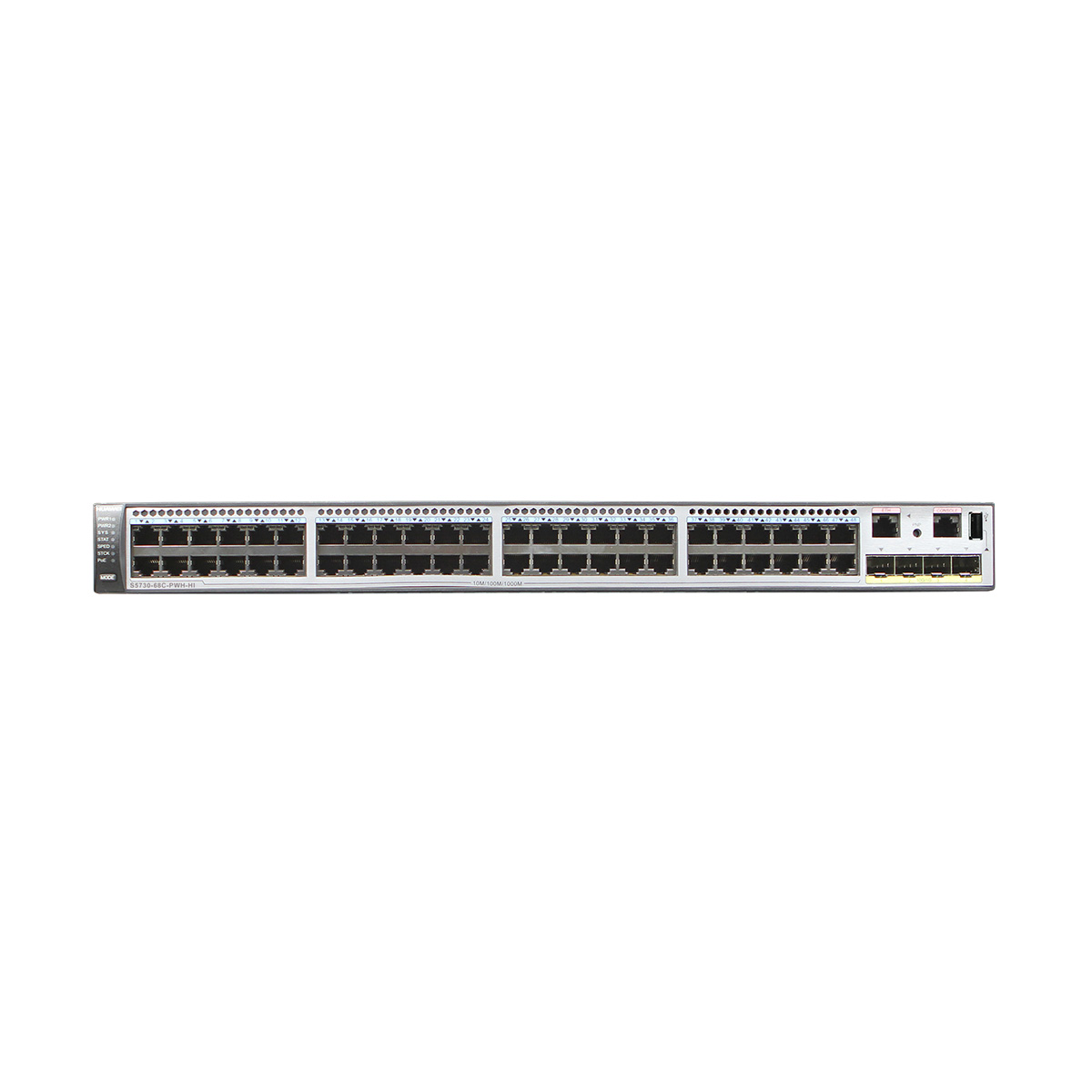

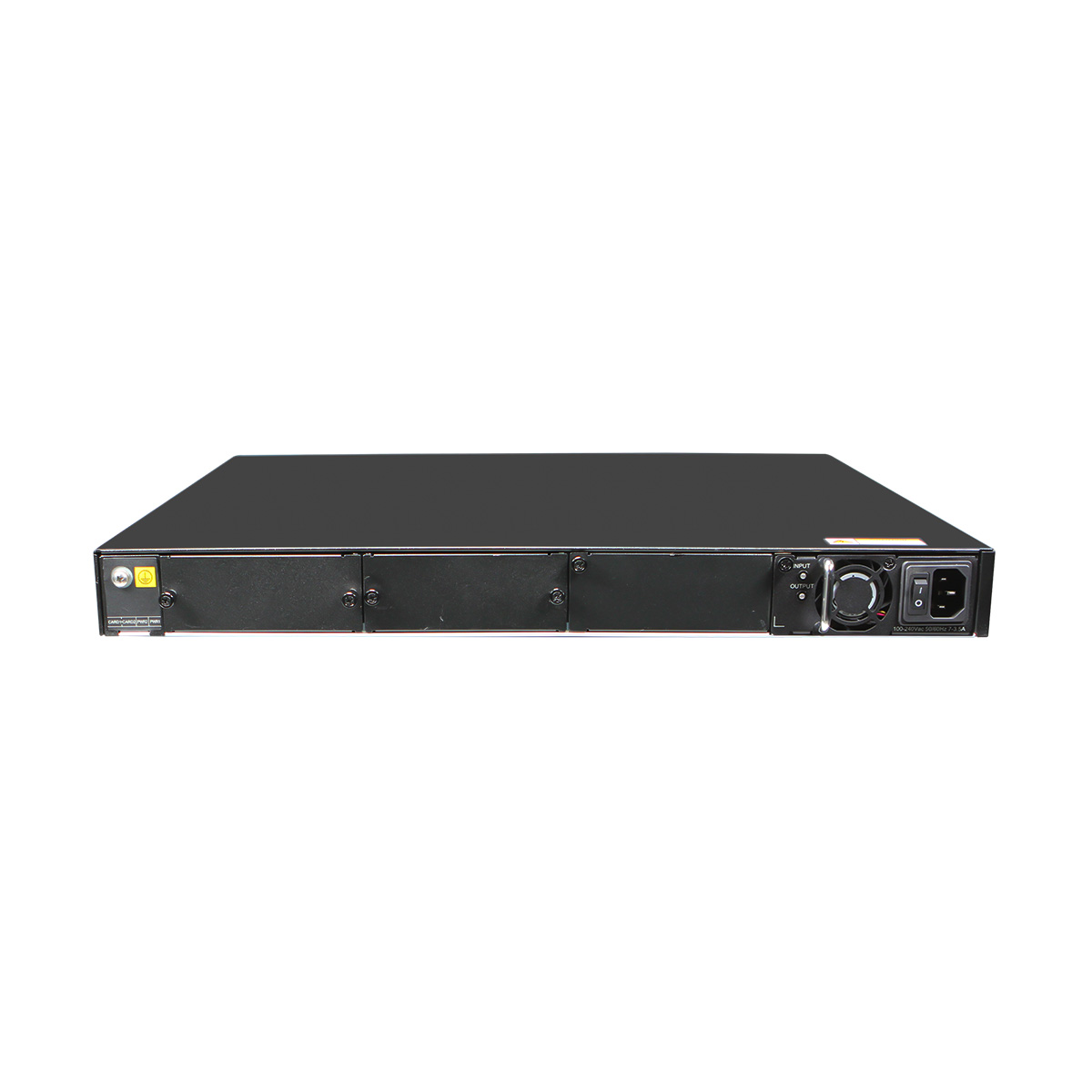

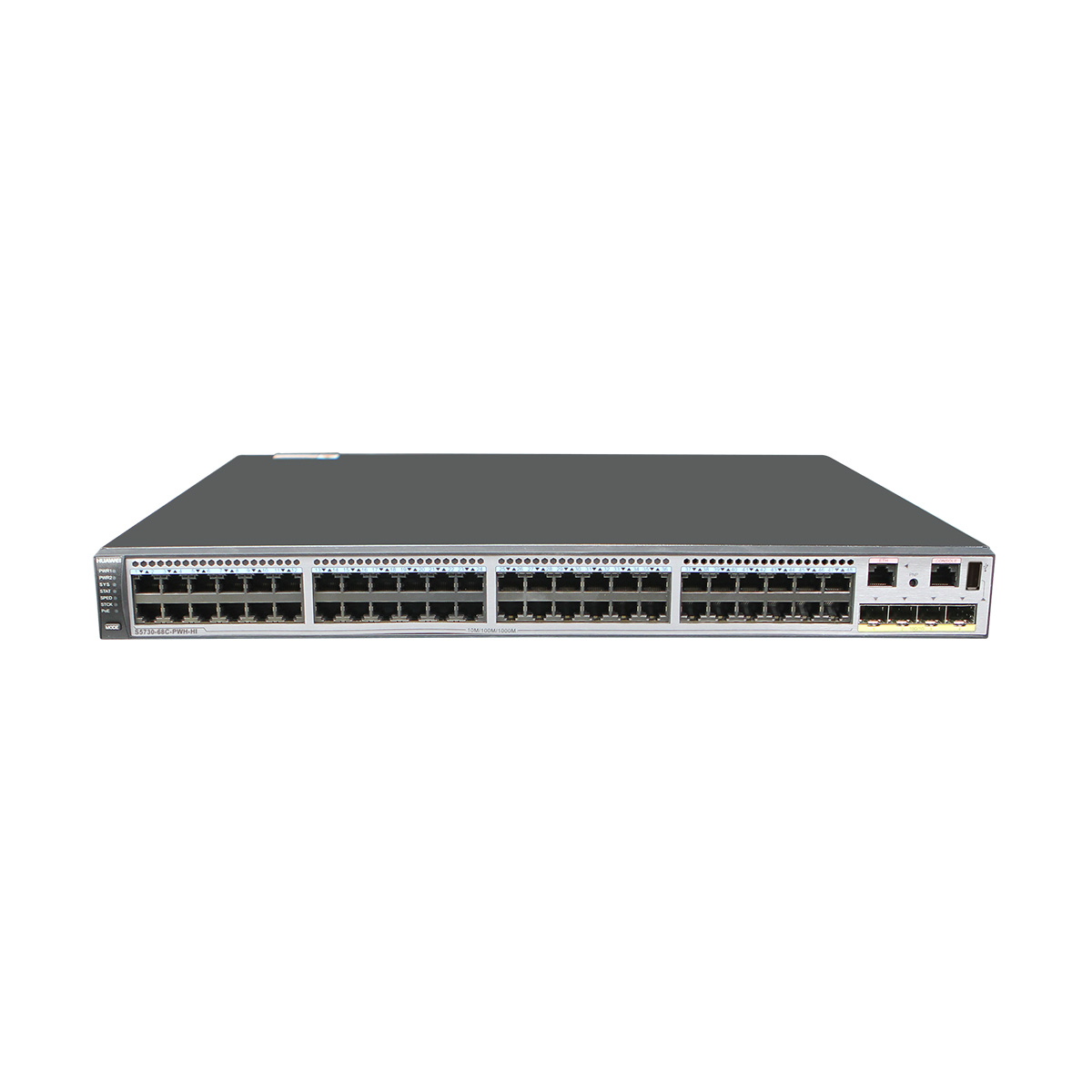

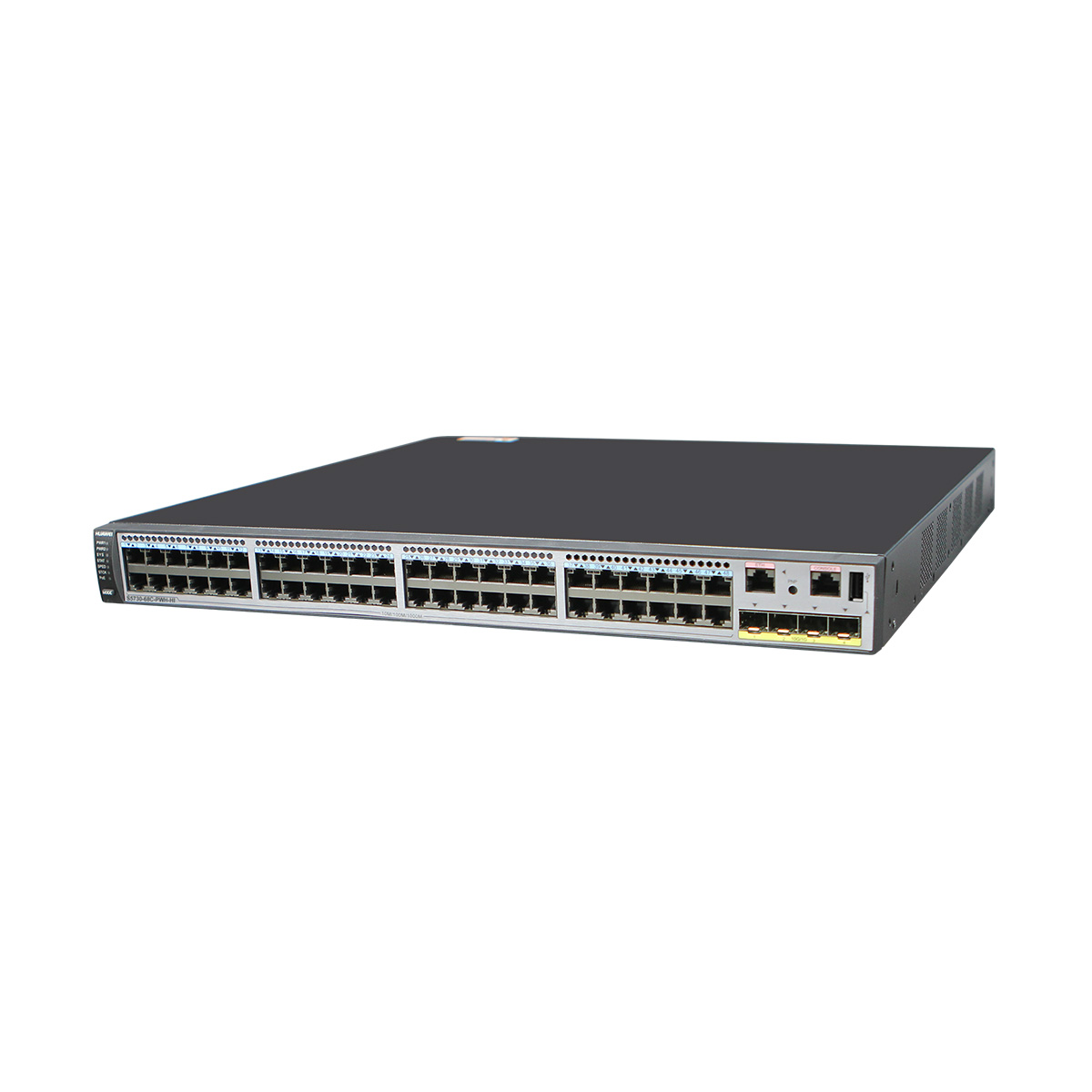

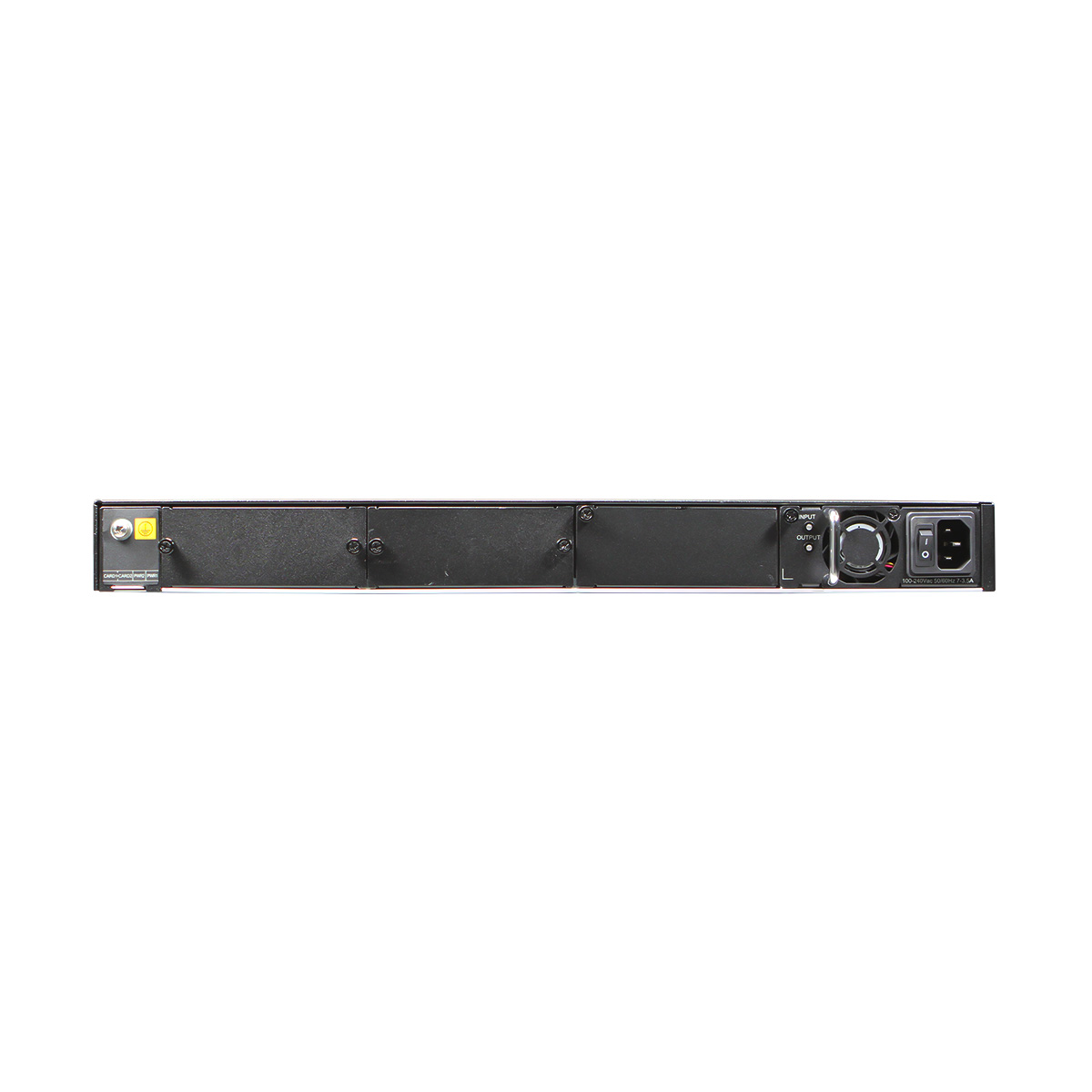

S5730-68C-PWH-HI appearance and structure

S5730-68C-PWH-HI

1 Forty-eight PoE++ 10/100/1000BASE-T ports 7 Ground screw
2 Four 10GE SFP+ ports 8 ESN label
3 One ETH management port 9 Rear card slot 1
4 One PNP button 10 Rear card slot 2
5 One console port 11 Power module slot 2
6 One USB port 12 Power module slot 1
S5730-68C-PWH- HI Datasheet
Item S5730-68C-PWH- HI
Fixed port PoE++ 10/100/1000BASE-T port 48
10GE port 4
Extended slot Two extended slots ,supporting 8x10GE Base-T , 8x10GE SFP+ or 2x40GE QSFP+ interface cards
Switching capacity 758 Gbit/s
Flexible card Card slot 2
Card type Slot 1: 8-port Ethernet 10GBASE-T interface card (non-GE- capable) 2-port 40GE QSFP+ interface card 8-port 10GE SFP+ interface card (the last four ports are GE- capable.) Slot 2: Cards are not supported at present.
Management port ETH port Supported
Console port (RJ45) Supported
USB port USB 2.0
CPU Frequency 1.5 GHz
Cores 8
Storage Memory (RAM) 2 GB
Flash memory Hardware: 1 GB, of which 624 MB is available for users
Power supply system Power supply type 1150 W AC (pluggable) 1000 W AC (pluggable) 500 W AC (pluggable) 650 W DC (pluggable)
Rated voltage range AC: 100 V AC to 240 V AC; 50/60 Hz DC: -48 V DC to - 60 V DC
Maximum voltage range AC: 90 V AC to 264 V AC; 47-63 Hz DC: -36 V DC to - 72 V DC
Maximum input current 500 W AC: 7 A 650 W DC: 20 A 1150 W: 10 A 1000 W: 12 A
Maximum power consumption of the device 500 W AC/650 W DC: Without cards and PDs: 106 W With PDs: 830 W 1150 W AC/1000 W AC: Without cards and PDs:
116.3 W With PDs: 1608 W (PDs: 1440 W)
Power consumption in the case of 30% traffic load1 500 W AC (without cards and PDs): 72 W 1150 W AC/1000 W AC (without cards and PDs): 76 W
Power consumption in the case of 100% traffic load1 500 W AC (without cards and PDs): 76 W 1150 W AC/1000 W AC (without cards and PDs): 80 W
Heat dissipation system Heat dissipation mode Air-cooled heat dissipation and intelligent fan speed adjustment
Number of fan modules 3
Airflow Air flows in from the left side and front panel and exhausts from the right side
Maximum heat dissipation of the device (BTU/hour) 500 W AC/650 W DC (without cards and PDs): 362 1150 W AC/1000 W AC (without cards and PDs): 396
Environment parameters Long-term operating temperature 0-1800 m: 0°C to 45°C 1800-5000 m: The operating temperature decreases 1°C every time the altitude increases 220 m.
Short-term operating temperature 0-1800 m: -5°C to +50°C 1800-5000 m: The operating temperature decreases 1°C
every time the altitude increases 220 m. NOTE Short term indicates that the successive operating time is no more than 96 hours, the total operating time is no more than 360 hours, or the number of times the operating temperature is over 45°C is no more than 15 in a year.
Storage temperature -40°C to +70°C
Relative humidity 5%–95% (non- condensing)
Operating altitude AC: 5000 m DC: 2000 m
Noise under normal temperature (sound power) 1150 W: 69.6 dB(A) 650 W/500 W: 57.2 dB(A)
Noise under high temperature (sound power) 1150 W: 78.7 dB(A) 650 W/500 W: 77.6 dB(A)
Noise under normal temperature (sound pressure) 1150 W: 66.6 dB(A) 650 W/500 W: 54.2 dB(A)
Surge protection specification (RJ45 service port) ±7kV
Surge protection specification (power port) 500 W AC/1000 W AC power port: Differential mode: ±6 kV Common mode: ±6 kV DC power port:
Differential mode: ±2 kV Common mode: ±4 kV 1150 W AC power port: Differential mode: ± 4 kV Common mode: ±2 kV
Reliability MTBF (year)2 48.31
MTTR (hour) 2
Availability > 0.99999
Physical specifications Chassis dimensions (W x D x H, mm) 442 x 420 x 44.4
Chassis height 1 U
Chassis weight (full configuration weight, including weight of packaging materials) 8.7 kg (19.18 lb)

Additional information

Weight 20.0000 kg
Dimensions 71.5000 × 57.0000 × 23.0000 cm
Campus Switch

S5730-68C-PWH- HI Datasheet
Item S5730-68C-PWH- HI
Fixed port PoE++ 10/100/1000BASE-T port 48
10GE port 4
Extended slot Two extended slots ,supporting 8x10GE Base-T , 8x10GE SFP+ or 2x40GE QSFP+ interface cards
Switching capacity 758 Gbit/s
Flexible card Card slot 2
Card type Slot 1: 8-port Ethernet 10GBASE-T interface card (non-GE- capable) 2-port 40GE QSFP+ interface card 8-port 10GE SFP+ interface card (the last four ports are GE- capable.) Slot 2: Cards are not supported at present.
Management port ETH port Supported
Console port (RJ45) Supported
USB port USB 2.0
CPU Frequency 1.5 GHz
Cores 8
Storage Memory (RAM) 2 GB
Flash memory Hardware: 1 GB, of which 624 MB is available for users
Power supply system Power supply type 1150 W AC (pluggable) 1000 W AC (pluggable) 500 W AC (pluggable) 650 W DC (pluggable)
Rated voltage range AC: 100 V AC to 240 V AC; 50/60 Hz DC: -48 V DC to - 60 V DC
Maximum voltage range AC: 90 V AC to 264 V AC; 47-63 Hz DC: -36 V DC to - 72 V DC
Maximum input current 500 W AC: 7 A 650 W DC: 20 A 1150 W: 10 A 1000 W: 12 A
Maximum power consumption of the device 500 W AC/650 W DC: Without cards and PDs: 106 W With PDs: 830 W 1150 W AC/1000 W AC: Without cards and PDs:
116.3 W With PDs: 1608 W (PDs: 1440 W)
Power consumption in the case of 30% traffic load1 500 W AC (without cards and PDs): 72 W 1150 W AC/1000 W AC (without cards and PDs): 76 W
Power consumption in the case of 100% traffic load1 500 W AC (without cards and PDs): 76 W 1150 W AC/1000 W AC (without cards and PDs): 80 W
Heat dissipation system Heat dissipation mode Air-cooled heat dissipation and intelligent fan speed adjustment
Number of fan modules 3
Airflow Air flows in from the left side and front panel and exhausts from the right side
Maximum heat dissipation of the device (BTU/hour) 500 W AC/650 W DC (without cards and PDs): 362 1150 W AC/1000 W AC (without cards and PDs): 396
Environment parameters Long-term operating temperature 0-1800 m: 0°C to 45°C 1800-5000 m: The operating temperature decreases 1°C every time the altitude increases 220 m.
Short-term operating temperature 0-1800 m: -5°C to +50°C 1800-5000 m: The operating temperature decreases 1°C
every time the altitude increases 220 m. NOTE Short term indicates that the successive operating time is no more than 96 hours, the total operating time is no more than 360 hours, or the number of times the operating temperature is over 45°C is no more than 15 in a year.
Storage temperature -40°C to +70°C
Relative humidity 5%–95% (non- condensing)
Operating altitude AC: 5000 m DC: 2000 m
Noise under normal temperature (sound power) 1150 W: 69.6 dB(A) 650 W/500 W: 57.2 dB(A)
Noise under high temperature (sound power) 1150 W: 78.7 dB(A) 650 W/500 W: 77.6 dB(A)
Noise under normal temperature (sound pressure) 1150 W: 66.6 dB(A) 650 W/500 W: 54.2 dB(A)
Surge protection specification (RJ45 service port) ±7kV
Surge protection specification (power port) 500 W AC/1000 W AC power port: Differential mode: ±6 kV Common mode: ±6 kV DC power port:
Differential mode: ±2 kV Common mode: ±4 kV 1150 W AC power port: Differential mode: ± 4 kV Common mode: ±2 kV
Reliability MTBF (year)2 48.31
MTTR (hour) 2
Availability > 0.99999
Physical specifications Chassis dimensions (W x D x H, mm) 442 x 420 x 44.4
Chassis height 1 U
Chassis weight (full configuration weight, including weight of packaging materials) 8.7 kg (19.18 lb)
