S5730-60C-HI-48S

Rated 5.00 out of 5 based on 1 customer rating

1 Review Write a review

PN02351XFS

AvailabilityIn Stock

Campus Switch S5730-HI

WarrantyUp to 36 months

Original price was: $0.00.Current price is: $0.00.

Huawei S5730-60C-HI-48S switch supports 48 GE SFP ports, 4 10GE SFP+ ports, 2 hot swappable AC/DC power supplies, without power supply equipped

48 Ports Switch GE Switch

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

S5730-60C-HI-48S Overview

S5730-60C-HI-48S is a Huawei S5730-HI switch, providing 48 GE SFP ports, 4 x 10 GE SFP+ ports, 1 expansion slot, without power module. Huawei S5730-HI gigabit Ethernet switches are Huawei-developed next-generation agile switches that provide fixed full gigabit access and 10 GE uplink interfaces as well as one or two slots for uplink interface extension. The switches are developed based on Huawei Versatile Routing Platform (VRP) to implement software definition and service change on demand. With services and network convergence as the core, the switches provide the free mobility function to ensure consistent user experience. The Super Virtual Fabric (SVF) function virtualizes the entire network into one device. In addition, the switches support flexible Ethernet networking, comprehensive VPN tunnel solutions, various security control methods, intelligent deployment, and simple Operations and Maintenance (O&M). The S5730-HI series switches are the best choices for the access or aggregation layers of medium and large-sized campus networks, and the core layer of branch or small campus networks.

Telecomate.com provides a full range of Huawei switch series, if you have any demands, please contact: csd@telecomate.com

S5730-60C-HI-48S Quick Spec

48 GE SFP ports, 4 10 GE SFP+ ports

Switching capacity is 758 Gbps

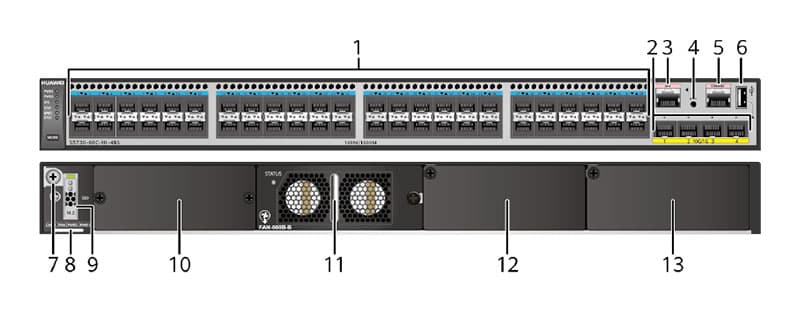

S5730-60C-HI-48S appearance and structure

1	Forty-eight 100/1000BASE-X ports	8	ESN label
2	Four 10GE SFP+ ports	9	SSD card slot
3	One ETH management port	10	Rear card slot
4	One PNP button	11	Fan slot
5	One console port	12	Power module slot 2
6	One USB port	13	Power module slot 1
7	Ground screw

S5730-60C-HI-48S Datasheet

Item	S5730-60C-HI-48S
Fixed ports	48 GE SFP, 4 10GE SFP+ ports
Extended slot	One extended slot, supporting 8-port 10GE electrical, 8-port 10GE optical, or 2-port 40GE optical interface card
Switching capacity	758 Gbit/s
Input voltage	AC: Rated AC voltage: 100-240 V AC; 50/60 Hz Max AC voltage: 90-264 V AC; 47-63 Hz DC: Rated DC voltage: -48-60 V DC; Max DC voltage: -38.4-72 V DC
Maximum power consumption (without card)	100 W
Operating temperature	0-1800 m altitude: 0°C to 45°C 1800-5000 m altitude: The operating temperature reduces by 1ºC every time the altitude increases by 220 m.
Relative humidity	5% to 95% (non-condensing)
Heat dissipation	Air cooling heat dissipation and intelligent speed adjustment
VLAN	4K VLANs Guest VLAN and voice VLAN GVRP MUX VLAN VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports VLAN mapping
Wireless service	AP access control, AP domain management, and AP configuration template management Radio management, unified static configuration, and dynamic centralized management WLAN basic services, QoS, security, and user management CAPWAP, tag/terminal location, and spectrum analysis
Ethernet loop protection	RRPP ring topology and RRPP multi-instance Smart Link tree topology and Smart Link multi-instance, providing millisecond-level protection switchover SEP ERPS (G.8032) BFD for OSPF, BFD for IS-IS, BFD for VRRP, and BFD for PIM STP (IEEE 802.1d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s) BPDU protection, root protection, and loop protection
MPLS	MPLS L3VPN MPLS L2VPN (VPWS/VPLS) MPLS-TE MPLS QoS
IP routing	Static routes, RIP v1/2, RIPng, OSPF, OSPFv3, IS-IS, IS-ISv6, BGP, BGP4+, ECMP, routing policy
Interoperability	VLAN-Based Spanning Tree (VBST), working with PVST, PVST+, and RPVST Link-type Negotiation Protocol (LNP), similar to DTP VLAN Central Management Protocol (VCMP), similar to VTP
IPv6 features	Neighbor Discover (ND) PMTU IPv6 Ping, IPv6 Tracert, IPv6 Telnet ACLs based on source IPv6 addresses, destination IPv6 addresses, Layer 4 ports, or protocol types Multicast Listener Discovery snooping (MLDv1/v2) IPv6 addresses configured for sub-interfaces, VRRP6, DHCPv6, and L3VPN
Multicast	IGMP v1/v2/v3 snooping and IGMP fast leave Multicast forwarding in a VLAN and multicast replication between VLANs Multicast load balancing among member ports of a trunk Controllable multicast Port-based multicast traffic statistics IGMP v1/v2/v3, PIM-SM, PIM-DM, and PIM-SSM MSDP MVPN
QoS/ACL	Rate limitation in the inbound and outbound directions of a port Packet redirection Port-based traffic policing and two-rate three-color CAR Eight queues on each port DRR, SP and DRR+SP queue scheduling algorithms WRED Re-marking of the 802.1p and DSCP fields of packets Packet filtering at Layer 2 to Layer 4, filtering out invalid frames based on the source MAC address, destination MAC address, source IP address, destination IP address, TCP/UDP port number, protocol type, and VLAN ID Queue-based rate limitation and shaping on ports
Security	Hierarchical user management and password protection DoS attack defense, ARP attack defense, and ICMP attack defense Binding of the IP address, MAC address, port number, and VLAN ID Port isolation, port security, and sticky MAC MAC Forced Forwarding (MFF) Blackhole MAC address entries Limit on the number of learned MAC addresses IEEE 802.1x authentication and limit on the number of users on a port AAA authentication, RADIUS authentication, and HWTACACS authentication NAC SSH V2.0 HTTPS CPU protection Blacklist and whitelist Attack source tracing and punishment for IPv6 packets such as ND, DHCPv6, and MLD packets Secure Boot IPSec
Reliability	LACP E-trunk Ethernet OAM (IEEE 802.3ah and IEEE 802.1ag) ITU-Y.1731 DLDP LLDP BFD for BGP, BFD for IS-IS, BFD for OSPF, BFD for static route
VXLAN	Supports VXLAN L2 and L3 gateways Centralized and distributed gateway BGP-EVPN Configured through the NETCONF protocol
Super Virtual Fabric (SVF)	Working as an SVF Parent node to vertically virtualize downlink switches and APs as one device for management. A two-layer client architecture is supported. IGMP snooping can be enabled on access switches (ASs) and the maximum number of access users on a port can be configured. ASs can be independently configured. Services that are not supported by templates can be configured on the parent. Third-party devices are allowed between SVF parent and clients. Working as an SVF Client node that is plug-and-play with zero configuration
iPCA	Directly coloring service packets to collect real-time statistics on the number of lost packets and packet loss ratio Collection of statistics on the number of lost packets and packet loss ratio at network and device levels
TWAMP	Two-way IP link performance measurement Measurement on two-way packet delay, one-way packet loss rate, and one-way packet jitter
Management and maintenance	iStack Virtual cable test SNMP v1/v2c/v3 RMON Web-based NMS System logs and alarms of different levels GVRP MUX VLAN 802.3az Energy Efficient Ethernet (EEE) NetStream Dying gasp upon power-off
Dimensions mm (W×D ×H)	442×420×44.4

S5730-60C-HI-48S Datasheet

Item	S5730-60C-HI-48S
Fixed ports	48 GE SFP, 4 10GE SFP+ ports
Extended slot	One extended slot, supporting 8-port 10GE electrical, 8-port 10GE optical, or 2-port 40GE optical interface card
Switching capacity	758 Gbit/s
Input voltage	AC: Rated AC voltage: 100-240 V AC; 50/60 Hz Max AC voltage: 90-264 V AC; 47-63 Hz DC: Rated DC voltage: -48-60 V DC; Max DC voltage: -38.4-72 V DC
Maximum power consumption (without card)	100 W
Operating temperature	0-1800 m altitude: 0°C to 45°C 1800-5000 m altitude: The operating temperature reduces by 1ºC every time the altitude increases by 220 m.
Relative humidity	5% to 95% (non-condensing)
Heat dissipation	Air cooling heat dissipation and intelligent speed adjustment
VLAN	4K VLANs Guest VLAN and voice VLAN GVRP MUX VLAN VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports VLAN mapping
Wireless service	AP access control, AP domain management, and AP configuration template management Radio management, unified static configuration, and dynamic centralized management WLAN basic services, QoS, security, and user management CAPWAP, tag/terminal location, and spectrum analysis
Ethernet loop protection	RRPP ring topology and RRPP multi-instance Smart Link tree topology and Smart Link multi-instance, providing millisecond-level protection switchover SEP ERPS (G.8032) BFD for OSPF, BFD for IS-IS, BFD for VRRP, and BFD for PIM STP (IEEE 802.1d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s) BPDU protection, root protection, and loop protection
MPLS	MPLS L3VPN MPLS L2VPN (VPWS/VPLS) MPLS-TE MPLS QoS
IP routing	Static routes, RIP v1/2, RIPng, OSPF, OSPFv3, IS-IS, IS-ISv6, BGP, BGP4+, ECMP, routing policy
Interoperability	VLAN-Based Spanning Tree (VBST), working with PVST, PVST+, and RPVST Link-type Negotiation Protocol (LNP), similar to DTP VLAN Central Management Protocol (VCMP), similar to VTP
IPv6 features	Neighbor Discover (ND) PMTU IPv6 Ping, IPv6 Tracert, IPv6 Telnet ACLs based on source IPv6 addresses, destination IPv6 addresses, Layer 4 ports, or protocol types Multicast Listener Discovery snooping (MLDv1/v2) IPv6 addresses configured for sub-interfaces, VRRP6, DHCPv6, and L3VPN
Multicast	IGMP v1/v2/v3 snooping and IGMP fast leave Multicast forwarding in a VLAN and multicast replication between VLANs Multicast load balancing among member ports of a trunk Controllable multicast Port-based multicast traffic statistics IGMP v1/v2/v3, PIM-SM, PIM-DM, and PIM-SSM MSDP MVPN
QoS/ACL	Rate limitation in the inbound and outbound directions of a port Packet redirection Port-based traffic policing and two-rate three-color CAR Eight queues on each port DRR, SP and DRR+SP queue scheduling algorithms WRED Re-marking of the 802.1p and DSCP fields of packets Packet filtering at Layer 2 to Layer 4, filtering out invalid frames based on the source MAC address, destination MAC address, source IP address, destination IP address, TCP/UDP port number, protocol type, and VLAN ID Queue-based rate limitation and shaping on ports
Security	Hierarchical user management and password protection DoS attack defense, ARP attack defense, and ICMP attack defense Binding of the IP address, MAC address, port number, and VLAN ID Port isolation, port security, and sticky MAC MAC Forced Forwarding (MFF) Blackhole MAC address entries Limit on the number of learned MAC addresses IEEE 802.1x authentication and limit on the number of users on a port AAA authentication, RADIUS authentication, and HWTACACS authentication NAC SSH V2.0 HTTPS CPU protection Blacklist and whitelist Attack source tracing and punishment for IPv6 packets such as ND, DHCPv6, and MLD packets Secure Boot IPSec
Reliability	LACP E-trunk Ethernet OAM (IEEE 802.3ah and IEEE 802.1ag) ITU-Y.1731 DLDP LLDP BFD for BGP, BFD for IS-IS, BFD for OSPF, BFD for static route
VXLAN	Supports VXLAN L2 and L3 gateways Centralized and distributed gateway BGP-EVPN Configured through the NETCONF protocol
Super Virtual Fabric (SVF)	Working as an SVF Parent node to vertically virtualize downlink switches and APs as one device for management. A two-layer client architecture is supported. IGMP snooping can be enabled on access switches (ASs) and the maximum number of access users on a port can be configured. ASs can be independently configured. Services that are not supported by templates can be configured on the parent. Third-party devices are allowed between SVF parent and clients. Working as an SVF Client node that is plug-and-play with zero configuration
iPCA	Directly coloring service packets to collect real-time statistics on the number of lost packets and packet loss ratio Collection of statistics on the number of lost packets and packet loss ratio at network and device levels
TWAMP	Two-way IP link performance measurement Measurement on two-way packet delay, one-way packet loss rate, and one-way packet jitter
Management and maintenance	iStack Virtual cable test SNMP v1/v2c/v3 RMON Web-based NMS System logs and alarms of different levels GVRP MUX VLAN 802.3az Energy Efficient Ethernet (EEE) NetStream Dying gasp upon power-off
Dimensions mm (W×D ×H)	442×420×44.4

Weight	20.0000 kg
Dimensions	71.5000 × 57.0000 × 23.0000 cm
