Categories:S5730 Series

S5730-44C-HI

Rated 5.00 out of 5 based on 2 customer ratings

2 Reviews Write a review

PN02351MQG

AvailabilityIn Stock

Campus Switch S5730-HI

WarrantyUp to 36 months

Original price was: $0.00.Current price is: $0.00.

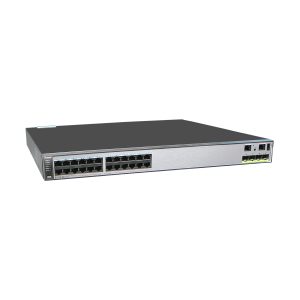

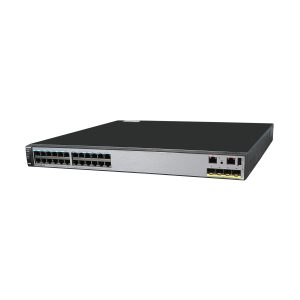

Huawei S5730-44C-HI switch supports 24 10/100/1000BASE-T ports, 10GE SFP+ ports, 2 hot swappable AC/DC power supplies, without power supply equipped

24 Ports Switch Electrical Switch

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

S5730-44C-HI overview

S5730-44C-HI is a Huawei S5730-HI switch, providing 24 10/100/1000BASE-T ports, 10GE SFP+ ports, 2 hot swappable AC/DC power supplies, without power supply equipped. Huawei S5730-HI series Gigabit Ethernet switches are next-generation agile switches that provide fixed all-gigabit access and 10GE uplink ports and come with one or two slots for expansion of uplink ports.
The S5730-HI series switches build on Huawei Versatile Routing Platform (VRP) to implement SDN functionality and enable
service change on demand. With services and network convergence as the core, the switches provide the free mobility function
to ensure consistent user experience.

Telecomate.com provides a full range of Huawei switch series, if you have any demands, please contact: csd@telecomate.com

S5730-44C-HI quick spec

24 10/100/1000BASE-T ports, 10GE SFP+ ports

Switching capacity is 758 Gbps

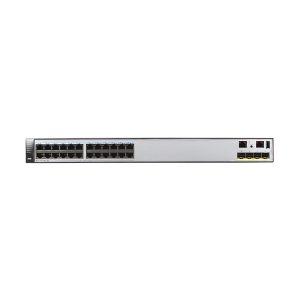

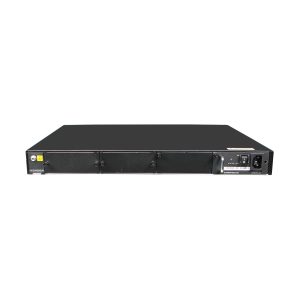

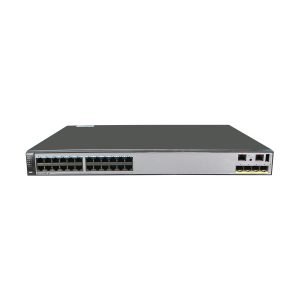

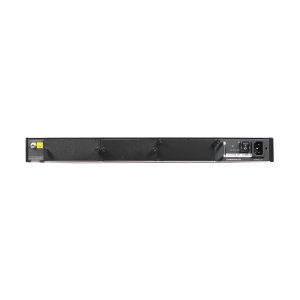

S5730-44C-HI appearance and structure

1	Twenty-four 10/100/1000BASE-T ports	7	Ground screw
2	Four 10GE SFP+ ports	8	ESN label
3	One ETH management port	9	Rear card slot 1
4	One PNP button	10	Rear card slot 2
5	One console port	11	Power module slot 2
6	One USB port	12	Power module slot 1

S5730-44C-HI Datasheet

Item		S5730-44C-HI
Fixed port	10/100/1000BASE-T port	24
Fixed port	10GE port	4
Extended slot		Two extended slots ,supporting 8x10GE Base-T , 8x10GE SFP+ or 2x40GE QSFP+ interface cards
Switching capacity		758 Gbit/s
Flexible card	Card slot	2
Flexible card	Card type	Slot 1: 8-port Ethernet 10GBASE-T interface card (non-GE- capable) 2-port 40GE QSFP+ interface card 8-port 10GE SFP+ interface card (GE-capable) Slot 2: Cards are not supported at present.
Management port	ETH port	Supported
	Console port (RJ45)	Supported
	USB port	USB 2.0
CPU	Frequency	1.5 GHz
CPU	Cores	8
Storage	Memory (RAM)	2 GB
Storage	Flash memory	Hardware: 1 GB, of which 624 MB is available for users NOTE The S5730-36C-HI and S5730-60C-HI support SSD cards (240 GB).
Power supply system	Power supply type	150 W AC 150 W DC (pluggable)
	Rated voltage range	AC: 100 V AC to 240 V AC; 50/60 Hz DC: -48 V DC to - 60 V DC
	Maximum voltage range	AC: 90 V AC to 264 V AC; 47-63 Hz DC: -36 V DC to - 72 V DC
	Maximum input current	150 W AC: 3 A 150 W DC: 6 A
	Maximum power consumption of the device	76.5 W
	Power consumption in the case of 30% traffic load¹	54 W
	Power consumption in the case of 100% traffic load¹	56 W
Heat dissipation	Heat dissipation	Air-cooled heat dissipation and
system	mode	intelligent fan speed adjustment
	Number of fan modules	3
	Airflow	Air flows in from the left side and exhausts from the right side
	Maximum heat dissipation of the device (BTU/hour)	263
Environment parameters	Long-term operating temperature	0-1800 m: 0°C to 45°C 1800-5000 m: The operating temperature decreases 1°C every time the altitude increases 220 m.
	Short-term operating temperature	0-1800 m: -5°C to +50°C 1800-5000 m: The operating temperature decreases 1°C every time the altitude increases 220 m. NOTE Short term indicates that the successive operating time is no more than 96 hours, the total operating time is no more than 360 hours, or the number of times the operating temperature is over 45°C is no more than 15 in a year.
	Storage temperature	-40°C to +70°C
	Relative humidity	5%–95% (non- condensing)
	Operating	AC: 5000 m
	altitude	DC: 2000 m
	Noise under normal temperature (sound power)	55.6 dB(A)
	Noise under high temperature (sound power)	77.6 dB(A)
	Noise under normal temperature (sound pressure)	52.6 dB(A)
	Surge protection specification (RJ45 service port)	±7 kV
	Surge protection specification (power port)	AC power port: Differential mode: ±6 kV Common mode: ±6 kV DC power port: Differential mode: ±1 kV Common mode: ±2 kV
Reliability	MTBF (year)²	50.95
	MTTR (hour)	2
	Availability	> 0.99999
Physical specifications	Chassis dimensions (W x D x H, mm)	442 x 420 x 44.4
	Chassis height	1 U
	Chassis weight (full configuration weight, including weight of packaging materials)	8.5 kg (18.74 lb)

S5730-44C-HI Datasheet

Item		S5730-44C-HI
Fixed port	10/100/1000BASE-T port	24
Fixed port	10GE port	4
Extended slot		Two extended slots ,supporting 8x10GE Base-T , 8x10GE SFP+ or 2x40GE QSFP+ interface cards
Switching capacity		758 Gbit/s
Flexible card	Card slot	2
Flexible card	Card type	Slot 1: 8-port Ethernet 10GBASE-T interface card (non-GE- capable) 2-port 40GE QSFP+ interface card 8-port 10GE SFP+ interface card (GE-capable) Slot 2: Cards are not supported at present.
Management port	ETH port	Supported
	Console port (RJ45)	Supported
	USB port	USB 2.0
CPU	Frequency	1.5 GHz
CPU	Cores	8
Storage	Memory (RAM)	2 GB
Storage	Flash memory	Hardware: 1 GB, of which 624 MB is available for users NOTE The S5730-36C-HI and S5730-60C-HI support SSD cards (240 GB).
Power supply system	Power supply type	150 W AC 150 W DC (pluggable)
	Rated voltage range	AC: 100 V AC to 240 V AC; 50/60 Hz DC: -48 V DC to - 60 V DC
	Maximum voltage range	AC: 90 V AC to 264 V AC; 47-63 Hz DC: -36 V DC to - 72 V DC
	Maximum input current	150 W AC: 3 A 150 W DC: 6 A
	Maximum power consumption of the device	76.5 W
	Power consumption in the case of 30% traffic load¹	54 W
	Power consumption in the case of 100% traffic load¹	56 W
Heat dissipation	Heat dissipation	Air-cooled heat dissipation and
system	mode	intelligent fan speed adjustment
	Number of fan modules	3
	Airflow	Air flows in from the left side and exhausts from the right side
	Maximum heat dissipation of the device (BTU/hour)	263
Environment parameters	Long-term operating temperature	0-1800 m: 0°C to 45°C 1800-5000 m: The operating temperature decreases 1°C every time the altitude increases 220 m.
	Short-term operating temperature	0-1800 m: -5°C to +50°C 1800-5000 m: The operating temperature decreases 1°C every time the altitude increases 220 m. NOTE Short term indicates that the successive operating time is no more than 96 hours, the total operating time is no more than 360 hours, or the number of times the operating temperature is over 45°C is no more than 15 in a year.
	Storage temperature	-40°C to +70°C
	Relative humidity	5%–95% (non- condensing)
	Operating	AC: 5000 m
	altitude	DC: 2000 m
	Noise under normal temperature (sound power)	55.6 dB(A)
	Noise under high temperature (sound power)	77.6 dB(A)
	Noise under normal temperature (sound pressure)	52.6 dB(A)
	Surge protection specification (RJ45 service port)	±7 kV
	Surge protection specification (power port)	AC power port: Differential mode: ±6 kV Common mode: ±6 kV DC power port: Differential mode: ±1 kV Common mode: ±2 kV
Reliability	MTBF (year)²	50.95
	MTTR (hour)	2
	Availability	> 0.99999
Physical specifications	Chassis dimensions (W x D x H, mm)	442 x 420 x 44.4
	Chassis height	1 U
	Chassis weight (full configuration weight, including weight of packaging materials)	8.5 kg (18.74 lb)

Weight	20.0000 kg
Dimensions	71.5000 × 57.0000 × 23.0000 cm
