S5721-28X-SI-24S-AC

1 Review Write a review
PN98010661
Brands
AvailabilityIn Stock
Campus Switch S5720-SI
WarrantyUp to 36 months i
×
Warranty Policy
We provide a comprehensive warranty policy.
Refer to the table for more details.

Original price was: $0.00.Current price is: $0.00.

Huawei S5721-28X-SI-24S-AC supports 24 GE SFP, 8 of which are dual-purpose 10/100/1000 or SFP, 4 10 GE SFP+, 1 AC power supply equipped

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

S5721-28X-SI-24S-AC overview

This switch with 24 100/1000BASE-X ports, is one of the Huawei S5720 series switches. The S5720 series switches are energy-saving gigabit Ethernet switches, building on high-performance hardware, store-and-forward mode, and Huawei Versatile Routing Platform (VRP), the S5720 series support intelligent Stack (iStack), flexible Ethernet networking, and diversified security control. They provide customers with green, easy-to-manage, easy-to-expand, and cost-effective gigabit to desktop solutions.

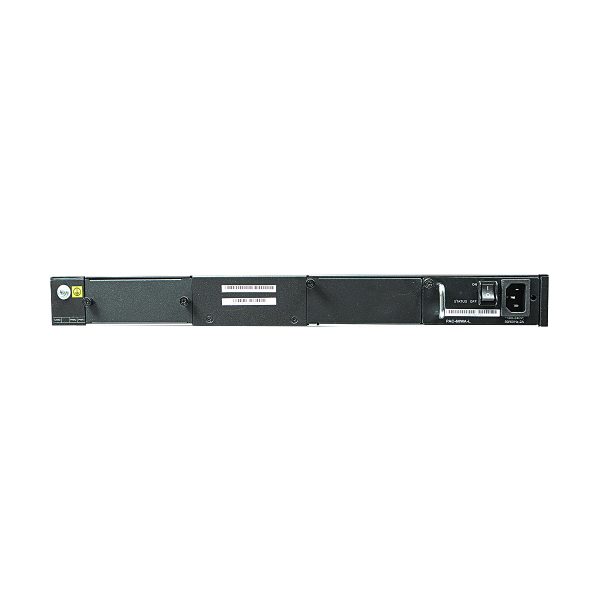

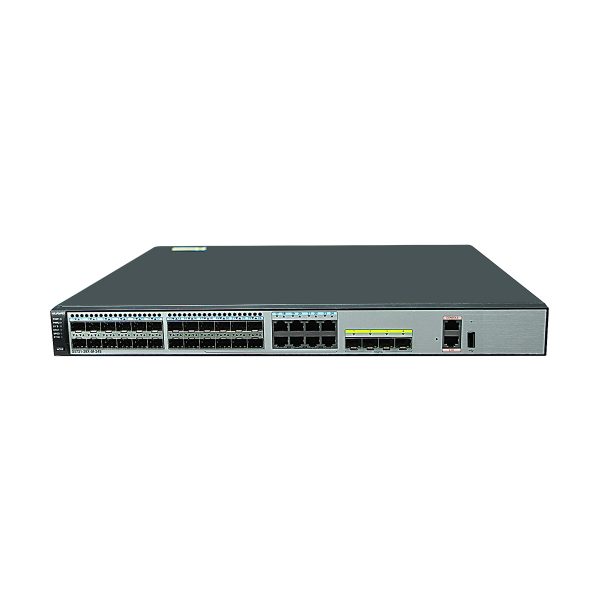

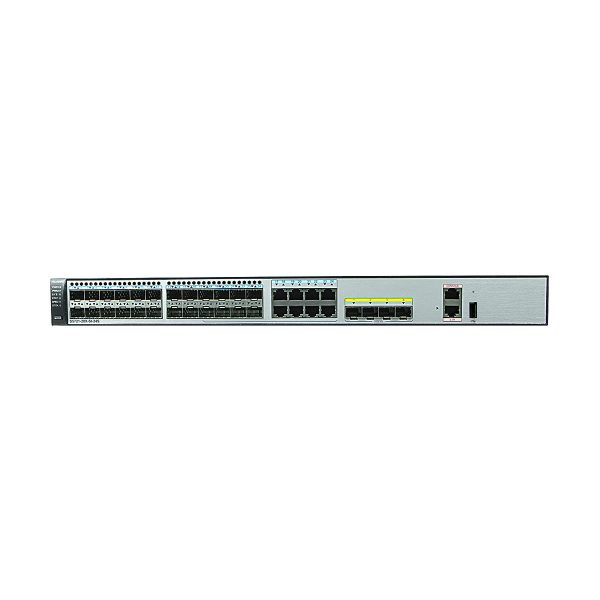

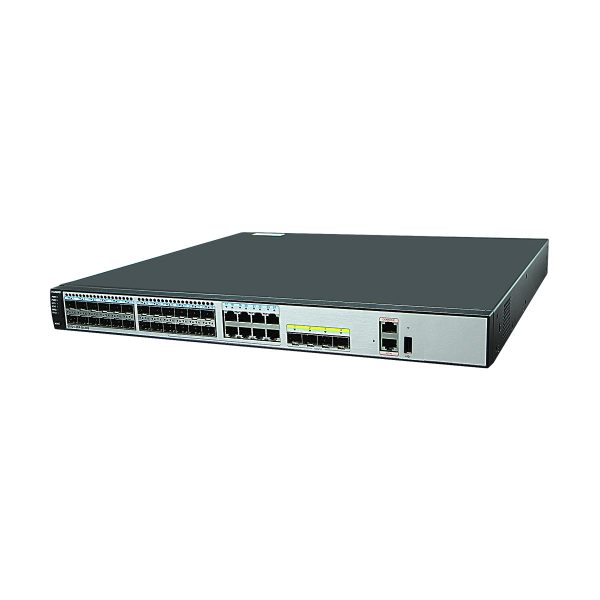

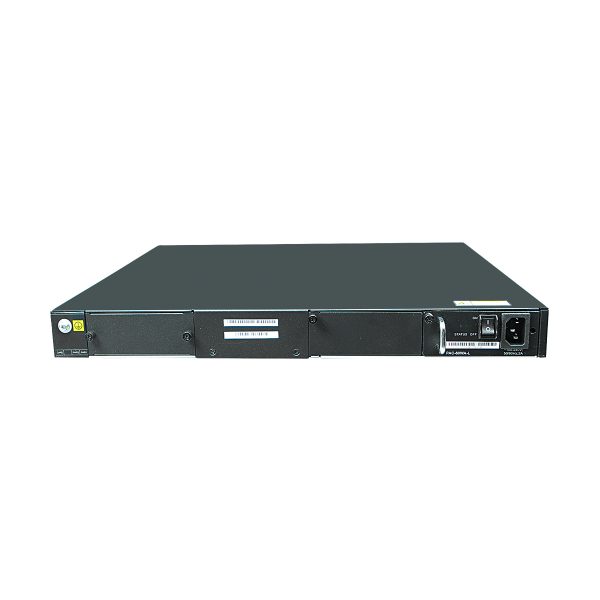

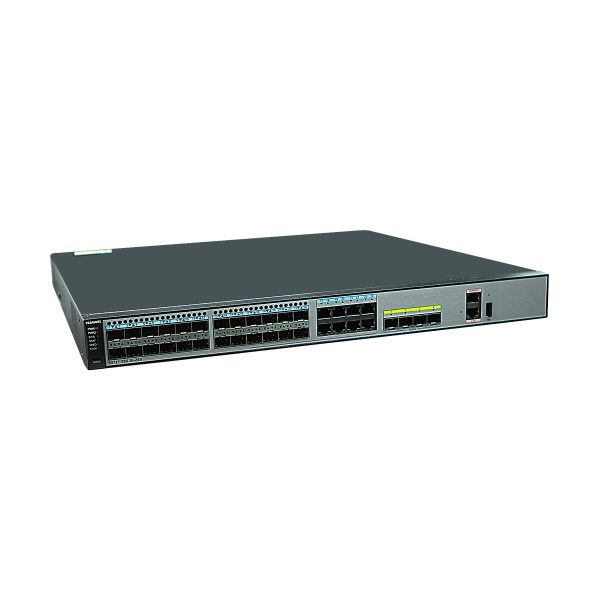

S5721-28X-SI-24S-AC appearance and structure

S5721-28X-SI-24S-AC

1 Sixteen 100/1000BASE-X ports 6 One USB port
2 Eight combo ports (10/100/1000BASE-T + 100/1000BASE-X) 7 Ground screw
3 Four 10GE SFP+ ports 8 Rear card slot
4 One ETH management port  9 Power module slot 2
5 One console port 10 Power module slot 1
S5721-28X-SI-24S-AC datasheet

Item
S5720-28X-SI-24S-AC
Ports 24 Gig SFP, 8 of which are dual-purpose 10/100/1000 or SFP, 4 10 Gig SFP+
Memory (RAM) 512 MB
Flash 240 MB
Mean time between failures (MTBF) 41 years
Mean time to repair (MTTR) 2 hours
Availability > 0.99999
Service port surge protection Common mode: ±6 kV
Power supply surge protection ±6 kV in differential mode, ±6 kV in common mode
Stack ports GE SFP optical ports except combo ports and 10GE SFP+ optical ports
RTC Supported
RPS Supported
PoE Not supported
Rated voltage range 100 V AC to 240 V AC, 50/60 Hz
Maximum voltage range 90 V AC to 264 V AC, 47 Hz to 63 Hz
Maximum power consumption (100% throughput, full speed of fans) 41.7 W
Storage temperature -40°C to +70°C (-40°F to +158°F)
Noise under normal temperature (27°C, sound power) less than 43 dBA
Relative humidity 5% to 95%, noncondensing
Operating altitude 0-5000 m (0-16404 ft.)
Memory (RAM) 512 MB
Flash 240 MB
Mean time between failures (MTBF) 41 years
Mean time to repair (MTTR) 2 hours
Availability > 0.99999
Service port surge protection Common mode: ±6 kV
Power supply surge protection ±6 kV in differential mode, ±6 kV in common mode
Stack ports GE SFP optical ports except combo ports and 10GE SFP+ optical ports
RTC Supported
RPS Supported
PoE Not supported
Rated voltage range 100 V AC to 240 V AC, 50/60 Hz
Maximum voltage range 90 V AC to 264 V AC, 47 Hz to 63 Hz
Maximum power consumption (100% throughput, full speed of fans) 41.7 W
Typical power consumption (30% of traffic load)
  • Tested according to ATIS standard
  • EEE enabled
  • No PoE power consumption
 28.9 W
Storage temperature -40°C to +70°C (-40°F to +158°F)
Noise under normal temperature (27°C, sound power) less than 43 dBA
Relative humidity 5% to 95%, noncondensing
Operating altitude 0-5000 m (0-16404 ft.)
Dimensions (W x D x H) 44.4 mm x 442.0 mm x 451.3 mm (1.75 in. x 17.4 in. x 17.77 in.)
Weight (including packaging materials) 10kg

Additional information

Weight 10.0000 kg
Dimensions 45.1300 × 44.2000 × 4.4400 cm
Brand

Huawei
Lead Time

3-5 days
Ship From

Shenzhen Warehouse
Campus Switch

S5721-28X-SI-24S-AC datasheet

Item
S5720-28X-SI-24S-AC
Ports 24 Gig SFP, 8 of which are dual-purpose 10/100/1000 or SFP, 4 10 Gig SFP+
Memory (RAM) 512 MB
Flash 240 MB
Mean time between failures (MTBF) 41 years
Mean time to repair (MTTR) 2 hours
Availability > 0.99999
Service port surge protection Common mode: ±6 kV
Power supply surge protection ±6 kV in differential mode, ±6 kV in common mode
Stack ports GE SFP optical ports except combo ports and 10GE SFP+ optical ports
RTC Supported
RPS Supported
PoE Not supported
Rated voltage range 100 V AC to 240 V AC, 50/60 Hz
Maximum voltage range 90 V AC to 264 V AC, 47 Hz to 63 Hz
Maximum power consumption (100% throughput, full speed of fans) 41.7 W
Storage temperature -40°C to +70°C (-40°F to +158°F)
Noise under normal temperature (27°C, sound power) less than 43 dBA
Relative humidity 5% to 95%, noncondensing
Operating altitude 0-5000 m (0-16404 ft.)
Memory (RAM) 512 MB
Flash 240 MB
Mean time between failures (MTBF) 41 years
Mean time to repair (MTTR) 2 hours
Availability > 0.99999
Service port surge protection Common mode: ±6 kV
Power supply surge protection ±6 kV in differential mode, ±6 kV in common mode
Stack ports GE SFP optical ports except combo ports and 10GE SFP+ optical ports
RTC Supported
RPS Supported
PoE Not supported
Rated voltage range 100 V AC to 240 V AC, 50/60 Hz
Maximum voltage range 90 V AC to 264 V AC, 47 Hz to 63 Hz
Maximum power consumption (100% throughput, full speed of fans) 41.7 W
Typical power consumption (30% of traffic load)
  • Tested according to ATIS standard
  • EEE enabled
  • No PoE power consumption
 28.9 W
Storage temperature -40°C to +70°C (-40°F to +158°F)
Noise under normal temperature (27°C, sound power) less than 43 dBA
Relative humidity 5% to 95%, noncondensing
Operating altitude 0-5000 m (0-16404 ft.)
Dimensions (W x D x H) 44.4 mm x 442.0 mm x 451.3 mm (1.75 in. x 17.4 in. x 17.77 in.)
Weight (including packaging materials) 10kg
