S5720SV2-52P-LI-AC

Rated 5.00 out of 5 based on 1 customer rating

1 Review Write a review

PN98010853

BrandsHuawei

AvailabilityIn Stock

Campus Switch S5720-LI

WarrantyUp to 36 months

Original price was: $0.00.Current price is: $0.00.

Huawei S5720SV2-52P-LI-AC switch supports 48 1000BASE-T ports, 4 1000BASE-X SFP ports, 1 AC power module equipped

48 Ports Switch Electrical Switch Lan Access Switch

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

S5720SV2-52P-LI-AC overview

This switch with 48 1000BASE-T ports, 4 1000BASE-X SFP+ ports, 1 AC power module equipped, is one of the S5720 series switches.

Huawei Quidway S5700 series gigabit enterprise switches are designed for high-bandwidth access and Ethernet aggregation. Huawei Quidway S5700 can be used in various campus network scenarios: access switch, aggregation switch, gigabit access switch in the Internet data center, or desktop switch to provide 1000 Mbps access for terminals.

S5720SV2-52P-LI-AC quick specs

48 10/100/1000BASE-T ports

4 1000BAST-X GE SFP ports

Forwarding performance: 192Mpps

Switching capacity: 256Gbps/2.56Tbps

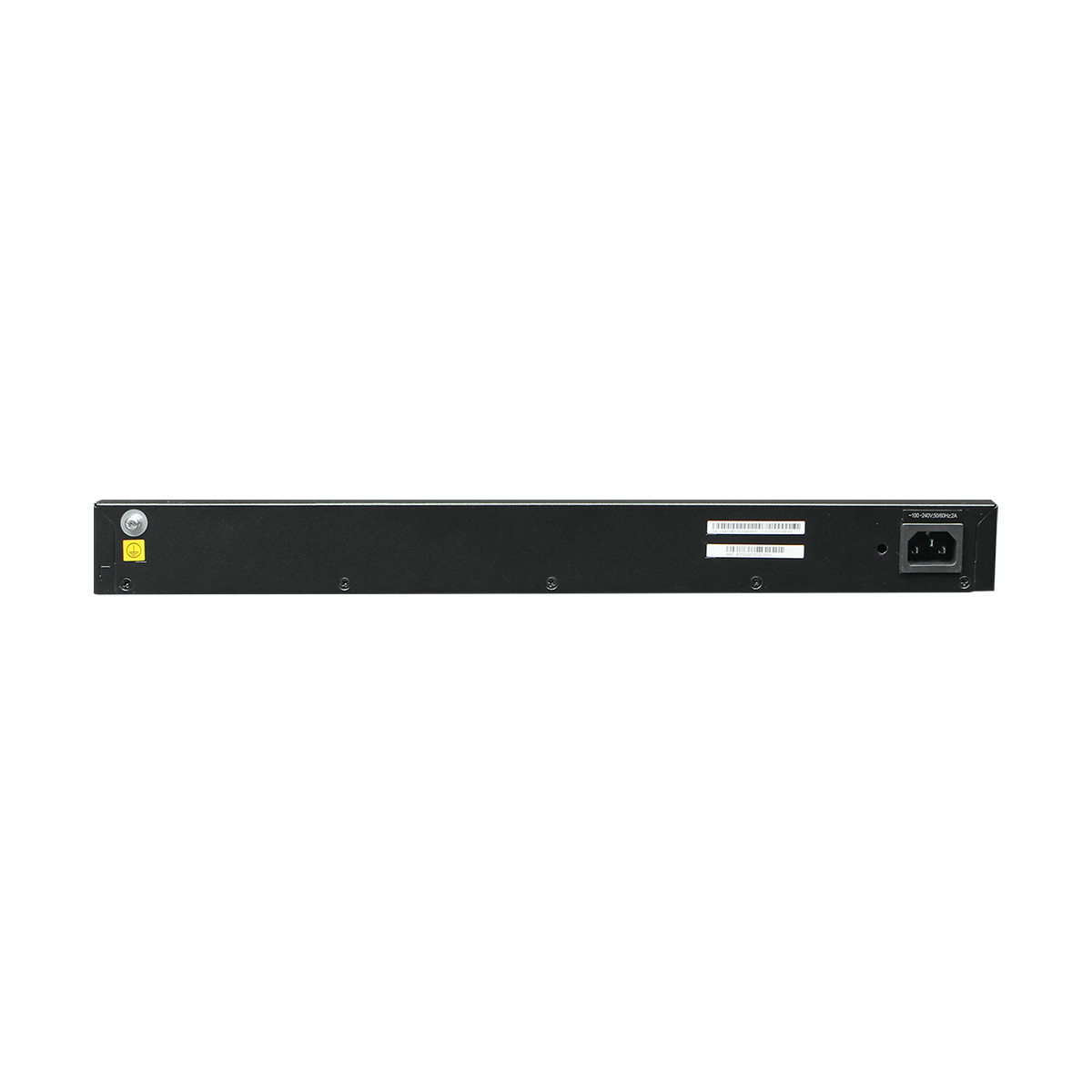

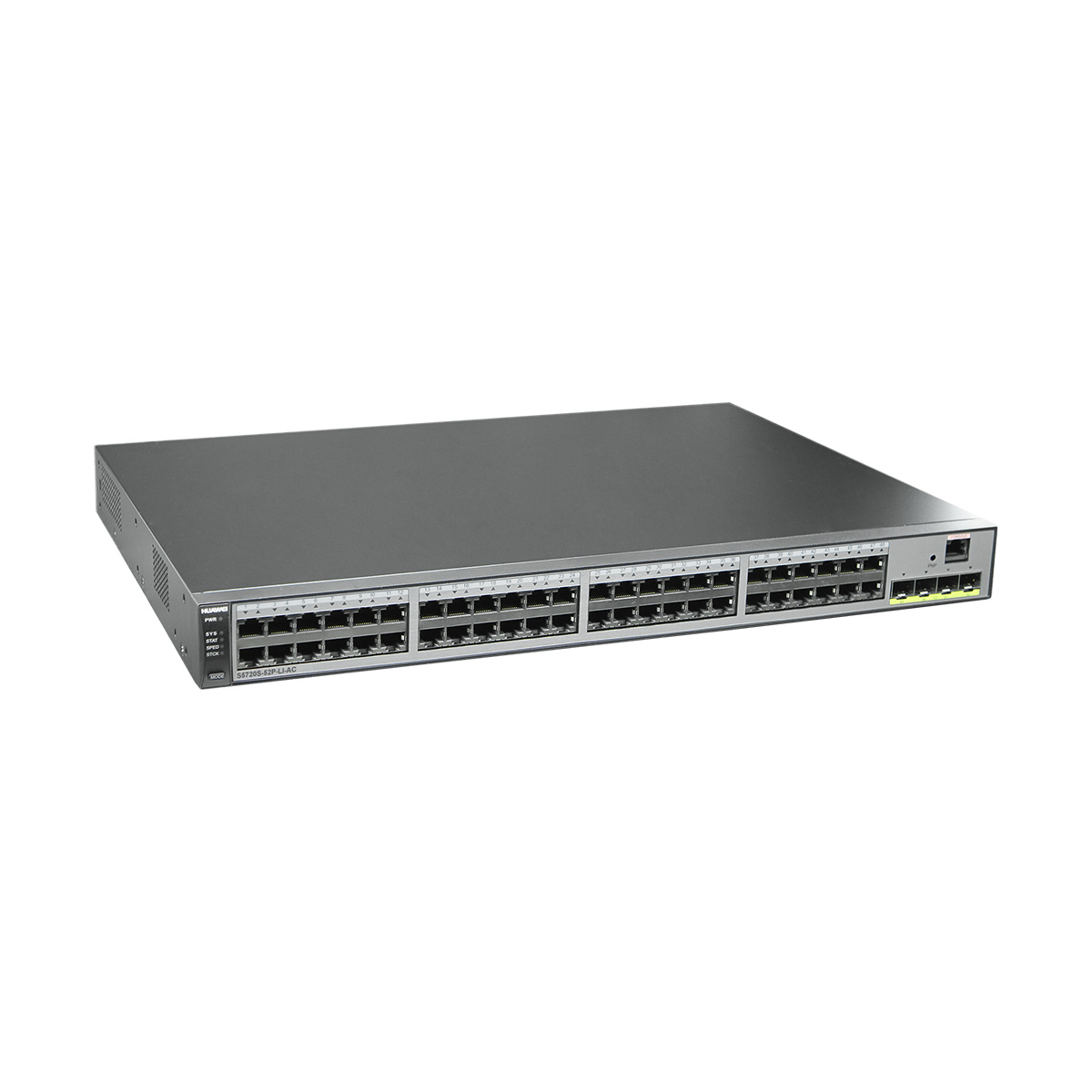

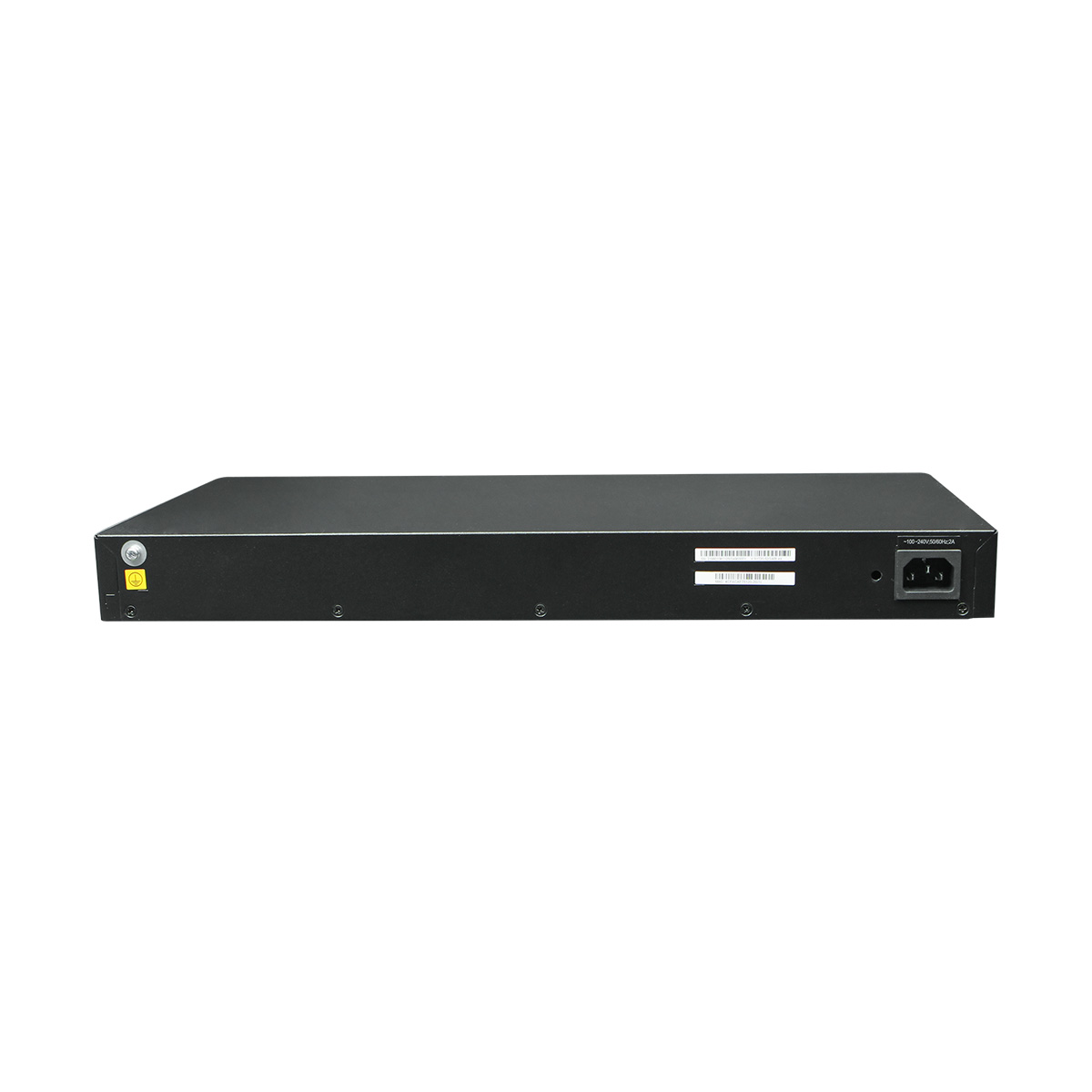

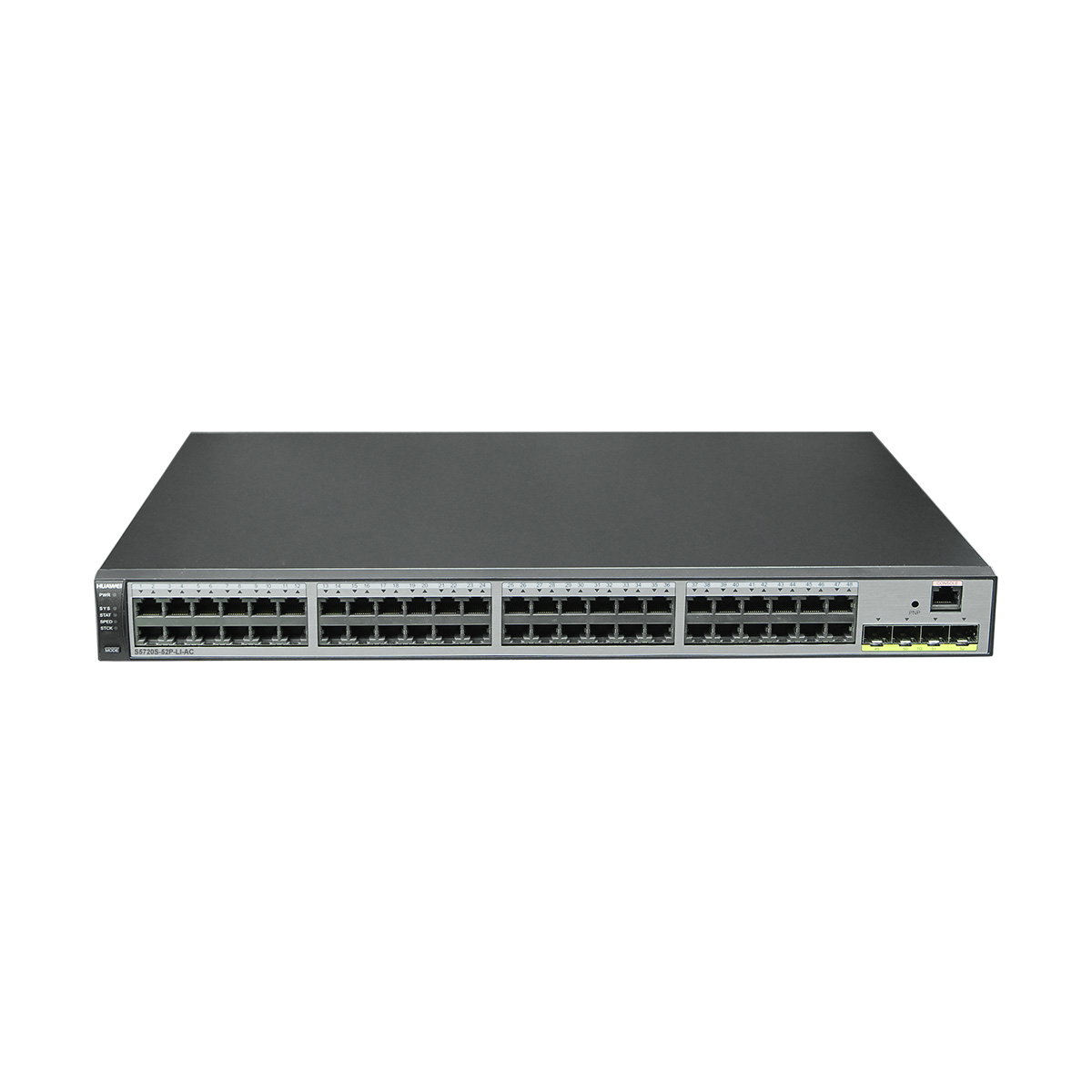

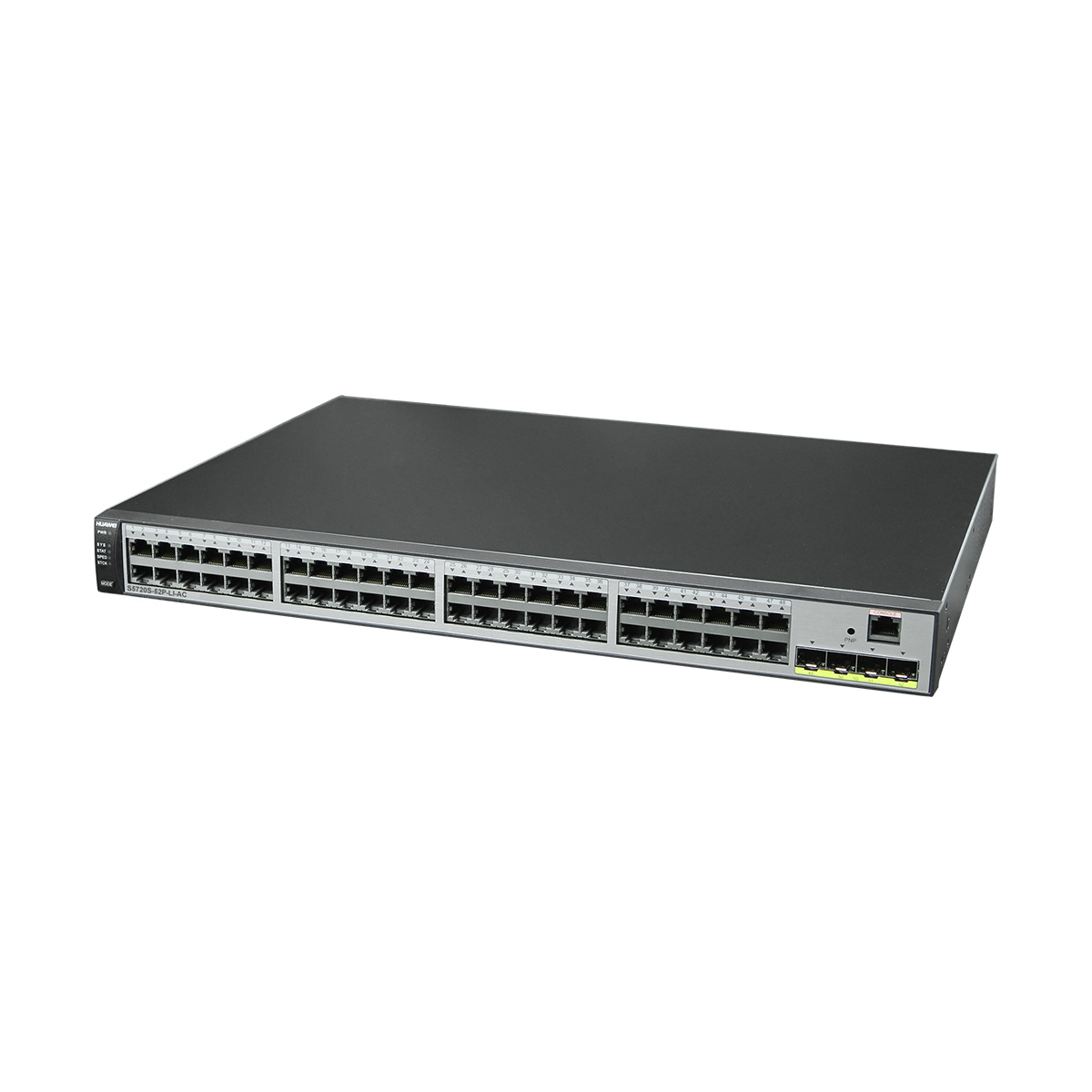

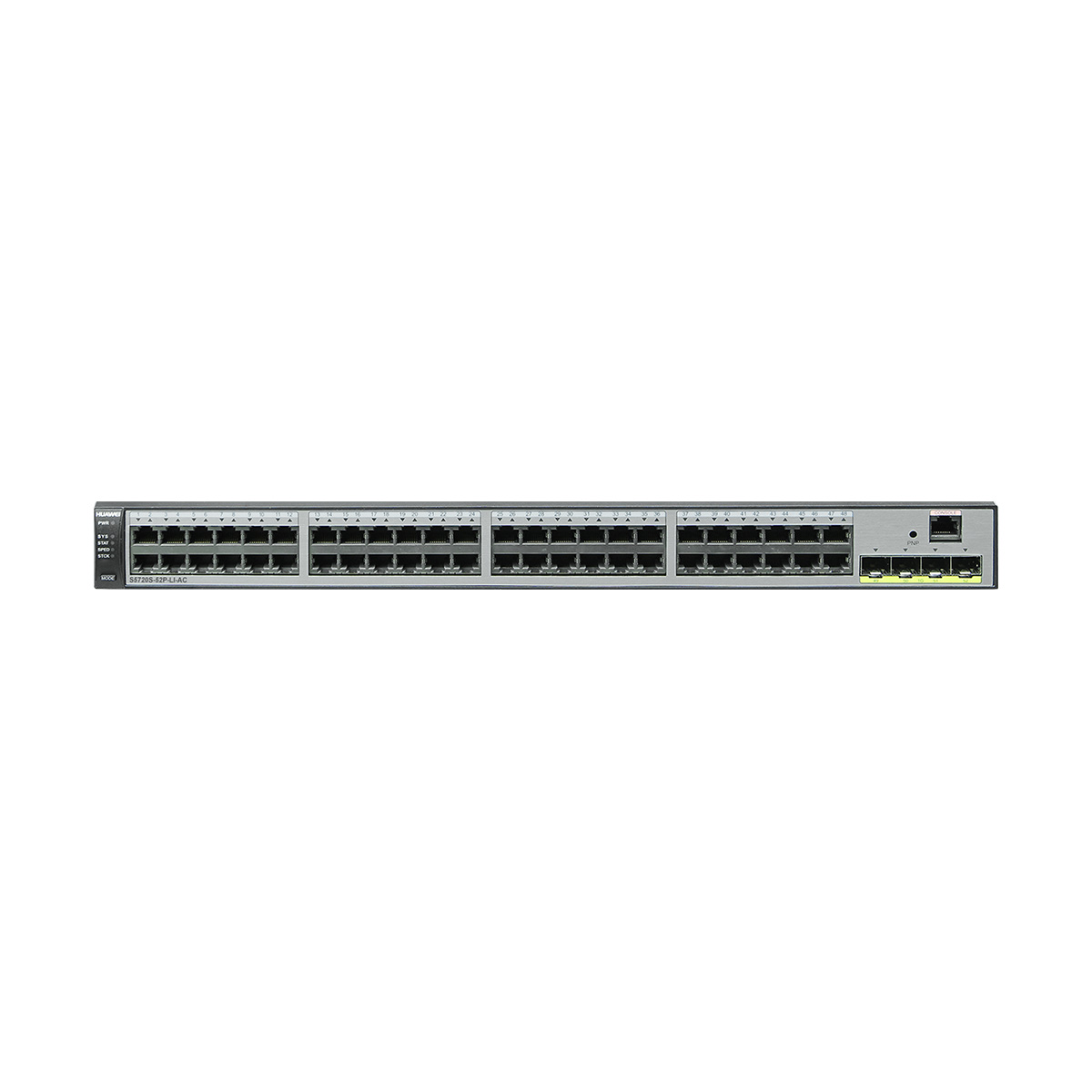

S5720SV2-52P-LI-AC appearance and structure

1	Forty-eight 10/100/1000BASE-T ports	5	Ground screw
2	Four 1000BASE-X ports	6	Jack for AC power cable locking strap
3	One PNP button	7	AC socket
4	One console port

S5720SV2-52P-LI-AC datasheet

Item	S5720SV2-52P-LI-AC
Memory (RAM)	512 MB
Flash	512 MB in total. To view the available flash memory size, run the display version command.
Mean time between failures (MTBF)	41 years
Mean time to repair (MTTR)	2 hours
Availability	> 0.99999
Service port surge protection	Common mode: ±7 kV
Power supply surge protection	±6 kV in differential mode, ±6 kV in common mode
Dimensions (H x W x D)	Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 224.8 mm (1.72 in. x 17.4 in. x 8.85 in.)
Dimensions (H x W x D)	Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 233.8 mm (1.72 in. x 17.4 in. x 9.21 in.)
Weight (with packaging)	4.4 kg (9.7 lb)
Stack ports	Forty-eight 10/100/1000BASE-T ports and four 1000BASE-X ports
RTC	Not supported
RPS	Not supported
PoE	Not supported
Rated voltage range	100 V AC to 240 V AC, 50/60 Hz
Maximum voltage range	90 V AC to 264 V AC, 47 Hz to 63 Hz
Maximum power consumption (100% throughput, full speed of fans)	47.3 W
Typical power consumption (30% of traffic load)	29.9 W
Tested according to ATIS standard
EEE enabled
No PoE power consumption
Operating temperature	0°C to 45°C (32°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.)

	NOTE:
	When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).

Short-term operating temperature	-5°C to +55°C (23°F to 131°F) at an altitude of 0-1800 m (0-5906 ft.)

	NOTE:
	When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
	The equipment can operate beyond the normal operating temperature range for a short-term period, but the following conditions must be met:
	The equipment operates at a temperature of over 45°C (113°F) consecutively for at most 96 hours in one year.
	The equipment operates at a temperature of over 45°C (113°F) for a total of no more than 360 hours in one year.
	The equipment operates at a temperature of over 45°C (113°F) for no more in 15 times in one year.
	The equipment may be damaged or experience unexpected exceptions if any of the preceding limits is exceeded.
	The equipment cannot start when the temperature is lower than 0°C (32°F). The maximum distance of optical modules used in these conditions cannot exceed 10 km.

Storage temperature	-40°C to +70°C (-40°F to +158°F)
Noise under normal temperature (27°C, sound power)	< 44.5 dB(A)
Relative humidity	5% to 95%, noncondensing
Operating altitude	0-5000 m (0-16404 ft.)
Certification	EMC certification
	Safety certification
	Manufacturing certification
Part number	98010853

S5720SV2-52P-LI-AC datasheet

Item	S5720SV2-52P-LI-AC
Memory (RAM)	512 MB
Flash	512 MB in total. To view the available flash memory size, run the display version command.
Mean time between failures (MTBF)	41 years
Mean time to repair (MTTR)	2 hours
Availability	> 0.99999
Service port surge protection	Common mode: ±7 kV
Power supply surge protection	±6 kV in differential mode, ±6 kV in common mode
Dimensions (H x W x D)	Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 224.8 mm (1.72 in. x 17.4 in. x 8.85 in.)
Dimensions (H x W x D)	Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 233.8 mm (1.72 in. x 17.4 in. x 9.21 in.)
Weight (with packaging)	4.4 kg (9.7 lb)
Stack ports	Forty-eight 10/100/1000BASE-T ports and four 1000BASE-X ports
RTC	Not supported
RPS	Not supported
PoE	Not supported
Rated voltage range	100 V AC to 240 V AC, 50/60 Hz
Maximum voltage range	90 V AC to 264 V AC, 47 Hz to 63 Hz
Maximum power consumption (100% throughput, full speed of fans)	47.3 W
Typical power consumption (30% of traffic load)	29.9 W
Tested according to ATIS standard
EEE enabled
No PoE power consumption
Operating temperature	0°C to 45°C (32°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.)

	NOTE:
	When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).

Short-term operating temperature	-5°C to +55°C (23°F to 131°F) at an altitude of 0-1800 m (0-5906 ft.)

	NOTE:
	When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
	The equipment can operate beyond the normal operating temperature range for a short-term period, but the following conditions must be met:
	The equipment operates at a temperature of over 45°C (113°F) consecutively for at most 96 hours in one year.
	The equipment operates at a temperature of over 45°C (113°F) for a total of no more than 360 hours in one year.
	The equipment operates at a temperature of over 45°C (113°F) for no more in 15 times in one year.
	The equipment may be damaged or experience unexpected exceptions if any of the preceding limits is exceeded.
	The equipment cannot start when the temperature is lower than 0°C (32°F). The maximum distance of optical modules used in these conditions cannot exceed 10 km.

Storage temperature	-40°C to +70°C (-40°F to +158°F)
Noise under normal temperature (27°C, sound power)	< 44.5 dB(A)
Relative humidity	5% to 95%, noncondensing
Operating altitude	0-5000 m (0-16404 ft.)
Certification	EMC certification
	Safety certification
	Manufacturing certification
Part number	98010853

Weight	8 kg
Dimensions	59 × 55 × 12 cm
