Categories:S5720 Series

S5720S-52X-SI-DC

Rated 5.00 out of 5 based on 1 customer rating

1 Review Write a review

PN02350NHA

AvailabilityIn Stock

Campus Switch S5720-SI

WarrantyUp to 36 months

Original price was: $0.00.Current price is: $0.00.

Huawei S5720S-52X-SI-DC switch supports 48 10/100/1000BASE-T ports, 4 10GE SFP+ ports, fixed DC power

48 Ports Switch Electrical Switch Fixed DC Switch Lan Access Switch

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

S5720S-52X-SI-DC Overview

Huawei S5720S-52X-SI-DC switch is next-generation standard gigabit Layer 3 Ethernet switch based on a new generation of high-performance hardware and Huawei Versatile Routing Platform (VRP). It provides large switching capacity and high-density GE and 10 GE uplink interfaces for users. With 48 Ethernet 10/100/1,000 ports and 4 x 10 Gig SFP+, the S5720S-52X-SI-DC can be used as access or aggregation switch on campus networks or access switch in data centers. The S5720S-52X-SI-DC integrates many advanced technologies in terms of reliability, security, and energy savings to build next-generation IT networks.

Telecomate.com provides a full range of Huawei switch series, if you have any demands, please contact: csd@telecomate.com

S5720S-52X-SI-DC Quick Spec

8 Ethernet 10/100/1,000 ports, 4 10 Gig SFP+

Forwarding perfomance is 132 Mpps

Switching capacity is 336 Gbps

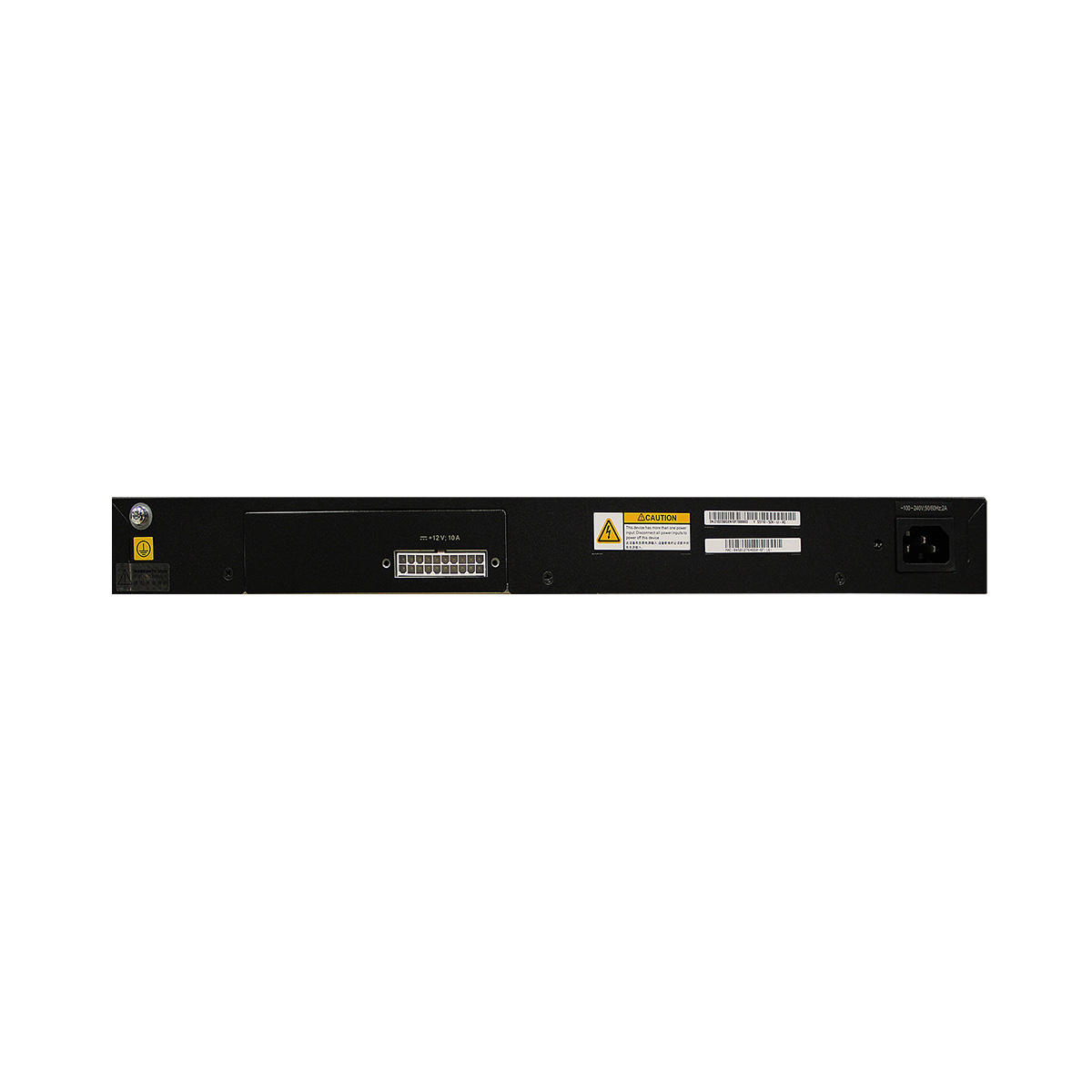

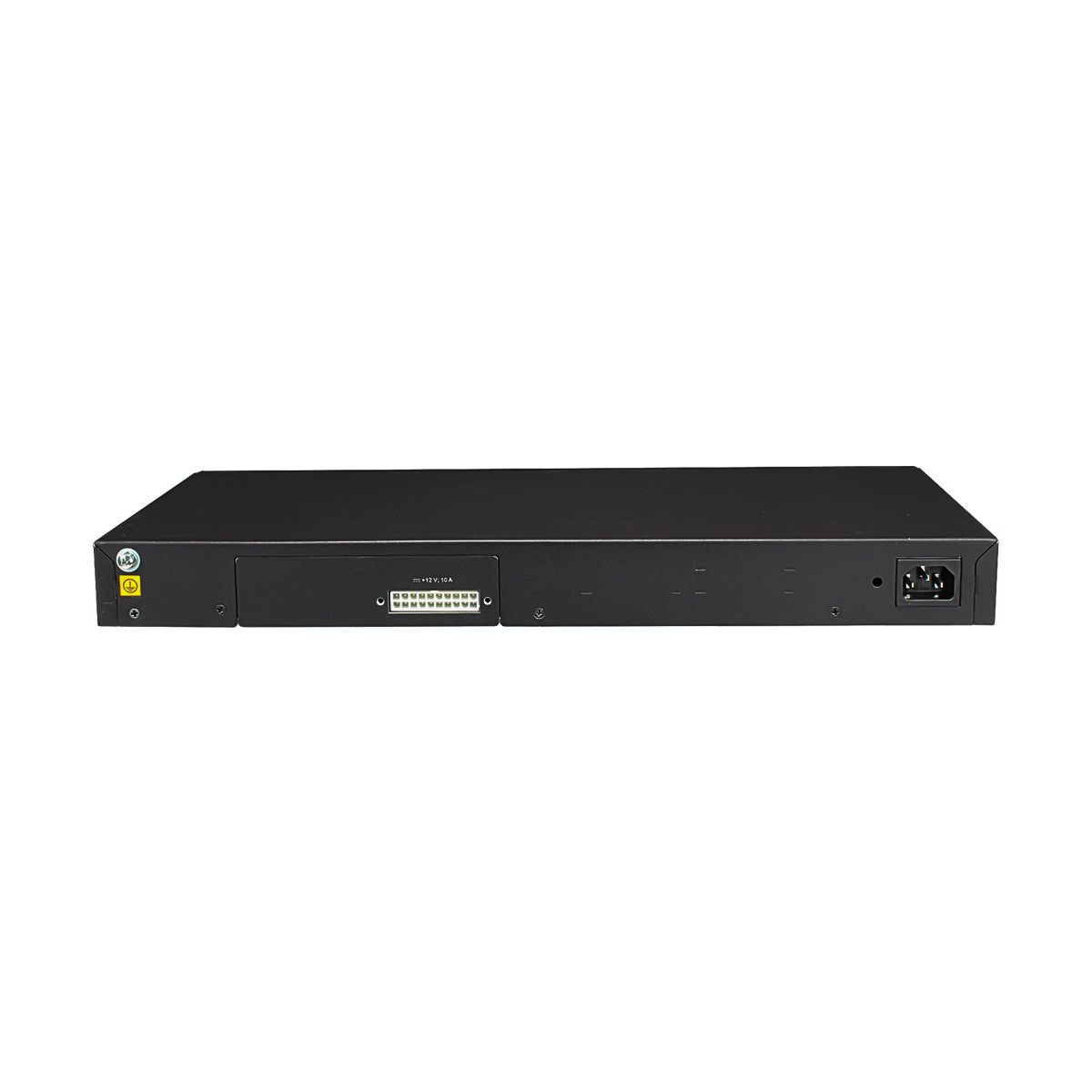

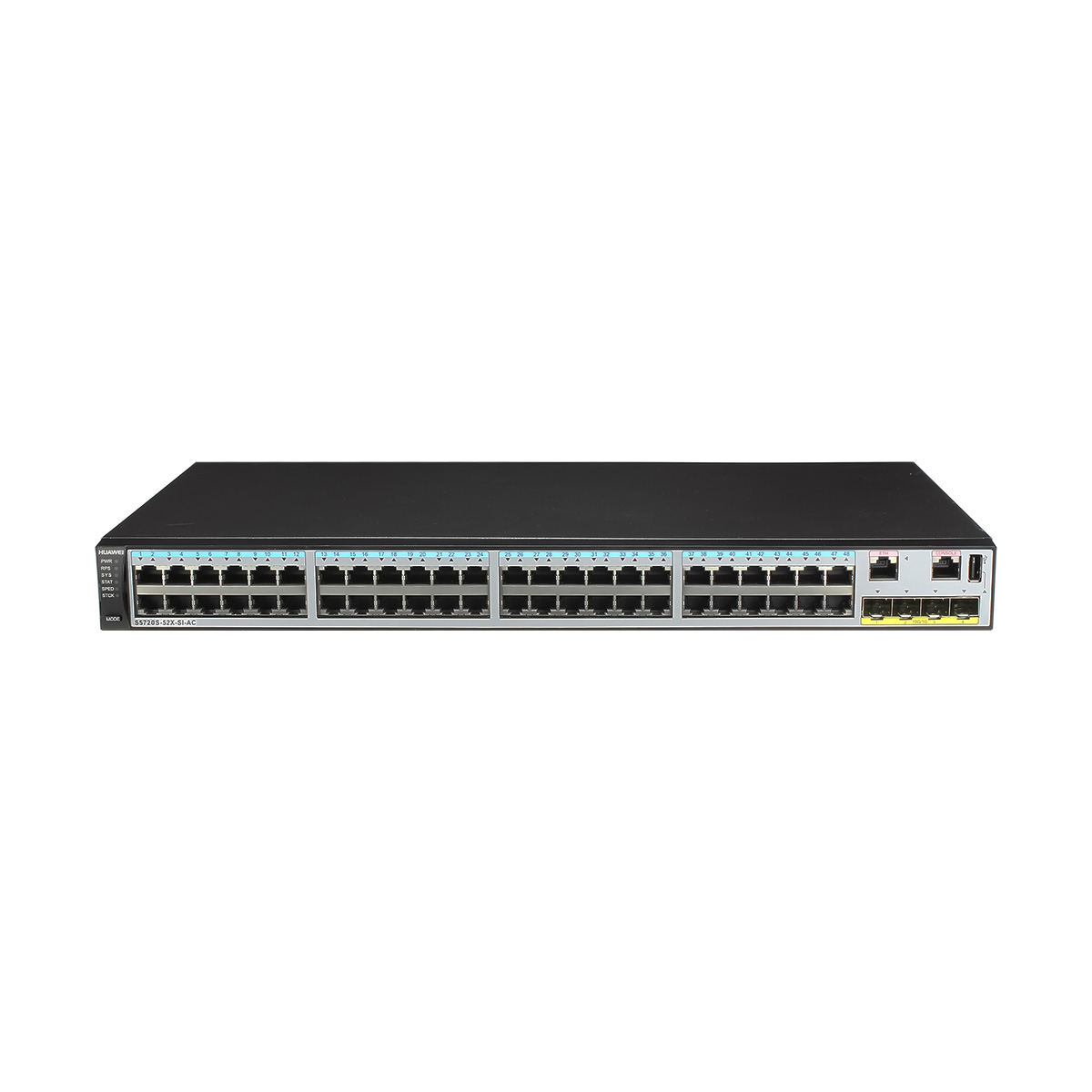

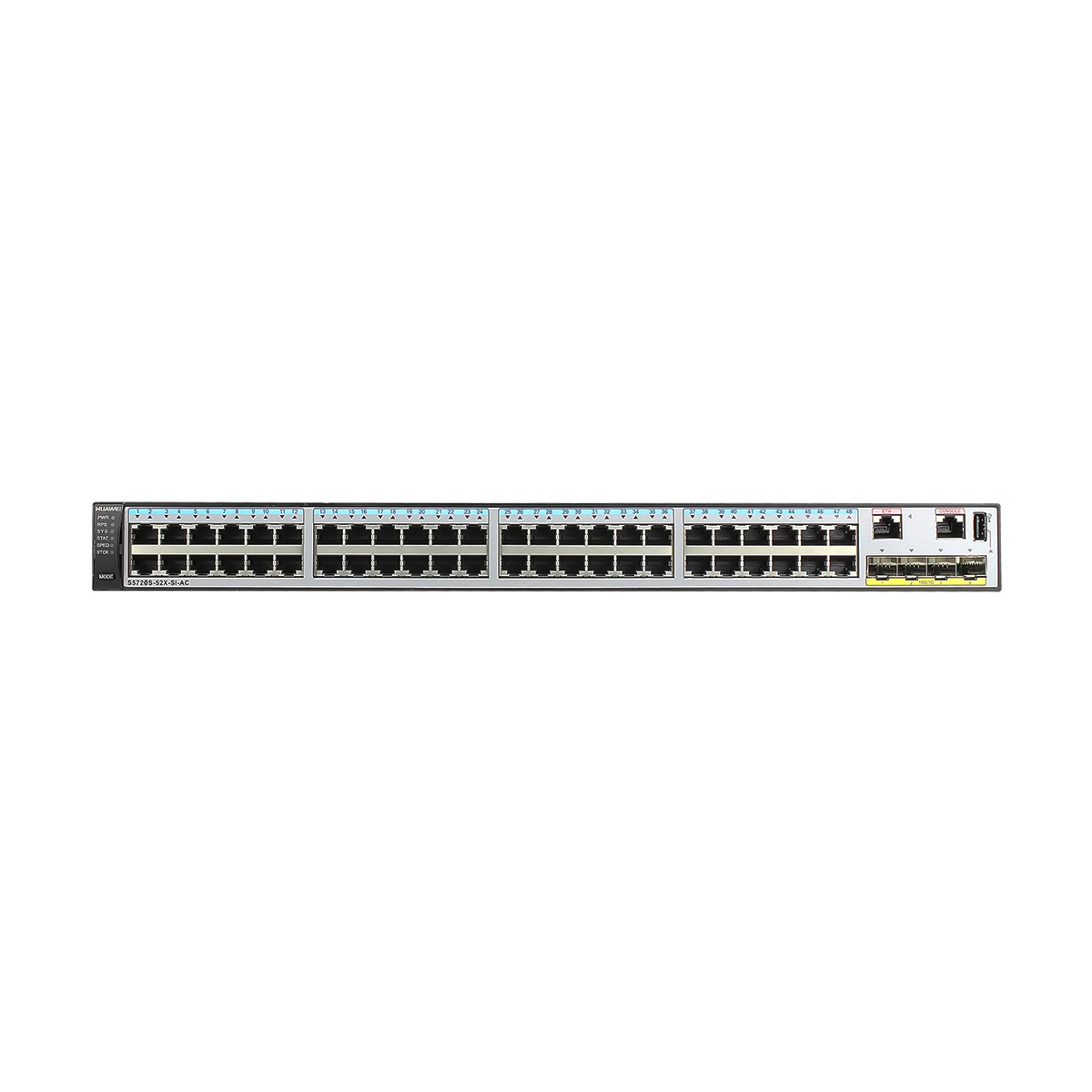

S5720S-52X-SI-DC appearance and structure

1	Forty-eight 10/100/1000BASE-T ports	5	One USB port
2	Four 10GE SFP+ ports	6	Ground screw
3	One ETH management port	7	RPS socket
4	One console port	8	DC power terminal

S5720S-52X-SI-DC Datasheet

Item	S5720S-52X-SI-DC
Fixed port	48 Ethernet 10/100/1000 ports and 4 10 Gig SFP+
Forwarding perfomance	132Mpps
Switching capacity	336Gbps
Extended slot	NA
MAC address table	IEEE 802.1d
	16K MAC address entries
	MAC address learning and aging
	Static, dynamic, and blackhole MAC address entries
	Packet filtering based on source MAC addresses
VLAN	4K VLANs
	Guest VLAN and voice VLAN
	GVRP
	MUX VLAN
	VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports
	1:1 and N:1 VLAN mapping
Jumbo frame	10K
Ring protection	RRPP ring topology and RRPP multi-instance
	Smart Link tree topology and Smart Link multi-instance, providing millisecond-level
	protection switchover
	Smart Ethernet Protection (SEP),G.8032 Ethernet Ring Protection Switching (ERPS)
	STP (IEEE 802.1d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s)
	BPDU protection, root protection, and loop protection
IP routing	Static route, RIPv1, RIPv2, RIPng, ECMP, OSPF, OSPFv3, BGP, BGP4+, ISIS, ISISv6,
IP routing	VRRP, VRRP6
IPv6 features	Neighbor Discovery (ND)
	Path maximum transmission unit (PMTU)
	IPv6 Ping, IPv6 Tracert, and IPv6 Telnet
	6 to4 tunnel, ISATAP tunnel, and manually configured tunnel
	ACLs based on source IPv6 addresses, destination IPv6 addresses, Layer 4 ports, or
	protocol types
	Multicast Listener Discovery (MLD) v1/v2 snooping
Multicast forwarding	PIM DM, PIM SM, PIM SSM
	IGMP v1/v2/v3 snooping and IGMP fast leave
	Multicast forwarding in a VLAN and multicast replication between VLANs
	Multicast load balancing among member ports of a trunk
	Controllable multicast
	Port-based multicast traffic statistics
QoS/ACL	Rate limiting on packets sent and received by an interface
	Packet redirection
	Port-based traffic policing and two-rate three-color CAR
	WRR, DRR, SP, WRR+SP, and DRR+SP queue scheduling algorithms
	Eight queues per port,
	Rate limiting in each queue and traffic shaping on ports
	Re-marking of the 802.1p priority and DSCP value of packets
	Packet filtering at Layer 2 to Layer 4, filtering out invalid frames based on the source
	MAC address, destination MAC address, source IP address, destination IP address,
	TCP/UDP port number, protocol type, and VLAN ID
Security features	User privilege management and password protection
	DoS attack defense, ARP attack defense, and ICMP attack defense
	Binding of the IP address, MAC address, interface, and VLAN
	Port isolation, port security, and sticky MAC
	Blackhole MAC address entries
	MAC Forced Forwarding (MFF)
	Limit on the number of learned MAC addresses
	802.1x authentication and limit on the number of users on an interface
	AAA authentication, RADIUS authentication, HWTACACS+ authentication, and NAC SSH v2.0
	Hypertext Transfer Protocol Secure (HTTPS)
	802.1x authentication, MAC address authentication, and combined authentication on a per port basis
	Portal authentication on a per VLANIF interface basis
	CPU defense; Blacklist and whitelist; MACSec hardware ready
Super Virtual Fabric (SVF)	Working as an SVF client that is plug-and-play with zero configuration
	Automatically loading the system software package and patches of clients
	One-click and automatic delivery of service configurations
	Supports independent running client
OAM	Software OAM:
	EFM OAM
	CFM OAM
	Y.1731 performance test
Management and Maintenance	iStack, Virtual cable test, SNMP v1/v2c/v3
	Web-based network management system
	System logs and multi-level alarms
	sFlow
	LLDP/LLDP-MED
	RMON
Interoperability	Supports VBST (Compatible with PVST/PVST+/RPVST)
	Supports LNP (Similar to DTP)
	Supports VCMP (Similar to VTP)
Operating environment	Operating temperature:
	0-1800 m altitude: 0-45℃
	1800-5000m altitude: The operating temperature reduces by 1℃ every time the
	altitude increases by 220m.
	Relative humidity: 5% to 95% (noncondensing)
Input voltage	AC:
	Rated voltage range: 100 V to 240 V AC, 50/60
	HzMaximum voltage range: 90 V to 264 V AC, 50/60 Hz
	DC:
	Rated voltage range: –48 V to –60 V, DC
	Maximum voltage range: –36 V to –72 V, DC
Dimensions (mm)	442 (W) x 220 (D)x 43.6 (H)
Typical power consumption	34.4W

S5720S-52X-SI-DC Datasheet

Item	S5720S-52X-SI-DC
Fixed port	48 Ethernet 10/100/1000 ports and 4 10 Gig SFP+
Forwarding perfomance	132Mpps
Switching capacity	336Gbps
Extended slot	NA
MAC address table	IEEE 802.1d
	16K MAC address entries
	MAC address learning and aging
	Static, dynamic, and blackhole MAC address entries
	Packet filtering based on source MAC addresses
VLAN	4K VLANs
	Guest VLAN and voice VLAN
	GVRP
	MUX VLAN
	VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports
	1:1 and N:1 VLAN mapping
Jumbo frame	10K
Ring protection	RRPP ring topology and RRPP multi-instance
	Smart Link tree topology and Smart Link multi-instance, providing millisecond-level
	protection switchover
	Smart Ethernet Protection (SEP),G.8032 Ethernet Ring Protection Switching (ERPS)
	STP (IEEE 802.1d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s)
	BPDU protection, root protection, and loop protection
IP routing	Static route, RIPv1, RIPv2, RIPng, ECMP, OSPF, OSPFv3, BGP, BGP4+, ISIS, ISISv6,
IP routing	VRRP, VRRP6
IPv6 features	Neighbor Discovery (ND)
	Path maximum transmission unit (PMTU)
	IPv6 Ping, IPv6 Tracert, and IPv6 Telnet
	6 to4 tunnel, ISATAP tunnel, and manually configured tunnel
	ACLs based on source IPv6 addresses, destination IPv6 addresses, Layer 4 ports, or
	protocol types
	Multicast Listener Discovery (MLD) v1/v2 snooping
Multicast forwarding	PIM DM, PIM SM, PIM SSM
	IGMP v1/v2/v3 snooping and IGMP fast leave
	Multicast forwarding in a VLAN and multicast replication between VLANs
	Multicast load balancing among member ports of a trunk
	Controllable multicast
	Port-based multicast traffic statistics
QoS/ACL	Rate limiting on packets sent and received by an interface
	Packet redirection
	Port-based traffic policing and two-rate three-color CAR
	WRR, DRR, SP, WRR+SP, and DRR+SP queue scheduling algorithms
	Eight queues per port,
	Rate limiting in each queue and traffic shaping on ports
	Re-marking of the 802.1p priority and DSCP value of packets
	Packet filtering at Layer 2 to Layer 4, filtering out invalid frames based on the source
	MAC address, destination MAC address, source IP address, destination IP address,
	TCP/UDP port number, protocol type, and VLAN ID
Security features	User privilege management and password protection
	DoS attack defense, ARP attack defense, and ICMP attack defense
	Binding of the IP address, MAC address, interface, and VLAN
	Port isolation, port security, and sticky MAC
	Blackhole MAC address entries
	MAC Forced Forwarding (MFF)
	Limit on the number of learned MAC addresses
	802.1x authentication and limit on the number of users on an interface
	AAA authentication, RADIUS authentication, HWTACACS+ authentication, and NAC SSH v2.0
	Hypertext Transfer Protocol Secure (HTTPS)
	802.1x authentication, MAC address authentication, and combined authentication on a per port basis
	Portal authentication on a per VLANIF interface basis
	CPU defense; Blacklist and whitelist; MACSec hardware ready
Super Virtual Fabric (SVF)	Working as an SVF client that is plug-and-play with zero configuration
	Automatically loading the system software package and patches of clients
	One-click and automatic delivery of service configurations
	Supports independent running client
OAM	Software OAM:
	EFM OAM
	CFM OAM
	Y.1731 performance test
Management and Maintenance	iStack, Virtual cable test, SNMP v1/v2c/v3
	Web-based network management system
	System logs and multi-level alarms
	sFlow
	LLDP/LLDP-MED
	RMON
Interoperability	Supports VBST (Compatible with PVST/PVST+/RPVST)
	Supports LNP (Similar to DTP)
	Supports VCMP (Similar to VTP)
Operating environment	Operating temperature:
	0-1800 m altitude: 0-45℃
	1800-5000m altitude: The operating temperature reduces by 1℃ every time the
	altitude increases by 220m.
	Relative humidity: 5% to 95% (noncondensing)
Input voltage	AC:
	Rated voltage range: 100 V to 240 V AC, 50/60
	HzMaximum voltage range: 90 V to 264 V AC, 50/60 Hz
	DC:
	Rated voltage range: –48 V to –60 V, DC
	Maximum voltage range: –36 V to –72 V, DC
Dimensions (mm)	442 (W) x 220 (D)x 43.6 (H)
Typical power consumption	34.4W

Weight	4.0000 kg
Dimensions	55.0000 × 36.0000 × 9.0000 cm
