S5720S-28X-SI-AC

1 Review Write a review
PN02350DLP
AvailabilityIn Stock
Campus Switch S5720-SI
WarrantyUp to 36 months i
×
Warranty Policy
We provide a comprehensive warranty policy.
Refer to the table for more details.

Original price was: $0.00.Current price is: $0.00.

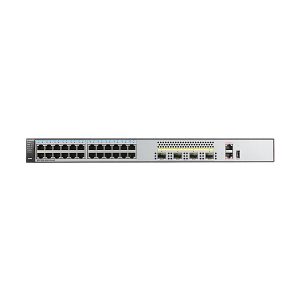

Huawei S5720S-28X-SI-AC switch supports 24 10/100/1000BASE-T ports, 4 10GE SFP+ ports, fixed AC power

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

S5720S-28X-SI-AC Overview

Huawei S5720S-28X-SI-DC switch with 24 10/100/1000BASE-T ports, 4 10GE SFP+ ports, fixed DC power, which is one of the S5720 serie switch.

Huawei S5720 series Ethernet switches are next-generation energy-saving GE switches designed to provide high-bandwidth access and Ethernet multi-service aggregation.

Telecomate.com provides a full range of Huawei switches, optical modules, extension boards, if you have more demands, please contact csd@telecomate.com.

S5720S-28X-SI-AC Quick Specs

24 10/100/1000BASE-T ports

4 10GE SFP+ ports

fixed DC power

Forwarding performance is 96 Mpps

Switching capacity is 336 Gbit/s

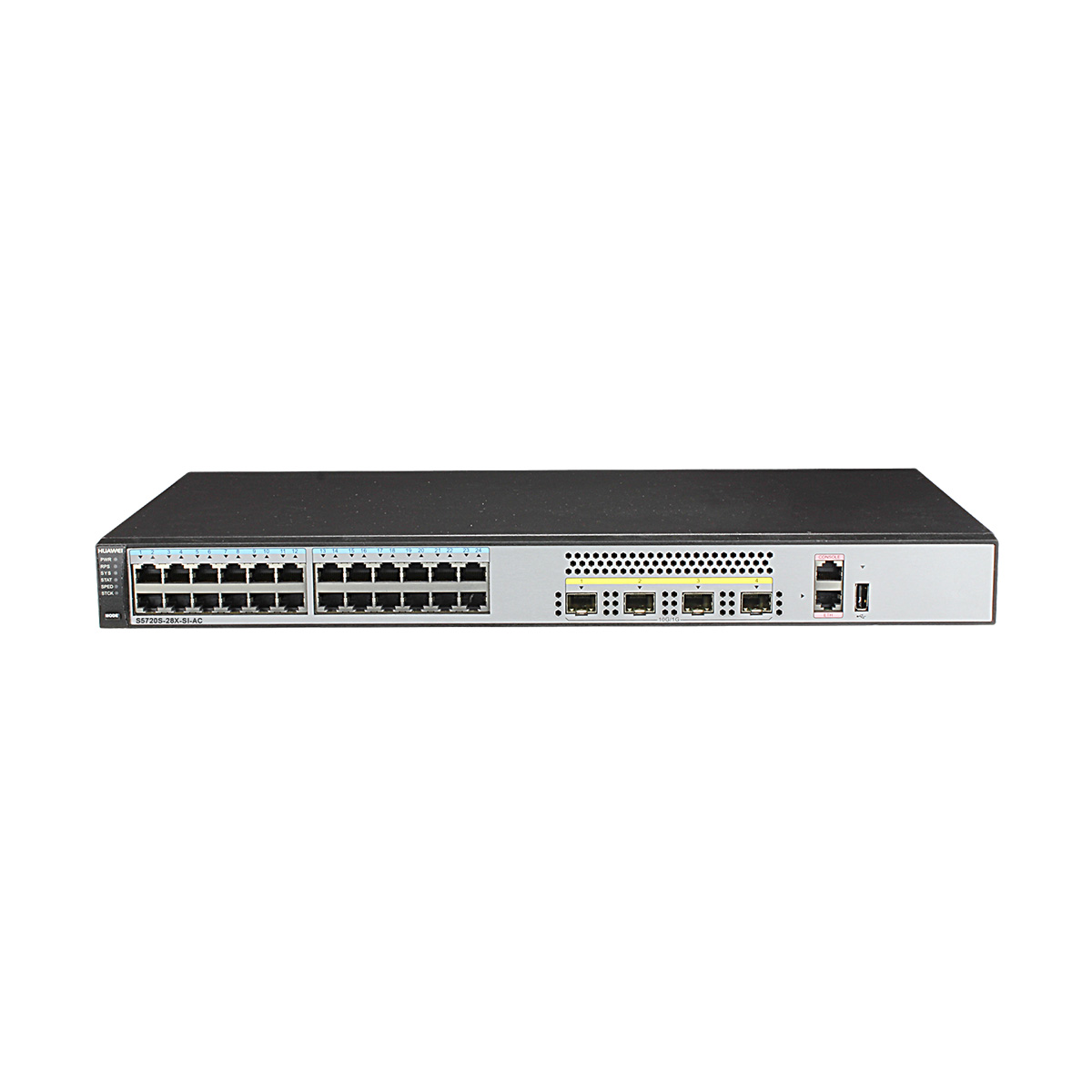

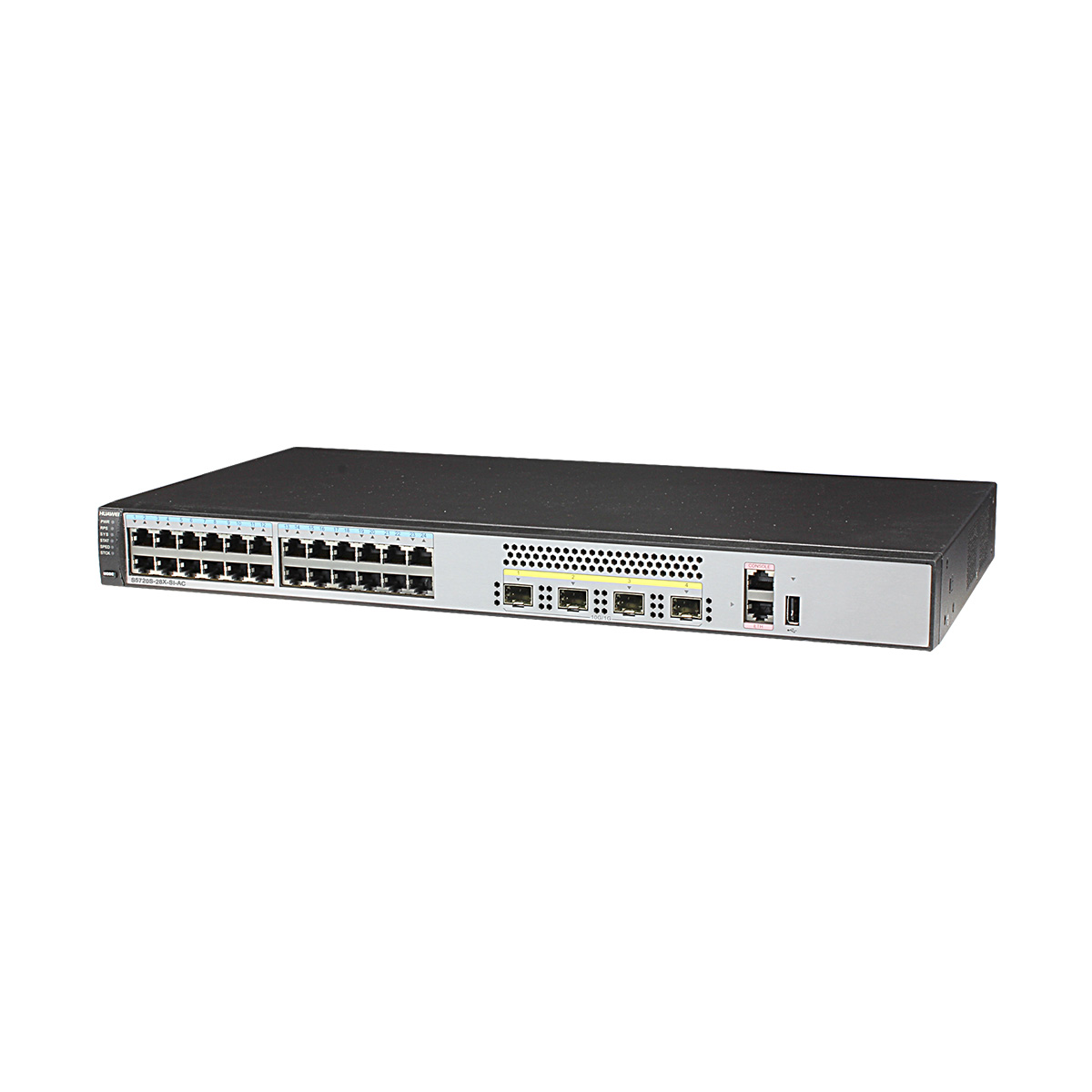

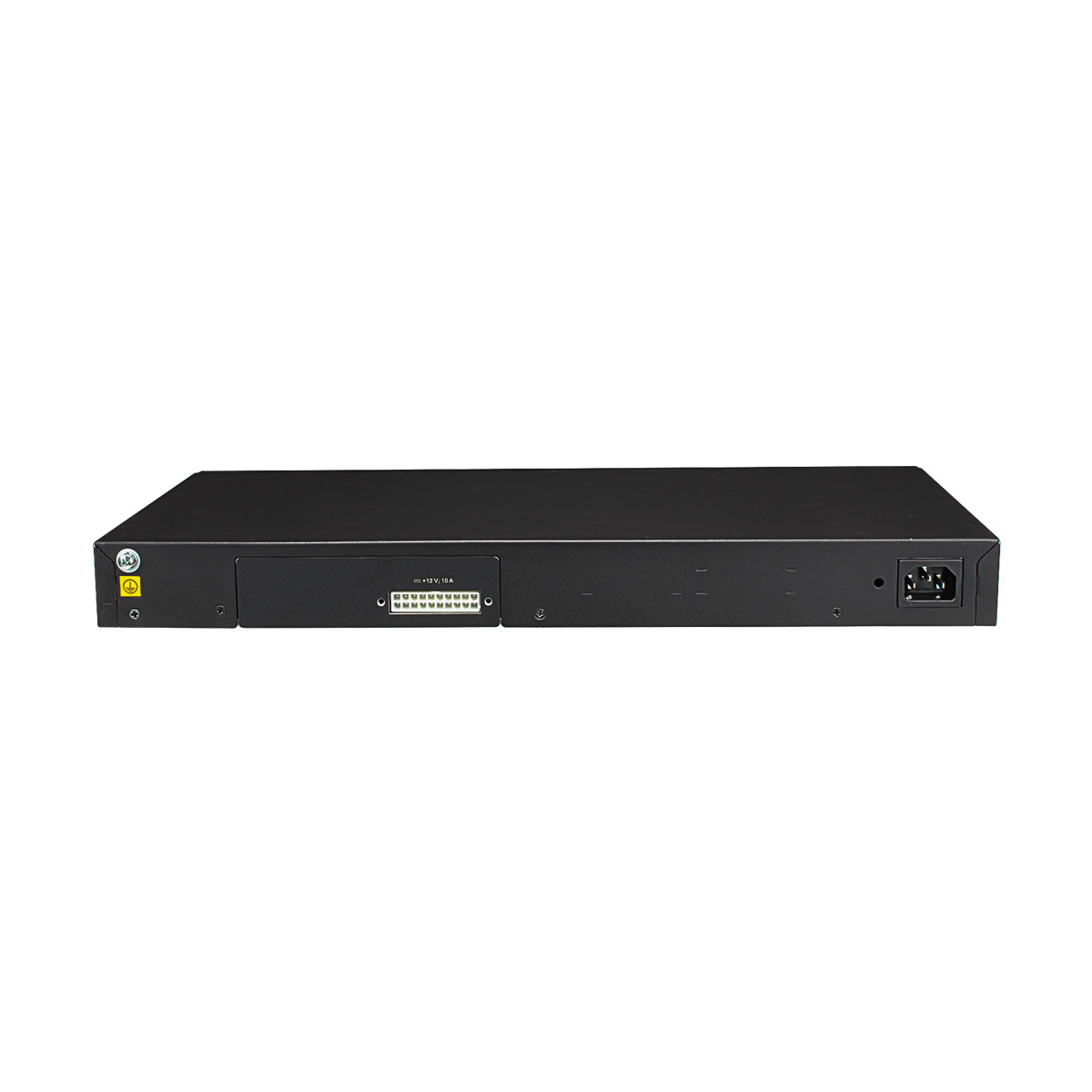

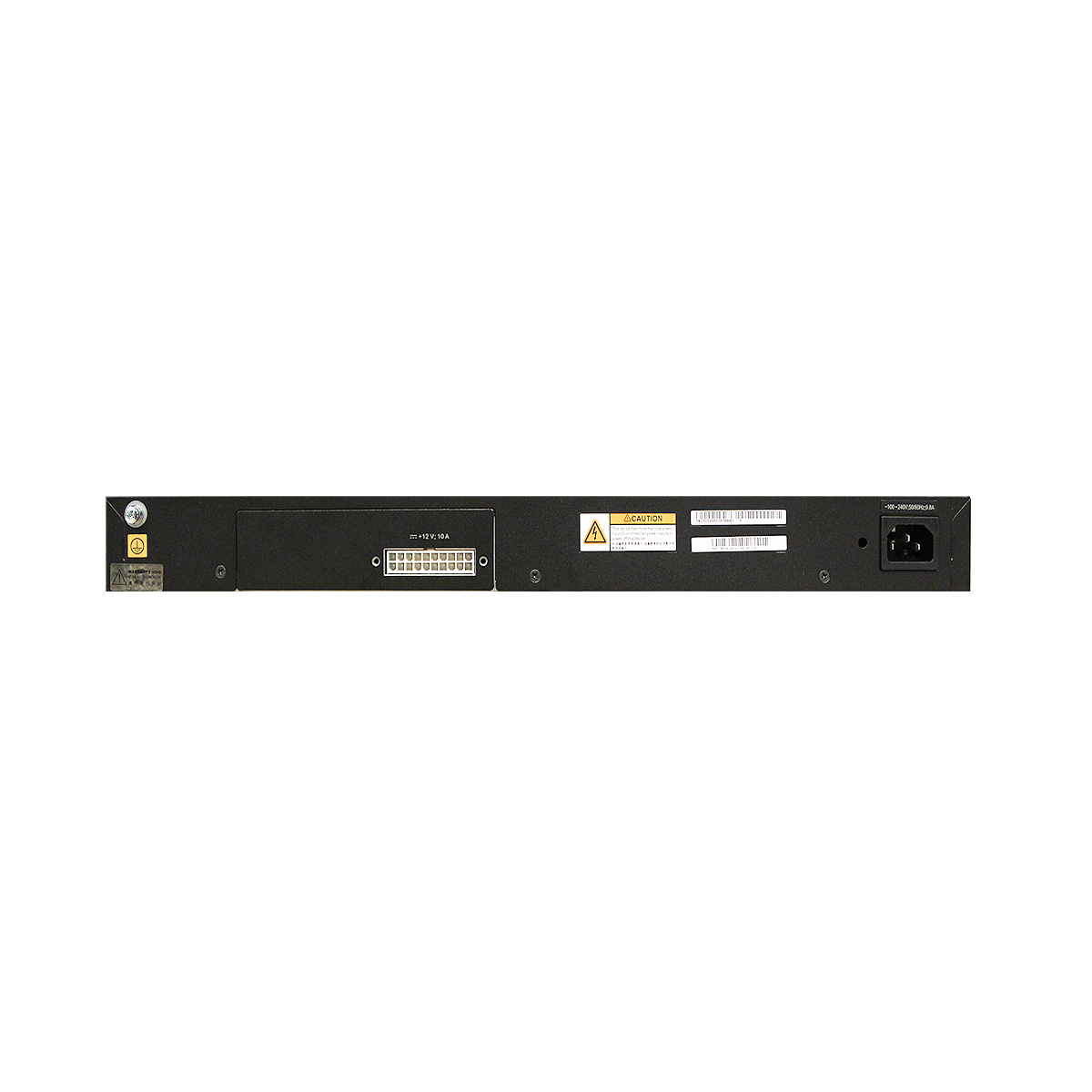

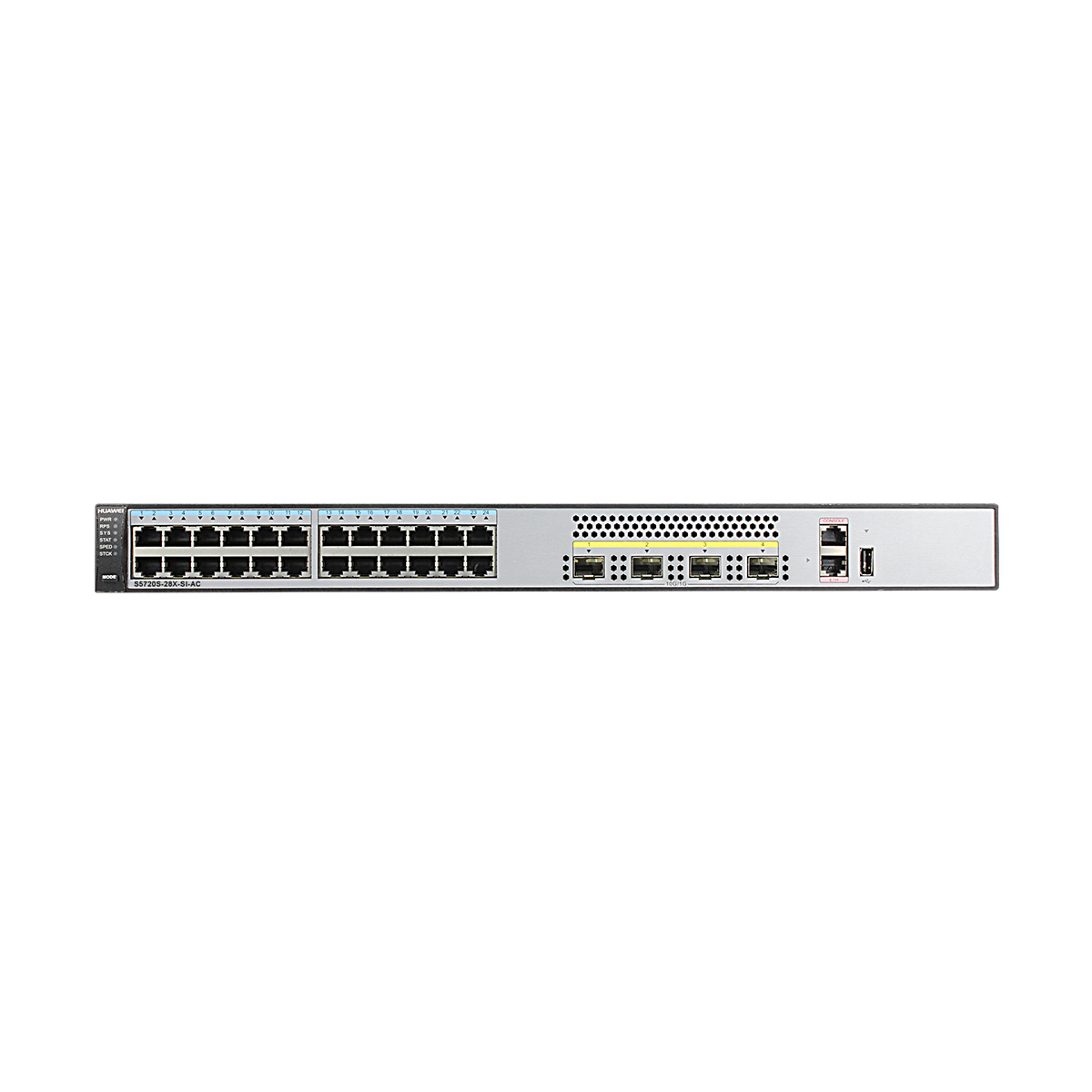

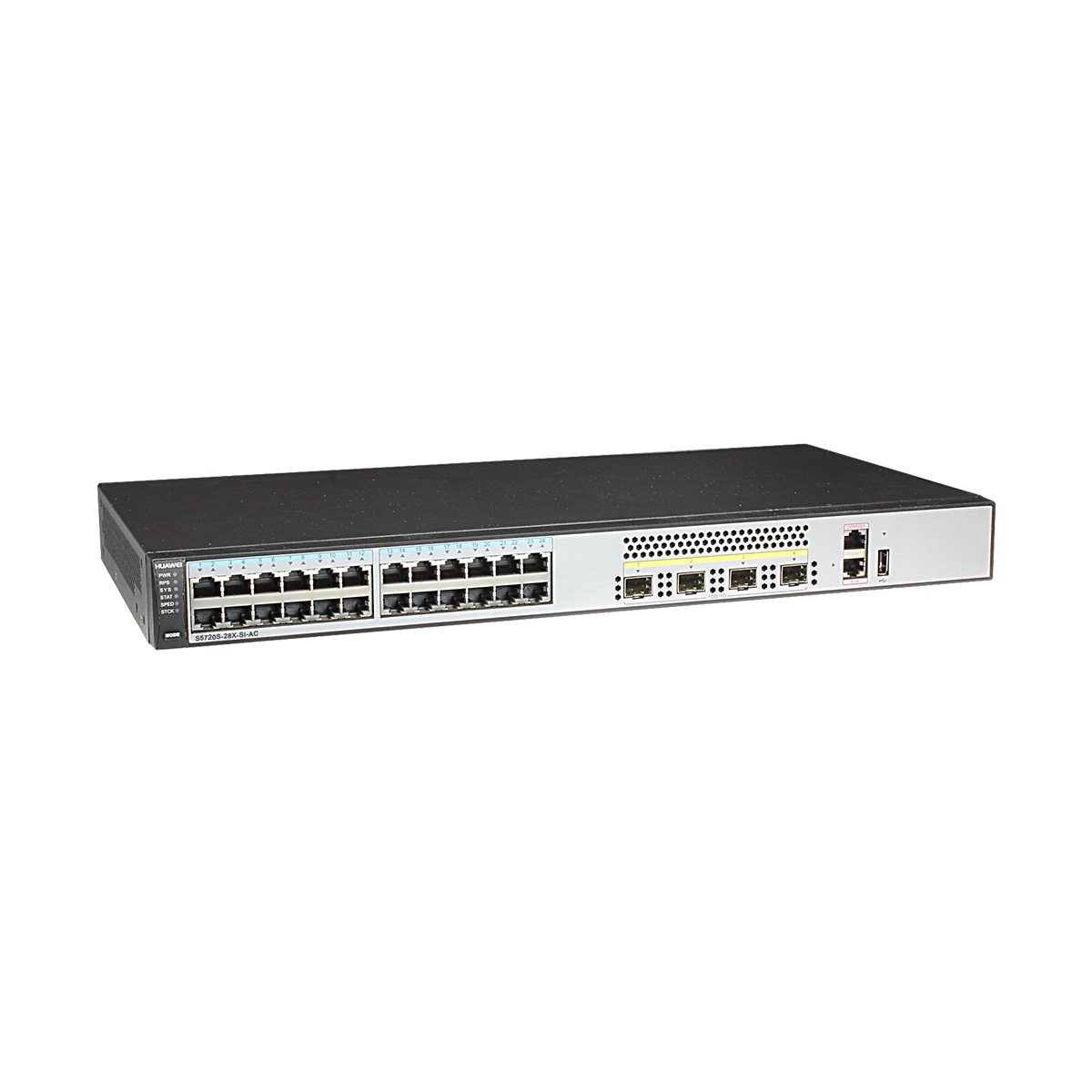

S5720S-28X-SI-AC appearance and structure

S5720S-28X-SI-AC appearance and structure

1. Twenty-four 10/100/1000BASE-T ports 6. Ground screw
2. Four 10GE SFP+ ports 7. RPS socket
3. One ETH management port 8. Jack for AC power cable locking strap
4. One console port 9. AC socket
5. One USB port
S5720S-28X-SI-AC Datasheet
Description S5720S-28X-SI-AC　
Fixed port 24 Ethernet 10/100/1000 ports and 4 10 Gig SFP+
Forwarding perfomance 96Mpps
Switching capacity 336Gbps
Extended slot NA
MAC address table IEEE 802.1d
16K MAC address entries
MAC address learning and aging
Static, dynamic, and blackhole MAC address entries
Packet filtering based on source MAC addresses
VLAN 4K VLANs
Guest VLAN and voice VLAN
GVRP
MUX VLAN
VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports
1:1 and N:1 VLAN mapping
Jumbo frame 10K
Ring protection RRPP ring topology and RRPP multi-instance
Smart Link tree topology and Smart Link multi-instance, providing millisecond-level
protection switchover
Smart Ethernet Protection (SEP),G.8032 Ethernet Ring Protection Switching (ERPS)
STP (IEEE 802.1d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s)
BPDU protection, root protection, and loop protection
IP routing Static route, RIPv1, RIPv2, RIPng, ECMP, OSPF, OSPFv3, BGP, BGP4+, ISIS, ISISv6, VRRP, VRRP6
IPv6 features Neighbor Discovery (ND)
Path maximum transmission unit (PMTU)
IPv6 Ping, IPv6 Tracert, and IPv6 Telnet
6 to4 tunnel, ISATAP tunnel, and manually configured tunnel
ACLs based on source IPv6 addresses, destination IPv6 addresses, Layer 4 ports, or
protocol types
Multicast Listener Discovery (MLD) v1/v2 snooping
Multicast forwarding PIM DM, PIM SM, PIM SSM
IGMP v1/v2/v3 snooping and IGMP fast leave
Multicast forwarding in a VLAN and multicast replication between VLANs
Multicast load balancing among member ports of a trunk
Controllable multicast
Port-based multicast traffic statistics
QoS/ACL Rate limiting on packets sent and received by an interface
Packet redirection
Port-based traffic policing and two-rate three-color CAR
WRR, DRR, SP, WRR+SP, and DRR+SP queue scheduling algorithms
Eight queues per port,
Rate limiting in each queue and traffic shaping on ports
Re-marking of the 802.1p priority and DSCP value of packets
Packet filtering at Layer 2 to Layer 4, filtering out invalid frames based on the source
MAC address, destination MAC address, source IP address, destination IP address,
TCP/UDP port number, protocol type, and VLAN ID
Security features User privilege management and password protection
DoS attack defense, ARP attack defense, and ICMP attack defense
Binding of the IP address, MAC address, interface, and VLAN
Port isolation, port security, and sticky MAC
Blackhole MAC address entries
MAC Forced Forwarding (MFF)
Limit on the number of learned MAC addresses
802.1x authentication and limit on the number of users on an interface
AAA authentication, RADIUS authentication, HWTACACS+ authentication, and NAC SSH v2.0
Hypertext Transfer Protocol Secure (HTTPS)
802.1x authentication, MAC address authentication, and combined authentication on a per port basis
Portal authentication on a per VLANIF interface basis
CPU defense; Blacklist and whitelist; MACSec hardware ready
Super Virtual Fabric (SVF) Working as an SVF client that is plug-and-play with zero configuration
Automatically loading the system software package and patches of clients
One-click and automatic delivery of service configurations
Supports independent running client
OAM Software OAM:
EFM OAM
CFM OAM
Y.1731 performance test
Management and  Maintenance iStack, Virtual cable test, SNMP v1/v2c/v3
Web-based network management system
System logs and multi-level alarms
sFlow
LLDP/LLDP-MED
RMON
Interoperability Supports VBST (Compatible with PVST/PVST+/RPVST)
Supports LNP (Similar to DTP)
Supports VCMP (Similar to VTP)
Operating environment Operating temperature:
0-1800 m altitude: 0-45℃
1800-5000m altitude: The operating temperature reduces by 1℃ every time the
altitude increases by 220m.
Relative humidity: 5% to 95% (noncondensing)
Input voltage AC: Rated voltage range: 100 V to 240 V AC, 50/60 Hz Maximum voltage range: 90 V to 264 V AC, 50/60 Hz DC: Rated voltage range: –48 V to –60 V, DC Maximum voltage range: –36 V to –72 V, DC
Dimensions (mm) 442 (W) x 220 (D)x 43.6 (H)
Typical power consumption 22W

Additional information

Weight 5720-28-- kg
Dimensions 55.0000 × 36.0000 × 9.0000 cm
Campus Switch

S5720S-28X-SI-AC Datasheet
Description S5720S-28X-SI-AC　
Fixed port 24 Ethernet 10/100/1000 ports and 4 10 Gig SFP+
Forwarding perfomance 96Mpps
Switching capacity 336Gbps
Extended slot NA
MAC address table IEEE 802.1d
16K MAC address entries
MAC address learning and aging
Static, dynamic, and blackhole MAC address entries
Packet filtering based on source MAC addresses
VLAN 4K VLANs
Guest VLAN and voice VLAN
GVRP
MUX VLAN
VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports
1:1 and N:1 VLAN mapping
Jumbo frame 10K
Ring protection RRPP ring topology and RRPP multi-instance
Smart Link tree topology and Smart Link multi-instance, providing millisecond-level
protection switchover
Smart Ethernet Protection (SEP),G.8032 Ethernet Ring Protection Switching (ERPS)
STP (IEEE 802.1d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s)
BPDU protection, root protection, and loop protection
IP routing Static route, RIPv1, RIPv2, RIPng, ECMP, OSPF, OSPFv3, BGP, BGP4+, ISIS, ISISv6, VRRP, VRRP6
IPv6 features Neighbor Discovery (ND)
Path maximum transmission unit (PMTU)
IPv6 Ping, IPv6 Tracert, and IPv6 Telnet
6 to4 tunnel, ISATAP tunnel, and manually configured tunnel
ACLs based on source IPv6 addresses, destination IPv6 addresses, Layer 4 ports, or
protocol types
Multicast Listener Discovery (MLD) v1/v2 snooping
Multicast forwarding PIM DM, PIM SM, PIM SSM
IGMP v1/v2/v3 snooping and IGMP fast leave
Multicast forwarding in a VLAN and multicast replication between VLANs
Multicast load balancing among member ports of a trunk
Controllable multicast
Port-based multicast traffic statistics
QoS/ACL Rate limiting on packets sent and received by an interface
Packet redirection
Port-based traffic policing and two-rate three-color CAR
WRR, DRR, SP, WRR+SP, and DRR+SP queue scheduling algorithms
Eight queues per port,
Rate limiting in each queue and traffic shaping on ports
Re-marking of the 802.1p priority and DSCP value of packets
Packet filtering at Layer 2 to Layer 4, filtering out invalid frames based on the source
MAC address, destination MAC address, source IP address, destination IP address,
TCP/UDP port number, protocol type, and VLAN ID
Security features User privilege management and password protection
DoS attack defense, ARP attack defense, and ICMP attack defense
Binding of the IP address, MAC address, interface, and VLAN
Port isolation, port security, and sticky MAC
Blackhole MAC address entries
MAC Forced Forwarding (MFF)
Limit on the number of learned MAC addresses
802.1x authentication and limit on the number of users on an interface
AAA authentication, RADIUS authentication, HWTACACS+ authentication, and NAC SSH v2.0
Hypertext Transfer Protocol Secure (HTTPS)
802.1x authentication, MAC address authentication, and combined authentication on a per port basis
Portal authentication on a per VLANIF interface basis
CPU defense; Blacklist and whitelist; MACSec hardware ready
Super Virtual Fabric (SVF) Working as an SVF client that is plug-and-play with zero configuration
Automatically loading the system software package and patches of clients
One-click and automatic delivery of service configurations
Supports independent running client
OAM Software OAM:
EFM OAM
CFM OAM
Y.1731 performance test
Management and  Maintenance iStack, Virtual cable test, SNMP v1/v2c/v3
Web-based network management system
System logs and multi-level alarms
sFlow
LLDP/LLDP-MED
RMON
Interoperability Supports VBST (Compatible with PVST/PVST+/RPVST)
Supports LNP (Similar to DTP)
Supports VCMP (Similar to VTP)
Operating environment Operating temperature:
0-1800 m altitude: 0-45℃
1800-5000m altitude: The operating temperature reduces by 1℃ every time the
altitude increases by 220m.
Relative humidity: 5% to 95% (noncondensing)
Input voltage AC: Rated voltage range: 100 V to 240 V AC, 50/60 Hz Maximum voltage range: 90 V to 264 V AC, 50/60 Hz DC: Rated voltage range: –48 V to –60 V, DC Maximum voltage range: –36 V to –72 V, DC
Dimensions (mm) 442 (W) x 220 (D)x 43.6 (H)
Typical power consumption 22W
