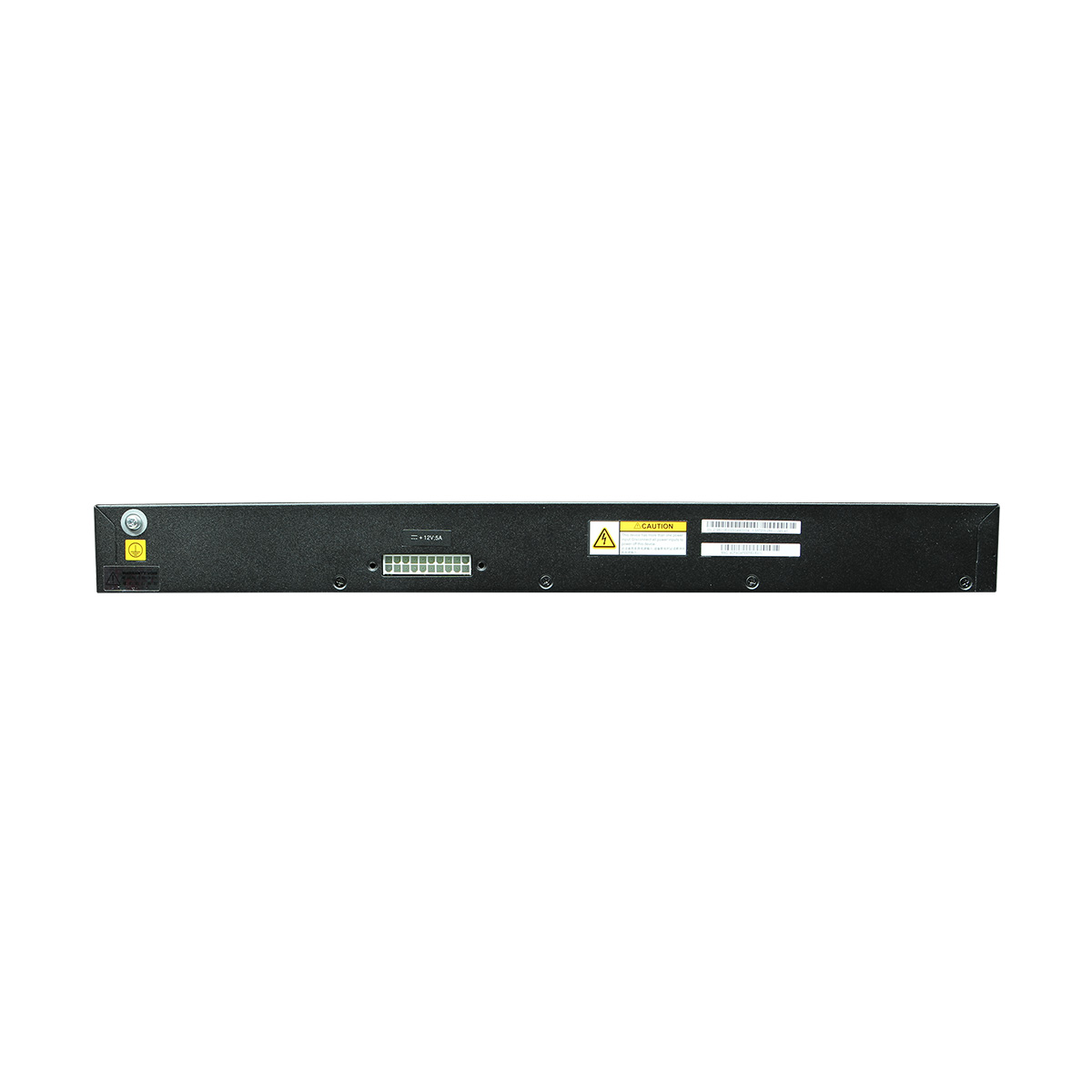

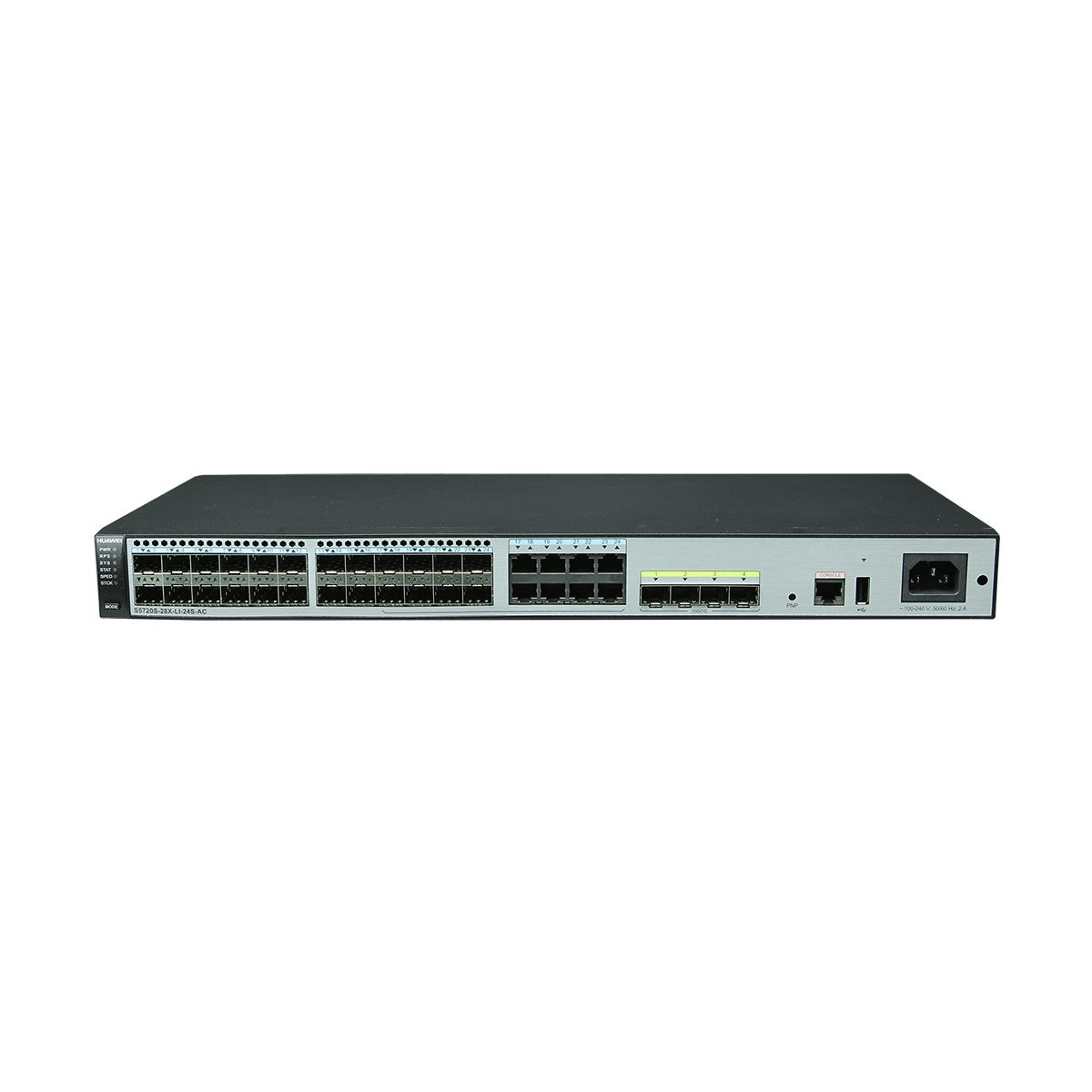

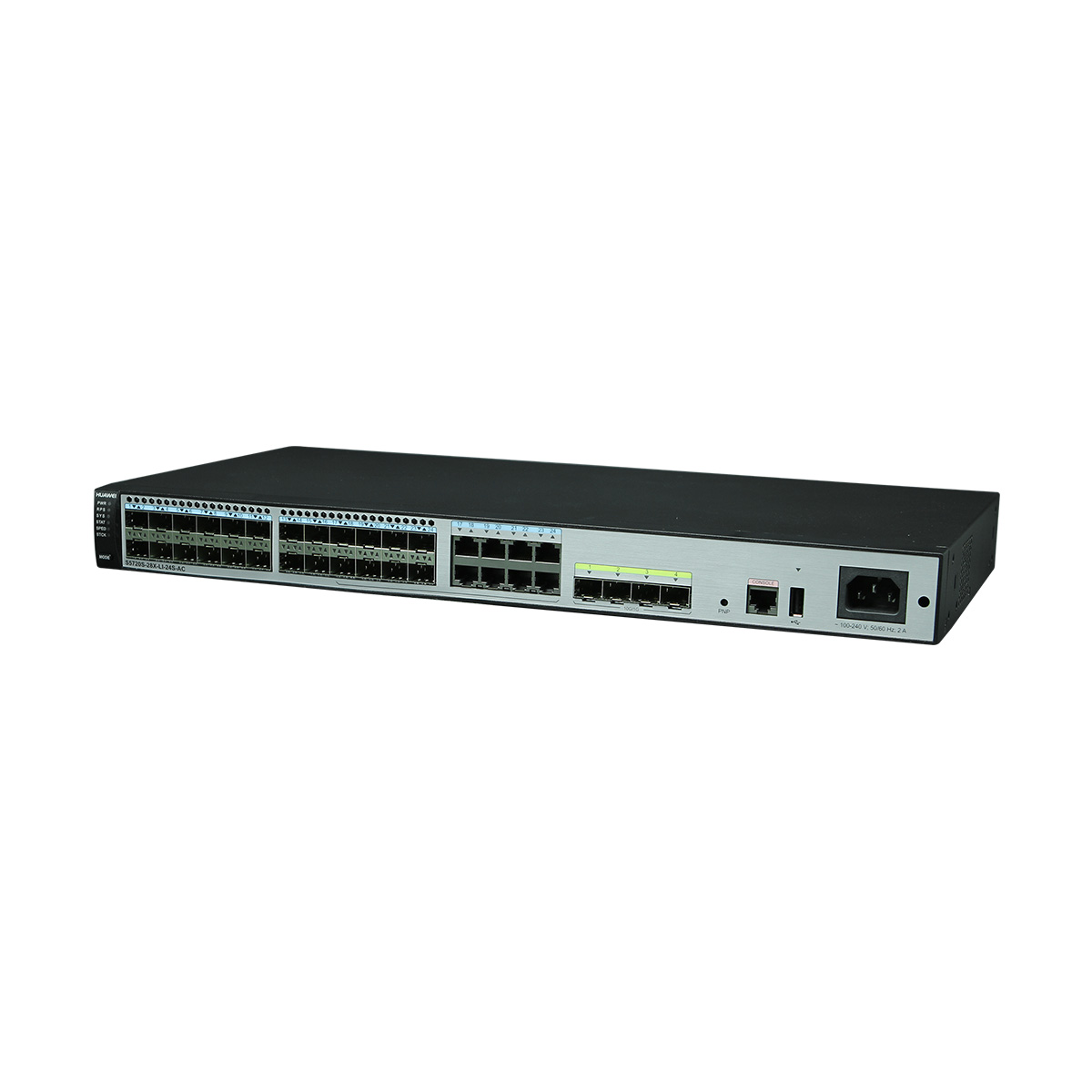

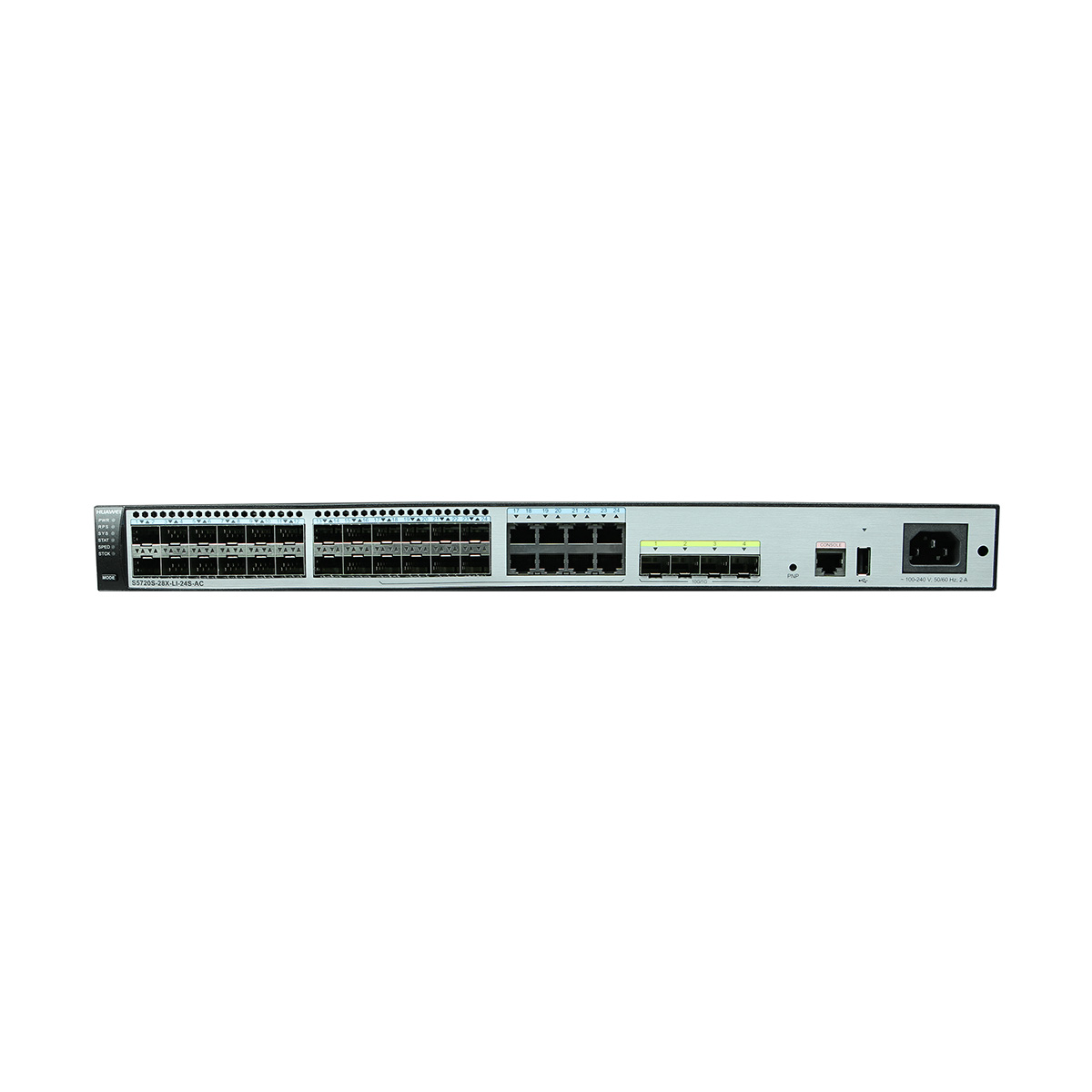

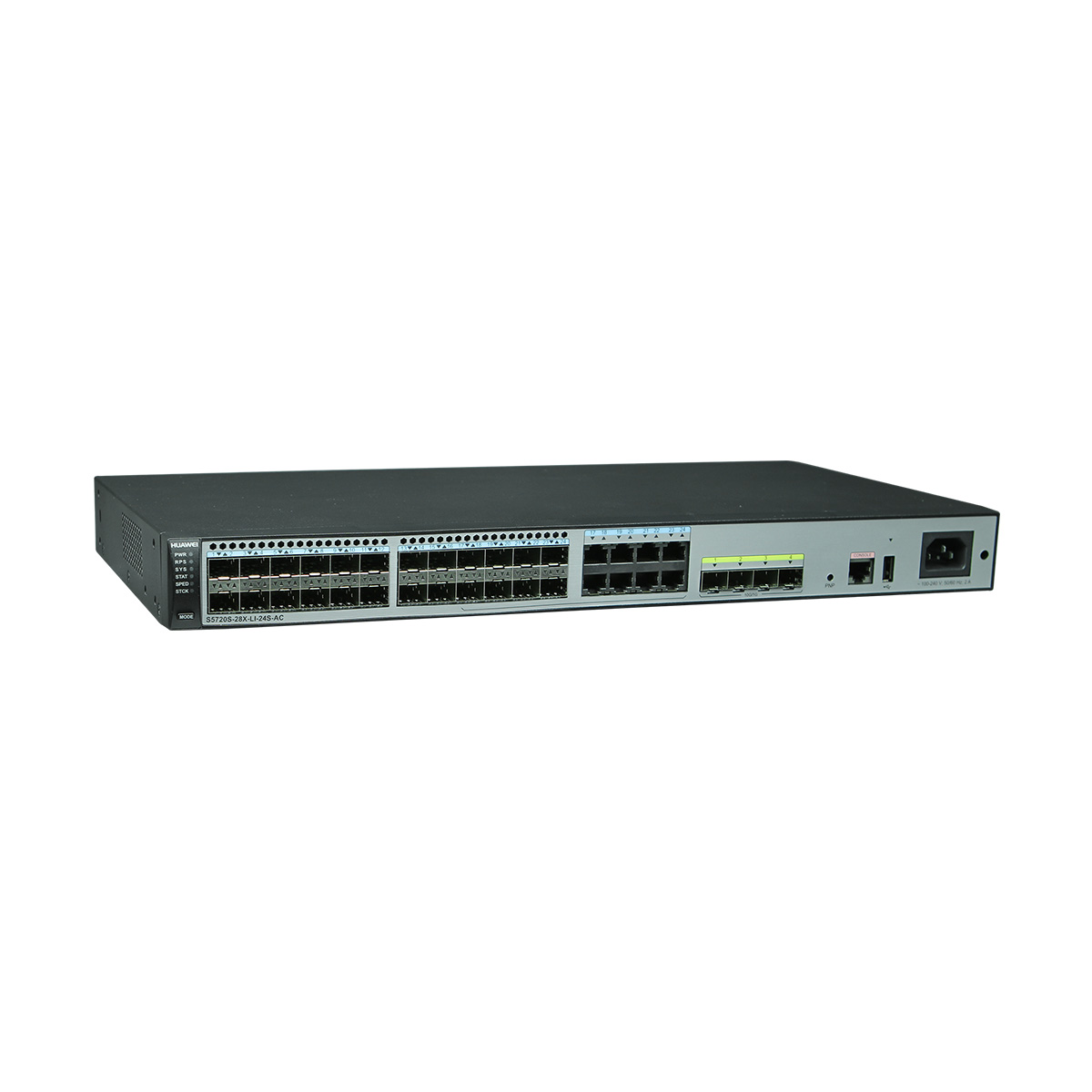

S5720S-28X-LI-24S-DC

Name: S5720S-28X-LI-24S-DC
SKU: 7103
Availability: InStock
Rating: 5.00 (3 reviews)

Rated 5.00 out of 5 based on 3 customer ratings

3 Reviews Write a review

SKU7103

AvailabilityIn Stock

Campus Switch S5720-LI

WarrantyUp to 36 months

Original price was: $0.00.Current price is: $0.00.

Huawei S5720S-28X-LI-24S-DC switch supports 24 GE SFP ports, 8 of which are dual-purpose 10/100/1000BASE-T or SFP ports, 4 10GE SFP+ ports, fixed DC power

24 Ports Switch Fixed DC Switch GE Switch Lan Access Switch

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

S5720S-28X-LI-24S-DC Overview

Huawei S5720s-28X-LI-24S-DC with 16 GE SFP ports, 8 of which are dual-purpose 10/100/1000BASE-T or SFP ports, 4 10GE SFP+ ports, fixed DC power

The S5720 series switches are energy-saving gigabit Ethernet switches, building on high-performance hardware, store-and-forward mode, and Huawei Versatile Routing Platform (VRP), the S5720 series support intelligent Stack (iStack), flexible Ethernet networking, and diversified security control.

Telecomate.com provides a full range of Huawei switches, optical modules, extension boards, if you have more demands, please contact csd@telecomate.com.

S5720S-28X-LI-24S-DC Quick Specs

24 GE SFP ports

8 of which are dual-purpose 10/100/1000BASE-T or SFP ports

4 10GE SFP+ ports

fixed DC power

Forwarding performance is 108 Mpps

Switching capacity is 336 Gbps

5720S-28X-LI-24S-DC Datasheet

Item	S5720S-28X-LI-24S-DC
Fixed port	24 Gig SFP ports, 8 combo 10/100/1000Base-T Ethernet ports, 4 10 Gig SFP+ ports
Forwarding perfomance	108Mpps
Switching capacity	336Gbps
MAC address table	STP (IEEE 802.1d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s)
	16K MAC address entries
	MAC address learning and aging
	Static, dynamic, and blackhole MAC address entries
	Packet filtering based on source MAC addresses
VLAN	4K VLANs
	Guest VLAN and voice VLAN, GVRP, MUX VLAN
	VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports
	1:1 and N:1 VLAN Mapping
Reliability	RRPP ring topology and RRPP multi-instance
	Smart Link tree topology and Smart Link multi-instance, providing the millisecond-level protection switchover
	SEP
	ERPS(G.8032）(supported by the S5700-LI/S5700-SI/S5700-EI/S5700-HI series)
	STP, RSTP, and MSTP
	BPDU protection, root protection, and loop protection
IP routing	Static route, RIP, RIPng, and OSPF
IPv6 features	Neighbor Discovery (ND)
	Path MTU (PMTU)
	IPv6 ping, IPv6 tracert, and IPv6 Telnet
	ACLs based on the source IPv6 address, destination IPv6 address, Layer 4 ports, or protocol type
	MLD v1/v2 snooping
Multicast	IGMP v1/v2/v3 snooping and IGMP fast leave
	Multicast forwarding in a VLAN and multicast replication between VLANs
	Multicast load balancing among member ports of a trunk
	Controllable multicast
	Port-based multicast traffic statistics
QoS/ACL	Rate limiting on packets sent and received by an interface
	Packet redirection
	Port-based traffic policing and two-rate three-color CAR
	Eight queues on each port
	WRR, DRR, SP, WRR+SP, and DRR+SP queue scheduling algorithms
	Re-marking of the 802.1p priority and DSCP priority
	Packet filtering at Layers 2 through 4, filtering out invalid frames based on the source MAC address, destination MAC address, source IP address, destination IP address, port number, protocol type, and VLAN ID
	Rate limiting in each queue and traffic shaping on ports
Security	User privilege management and password protection
	DoS attack defense, ARP attack defense, and ICMP attack defense
	Binding of the IP address, MAC address, interface, and VLAN
	Port isolation, port security, and sticky MAC
	Blackhole MAC address entries
	Limit on the number of learned MAC addresses
	802.1x authentication and limit on the number of users on an interface
	AAA authentication, RADIUS authentication, HWTACACS authentication, and NAC
	SSH v2.0
	Hypertext Transfer Protocol Secure (HTTPS)
	CPU defense
	MFF
	Blacklist and whitelist
Access Security	DHCP relay, DHCP server, DHCP snooping, and DHCP security, DHCPv6 relay, DHCPv6 server, and DHCPv6 snooping
Super Virtual Fabric (SVF)	Working as an SVF client that is plug-and-play with zero configuration
	Automatically loading the system software package and patches of clients One-click and automatic delivery of service configurations
	Supports independent running client
Management and maintenance	iStack(excluding S5700-10P-LI-AC, S5700-10P-PWR-LI-AC, S5700S-28P-LI-AC, S5700S-52P-LI-AC and battery LAN switches)
	Virtual Cable Test (VCT)
	Remote configuration and maintenance using Telnet
	SNMP v1/v2c/v3
	RMON
	eSight and web-based NMS
	HTTPS
	System logs and multi-level alarms
	802.3az EEE
	Dying Gasp (excluding battery LAN switches)
Operating temperature	0°C to 45°C
Relative humidity	5% to 95% (non-condensing)
Input voltage	Rated voltage range: 100 V to 240 V AC, 50/60 Hz Maximum voltage range: 90 V to 264 V AC, 47/63 Hz
Power consumption	< 41.7W

5720S-28X-LI-24S-DC Datasheet

Item	S5720S-28X-LI-24S-DC
Fixed port	24 Gig SFP ports, 8 combo 10/100/1000Base-T Ethernet ports, 4 10 Gig SFP+ ports
Forwarding perfomance	108Mpps
Switching capacity	336Gbps
MAC address table	STP (IEEE 802.1d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s)
	16K MAC address entries
	MAC address learning and aging
	Static, dynamic, and blackhole MAC address entries
	Packet filtering based on source MAC addresses
VLAN	4K VLANs
	Guest VLAN and voice VLAN, GVRP, MUX VLAN
	VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports
	1:1 and N:1 VLAN Mapping
Reliability	RRPP ring topology and RRPP multi-instance
	Smart Link tree topology and Smart Link multi-instance, providing the millisecond-level protection switchover
	SEP
	ERPS(G.8032）(supported by the S5700-LI/S5700-SI/S5700-EI/S5700-HI series)
	STP, RSTP, and MSTP
	BPDU protection, root protection, and loop protection
IP routing	Static route, RIP, RIPng, and OSPF
IPv6 features	Neighbor Discovery (ND)
	Path MTU (PMTU)
	IPv6 ping, IPv6 tracert, and IPv6 Telnet
	ACLs based on the source IPv6 address, destination IPv6 address, Layer 4 ports, or protocol type
	MLD v1/v2 snooping
Multicast	IGMP v1/v2/v3 snooping and IGMP fast leave
	Multicast forwarding in a VLAN and multicast replication between VLANs
	Multicast load balancing among member ports of a trunk
	Controllable multicast
	Port-based multicast traffic statistics
QoS/ACL	Rate limiting on packets sent and received by an interface
	Packet redirection
	Port-based traffic policing and two-rate three-color CAR
	Eight queues on each port
	WRR, DRR, SP, WRR+SP, and DRR+SP queue scheduling algorithms
	Re-marking of the 802.1p priority and DSCP priority
	Packet filtering at Layers 2 through 4, filtering out invalid frames based on the source MAC address, destination MAC address, source IP address, destination IP address, port number, protocol type, and VLAN ID
	Rate limiting in each queue and traffic shaping on ports
Security	User privilege management and password protection
	DoS attack defense, ARP attack defense, and ICMP attack defense
	Binding of the IP address, MAC address, interface, and VLAN
	Port isolation, port security, and sticky MAC
	Blackhole MAC address entries
	Limit on the number of learned MAC addresses
	802.1x authentication and limit on the number of users on an interface
	AAA authentication, RADIUS authentication, HWTACACS authentication, and NAC
	SSH v2.0
	Hypertext Transfer Protocol Secure (HTTPS)
	CPU defense
	MFF
	Blacklist and whitelist
Access Security	DHCP relay, DHCP server, DHCP snooping, and DHCP security, DHCPv6 relay, DHCPv6 server, and DHCPv6 snooping
Super Virtual Fabric (SVF)	Working as an SVF client that is plug-and-play with zero configuration
	Automatically loading the system software package and patches of clients One-click and automatic delivery of service configurations
	Supports independent running client
Management and maintenance	iStack(excluding S5700-10P-LI-AC, S5700-10P-PWR-LI-AC, S5700S-28P-LI-AC, S5700S-52P-LI-AC and battery LAN switches)
	Virtual Cable Test (VCT)
	Remote configuration and maintenance using Telnet
	SNMP v1/v2c/v3
	RMON
	eSight and web-based NMS
	HTTPS
	System logs and multi-level alarms
	802.3az EEE
	Dying Gasp (excluding battery LAN switches)
Operating temperature	0°C to 45°C
Relative humidity	5% to 95% (non-condensing)
Input voltage	Rated voltage range: 100 V to 240 V AC, 50/60 Hz Maximum voltage range: 90 V to 264 V AC, 47/63 Hz
Power consumption	< 41.7W

Weight	4.0000 kg
Dimensions	55.0000 × 35.0000 × 9.0000 cm
