S5720I-6X-PWH-SI-AC

0 Reviews Write a review

PN98010835

BrandsHuawei

AvailabilityIn Stock

Campus Switch S5720-SI

WarrantyUp to 36 months

Original price was: $0.00.Current price is: $0.00.

Huawei S5720I-6X-PWH-SI-AC video backhaul switch supports 4 1000BASE-T ports, 2 10GE SFP+ ports

Electrical Switch Fixed AC Switch Lan Access Switch PoE Switch

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

S5720I-6X-PWH-SI-AC overview

Huawei S5720I-6X-PWH-SI-AC Video Backhaul Switch with 4 1000BASE-T ports, 2 10GE SFP+ ports

The S5720I-SI series video backhaul switch is a first-of-its-kind appliance tailored to video surveillance and backhaul, which is ideal for implementing outdoor video backhaul in public safety scenarios. It integrates multiple modules, including an extended-temperature switch, surge protector, multiple power outputs, fiber splice tray, protective shell, and mechanical lock, meeting all the needs of an outdoor access site.

The S5720I-SI series video backhaul switch supports an industrial-grade operating temperature range and has a high level of outdoor surge protection. It is also IP66-rated and comes with salt spray protection and therefore can withstand harsh weather conditions in outdoor environments. This function-rich switch is designed with abundant video surveillance features and is ideal for video surveillance access in Safe City scenarios.

S5720I-6X-PWH-SI-AC quick specs

Integrates multiple modules including the protective shell, surge protector, fiber splice tray, and multiple power outputs
4 x 10/100/1000Base-T Ethernet ports
2 x 10 GE SFP+ ports
PoE++
Built-in AC power supply
IP66
Surge protection
Salt spray protection
Forwarding performance: 35.7 Mpps
Switching capacity: 168 Gbit/s

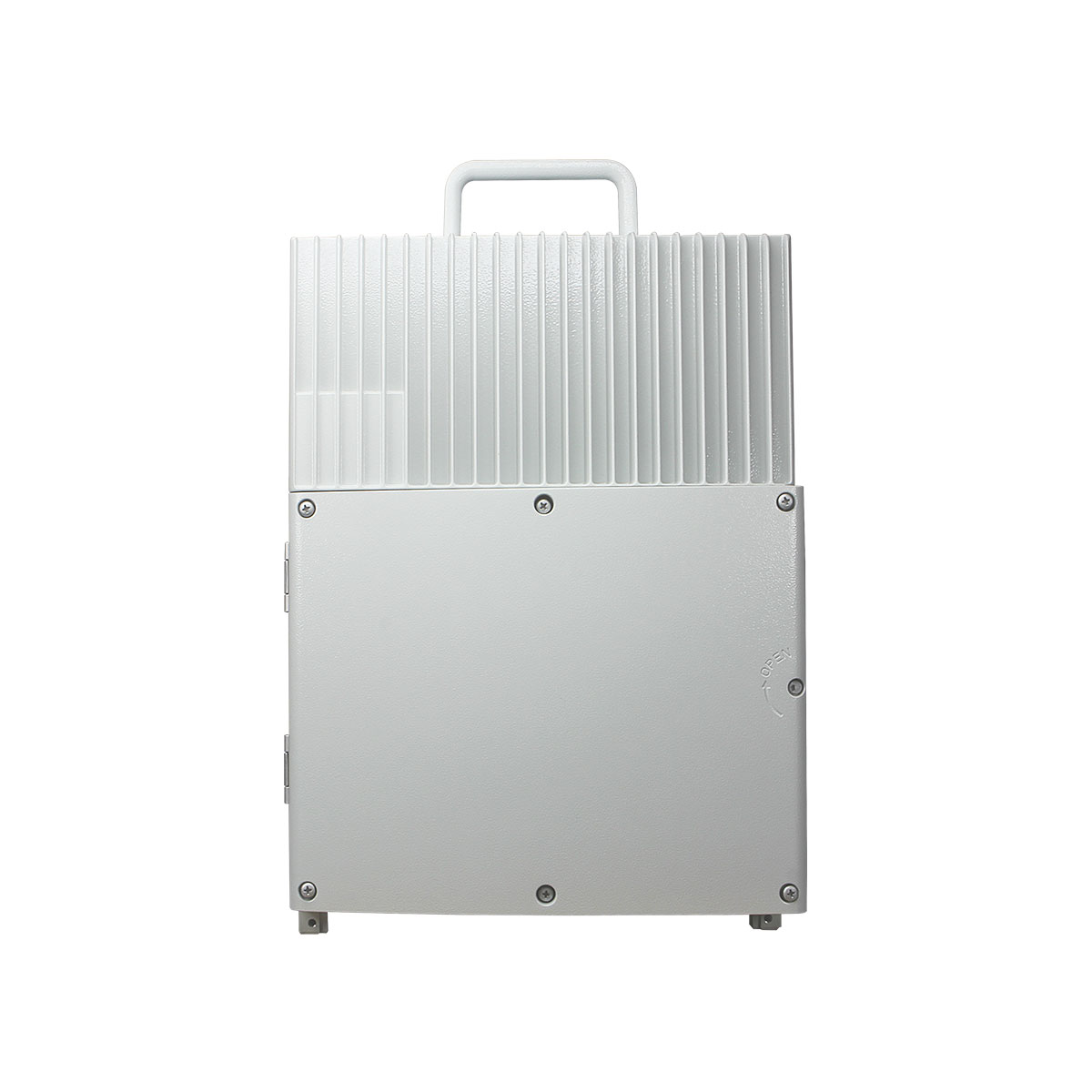

S5720I-6X-PWH-SI-AC appearance and structure

1	Two 10GE SFP+ ports	11	Rubber bungs for cable outlets
2	Four PoE++ 10/100/1000BASE-T ports	12	Three DC or AC output power cable outlets
3	One USB port	13	Two AC input power cable outlets
4	One PNP button	14	AC power output socket 2
5	One console port	15	DC power output socket
6	MODE button	16	AC power output socket 1
7	AC power input socket	17	Latch of the maintenance compartment
8	Fiber management tray (FMT)	18	PE cable ground terminal
9	Two optical fiber outlets	19	Door-opening alarm button
10	Four Ethernet cable outlets

1	Two optical fiber outlets	5	Ground screw
2	Four Ethernet cable outlets	6	Jack for AC power cable locking strap
3	Three DC or AC output power cable outlets	7	Mounting column for a cable cover
4	Two AC input power cable outlets

S5720I-6X-PWH-SI-AC datasheet

Item	S5720I-6X-PWH-SI-AC
Memory (RAM)	512 MB
Flash	512 MB in total. To view the available flash memory size, run the display version command.
Mean time between failures (MTBF)	41.29 years
Mean time to repair (MTTR)	2 hours
Availability	> 0.99999
Service port surge protection	±1.5 kV in differential mode, ±6 kV in common mode
Power supply surge protection	Impulse current:
	AC input: 20 kA
	Surge:
	AC input: ±6 kV in differential mode, ±6 kV in common mode
	12 V DC output: ±2 kV in differential mode, ±4 kV in common mode
	24 V AC output: ±2 kV in differential mode, ±6 kV in common mode
Dimensions (H x W x D)	Basic dimensions: 390 mm x 300 mm x 110 mm (15.4 in. x 11.8 in. x 4.3 in.)
Dimensions (H x W x D)	Maximum dimensions: 474.75 mm x 303.3 mm x 110 mm (18.69 in. x 11.94 in. x 4.3 in.)
Weight (with packaging)	13.1 kg (28.88 lb)
Stack ports	Not supported
RTC	Not supported
RPS	Not supported
PoE	Supported
Rated voltage range	220 V AC to 240 V AC, 50/60 Hz
Maximum voltage range	176 V AC to 264 V AC, 45 Hz to 66 Hz
Maximum power consumption (100% throughput)	Without PoE: 26 W
Maximum power consumption (100% throughput)	Total power consumption: 188 W (system power consumption: 38 W, total output power: 150 W)
Typical power consumption (30% of traffic load)	25 W
Tested according to ATIS standard
EEE enabled
No PoE power consumption
Operating temperature	-40°C to +55°C (-40°F to +131°F)

	NOTE:
	When the altitude is 1800-4000 m (5906-13123 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
	The switch can start when the temperature is higher than -25°C (-13°F).

Storage temperature	-40°C to +85°C (-40°F to +185°F)
IP rating	IP66
Noise under normal temperature (27°C, sound power)	Noise-free (no fans)
Relative humidity	5% to 95%, noncondensing
Operating altitude	0-4000 m (0-13123 ft.)
Certification	EMC certification
	Safety certification
	Manufacturing certification
Part number	98010835

S5720I-6X-PWH-SI-AC datasheet

Item	S5720I-6X-PWH-SI-AC
Memory (RAM)	512 MB
Flash	512 MB in total. To view the available flash memory size, run the display version command.
Mean time between failures (MTBF)	41.29 years
Mean time to repair (MTTR)	2 hours
Availability	> 0.99999
Service port surge protection	±1.5 kV in differential mode, ±6 kV in common mode
Power supply surge protection	Impulse current:
	AC input: 20 kA
	Surge:
	AC input: ±6 kV in differential mode, ±6 kV in common mode
	12 V DC output: ±2 kV in differential mode, ±4 kV in common mode
	24 V AC output: ±2 kV in differential mode, ±6 kV in common mode
Dimensions (H x W x D)	Basic dimensions: 390 mm x 300 mm x 110 mm (15.4 in. x 11.8 in. x 4.3 in.)
Dimensions (H x W x D)	Maximum dimensions: 474.75 mm x 303.3 mm x 110 mm (18.69 in. x 11.94 in. x 4.3 in.)
Weight (with packaging)	13.1 kg (28.88 lb)
Stack ports	Not supported
RTC	Not supported
RPS	Not supported
PoE	Supported
Rated voltage range	220 V AC to 240 V AC, 50/60 Hz
Maximum voltage range	176 V AC to 264 V AC, 45 Hz to 66 Hz
Maximum power consumption (100% throughput)	Without PoE: 26 W
Maximum power consumption (100% throughput)	Total power consumption: 188 W (system power consumption: 38 W, total output power: 150 W)
Typical power consumption (30% of traffic load)	25 W
Tested according to ATIS standard
EEE enabled
No PoE power consumption
Operating temperature	-40°C to +55°C (-40°F to +131°F)

	NOTE:
	When the altitude is 1800-4000 m (5906-13123 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
	The switch can start when the temperature is higher than -25°C (-13°F).

Storage temperature	-40°C to +85°C (-40°F to +185°F)
IP rating	IP66
Noise under normal temperature (27°C, sound power)	Noise-free (no fans)
Relative humidity	5% to 95%, noncondensing
Operating altitude	0-4000 m (0-13123 ft.)
Certification	EMC certification
	Safety certification
	Manufacturing certification
Part number	98010835

Weight	15 kg
Dimensions	60 × 35 × 15 cm
