S5720I-28X-PWH-SI-AC

0 Reviews Write a review
PN98010797
AvailabilityIn Stock
Campus Switch S5720-SI
WarrantyUp to 36 months i
×
Warranty Policy
We provide a comprehensive warranty policy.
Refer to the table for more details.

Original price was: $0.00.Current price is: $0.00.

Huawei S5720I-28X-PWH-SI-AC switch supports 24 10/100/1000BASE-T ports, 4 10GE SFP+ ports, fixed AC power, PoE++

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

S5720I-28X-PWH-SI-AC Overview

Huawei S5720I-28X-PWH-SI-AC switch with 24 10/100/1000BASE-T ports, 4 10GE SFP+ ports, fixed AC power, PoE++, which is one of the S5720 serie switch.

Huawei S5720 series Ethernet switches are next-generation energy-saving GE switches designed to provide high-bandwidth access and Ethernet multi-service aggregation.

Telecomate.com provides a full range of Huawei switches, optical modules, extension boards, if you have more demands, please contact csd@telecomate.com.

S5720I-28X-PWH-SI-AC Quick Specs

24 10/100/1000BASE-T ports

4 10GE SFP+ ports

fixed AC power

PoE++

Forwarding performance is 96 Mpps

Switching capacity is 336 Gbit/s

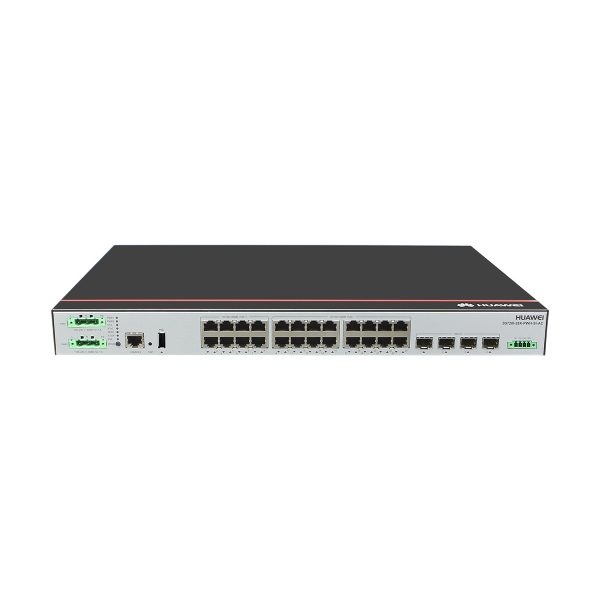

S5720I-28X-PWH-SI-AC appearance and structure

S5720I-28X-PWH-SI-AC appearance and structure

1. AC power input port 1 6. Eight PoE++ 10/100/1000BASE-T ports
2. AC power input port 2 7. Sixteen PoE+ 10/100/1000BASE-T ports
3. One console port 8. Four 10GE SFP+ ports
4. One PNP button 9. Monitoring port
5. One USB port 10. Ground screw
S5720I-28X-PWH-SI-AC Datasheet
Item                 S5720I-28X-PWH-SI-AC
Fixed ports 24 Ethernet 10/100/1000 ports, 4 10 Gig SFP+
Forwarding performance 96 Mpps
Switching capacity 336 Gbit/s
Management interface Console(RJ45)，USB 2.0
PoE 8 PoE++ ports, 16 PoE+ ports
Power module AC (fixed two power)
Input voltage AC power supply: Rated AC voltage: 100-240V AC;50/60Hz Max AC voltage: 90-264V AC;47~63Hz
DC power supply: Rated DC voltage:-50- -56V DC Max DC voltage: -46- -57V DC
Operating temperature 0-1800 m altitude: -40°C to +65°C 1800-5000 m altitude: The operating temperature reduces by 1°C every time the altitude increases by 220 m.
Lightning protection ±6kV ( Service Ports )
IP Code IP30
Relative humidity 5% to 95% (non-condensing)
Heat dissipation Heat dissipation with fan, intelligent fan speed adjustment
Relative humidity 5% to 95% (non-condensing)
Heat dissipation Natural heat dissipation without fans
MAC address table IEEE 802.1d compliance 16K MAC address entries MAC address learning and aging Static, dynamic, and blackhole MAC address entries Packet filtering based on source MAC addresses
VLAN 4K VLANs Guest VLAN and voice VLAN GVRP MUX VLAN VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports 1:1 and N:1 VLAN mapping
Reliability RRPP ring topology and RRPP multi-instance Smart Link tree topology and Smart Link multi-instance, providing millisecond-level protection switchover SEP STP (IEEE 802.1d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s) ERPS (G.8032) BPDU protection, root protection, and loop protection
IP routing Static route, RIPv1/v2, RIPng, OSPF, OSPFv3, ECMP, IS-IS, IS-ISv6, BGP, BGP4+, VRRP, and VRRP6
IPv6 features Neighbor Discovery (ND) Path MTU (PMTU) IPv6 ping, IPv6 tracert, and IPv6 Telnet 6to4 tunnel, ISATAP tunnel, and manually configured tunnel
Multicast PIM DM, PIM SM, PIM SSM IGMP v1/v2/v3, IGMP v1/v2/v3 snooping and IGMP fast leave MLD v1/v2 and MLD v1/v2 snooping Multicast forwarding in a VLAN and multicast replication between VLANs Multicast load balancing among member ports of a trunk Controllable multicast Port-based multicast traffic statistics
QoS/ACL Rate limiting on packets sent and received by a port Packet redirection Port-based traffic policing and two-rate three-color CAR Eight queues on each port WRR, DRR, SP, WRR+SP, and DRR+SP queue scheduling algorithms Re-marking of the 802.1p priority and DSCP priority Packet filtering at Layer 2 to Layer 4, filtering out invalid frames based on the source MAC address, destination MAC address, source IP address, destination IP address, TCP/ UDP port number, protocol type, and VLAN ID Rate limiting in each queue and traffic shaping on ports
Security Hierarchical user management and password protection DoS attack defense, ARP attack defense, and ICMP attack defense Binding of the IP address, MAC address, port number, and VLAN ID Port isolation, port security, and sticky MAC MFF Blackhole MAC address entries Limit on the number of learned MAC addresses IEEE 802.1x authentication and limit on the number of users on a port AAA authentication, RADIUS authentication, HWTACACS authentication, and NAC SSH v2.0 HTTPS CPU defense Blacklist and whitelist IEEE 802.1x authentication, MAC address authentication, and Portal authentication DHCPv4/v6 client/relay/server/snooping Attack source tracing and punishment for IPv6 packets such as ND, DHCPv6, and MLD packets Supports separation between user authentication and policy enforcement points IPSec
SVF Plug-and-play SVF client Automatic software and patch loading to clients One-click and automatic delivery of service configurations Independent client running
OAM Software OAM: EFM OAM CFM OAM Y.1731 performance test
Management and maintenance Cloud-based management iStack (using service ports as stack ports) Virtual cable test SNMP v1/v2c/v3 RMON Web-based NMS System logs and alarms of different levels sFlow NETCONF Dying gasp upon power-off
Interoperability Supports VBST (Compatible with PVST/PVST+/RPVST)
Supports LNP (Similar to DTP)
Supports VCMP (Similar to VTP)
Dimensions mm (W×D ×H) 442*310*43.6

Additional information

Weight 10.0000 kg
Dimensions 52.2000 × 46.0000 × 16.5000 cm
Campus Switch

S5720I-28X-PWH-SI-AC Datasheet
Item                 S5720I-28X-PWH-SI-AC
Fixed ports 24 Ethernet 10/100/1000 ports, 4 10 Gig SFP+
Forwarding performance 96 Mpps
Switching capacity 336 Gbit/s
Management interface Console(RJ45)，USB 2.0
PoE 8 PoE++ ports, 16 PoE+ ports
Power module AC (fixed two power)
Input voltage AC power supply: Rated AC voltage: 100-240V AC;50/60Hz Max AC voltage: 90-264V AC;47~63Hz
DC power supply: Rated DC voltage:-50- -56V DC Max DC voltage: -46- -57V DC
Operating temperature 0-1800 m altitude: -40°C to +65°C 1800-5000 m altitude: The operating temperature reduces by 1°C every time the altitude increases by 220 m.
Lightning protection ±6kV ( Service Ports )
IP Code IP30
Relative humidity 5% to 95% (non-condensing)
Heat dissipation Heat dissipation with fan, intelligent fan speed adjustment
Relative humidity 5% to 95% (non-condensing)
Heat dissipation Natural heat dissipation without fans
MAC address table IEEE 802.1d compliance 16K MAC address entries MAC address learning and aging Static, dynamic, and blackhole MAC address entries Packet filtering based on source MAC addresses
VLAN 4K VLANs Guest VLAN and voice VLAN GVRP MUX VLAN VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports 1:1 and N:1 VLAN mapping
Reliability RRPP ring topology and RRPP multi-instance Smart Link tree topology and Smart Link multi-instance, providing millisecond-level protection switchover SEP STP (IEEE 802.1d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s) ERPS (G.8032) BPDU protection, root protection, and loop protection
IP routing Static route, RIPv1/v2, RIPng, OSPF, OSPFv3, ECMP, IS-IS, IS-ISv6, BGP, BGP4+, VRRP, and VRRP6
IPv6 features Neighbor Discovery (ND) Path MTU (PMTU) IPv6 ping, IPv6 tracert, and IPv6 Telnet 6to4 tunnel, ISATAP tunnel, and manually configured tunnel
Multicast PIM DM, PIM SM, PIM SSM IGMP v1/v2/v3, IGMP v1/v2/v3 snooping and IGMP fast leave MLD v1/v2 and MLD v1/v2 snooping Multicast forwarding in a VLAN and multicast replication between VLANs Multicast load balancing among member ports of a trunk Controllable multicast Port-based multicast traffic statistics
QoS/ACL Rate limiting on packets sent and received by a port Packet redirection Port-based traffic policing and two-rate three-color CAR Eight queues on each port WRR, DRR, SP, WRR+SP, and DRR+SP queue scheduling algorithms Re-marking of the 802.1p priority and DSCP priority Packet filtering at Layer 2 to Layer 4, filtering out invalid frames based on the source MAC address, destination MAC address, source IP address, destination IP address, TCP/ UDP port number, protocol type, and VLAN ID Rate limiting in each queue and traffic shaping on ports
Security Hierarchical user management and password protection DoS attack defense, ARP attack defense, and ICMP attack defense Binding of the IP address, MAC address, port number, and VLAN ID Port isolation, port security, and sticky MAC MFF Blackhole MAC address entries Limit on the number of learned MAC addresses IEEE 802.1x authentication and limit on the number of users on a port AAA authentication, RADIUS authentication, HWTACACS authentication, and NAC SSH v2.0 HTTPS CPU defense Blacklist and whitelist IEEE 802.1x authentication, MAC address authentication, and Portal authentication DHCPv4/v6 client/relay/server/snooping Attack source tracing and punishment for IPv6 packets such as ND, DHCPv6, and MLD packets Supports separation between user authentication and policy enforcement points IPSec
SVF Plug-and-play SVF client Automatic software and patch loading to clients One-click and automatic delivery of service configurations Independent client running
OAM Software OAM: EFM OAM CFM OAM Y.1731 performance test
Management and maintenance Cloud-based management iStack (using service ports as stack ports) Virtual cable test SNMP v1/v2c/v3 RMON Web-based NMS System logs and alarms of different levels sFlow NETCONF Dying gasp upon power-off
Interoperability Supports VBST (Compatible with PVST/PVST+/RPVST)
Supports LNP (Similar to DTP)
Supports VCMP (Similar to VTP)
Dimensions mm (W×D ×H) 442*310*43.6
