Description
S5720I-10X-PWH-SI-AC overview
This switch is a Video Backhaul Switch with 8 PoE++ 1000BASE-T ports, 2 10GE SFP+ ports
The S5720I-SI series video backhaul switch is a first-of-its-kind appliance tailored to video surveillance and backhaul, which is ideal for implementing outdoor video backhaul in public safety scenarios. It integrates multiple modules, including an extended-temperature switch, surge protector, multiple power outputs, fiber splice tray, protective shell, and mechanical lock, meeting all the needs of an outdoor access site.
The S5720I-SI series video backhaul switch supports an industrial-grade operating temperature range and has a high level of outdoor surge protection. It is also IP66-rated and comes with salt spray protection and therefore can withstand harsh weather conditions in outdoor environments. This function-rich switch is designed with abundant video surveillance features and is ideal for video surveillance access in Safe City scenarios.
S5720I-10X-PWH-SI-AC quick specs
Integrates multiple modules including the protective shell, surge protector, fiber splice tray, and multiple power outputs
8 x 10/100/1000Base-T Ethernet ports
2 x 10 GE SFP+ ports
PoE++
Built-in AC power supply
IP66
Surge protection
Salt spray protection
Forwarding performance: 42 Mpps
Switching capacity: 168 Gbit/s

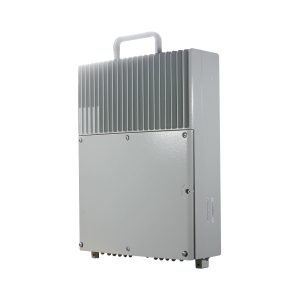

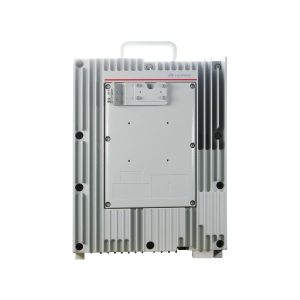

S5720I-10X-PWH-SI-AC appearance and structure
| 1 | Two 10GE SFP+ ports | 10 | Eight Ethernet cable outlets |
| 2 | Eight PoE++ 10/100/1000BASE-T ports | 11 | Rubber bungs for cable outlets |
| 3 | One USB port | 12 | Three DC or AC output power cable outlets |
| 4 | One PNP button | 13 | Two AC input power cable outlets |
| 5 | One console port | 14 | DC power output socket |
| 6 | MODE button | 15 | AC power output socket 1 |
| 7 | AC power input socket | 16 | The latch of the maintenance compartment |
| 8 | Fiber management tray (FMT) | 17 | PE cable ground terminal |
| 9 | Two optical fiber outlets | 18 | Door-opening alarm button |
