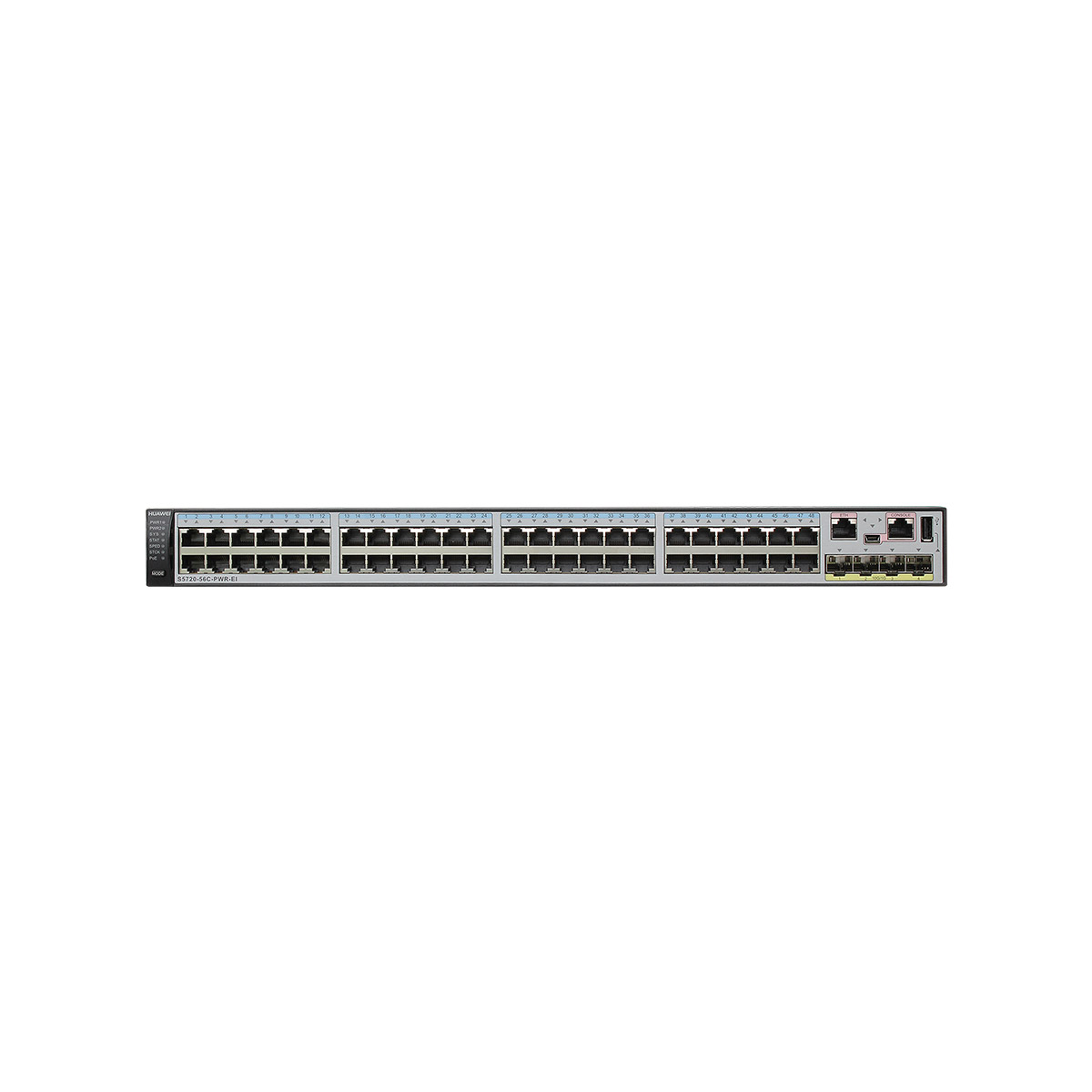

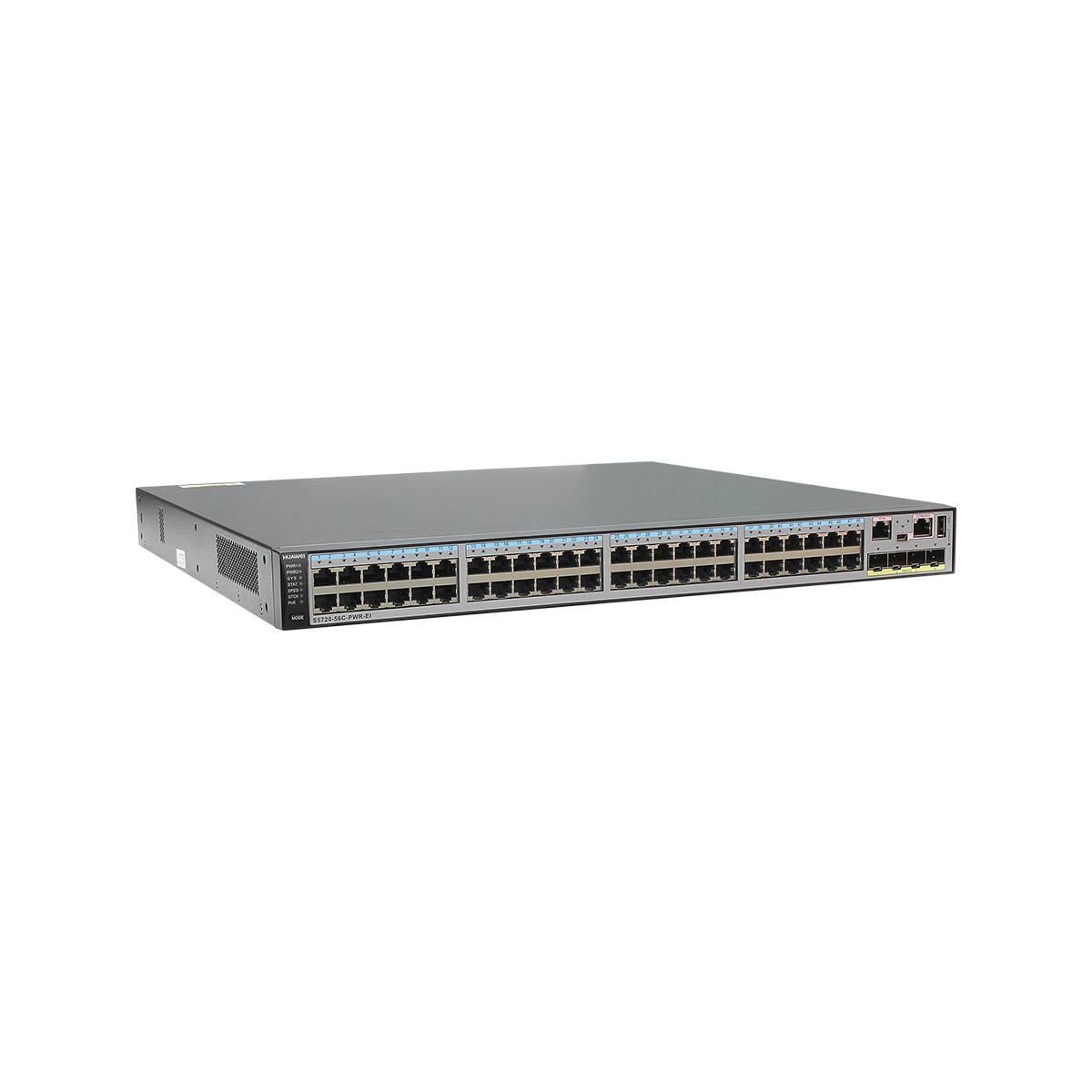

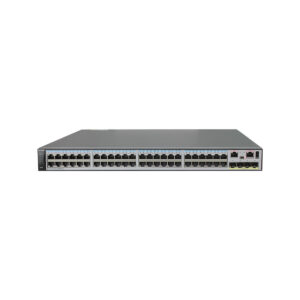

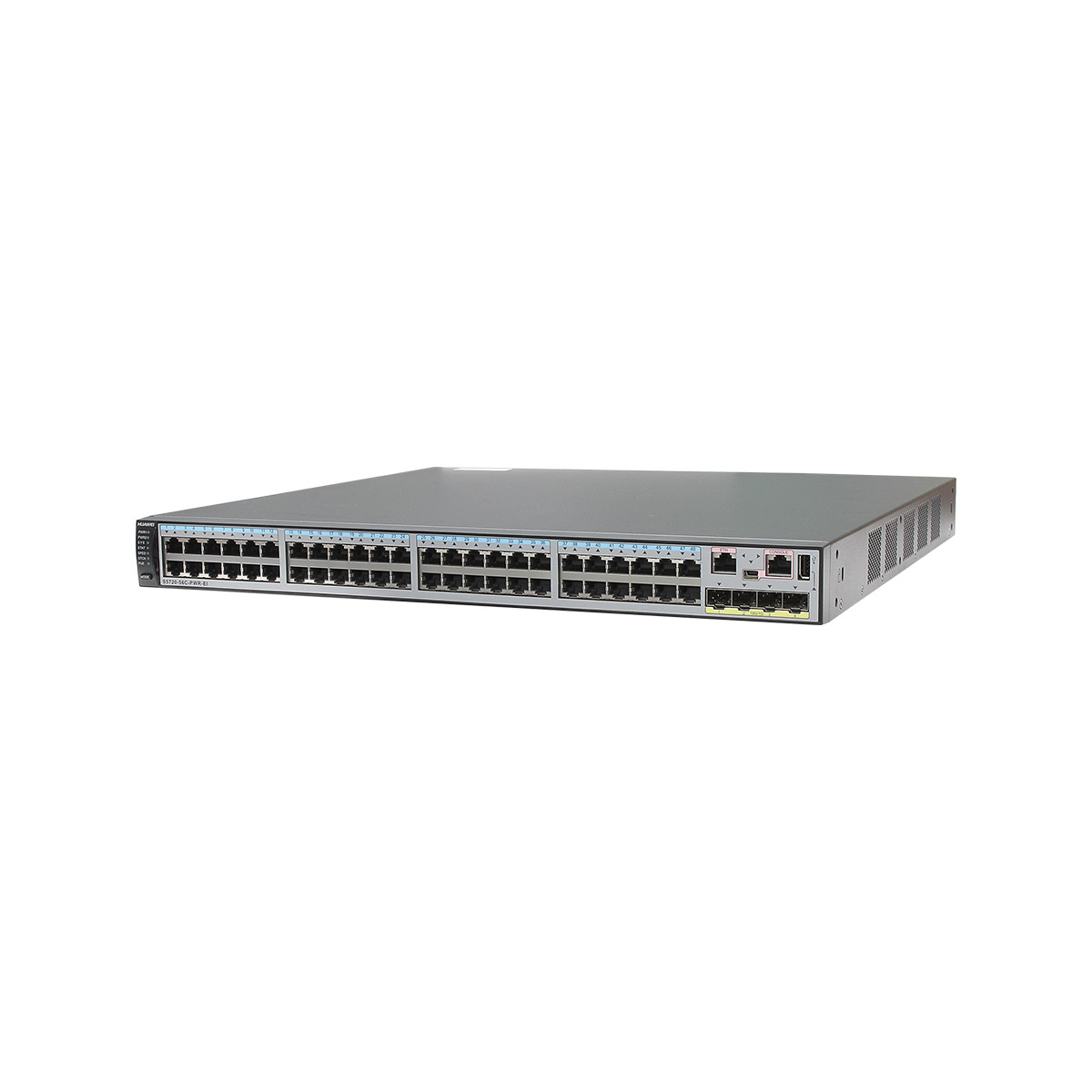

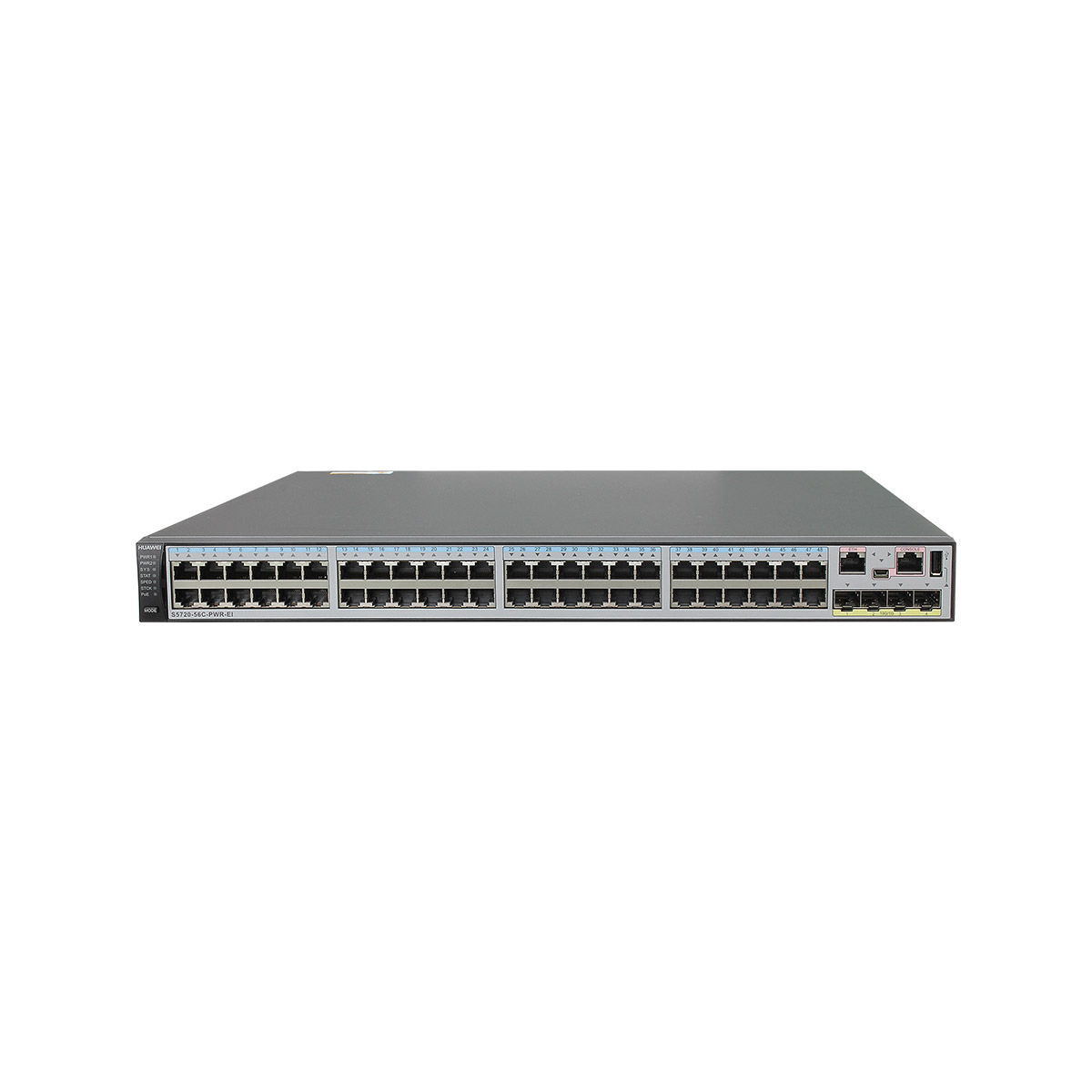

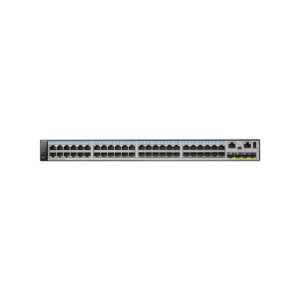

S5720-56C-PWR-EI-DC

0 Reviews Write a review

PN02350NHM

BrandsHuawei

AvailabilityIn Stock

Campus Switch S5720-SI

WarrantyUp to 36 months

Original price was: $0.00.Current price is: $0.00.

Huawei S5720-56C-PWR-EI-DC switch supports forty-eight PoE+ 10/100/1000BASE-T ports, four 10GE SFP+ ports

24 Ports Switch Electrical Switch Lan Access Switch

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

S5720-56C-PWR-EI-DC overview

The S5700 series Ethernet switches are a new generation of green, energy-efficient, full-Gigabit high-performance Ethernet switches launched by Huawei to meet the demands of high-bandwidth access and Ethernet multi-service aggregation. Based on next-generation high-performance hardware and Huawei’s unified platform, the S5700 series features large capacity, high reliability (dual power slots and hardware-level Ethernet OAM), and high-density Gigabit ports, with support for 10-Gigabit uplinks. It also supports EEE (Energy Efficient Ethernet) and iStack intelligent stacking, fully meeting the needs of enterprise campus network access, aggregation, IDC Gigabit access, and Gigabit-to-the-desktop applications.

Item	Details
Description	S5720-56C-PWR-EI-DC switch (forty-eight PoE+ 10/100/1000BASE-T ports, four 10GE SFP+ ports)
Part Number	02350NHM
Model	S5720-56C-PWR-EI-DC

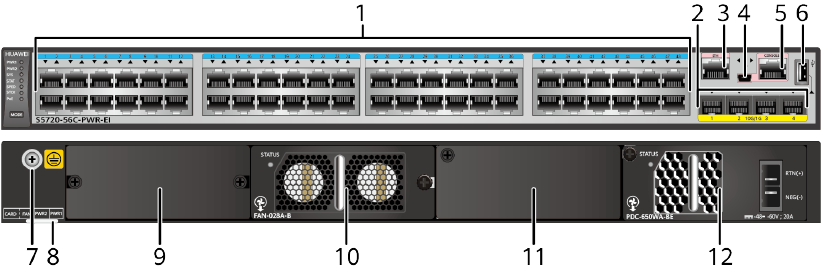

S5720-56C-PWR-EI-DC Appearance

1	Forty-eight PoE+ 10/100/1000BASE-T ports	2	Four 10GE SFP+ ports Applicable modules and cables: GE optical module GE-CWDM optical module GE-DWDM optical module GE copper module (only 1000 Mbit/s supported) 10GE SFP+ optical module (OSXD22N00 not supported) 10GE-CWDM optical module 10GE-DWDM optical module (applicable in V200R009C00 and later versions) 1 m, 3 m, and 10 m SFP+ high-speed copper cables 5 m SFP+ high-speed copper cable (applicable in V200R009C00 and later versions) 3 m and 10 m AOC cables
3	One ETH management port	4	One mini USB port
5	One console port NOTE: It is used with a console cable. The console cable is not delivered with the switch and needs to be separately purchased if needed.	6	One USB port
7	Ground screw NOTE: It is used with a ground cable.	8	ESN label NOTE: You can draw it out to view the ESN and MAC address of the switch.
9	Rear card slot NOTE: Card supported: ES5D21X02S01 (2-Port 10 Gig SFP+ Rear Interface Card, Used in S5720-EI Series) ES5D21X02T01 (2-Port 10 Gig RJ45 Rear Interface Card, Used in S5720-EI Series) ES5D21VST000 (Dedicated Stack Card with 2*QSFP+ Interface)	10	Fan slot NOTE: Applicable fan module: FAN-028A-B Fan Module
11	Power module slot 2 NOTE: Applicable power modules: 500 W AC PoE power module 650 W DC PoE power module	12	Power module slot 1 NOTE: Applicable power modules: 500 W AC PoE power module 650 W DC PoE power module

Item	S5720-56C-PWR-EI-DC
Memory (RAM)	2 GB
Flash	512 MB in total. To view the available flash memory size, run the display version command.
Mean time between failures (MTBF)	51.34 years when no card is configured; 48.63 years when a 2-port 10GE SFP+ interface card is configured; 47.71 years when a 2-port 10GE RJ45 interface card is configured; 47.79 years when a stack card is configured
Mean time to repair (MTTR)	2 hours
Availability	> 0.99999
Service port surge protection	Service ports on front panel: ±6 kV in common mode Ports on the 2-port 10GE RJ45 rear interface card: ±2 kV in common mode
Power supply surge protection	Using 500 W AC power modules: ±6 kV in differential mode, ±6 kV in common mode Using 650 W DC power modules: ±2 kV in differential mode, ±4 kV in common mode
Dimensions (H x W x D)	Basic dimensions (excluding the parts protruding from the body): 44.4 mm x 442.0 mm x 424.7 mm (1.75 in. x 17.4 in. x 16.72 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 44.4 mm x 442.0 mm x 451.8 mm (1.75 in. x 17.4 in. x 17.79 in.)
Weight (with packaging)	10.3 kg (22.71 lb)
Stack ports	Ports on the 2-port 10GE SFP+ rear interface card Ports on the 2-port 10GE RJ45 rear interface card Ports on the 2-port QSFP+ rear stack card
RTC	Supported
RPS	Not supported
PoE	Supported
Rated voltage range	100 V AC to 240 V AC, 50/60 Hz -48 V DC to -60 V DC
Maximum voltage range	90 V AC to 264 V AC, 47 Hz to 63 Hz -38.4 V DC to -72 V DC
Maximum power consumption (100% throughput, full speed of fans)	Not providing the PoE function: 98 W 100% PoE loads: 913 W (system power consumption: 173 W, PoE: 740 W)
Typical power consumption (30% of traffic load) Tested according to ATIS standard EEE enabled No PoE power consumption	56.68 W (without card) 63.63 W (with 210GE optical card) 68.56 W (with 2QSFP+ stack card) 72.61 W (with 2*10GE electrical card)
Operating temperature	0°C to 45°C (32°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.) NOTE: When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
Short-term operating temperature	-5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5906 ft.) NOTE: When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). The equipment can operate beyond the normal operating temperature range for a short-term period, but the following conditions must be met: The equipment operates at a temperature of over 45°C (113°F) consecutively for at most 96 hours in one year. The equipment operates at a temperature of over 45°C (113°F) for a total of no more than 360 hours in one year. The equipment operates at a temperature of over 45°C (113°F) for no more in 15 times in one year. The equipment may be damaged or experience unexpected exceptions if any of the preceding limits is exceeded. The equipment cannot start when the temperature is lower than 0°C (32°F). The maximum distance of optical modules used in these conditions cannot exceed 10 km.
Storage temperature	-40°C to +70°C (-40°F to +158°F)
Noise under normal temperature (27°C, sound power)	< 53.7 dB(A)
Relative humidity	5% to 95%, noncondensing
Operating altitude	0-5000 m (0-16404 ft.)
Certification	EMC certification Safety certification Manufacturing certification

Item	S5720-56C-PWR-EI-DC
Memory (RAM)	2 GB
Flash	512 MB in total. To view the available flash memory size, run the display version command.
Mean time between failures (MTBF)	51.34 years when no card is configured; 48.63 years when a 2-port 10GE SFP+ interface card is configured; 47.71 years when a 2-port 10GE RJ45 interface card is configured; 47.79 years when a stack card is configured
Mean time to repair (MTTR)	2 hours
Availability	> 0.99999
Service port surge protection	Service ports on front panel: ±6 kV in common mode Ports on the 2-port 10GE RJ45 rear interface card: ±2 kV in common mode
Power supply surge protection	Using 500 W AC power modules: ±6 kV in differential mode, ±6 kV in common mode Using 650 W DC power modules: ±2 kV in differential mode, ±4 kV in common mode
Dimensions (H x W x D)	Basic dimensions (excluding the parts protruding from the body): 44.4 mm x 442.0 mm x 424.7 mm (1.75 in. x 17.4 in. x 16.72 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 44.4 mm x 442.0 mm x 451.8 mm (1.75 in. x 17.4 in. x 17.79 in.)
Weight (with packaging)	10.3 kg (22.71 lb)
Stack ports	Ports on the 2-port 10GE SFP+ rear interface card Ports on the 2-port 10GE RJ45 rear interface card Ports on the 2-port QSFP+ rear stack card
RTC	Supported
RPS	Not supported
PoE	Supported
Rated voltage range	100 V AC to 240 V AC, 50/60 Hz -48 V DC to -60 V DC
Maximum voltage range	90 V AC to 264 V AC, 47 Hz to 63 Hz -38.4 V DC to -72 V DC
Maximum power consumption (100% throughput, full speed of fans)	Not providing the PoE function: 98 W 100% PoE loads: 913 W (system power consumption: 173 W, PoE: 740 W)
Typical power consumption (30% of traffic load) Tested according to ATIS standard EEE enabled No PoE power consumption	56.68 W (without card) 63.63 W (with 210GE optical card) 68.56 W (with 2QSFP+ stack card) 72.61 W (with 2*10GE electrical card)
Operating temperature	0°C to 45°C (32°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.) NOTE: When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
Short-term operating temperature	-5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5906 ft.) NOTE: When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). The equipment can operate beyond the normal operating temperature range for a short-term period, but the following conditions must be met: The equipment operates at a temperature of over 45°C (113°F) consecutively for at most 96 hours in one year. The equipment operates at a temperature of over 45°C (113°F) for a total of no more than 360 hours in one year. The equipment operates at a temperature of over 45°C (113°F) for no more in 15 times in one year. The equipment may be damaged or experience unexpected exceptions if any of the preceding limits is exceeded. The equipment cannot start when the temperature is lower than 0°C (32°F). The maximum distance of optical modules used in these conditions cannot exceed 10 km.
Storage temperature	-40°C to +70°C (-40°F to +158°F)
Noise under normal temperature (27°C, sound power)	< 53.7 dB(A)
Relative humidity	5% to 95%, noncondensing
Operating altitude	0-5000 m (0-16404 ft.)
Certification	EMC certification Safety certification Manufacturing certification

Weight	14.0000 kg
Dimensions	71.0000 × 55.0000 × 17.5000 cm
Brand	Huawei
Lead Time	3-5 days
Ship From	Shenzhen Warehouse
Campus Switch	S5720-SI
