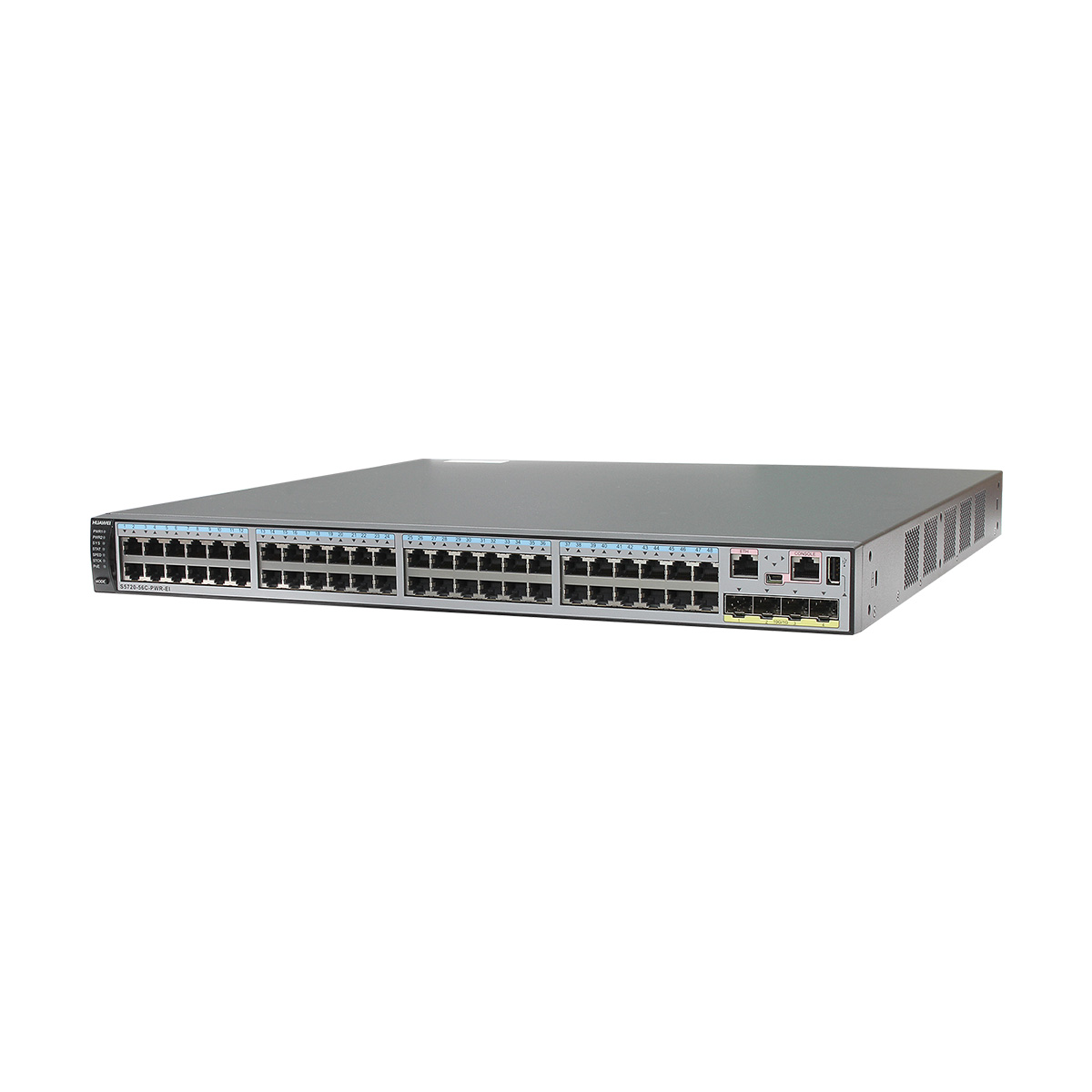

S5720-56C-PWR-EI-AC

1 Review Write a review
PN2359576
AvailabilityIn Stock
Campus Switch S5720-EI
WarrantyUp to 36 months i
×
Warranty Policy
We provide a comprehensive warranty policy.
Refer to the table for more details.

Original price was: $0.00.Current price is: $0.00.

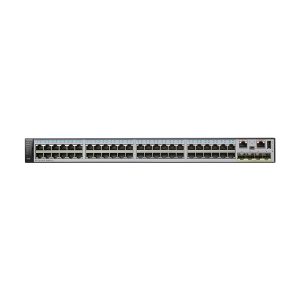

Huawei S5720-56C-PWR-EI-AC switch supports 48 10/100/1000BASE-T ports, 4 10GE SFP+ ports, 1 extended slot, 2 hot swappable AC/DC power supplies, 1 AC equipped, PoE+

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

S5720-56C-PWR-EI-AC Overview

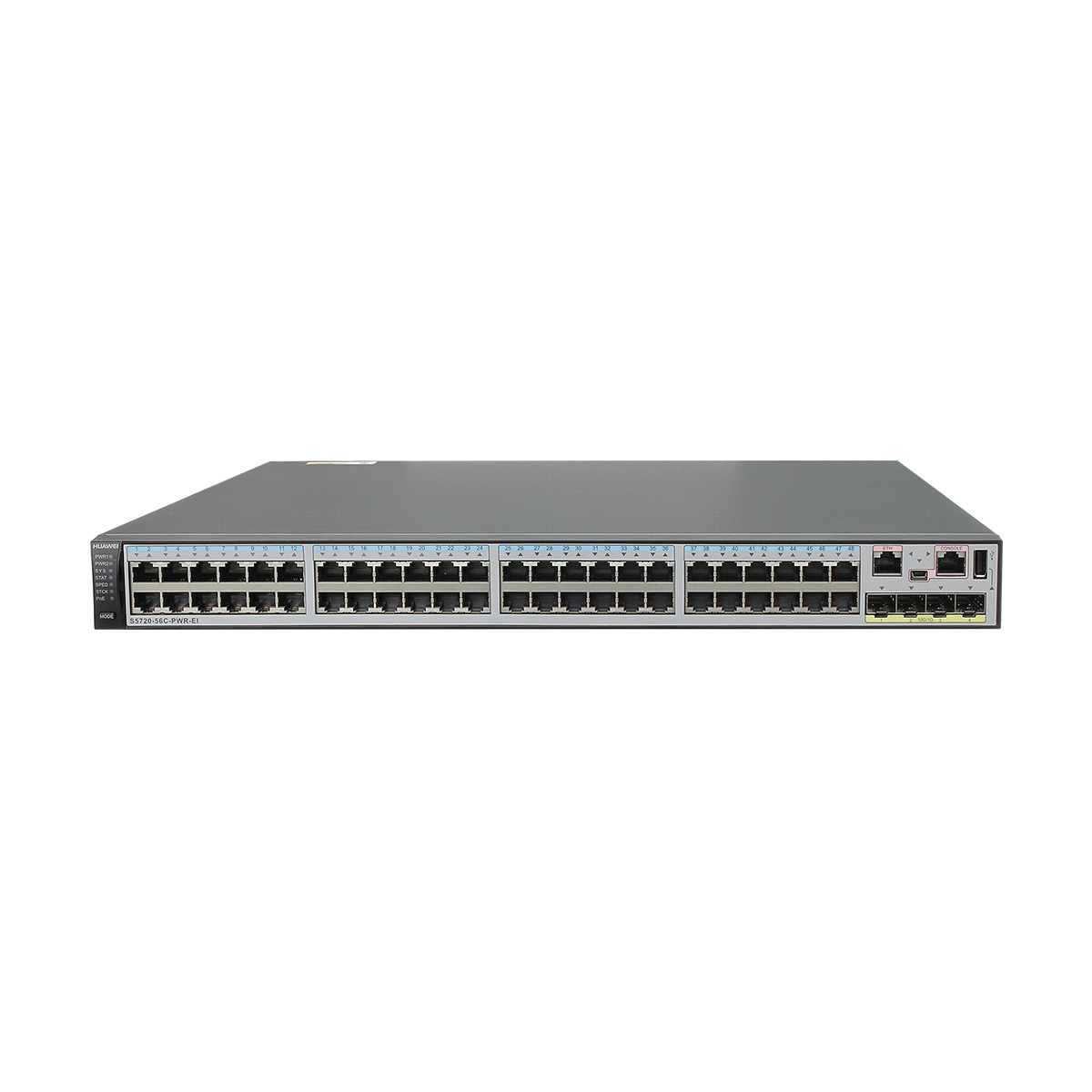

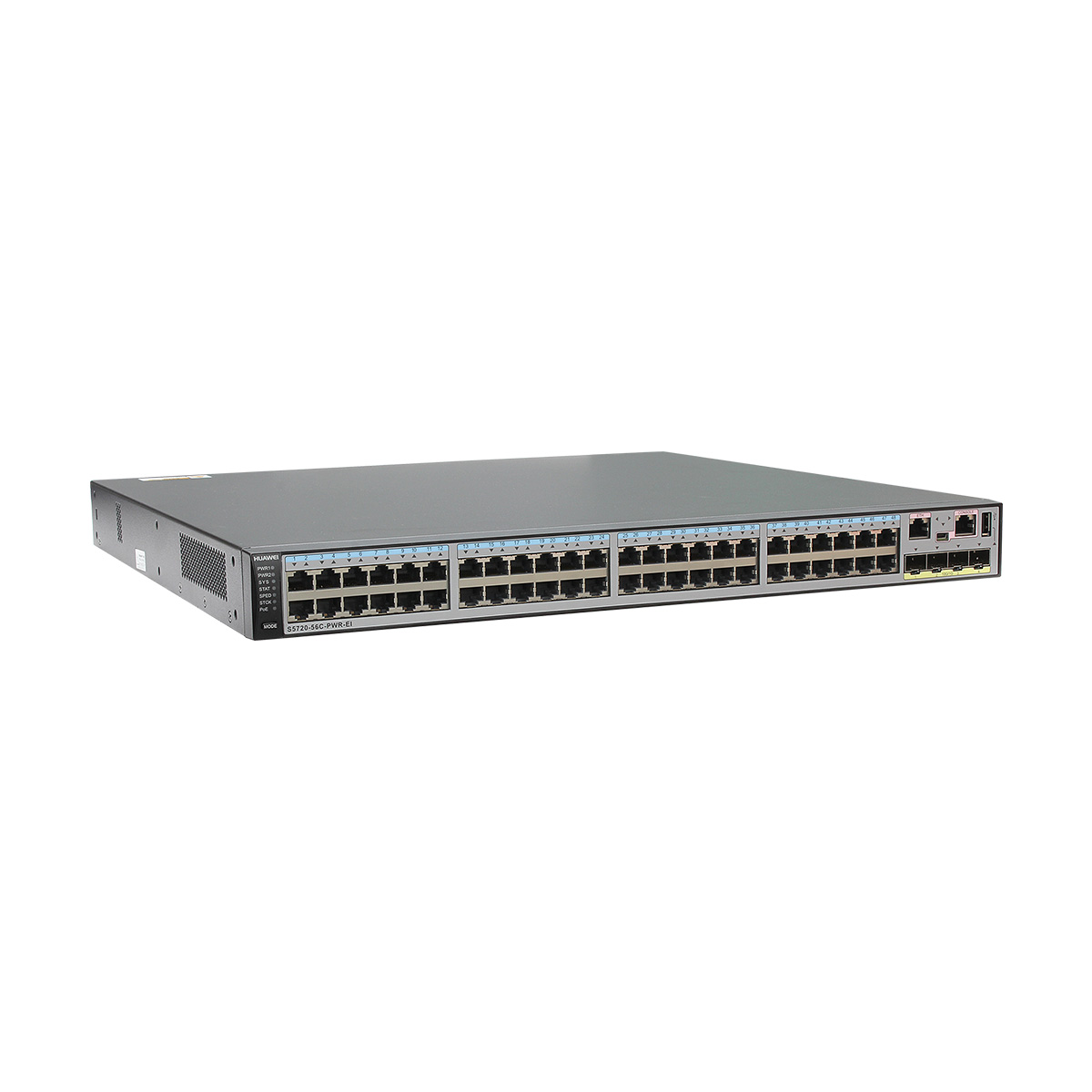

Huawei S5720-56C-PWR-EI-AC switch with 48 10/100/1000BASE-T ports, 4 10GE SFP+ ports, 1 extended slot, 2 hot swappable AC/DC power supplies, 1 AC equipped, PoE+, which is one of the S5720s serie switch.

Huawei S5720 series Ethernet switches are next-generation energy-saving GE switches designed to provide high-bandwidth access and Ethernet multi-service aggregation.

Telecomate.com provides a full range of Huawei switches, optical modules, extension boards, if you have more demands, please contact csd@telecomate.com.

S5720-56C-PWR-EI-AC Quick Specs

48 10/100/1000BASE-T ports

4 10GE SFP+ ports

1 extended slot

2 hot swappable AC/DC power supplies, 1 AC equipped

PoE+

Forwarding performance is 162 Mpps

Switching capacity is 598 Gbit/s

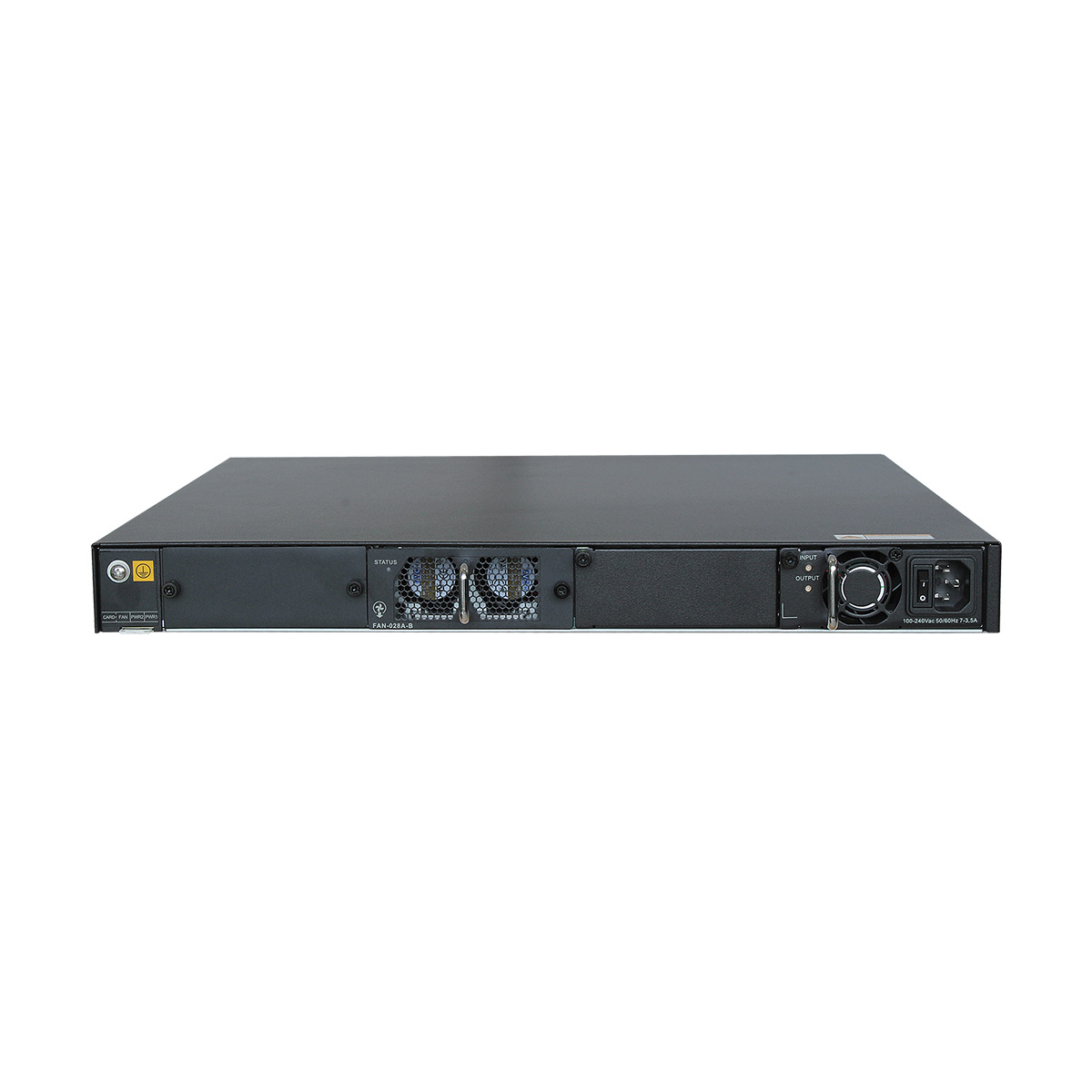

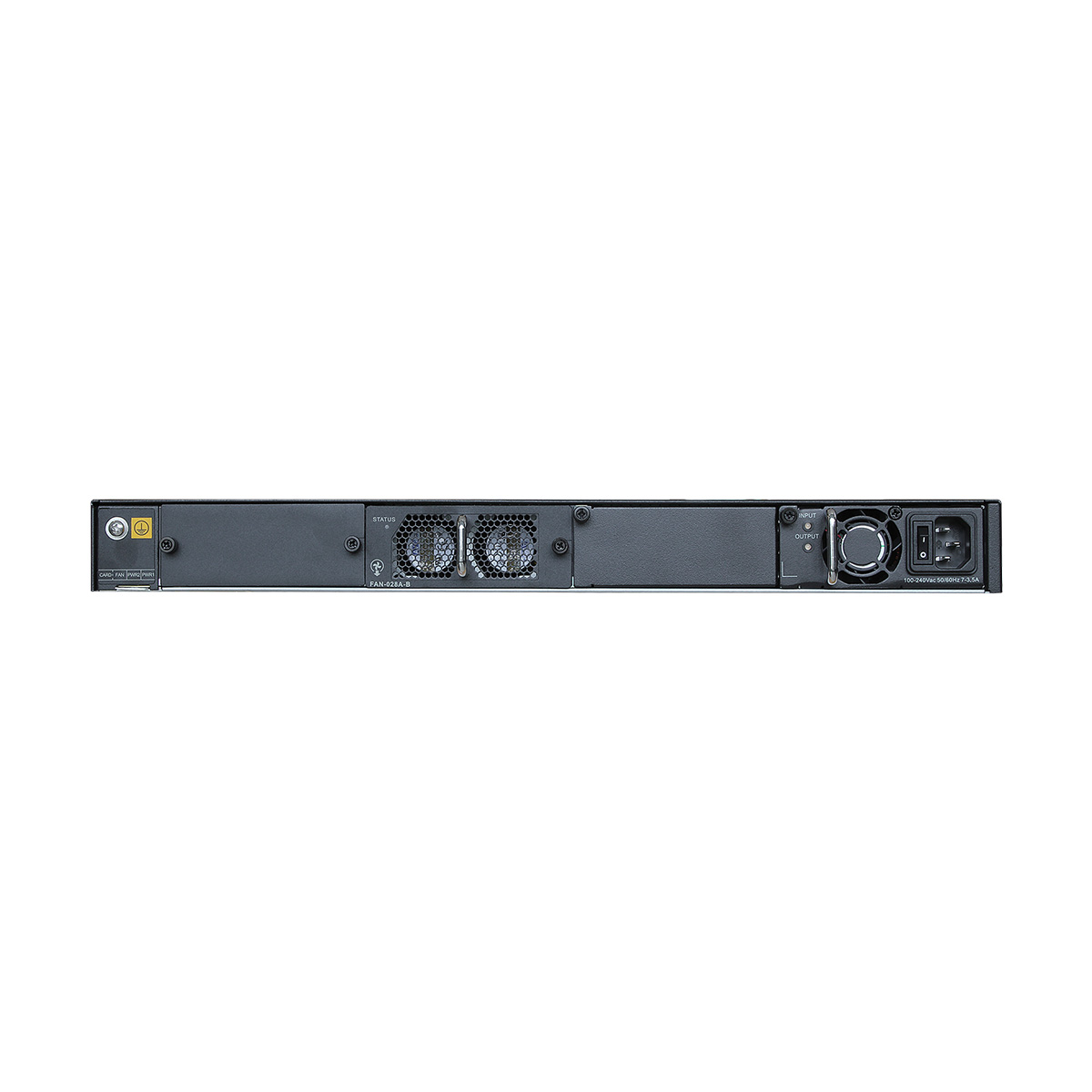

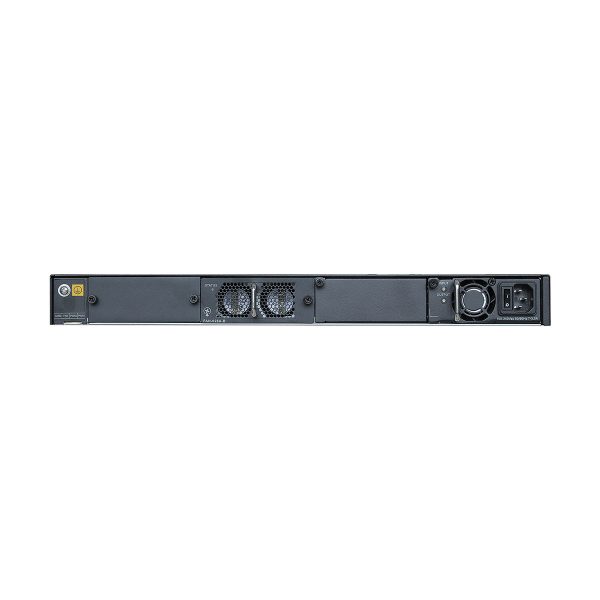

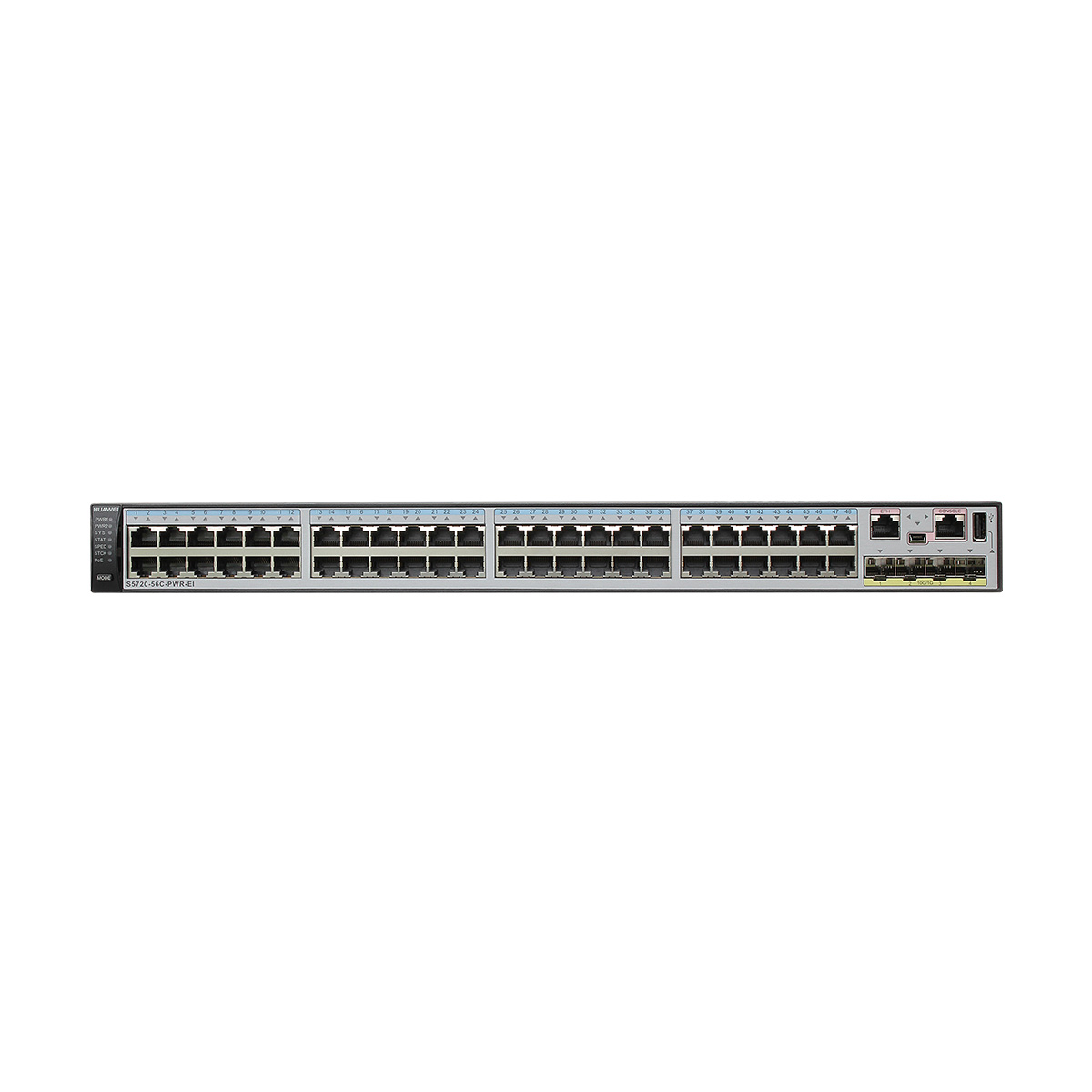

S5720-56C-PWR-EI-AC appearance and structure

S5720-56C-PWR-EI-AC appearance and structure

1. Forty-eight PoE+ 10/100/1000BASE-T ports 7. Ground screw

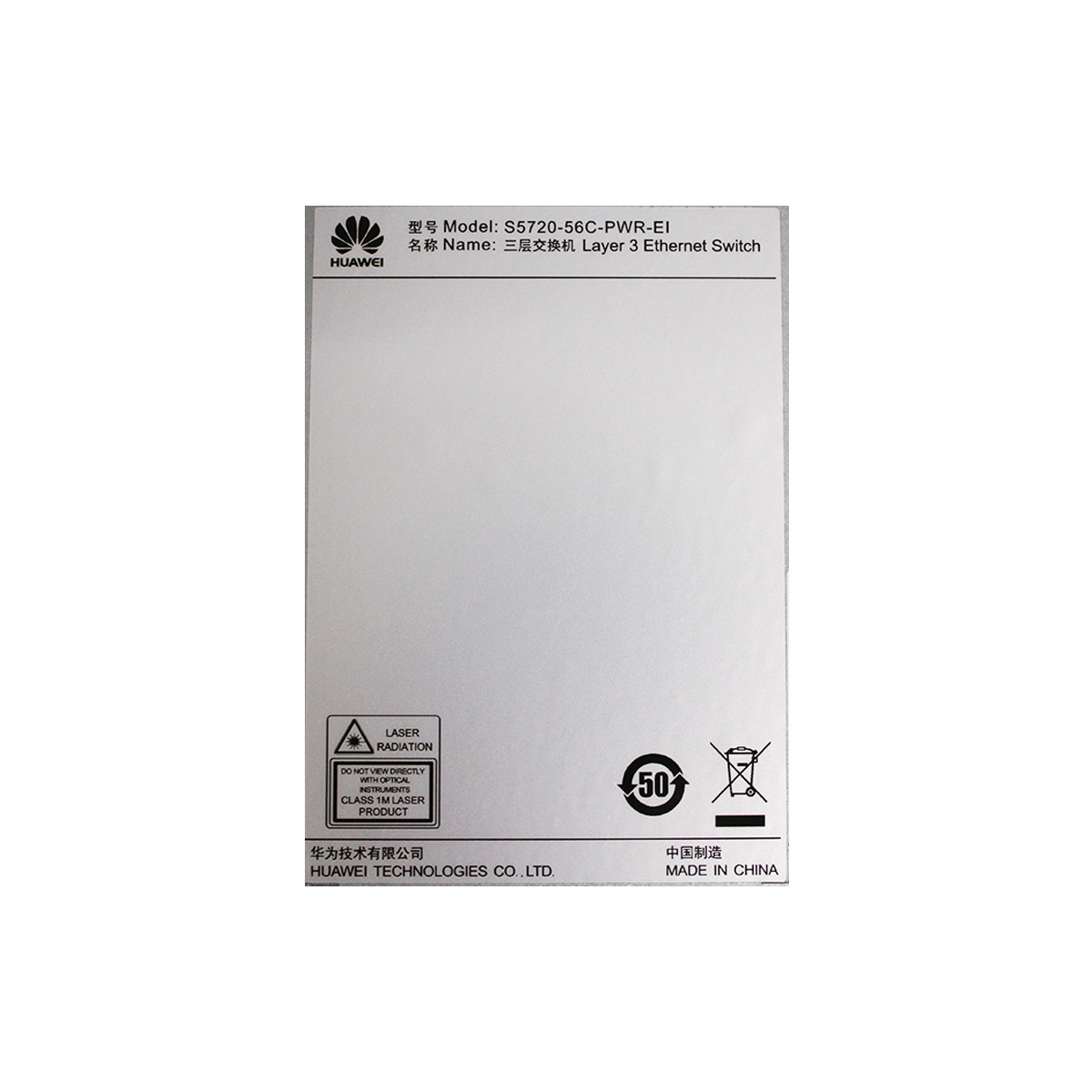

2. Four 10GE SFP+ ports 8. ESN label
3. One ETH management port 9. Rear card slot
4. One mini USB port 10. Fan slot
5. One console port 11. Power module slot 2
6. One USB port 12. Power module slot 1
S5720-56C-PWR-EI-AC Datasheet
Item S5720-56C-PWR-EI-AC
Forwarding performance 162 Mpps
Switching capacity 598 Gbit/s
Ports description 48 10/100/1000 Ethernet PoE+ ports, 4 10GE SFP+ ports, 1 extended slot
Extended slot 1
Fixed port GE port 48
10GE port 4
Flexible card Card slot 1
Card type 2-port 10GE SFP+ interface card 2-port QSFP+ dedicated stack card
Card specification For details about cards, see the section Card Types.
Management port ETH management port Supported
Console port (RJ45) Supported
Console port (Mini USB) Supported
USB port USB 2.0
CPU Frequency 1 GHz
Cores 2
Memory Memory (RAM) 2 GB
Flash memory Hardware: 512 MB, of which 340 MB is available for users
Power supply system Power supply type 500 W AC (pluggable) 650 W DC (pluggable)
Power supply specification For details about power supplies, see the section Power Supply.
Power supply redundancy 1+1
Rated voltage range AC: 100 V AC to 240 V AC; 50/60 Hz DC: -48 V DC to -60 V DC
Maximum voltage range AC: 90 V AC to 264 V AC; 47-63 Hz DC: -38.4 V DC to - 72 V DC
Maximum input current 500 W AC: 7 A 650 W DC: 20 A
Maximum power consumption of the device Without PDs: 91.6 W With PDs: 889.4 W (PDs: 739.2 W)
Power consumption in the case of 30% traffic load 53.5 W (without cards) 61.12 W (with a 2- port 10GE optical card) 65.85 W (with a 2- port QSFP+ stack card)
Power consumption in the case of 100% traffic load 62.24 W (without cards) 69.75 W (with a 2- port 10GE optical card) 74.55 W (with a 2- port QSFP+ stack card)
Heat dissipation system Heat dissipation mode Air-cooled heat dissipation and intelligent fan speed adjustment
Number of fan modules Pluggable dual fans
Airflow Air flows in from the left and right sides as well as the front panel, and exhausts from the rear panel
Maximum heat dissipation of the device (BTU/hour) Without PoE output: 313 Full-load PoE: 3035 Without PoE output: 334 Full-load PoE: 3116
Environment parameters Long-term operating temperature 0-1800 m: 0°C to 45°C 1800-5000 m: The operating temperatur e decreases 1°C every time the altitude increases 220 m.
Short-term operating temperature 0-1800 m: -5°C to +50°C 1800-5000 m: The operating temperatur e decreases 1°C every time the altitude increases 220 m.NOTE: Short term indicates that the successive operating time is no more than 96 hours, the total operating time is no more than 360 hours, or the number of times the operating temperature is over 45°C is no more than 15 in a year.
Storage temperature -40°C to +70°C
Relative humidity 5%-95% (non-condensing)
Operating altitude 5000 m
Noise under normal temperature (sound power) 53.7 dB(A)
Noise under high temperature (sound power) 71.3 dB(A)
Noise under normal temperature (sound pressure) 40.0 dB(A)
Surge protection specification (RJ45 service port) ±8 kV in common mode
Surge protection specification (power port) AC power port: ±6 kV in differential or common mode DC power port: ±2 kV in differential mode; ±4 kV in common mode
Reliability MTBF (year)  Without cards: 51.34  With a 2- port 10GE SFP+ card: 48.63  With a stack card: 47.79
MTTR (hour) 2
Availability > 0.99999
Certification EMC certification Safety certification Manufactur ing certification For details about certifications, see the section Safety and Regulatory Compliance.
Physical specifications Chassis dimensions (W x D x H, mm) 442 x 420 x 44.4
Chassis height 1 U
Chassis weight (full configuration weight, including weight of packaging materials) 10.32 kg

Additional information

Weight 14.0000 kg
Dimensions 71.5000 × 55.0000 × 17.5000 cm
Campus Switch

S5720-56C-PWR-EI-AC Datasheet
Item S5720-56C-PWR-EI-AC
Forwarding performance 162 Mpps
Switching capacity 598 Gbit/s
Ports description 48 10/100/1000 Ethernet PoE+ ports, 4 10GE SFP+ ports, 1 extended slot
Extended slot 1
Fixed port GE port 48
10GE port 4
Flexible card Card slot 1
Card type 2-port 10GE SFP+ interface card 2-port QSFP+ dedicated stack card
Card specification For details about cards, see the section Card Types.
Management port ETH management port Supported
Console port (RJ45) Supported
Console port (Mini USB) Supported
USB port USB 2.0
CPU Frequency 1 GHz
Cores 2
Memory Memory (RAM) 2 GB
Flash memory Hardware: 512 MB, of which 340 MB is available for users
Power supply system Power supply type 500 W AC (pluggable) 650 W DC (pluggable)
Power supply specification For details about power supplies, see the section Power Supply.
Power supply redundancy 1+1
Rated voltage range AC: 100 V AC to 240 V AC; 50/60 Hz DC: -48 V DC to -60 V DC
Maximum voltage range AC: 90 V AC to 264 V AC; 47-63 Hz DC: -38.4 V DC to - 72 V DC
Maximum input current 500 W AC: 7 A 650 W DC: 20 A
Maximum power consumption of the device Without PDs: 91.6 W With PDs: 889.4 W (PDs: 739.2 W)
Power consumption in the case of 30% traffic load 53.5 W (without cards) 61.12 W (with a 2- port 10GE optical card) 65.85 W (with a 2- port QSFP+ stack card)
Power consumption in the case of 100% traffic load 62.24 W (without cards) 69.75 W (with a 2- port 10GE optical card) 74.55 W (with a 2- port QSFP+ stack card)
Heat dissipation system Heat dissipation mode Air-cooled heat dissipation and intelligent fan speed adjustment
Number of fan modules Pluggable dual fans
Airflow Air flows in from the left and right sides as well as the front panel, and exhausts from the rear panel
Maximum heat dissipation of the device (BTU/hour) Without PoE output: 313 Full-load PoE: 3035 Without PoE output: 334 Full-load PoE: 3116
Environment parameters Long-term operating temperature 0-1800 m: 0°C to 45°C 1800-5000 m: The operating temperatur e decreases 1°C every time the altitude increases 220 m.
Short-term operating temperature 0-1800 m: -5°C to +50°C 1800-5000 m: The operating temperatur e decreases 1°C every time the altitude increases 220 m.NOTE: Short term indicates that the successive operating time is no more than 96 hours, the total operating time is no more than 360 hours, or the number of times the operating temperature is over 45°C is no more than 15 in a year.
Storage temperature -40°C to +70°C
Relative humidity 5%-95% (non-condensing)
Operating altitude 5000 m
Noise under normal temperature (sound power) 53.7 dB(A)
Noise under high temperature (sound power) 71.3 dB(A)
Noise under normal temperature (sound pressure) 40.0 dB(A)
Surge protection specification (RJ45 service port) ±8 kV in common mode
Surge protection specification (power port) AC power port: ±6 kV in differential or common mode DC power port: ±2 kV in differential mode; ±4 kV in common mode
Reliability MTBF (year)  Without cards: 51.34  With a 2- port 10GE SFP+ card: 48.63  With a stack card: 47.79
MTTR (hour) 2
Availability > 0.99999
Certification EMC certification Safety certification Manufactur ing certification For details about certifications, see the section Safety and Regulatory Compliance.
Physical specifications Chassis dimensions (W x D x H, mm) 442 x 420 x 44.4
Chassis height 1 U
Chassis weight (full configuration weight, including weight of packaging materials) 10.32 kg
