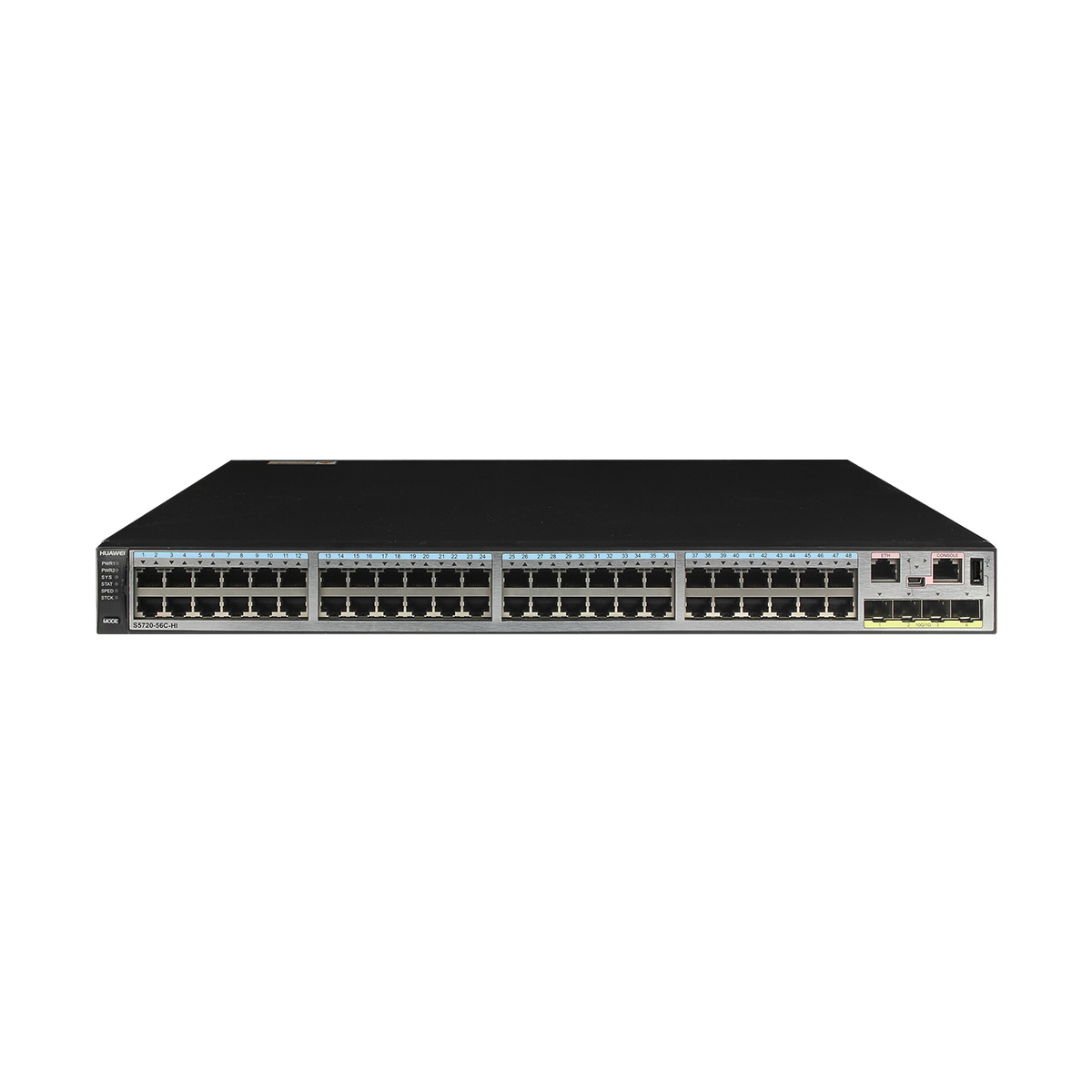

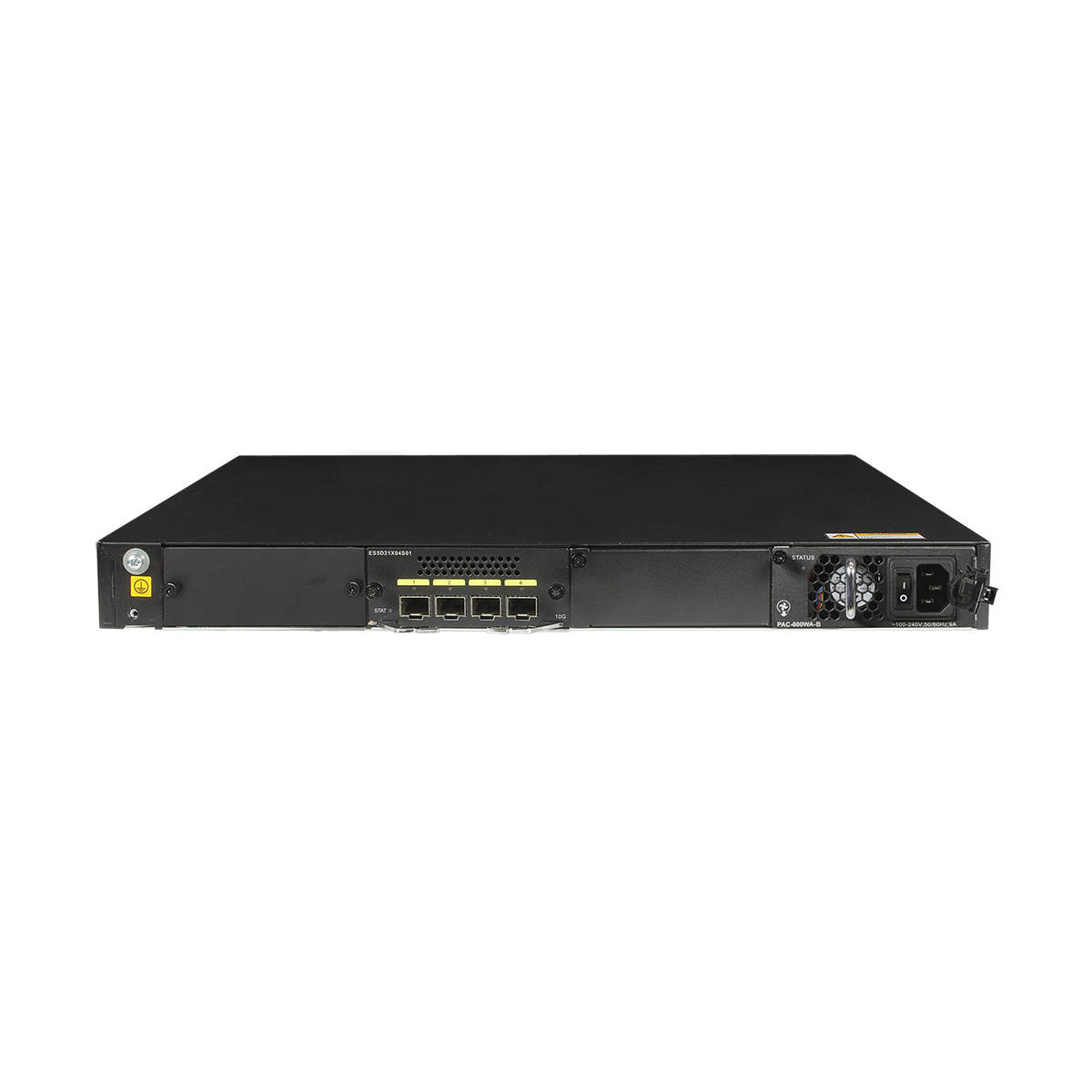

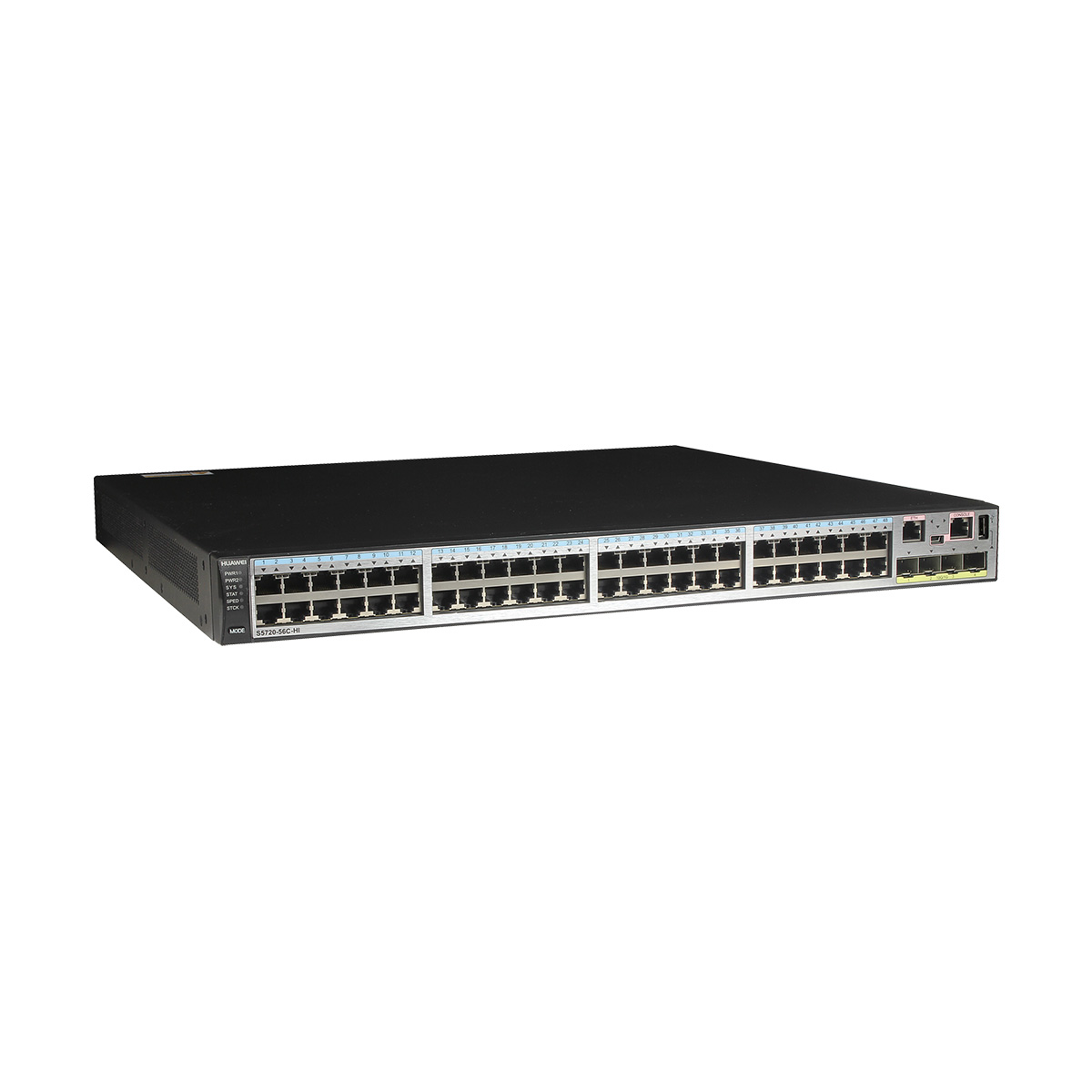

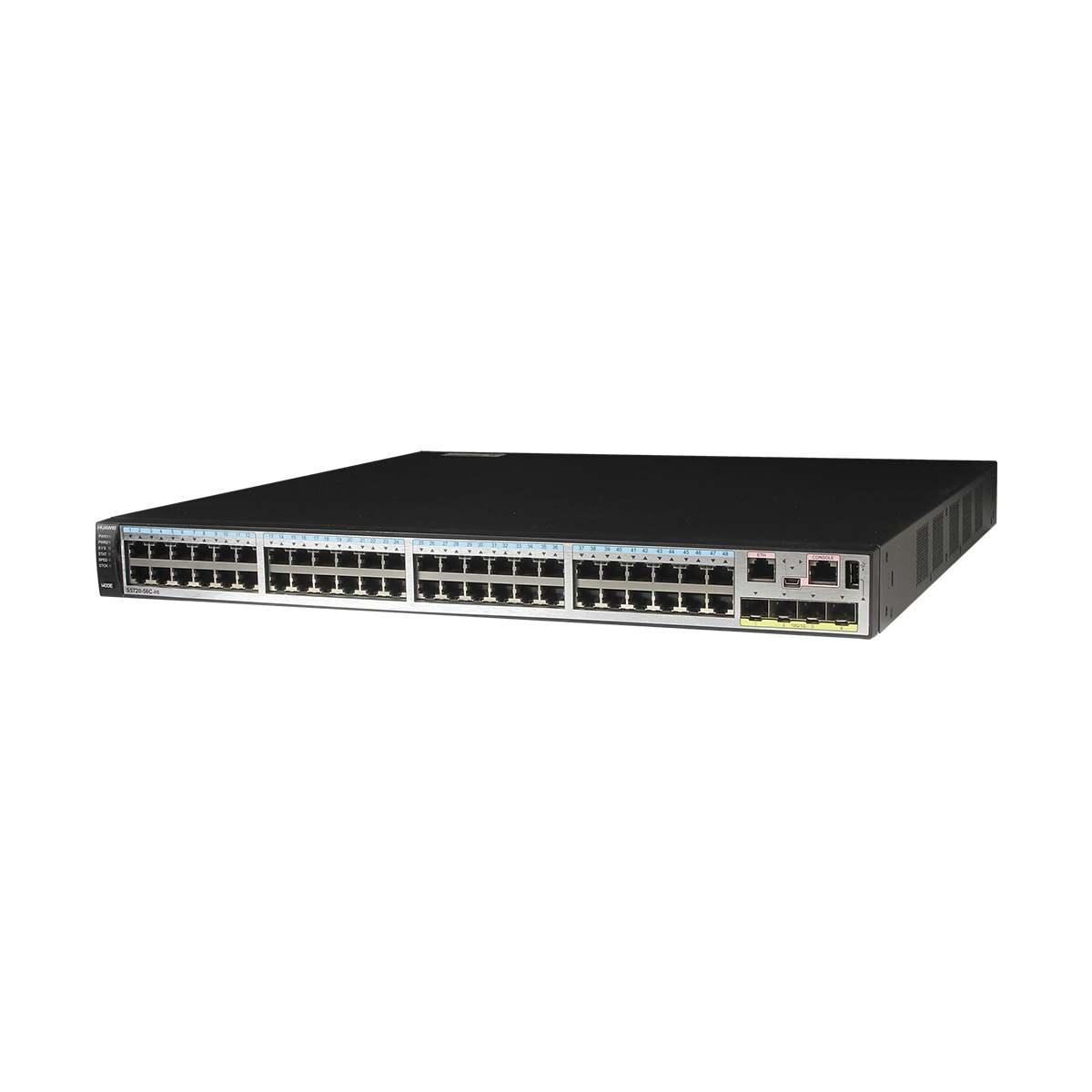

S5720-56C-HI-AC

Rated 5.00 out of 5 based on 1 customer rating

1 Review Write a review

PN2358598

AvailabilityIn Stock

Campus Switch S5720-HI

WarrantyUp to 36 months

Original price was: $0.00.Current price is: $0.00.

Huawei S5720-56C-HI-AC switch supports 48 10/100/1000BASE-T ports, 4 10GE SFP+ ports, 2 interface slots, 2 extension slots, 1 AC equipped, PoE+

48 Ports Switch Electrical Switch Lan Access Switch PoE Switch

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

S5720-56C-HI-AC Overview

Huawei S5720-56C-HI-AC is advanced Gigabit Ethernet switch that provides rich agile features, based on Huawei Versatile Routing Platform (VRP). With 48 Ethernet 10/100/1,000 ports, and 4 10 Gig SFP+, the switch provides the ubiquitous service function to ensure consistent user experience. The Super Virtual Fabric (SVF) function virtualizes the entire network into one device. In addition, the switch supports flexible Ethernet networking, comprehensive VPN tunnel solutions, various security control methods, intelligent deployment, and simple operation and maintenance. The S5720-56C-HI-AC switch is the best choice for the branches of high-quality large- and middle-sized campus networks.

Telecomate.com provides a full range of Huawei switch series, if you have any demands, please contact: csd@telecomate.com

S5720-56C-HI-AC Quick Specs

48 Ethernet 10/100/1,000 ports, and 4 10 Gig SFP+

Forwarding performance is 192Mpps

Switching capacity is 598 Gbps

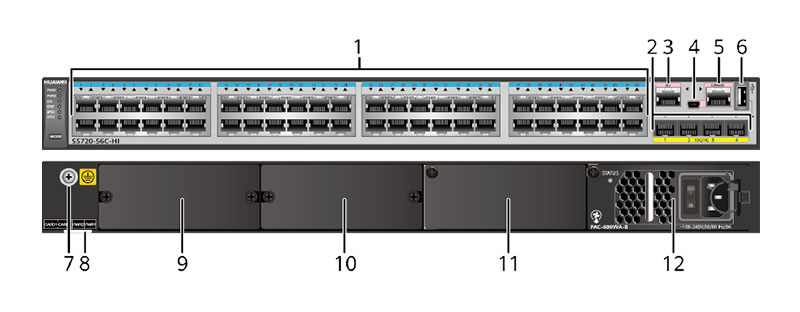

S5720-56C-HI-AC appearance and structure

1	Forty-eight 10/100/1000BASE-T ports	7	Ground screw
2	Four 10GE SFP+ ports	8	ESN label
3	One ETH management port	9	Rear card slot 1
4	One mini USB port	10	Rear card slot 2
5	One console port	11	Power module slot 2
6	One USB port	12	Power module slot 1

S5720-56C-HI-AC Datasheet

Item	S5720-56C-HI-AC
Fixed port	48 Ethernet 10/100/1000 POE+ ports, 4 10 Gig SFP+, with 2 interface slots
Forwarding performance	192 Mpps
Switching capacity	598Gbps
Extended slot	One port extended slot with optional subcard 4x10GE SFP+ One slot reserved for the stack card
MAC address table	IEEE 802.1d
	128K MAC address entries
	MAC address learning and aging
	Static, dynamic, and blackhole MAC address entries
	Packet filtering based on source MAC addresses
VLAN	4K VLANs
	Guest VLAN and voice VLAN
	GVRP
	MUX VLAN
	VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports
	VLAN mapping
Wireless AC	AP access control, AP domain management, and AP configuration template management Radio management, unified static configuration, and dynamic centralized management WLAN basic services, QoS, security, and user management CAPWAP, Tag/terminal location, and spectrum analysis
IP routing	Static routes, RIP v1/2, RIPng, OSPF, OSPFv3, IS-IS, IS-ISv6, BGP, BGP4+, ECMP, routing policy
IPv6 features	Neighbor Discovery (ND)
	Path maximum transmission unit (PMTU)
	IPv6 Ping, IPv6 Tracert, and IPv6 Telnet
	6 to4 tunnel, ISATAP tunnel, and manually configur ed tunnel
	ACLs based on source IPv6 addresses, destination IPv6 addresses, Layer 4 ports or protocol types
	Multicast Listener Discovery (MLD) v1/v2 snooping
Multicast forwarding	IGMP v1/v2/v3 snooping and IGMP fast leave
	Multicast forwarding in a VLAN and multicast replication between VLANs
	Multicast load balancing among member ports of a trunk
	Controllable multicast
	Port-based multicast traffic statistics collection
	IGMPv1/v2/v3, Protocol Independent Multicast Sparse Mode (PIM-SM), and Protocol Independent
	Multicast Dense Mode (PIM-DM), and Protocol Independent Multicast Source-Specific Multicast (PIM-SSM)
	Multicast Source Discovery Protocol (MSDP)
QoS/ACL	Rate limitation in the inbound and outbound directions of a port
	Packet redirection
	Broadcast storm control
	Port-based traffic policing and two-rate and three-color CAR
	Eight queues per port,Weighted round robin (WRR), deficit round robin (DRR), strict priority (SP), WRR+SP, and DRR+SP queue scheduling algorithms
	Weighted random early detection (WRED)
	Re-marking of the 802.1p priority and DSCP fields of packets
	Packet filtering on Layer 2 to Layer 4, filtering out invalid fr ames based on the source MAC address, destination MAC address, source IP address, destination IP address, TCP/UDP source/destination port number, protocol number, or VLAN
	Queue-based rate limitation and shaping on ports
	HQoS
Security features	Hierarchical user management and password protection
	DoS attack defense, ARP attack defense, and ICMP attack defense
	Binding of the IP address, MAC address, interface number, and VLAN ID of a user
	Port isolation, port security, and sticky MAC
	MAC Forced Forwarding (MFF)
	Blackhole MAC address entries
	Limit on the number of learned MAC addresses
	IEEE 802.1x authentication and the limit on the number of users on an interface
	AAA authentication, RADIUS authentication, HWTACACS+ authentication, and NAC SSH v2.0
	Hypertext Transfer Protocol Secure (HTTPS)
	CPU defense; Blacklist and whitelist; MACSec ready
Access security	DHCP Relay, DHCP Server, DHCP Snooping, DHCP Client, DHCP Security
Reliability	RRPP ring topology and RRPP multi-instance
	Smart Link tree topology and Smart Link multi-instance, providing the millisecond-level protection switchover
	SEP
	G.8032 Ethernet Ring Protection Switching (ERPS)
	STP (IEEE 802.1d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s)
	BPDU protection, root protection, and loop protection
Super Virtual Fabric (SVF)	Working as the parent node to vertically virtualize downlink switches and APs as one device for management
Super Virtual Fabric (SVF)	Supports a two-layer client architecture
Management and Maintenance	Virtual cable test, SNMP v1/v2c/v3, RMON
	Network management system (NMS) and Web management
	System logs and multi-level alarms
	802.3az EEE
	GVRP
	Dying Gasp upon power-off
Interoperability	VLAN-Based Spanning Tree (VBST), working with PVST, PVST+, and RPVST
	Link-type Negotiation Protocol (LNP), similar with DTP
	VLAN Central Management Protocol (VCMP), similar with VTP
Operating environment	Operating temperature: 0-1800 m altitude: 0-45℃ 1800-5000m altitude: The operating temperature reduces by 1℃ every time the altitude increases by 220m. Relative humidity: 5% to 95% (noncondensing)
Input voltage	AC: Rated voltage range: 100 V to 240 V A C, 50/60 Hz Maximum voltage range: 90 to 264 V AC, 47/63 Hz
Dimensions (mm)	442 (W) x 420 (D)x 43.6 (H)
Typical power consumption	<183.3W

S5720-56C-HI-AC Datasheet

Item	S5720-56C-HI-AC
Fixed port	48 Ethernet 10/100/1000 POE+ ports, 4 10 Gig SFP+, with 2 interface slots
Forwarding performance	192 Mpps
Switching capacity	598Gbps
Extended slot	One port extended slot with optional subcard 4x10GE SFP+ One slot reserved for the stack card
MAC address table	IEEE 802.1d
	128K MAC address entries
	MAC address learning and aging
	Static, dynamic, and blackhole MAC address entries
	Packet filtering based on source MAC addresses
VLAN	4K VLANs
	Guest VLAN and voice VLAN
	GVRP
	MUX VLAN
	VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports
	VLAN mapping
Wireless AC	AP access control, AP domain management, and AP configuration template management Radio management, unified static configuration, and dynamic centralized management WLAN basic services, QoS, security, and user management CAPWAP, Tag/terminal location, and spectrum analysis
IP routing	Static routes, RIP v1/2, RIPng, OSPF, OSPFv3, IS-IS, IS-ISv6, BGP, BGP4+, ECMP, routing policy
IPv6 features	Neighbor Discovery (ND)
	Path maximum transmission unit (PMTU)
	IPv6 Ping, IPv6 Tracert, and IPv6 Telnet
	6 to4 tunnel, ISATAP tunnel, and manually configur ed tunnel
	ACLs based on source IPv6 addresses, destination IPv6 addresses, Layer 4 ports or protocol types
	Multicast Listener Discovery (MLD) v1/v2 snooping
Multicast forwarding	IGMP v1/v2/v3 snooping and IGMP fast leave
	Multicast forwarding in a VLAN and multicast replication between VLANs
	Multicast load balancing among member ports of a trunk
	Controllable multicast
	Port-based multicast traffic statistics collection
	IGMPv1/v2/v3, Protocol Independent Multicast Sparse Mode (PIM-SM), and Protocol Independent
	Multicast Dense Mode (PIM-DM), and Protocol Independent Multicast Source-Specific Multicast (PIM-SSM)
	Multicast Source Discovery Protocol (MSDP)
QoS/ACL	Rate limitation in the inbound and outbound directions of a port
	Packet redirection
	Broadcast storm control
	Port-based traffic policing and two-rate and three-color CAR
	Eight queues per port,Weighted round robin (WRR), deficit round robin (DRR), strict priority (SP), WRR+SP, and DRR+SP queue scheduling algorithms
	Weighted random early detection (WRED)
	Re-marking of the 802.1p priority and DSCP fields of packets
	Packet filtering on Layer 2 to Layer 4, filtering out invalid fr ames based on the source MAC address, destination MAC address, source IP address, destination IP address, TCP/UDP source/destination port number, protocol number, or VLAN
	Queue-based rate limitation and shaping on ports
	HQoS
Security features	Hierarchical user management and password protection
	DoS attack defense, ARP attack defense, and ICMP attack defense
	Binding of the IP address, MAC address, interface number, and VLAN ID of a user
	Port isolation, port security, and sticky MAC
	MAC Forced Forwarding (MFF)
	Blackhole MAC address entries
	Limit on the number of learned MAC addresses
	IEEE 802.1x authentication and the limit on the number of users on an interface
	AAA authentication, RADIUS authentication, HWTACACS+ authentication, and NAC SSH v2.0
	Hypertext Transfer Protocol Secure (HTTPS)
	CPU defense; Blacklist and whitelist; MACSec ready
Access security	DHCP Relay, DHCP Server, DHCP Snooping, DHCP Client, DHCP Security
Reliability	RRPP ring topology and RRPP multi-instance
	Smart Link tree topology and Smart Link multi-instance, providing the millisecond-level protection switchover
	SEP
	G.8032 Ethernet Ring Protection Switching (ERPS)
	STP (IEEE 802.1d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s)
	BPDU protection, root protection, and loop protection
Super Virtual Fabric (SVF)	Working as the parent node to vertically virtualize downlink switches and APs as one device for management
Super Virtual Fabric (SVF)	Supports a two-layer client architecture
Management and Maintenance	Virtual cable test, SNMP v1/v2c/v3, RMON
	Network management system (NMS) and Web management
	System logs and multi-level alarms
	802.3az EEE
	GVRP
	Dying Gasp upon power-off
Interoperability	VLAN-Based Spanning Tree (VBST), working with PVST, PVST+, and RPVST
	Link-type Negotiation Protocol (LNP), similar with DTP
	VLAN Central Management Protocol (VCMP), similar with VTP
Operating environment	Operating temperature: 0-1800 m altitude: 0-45℃ 1800-5000m altitude: The operating temperature reduces by 1℃ every time the altitude increases by 220m. Relative humidity: 5% to 95% (noncondensing)
Input voltage	AC: Rated voltage range: 100 V to 240 V A C, 50/60 Hz Maximum voltage range: 90 to 264 V AC, 47/63 Hz
Dimensions (mm)	442 (W) x 420 (D)x 43.6 (H)
Typical power consumption	<183.3W

Weight	19.0000 kg
Dimensions	71.5000 × 56.5000 × 22.5000 cm
