Categories:S5720 Series

S5720-56C-EI-48S-DC

Rated 5.00 out of 5 based on 1 customer rating

1 Review Write a review

PN02350NHP

BrandsHuawei

AvailabilityIn Stock

Campus Switch S5720-EI

WarrantyUp to 36 months

Original price was: $0.00.Current price is: $0.00.

Huawei S5720-56C-EI-48S-DC switch supports 48 GE SFP ports, 4 10GE SFP+ ports, 1 extended slot, 2 hot swappable AC/DC power supplies, 1 DC equipped

48 Ports Switch GE Switch Lan Access Switch

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

S5720-56C-EI-48S-DC overview

This Huawei switch comes with 48 GE SFP ports, 4 10GE SFP+ ports, 1 extended slot, 2 hot-swappable AC/DC power supplies, 1 DC equipped, which is one of the S5720s series switches.

Huawei S5720 series Ethernet switches are next-generation energy-saving GE switches designed to provide high-bandwidth access and Ethernet multi-service aggregation.

Telecomate.com provides a full range of Huawei switches, optical modules, extension boards, if you have more demands, please contact csd@telecomate.com.

S5720-56C-EI-48S-DC quick specs

48 GE SFP ports

4 10GE SFP+ ports

1 extended slot, 2 hot-swappable AC/DC power supplies, 1 DC equipped

Forwarding performance is 162 Mpps

The switching capacity is 598 Gbit/s

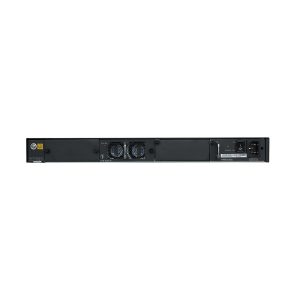

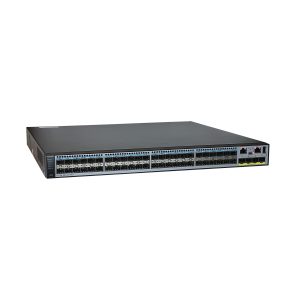

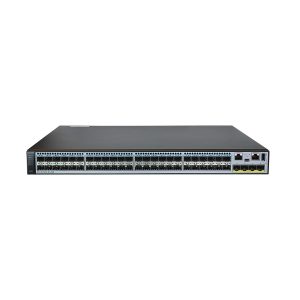

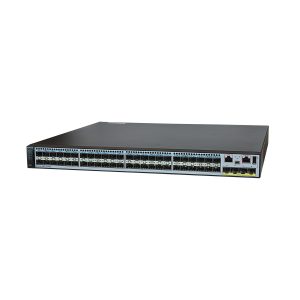

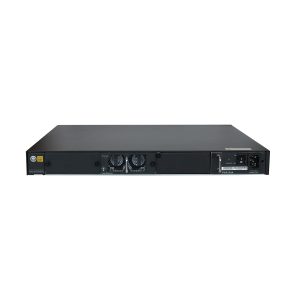

S5720-56C-EI-48S-DC appearance and structure

1. Forty-eight 100/1000BASE-X ports	7. Ground screw

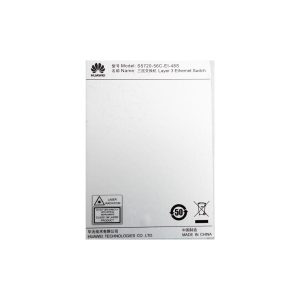

2. Four 10GE SFP+ ports	8. ESN label
3. One ETH management port	9. Rear card slot
4. One mini USB port	10. Fan slot
5. One console port	11. Power module slot 2 150 W AC power module 150 W DC power module
6. One USB port	12. Power module slot 1 150 W AC power module 150 W DC power module

S5720-56C-EI-48S-DC Datasheet

Item		S5720-56C-EI- 48S-DC
Forwarding performance		162 Mpps
Switching capacity		598 Gbit/s
Ports description		48 Gig SFP ports, 4 10GE SFP+ ports, 1 extended slot
Extended slot		1
Fixed port	GE port	48
Fixed port	10GE port	4
Flexible card	Card slot	1
	Card type	2-port 10GE SFP+ interface card 2-port QSFP+ dedicated stack card
	Card specification	For details about cards, see the section Card Types.
Management port	ETH management port	Supported
	Console port (RJ45)	Supported
	Console port (Mini USB)	Supported
	USB port	USB 2.0
CPU	Frequency	1 GHz
CPU	Cores	2
Memory	Memory (RAM)	2 GB
Memory	Flash memory	Hardware: 512 MB, of which 340 MB is available for users
Power supply system	Power supply type	150 W AC (pluggable) 150 W DC (pluggable)
	Power supply specification	For details about power supplies, see the section Power Supply.
	Power supply redundancy	1+1
	Rated voltage range	AC: 100 V AC to 240 V AC; 50/60 Hz DC: -48 V DC to -60 V DC
	Maximum voltage range	AC: 90 V AC to 264 V AC; 47-63 Hz DC: -36 V DC to-72 V DC
	Maximum input current	150 W AC: 3 A 150 W DC: 6 A
	Maximum power consumption of the device	104 W
	Power consumption in the case of 30% traffic load	68.82 W (without cards) 76.55 W (with a 2-port 10GE optical card) 81.23 W (with a 2-port QSFP+ stack card)
	Power consumption in the case of 100% traffic load	70.25 W (without cards) 77.65 W (with a 2-port 10GE optical card) 82.67 W (with a 2-port QSFP+ stack card)
Heat dissipation system	Heat dissipation mode	Air-cooled heat dissipation and intelligent fan speed adjustment
	Number of fan modules	Pluggable dual fans
	Airflow	Air flows in from the left and right sides as well as the front panel, and exhausts from the rear panel
	Maximum heat dissipation of the device (BTU/hour)	355
Environment parameters	Long-term operating temperature	0-1800 m: 0°C to 45°C 1800-5000 m: The operating temperature decreases 1°C every time the altitude increases 220 m.
	Short-term operating temperature	0-1800 m: -5°C to +50°C 1800-5000 m: The operating temperature decreases 1°C every time the altitude increases 220 m.NOTE: Short term indicates that the successive operating time is no more than 96 hours, the total operating time is no more than 360 hours, or the number of times the operating temperature is over 45°C is no more than 15 in a year.
	Storage temperature	-40°C to +70°C
	Relative humidity	5%-95% (non-condensing)
	Operating altitude	AC: 5000 m DC: 2000 m
	Noise under normal temperature (sound power)	51.2 dB(A)
	Noise under high temperature (sound power)	71 dB(A)
	Noise under normal temperature (sound pressure)	37.5 dB(A)
	Surge protection specification (RJ45 service port)	NA
	Surge protection specification (power port)	AC power port: ±6 kV in differential or common mode DC power port: ±1 kV in differential mode; ±2 kV in common mode
Reliability	MTBF (year)	Without cards: 73.91 With a 2-port 10GE SFP+ card: 68.42 With a stack card: 66.77
	MTTR (hour)	2
	Availability	> 0.99999
Certification		EMC certification Safety certification Manufacturing certification For details about certifications, see the section Safety and Regulatory Compliance.
Physical specifications	Chassis dimensions (W x D x H, mm)	442 x 420 x 44.4
	Chassis height	1 U
	Chassis weight (full configuration weight, including weight of packaging materials)	9.9 kg

S5720-56C-EI-48S-DC Datasheet

Item		S5720-56C-EI- 48S-DC
Forwarding performance		162 Mpps
Switching capacity		598 Gbit/s
Ports description		48 Gig SFP ports, 4 10GE SFP+ ports, 1 extended slot
Extended slot		1
Fixed port	GE port	48
Fixed port	10GE port	4
Flexible card	Card slot	1
	Card type	2-port 10GE SFP+ interface card 2-port QSFP+ dedicated stack card
	Card specification	For details about cards, see the section Card Types.
Management port	ETH management port	Supported
	Console port (RJ45)	Supported
	Console port (Mini USB)	Supported
	USB port	USB 2.0
CPU	Frequency	1 GHz
CPU	Cores	2
Memory	Memory (RAM)	2 GB
Memory	Flash memory	Hardware: 512 MB, of which 340 MB is available for users
Power supply system	Power supply type	150 W AC (pluggable) 150 W DC (pluggable)
	Power supply specification	For details about power supplies, see the section Power Supply.
	Power supply redundancy	1+1
	Rated voltage range	AC: 100 V AC to 240 V AC; 50/60 Hz DC: -48 V DC to -60 V DC
	Maximum voltage range	AC: 90 V AC to 264 V AC; 47-63 Hz DC: -36 V DC to-72 V DC
	Maximum input current	150 W AC: 3 A 150 W DC: 6 A
	Maximum power consumption of the device	104 W
	Power consumption in the case of 30% traffic load	68.82 W (without cards) 76.55 W (with a 2-port 10GE optical card) 81.23 W (with a 2-port QSFP+ stack card)
	Power consumption in the case of 100% traffic load	70.25 W (without cards) 77.65 W (with a 2-port 10GE optical card) 82.67 W (with a 2-port QSFP+ stack card)
Heat dissipation system	Heat dissipation mode	Air-cooled heat dissipation and intelligent fan speed adjustment
	Number of fan modules	Pluggable dual fans
	Airflow	Air flows in from the left and right sides as well as the front panel, and exhausts from the rear panel
	Maximum heat dissipation of the device (BTU/hour)	355
Environment parameters	Long-term operating temperature	0-1800 m: 0°C to 45°C 1800-5000 m: The operating temperature decreases 1°C every time the altitude increases 220 m.
	Short-term operating temperature	0-1800 m: -5°C to +50°C 1800-5000 m: The operating temperature decreases 1°C every time the altitude increases 220 m.NOTE: Short term indicates that the successive operating time is no more than 96 hours, the total operating time is no more than 360 hours, or the number of times the operating temperature is over 45°C is no more than 15 in a year.
	Storage temperature	-40°C to +70°C
	Relative humidity	5%-95% (non-condensing)
	Operating altitude	AC: 5000 m DC: 2000 m
	Noise under normal temperature (sound power)	51.2 dB(A)
	Noise under high temperature (sound power)	71 dB(A)
	Noise under normal temperature (sound pressure)	37.5 dB(A)
	Surge protection specification (RJ45 service port)	NA
	Surge protection specification (power port)	AC power port: ±6 kV in differential or common mode DC power port: ±1 kV in differential mode; ±2 kV in common mode
Reliability	MTBF (year)	Without cards: 73.91 With a 2-port 10GE SFP+ card: 68.42 With a stack card: 66.77
	MTTR (hour)	2
	Availability	> 0.99999
Certification		EMC certification Safety certification Manufacturing certification For details about certifications, see the section Safety and Regulatory Compliance.
Physical specifications	Chassis dimensions (W x D x H, mm)	442 x 420 x 44.4
	Chassis height	1 U
	Chassis weight (full configuration weight, including weight of packaging materials)	9.9 kg

Weight	14.0000 kg
Dimensions	71.0000 × 36.0000 × 19.5000 cm
Brand	Huawei
Lead Time	3-5 days
Ship From	Shenzhen Warehouse
Campus Switch	S5720-EI
