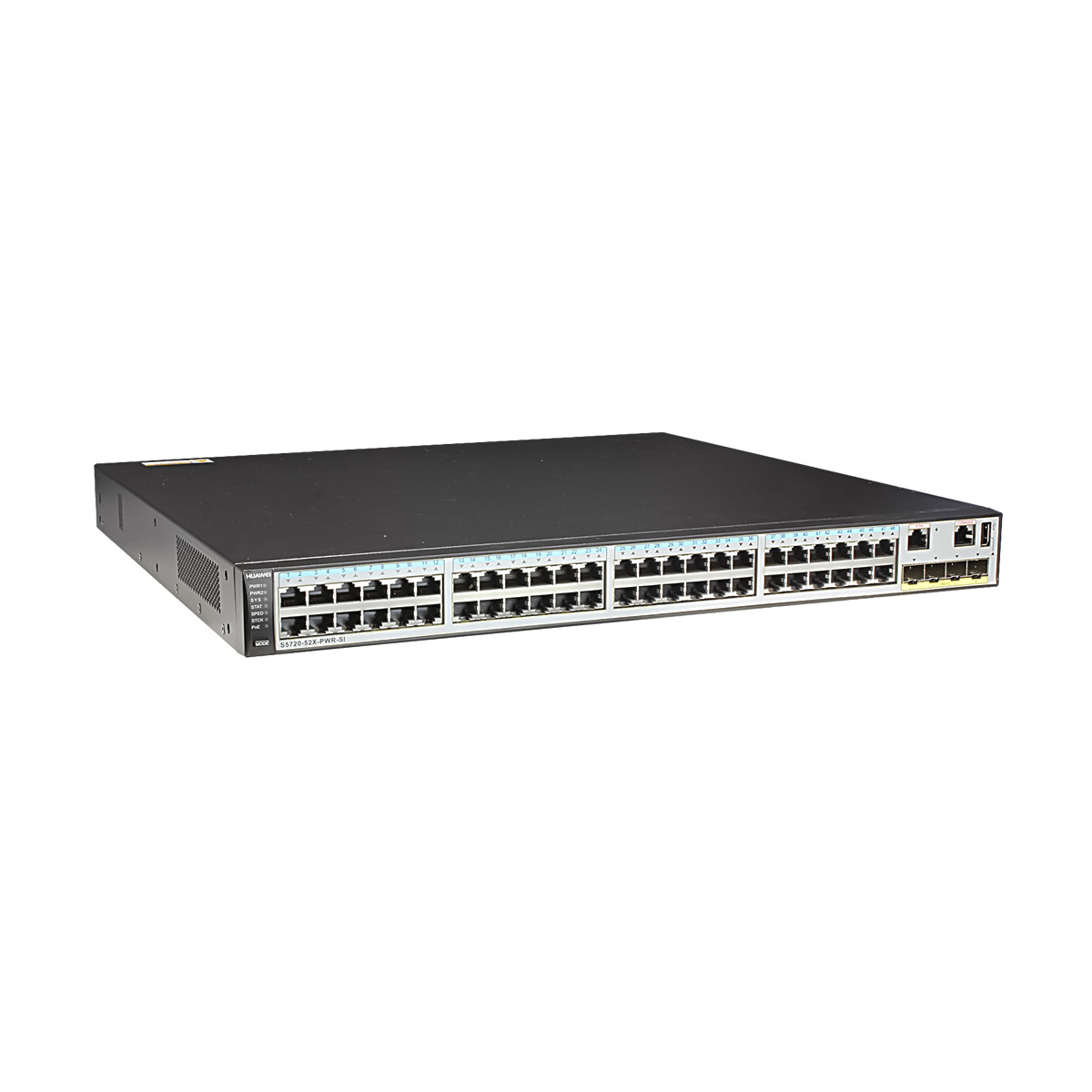

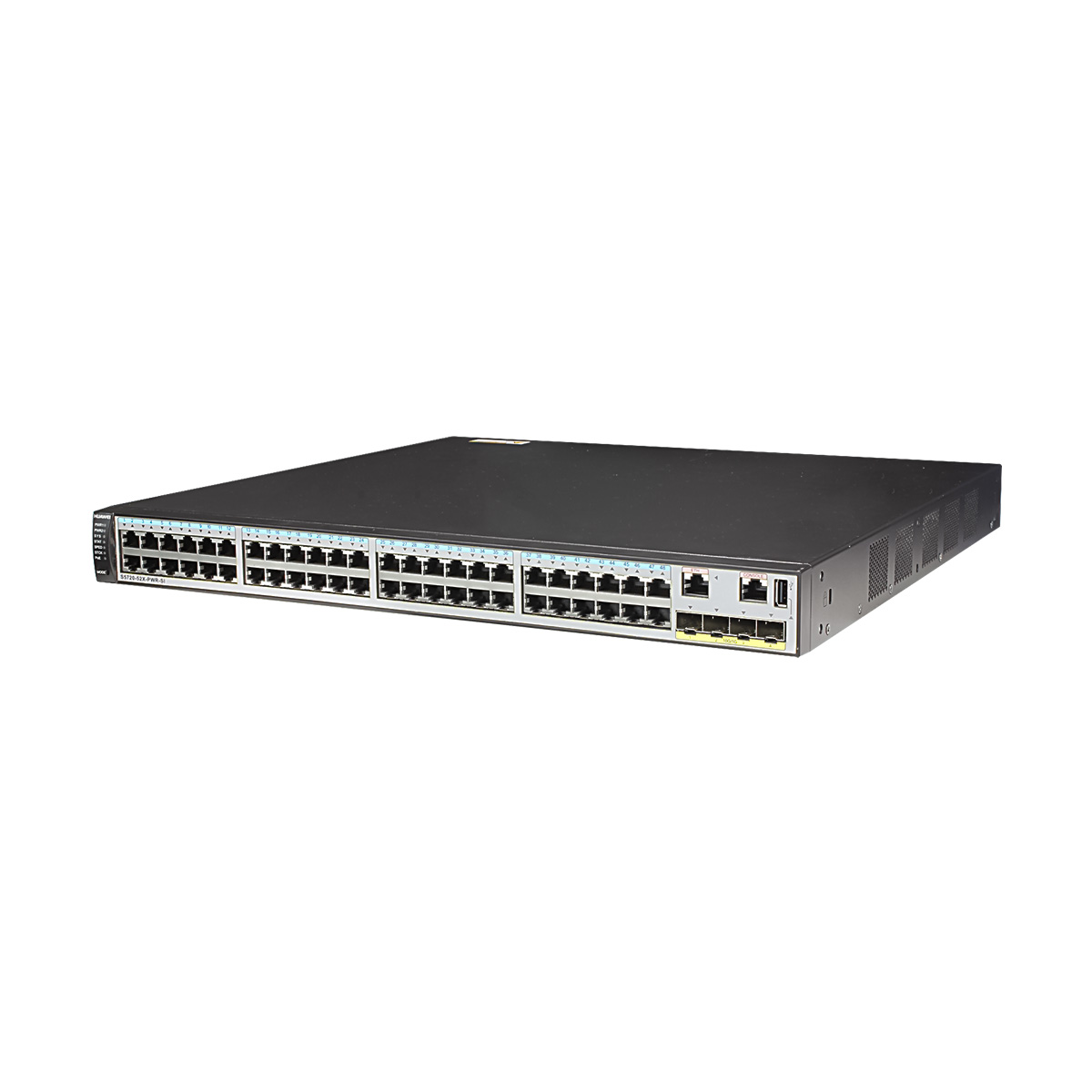

S5720-52X-PWR-SI-ACF

Rated 4.00 out of 5 based on 1 customer rating

1 Review Write a review

PN02350DLY

AvailabilityIn Stock

Campus Switch S5720-SI

WarrantyUp to 36 months

Original price was: $0.00.Current price is: $0.00.

Huawei S5720-52X-PWR-SI-ACF switch supports 48 10/100/1000BASE-T ports, 4 10GE SFP+ ports, 2 hot swappable AC power supplies, 1 AC equipped, PoE+

48 Ports Switch Electrical Switch Lan Access Switch PoE Switch

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

S5720-52X-PWR-SI-ACF Overview

Huawei S5720-52X-PWR-SI-ACF switch with 48 10/100/1000BASE-T ports, 4 10GE SFP+ ports, 2 hot swappable AC power supplies, 1 AC equipped, PoE+, which is one of the S5720 serie switch.

Huawei S5720 series Ethernet switches are next-generation energy-saving GE switches designed to provide high-bandwidth access and Ethernet multi-service aggregation.

Telecomate.com provides a full range of Huawei switches, optical modules, extension boards, if you have more demands, please contact csd@telecomate.com.

S5720-52X-PWR-SI-ACF Quick Specs

48 10/100/1000BASE-T ports

4 10GE SFP+ ports

2 hot swappable AC power supplies, 1 AC equipped

PoE+

Forwarding performance is 132 Mpps

Switching capacity is 336 Gbit/s

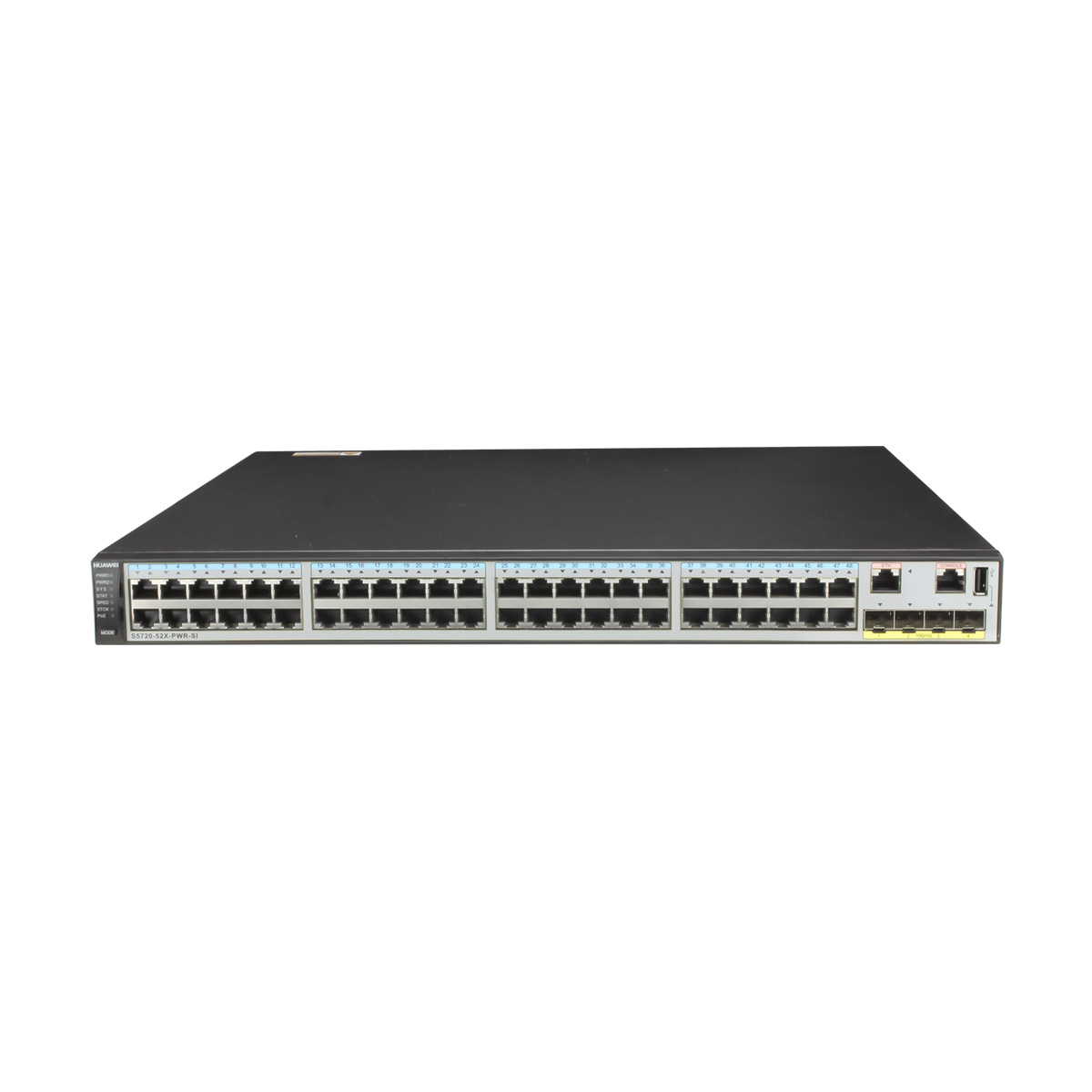

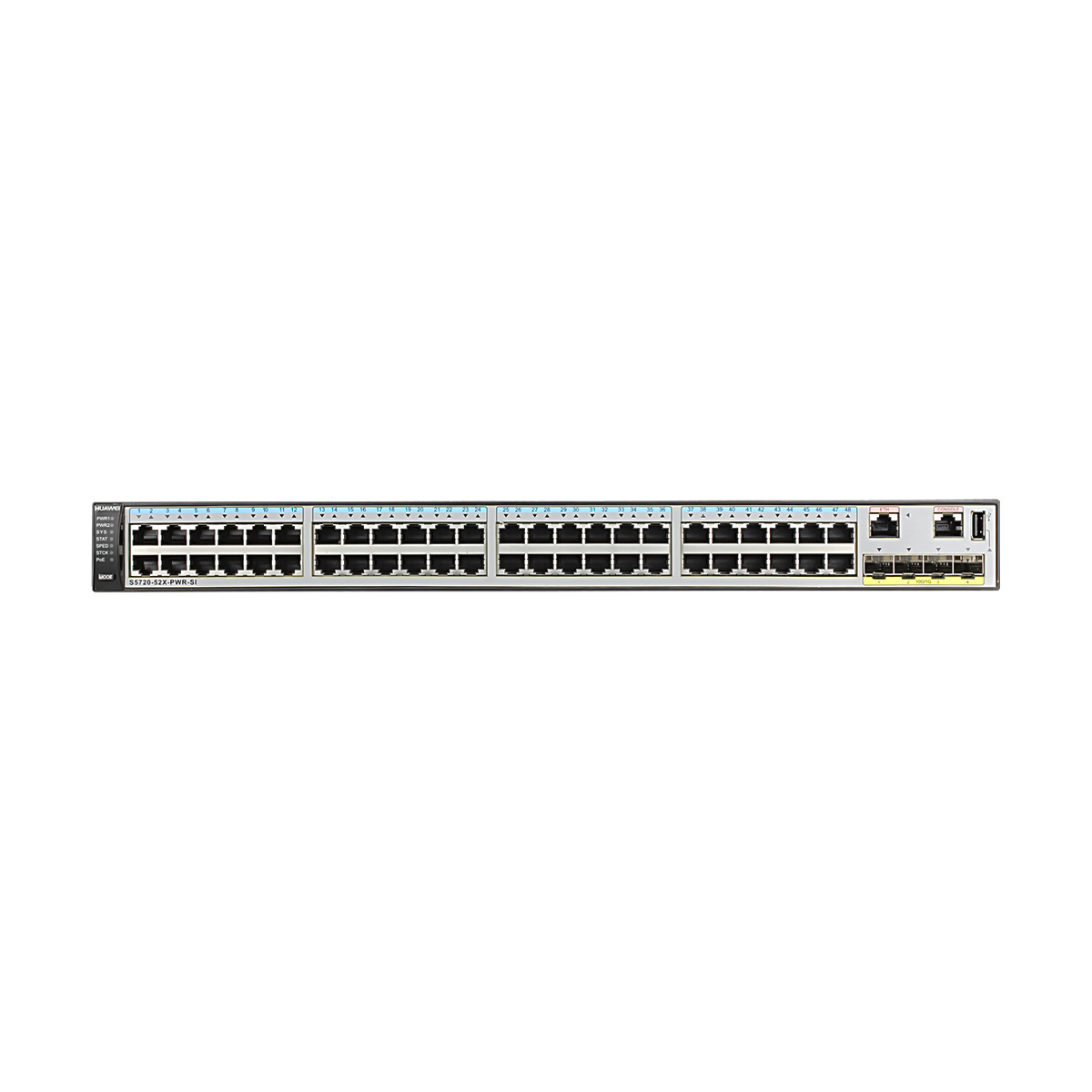

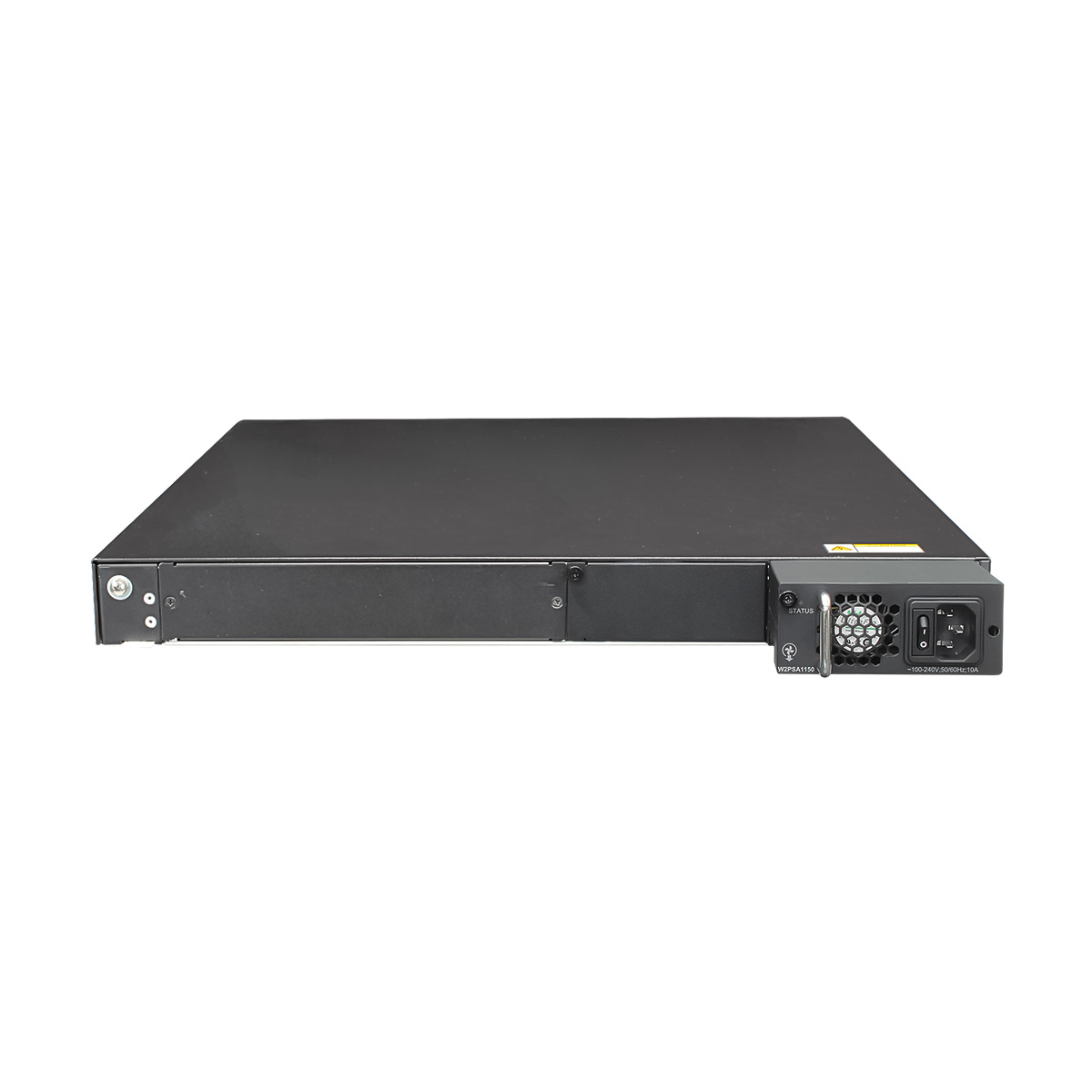

S5720-52X-PWR-SI-ACF appearance and structure

1. Forty-eight PoE+ 10/100/1000BASE-T ports	6. Ground screw
2. Four 10GE SFP+ ports	7. ESN label
3. One ETH management port	8. Power module slot 2
4. One console port	9. Power module slot 1
5. One USB port

S5720-52X-PWR-SI-ACF Datasheet

Item	S5720-52X-PWR-SI-ACF
Fixed port	48 10/100/1000 Ethernet PoE+ ports, 4 10GE SFP+ ports
ETH management port	Supported
Console port (RJ45)	Supported
Forwarding performance	132Mpps
Switching capacity	336 Gbit/s
Extended slot	NA
CPU	Frequency:800 MHz Cores:2
Storage	Memory (RAM):512 MB Flash memory:Hardware: 512MB, of which 240 MB is available for users
MAC address table	IEEE 802.1d compliance
	16K MAC address entries
	MAC address learning and aging
	Static, dynamic, and black hole MAC address entries
	Packet filtering based on source MAC addresses
VLAN	4K VLANs
	Guest VLAN and voice VLAN
	GVRP
	MUX VLAN
	VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports
	1:1 and N:1 VLAN mapping
Jumbo frame	10K
Ring protection	RRPP ring topology and RRPP multi-instance
	Smart Link tree topology and Smart Link multi-instance, providing millisecond-level protection switchover
	SEP, ERPS(G.8032)
	STP(IEEE 802.1d), RSTP(IEEE 802.1w), and MSTP(IEEE 802.1s)
	BPDU protection, root protection, and loop protection
IP routing	Static route, RIPv1, RIPv2, RIPng, ECMP, OSPF, OSPFv3, BGP, BGP4+, ISIS, ISISv6, VRRP, VRRP6
IPv6 features	Neighbor Discovery (ND)
	Path MTU (PMTU), MLD v1/v2 snooping
	IPv6 ping, IPv6 tracert, and IPv6 Telnet
	6 to4 tunnel, ISATAP tunnel, and manually configured tunnel
	ACLs based on the source IPv6 address, destination IPv6 address, Layer 4 ports, or protocol type
	6to4 tunnel, ISATAP tunnel, and manually configured tunnel
Multicast forwarding	PIM DM, PIM SM, PIM SSM
	IGMP v1/v2/v3 snooping and IGMP fast leave
	Multicast forwarding in a VLAN and multicast replication between VLANs
	Multicast load balancing among member ports of a trunk
	Controllable multicast
	Port-based multicast traffic statistics
QoS/ACL	Rate limiting on packets sent and received by an interface
	Packet redirection
	Port-based traffic policing and two-rate three-color CAR
	Eight queues on each port
	WRR, DRR, SP, WRR+SP, and DRR+SP queue scheduling algorithms
	Re-marking of the 802.1p priority and DSCP priority
	Packet filtering at Layer 2 to Layer 4, filtering out invalid frames based on the source
	MAC address, destination MAC address, source IP address, destination IP address, TCP/UDP port number, protocol type, and VLAN ID
	Rate limiting in each queue and traffic shaping on ports
Security	User privilege management and password protection
	DoS attack defense, ARP attack defense, and ICMP attack defense
	Binding of the IP address, MAC address, interface, and VLAN
	Port isolation, port security, and sticky MAC
	Blackhole MAC address entries
	MAC Forced Forwarding (MFF)
	Limit on the number of learned MAC addresses
	802.1x authentication and limit on the number of users on an interface
	AAA authentication, RADIUS authentication, HWTACACS+ authentication, and NAC SSH v2.0
	Hypertext Transfer Protocol Secure (HTTPS), CPU defense, Blacklist and whitelist
	802.1x authentication, MAC address authentication, and combined authentication on a per port basi
	Portal authentication on a per VLANIF interface basis, MACSec(hardware ready)
OAM	Software OAM:
	EFM OAM
	CFM OAM
	CFM OAM
Super Virtual Fabric (SVF)	Working as an SVF client that is plug-and-play with zero configuration
	Automatically loading the system software package and patches of clients
	One-click and automatic delivery of service configurations
	Supports independent running client
Management and Maintenance	iStack, Virtual cable test, SNMP v1/v2c/v3, RMON
	Web-based NMS
	System logs and alarms of different levels
	sFlow
	LLDP/LLDP-MED
Interoperability	Supports VBST (Compatible with PVST/PVST+/RPVST)
	Supports LNP (Similar to DTP)
	Supports VCMP (Similar to VTP)
Operating environment	Operating temperature: 0-1800 m altitude: 0-45℃ 1800-5000 m altitude: The operating temperature reduces by 1℃ every time the altitude increases by 220 m. Relative humidity: 5% to 95% (non-condensing)
Input voltage	AC: Rated voltage range: 100 V to 240 V AC, 50/60 Hz Maximum voltage range: 90 V to 264 V AC, 50/60 Hz
Dimensions (mm)	442 (W) x 507(D)x 43.6 (H)
height	1 U
Chassis weight (full configuration weight,including weight of packaging materials)	10.0 kg
Typical power consumption	without PD: 57W; with PD: <1631.5W (PoE:1440W)

S5720-52X-PWR-SI-ACF Datasheet

Item	S5720-52X-PWR-SI-ACF
Fixed port	48 10/100/1000 Ethernet PoE+ ports, 4 10GE SFP+ ports
ETH management port	Supported
Console port (RJ45)	Supported
Forwarding performance	132Mpps
Switching capacity	336 Gbit/s
Extended slot	NA
CPU	Frequency:800 MHz Cores:2
Storage	Memory (RAM):512 MB Flash memory:Hardware: 512MB, of which 240 MB is available for users
MAC address table	IEEE 802.1d compliance
	16K MAC address entries
	MAC address learning and aging
	Static, dynamic, and black hole MAC address entries
	Packet filtering based on source MAC addresses
VLAN	4K VLANs
	Guest VLAN and voice VLAN
	GVRP
	MUX VLAN
	VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports
	1:1 and N:1 VLAN mapping
Jumbo frame	10K
Ring protection	RRPP ring topology and RRPP multi-instance
	Smart Link tree topology and Smart Link multi-instance, providing millisecond-level protection switchover
	SEP, ERPS(G.8032)
	STP(IEEE 802.1d), RSTP(IEEE 802.1w), and MSTP(IEEE 802.1s)
	BPDU protection, root protection, and loop protection
IP routing	Static route, RIPv1, RIPv2, RIPng, ECMP, OSPF, OSPFv3, BGP, BGP4+, ISIS, ISISv6, VRRP, VRRP6
IPv6 features	Neighbor Discovery (ND)
	Path MTU (PMTU), MLD v1/v2 snooping
	IPv6 ping, IPv6 tracert, and IPv6 Telnet
	6 to4 tunnel, ISATAP tunnel, and manually configured tunnel
	ACLs based on the source IPv6 address, destination IPv6 address, Layer 4 ports, or protocol type
	6to4 tunnel, ISATAP tunnel, and manually configured tunnel
Multicast forwarding	PIM DM, PIM SM, PIM SSM
	IGMP v1/v2/v3 snooping and IGMP fast leave
	Multicast forwarding in a VLAN and multicast replication between VLANs
	Multicast load balancing among member ports of a trunk
	Controllable multicast
	Port-based multicast traffic statistics
QoS/ACL	Rate limiting on packets sent and received by an interface
	Packet redirection
	Port-based traffic policing and two-rate three-color CAR
	Eight queues on each port
	WRR, DRR, SP, WRR+SP, and DRR+SP queue scheduling algorithms
	Re-marking of the 802.1p priority and DSCP priority
	Packet filtering at Layer 2 to Layer 4, filtering out invalid frames based on the source
	MAC address, destination MAC address, source IP address, destination IP address, TCP/UDP port number, protocol type, and VLAN ID
	Rate limiting in each queue and traffic shaping on ports
Security	User privilege management and password protection
	DoS attack defense, ARP attack defense, and ICMP attack defense
	Binding of the IP address, MAC address, interface, and VLAN
	Port isolation, port security, and sticky MAC
	Blackhole MAC address entries
	MAC Forced Forwarding (MFF)
	Limit on the number of learned MAC addresses
	802.1x authentication and limit on the number of users on an interface
	AAA authentication, RADIUS authentication, HWTACACS+ authentication, and NAC SSH v2.0
	Hypertext Transfer Protocol Secure (HTTPS), CPU defense, Blacklist and whitelist
	802.1x authentication, MAC address authentication, and combined authentication on a per port basi
	Portal authentication on a per VLANIF interface basis, MACSec(hardware ready)
OAM	Software OAM:
	EFM OAM
	CFM OAM
	CFM OAM
Super Virtual Fabric (SVF)	Working as an SVF client that is plug-and-play with zero configuration
	Automatically loading the system software package and patches of clients
	One-click and automatic delivery of service configurations
	Supports independent running client
Management and Maintenance	iStack, Virtual cable test, SNMP v1/v2c/v3, RMON
	Web-based NMS
	System logs and alarms of different levels
	sFlow
	LLDP/LLDP-MED
Interoperability	Supports VBST (Compatible with PVST/PVST+/RPVST)
	Supports LNP (Similar to DTP)
	Supports VCMP (Similar to VTP)
Operating environment	Operating temperature: 0-1800 m altitude: 0-45℃ 1800-5000 m altitude: The operating temperature reduces by 1℃ every time the altitude increases by 220 m. Relative humidity: 5% to 95% (non-condensing)
Input voltage	AC: Rated voltage range: 100 V to 240 V AC, 50/60 Hz Maximum voltage range: 90 V to 264 V AC, 50/60 Hz
Dimensions (mm)	442 (W) x 507(D)x 43.6 (H)
height	1 U
Chassis weight (full configuration weight,including weight of packaging materials)	10.0 kg
Typical power consumption	without PD: 57W; with PD: <1631.5W (PoE:1440W)

Weight	19.0000 kg
Dimensions	71.5000 × 57.0000 × 23.0000 cm
