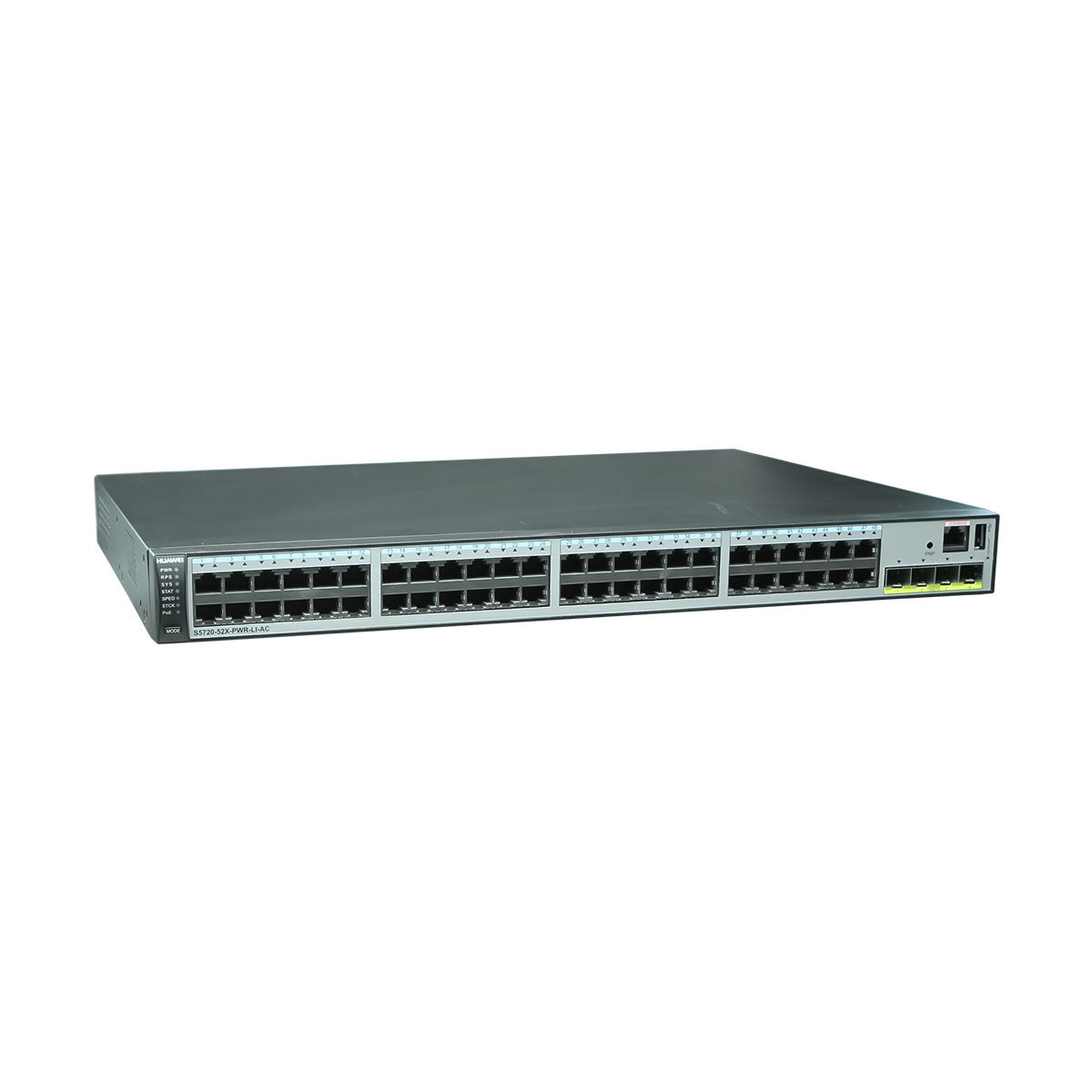

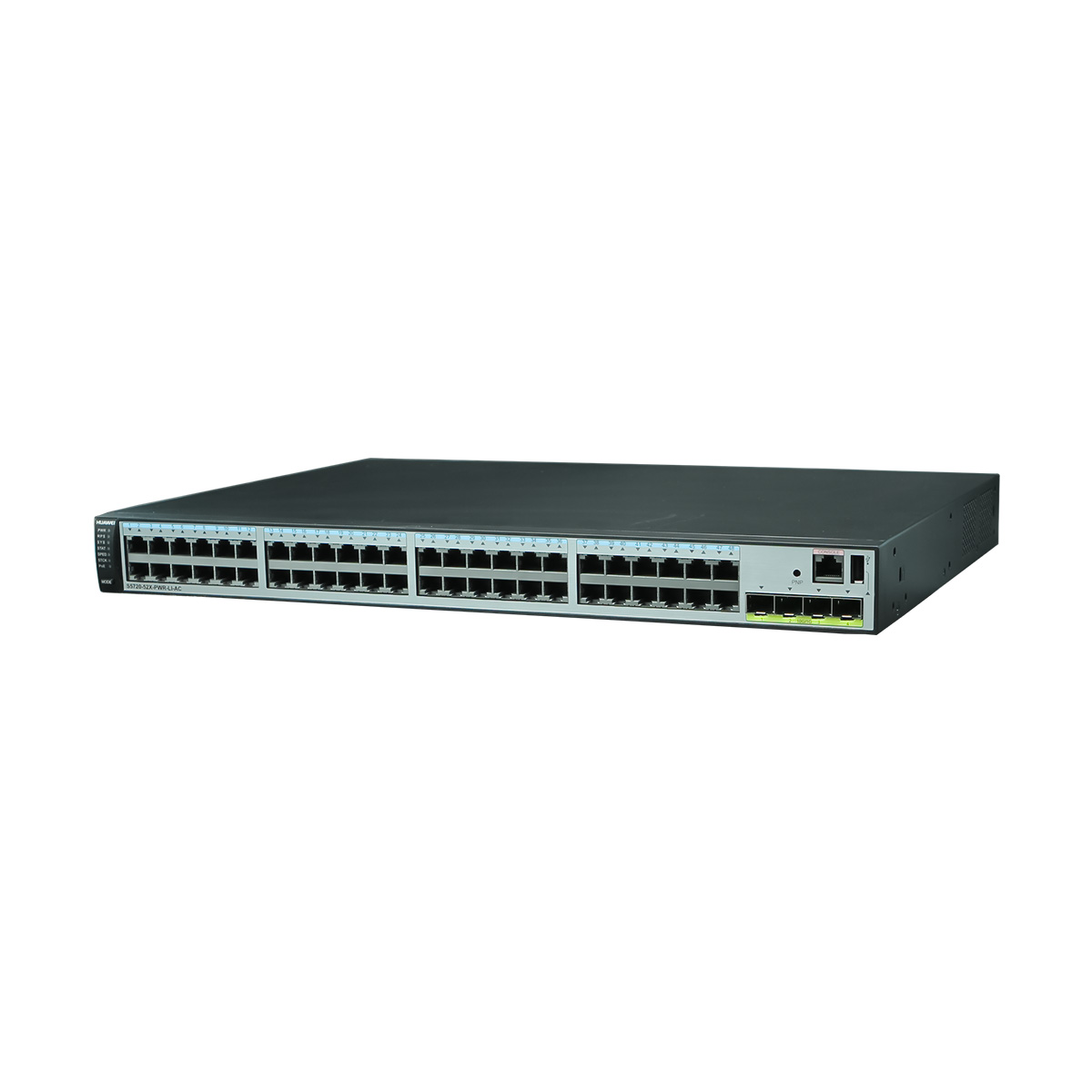

S5720-52X-PWR-LI-AC

Rated 5.00 out of 5 based on 2 customer ratings

2 Reviews Write a review

PN98010619

AvailabilityIn Stock

Campus Switch S5720-LI

WarrantyUp to 36 months

Original price was: $0.00.Current price is: $0.00.

Huawei S5720-52X-PWR-LI-AC switch supports 48 10/100/1000BASE-T ports, 4 10GE SFP+ ports, fixed AC power, supports RPS, PoE+

48 Ports Switch Electrical Switch Fixed AC Switch Lan Access Switch PoE Switch

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

S5720-52X-PWR-LI-AC Overview

Huawei S5720-52X-PWR-LI-AC switch with 48 10/100/1000BASE-T ports, 4 10GE SFP+ ports, fixed AC power, supports RPS, PoE+, which is one of the S5720 serie switch.

Huawei S5720 series Ethernet switches are next-generation energy-saving GE switches designed to provide high-bandwidth access and Ethernet multi-service aggregation.

Telecomate.com provides a full range of Huawei switches, optical modules, extension boards, if you have more demands, please contact csd@telecomate.com.

S5720-52X-PWR-LI-AC Quick Specs

48 10/100/1000BASE-T ports

4 10GE SFP+ ports, fixed AC power

supports RPS

PoE+

Forwarding performance is 144 Mpps

Switching capacity is 336 Gbit/s

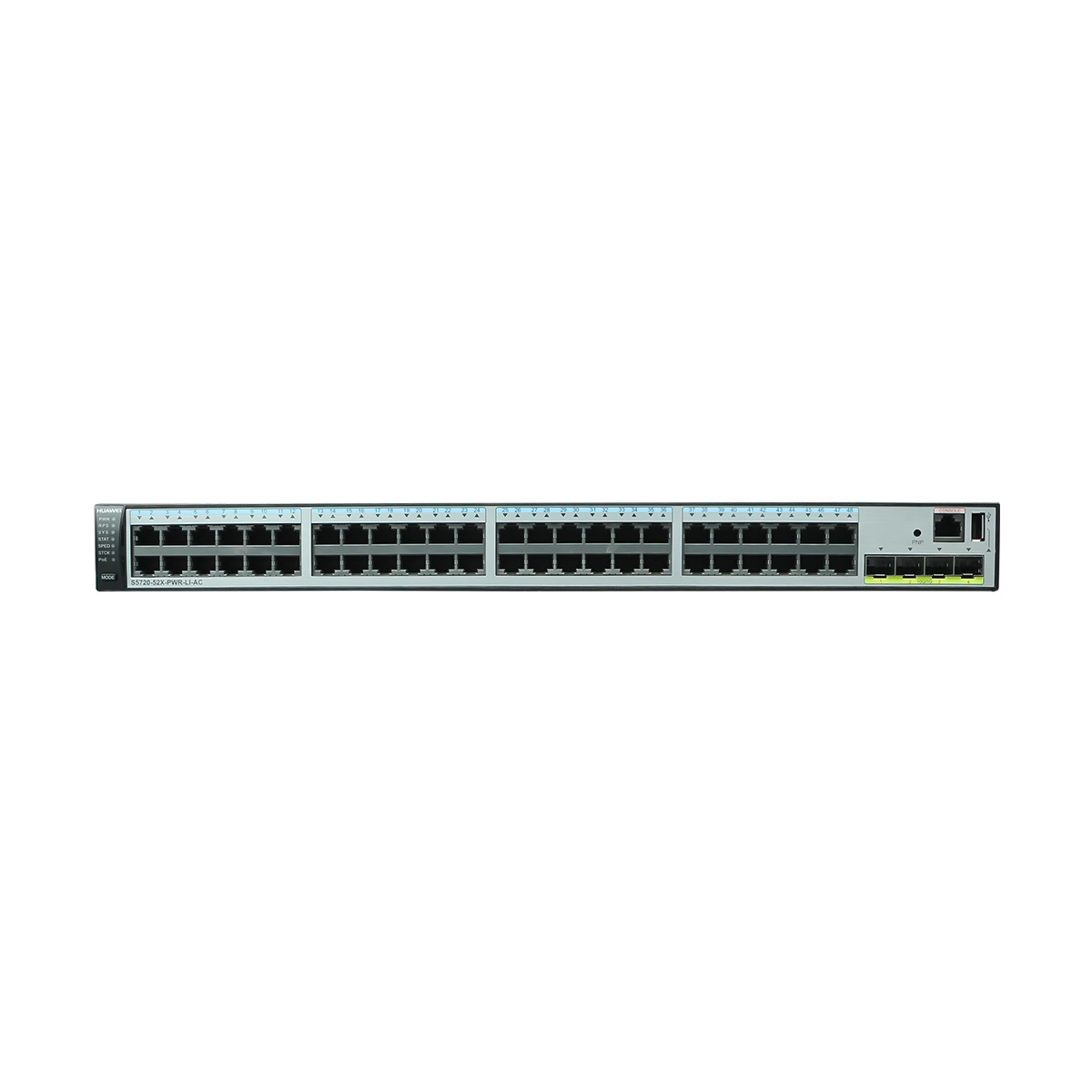

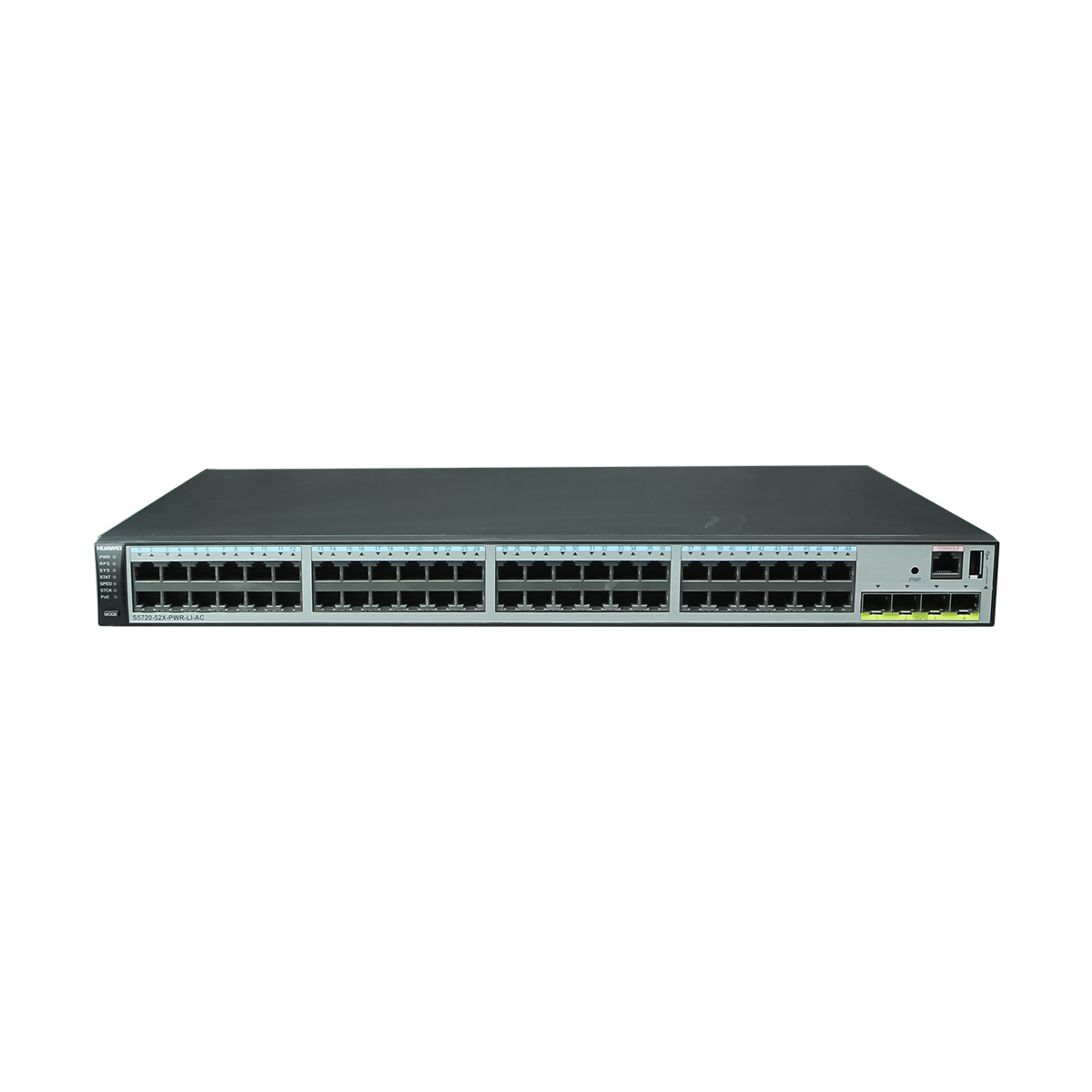

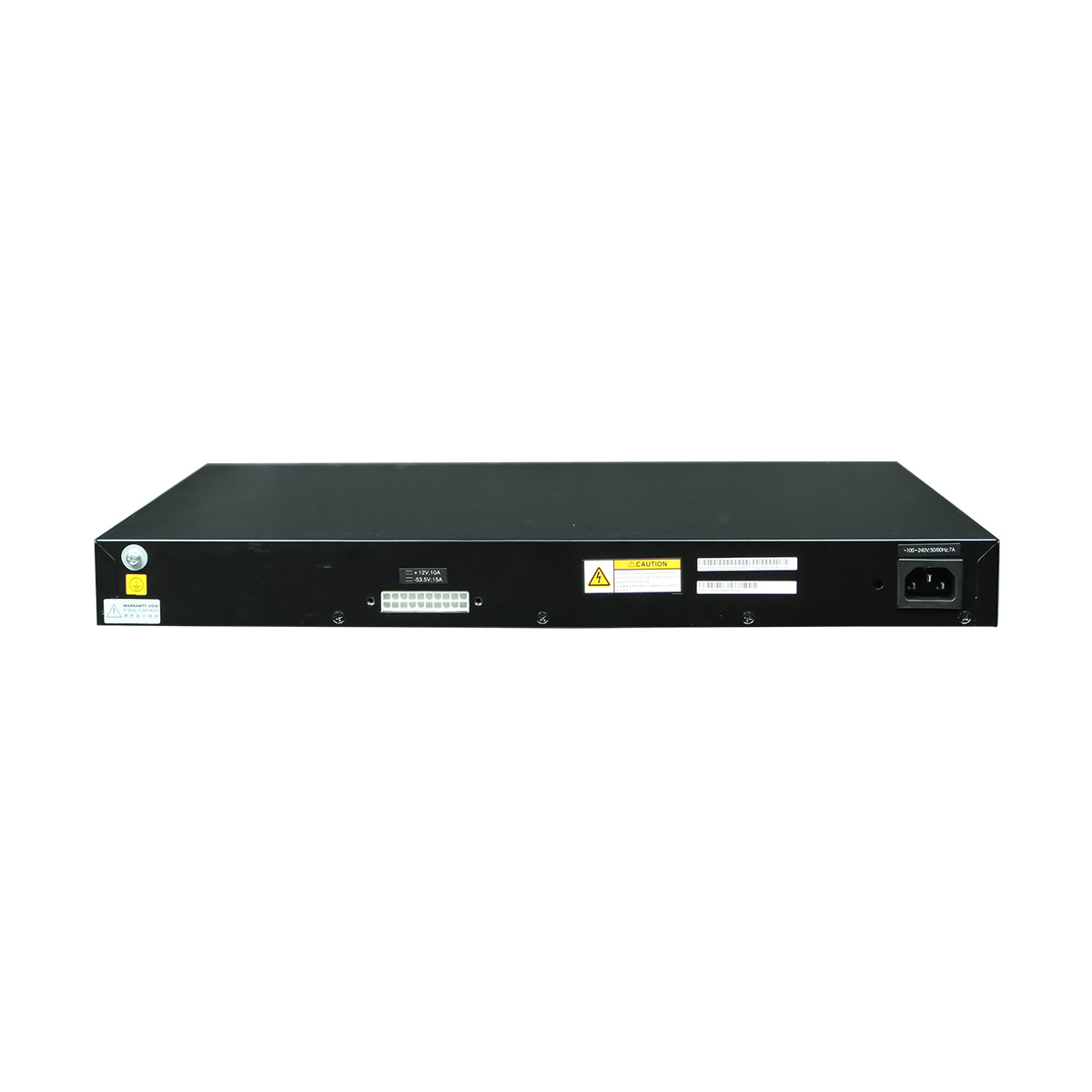

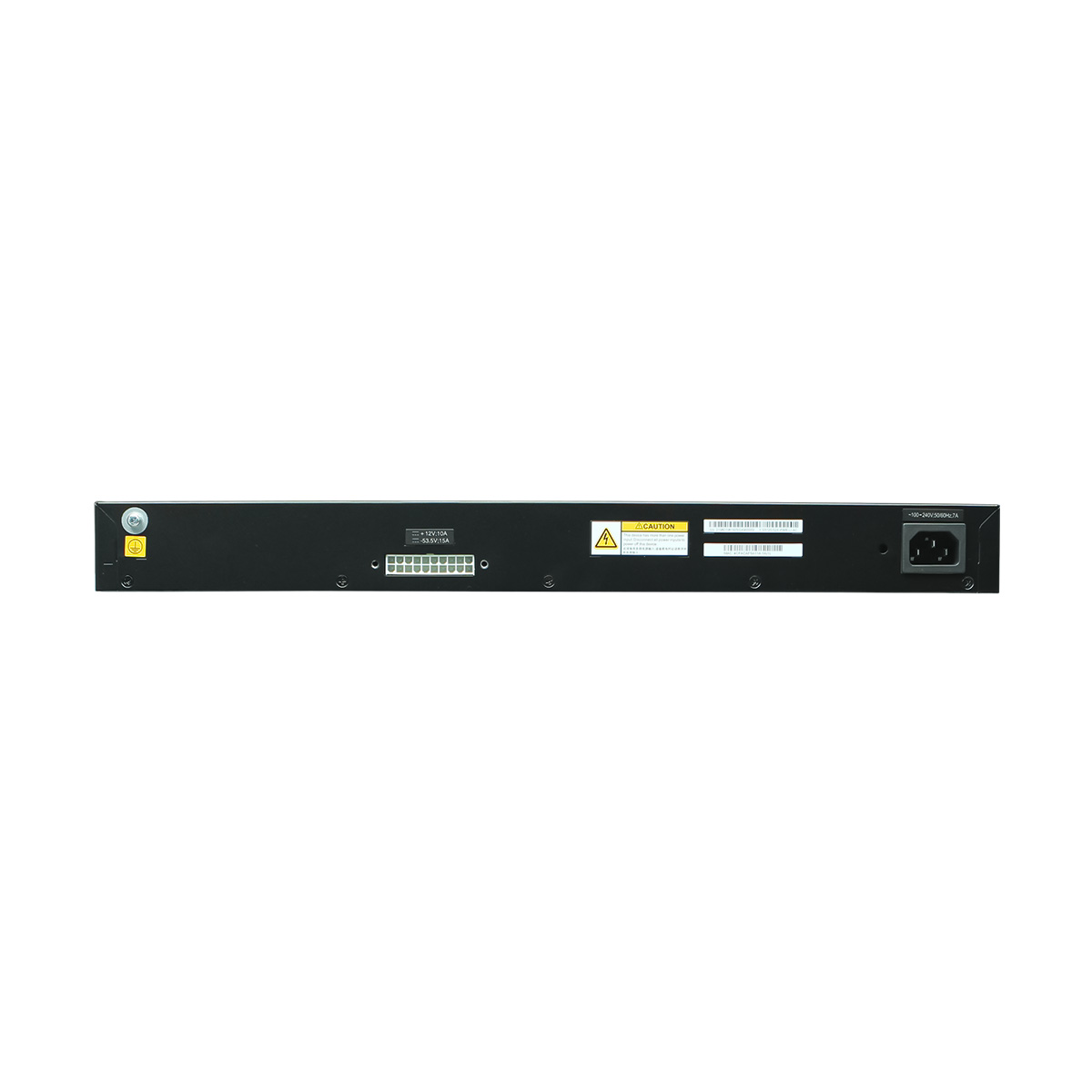

S5720-52X-PWR-LI-AC appearance and structure

1. Forty-eight PoE+ 10/100/1000BASE-T ports	6. Ground screw
2. Four 10GE SFP+ ports	7. RPS socket
3. One PNP button	8. Jack for AC power cable locking strap
4. One console port	9. AC socket
5. One USB port

S5720-52X-PWR-LI-AC Datasheet

Item		S5720-52X- PWR-LI-AC
Forwarding performance		144 Mpps
Switching capacity		336 Gbit/s
Ports description		48 10/100/1000Base-T Ethernet ports, 4 10GE SFP+ ports
Fixed port	GE port	52
	10GE port	4
	Multi-GE port	NA
Management port	Console port (RJ45)	Supported
Management port	USB port	USB 2.0
CPU	Frequency	800 MHz
CPU	Cores	1
Storage	Memory (RAM)	512 MB
Storage	Flash memory	Hardware: 512 MB, of which 240 MB is available for users
Power supply system	Power supply type	Built-in AC
	Power supply redundancy	Built-in single power supply and RPS in 6:1 mode
	RPS	Supported
	Rated voltage range	100-240V AC; 50/60Hz
	Maximum voltage range	90-264V AC; 47Hz-63Hz
	Maximum input current	7 A
	Maximum power consumption of the device	Without PDs: 63.5 W With PDs:464.3 W (PDs:369.6 W)
	Power consumption in the case of 30% traffic load	42.2 W
	Power consumption in the case of 100% traffic load	51.5 W
Heat dissipation system	Heat dissipation mode	Air-cooled heat dissipation and intelligent fan speed adjustment
	Number of fan modules	2
	Airflow	Air flows in from the left side and exhausts from the right side
	Maximum heat dissipation of the device (BTU/hour)	Without PDs: 216.7 With PDs: 1584.6
Environment parameters	Operating temperature	0-1800 m: 0°C to 45°C
	Operating temperature	1800–5000 m: The operating temperatur e decreases 1°C for every 220 m increase in altitude.
	Storage temperature	-40°C to+70°C
	Relative humidity	5%-95%(non-condensing)
	Operating altitude	5000 m
	Noise under normal temperature (sound power)	48.3 dB(A)
	Noise under high temperature (sound power)	66.6 dB(A)
	Noise under normal temperature (sound pressure)	43.1 dB(A)
	Surge protection specification (RJ45 service port)	±7 kV in common mode
	Surge protection specification (power port)	±6 kV in differential or common mode
Reliability	MTBF (year)	38
	MTTR (hour)	2
	Availability	> 0.99999
Certification		EMC certification Safety certification Manufacturing certification For details about certifications, see the section Safety and RegulatoryCompliance.
Physical specifications	Chassis dimensions (W x D x H, mm)	442 x 310 x 43.6
	Chassis height	1 U
	Chassis weight (full configuration weight, including weight of packaging materials)	5.6 kg

S5720-52X-PWR-LI-AC Datasheet

Item		S5720-52X- PWR-LI-AC
Forwarding performance		144 Mpps
Switching capacity		336 Gbit/s
Ports description		48 10/100/1000Base-T Ethernet ports, 4 10GE SFP+ ports
Fixed port	GE port	52
	10GE port	4
	Multi-GE port	NA
Management port	Console port (RJ45)	Supported
Management port	USB port	USB 2.0
CPU	Frequency	800 MHz
CPU	Cores	1
Storage	Memory (RAM)	512 MB
Storage	Flash memory	Hardware: 512 MB, of which 240 MB is available for users
Power supply system	Power supply type	Built-in AC
	Power supply redundancy	Built-in single power supply and RPS in 6:1 mode
	RPS	Supported
	Rated voltage range	100-240V AC; 50/60Hz
	Maximum voltage range	90-264V AC; 47Hz-63Hz
	Maximum input current	7 A
	Maximum power consumption of the device	Without PDs: 63.5 W With PDs:464.3 W (PDs:369.6 W)
	Power consumption in the case of 30% traffic load	42.2 W
	Power consumption in the case of 100% traffic load	51.5 W
Heat dissipation system	Heat dissipation mode	Air-cooled heat dissipation and intelligent fan speed adjustment
	Number of fan modules	2
	Airflow	Air flows in from the left side and exhausts from the right side
	Maximum heat dissipation of the device (BTU/hour)	Without PDs: 216.7 With PDs: 1584.6
Environment parameters	Operating temperature	0-1800 m: 0°C to 45°C
	Operating temperature	1800–5000 m: The operating temperatur e decreases 1°C for every 220 m increase in altitude.
	Storage temperature	-40°C to+70°C
	Relative humidity	5%-95%(non-condensing)
	Operating altitude	5000 m
	Noise under normal temperature (sound power)	48.3 dB(A)
	Noise under high temperature (sound power)	66.6 dB(A)
	Noise under normal temperature (sound pressure)	43.1 dB(A)
	Surge protection specification (RJ45 service port)	±7 kV in common mode
	Surge protection specification (power port)	±6 kV in differential or common mode
Reliability	MTBF (year)	38
	MTTR (hour)	2
	Availability	> 0.99999
Certification		EMC certification Safety certification Manufacturing certification For details about certifications, see the section Safety and RegulatoryCompliance.
Physical specifications	Chassis dimensions (W x D x H, mm)	442 x 310 x 43.6
	Chassis height	1 U
	Chassis weight (full configuration weight, including weight of packaging materials)	5.6 kg

Weight	6.0000 kg
Dimensions	46.0000 × 52.2000 × 10.5000 cm
