S5720-52P-EI-AC

2 Reviews Write a review
PN02350BEC
AvailabilityIn Stock
Campus Switch S5720-EI
WarrantyUp to 36 months i
×
Warranty Policy
We provide a comprehensive warranty policy.
Refer to the table for more details.

Original price was: $0.00.Current price is: $0.00.

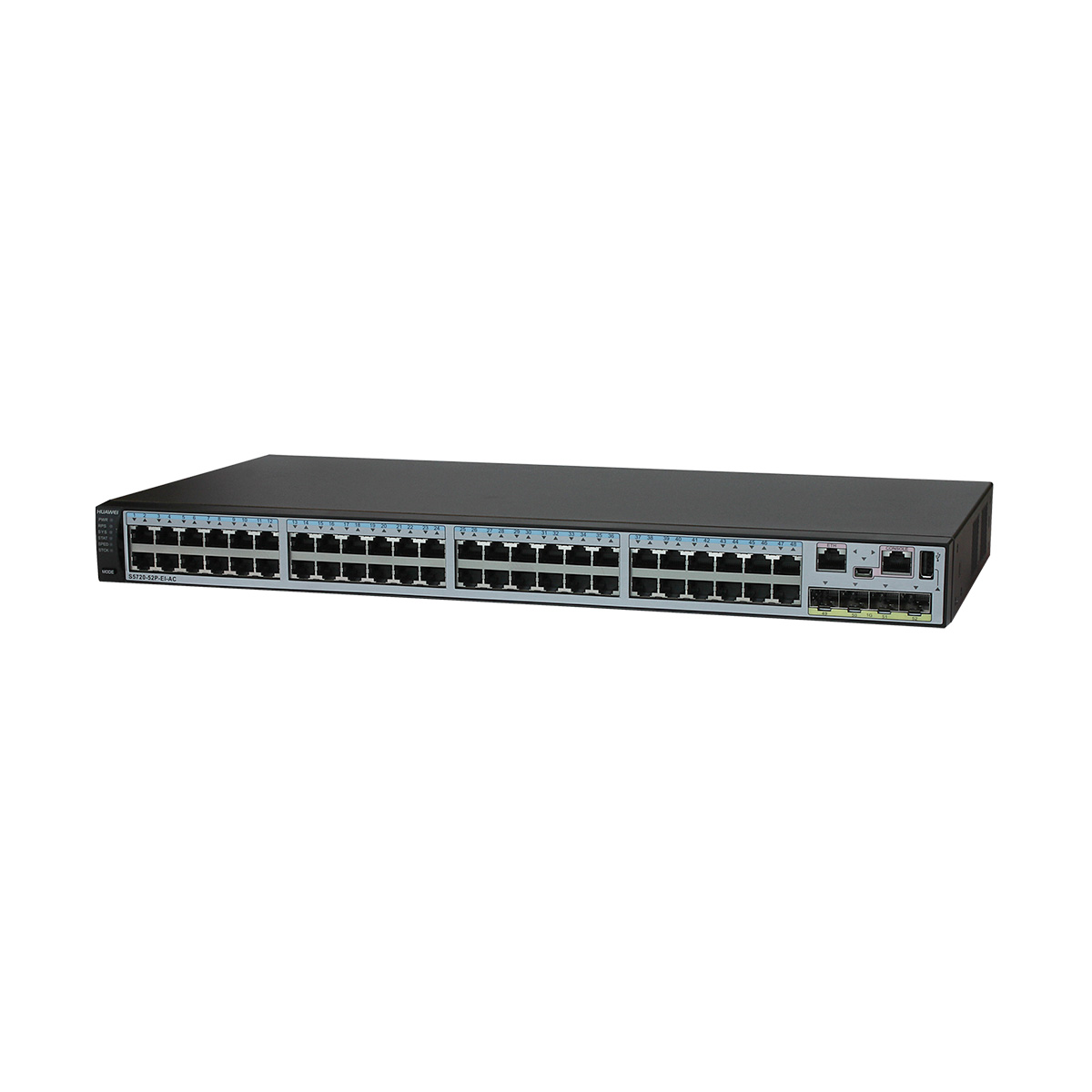

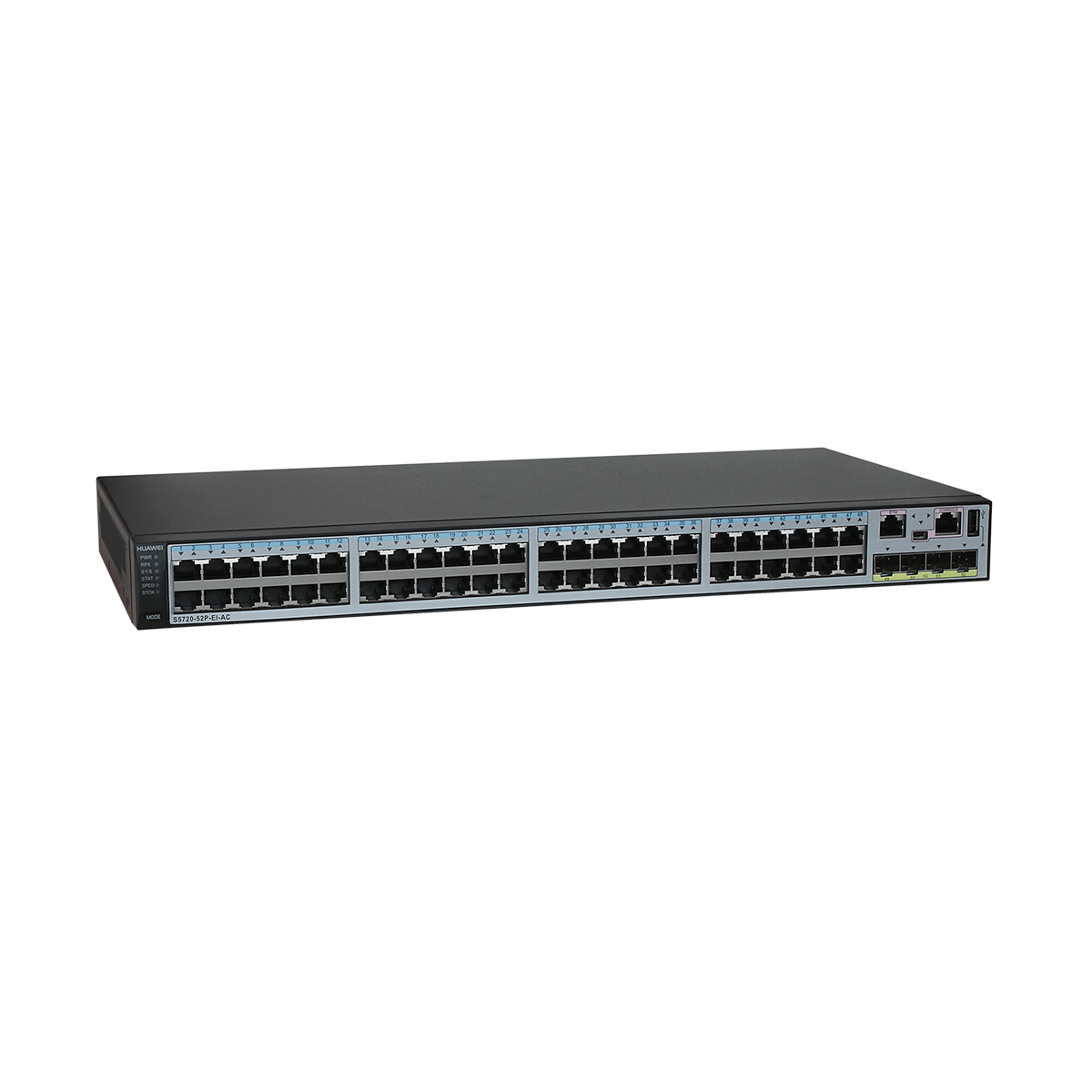

Huawei S5720-52P-EI-AC switch supports 48 10/100/1000BASE-T ports, 4 GE SFP ports, 2 QSFP+ dedicated stack ports, fixed AC power, supports RPS

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

S5720-52P-EI-AC Overview

Huawei S5720-52P-EI-AC with 48 10/100/1000BASE-T ports, 4 10/100/1000 Base-X ports, 2 QSFP+ dedicated stack ports, fixed AC power, supports RPS, which is one of the S5720s serie switch.

Huawei S5720 series Ethernet switches are next-generation energy-saving GE switches designed to provide high-bandwidth access and Ethernet multi-service aggregation.

Telecomate.com provides a full range of Huawei switches, optical modules, extension boards, if you have more demands, please contact csd@telecomate.com.

S5720-52P-EI-AC Quick Specs

48 10/100/1000BASE-T ports

4 10/100/1000BAST-X ports

2 QSFP+ dedicated stack ports

fixed AC power

supports RPS

Forwarding performance is 78 Mpps

Switching capacity is 598 Gbit/s

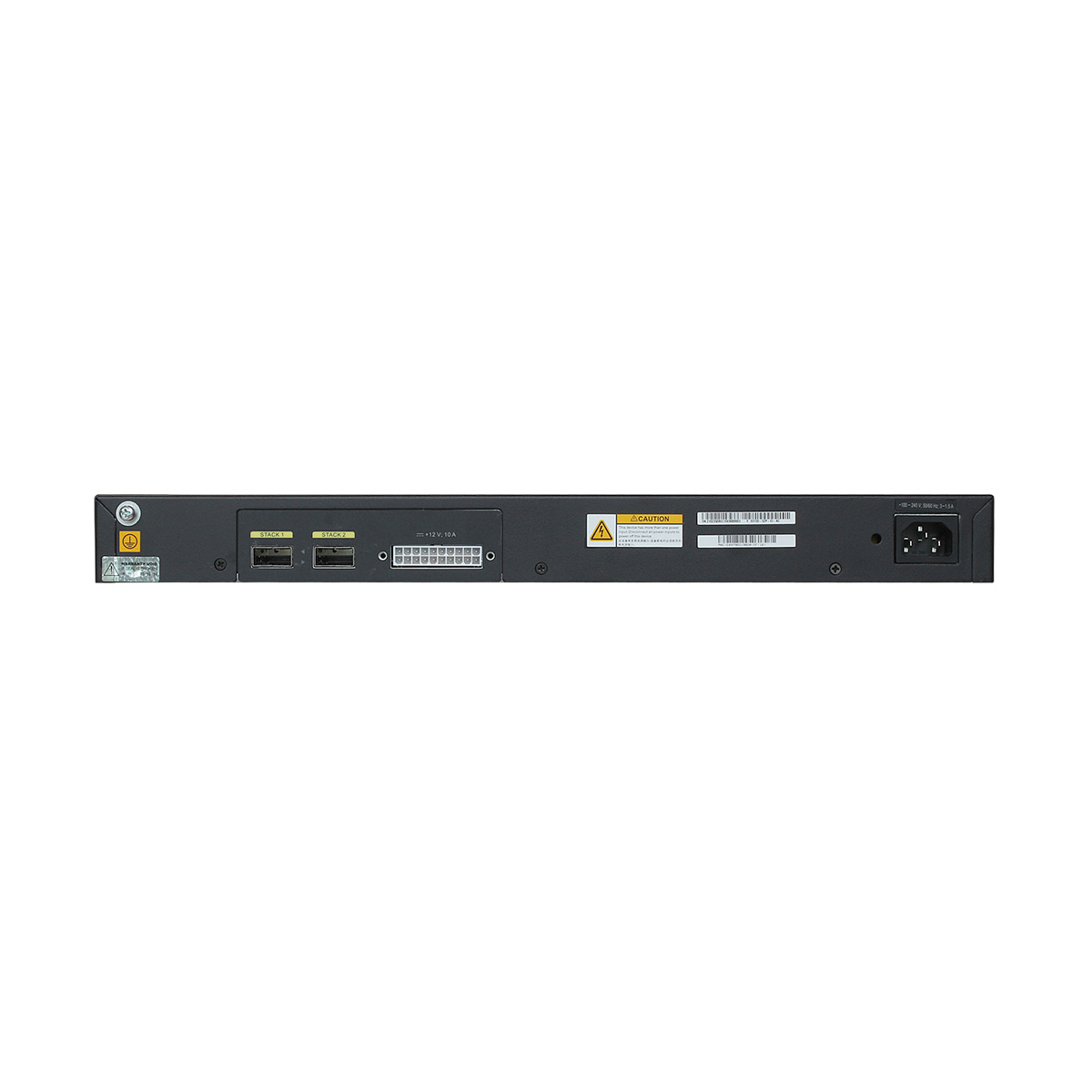

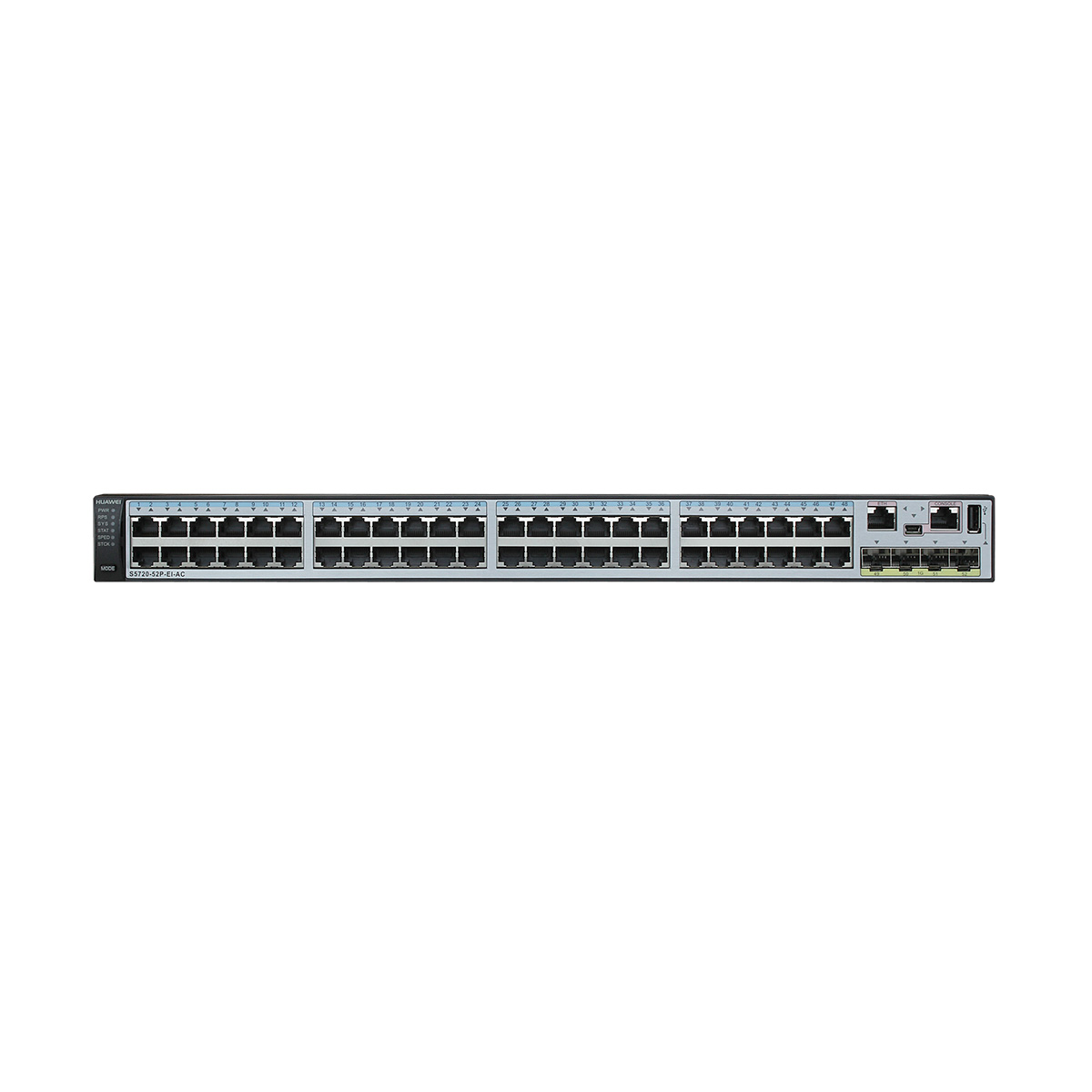

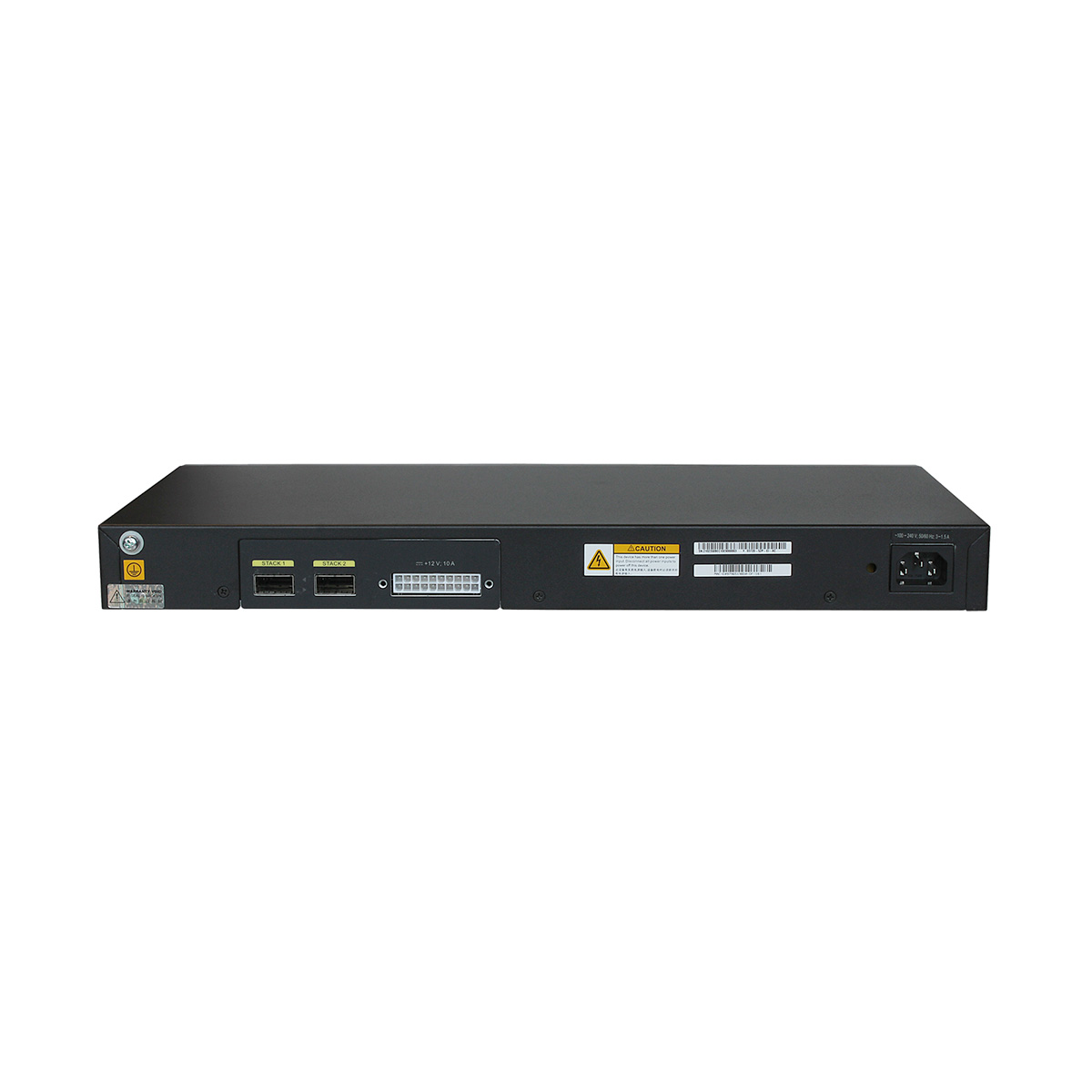

S5720-52P-EI-AC appearance and structure

S5720-52P-EI-AC appearance and structure

1. Forty-eight 10/100/1000BASE-T ports 6. One USB port
2. Four 1000BASE-X ports 7. Ground screw
3. One ETH management port 8. Two QSFP+ stack optical ports
4. One mini USB port 9. RPS socket
5. One console port 10. AC socket
S5720-52P-EI-AC Datasheet
Item S5720-52P-EI-AC
Forwarding performance 78 Mpps
Switching capacity 598 Gbit/s
Ports description 48 10/100/1000 Ethernet ports, 4 GE SFP ports, 2 QSFP+ dedicated stack ports
Fixed port GE port 52
Dedicated stack port 2
Management port ETH management port Supported
Console port (RJ45) Supported
Console port (Mini USB) Supported
USB port USB 2.0
CPU Frequency 1 GHz
Cores 2
Memory Memory (RAM) 2 GB
Flash memory Hardware: 512 MB, of which 340 MB is available for users
Power supply system Power supply type AC (fixed)
Power supply redundancy Built-in single power supply and RPS in 6:1 mode
RPS Supported
Rated voltage range AC: 100 V AC to 240 V AC, 50/60 Hz
Maximum voltage range AC: 90 V AC to 264 V AC; 47-63 Hz
Maximum input current 3 A
Maximum power consumption of the device 60.3 W
Power consumption in the case of 30% traffic load 51.14 W
Power consumption in the case of 100% traffic load 55.65 W
Heat dissipation system Heat dissipation mode Air-cooled heat dissipation and intelligent fan speed adjustment
Number of fan modules 1
Airflow Air flows in from the left side and front panel and exhausts from the right side
Maximum heat dissipation of the device (BTU/hour) 206
Environment parameters Long-term operating temperature 0-1800 m: 0°C to 45°C 1800-5000 m: The operating temperature decreases 1°C every time the altitude increases 220 m.
Storage temperature -40°C to +70°C
Relative humidity 5%-95% (non-condensing)
Operating altitude 5000 m
Noise under normal temperature (sound power) 49.3 dB(A)
Noise under high temperature (sound power) 69.2 dB(A)
Noise under normal temperature (sound pressure) 35.9 dB(A)
Surge protection specification (RJ45 service port) ±8kV in common mode
Surge protection specification (power port) ±6kV in differential mode, ±6kV in common mode
Reliability MTBF (year) 73.12
MTTR (hour) 2
Availability > 0.99999
Certification EMC certification Safety certification Manufacturing certification For details about certifications, see the section Safety and Regulatory Compliance.
Physical specifications Chassis dimensions (W x D x H, mm) 442 x 220 x 43.6
Chassis height 1 U
Chassis weight (full configuration weight, including weight of packaging materials) 4.66 kg

Additional information

Weight 6.5000 kg
Dimensions 55.0000 × 36.0000 × 9.0000 cm
Campus Switch

S5720-52P-EI-AC Datasheet
Item S5720-52P-EI-AC
Forwarding performance 78 Mpps
Switching capacity 598 Gbit/s
Ports description 48 10/100/1000 Ethernet ports, 4 GE SFP ports, 2 QSFP+ dedicated stack ports
Fixed port GE port 52
Dedicated stack port 2
Management port ETH management port Supported
Console port (RJ45) Supported
Console port (Mini USB) Supported
USB port USB 2.0
CPU Frequency 1 GHz
Cores 2
Memory Memory (RAM) 2 GB
Flash memory Hardware: 512 MB, of which 340 MB is available for users
Power supply system Power supply type AC (fixed)
Power supply redundancy Built-in single power supply and RPS in 6:1 mode
RPS Supported
Rated voltage range AC: 100 V AC to 240 V AC, 50/60 Hz
Maximum voltage range AC: 90 V AC to 264 V AC; 47-63 Hz
Maximum input current 3 A
Maximum power consumption of the device 60.3 W
Power consumption in the case of 30% traffic load 51.14 W
Power consumption in the case of 100% traffic load 55.65 W
Heat dissipation system Heat dissipation mode Air-cooled heat dissipation and intelligent fan speed adjustment
Number of fan modules 1
Airflow Air flows in from the left side and front panel and exhausts from the right side
Maximum heat dissipation of the device (BTU/hour) 206
Environment parameters Long-term operating temperature 0-1800 m: 0°C to 45°C 1800-5000 m: The operating temperature decreases 1°C every time the altitude increases 220 m.
Storage temperature -40°C to +70°C
Relative humidity 5%-95% (non-condensing)
Operating altitude 5000 m
Noise under normal temperature (sound power) 49.3 dB(A)
Noise under high temperature (sound power) 69.2 dB(A)
Noise under normal temperature (sound pressure) 35.9 dB(A)
Surge protection specification (RJ45 service port) ±8kV in common mode
Surge protection specification (power port) ±6kV in differential mode, ±6kV in common mode
Reliability MTBF (year) 73.12
MTTR (hour) 2
Availability > 0.99999
Certification EMC certification Safety certification Manufacturing certification For details about certifications, see the section Safety and Regulatory Compliance.
Physical specifications Chassis dimensions (W x D x H, mm) 442 x 220 x 43.6
Chassis height 1 U
Chassis weight (full configuration weight, including weight of packaging materials) 4.66 kg
