S5720-50X-EI-46S-DC

2 Reviews Write a review
PN02350NHF
AvailabilityIn Stock
WarrantyUp to 36 months i
×
Warranty Policy
We provide a comprehensive warranty policy.
Refer to the table for more details.

Original price was: $0.00.Current price is: $0.00.

Huawei S5720-50X-EI-46S-DC switch supports 46 GE SFP ports, 4 10GE SFP+ ports, 2 QSFP+ dedicated stack ports, fixed DC power, supports RPS

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

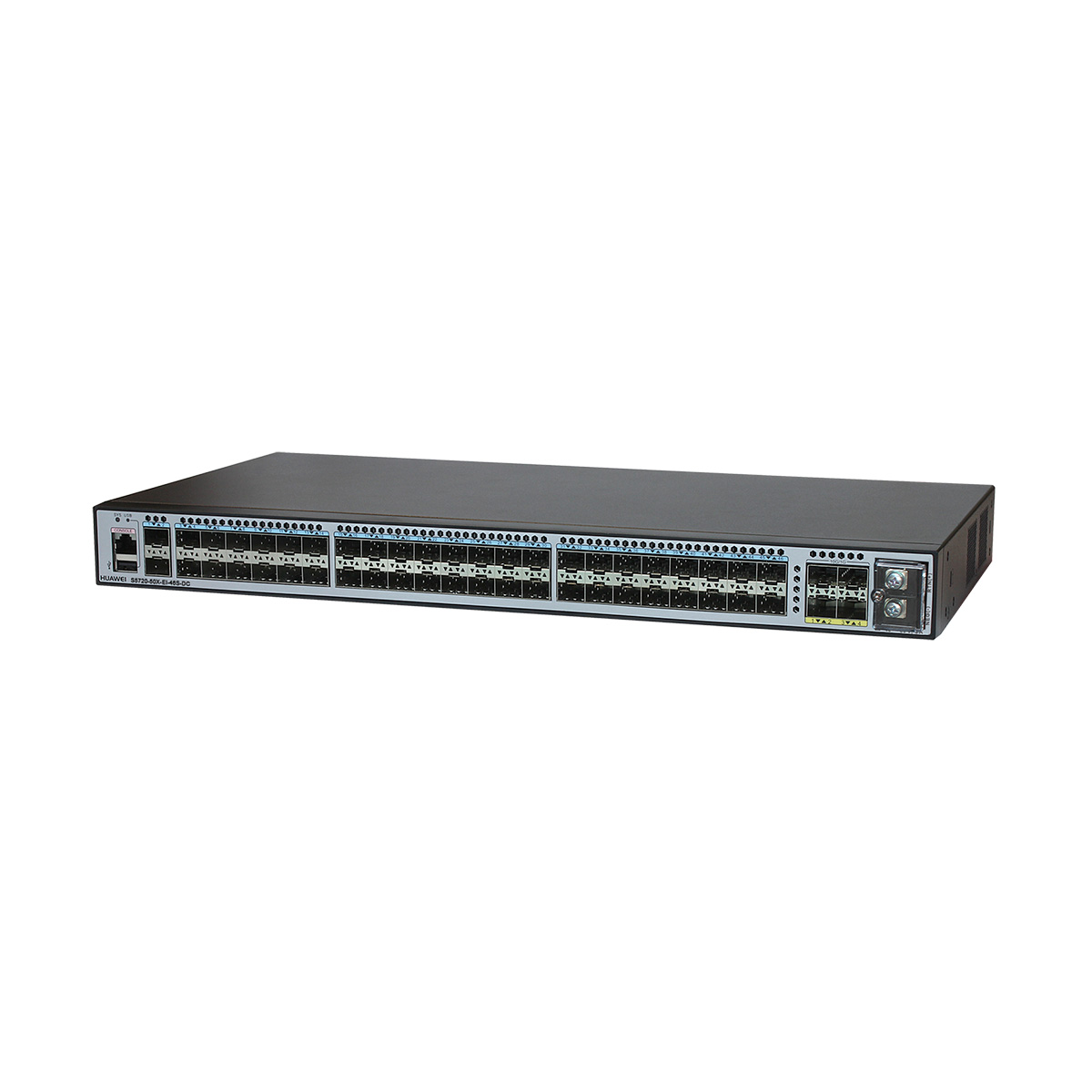

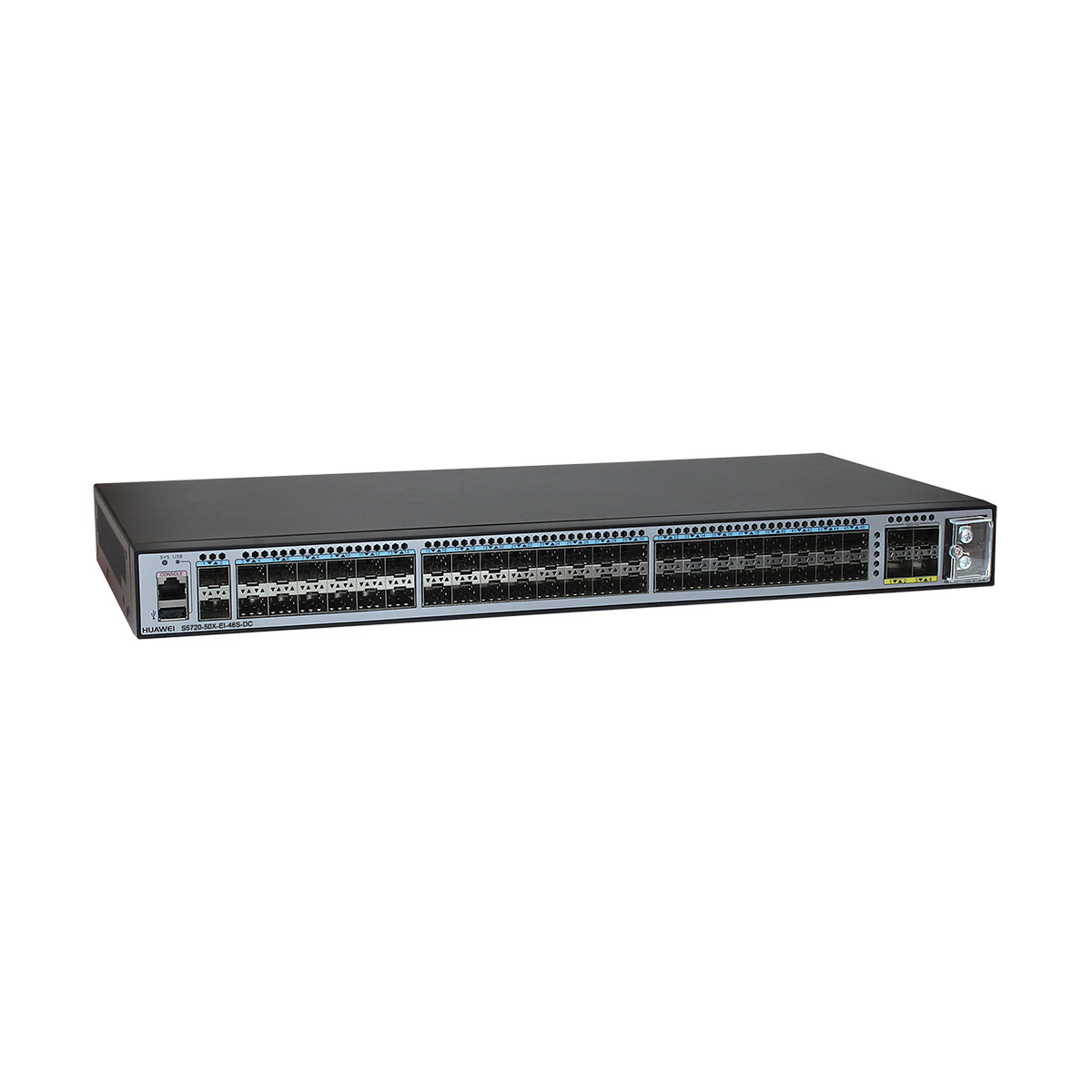

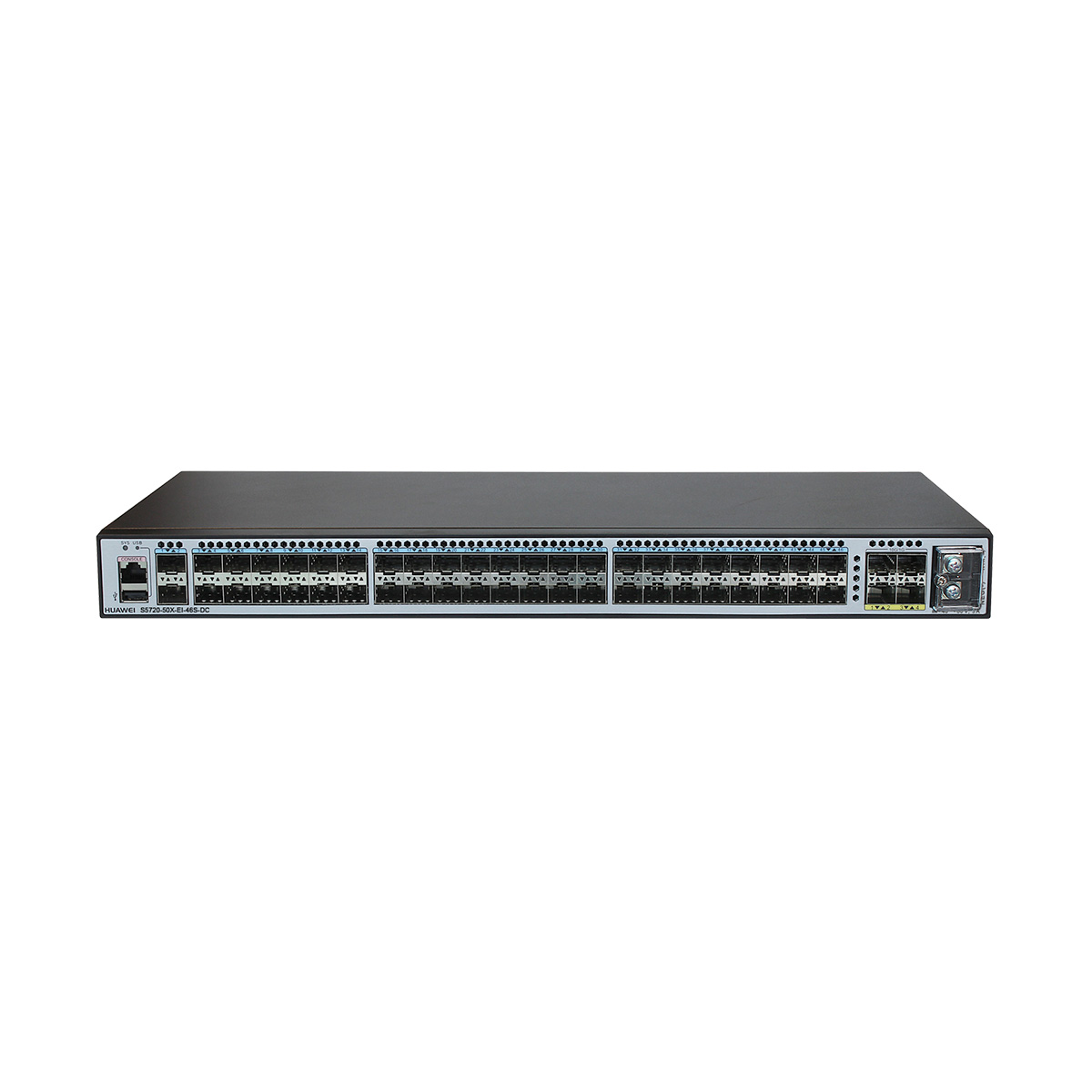

S5720-50X-EI-46S-DC Overview

Huawei S5720-50X-EI-46S-DC switch with 46 GE SFP ports, 4 10GE SFP+ ports, 2 QSFP+ dedicated stack ports, fixed AC power, supports RPS, which is one of the S5720s serie switch.

Huawei S5720 series Ethernet switches are next-generation energy-saving GE switches designed to provide high-bandwidth access and Ethernet multi-service aggregation.

Telecomate.com provides a full range of Huawei switches, optical modules, extension boards, if you have more demands, please contact csd@telecomate.com.

S5720-50X-EI-46S-DC Quick Specs

46 GE SFP ports

4 10GE SFP+ ports

2 QSFP+ dedicated stack ports

fixed AC power,

supports RPS

Forwarding performance is 129 Mpps

Switching capacity is 598 Gbit/s

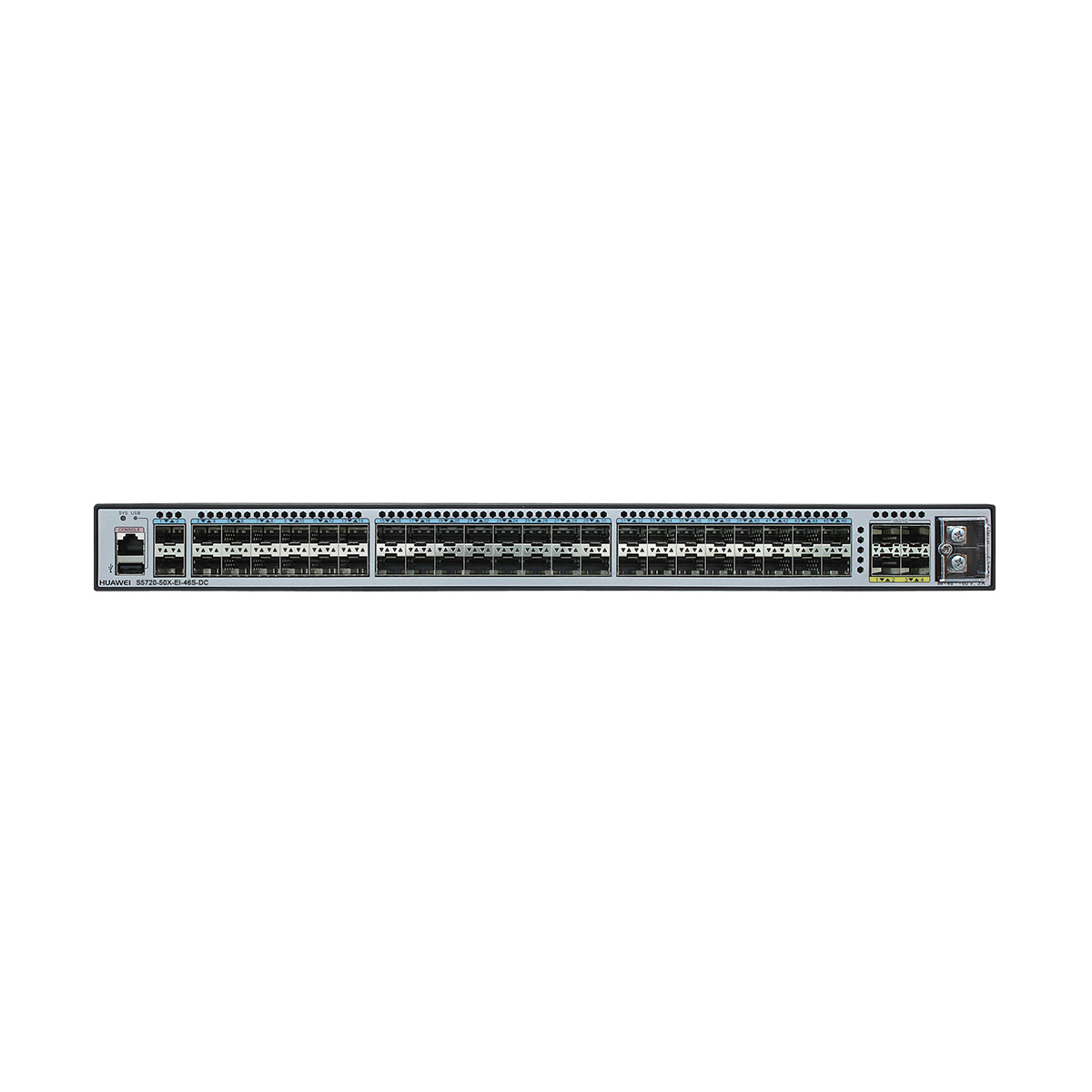

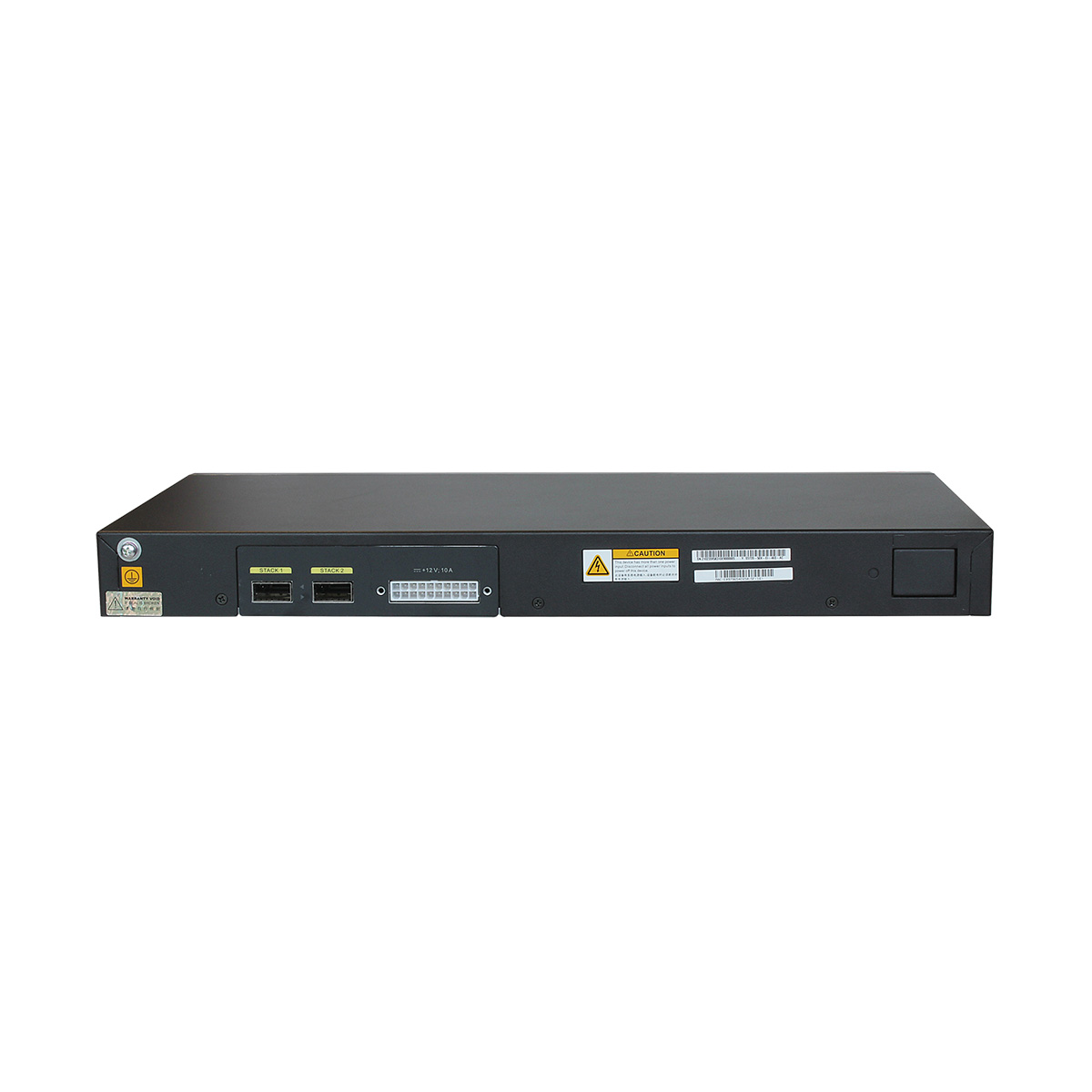

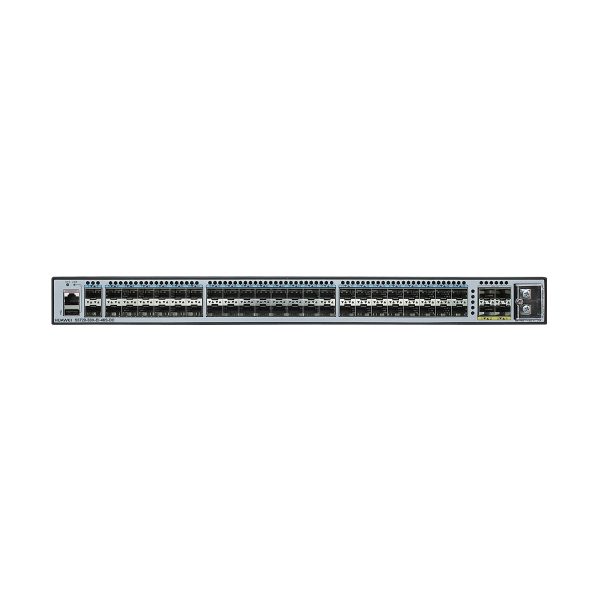

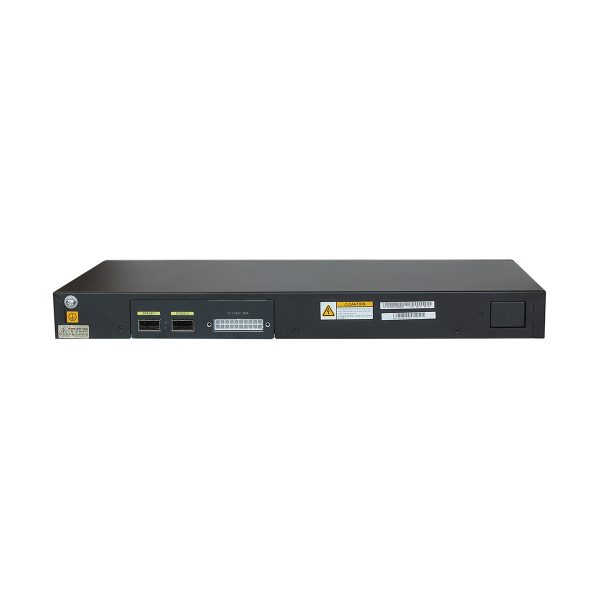

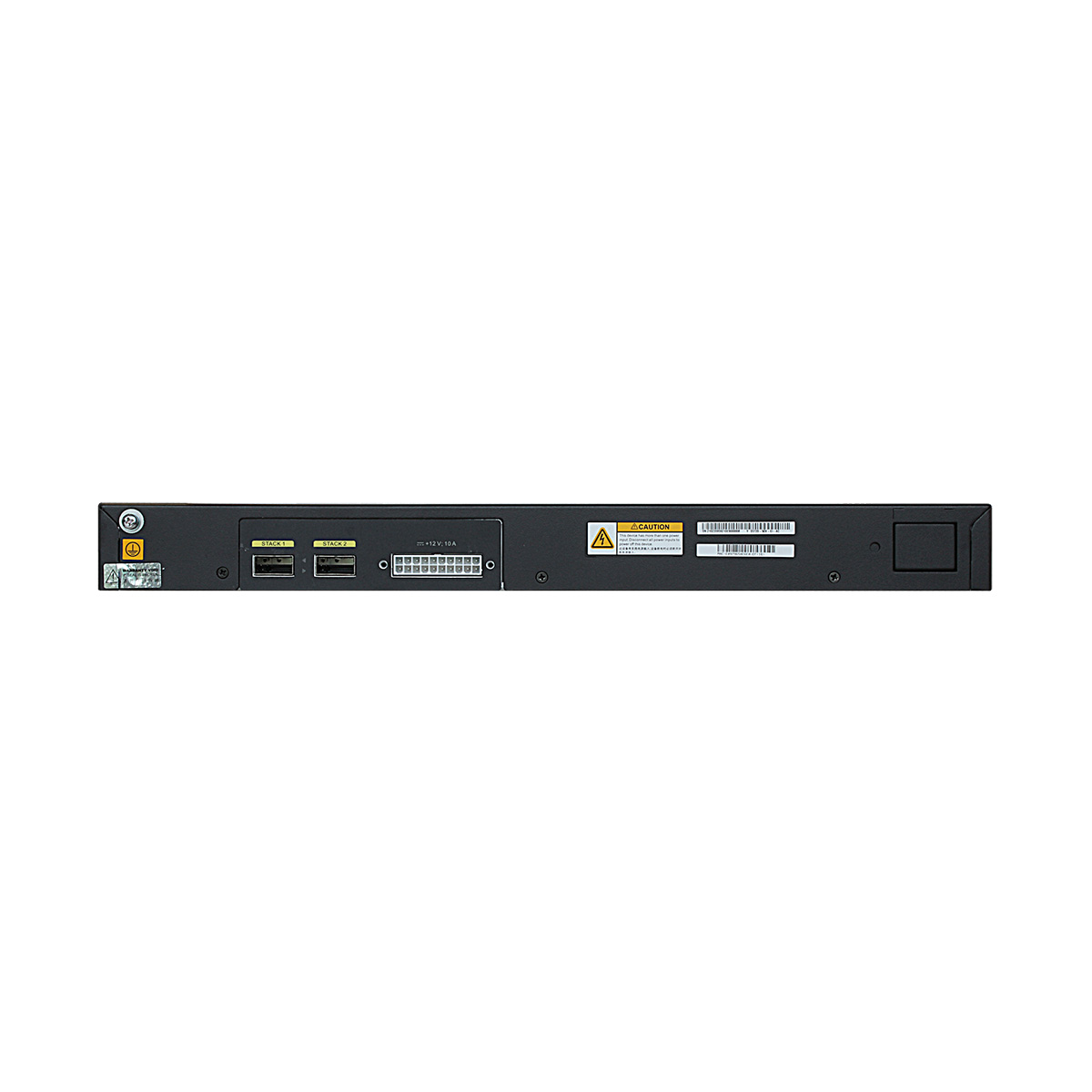

S5720-50X-EI-46S-DC appearance and structure

S5720-50X-EI-46S-DC appearance and structure

1. One console port 5. DC power terminal
2. One USB port 6. Ground screw
3. Forty-six 10/100/1000BASE-X ports 7. Two QSFP+ stack optical ports
4. Four 10GE SFP+ ports 8. RPS socket
S5720-50X-EI-46S-DC Datasheet
Item S5720-50X- EI-46S-DC
Forwarding performance 129 Mpps
Switching capacity 598 Gbit/s
Ports description 46 Gig SFP ports, 4 10GE SFP+ ports, 2 QSFP+ dedicated stack ports
Fixed port GE port 46
10GE port 4
Dedicated stack port 2
Management port ETH management port NA
Console port (RJ45) Supported
Console port (Mini USB) NA
USB port USB 2.0
CPU Frequency 1 GHz
Cores 2
Memory Memory (RAM) 2 GB
Flash memory Hardware: 512 MB, of which 340 MB is available for users
Power supply system Power supply type DC (fixed)
Power supply redundancy Built-in singlepower supply and RPS in 6:1 mode
RPS Supported
Rated voltage range -48 V DC to -60 V DC
Maximum voltage range -36 V DC to -72 V DC
Maximum input current 3 A
Maximum power consumption of the device 81.5 W
Power consumption in the case of 30% traffic load 73.75 W
Power consumption in the case of 100% traffic load 76.5 W
Heat dissipation system Heat dissipation mode Air-cooled heat dissipation and intelligent fan speed adjustment
Number of fan modules 2
Airflow Air flows in from the left side and front panel and exhausts from the right side
Maximum heat dissipation of the device (BTU/hour) 278
Environment parameters Long-term operating temperature 0-1800 m:0°C to 45°C 1800-5000 m: The operating temperatur e decreases 1°C every time the altitude increases 220 m.
Storage temperature -40°C to +70°C
Relative humidity 5%-95% (non-condensing)
Operatingaltitude 2000 m

Additional information

Weight 6.5000 kg
Dimensions 55.0000 × 36.0000 × 9.0000 cm
S5720-50X-EI-46S-DC Datasheet
Item S5720-50X- EI-46S-DC
Forwarding performance 129 Mpps
Switching capacity 598 Gbit/s
Ports description 46 Gig SFP ports, 4 10GE SFP+ ports, 2 QSFP+ dedicated stack ports
Fixed port GE port 46
10GE port 4
Dedicated stack port 2
Management port ETH management port NA
Console port (RJ45) Supported
Console port (Mini USB) NA
USB port USB 2.0
CPU Frequency 1 GHz
Cores 2
Memory Memory (RAM) 2 GB
Flash memory Hardware: 512 MB, of which 340 MB is available for users
Power supply system Power supply type DC (fixed)
Power supply redundancy Built-in singlepower supply and RPS in 6:1 mode
RPS Supported
Rated voltage range -48 V DC to -60 V DC
Maximum voltage range -36 V DC to -72 V DC
Maximum input current 3 A
Maximum power consumption of the device 81.5 W
Power consumption in the case of 30% traffic load 73.75 W
Power consumption in the case of 100% traffic load 76.5 W
Heat dissipation system Heat dissipation mode Air-cooled heat dissipation and intelligent fan speed adjustment
Number of fan modules 2
Airflow Air flows in from the left side and front panel and exhausts from the right side
Maximum heat dissipation of the device (BTU/hour) 278
Environment parameters Long-term operating temperature 0-1800 m:0°C to 45°C 1800-5000 m: The operating temperatur e decreases 1°C every time the altitude increases 220 m.
Storage temperature -40°C to +70°C
Relative humidity 5%-95% (non-condensing)
Operatingaltitude 2000 m
