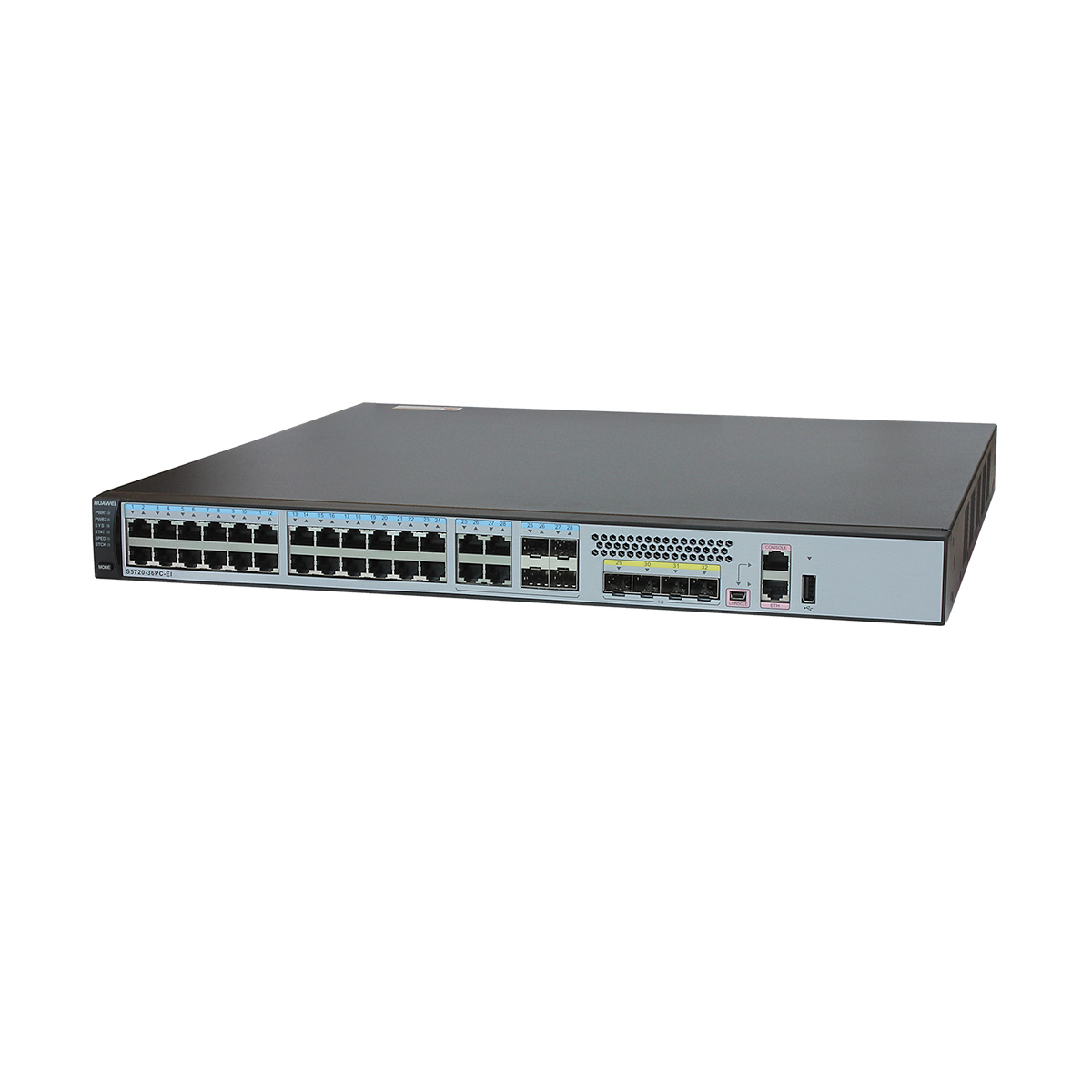

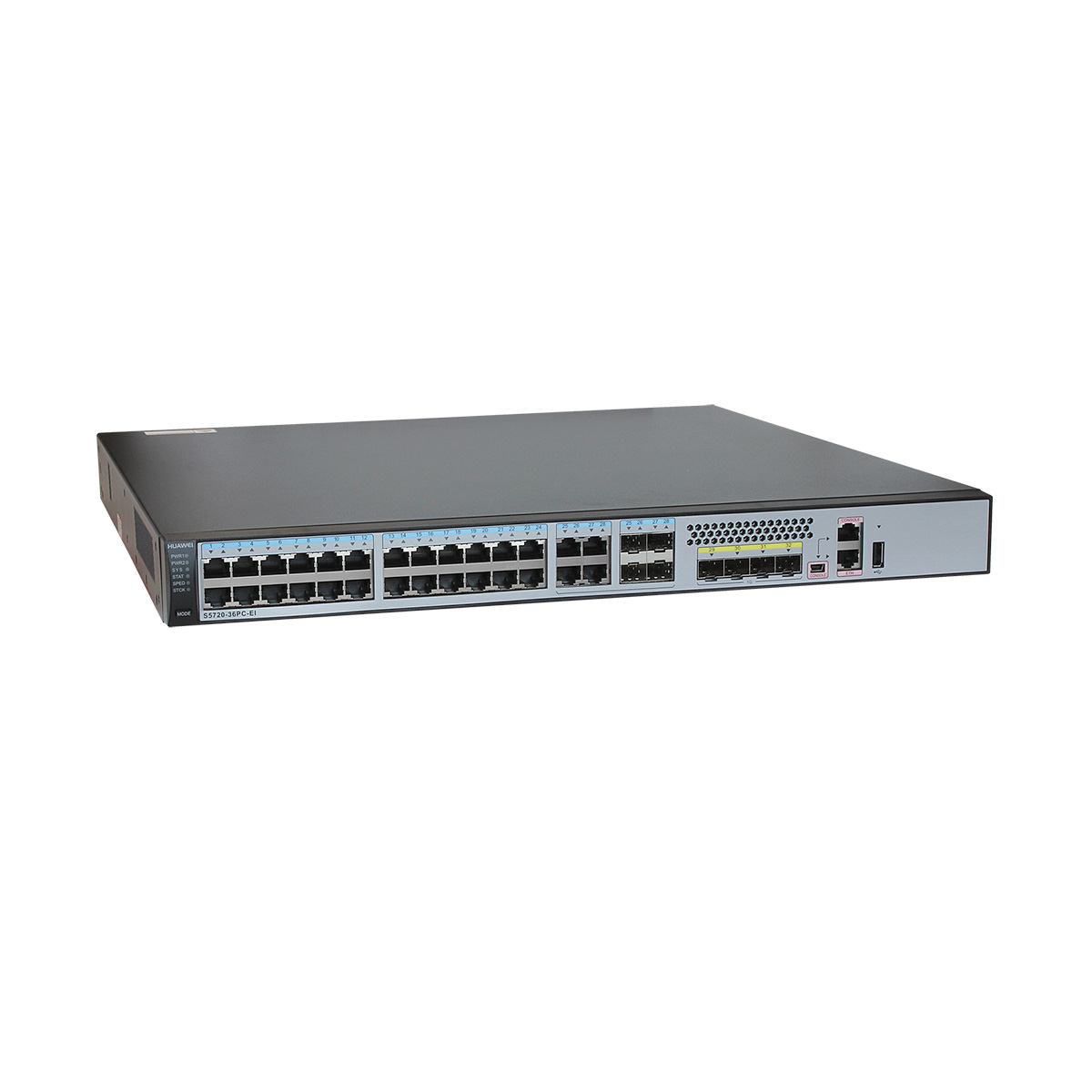

S5720-36PC-EI-AC

Rated 5.00 out of 5 based on 1 customer rating

1 Review Write a review

PN02350BDQ

AvailabilityIn Stock

WarrantyUp to 36 months

Original price was: $0.00.Current price is: $0.00.

Huawei S5720-36PC-EI-AC switch supports 28 10/100/1000BASE-T ports, 4 of which are dual-purpose 10/100/1000BASE-T or SFP ports, 4 GE SFP ports, 1 extended slot, 2 hot swappable AC/DC power supplies, 1 AC equipped

28 Ports Switch Electrical Switch Lan Access Switch

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

Huawei S5720-36PC-EI-AC with 28 10/100/1000BASE-T ports, 4 of which are dual-purpose 10/100/1000BASE-T or SFP ports, 4 GE SFP ports, is one of the Huawei S5720 series switches. The S5720 series switches are energy-saving gigabit Ethernet switches, building on high-performance hardware, store-and-forward mode, and Huawei Versatile Routing Platform (VRP), the S5720 series support intelligent Stack (iStack), flexible Ethernet networking, and diversified security control. They provide customers with green, easy-to-manage, easy-to-expand, and cost-effective gigabit to the desktop solutions.

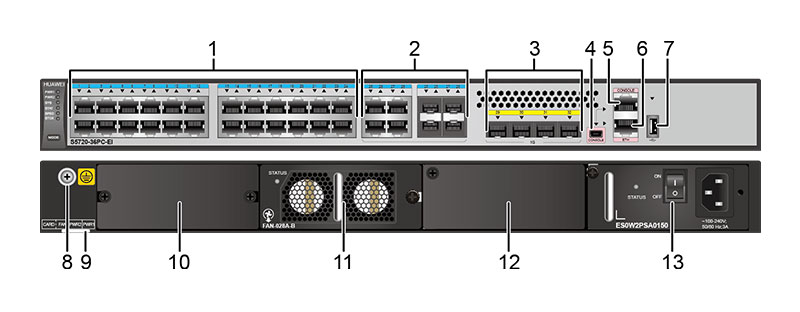

S5720-36PC-EI- AC appearance and structure

1. Twenty-four 10/100/1000BASE-T ports	8. Ground screw
2. Four combo ports (10/100/1000BASE-T + 100/1000BASE-X)	9. ESN label
3. Four 1000BASE-X ports	10. Rear card slot
4. One mini USB port	11. Rear card slot
5. One console port	12. Power module slot 2
6. One ETH management port	13. Power module slot 1
7. One USB port

S5720-36PC-EI- AC Datasheet

Item		S5720-36PC-EI- AC
Forwarding performance		78 Mpps
Switching capacity		598 Gbit/s
Extended slot		1
Ports description		28 10/100/1000 Ethernet ports 4 of which are dual-purpose 10/100/1000 or SFP ports, 4 GE SFP ports, 1 extended slot
Flexible card	Card slot	1
	Card type	2-port 10GE SFP+ interface card 2-port QSFP+ dedicated stack card
	Card specification	For details about cards, see the section Card Types.
Management port	ETH management port	Supported
	Console port (RJ45)	Supported
	Console port (Mini USB)	Supported
	USB port	USB 2.0
CPU	Frequency	1 GHz
CPU	Cores	2
Memory	Memory (RAM)	2 GB
Memory	Flash memory	Hardware: 512 MB, of which 340 MB is available for users
Power supply system	Power supply type	150 W AC (pluggable) 150 W DC (pluggable)
	Power supply specification	For details about power supplies, see the section Power Supply.
	Power supply redundancy	1+1
	Rated voltage range	AC: 100 V AC to 240 V AC; 50/60 Hz DC: -48 V DC to - 60 V DC
	Maximum voltage range	AC: 90 V AC to 264 V AC; 47-63 Hz DC: -36 V DC to - 72 V DC
	Maximum input current	150 W AC: 3 A 150 W DC: 6 A
	Maximum power consumption of the device	74.6 W
	Power consumption in the case of 30% traffic load	39.5 W (without cards) 47.28 W (with a 2-port 10GE optical card) 52.17 W (with a 2-port QSFP+ stack card)
	Power consumption in the case of 100% traffic load	46.4 W (without cards) 54.06 W (with a 2-port 10GE optical card) 59.36 W (with a 2-port QSFP+ stack card)
Heat dissipation system	Heat dissipation mode	Air-cooled heat dissipation and intelligent fan speed adjustment
	Number of fan modules	Pluggable dual fans
	Airflow	Air flows in from the left and right sides as well as the front panel, and exhausts from the rear panel
	Maximum heat dissipation of the device (BTU/hour)	259
Environment parameters	Long-term operating temperature	0-1800 m: 0°C to 45°C 1800-5000 m: The operating temperature decreases 1°C every time the altitude increases 220 m.
	Short-term operating temperature	0-1800 m: -5°C to +50°C 1800-5000 m: The operating temperature decreases 1°C every time the altitude increases 220 m.NOTE: Short term indicates that the successive operating time is no more than 96 hours, the total operating time is no more than 360 hours, or the number of times the operating temperature is over 45°C is no more than 15 in a year.
	Storage temperature	-40°C to +70°C
	Relative humidity	5%–95% (non-condensing)
	Operating altitude	AC: 5000 m DC: 2000 m
	Noise under normal temperature (sound power)	51.2 dB(A)
	Noise under high temperature (sound power)	71 dB(A)
	Noise under normal temperature (sound pressure)	37.5 dB(A)
	Surge protection specification (RJ45 service port)	±8 kV in common mode
	Surge protection specification (power port)	AC power interface: ±6 kV in differential or common mode DC power interface: ±1 kV in differential; ±2 kV in common mode
Reliability	MTBF (year)	Without cards: 80.05 With a 2-port 10GE SFP+ card: 73.65 With a stack card: 71.74
	MTTR (hour)	2
	Availability	> 0.99999
Certification		EMC certification Safety certification Manufacturing certification For details about certifications, see the section Safety and Regulatory Compliance.
Physical specifications	Chassis dimensions (W x D x H, mm)	442 x 420 x 44.4
	Chassis height	1 U
	Chassis weight (full configuration weight, including weight of packaging materials)	9.76 kg

S5720-36PC-EI- AC Datasheet

Item		S5720-36PC-EI- AC
Forwarding performance		78 Mpps
Switching capacity		598 Gbit/s
Extended slot		1
Ports description		28 10/100/1000 Ethernet ports 4 of which are dual-purpose 10/100/1000 or SFP ports, 4 GE SFP ports, 1 extended slot
Flexible card	Card slot	1
	Card type	2-port 10GE SFP+ interface card 2-port QSFP+ dedicated stack card
	Card specification	For details about cards, see the section Card Types.
Management port	ETH management port	Supported
	Console port (RJ45)	Supported
	Console port (Mini USB)	Supported
	USB port	USB 2.0
CPU	Frequency	1 GHz
CPU	Cores	2
Memory	Memory (RAM)	2 GB
Memory	Flash memory	Hardware: 512 MB, of which 340 MB is available for users
Power supply system	Power supply type	150 W AC (pluggable) 150 W DC (pluggable)
	Power supply specification	For details about power supplies, see the section Power Supply.
	Power supply redundancy	1+1
	Rated voltage range	AC: 100 V AC to 240 V AC; 50/60 Hz DC: -48 V DC to - 60 V DC
	Maximum voltage range	AC: 90 V AC to 264 V AC; 47-63 Hz DC: -36 V DC to - 72 V DC
	Maximum input current	150 W AC: 3 A 150 W DC: 6 A
	Maximum power consumption of the device	74.6 W
	Power consumption in the case of 30% traffic load	39.5 W (without cards) 47.28 W (with a 2-port 10GE optical card) 52.17 W (with a 2-port QSFP+ stack card)
	Power consumption in the case of 100% traffic load	46.4 W (without cards) 54.06 W (with a 2-port 10GE optical card) 59.36 W (with a 2-port QSFP+ stack card)
Heat dissipation system	Heat dissipation mode	Air-cooled heat dissipation and intelligent fan speed adjustment
	Number of fan modules	Pluggable dual fans
	Airflow	Air flows in from the left and right sides as well as the front panel, and exhausts from the rear panel
	Maximum heat dissipation of the device (BTU/hour)	259
Environment parameters	Long-term operating temperature	0-1800 m: 0°C to 45°C 1800-5000 m: The operating temperature decreases 1°C every time the altitude increases 220 m.
	Short-term operating temperature	0-1800 m: -5°C to +50°C 1800-5000 m: The operating temperature decreases 1°C every time the altitude increases 220 m.NOTE: Short term indicates that the successive operating time is no more than 96 hours, the total operating time is no more than 360 hours, or the number of times the operating temperature is over 45°C is no more than 15 in a year.
	Storage temperature	-40°C to +70°C
	Relative humidity	5%–95% (non-condensing)
	Operating altitude	AC: 5000 m DC: 2000 m
	Noise under normal temperature (sound power)	51.2 dB(A)
	Noise under high temperature (sound power)	71 dB(A)
	Noise under normal temperature (sound pressure)	37.5 dB(A)
	Surge protection specification (RJ45 service port)	±8 kV in common mode
	Surge protection specification (power port)	AC power interface: ±6 kV in differential or common mode DC power interface: ±1 kV in differential; ±2 kV in common mode
Reliability	MTBF (year)	Without cards: 80.05 With a 2-port 10GE SFP+ card: 73.65 With a stack card: 71.74
	MTTR (hour)	2
	Availability	> 0.99999
Certification		EMC certification Safety certification Manufacturing certification For details about certifications, see the section Safety and Regulatory Compliance.
Physical specifications	Chassis dimensions (W x D x H, mm)	442 x 420 x 44.4
	Chassis height	1 U
	Chassis weight (full configuration weight, including weight of packaging materials)	9.76 kg

Weight	19.0000 kg
Dimensions	71.5000 × 57.0000 × 23.0000 cm
